◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#71266) — 145 parça

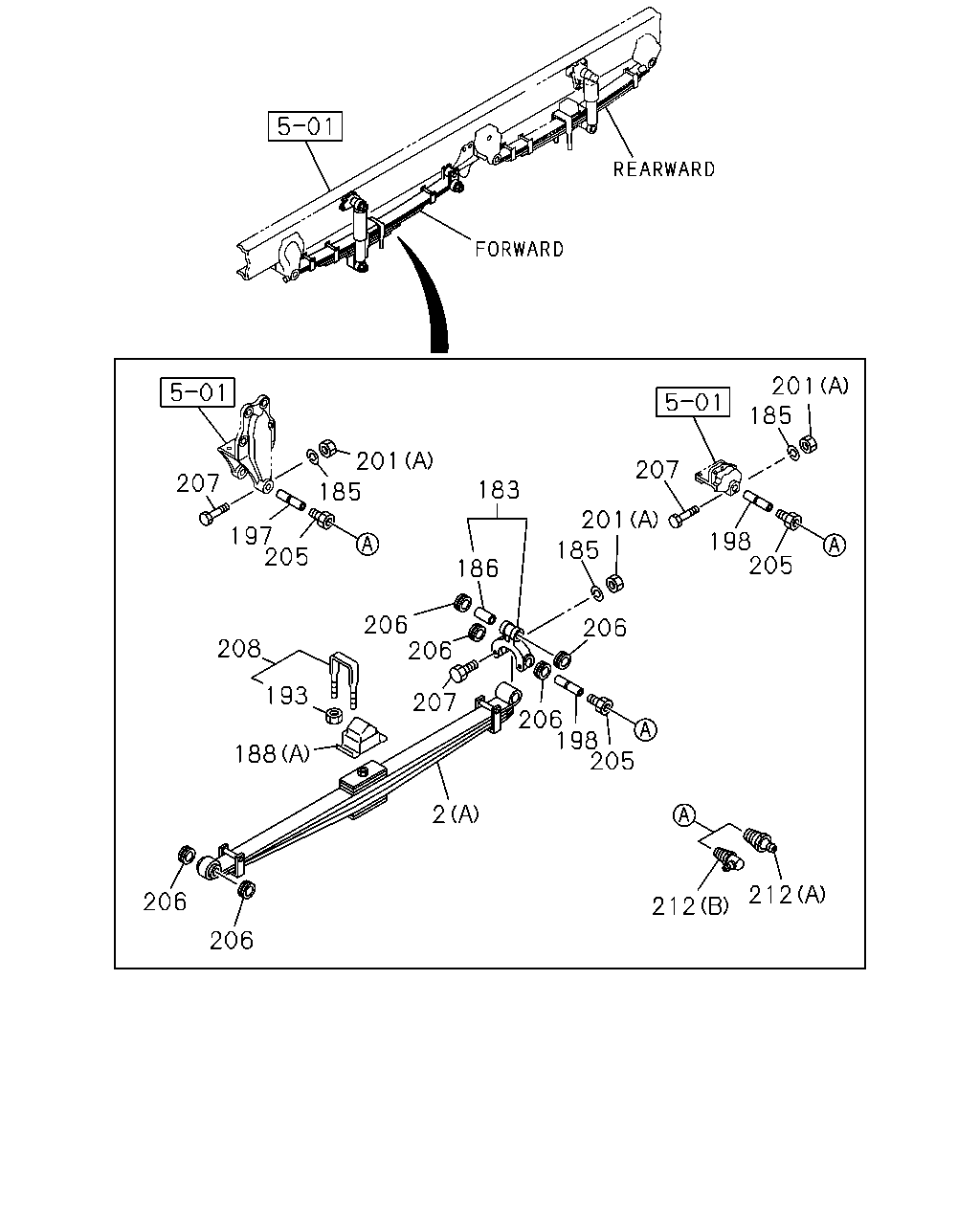

çizim 124038
201 185 207 197 205 208 188 193 206 207 206 186 183 185 201 207 185 201 205 198 198 205 206 206 2 212 212 206 206
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 7-LEAF 		8-98236-922-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> (B) 7-LEAF 		8-98236-925-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98290-625-0 02 1 1411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98090-276-0 02 1 1009-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98241-419-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (A) 3-LEAF 		8-98241-419-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98090-277-0 02 1 1009-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98241-420-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF 		8-98241-420-0 02 1 1408-1410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> SINGAPORE EQUIPMENT(WQ3) (B) 4-LEAF 		8-98241-420-0 02 1 1411-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1009-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1009-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1009-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51172-086-2 02 1 1408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT TAPER LEAF SUSPENSION<SAR> (B) 		1-51172-108-2 02 1 1408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-081-1 02 1 1009-1407
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> (B) 		1-51172-081-1 02 1 1408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-085-2 02 1 1009-1407
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51172-085-2 02 1 1408-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 1009-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-043-1 04 1 1009-1311
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1312-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-043-1 08 1 1009-1311
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1312-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 1009-
201 NUT; PIN LK
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1009-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1009-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1009-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1009-
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR> L=270 		1-87870-327-2 04 1 1408-
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR> L=250 		1-87870-494-0 04 1 1408-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 08 1 1009-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 08 1 1207-1407
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 08 1 1408-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1009-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1009-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 07 1 1009-

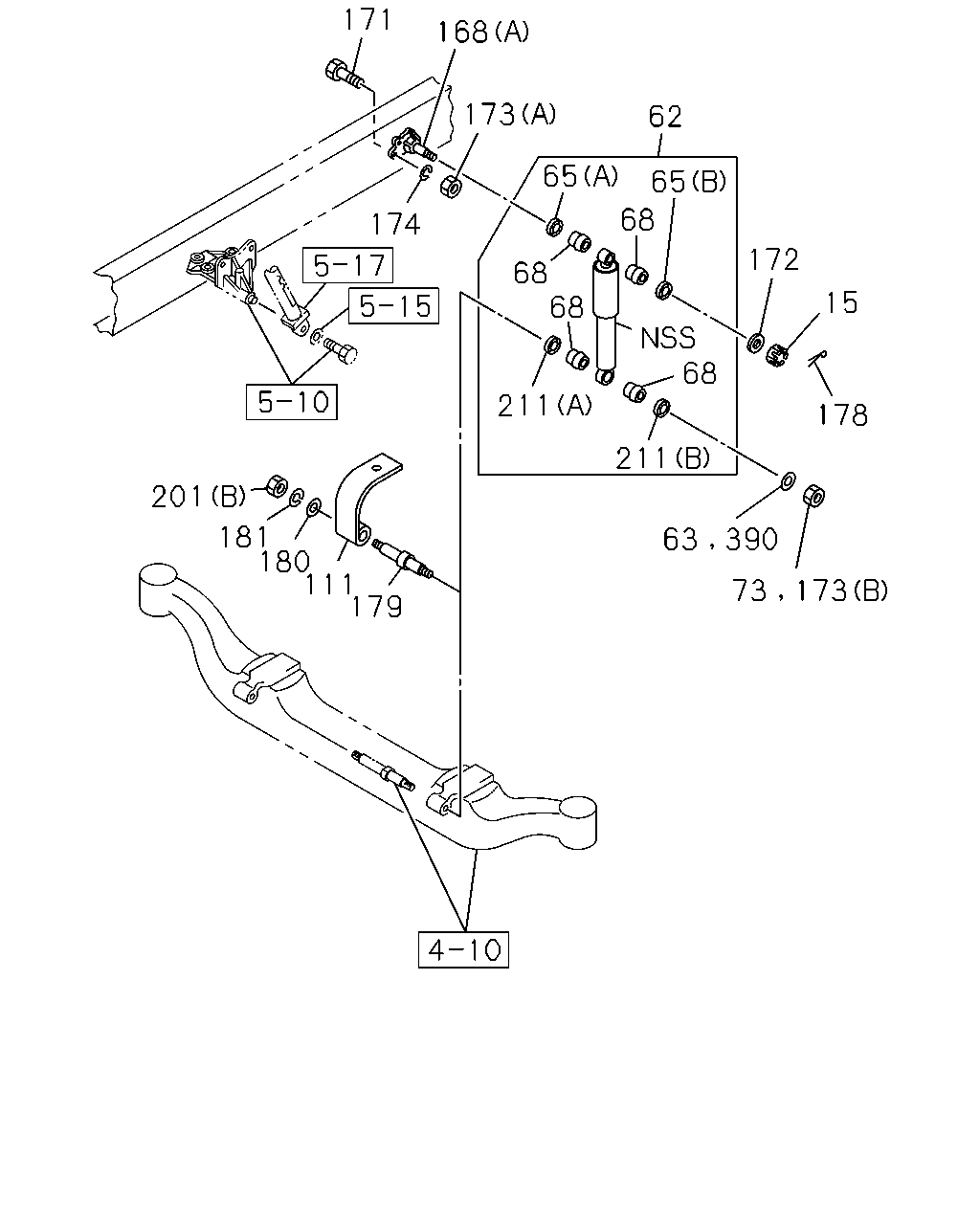

çizim 124186
171 173 168 174 65 62 65 68 68 68 172 178 211 211 68 63 73 390 173 179 111 180 181 201 15
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 1009-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-443-0 02 1 1408-
62 ABSORBER ASM; SHOCK,FRT 8-98169-270-0 02 1 1009-1407
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		8-98169-270-0 02 1 1408-
63 WASHER; PL,S/ABS,LWR
FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 04 1 1009-
63 WASHER; PL,S/ABS,LWR
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 02 1 1009-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 1009-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 1009-
68 BUSHING; S/ABS 9-51631-026-0 16 1 1009-
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 01 1 1009-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-627-0 02 1 1009-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 1009-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 1009-1012
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1101-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 1009-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 1009-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 1009-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 1009-
173 NUT; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) M20 		0-91110-520-0 02 1 1009-
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 1009-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 04 1 1009-1011
178 PIN; SPLIT,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> OD=3.7 L=35 		0-81124-035-0 02 1 1009-1011
179 PIN
FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 1009-
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 04 1 1009-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 02 1 1009-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 04 1 1009-
181 WASHER; LK,PIN
FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 02 1 1009-
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 04 1 1009-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 1009-
201 NUT; PIN LK
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1009-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1009-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1009-
390 WASHER; PL,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 02 1 1009-
çizim 189399
140 140 137
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-111-0 01 1 1009-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X50 		0-20951-450-0 04 1 1009-

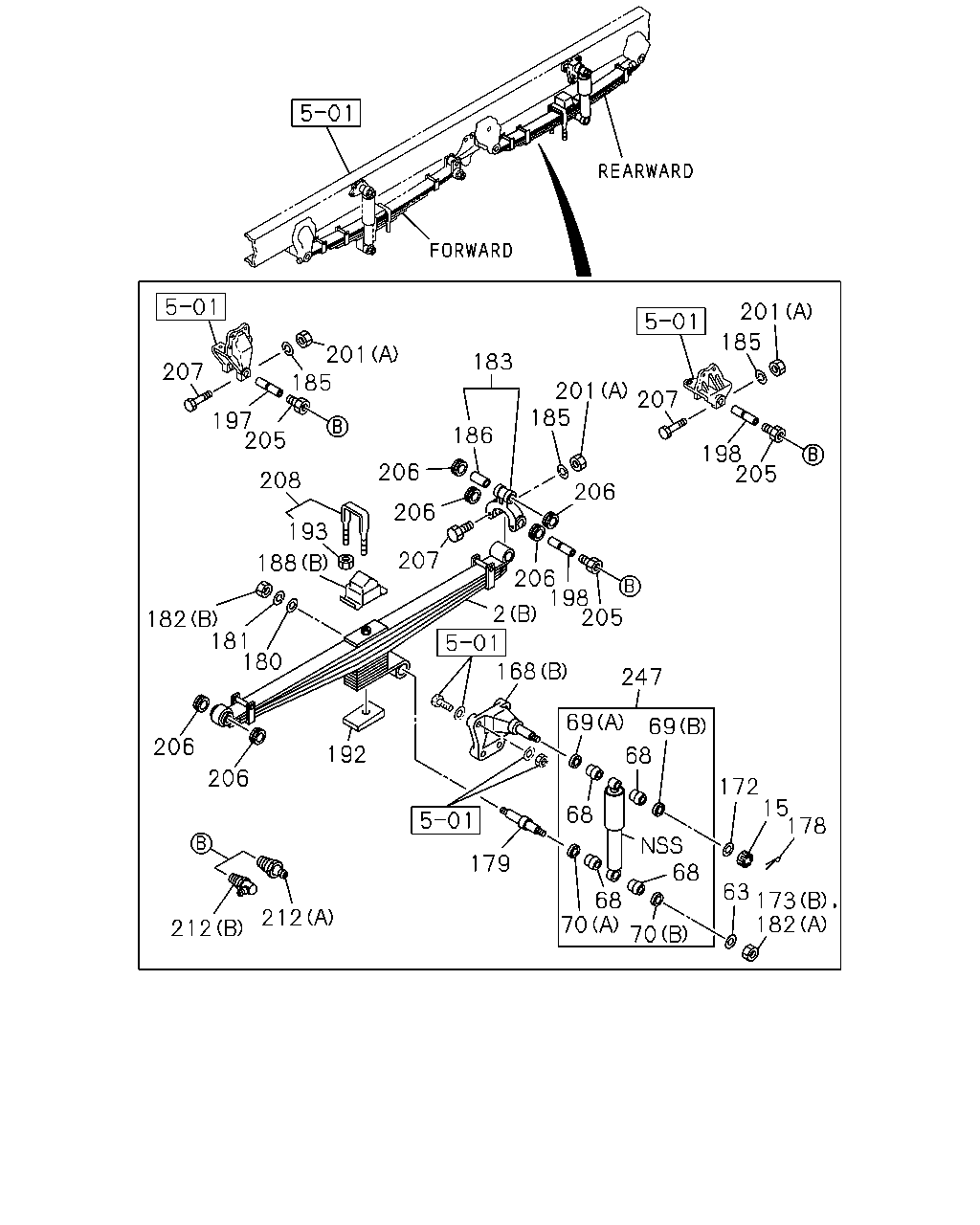

çizim 345456
207 185 201 197 208 205 206 207 206 186 183 193 188 182 181 180 192 206 206 212 212 179 168 206 198 205 247 69 69 68 68 68 70 70 68 172 15 178 63 173 182 2 185 201 207 185 201 198 206 205
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 7-LEAF 		8-98236-922-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> (B) 7-LEAF 		8-98236-925-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98290-625-0 02 1 1411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98090-276-0 02 1 1009-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98241-419-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (A) 3-LEAF 		8-98241-419-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98090-277-0 02 1 1009-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98241-420-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF 		8-98241-420-0 02 1 1408-1410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> SINGAPORE EQUIPMENT(WQ3) (B) 4-LEAF 		8-98241-420-0 02 1 1411-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 1009-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
63 WASHER; PL,S/ABS,LWR
FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 04 1 1009-
63 WASHER; PL,S/ABS,LWR
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 02 1 1009-
68 BUSHING; S/ABS 9-51631-026-0 16 1 1009-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1009-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1009-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1009-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1009-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 1009-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 1009-1012
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1101-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 1009-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 1009-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 1009-
173 NUT; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) M20 		0-91110-520-0 02 1 1009-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 04 1 1009-1011
178 PIN; SPLIT,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> OD=3.7 L=35 		0-81124-035-0 02 1 1009-1011
179 PIN
FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 1009-
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 04 1 1009-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 02 1 1009-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 04 1 1009-
181 WASHER; LK,PIN
FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 02 1 1009-
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 04 1 1009-
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 1009-
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> (A) M20 		0-91110-520-0 01 1 1009-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1009-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1009-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1009-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51172-086-2 02 1 1408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT TAPER LEAF SUSPENSION<SAR> (B) 		1-51172-108-2 02 1 1408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-081-1 02 1 1009-1407
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> (B) 		1-51172-081-1 02 1 1408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-085-2 02 1 1009-1407
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51172-085-2 02 1 1408-
192 PIECE; DIST 1-51177-281-1 02 1 1009-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 1009-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-043-1 04 1 1009-1311
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1312-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-043-1 08 1 1009-1311
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1312-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 1009-
201 NUT; PIN LK
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1009-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1009-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1009-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1009-
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR> L=270 		1-87870-327-2 04 1 1408-
208 U-BOLT SET; FRT SPRING
EXC. FRT TAPER LEAF SUSPENSION<SAR> L=250 		1-87870-494-0 04 1 1408-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 08 1 1009-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 08 1 1207-1407
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 08 1 1408-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1009-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1009-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 07 1 1009-
247 ABSORBER ASM; SHOCK,RWD FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-444-0 02 1 1408-
247 ABSORBER ASM; SHOCK,RWD FRT 8-98169-268-0 02 1 1009-1407
247 ABSORBER ASM; SHOCK,RWD FRT
FRT TAPER LEAF SUSPENSION<SAR> 		8-98169-268-0 02 1 1408-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
