4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#71261) — 112 parça

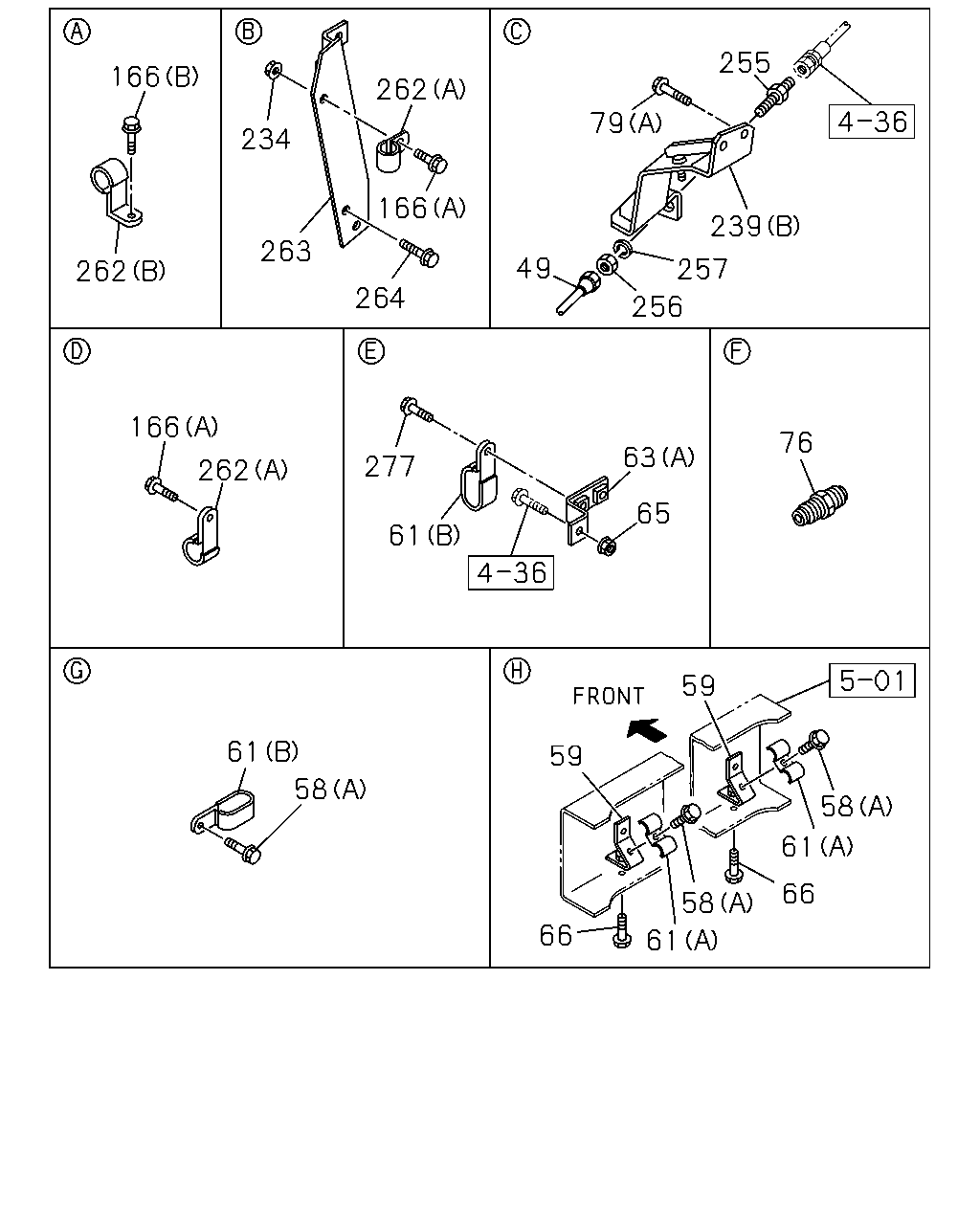

166 262 234 262 263 166 264 79 255 239 257 256 76 63 65 277 61 166 262 59 59 58 61 66 58 61 66 58 61 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1009-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (D) M8X60 FLANGE	0-28050-860-0	01	1	1009-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE	1-47479-521-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1009-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1009-
63	BRACKET; CLIP,P/S (A)	1-47479-482-0	01	1	1009-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28050-820-0	02	1	1009-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1009-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1009-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1009-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1009-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-

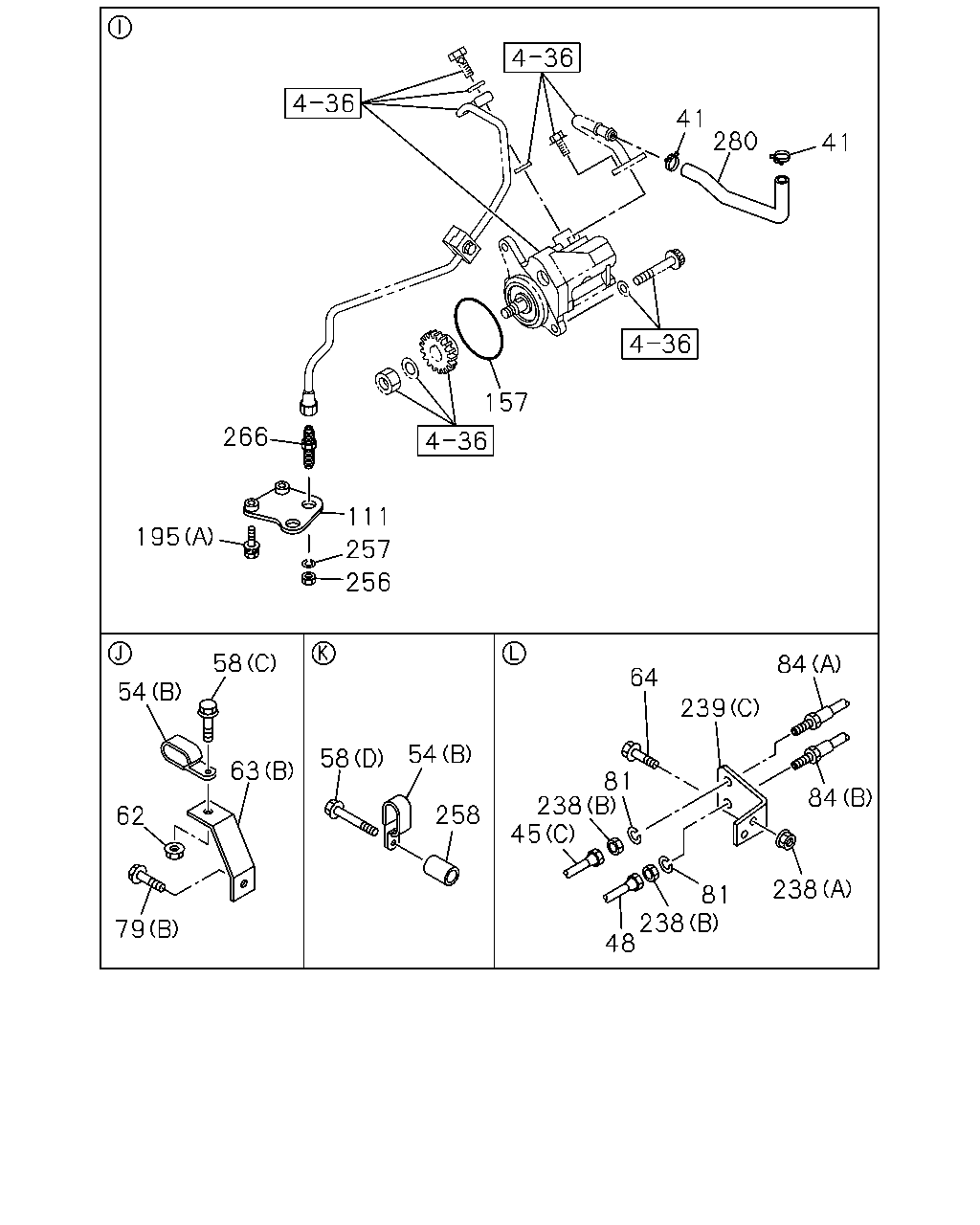

41 280 41 157 266 111 257 256 195 54 58 63 62 79 58 54 258 64 84 239 84 238 81 238 48 238 45 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98175-554-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98166-065-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98166-066-0	01	1	1009-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98175-555-0	01	1	1009-
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1009-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1009-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (D) M8X60 FLANGE	0-28050-860-0	01	1	1009-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1009-
63	BRACKET; CLIP,P/S (A)	1-47479-482-0	01	1	1009-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1009-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1009-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1009-
111	BRACKET; OIL PIPE	8-98131-436-0	01	1	1009-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1009-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1009-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1009-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	1009-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1009-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	1009-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1009-
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1009-

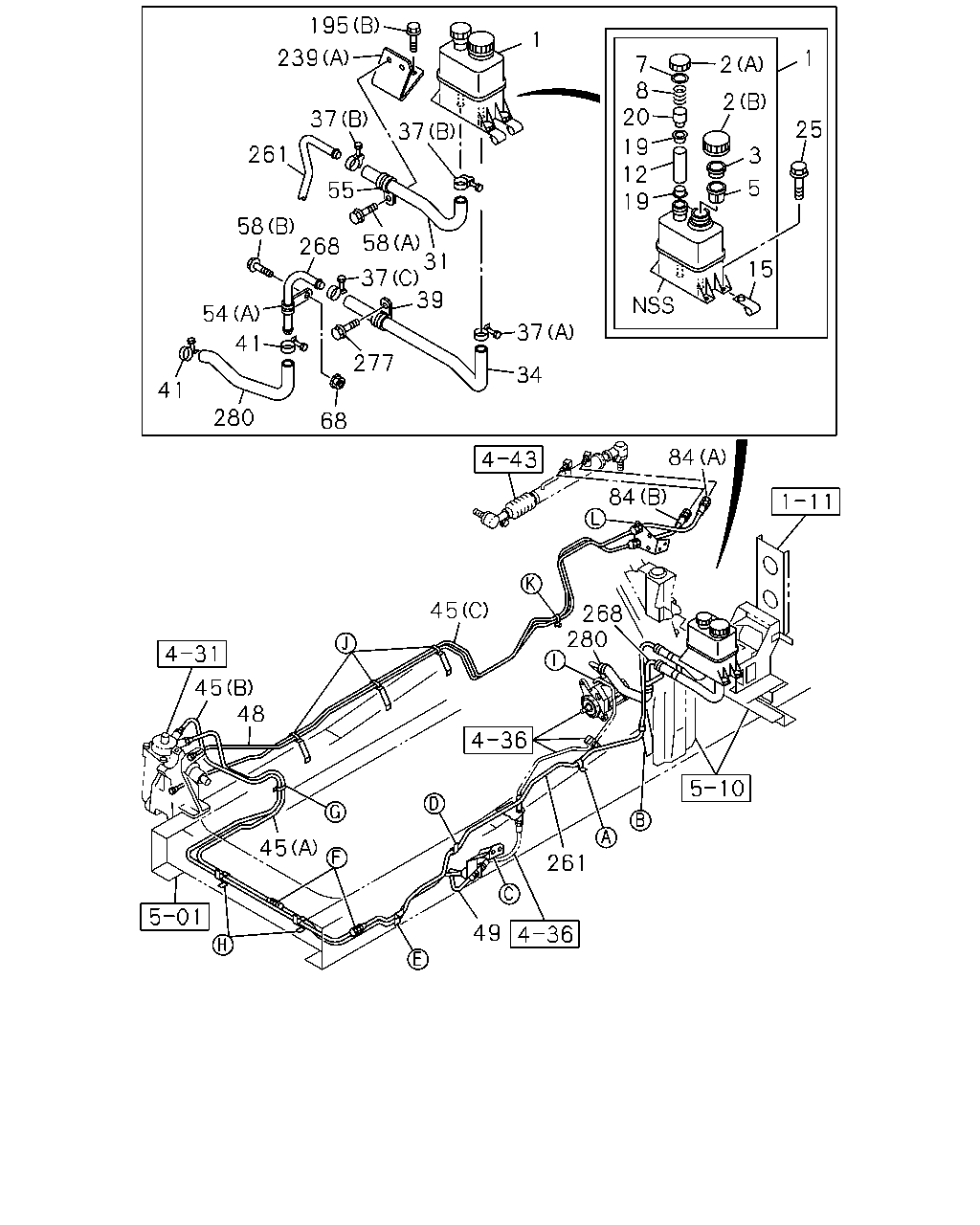

195 239 37 261 37 55 58 268 58 37 31 39 277 54 41 41 280 68 1 7 8 20 19 12 19 2 2 1 25 3 5 15 37 34 84 84 268 280 45 261 49 45 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1009-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1009-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1009-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1009-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1009-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1009-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1009-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1009-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98166-662-0	01	1	1009-
34	HOSE; P/S OIL TANK,OUTLET	8-98166-663-0	01	1	1009-
37	CLIP; HOSE,P/S (C) ID=32	1-09704-085-0	01	1	1009-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	1009-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1009-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1009-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98175-554-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98166-065-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98166-066-0	01	1	1009-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98175-555-0	01	1	1009-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1009-
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1009-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1009-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (D) M8X60 FLANGE	0-28050-860-0	01	1	1009-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1009-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1009-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1009-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1009-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1009-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98166-067-0	01	1	1009-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1009-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1009-
