Isuzu WW
▶
TRUCKS
▶
FYH
▶
11308 - FYH RHD EURO5 ENGINE REAR PTO
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶
4-33 — STEERING LINKAGE
(#71260) — 38 parça
◀
[433A] COMPONENT;DRAG LINK (18 parça)
[433A] FIXING;DRAG LINK (20 parça)
▶
85
86
87
88
89
86
86
88
89
88
89
87
67
65
66
97
66
65
137
135
137
135
137
136
65
56
134
65
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
STUD
M14X37 L=66
1-09300-095-1
01
1
1009-
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-208-0
01
1
1009-
65
SEAL; DUST,LINK ARM
(A) ID=32
1-44159-058-1
02
1
1009-
65
SEAL; DUST,LINK ARM
(B) ID=38
1-44349-017-0
02
1
1009-
66
BEARING; LINK ARM
1-09812-149-0
02
1
1009-
67
PIN; LINK ARM UPR
1-44346-011-3
01
1
1009-
85
ROD ASM; LINK
8-98167-196-1
01
1
1009-
86
BOLT; ROD END TO LINK ROD
M12X45
8-98036-382-0
06
1
1009-
87
END; ROD
1-44380-121-1
02
1
1009-
88
WASHER; LK,ROD END TO LINK ROD
ID=12.2
0-91510-812-0
06
1
1009-
89
NUT; ROD END TO LINK ROD
M12
0-91110-512-0
06
1
1009-
97
BRACKET; LINK ARM
1-44348-077-0
01
1
1009-
134
BOLT; PIN SET LINK ARM
1-44349-016-2
01
1
1009-
135
WASHER; LK,PIN SET,LINK ARM
(B) ID=8.2
0-91510-808-0
01
1
1009-
135
WASHER; LK,PIN SET,LINK ARM
(A) M31
1-09533-015-1
01
1
1009-
136
WASHER; PL,SPINDLE,LINK ARM
ID=8.4 OD=16
0-91614-508-0
01
1
1009-
137
NUT; PIN SET LINK ARM
(B) M8
0-91110-508-0
01
1
1009-
137
NUT; PIN SET LINK ARM
(A) M30
1-09400-102-0
02
1
1009-

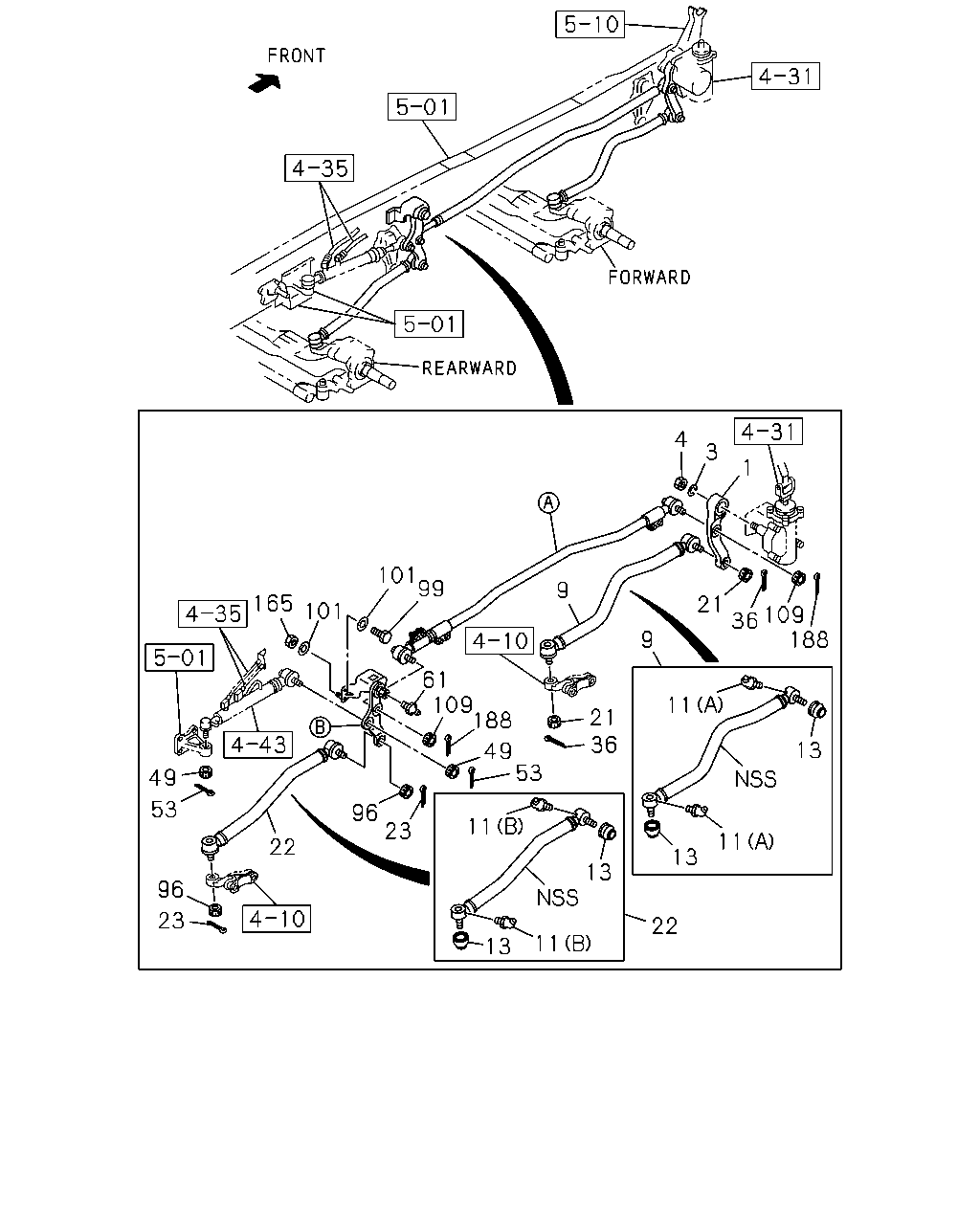

4
3
1
188
109
36
21
9
9
11
13
11
13
22
13
36
21
99
101
61
109
188
49
53
11
11
13
23
96
22
23
96
53
49
165
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
8-98152-796-1
01
1
1009-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-056-0
01
1
1009-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
1009-
9
LINK; DRAG
8-98152-798-0
01
1
1009-
11
NIPPLE; GREASE,DRAG LINK
(A)
1-43159-132-0
02
1
1009-
11
NIPPLE; GREASE,DRAG LINK
(B)
8-98160-122-0
02
1
1009-
13
BOOT; DRAG LINK
1-43159-134-0
04
1
1009-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-028-0
02
1
1009-
22
LINK; DRAG,2ND
1-44380-334-0
01
1
1009-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
0-81125-035-0
02
1
1009-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
1009-
49
NUT; BOOSTER,BRKT SIDE
M24
1-09442-032-0
02
1
1009-
53
PIN; SPLIT,BOOSTER,BRKT SIDE
OD=4.6 L=35
0-81125-035-0
02
1
1009-
61
NIPPLE; PIN LINK ARM
PT1/8 STRAIGHT
0-90301-410-0
01
1
1009-
96
NUT; LINK ARM
M24 SLOTTED
1-09442-028-0
02
1
1009-
99
BOLT; BRKT
M14X50
0-20951-450-0
03
1
1009-
101
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1009-
109
NUT; ROD
M24
1-09442-032-0
02
1
1009-
165
NUT; BRKT
M14
0-91110-514-0
01
1
1009-
188
PIN; ROD
OD=4.6 L=35
0-81125-035-0
02
1
1009-
