Isuzu WW
▶
TRUCKS
▶
FYH
▶
11308 - FYH RHD EURO5 ENGINE REAR PTO
▶
3 - Brakes, Brake System
▶

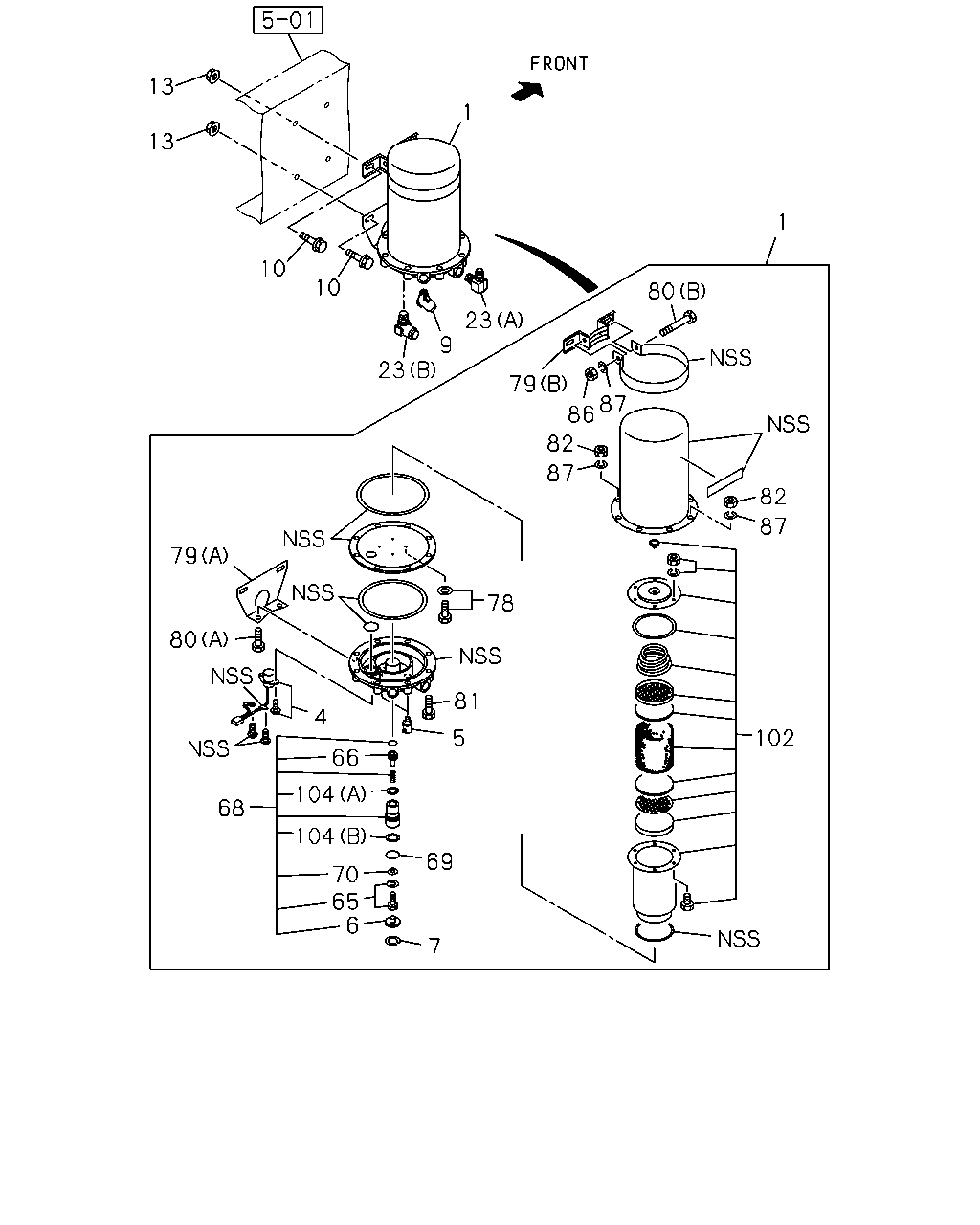

3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#71246) — 38 parça
◀
[346A] REPAIR KIT AND PISTON KIT (10 parça)
[346A] COMPONENT AND THERMOSTAT KIT (28 parça)
▶
2
3
104
104
70
69
68
66
104
104
70
65
6
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-379-0
01
1
1009-
3
PISTON KIT; AIR DRYER
1-85576-139-0
01
1
1009-
6
COVER; EXH,AIR DRYER
1-48199-419-0
01
1
1009-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1009-
66
PISTON; AIR DRYER
1-48199-198-0
01
1
1009-
68
BODY; VALVE
1-48199-352-0
01
1
1009-
69
GASKET; EXH COVER
1-48199-153-0
01
1
1009-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1009-
104
GASKET
(A)
1-48199-108-0
01
1
1009-
104
GASKET
(B)
1-48199-109-0
01
1
1009-
1
1
13
13
10
10
23
9
23
79
80
87
86
82
87
82
87
78
81
5
4
79
80
68
66
104
104
70
65
6
69
7
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-324-1
01
1
1009-
4
THERMOSTAT KIT; AIR DRYER
1-85576-216-0
01
1
1009-
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
1009-
6
COVER; EXH,AIR DRYER
1-48199-419-0
01
1
1009-
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
1009-
9
CONNECTOR; PIPE,AIR DRYER
DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1009-
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28651-030-0
02
1
1009-
10
BOLT; AIR DRYER
M10X40 FLANGE
0-28651-040-0
02
1
1009-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
1009-
23
CONNECTOR; AIR TANK
(A) M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1009-
23
CONNECTOR; AIR TANK
(B) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1009-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1009-
66
PISTON; AIR DRYER
1-48199-198-0
01
1
1009-
68
BODY; VALVE
1-48199-352-0
01
1
1009-
69
GASKET; EXH COVER
1-48199-153-0
01
1
1009-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1009-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-494-0
04
1
1009-
79
BRACKET; AIR DRYER
(B)
1-48199-336-0
01
1
1009-
79
BRACKET; AIR DRYER
(A)
1-48199-354-0
01
1
1009-
80
BOLT; BRKT
(B)
1-48199-335-0
01
1
1009-
80
BOLT; BRKT
(A)
1-48199-338-0
02
1
1009-
81
BOLT; CASE,AIR DRYER
1-48199-341-0
06
1
1009-
82
NUT; CASE,AIR DRYER
1-48199-421-0
08
1
1009-
86
NUT; BRKT
1-48199-333-0
01
1
1009-
87
WASHER; LK,BRKT
1-48199-334-0
09
1
1009-
102
CARTRIDGE; AIR DRYER
1-48199-493-0
01
1
1009-
104
GASKET
(A)
1-48199-108-0
01
1
1009-
104
GASKET
(B)
1-48199-109-0
01
1
1009-
