◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#71240) — 362 parça

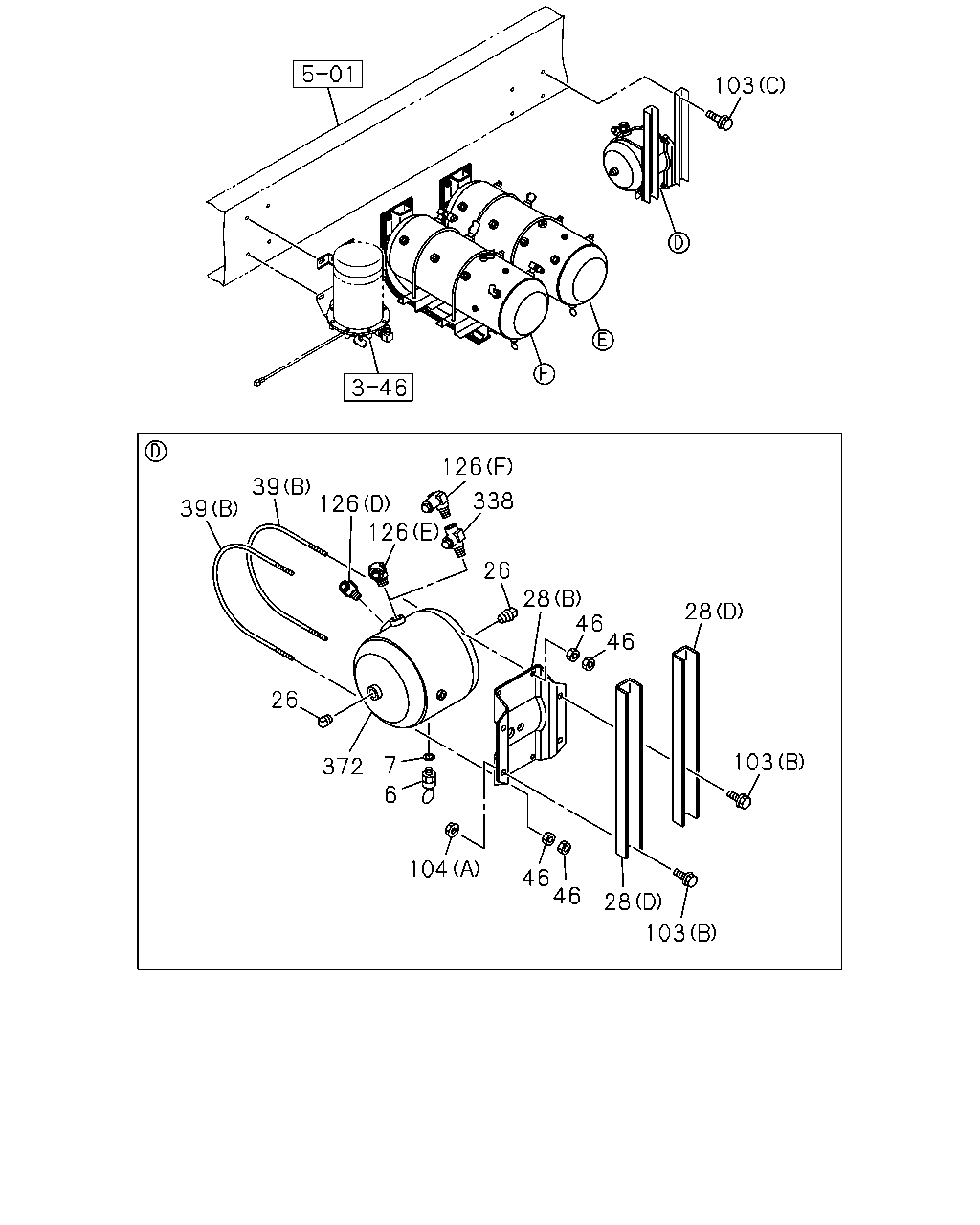

çizim 115409
103 39 126 126 26 338 28 46 46 26 372 6 104 46 46 28 103 103 28 39 126 7
BalonParca AdiParca NoAdetTipApplied Date
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1107-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 07 1 1009-1106
6 COCK; DRAIN,AIR TANK 1-48312-015-0 06 1 1107-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1107-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 1009-1106
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1107-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1110-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1009-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1009-
28 BRACKET; AIR TANK
(B) 		8-98092-756-1 01 1 1009-
28 BRACKET; AIR TANK
(C) 		8-98093-562-1 01 1 1009-
28 BRACKET; AIR TANK
(D) 		8-98100-973-1 02 1 1009-
28 BRACKET; AIR TANK
(E) 		8-98112-257-0 01 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 08 1 1009-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1009-
46 NUT; U-BOLT
M8 		0-91110-508-0 40 1 1009-1109
46 NUT; U-BOLT
M8 		0-91110-508-0 32 1 1110-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1109
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1110-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1110-
103 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
103 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1009-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1009-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1009-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1009-
126 CONNECTOR; ELBOW
(F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 05 1 1009-1106
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1107-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1107-
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 1009-1504
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1109
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1110-1504
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(G) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
126 CONNECTOR; ELBOW
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1504
338 CONNECTOR; 3WAY VLV
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1110-
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1009-

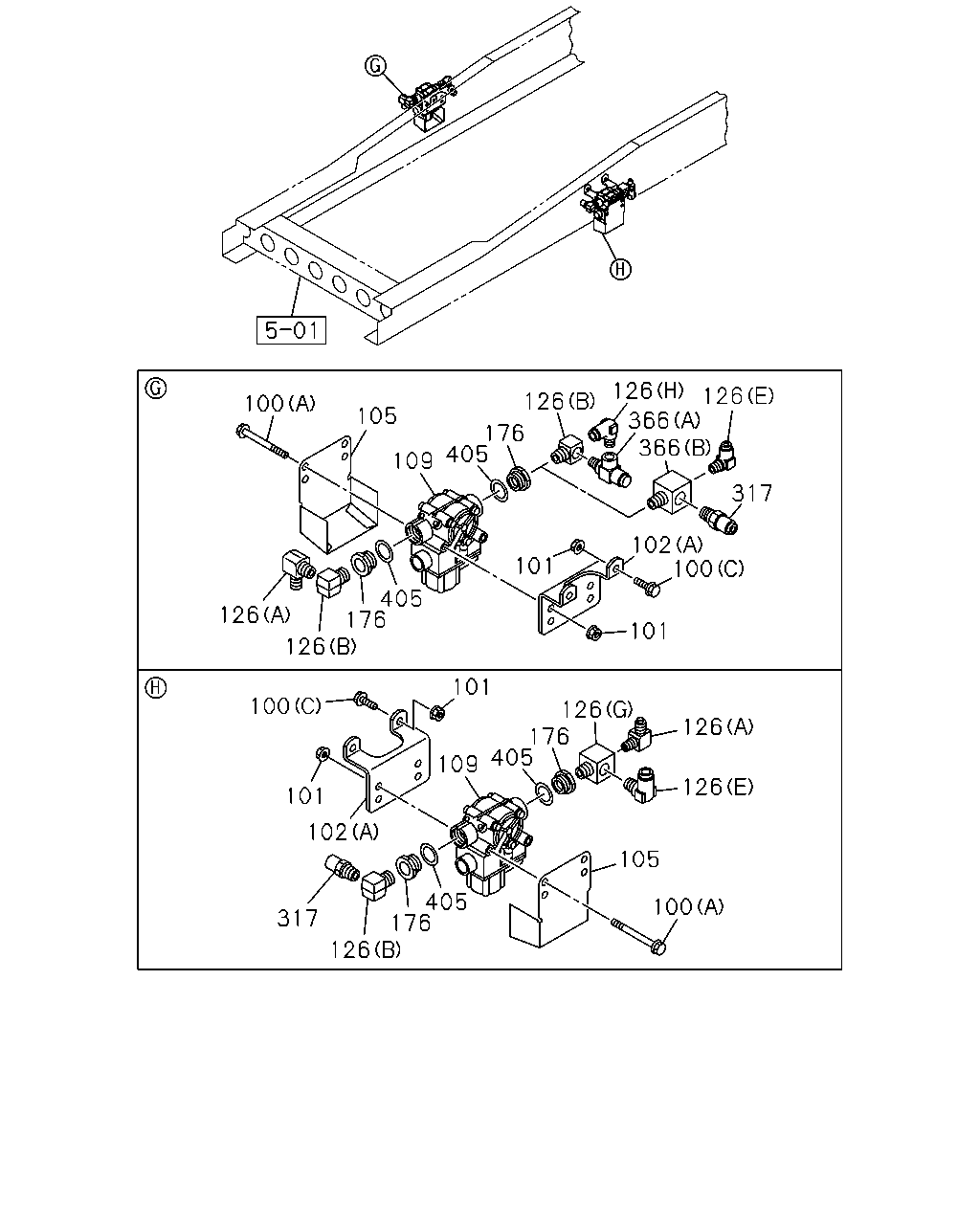

çizim 115630
100 105 126 126 366 366 126 317 102 100 101 101 109 405 176 126 126 405 176 100 101 101 109 126 126 126 105 100 405 176 126 317 102 405 176
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1009-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 1009-
100 BOLT; MODULATOR
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1009-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1505-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 10 1 1009-1504
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1505-
102 BRACKET; MODULATOR
(A) 		8-98302-564-0 01 1 1505-
102 BRACKET; MODULATOR
(A) 		1-47479-635-0 02 1 1009-1504
102 BRACKET; MODULATOR
(A) 		8-98302-563-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-98034-539-2 01 1 1009-1504
102 BRACKET; MODULATOR
(B) 		8-98272-821-0 01 1 1505-
105 COVER; MODULATOR 8-98302-925-0 01 1 1505-
105 COVER; MODULATOR 1-47471-354-0 02 1 1009-1504
105 COVER; MODULATOR 8-98302-924-0 01 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1009-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 05 1 1009-1106
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1107-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1107-
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 1009-1504
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1109
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1110-1504
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(G) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
126 CONNECTOR; ELBOW
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1505-
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 06 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1505-
317 CONNECTOR; MODULATOR
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1009-1504
317 CONNECTOR; MODULATOR
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1505-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1009-1504
366 CONNECTOR; NYLON TUBE
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1505-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1009-

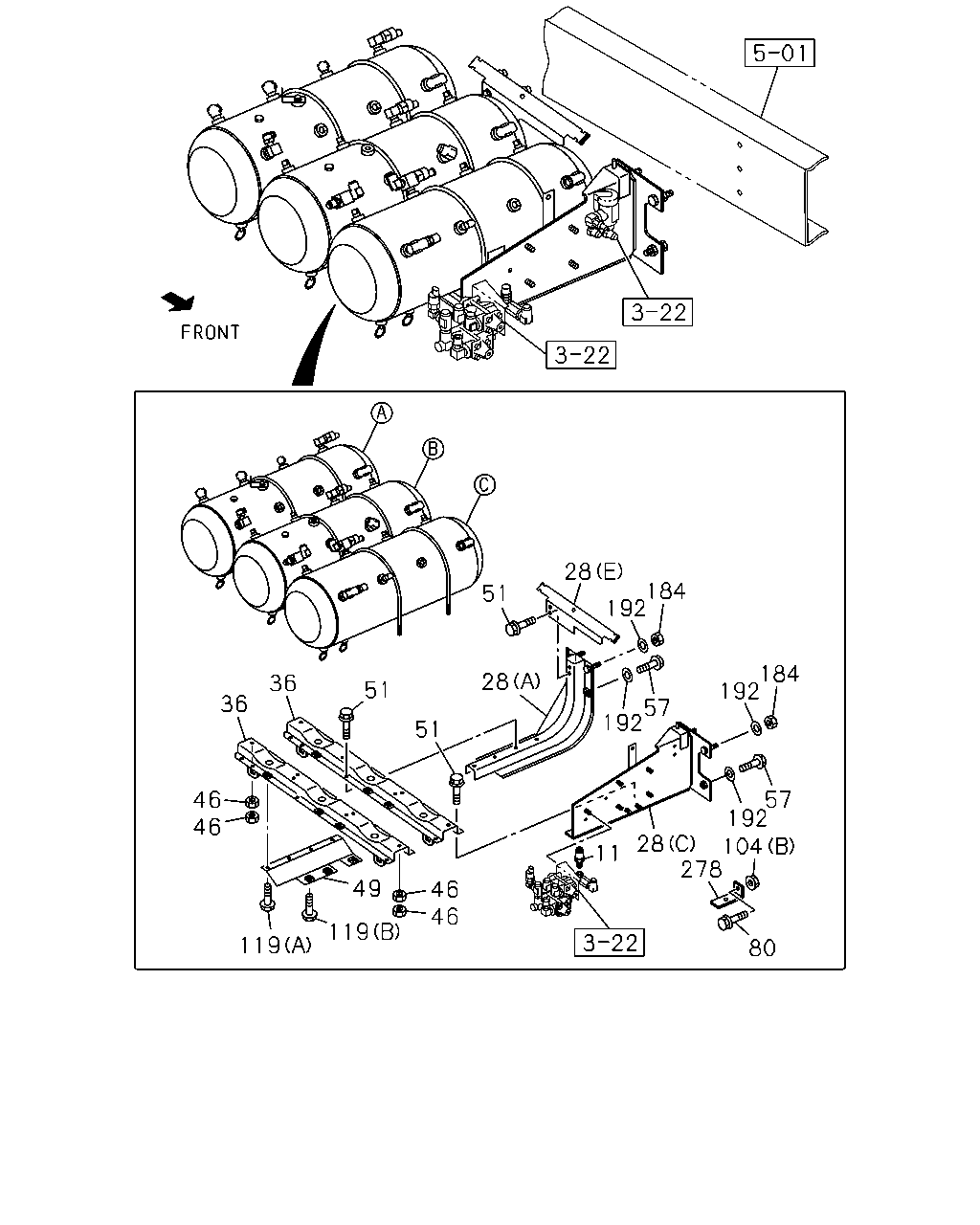

çizim 115659
80 278 192 192 57 192 28 11 49 119 119 46 36 36 51 51 28 51 192 28 184 184 57 104 46 46 46
BalonParca AdiParca NoAdetTipApplied Date
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1009-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1009-
28 BRACKET; AIR TANK
(B) 		8-98092-756-1 01 1 1009-
28 BRACKET; AIR TANK
(C) 		8-98093-562-1 01 1 1009-
28 BRACKET; AIR TANK
(D) 		8-98100-973-1 02 1 1009-
28 BRACKET; AIR TANK
(E) 		8-98112-257-0 01 1 1009-
36 STAY; MAIN TANK 8-97618-091-1 02 1 1009-
46 NUT; U-BOLT
M8 		0-91110-508-0 40 1 1009-1109
46 NUT; U-BOLT
M8 		0-91110-508-0 32 1 1110-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1109
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1110-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1110-
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1009-
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1009-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1009-
80 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1009-
104 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1009-
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1009-
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1009-
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1009-
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1009-
çizim 189363
103 126 102 369 107 257 352 176 352 126 257 107 101 369 352 352 100 176
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1009-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 1009-
100 BOLT; MODULATOR
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1009-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1505-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 10 1 1009-1504
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1505-
102 BRACKET; MODULATOR
(A) 		8-98302-564-0 01 1 1505-
102 BRACKET; MODULATOR
(A) 		1-47479-635-0 02 1 1009-1504
102 BRACKET; MODULATOR
(A) 		8-98302-563-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-98034-539-2 01 1 1009-1504
102 BRACKET; MODULATOR
(B) 		8-98272-821-0 01 1 1505-
103 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
103 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1009-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1009-
107 MODULATOR; RR 1-48240-115-0 02 1 1009-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 05 1 1009-1106
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1107-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1107-
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 1009-1504
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1109
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1110-1504
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(G) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
126 CONNECTOR; ELBOW
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1505-
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 06 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1505-
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 02 1 1009-
352 CONNECTOR; STRAIGHT
(B) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1009-
352 CONNECTOR; STRAIGHT
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1009-
369 CONNECTOR; 3WAY
PT3/8 3WAY 		1-09661-300-0 02 1 1009-
çizim 189365
241 158
BalonParca AdiParca NoAdetTipApplied Date
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1009-
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1009-

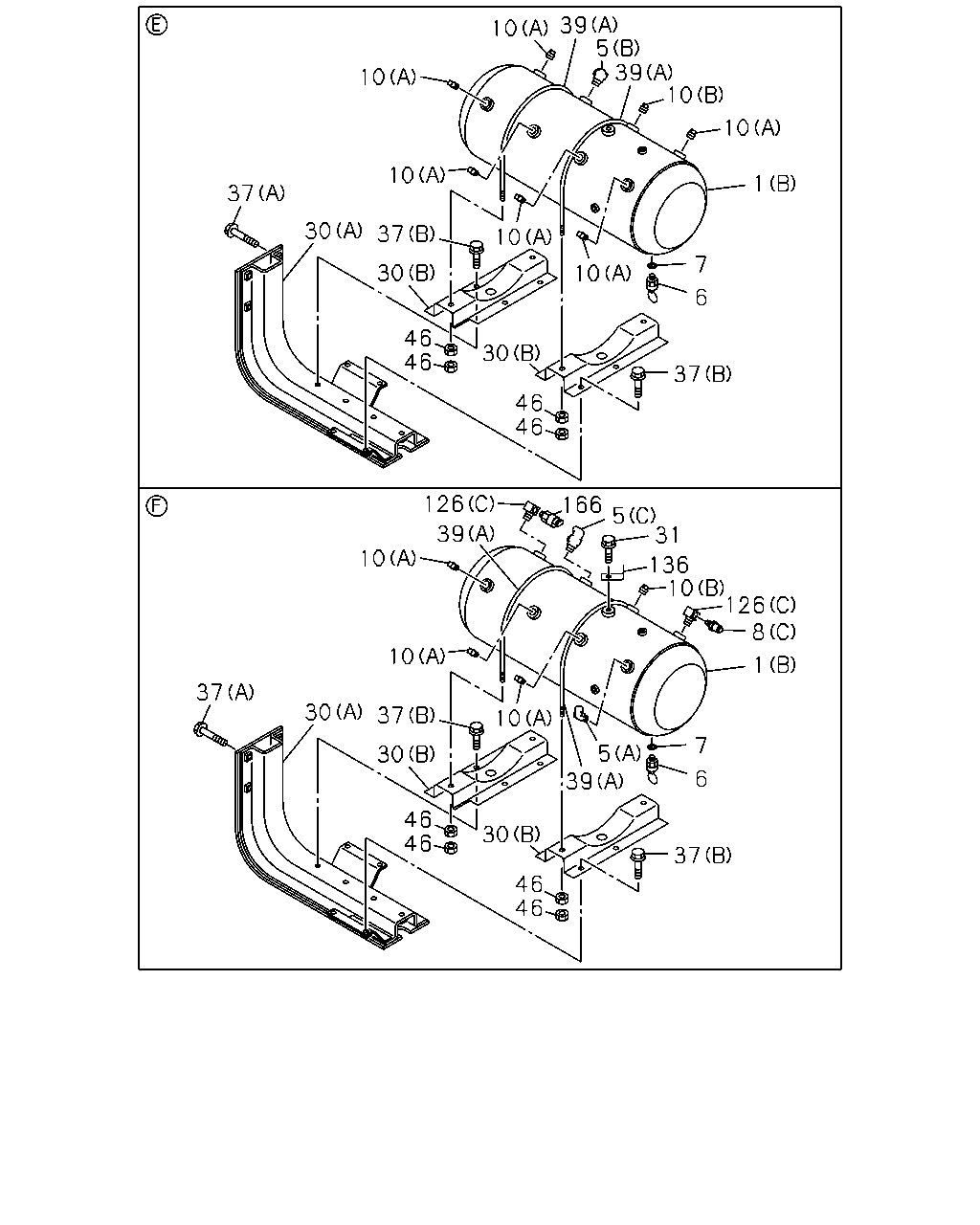

çizim 189367
10 10 10 10 10 10 10 10 10 10 10 39 5 39 1 7 6 37 46 46 30 46 46 30 37 30 37 126 39 37 30 30 37 46 46 30 46 46 5 39 7 6 37 1 8 126 136 31 5 166
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1009-1106
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-97617-855-1 04 1 1009-1106
1 TANK ASM; AIR
(B) 		8-98187-713-0 03 1 1107-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1009-1106
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1107-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1107-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1107-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 09 1 1009-1106
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1107-
5 UNION; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1009-
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1107-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 07 1 1009-1106
6 COCK; DRAIN,AIR TANK 1-48312-015-0 06 1 1107-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1107-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 1009-1106
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1107-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1110-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1107-
8 CONNECTOR; AIR TANK
(A) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 02 1 1009-
8 CONNECTOR; AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1009-1106
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1107-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1107-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1107-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 16 1 1009-1106
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 15 1 1107-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 05 1 1009-1106
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 04 1 1107-
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-393-0 02 1 1009-
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-394-0 04 1 1009-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1106
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1107-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1107-
37 BOLT; AIR TANK
(A) M10X40 FLANGE 		0-28651-040-0 08 1 1009-
37 BOLT; AIR TANK
(B) M10X25 FLANGE 		0-28651-025-0 16 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 08 1 1009-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1009-
46 NUT; U-BOLT
M8 		0-91110-508-0 40 1 1009-1109
46 NUT; U-BOLT
M8 		0-91110-508-0 32 1 1110-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1009-1109
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1110-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1110-
126 CONNECTOR; ELBOW
(F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 05 1 1009-1106
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1107-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1107-
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 1009-1504
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1109
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1110-1504
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(G) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
126 CONNECTOR; ELBOW
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1504
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 02 1 1009-1106
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1107-
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1107-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1107-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 04 1 1009-1106
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 03 1 1107-

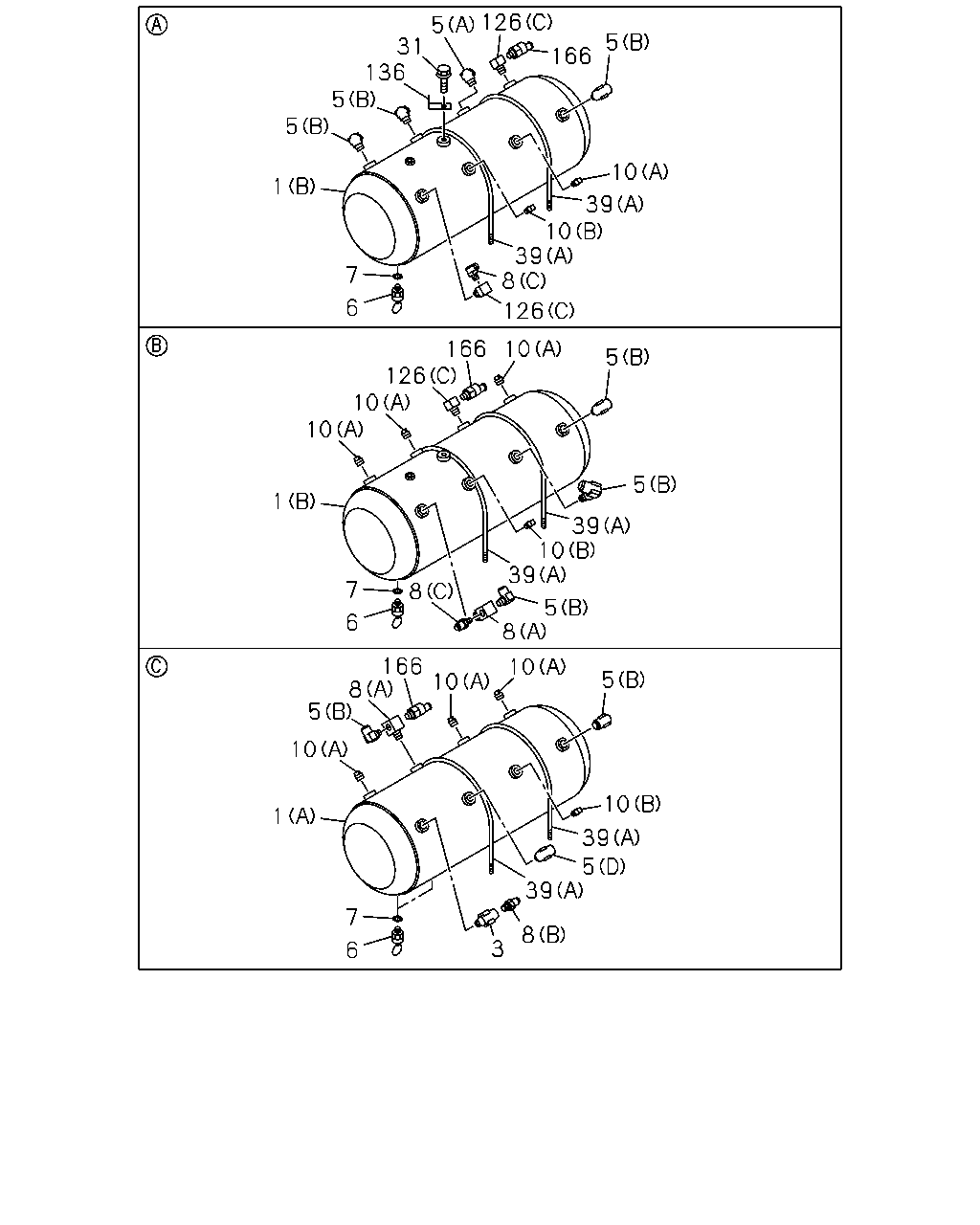

çizim 189371
126 5 31 136 5 5 1 7 6 126 8 39 10 39 10 5 166 166 5 126 10 10 1 5 39 10 39 5 8 6 7 8 10 166 8 5 10 1 7 39 39 5 10 10 10 5 8 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1009-1106
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-97617-855-1 04 1 1009-1106
1 TANK ASM; AIR
(B) 		8-98187-713-0 03 1 1107-
3 VALVE; CHECK,AIR TANK 1-48320-031-1 01 1 1009-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1009-1106
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1107-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1107-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1107-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 09 1 1009-1106
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1107-
5 UNION; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1009-
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1009-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1107-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 07 1 1009-1106
6 COCK; DRAIN,AIR TANK 1-48312-015-0 06 1 1107-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1107-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 1009-1106
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 06 1 1107-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1110-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1107-
8 CONNECTOR; AIR TANK
(A) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 02 1 1009-
8 CONNECTOR; AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1009-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1009-1106
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1107-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1107-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1107-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 16 1 1009-1106
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 15 1 1107-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 05 1 1009-1106
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 04 1 1107-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1106
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1107-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1107-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1009-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 08 1 1009-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1009-
126 CONNECTOR; ELBOW
(F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 05 1 1009-1106
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1107-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1107-
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 1009-1504
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1109
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1110-1504
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(G) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
126 CONNECTOR; ELBOW
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1504
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 02 1 1009-1106
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1107-
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1107-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 1107-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 04 1 1009-1106
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 03 1 1107-

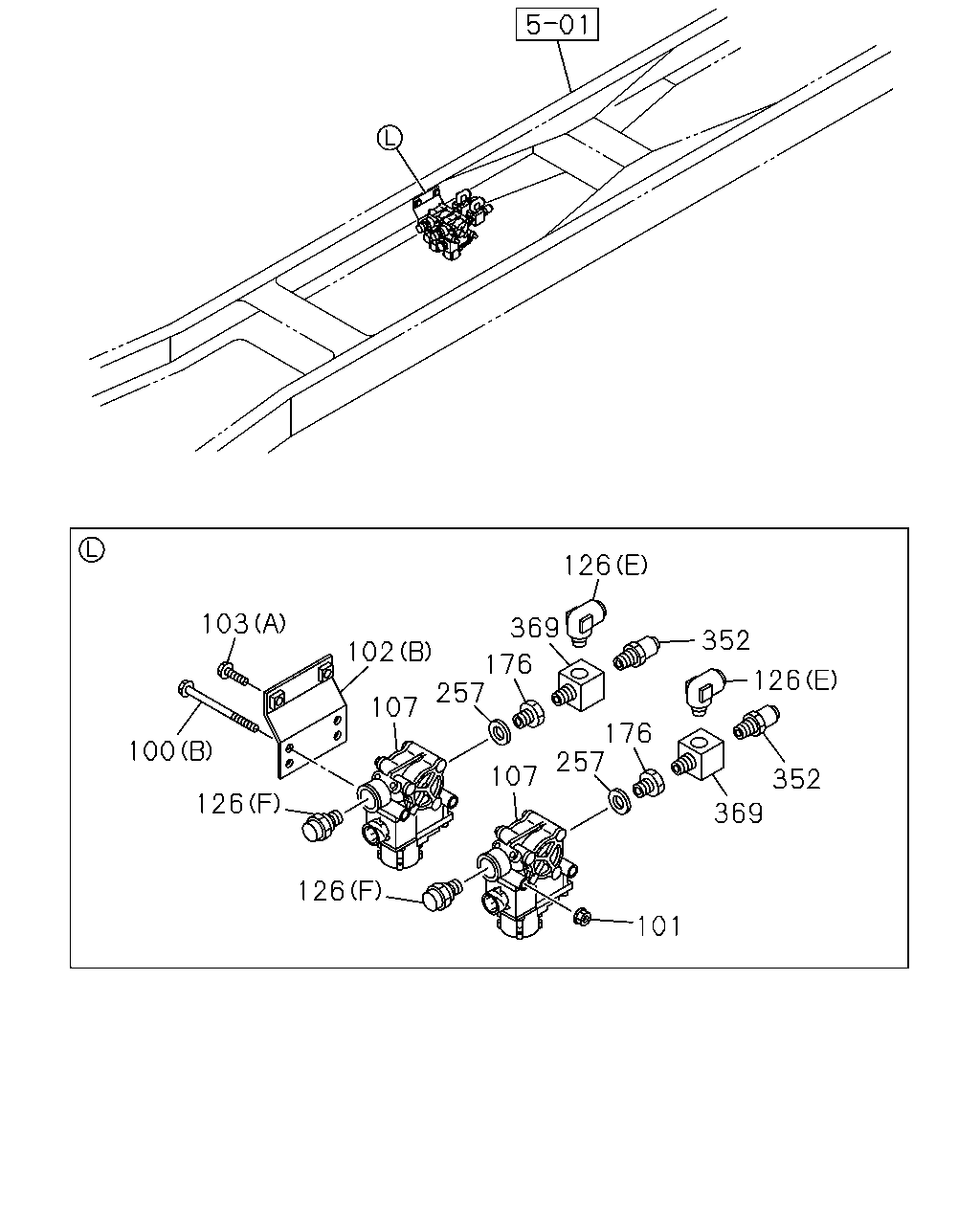

çizim 343060
103 100 126 126 101 369 352 126 352 126 369 176 176 257 107 257 107 102
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1009-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 1009-
100 BOLT; MODULATOR
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1009-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1505-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 10 1 1009-1504
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1505-
102 BRACKET; MODULATOR
(A) 		8-98302-564-0 01 1 1505-
102 BRACKET; MODULATOR
(A) 		1-47479-635-0 02 1 1009-1504
102 BRACKET; MODULATOR
(A) 		8-98302-563-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-98034-539-2 01 1 1009-1504
102 BRACKET; MODULATOR
(B) 		8-98272-821-0 01 1 1505-
103 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
103 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1009-
103 BOLT; BRKT
(C) M12X35 FLANGE 		0-28651-235-0 04 1 1009-
107 MODULATOR; RR 1-48240-115-0 02 1 1009-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 05 1 1009-1106
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1107-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1107-
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 1009-1504
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1109
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1110-1504
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(G) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
126 CONNECTOR; ELBOW
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1505-
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 06 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1505-
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 02 1 1009-
352 CONNECTOR; STRAIGHT
(B) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1009-
352 CONNECTOR; STRAIGHT
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1009-
369 CONNECTOR; 3WAY
PT3/8 3WAY 		1-09661-300-0 02 1 1009-

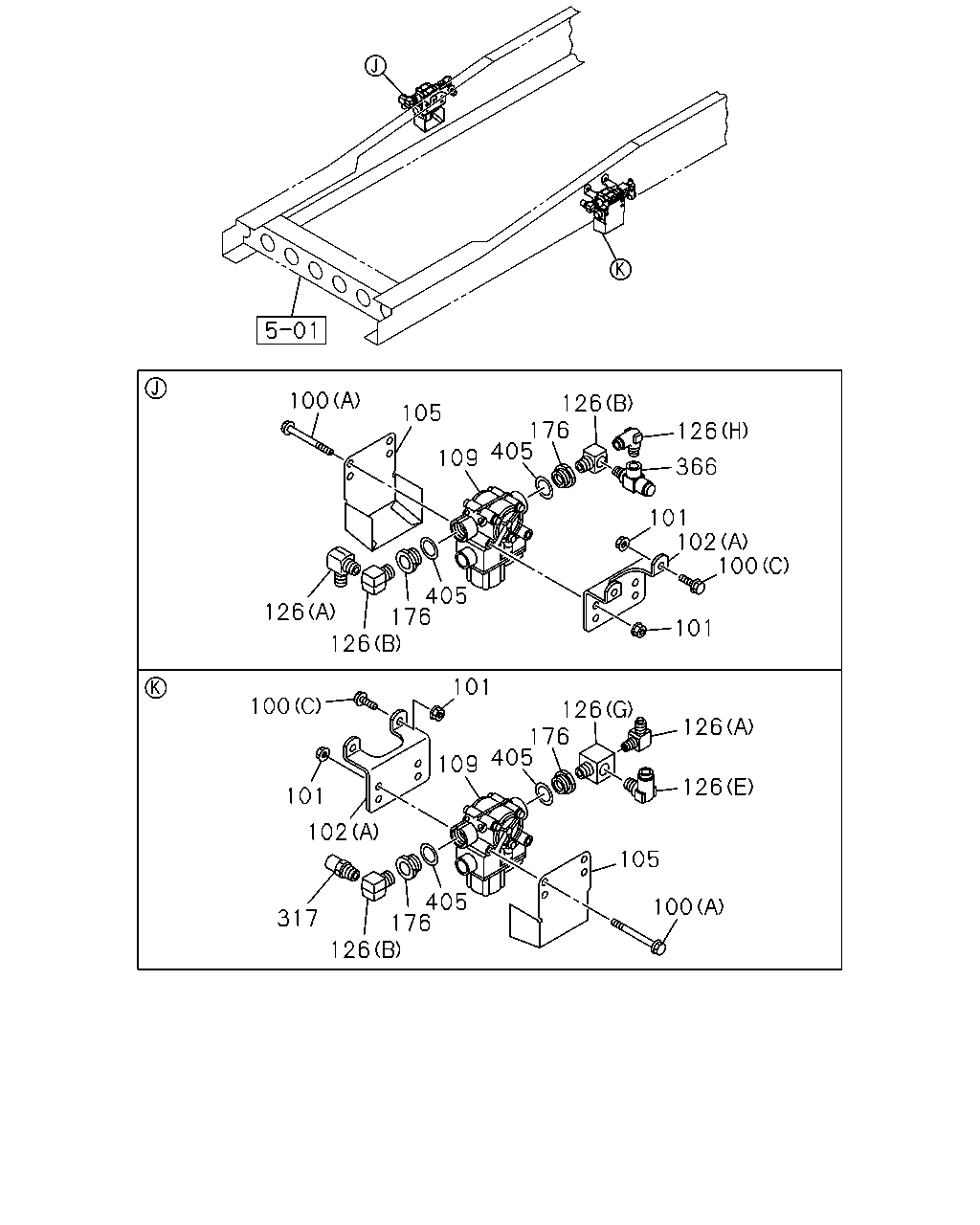

çizim 343072
100 126 126 176 405 101 100 102 101 366 126 126 176 405 109 105 100 101 102 317 126 176 405 100 105 126 126 126 176 405 109 101
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1009-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 1009-
100 BOLT; MODULATOR
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1009-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1505-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 10 1 1009-1504
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1505-
102 BRACKET; MODULATOR
(A) 		8-98302-564-0 01 1 1505-
102 BRACKET; MODULATOR
(A) 		1-47479-635-0 02 1 1009-1504
102 BRACKET; MODULATOR
(A) 		8-98302-563-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-98034-539-2 01 1 1009-1504
102 BRACKET; MODULATOR
(B) 		8-98272-821-0 01 1 1505-
105 COVER; MODULATOR 8-98302-925-0 01 1 1505-
105 COVER; MODULATOR 1-47471-354-0 02 1 1009-1504
105 COVER; MODULATOR 8-98302-924-0 01 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1009-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 05 1 1009-1106
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 03 1 1107-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1107-
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1009-
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 1009-1504
126 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1505-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1109
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1110-1504
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1505-
126 CONNECTOR; ELBOW
(G) PT3/8 3WAY 		1-09661-300-0 01 1 1009-
126 CONNECTOR; ELBOW
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1505-
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 06 1 1009-1504
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1505-
317 CONNECTOR; MODULATOR
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1009-1504
317 CONNECTOR; MODULATOR
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1505-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1009-1504
366 CONNECTOR; NYLON TUBE
(B) PT3/8 3WAY 		1-09661-300-0 01 1 1505-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1009-

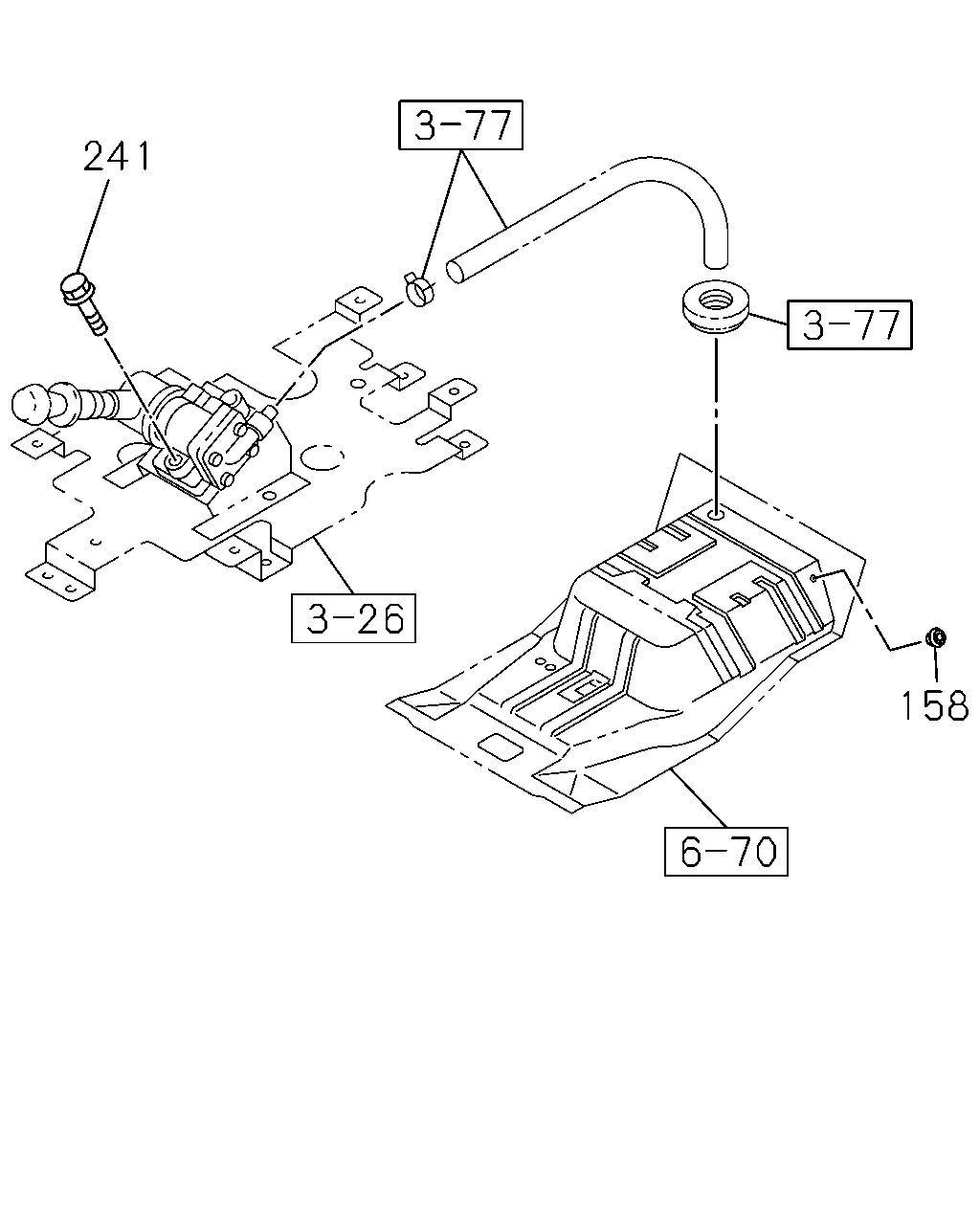

çizim 345449
241 158
BalonParca AdiParca NoAdetTipApplied Date
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1009-
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
