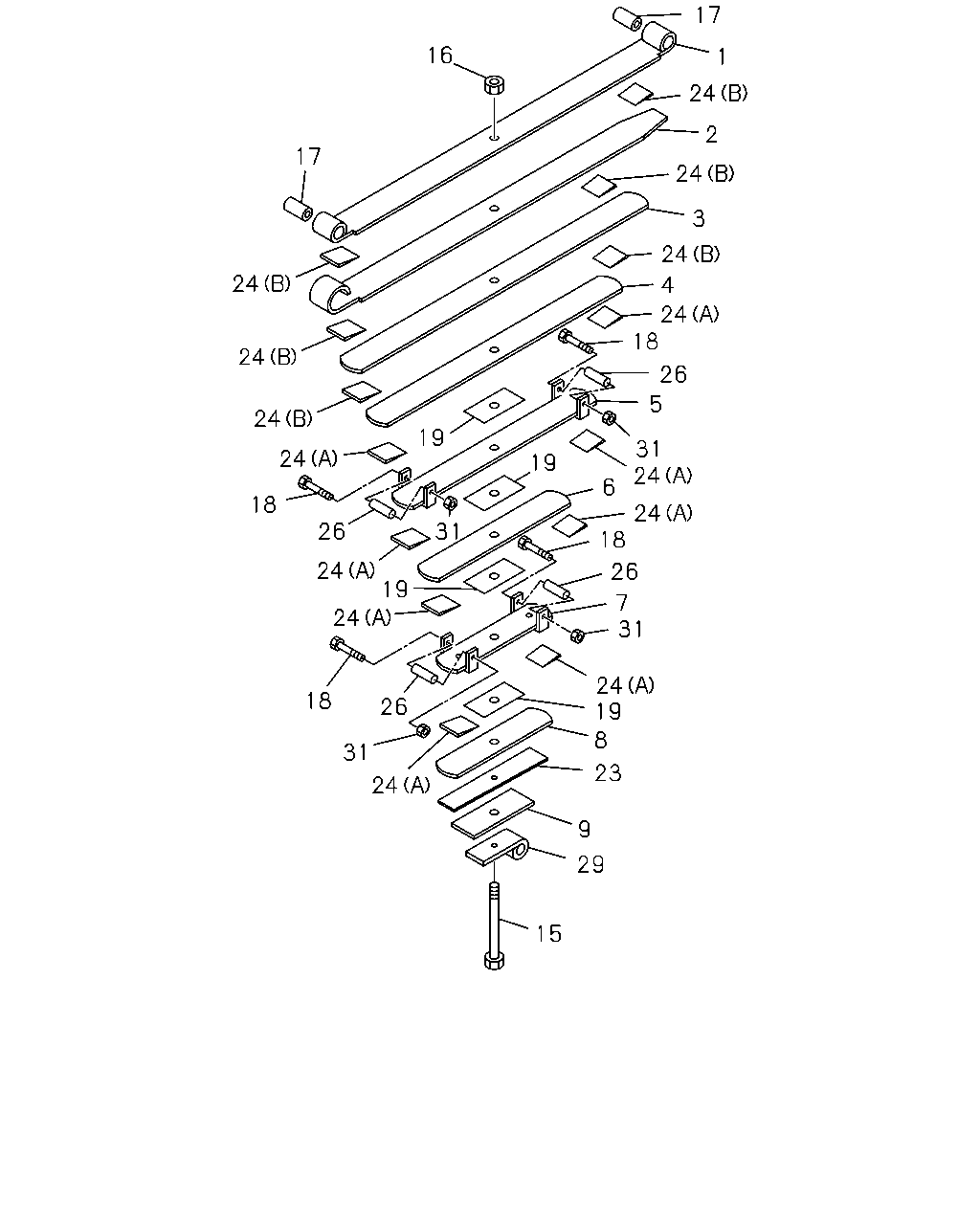

4-55 — FRONT LEAF SPRING (#7124) — 90 parça

17 16 1 24 2 17 24 3 24 24 4 24 18 24 26 5 24 19 31 24 24 19 6 18 24 18 26 31 24 19 26 7 31 24 24 19 18 26 8 31 23 24 9 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-723-0	1-51131-723-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-790-0	1-51131-790-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98171-244-0	8-98175-363-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98171-477-0	8-98175-370-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-723-0	1-51132-723-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-790-0	1-51132-790-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98171-244-0	8-98175-364-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98171-477-0	8-98175-371-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-723-0	1-51133-723-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-790-0	1-51133-790-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98171-244-0	8-98175-365-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98171-477-0	8-98175-372-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-723-0	1-51134-723-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-790-0	1-51134-790-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98171-244-0	8-98175-366-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98171-477-0	8-98175-373-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: A = 1-51130-723-0	1-51135-723-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: B = 1-51130-790-0	1-51135-790-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98171-244-0	8-98175-367-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98171-477-0	8-98175-374-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-723-0	1-51136-723-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-790-0	1-51136-790-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98171-244-0	8-98175-368-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98171-477-0	8-98175-375-0	01	1	-
7	SPRING; LEAF,NO 7,FRT W/CLIP ASM PART: A = 1-51130-723-0	1-51137-723-0	01	1	-
7	SPRING; LEAF,NO 7,FRT W/CLIP ASM PART: B = 1-51130-790-0	1-51137-790-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 8-98171-244-0	8-98175-369-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 8-98171-477-0	8-98175-376-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51130-723-0	1-51138-723-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-790-0	1-51138-790-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51130-723-0	1-51139-723-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51130-790-0	1-51139-790-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0	1-51156-410-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT ASM PART: C = 8-98171-244-0, D = 8-98171-477-0	8-98176-367-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-51351-018-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-09801-223-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0	1-51177-337-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98171-244-0, D = 8-98171-477-0	1-51177-337-0	05	1	-
23	SPRING; LEAF,INTER T=1 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	1-51399-036-0	01	1	-
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: A = 1-51130-723-0	1-51159-022-0	08	1	-
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: D = 8-98171-477-0	1-51159-022-0	06	1	-
24	LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 1-51130-723-0	1-51159-023-0	06	1	-
24	LINER; LEAF SPR,FWD FRT (A) ASM PART: D = 8-98171-477-0	1-51159-023-0	04	1	-
26	PIPE; CLIP,LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-51153-009-0	04	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	1-51681-832-0	01	1	-
31	NUT; CLIP M10 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-09110-010-0	04	1	-

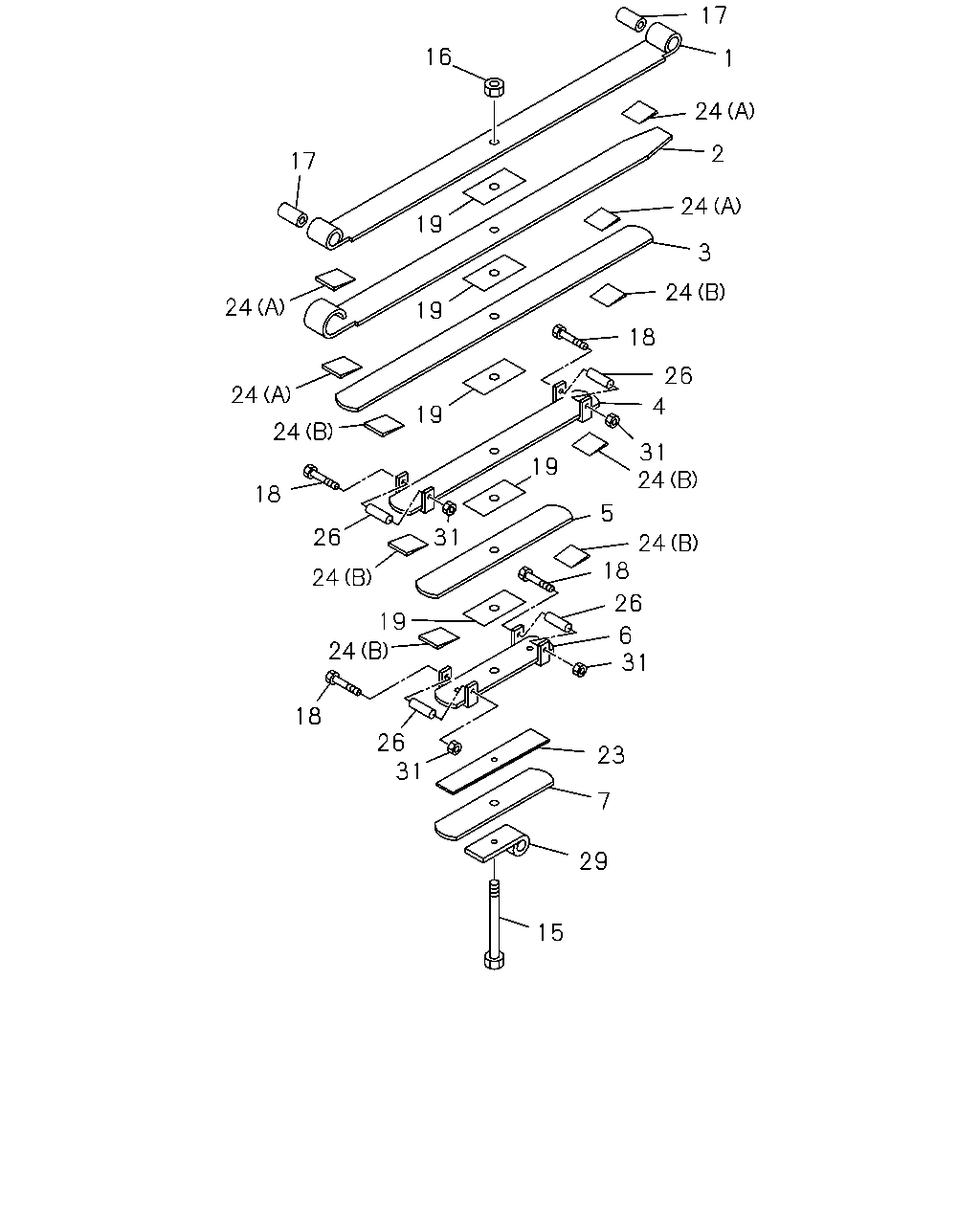

17 16 1 24 2 17 24 19 3 24 24 19 18 26 24 4 19 24 31 24 19 18 5 26 31 24 18 24 26 19 24 6 31 18 26 31 23 7 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-723-0	1-51131-723-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-790-0	1-51131-790-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98171-244-0	8-98175-363-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98171-477-0	8-98175-370-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-723-0	1-51132-723-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-790-0	1-51132-790-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98171-244-0	8-98175-364-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98171-477-0	8-98175-371-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-723-0	1-51133-723-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-790-0	1-51133-790-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98171-244-0	8-98175-365-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98171-477-0	8-98175-372-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-723-0	1-51134-723-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-790-0	1-51134-790-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98171-244-0	8-98175-366-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98171-477-0	8-98175-373-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: A = 1-51130-723-0	1-51135-723-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: B = 1-51130-790-0	1-51135-790-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98171-244-0	8-98175-367-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98171-477-0	8-98175-374-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-723-0	1-51136-723-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-790-0	1-51136-790-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98171-244-0	8-98175-368-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98171-477-0	8-98175-375-0	01	1	-
7	SPRING; LEAF,NO 7,FRT W/CLIP ASM PART: A = 1-51130-723-0	1-51137-723-0	01	1	-
7	SPRING; LEAF,NO 7,FRT W/CLIP ASM PART: B = 1-51130-790-0	1-51137-790-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 8-98171-244-0	8-98175-369-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 8-98171-477-0	8-98175-376-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0	1-51156-410-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT ASM PART: C = 8-98171-244-0, D = 8-98171-477-0	8-98176-367-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-51351-018-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-09801-223-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0	1-51177-337-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98171-244-0, D = 8-98171-477-0	1-51177-337-0	05	1	-
23	SPRING; LEAF,INTER T=1 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	1-51399-036-0	01	1	-
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: A = 1-51130-723-0	1-51159-022-0	08	1	-
24	LINER; LEAF SPR,FWD FRT (B) ASM PART: D = 8-98171-477-0	1-51159-022-0	06	1	-
24	LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 1-51130-723-0	1-51159-023-0	06	1	-
24	LINER; LEAF SPR,FWD FRT (A) ASM PART: D = 8-98171-477-0	1-51159-023-0	04	1	-
26	PIPE; CLIP,LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-51153-009-0	04	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	1-51681-832-0	01	1	-
31	NUT; CLIP M10 ASM PART: A = 1-51130-723-0, B = 1-51130-790-0, C = 8-98171-244-0, D = 8-98171-477-0	9-09110-010-0	04	1	-
