◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#71231) — 564 parça

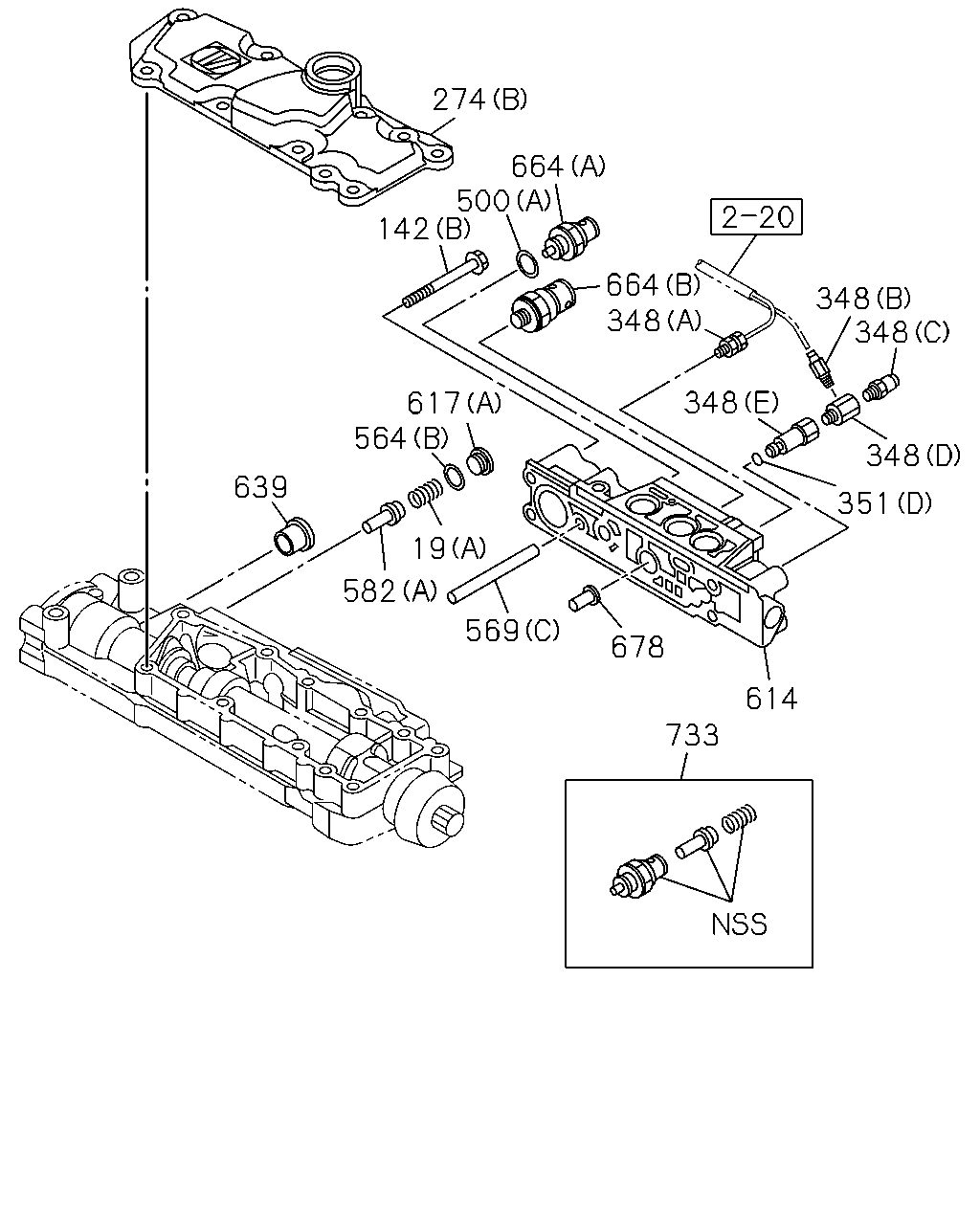

çizim 109926
274 664 500 142 664 348 348 348 348 348 351 614 733 678 569 582 19 617 564 639
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (E) 		1-33539-030-0 02 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (F) 		1-33539-092-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-221-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1009-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75 		1-09089-015-0 02 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) 		1-33549-486-0 06 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-34129-116-0 04 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1306-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-571-0 01 1 1009-1010
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-579-0 01 1 1011-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (F) M12 STRAIGHT 		1-09654-246-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-139-0 02 1 1009-1305
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-593-0 02 1 1306-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1009-
351 GASKET; CONNECTOR
(D) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(D) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-444-0 08 1 1009-1010
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1011-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-554-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1107-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-299-0 01 1 1009-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-249-0 01 1 1009-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 01 1 1011-1106
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1107-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1009-1010
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-444-0 01 1 1011-1106
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-249-0 02 1 1009-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33529-128-0 02 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1009-
582 BOLT; SPRING GUIDE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-487-0 02 1 1009-
582 BOLT; SPRING GUIDE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-471-0 01 1 1009-
614 VALVE ASM
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-549-0 01 1 1009-
617 PLUG
(B) 		1-34129-061-0 01 1 1009-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-171-0 02 1 1009-1305
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-619-0 02 1 1306-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-171-0 01 1 1009-1305
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1306-
639 CAP
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-465-0 01 1 1009-1106
639 CAP
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-576-0 01 1 1107-
664 SWITCH
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-587-0 01 1 1009-
664 SWITCH
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-470-0 01 1 1009-
678 TAPPET
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-466-0 01 1 1009-
733 REPAIR KIT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-617-0 01 1 1306-

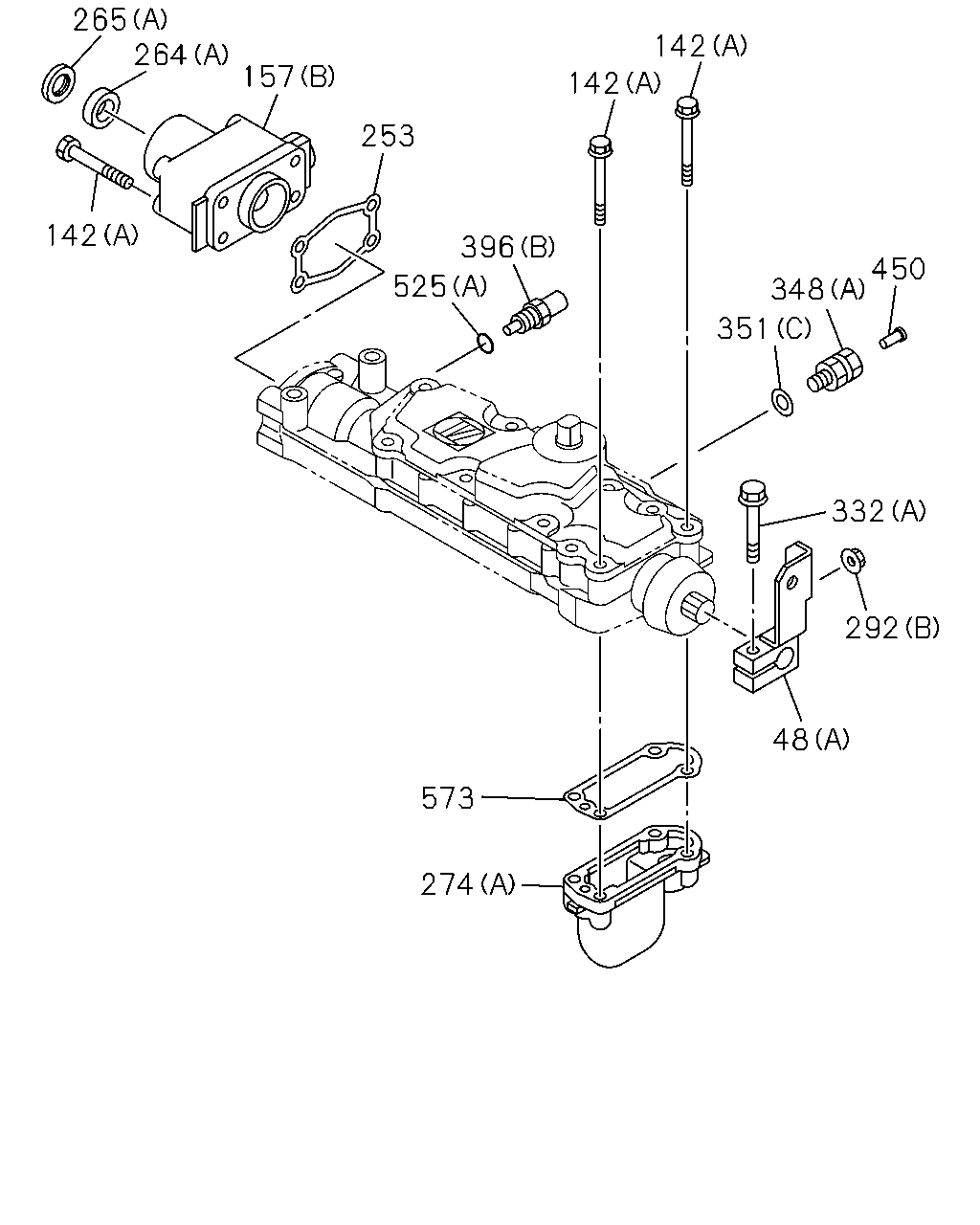

çizim 113306
265 264 157 253 142 396 525 142 142 450 348 351 332 292 48 573 274
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33651-661-1 01 1 1009-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98081-185-1 01 1 1009-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75 		1-09089-015-0 02 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) 		1-33549-486-0 06 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-34129-116-0 04 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1306-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-570-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-574-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-604-0 01 1 1306-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1306-
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1009-
264 SEAL; DUST,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-327-0 01 1 1009-
264 SEAL; DUST,SHAFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-119-0 01 1 1009-
265 SEAL; OIL,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-328-0 01 1 1009-
265 SEAL; OIL,SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-118-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-571-0 01 1 1009-1010
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-579-0 01 1 1011-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1009-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1009-
292 NUT; LINK ROD
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8 		0-91111-508-0 02 1 1009-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X40 FLANGE 		0-28650-840-0 01 1 1009-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) M10X45 W/PL WASHER 		8-98038-710-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (F) M12 STRAIGHT 		1-09654-246-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-139-0 02 1 1009-1305
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-593-0 02 1 1306-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1009-
351 GASKET; CONNECTOR
(D) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(D) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-444-0 08 1 1009-1010
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1011-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-554-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1107-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33529-085-0 02 1 1009-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1306-
450 INSERT; SHIFT ARM
SHIFT PATTERN SINGLE-H<EDY> ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1009-
525 RING; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-286-0 01 1 1009-
525 RING; DETENT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-497-0 01 1 1009-
573 GASKET; SERVO UNIT
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-332-0 01 1 1009-

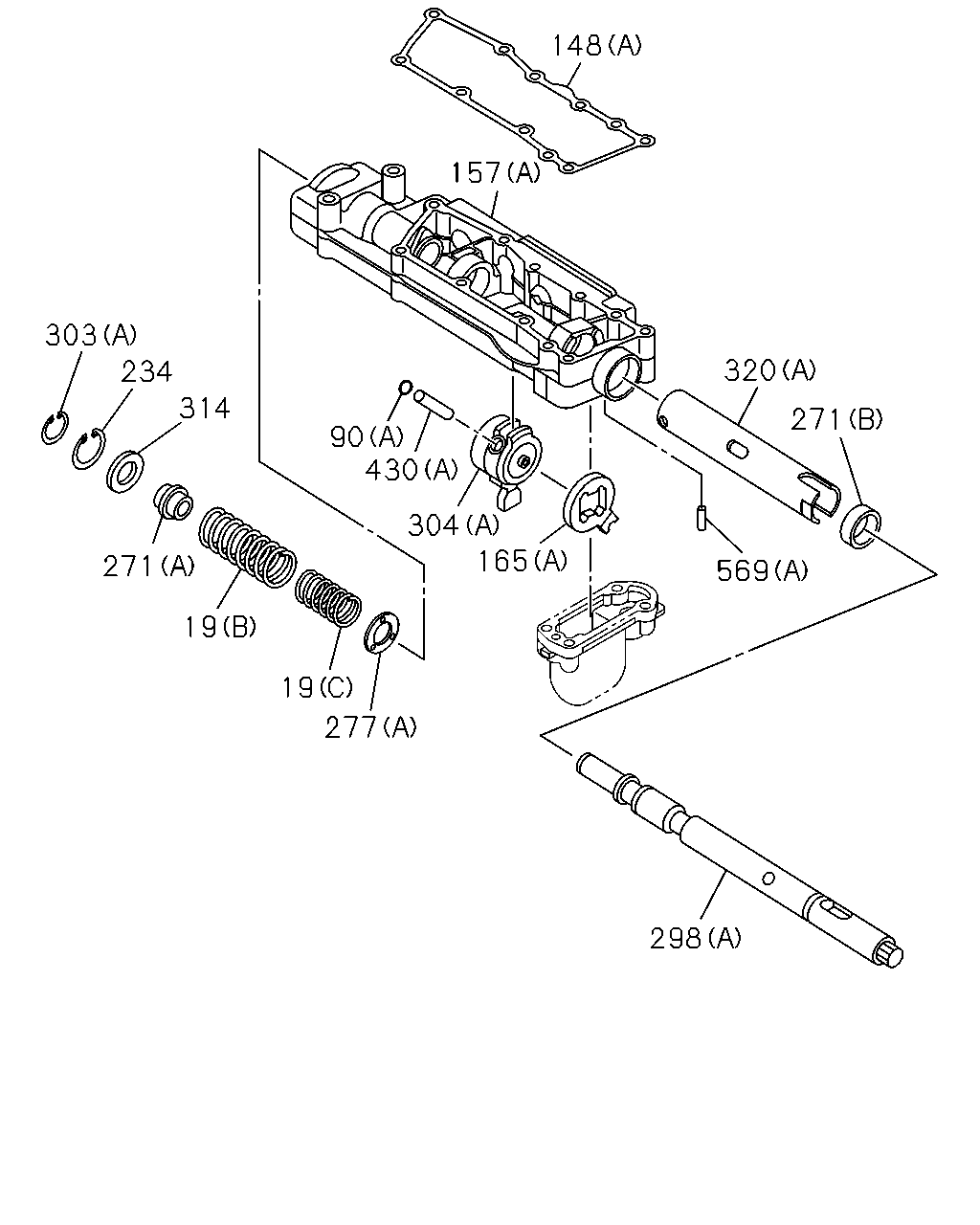

çizim 113335
303 234 314 271 19 19 277 298 165 304 430 90 320 271 157 148 569
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (E) 		1-33539-030-0 02 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (F) 		1-33539-092-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-221-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1009-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-494-0 02 1 1009-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-109-0 01 1 1009-
148 GASKET; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33542-064-0 01 1 1009-
148 GASKET; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33544-056-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-570-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-574-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-604-0 01 1 1306-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1306-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-488-0 01 1 1009-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-489-0 01 1 1009-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-490-0 01 1 1009-1305
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-603-0 01 1 1306-
165 LEVER; SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-533-0 01 1 1009-
234 RING; SNAP
SHIFT PATTERN SINGLE-H<EDY> 		1-44519-224-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-124-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-537-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1009-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-039-0 02 1 1009-1305
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-107-0 02 1 1306-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33539-042-0 01 1 1009-1305
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-026-0 01 1 1009-1305
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-112-0 01 1 1306-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33522-211-0 01 1 1009-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33522-207-0 01 1 1009-
303 RING; SNAP,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-040-0 02 1 1009-
303 RING; SNAP,SHAFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-101-0 01 1 1009-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-492-0 01 1 1009-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-532-0 01 1 1009-
314 WASHER; SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-100-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		8-98065-840-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1009-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-493-0 01 1 1009-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-449-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33529-128-0 02 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1009-

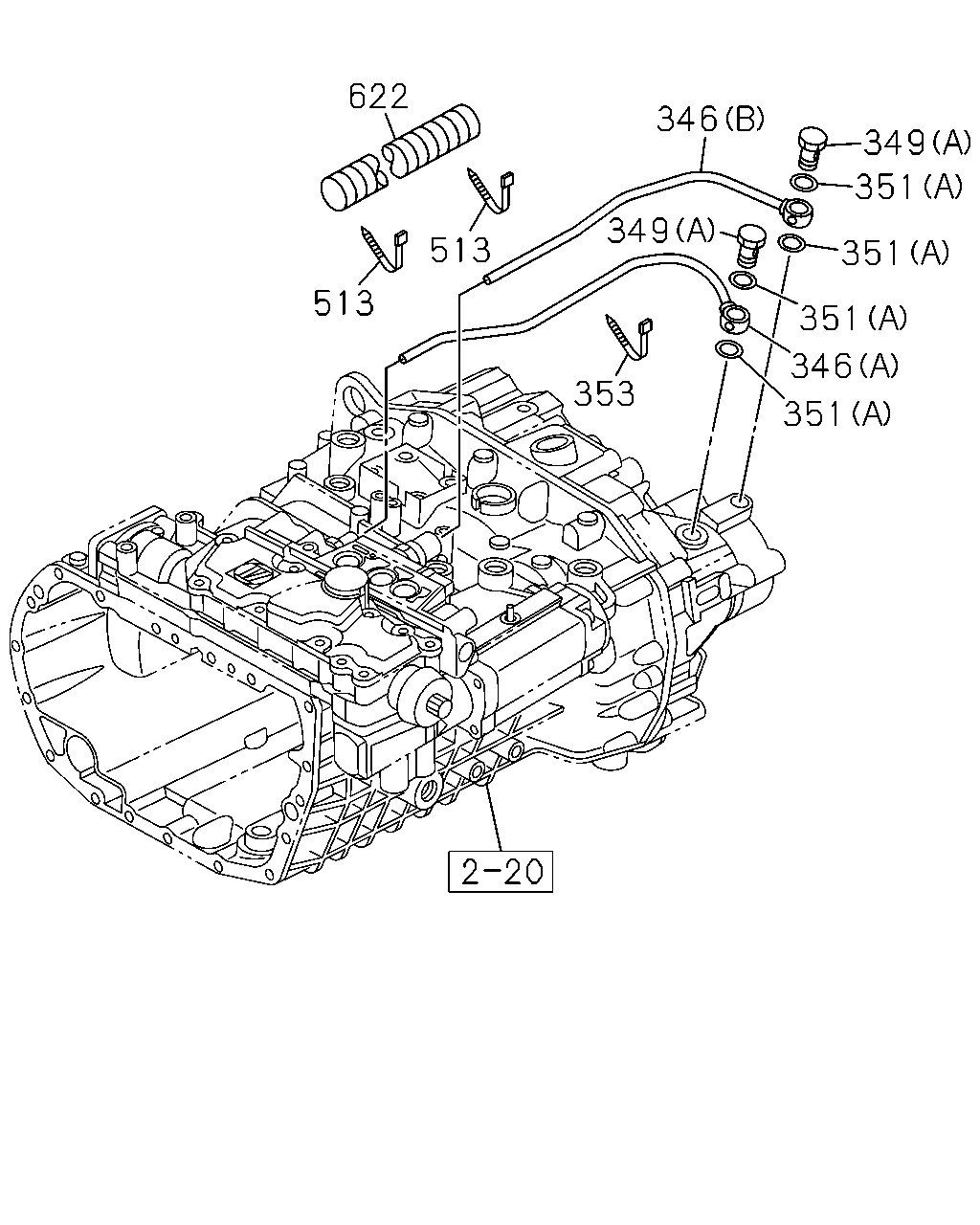

çizim 113340
622 513 513 353 351 346 351 351 351 349 349 346
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-400-0 01 1 1009-1305
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-618-0 01 1 1306-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-443-0 01 1 1009-1305
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-598-0 01 1 1306-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-473-0 01 1 1009-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-474-0 01 1 1009-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-573-0 04 1 1009-1305
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) M14 		1-33549-592-0 04 1 1306-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-155-0 02 1 1009-1106
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-573-0 02 1 1107-1305
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) M14 		1-33549-592-0 02 1 1306-
351 GASKET; CONNECTOR
(D) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(D) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-444-0 08 1 1009-1010
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1011-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-554-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1107-
353 CLIP; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-530-0 02 1 1011-1106
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1107-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1009-1010
353 CLIP; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-475-0 02 1 1011-1106
513 CLIP; BAND
SHIFT PATTERN DOUBLE-H<EDZ> L=250 		5-09707-030-1 06 1 1105-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1009-1104
513 CLIP; BAND
SHIFT PATTERN SINGLE-H<EDY> L=250 		5-09707-030-1 05 1 1105-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1009-

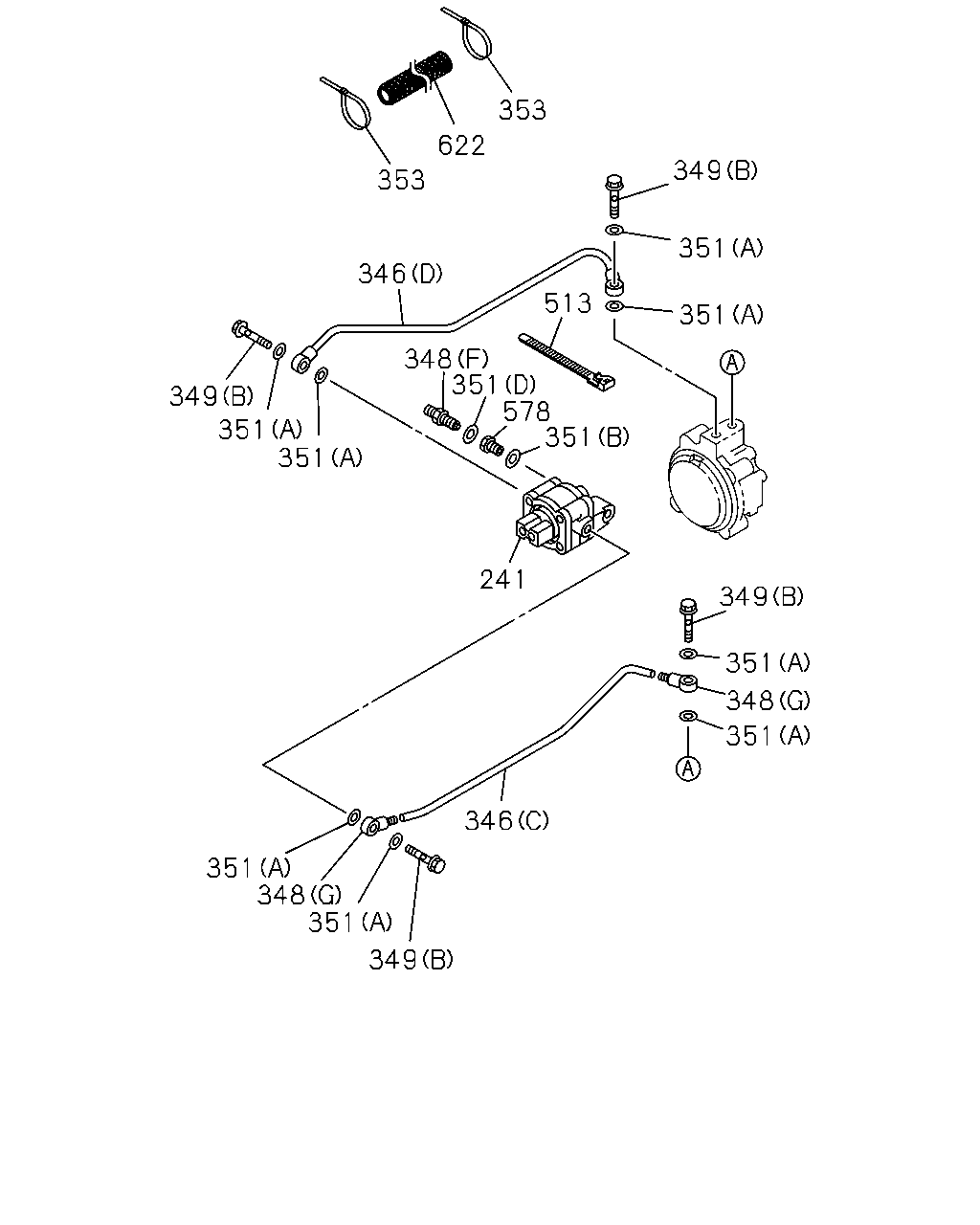

çizim 113778
353 622 353 346 349 351 351 348 513 351 351 578 351 349 351 349 351 348 351 346 351 348 351 349 241
BalonParca AdiParca NoAdetTipApplied Date
241 VALVE; CUT OFF
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-495-0 01 1 1009-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-400-0 01 1 1009-1305
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-618-0 01 1 1306-
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-443-0 01 1 1009-1305
346 HOSE; AIR
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-598-0 01 1 1306-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-473-0 01 1 1009-
346 HOSE; AIR
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-474-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (F) M12 STRAIGHT 		1-09654-246-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-139-0 02 1 1009-1305
348 CONNECTOR; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-593-0 02 1 1306-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-09660-466-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-09661-174-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-09661-481-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (D) 		8-94338-417-0 01 1 1009-
348 CONNECTOR; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (E) 		8-98068-125-0 01 1 1009-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-573-0 04 1 1009-1305
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> (B) M14 		1-33549-592-0 04 1 1306-
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-155-0 02 1 1009-1106
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-573-0 02 1 1107-1305
349 BOLT; EYE,AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> (A) M14 		1-33549-592-0 02 1 1306-
351 GASKET; CONNECTOR
(D) ID=12.2 		1-09630-084-0 01 1 1009-1312
351 GASKET; CONNECTOR
(D) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-444-0 08 1 1009-1010
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 08 1 1011-
351 GASKET; CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-554-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-444-0 04 1 1009-1106
351 GASKET; CONNECTOR
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-578-0 04 1 1107-
353 CLIP; AIR HOSE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-530-0 02 1 1011-1106
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1107-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1009-1010
353 CLIP; AIR HOSE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-475-0 02 1 1011-1106
513 CLIP; BAND
SHIFT PATTERN DOUBLE-H<EDZ> L=250 		5-09707-030-1 06 1 1105-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1009-1104
513 CLIP; BAND
SHIFT PATTERN SINGLE-H<EDY> L=250 		5-09707-030-1 05 1 1105-
578 CONNECTOR
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-553-0 01 1 1009-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1009-
çizim 113871
321 320 433 317 315 317 433 505 505 292 323 319 296 292 292 296 295 48 292
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33651-661-1 01 1 1009-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98081-185-1 01 1 1009-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1009-
292 NUT; LINK ROD
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8 		0-91111-508-0 02 1 1009-
295 ROD; LINK,RELAY LEVER
SHIFT PATTERN DOUBLE-H<EDZ> M8 L=50 		9-08400-805-0 01 1 1009-
296 ROD END
SHIFT PATTERN DOUBLE-H<EDZ> L=45.5 		1-09760-118-1 02 1 1009-
315 LEVER; SELECT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		8-98061-898-0 01 1 1009-
315 LEVER; SELECT
SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98087-673-0 01 1 1009-
317 BUSHING; LEVER 1-09330-119-0 02 1 1009-
319 BRACKET; SELECT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		8-98065-843-0 01 1 1009-
319 BRACKET; SELECT LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33657-612-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		8-98065-840-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1009-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1009-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1009-
433 GASKET; BUSHING 1-09623-594-0 02 1 1009-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1009-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (C) L=28 		9-83625-376-0 01 1 1009-
505 SPACER; BRKT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-11349-149-0 02 1 1009-

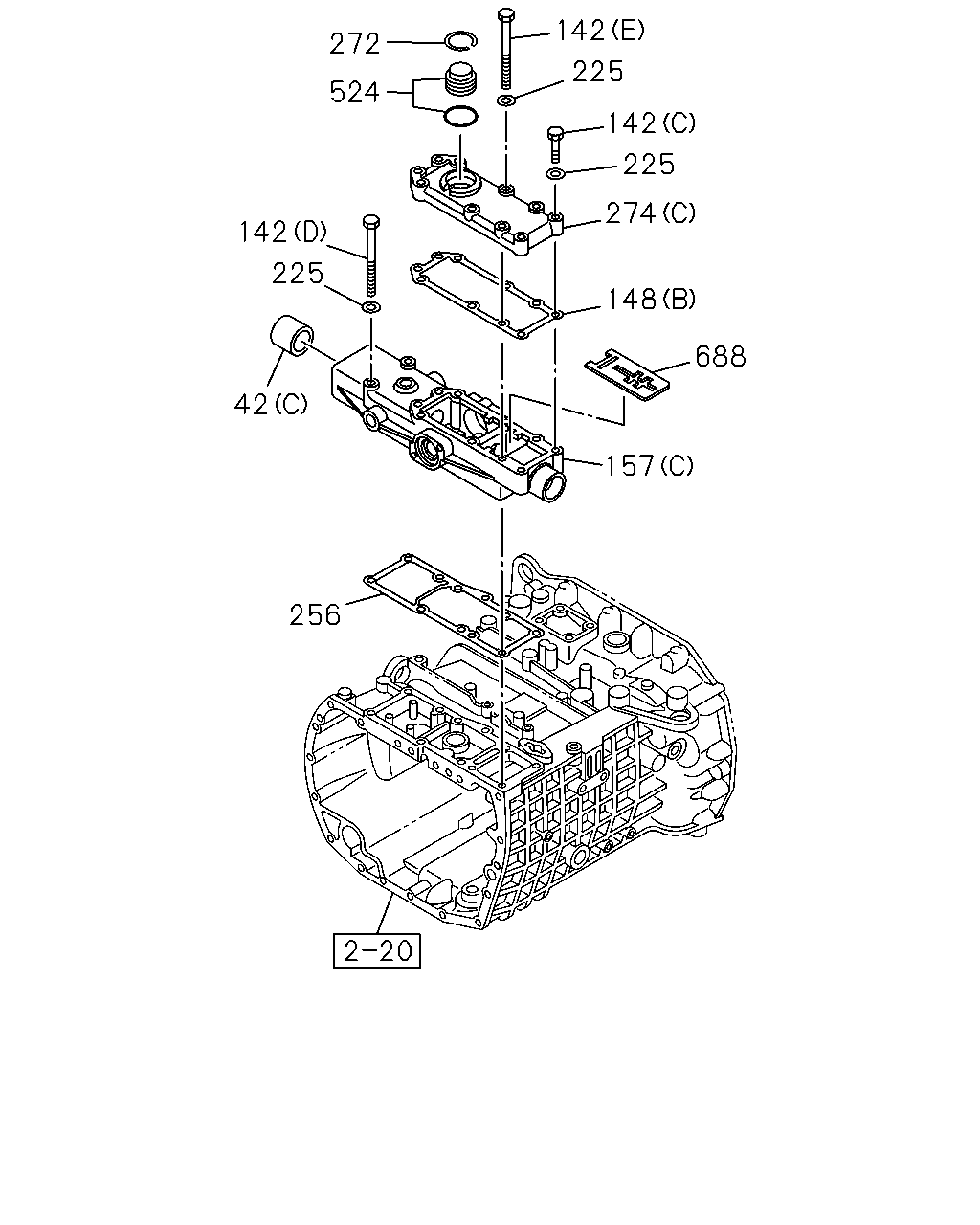

çizim 113936
272 524 142 225 42 256 157 688 148 274 225 142 225 142
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-111-0 01 1 1009-1305
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1306-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-538-0 01 1 1009-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-548-0 01 1 1009-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75 		1-09089-015-0 02 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) 		1-33549-486-0 06 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-34129-116-0 04 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1306-
148 GASKET; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33542-064-0 01 1 1009-
148 GASKET; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33544-056-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-570-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-574-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-604-0 01 1 1306-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1306-
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-159-0 14 1 1009-1305
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 14 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-065-0 01 1 1009-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN SINGLE-H<EDY> 		1-33542-062-0 01 1 1009-
272 RING; SNAP,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-44519-217-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-571-0 01 1 1009-1010
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-579-0 01 1 1011-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-531-0 01 1 1009-
274 COVER; SHAFT,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-535-0 01 1 1009-
524 DETENT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-501-0 01 1 1009-
688 SHIFT; INTERLOCK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-572-0 01 1 1009-
çizim 113987
321 320 433 317 315 317 433 319 323 505
BalonParca AdiParca NoAdetTipApplied Date
315 LEVER; SELECT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		8-98061-898-0 01 1 1009-
315 LEVER; SELECT
SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98087-673-0 01 1 1009-
317 BUSHING; LEVER 1-09330-119-0 02 1 1009-
319 BRACKET; SELECT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		8-98065-843-0 01 1 1009-
319 BRACKET; SELECT LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33657-612-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		8-98065-840-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-447-0 01 1 1009-
320 SHAFT; LEVER
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33619-524-0 01 1 1009-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1009-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1009-
433 GASKET; BUSHING 1-09623-594-0 02 1 1009-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1009-
505 SPACER; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> (C) L=28 		9-83625-376-0 01 1 1009-
505 SPACER; BRKT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-11349-149-0 02 1 1009-
çizim 113989
303 277 19 19 277 303 277 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33539-028-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (E) 		1-33539-030-0 02 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (F) 		1-33539-092-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN DOUBLE-H<EDZ> (G) 		1-33549-221-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-022-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33539-027-0 01 1 1009-
19 SPRING; COIL COMP
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33539-098-0 01 1 1009-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-039-0 02 1 1009-1305
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-107-0 02 1 1306-
277 PLATE; SPRING SEAT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33539-042-0 01 1 1009-1305
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-026-0 01 1 1009-1305
277 PLATE; SPRING SEAT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-112-0 01 1 1306-
303 RING; SNAP,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33539-040-0 02 1 1009-
303 RING; SNAP,SHAFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-101-0 01 1 1009-

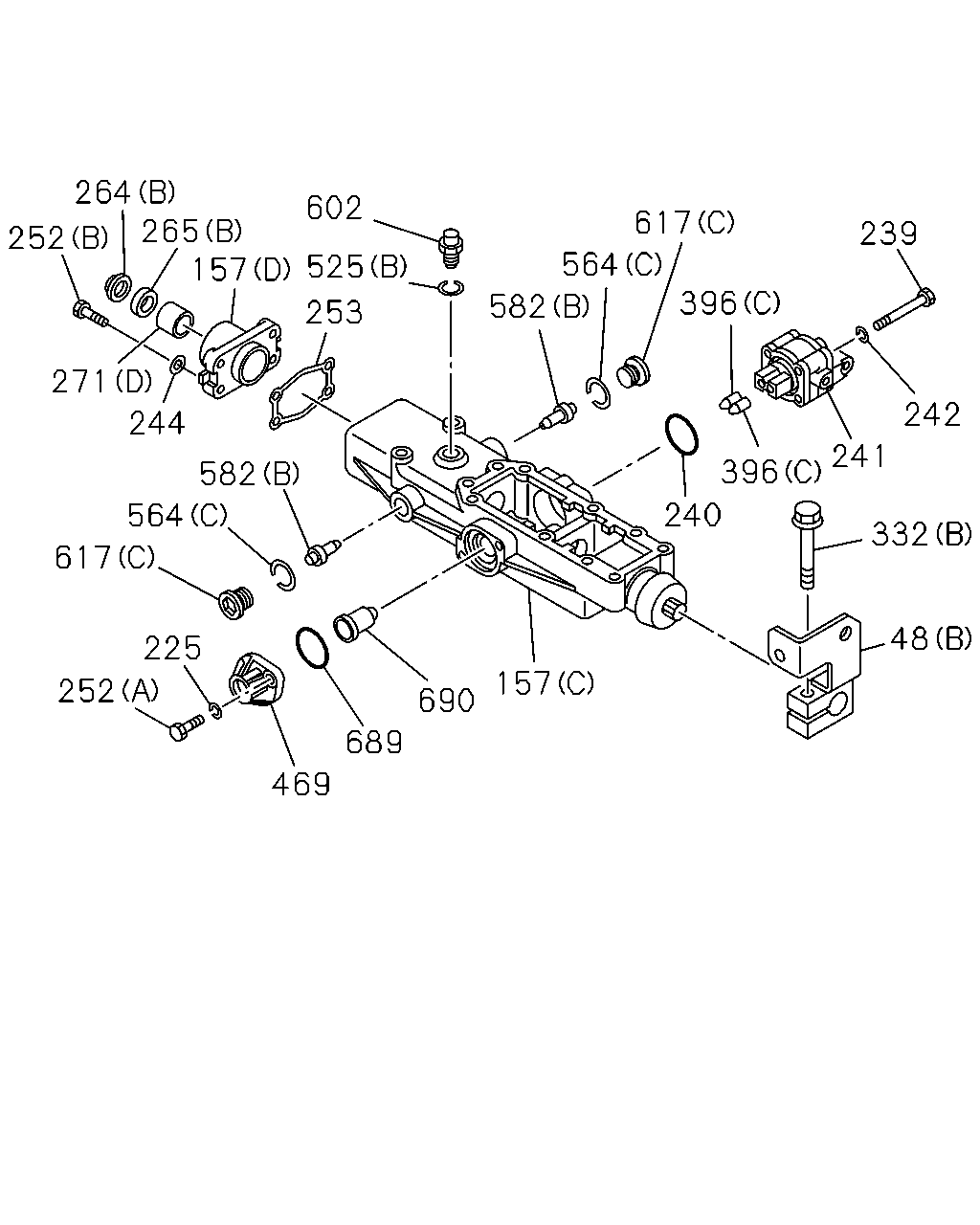

çizim 114051
264 252 265 525 602 617 564 582 396 239 242 332 241 396 240 157 690 689 469 48 582 271 564 244 253 617 225 252 157
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33651-661-1 01 1 1009-
48 LEVER; 4TH,SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98081-185-1 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-570-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-574-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-604-0 01 1 1306-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-445-0 01 1 1009-
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-568-0 01 1 1009-1305
157 BOX; QUAD,TRANS
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-612-0 01 1 1306-
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-159-0 14 1 1009-1305
225 WASHER; LK,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 14 1 1306-
239 BOLT; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-302-0 04 1 1009-1305
239 BOLT; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-585-0 04 1 1306-
240 GASKET; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-198-0 01 1 1009-
241 VALVE; CUT OFF
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-495-0 01 1 1009-
242 WASHER; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-159-0 04 1 1009-1305
242 WASHER; CUT OFF VALVE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 04 1 1306-
244 WASHER; LK,COVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-159-0 04 1 1009-1305
244 WASHER; LK,COVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 04 1 1306-
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X35 		1-33119-271-0 04 1 1009-1305
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X35 		1-33549-586-0 04 1 1306-
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X30 		1-33549-172-0 02 1 1009-1305
252 BOLT; SIDE COVER
SHIFT PATTERN DOUBLE-H<EDZ> (A) M8X30 		1-33549-581-0 02 1 1306-
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1009-
264 SEAL; DUST,SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-327-0 01 1 1009-
264 SEAL; DUST,SHAFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-119-0 01 1 1009-
265 SEAL; OIL,SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-328-0 01 1 1009-
265 SEAL; OIL,SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-118-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-124-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-537-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1009-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X40 FLANGE 		0-28650-840-0 01 1 1009-
332 BOLT; 4TH,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) M10X45 W/PL WASHER 		8-98038-710-0 01 1 1009-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33529-085-0 02 1 1009-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1306-
469 COVER; SPRING,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-216-0 01 1 1009-
525 RING; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-286-0 01 1 1009-
525 RING; DETENT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-497-0 01 1 1009-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 01 1 1011-1106
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1107-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1009-1010
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-444-0 01 1 1011-1106
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-249-0 02 1 1009-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1009-
582 BOLT; SPRING GUIDE
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-487-0 02 1 1009-
582 BOLT; SPRING GUIDE
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-471-0 01 1 1009-
602 PLUNGER; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-285-0 01 1 1009-1010
602 PLUNGER; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-34539-113-0 01 1 1011-1305
602 PLUNGER; DETENT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-618-0 01 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1009-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-171-0 02 1 1009-1305
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-619-0 02 1 1306-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-171-0 01 1 1009-1305
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1306-
689 GASKET; COVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-063-0 01 1 1009-
690 PIN; STOP
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-496-0 01 1 1009-

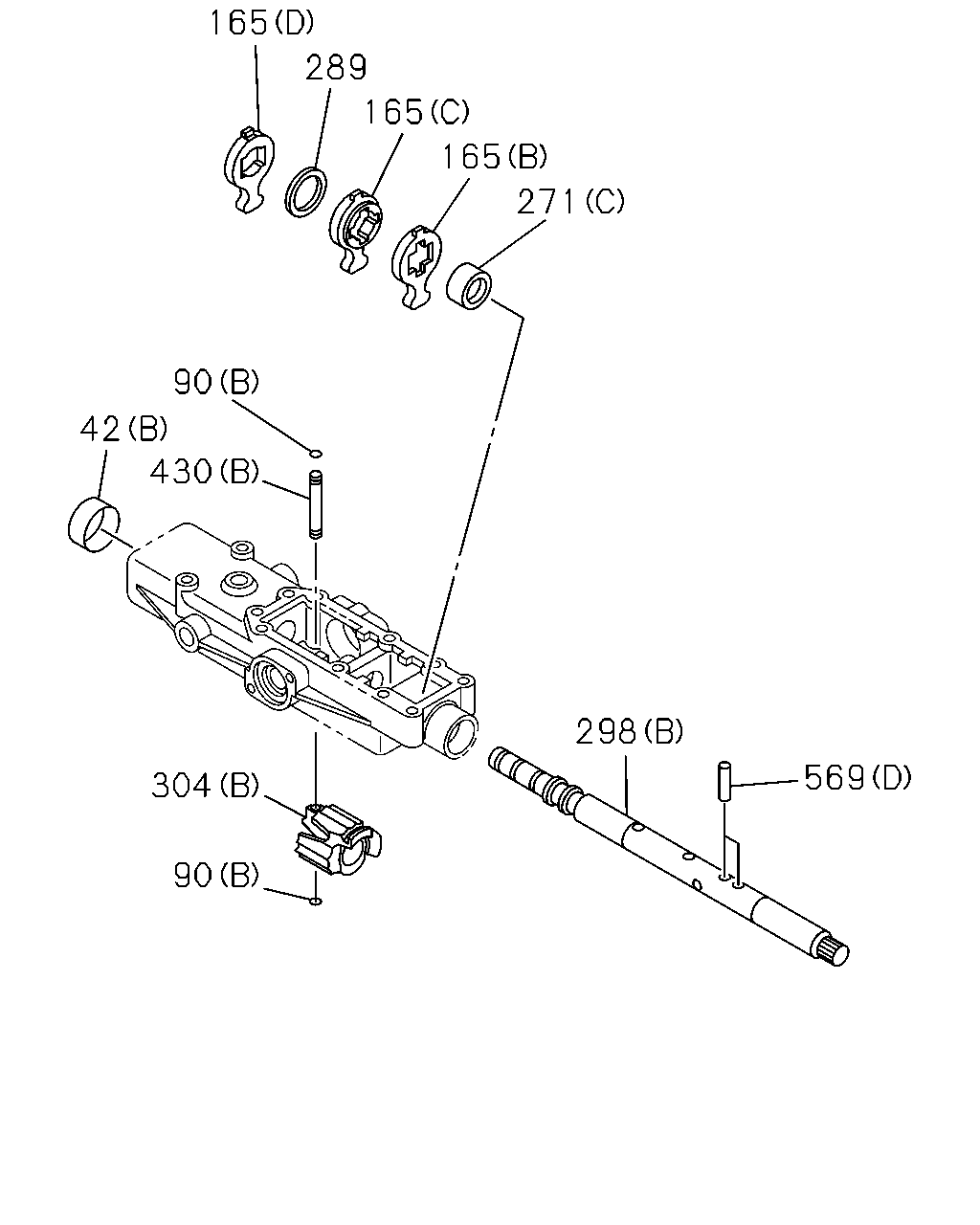

çizim 114116
165 165 289 165 271 90 42 430 304 90 298 569
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-111-0 01 1 1009-1305
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1306-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-538-0 01 1 1009-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-548-0 01 1 1009-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-494-0 02 1 1009-
90 RING; SNAP,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-109-0 01 1 1009-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-488-0 01 1 1009-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-489-0 01 1 1009-
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-490-0 01 1 1009-1305
165 LEVER; SHIFT
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-603-0 01 1 1306-
165 LEVER; SHIFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-533-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-124-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33549-537-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33539-099-0 01 1 1009-
271 BUSHING; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-318-0 01 1 1009-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-491-0 01 1 1009-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33522-211-0 01 1 1009-
298 SHAFT; SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33522-207-0 01 1 1009-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-492-0 01 1 1009-
304 BLOCK; SHIFT SHAFT
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-532-0 01 1 1009-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-493-0 01 1 1009-
430 PIN; SPR,SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-449-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33529-128-0 02 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1009-

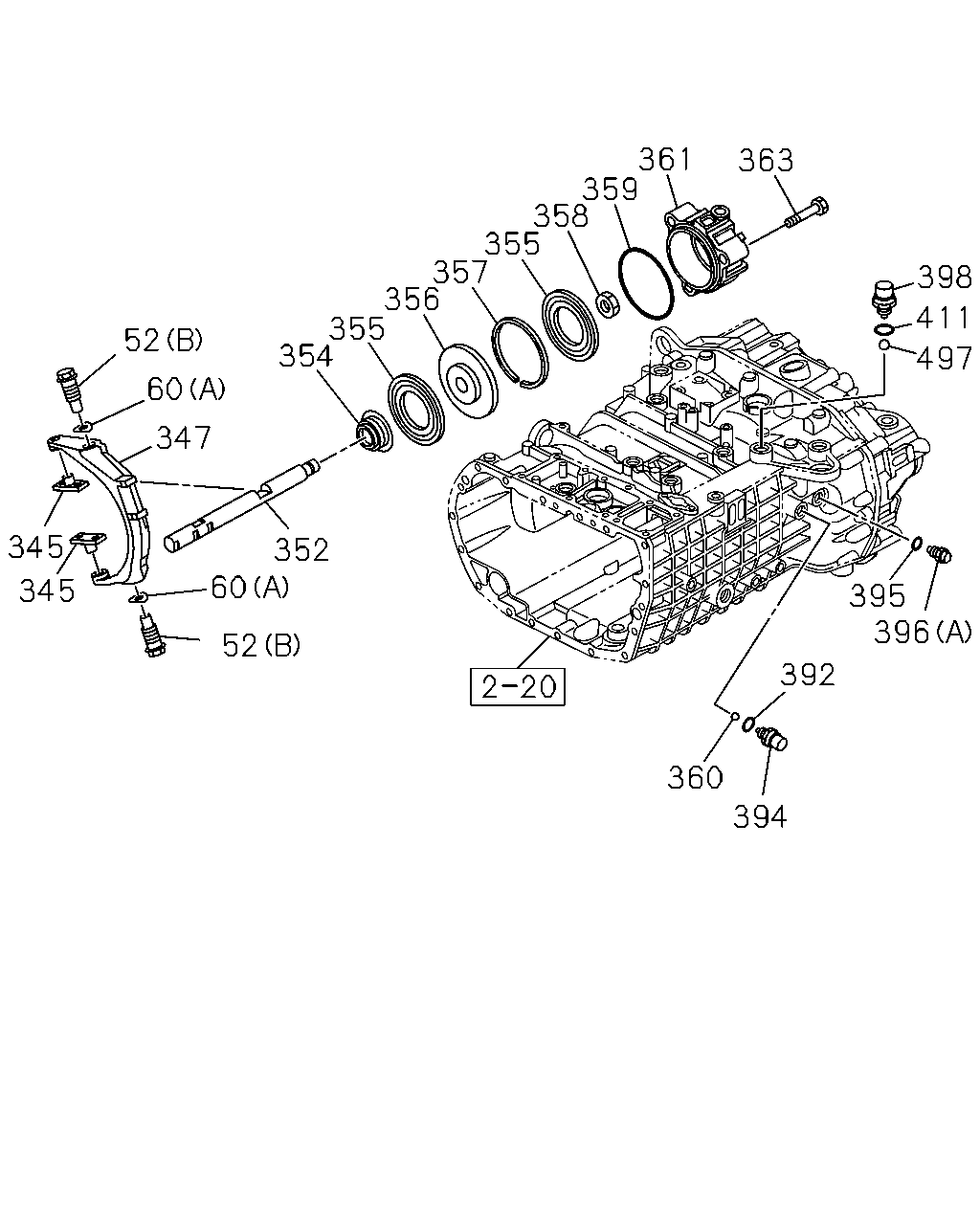

çizim 114237
52 60 347 352 60 52 345 345 354 355 356 357 355 358 359 361 363 398 411 497 395 396 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33519-187-0 02 1 1011-1106
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1107-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1009-1010
52 BOLT; SHIFT ARM
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33519-058-0 02 1 1011-1106
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1009-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1009-1010
60 WASHER; LK
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33519-059-0 02 1 1011-1106
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1009-1305
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1009-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1009-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1009-1305
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1009-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1009-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1009-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1009-
360 BALL; AIR CYL 1-33119-252-0 01 1 1009-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1009-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1009-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1009-
394 SWITCH; RANGE CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-627-0 01 1 1306-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1009-1305
394 SWITCH; RANGE CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		1-33119-587-0 01 1 1306-
395 GASKET; PLUNGER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33519-171-0 01 1 1009-1010
395 GASKET; PLUNGER
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-497-0 01 1 1009-1010
395 GASKET; PLUNGER 1-33549-497-0 01 1 1011-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33529-085-0 02 1 1009-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1306-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1009-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1009-
497 BALL; SWITCH 1-33119-252-0 01 1 1009-

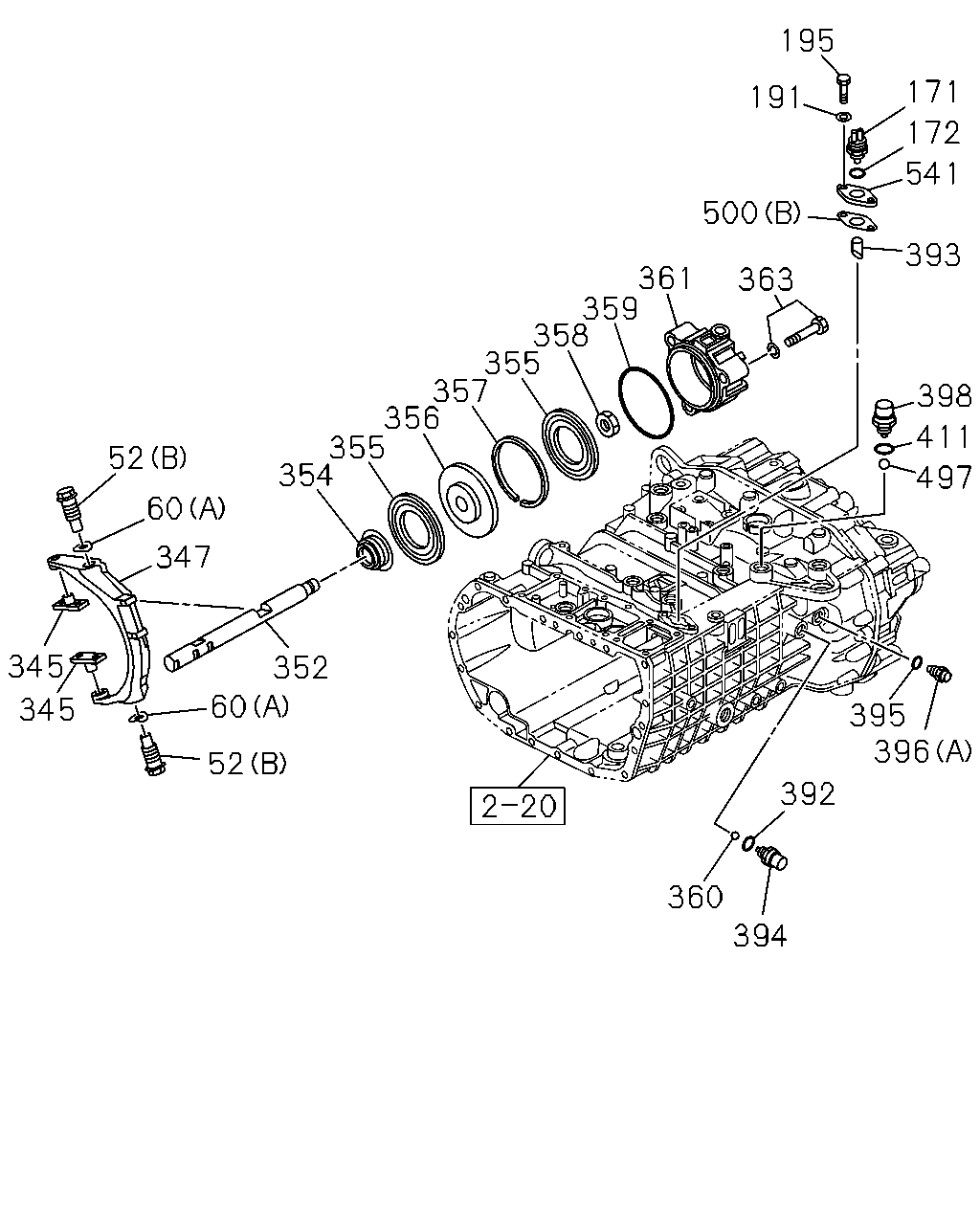

çizim 114239
357 358 355 359 361 363 500 191 195 171 541 172 393 398 497 411 395 396 392 360 394 60 52 352 347 60 52 345 345 356 355 354
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33519-187-0 02 1 1011-1106
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1107-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1009-1010
52 BOLT; SHIFT ARM
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33519-058-0 02 1 1011-1106
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1009-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1009-1010
60 WASHER; LK
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33519-059-0 02 1 1011-1106
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1009-1305
171 SWITCH; NEUTRAL
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-587-0 01 1 1009-1305
171 SWITCH; NEUTRAL
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-627-0 01 1 1306-
172 GASKET; NEUTRAL SW
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-249-0 01 1 1009-
191 WASHER; LK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-36129-007-0 02 1 1009-1010
191 WASHER; LK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-577-0 02 1 1011-1305
191 WASHER; LK
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33549-583-0 02 1 1306-
195 BOLT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-301-0 02 1 1009-1010
195 BOLT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-593-0 02 1 1011-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1009-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1009-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1009-1305
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1009-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1009-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1009-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1009-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1009-
360 BALL; AIR CYL 1-33119-252-0 01 1 1009-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1009-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1009-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1009-
393 PIN; SW
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-298-0 01 1 1009-
394 SWITCH; RANGE CHANGE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-627-0 01 1 1306-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1009-1305
394 SWITCH; RANGE CHANGE
SHIFT PATTERN SINGLE-H<EDY> 		1-33119-587-0 01 1 1306-
395 GASKET; PLUNGER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33519-171-0 01 1 1009-1010
395 GASKET; PLUNGER
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-497-0 01 1 1009-1010
395 GASKET; PLUNGER 1-33549-497-0 01 1 1011-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33529-085-0 02 1 1009-
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-067-0 01 1 1009-1305
396 PLUNGER; SHIFT ROD
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33529-132-0 01 1 1306-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1009-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1009-
497 BALL; SWITCH 1-33119-252-0 01 1 1009-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33119-299-0 01 1 1009-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-249-0 01 1 1009-
541 PLATE; SWITCH
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33119-300-0 01 1 1009-

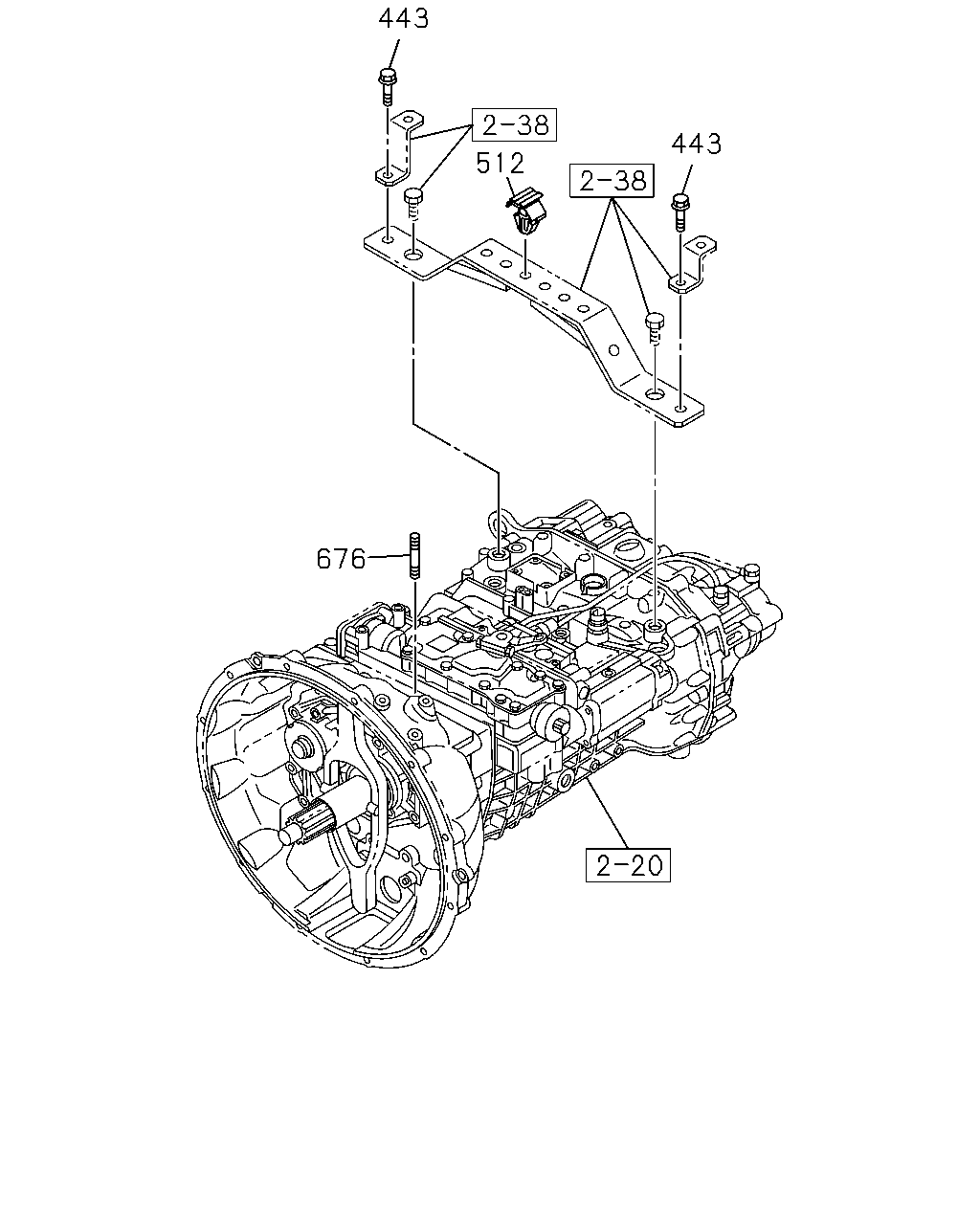

çizim 189357
443 512 443 676
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
SHIFT PATTERN SINGLE-H<EDY> M8X20 FLANGE 		0-28650-820-0 02 1 1009-
512 CLIP; PIPE
SHIFT PATTERN DOUBLE-H<EDZ> OD=9 H=6 		1-09709-178-0 04 1 1009-
512 CLIP; PIPE
SHIFT PATTERN SINGLE-H<EDY> OD=9 H=6 		1-09709-178-0 05 1 1009-
676 STUD
SHIFT PATTERN SINGLE-H<EDY> M8X14,M8X14 L=33 		1-09300-058-1 01 1 1009-

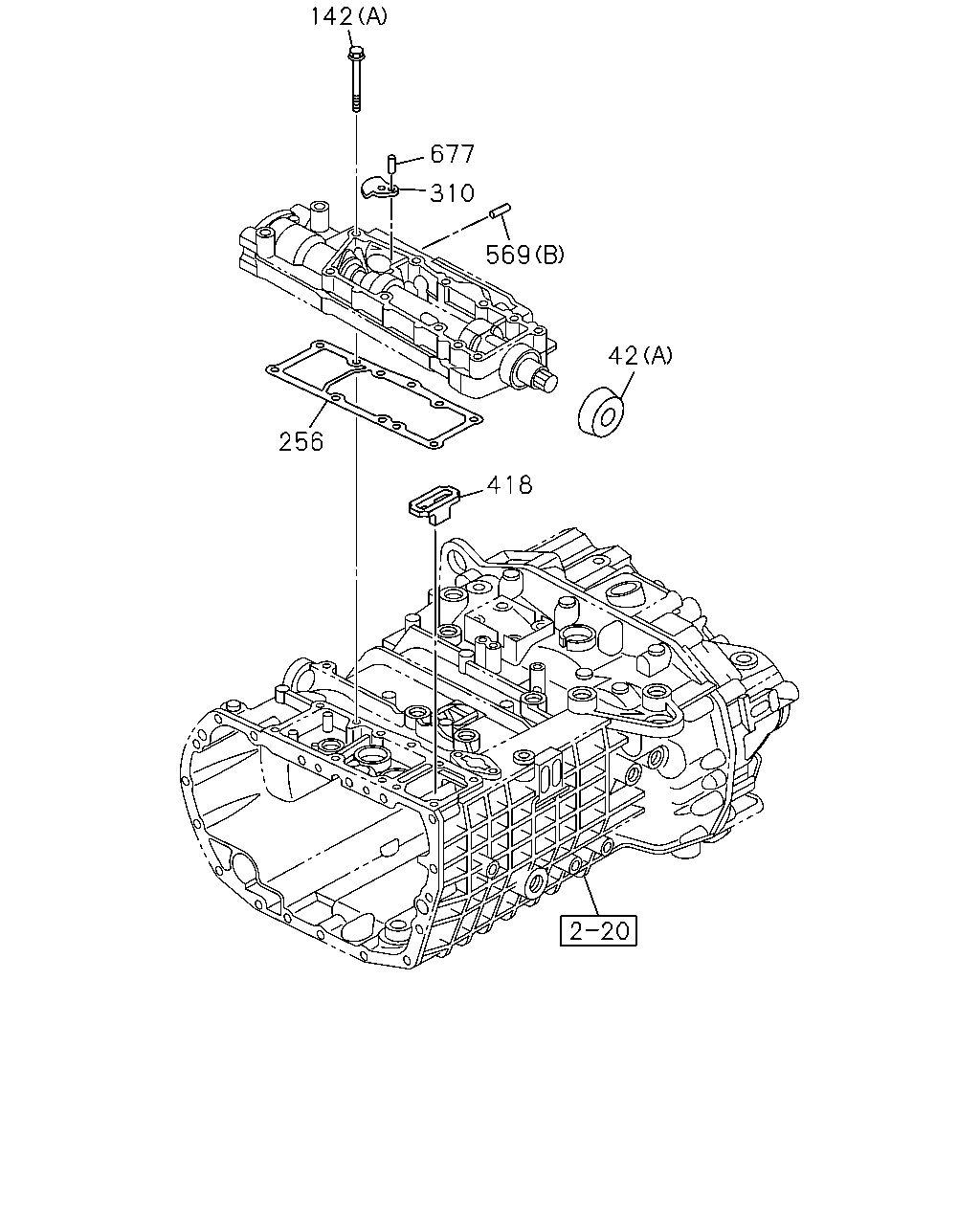

çizim 189358
142 677 310 569 42 418 256
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-111-0 01 1 1009-1305
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33549-589-0 01 1 1306-
42 CAP; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33549-538-0 01 1 1009-
42 CAP; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-548-0 01 1 1009-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X75 		1-09089-015-0 02 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) M8X100 		1-33549-582-0 06 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) 		1-33549-486-0 06 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (E) M8X75 		1-33549-584-0 02 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-34129-116-0 04 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN DOUBLE-H<EDZ> (C) M8X40 		1-33549-587-0 04 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-467-0 05 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-476-0 17 1 1009-1305
142 BOLT; QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> (A) M8X80 		1-33549-614-0 17 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33542-065-0 01 1 1009-
256 GASKET; QUAD BOX TO TRANS CASE
SHIFT PATTERN SINGLE-H<EDY> 		1-33542-062-0 01 1 1009-
310 PLATE; LOCK,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-453-0 01 1 1009-
418 PIECE; DIST,QUAD BOX
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-454-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN DOUBLE-H<EDZ> (D) 		1-33529-128-0 02 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33529-106-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33549-452-0 01 1 1009-
569 PIN; QUADRANT BOX
SHIFT PATTERN SINGLE-H<EDY> (C) 		1-33549-468-0 01 1 1009-
677 PIN; PLATE
SHIFT PATTERN SINGLE-H<EDY> 		1-33549-452-0 01 1 1009-

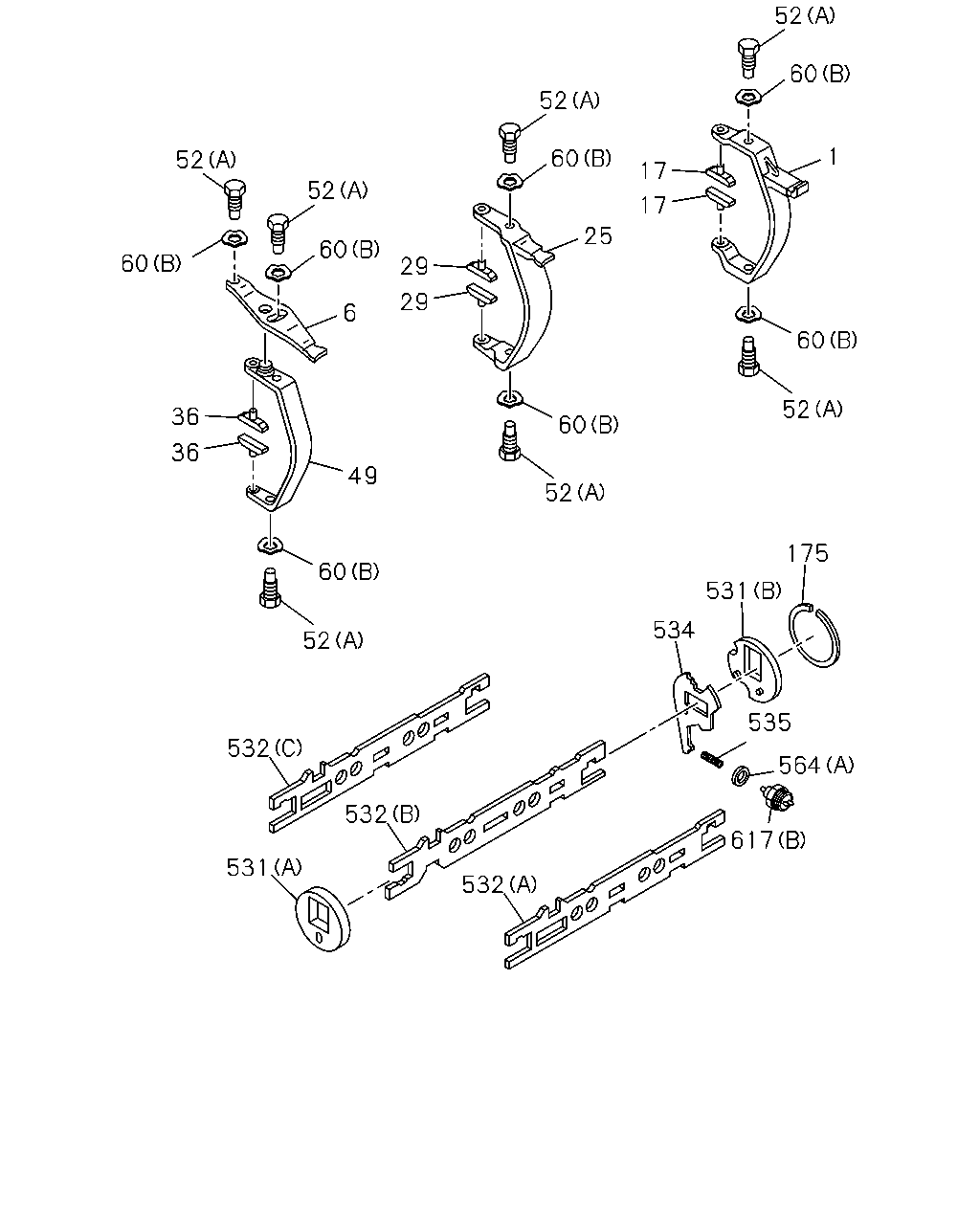

çizim 189359
52 60 25 17 17 1 60 52 60 52 60 52 531 175 534 535 564 617 532 532 531 532 52 60 49 6 29 29 52 60 52 60 36 36
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1009-
6 LEVER; RELAY
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33511-658-0 01 1 1009-1106
6 LEVER; RELAY 1-33511-658-0 01 1 1107-
6 LEVER; RELAY
SHIFT PATTERN SINGLE-H<EDY> 		1-33511-641-0 01 1 1009-1106
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1009-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1009-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1009-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1009-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1009-
52 BOLT; SHIFT ARM
SHIFT PATTERN DOUBLE-H<EDZ> (B) 		1-33519-187-0 02 1 1011-1106
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1107-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-058-0 02 1 1009-1010
52 BOLT; SHIFT ARM
SHIFT PATTERN SINGLE-H<EDY> (B) 		1-33519-058-0 02 1 1011-1106
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1009-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
60 WASHER; LK
(A) 		1-33519-059-0 02 1 1009-1010
60 WASHER; LK
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33519-059-0 02 1 1011-1106
60 WASHER; LK
(B) 		1-33519-085-0 07 1 1009-1305
175 RING; STOPPER,SHIFT LEVER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33539-103-0 01 1 1009-1106
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1107-
175 RING; STOPPER,SHIFT LEVER
SHIFT PATTERN SINGLE-H<EDY> 		1-33539-097-0 01 1 1009-1106
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1009-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1009-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1009-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1009-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1009-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1009-
535 SPRING; LEVER 1-33539-049-0 01 1 1009-
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (A) 		1-33549-578-0 01 1 1011-1106
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1107-
564 SEAL; RING
(A) 		1-33549-444-0 01 1 1009-1010
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33549-444-0 01 1 1011-1106
564 SEAL; RING
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-249-0 02 1 1009-
564 SEAL; RING
SHIFT PATTERN SINGLE-H<EDY> (B) T=2.0 		1-82449-010-0 01 1 1009-
617 PLUG
(B) 		1-34129-061-0 01 1 1009-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-171-0 02 1 1009-1305
617 PLUG
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-33119-619-0 02 1 1306-
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-171-0 01 1 1009-1305
617 PLUG
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33119-619-0 01 1 1306-

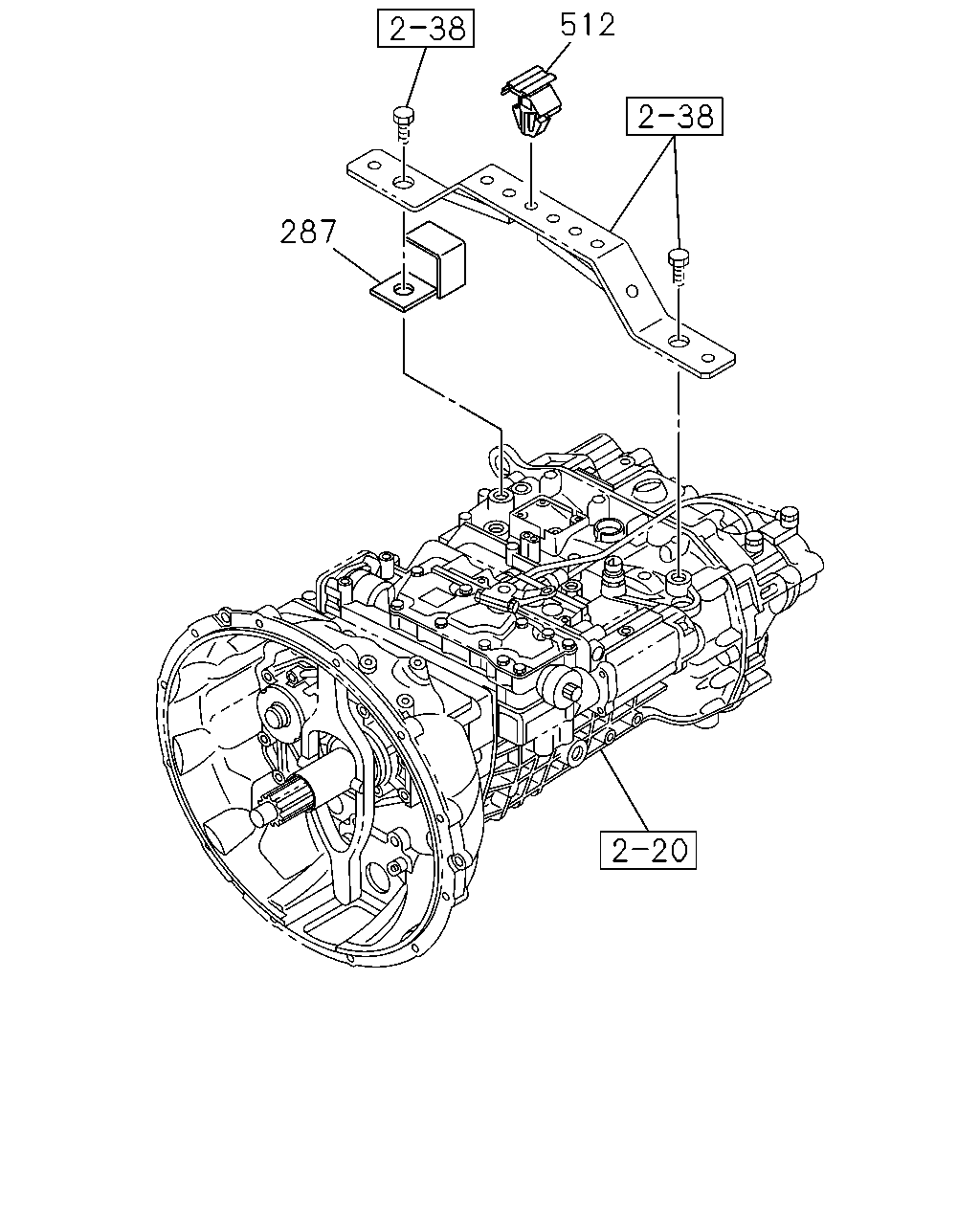

çizim 189361
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-34141-026-0 01 1 1009-
512 CLIP; PIPE
SHIFT PATTERN DOUBLE-H<EDZ> OD=9 H=6 		1-09709-178-0 04 1 1009-
512 CLIP; PIPE
SHIFT PATTERN SINGLE-H<EDY> OD=9 H=6 		1-09709-178-0 05 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
