◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#71230) — 247 parça

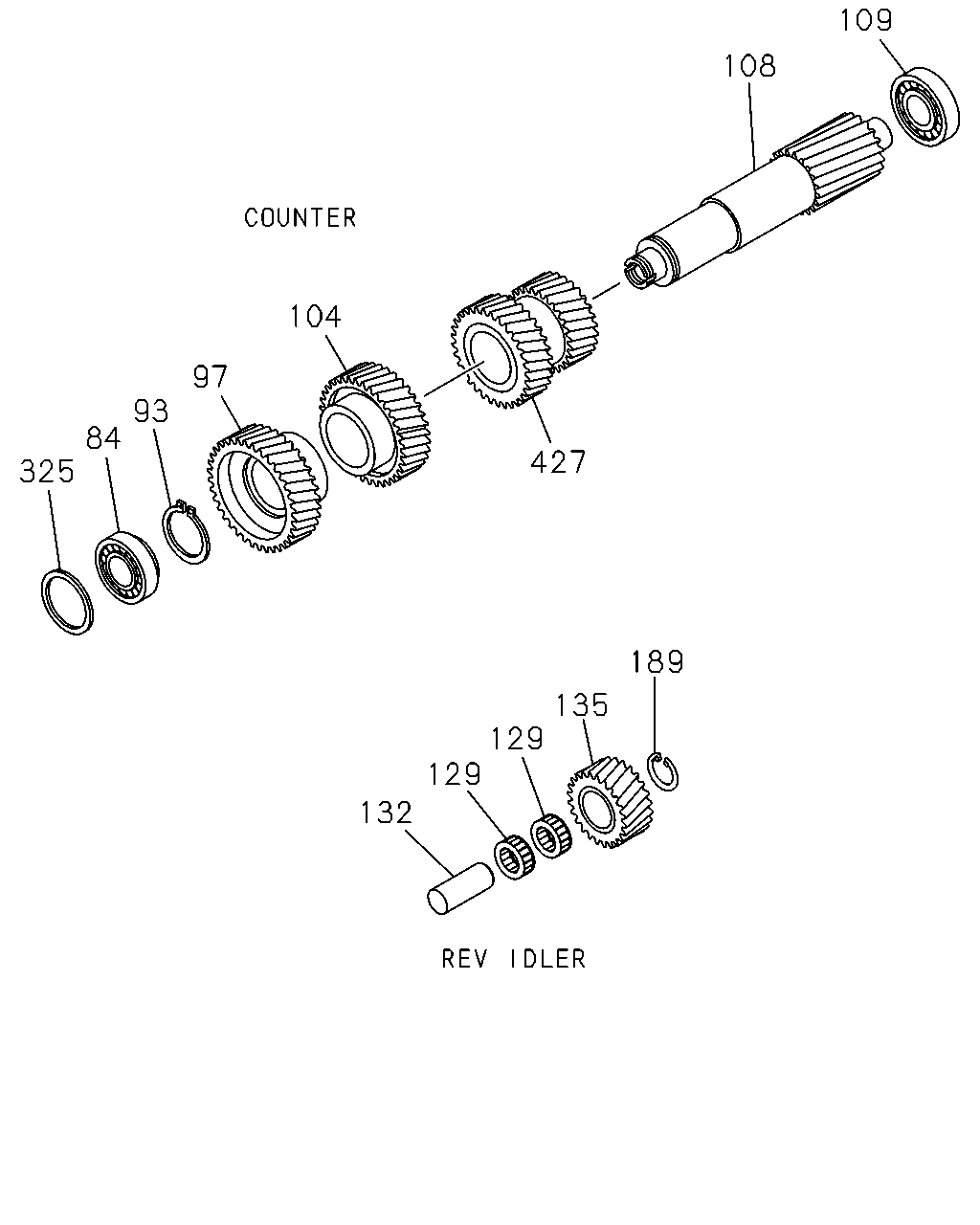

çizim 109664
109 108 427 189 135 129 129 132 104 97 93 84 325
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1009-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1009-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1009-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1009-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1009-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1009-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1009-
132 SHAFT; REV 1-33351-024-0 01 1 1009-
135 GEAR; REV IDLER
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33361-096-0 01 1 1011-1106
135 GEAR; REV IDLER 1-33361-096-0 01 1 1107-
135 GEAR; REV IDLER 1-33361-092-0 01 1 1009-1010
135 GEAR; REV IDLER
SHIFT PATTERN SINGLE-H<EDY> 		1-33361-092-0 01 1 1011-1106
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
SHIFT PATTERN DOUBLE-H<EDZ> T=1.50 		8-98080-571-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1107-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1009-1010
325 SHIM; COUNTER SHAFT BRG
SHIFT PATTERN SINGLE-H<EDY> T=1.50 		1-33389-049-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1009-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 1009-1305
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306-

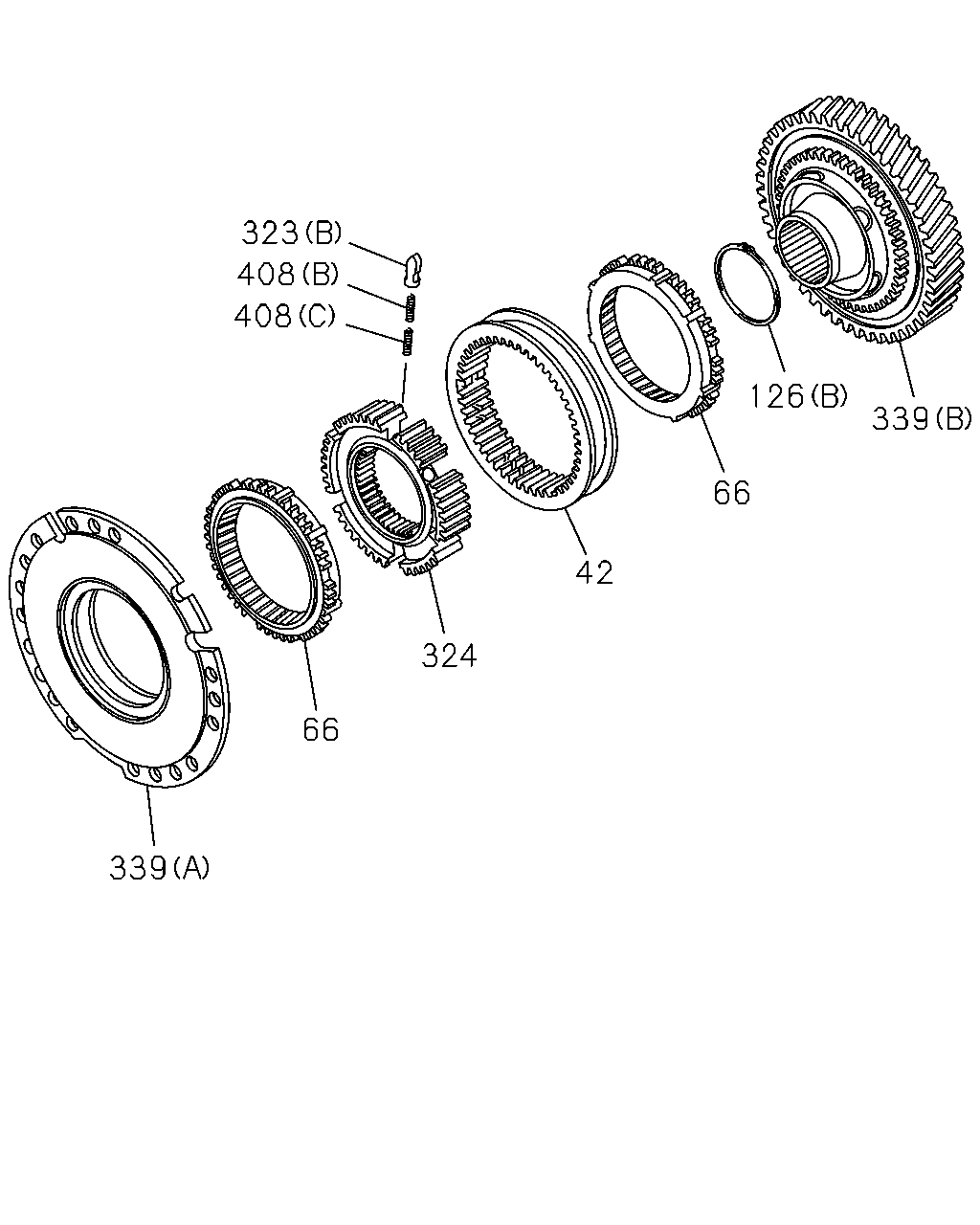

çizim 109752
323 408 408 339 66 324 42 66 126 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1009-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1009-
323 INSERT
(B) 		1-33263-027-0 09 1 1009-
323 INSERT
(A) 		1-33263-030-0 06 1 1009-
324 HUB; CLU 1-33261-230-0 01 1 1009-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1009-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1009-
408 SPRING
(B) 		1-33269-038-0 09 1 1009-
408 SPRING
(C) 		1-33269-039-0 09 1 1009-
408 SPRING
(A) 		1-33269-042-0 06 1 1009-

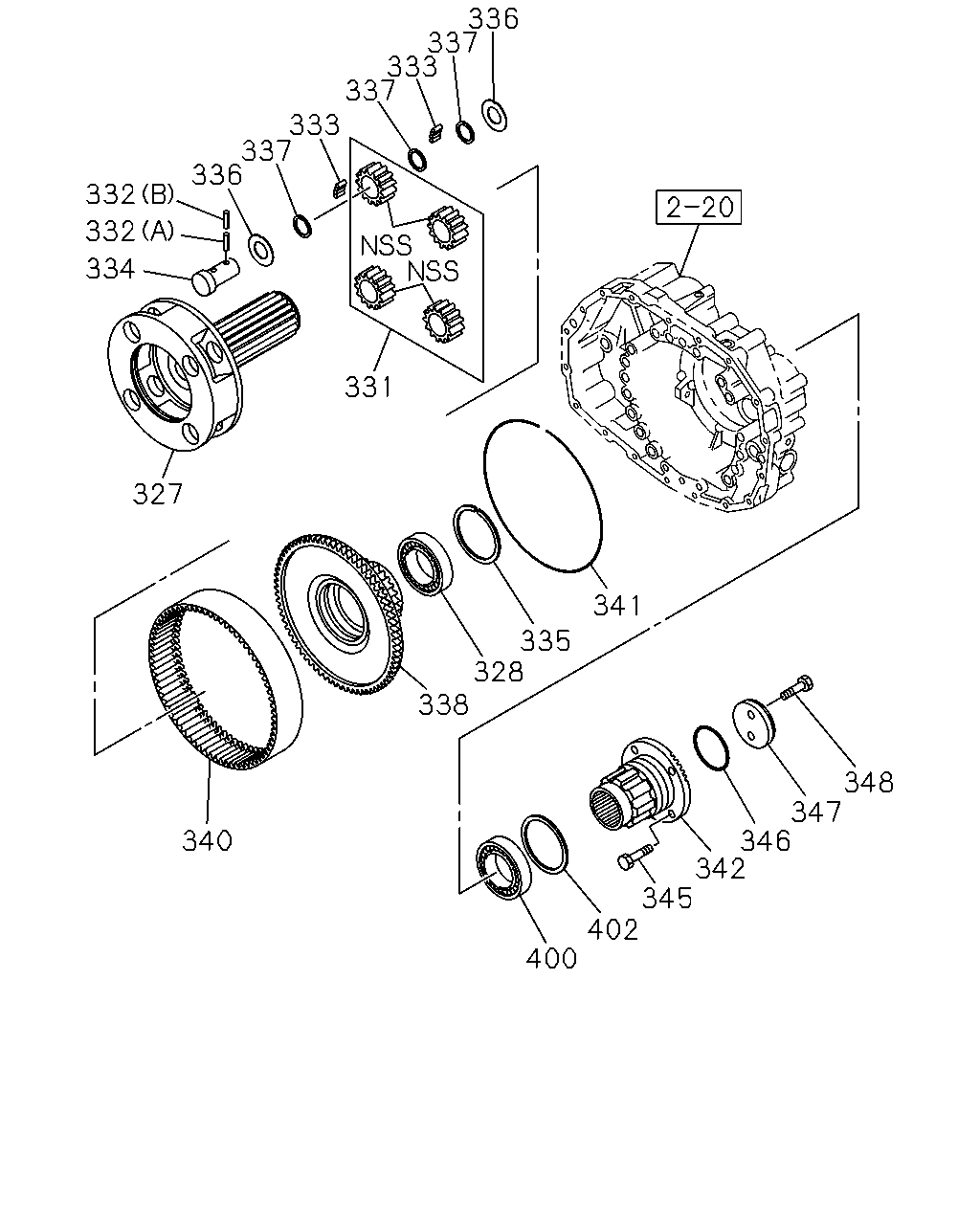

çizim 109829
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 340 348 347 346 342 345 402 400
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1009-
328 BEARING; CARRIER 1-33339-094-0 01 1 1009-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1009-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1009-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1009-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1009-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1009-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1009-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1009-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1009-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1009-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1009-
340 GEAR; RING
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33339-099-0 01 1 1009-1106
340 GEAR; RING 1-33339-099-0 01 1 1107-
340 GEAR; RING
SHIFT PATTERN SINGLE-H<EDY> 		1-33339-095-0 01 1 1009-1106
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1009-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1009-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1009-
346 GASKET; FLANGE 1-37249-156-0 01 1 1009-
347 WASHER; FLANGE 1-09509-060-0 01 1 1009-
348 BOLT; SHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-37249-215-0 02 1 1011-1106
348 BOLT; SHAFT 1-37249-215-0 02 1 1107-
348 BOLT; SHAFT 1-37249-207-0 02 1 1009-1010
348 BOLT; SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-37249-207-0 02 1 1011-1106
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1009-
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=2.20 		1-33139-064-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=2.10 		1-33139-065-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=2.00 		1-33139-066-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=1.90 		1-33139-067-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=1.80 		1-33139-068-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=1.70 		1-33139-069-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=1.60 		1-33139-070-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=1.50 		1-33139-071-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=1.40 		1-33139-072-0 01 1 1009-1106
402 SHIM
SHIFT PATTERN SINGLE-H<EDY> T=1.30 		1-33139-073-0 01 1 1009-1106

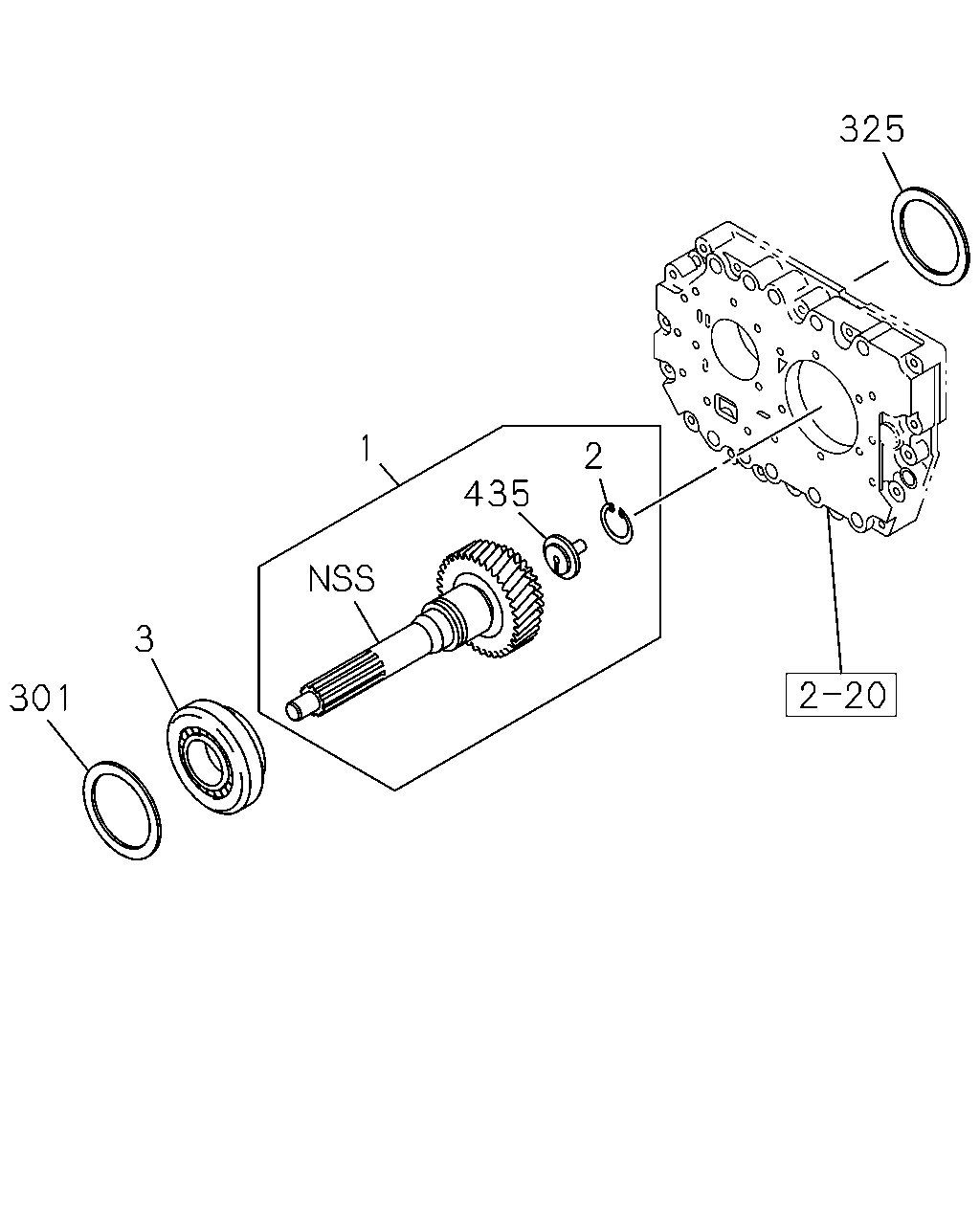

çizim 189355
325 2 1 435 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-038-0 01 1 1009-
2 RING; SNAP,TOP GEAR SHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33219-159-0 01 1 1009-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1009-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
SHIFT PATTERN DOUBLE-H<EDZ> T=1.50 		8-98080-571-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1107-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1009-1010
325 SHIM; COUNTER SHAFT BRG
SHIFT PATTERN SINGLE-H<EDY> T=1.50 		1-33389-049-0 01 1 1011-1106
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1009-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1009-
435 PIPE; INPUTSHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33219-158-0 01 1 1009-

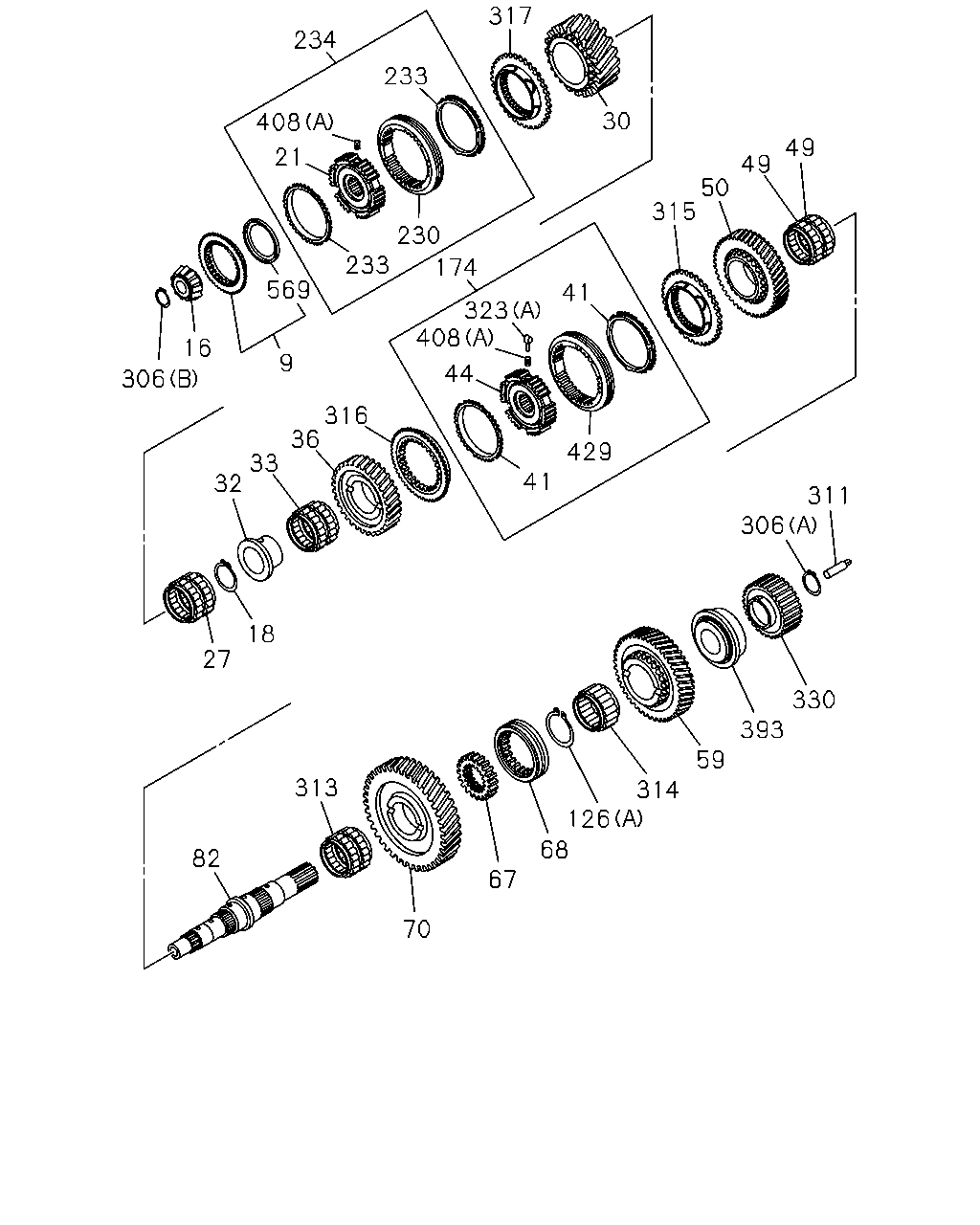

çizim 189356
234 233 408 21 569 233 230 174 408 323 41 44 316 36 33 32 306 16 9 18 27 313 82 70 67 68 126 314 59 393 330 306 311 41 429 315 50 49 49 30 317
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1009-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1009-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1009-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1009-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1009-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1009-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1009-1305
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1009-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1009-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1009-
44 HUB; CLU,2ND & 3RD,MAIN
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33261-303-0 01 1 1011-1106
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1107-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 1009-1010
44 HUB; CLU,2ND & 3RD,MAIN
SHIFT PATTERN SINGLE-H<EDY> 		1-33261-231-0 01 1 1011-1106
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1009-
50 GEAR; 2ND,MAINSHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33251-448-0 01 1 1011-1106
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1107-
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 1009-1010
50 GEAR; 2ND,MAINSHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33251-435-0 01 1 1011-1106
59 GEAR; REV MAINSHAFT
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33257-101-0 01 1 1011-1106
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1107-
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 1009-1010
59 GEAR; REV MAINSHAFT
SHIFT PATTERN SINGLE-H<EDY> 		1-33257-100-0 01 1 1011-1106
67 HUB; CLU,1ST TO REV
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33259-135-0 01 1 1009-1106
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1107-
67 HUB; CLU,1ST TO REV
SHIFT PATTERN SINGLE-H<EDY> 		1-33259-048-0 01 1 1009-1106
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1009-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1009-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1009-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1009-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1009-
174 SYNCHRONIZER ASM; 2ND-3RD
SHIFT PATTERN SINGLE-H<EDY> 		1-33260-169-0 01 1 1009-1106
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1009-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1009-
234 SYNCHRONIZER ASM; 4TH TO 5TH
SHIFT PATTERN SINGLE-H<EDY> 		1-33260-170-0 01 1 1009-1106
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 1009-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1009-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1009-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1009-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1009-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1009-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1009-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1009-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1009-
323 INSERT
(B) 		1-33263-027-0 09 1 1009-
323 INSERT
(A) 		1-33263-030-0 06 1 1009-
330 GEAR; SUN 1-33259-134-0 01 1 1009-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1009-
408 SPRING
(B) 		1-33269-038-0 09 1 1009-
408 SPRING
(C) 		1-33269-039-0 09 1 1009-
408 SPRING
(A) 		1-33269-042-0 06 1 1009-
429 SLEEVE; 2ND & 3RD
SHIFT PATTERN DOUBLE-H<EDZ> 		1-33262-244-0 01 1 1011-1106
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1107-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 1009-1010
429 SLEEVE; 2ND & 3RD
SHIFT PATTERN SINGLE-H<EDY> 		1-33262-192-0 01 1 1011-1106
569 DAM; OIL 1-33269-097-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
