◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#7123) — 285 parça

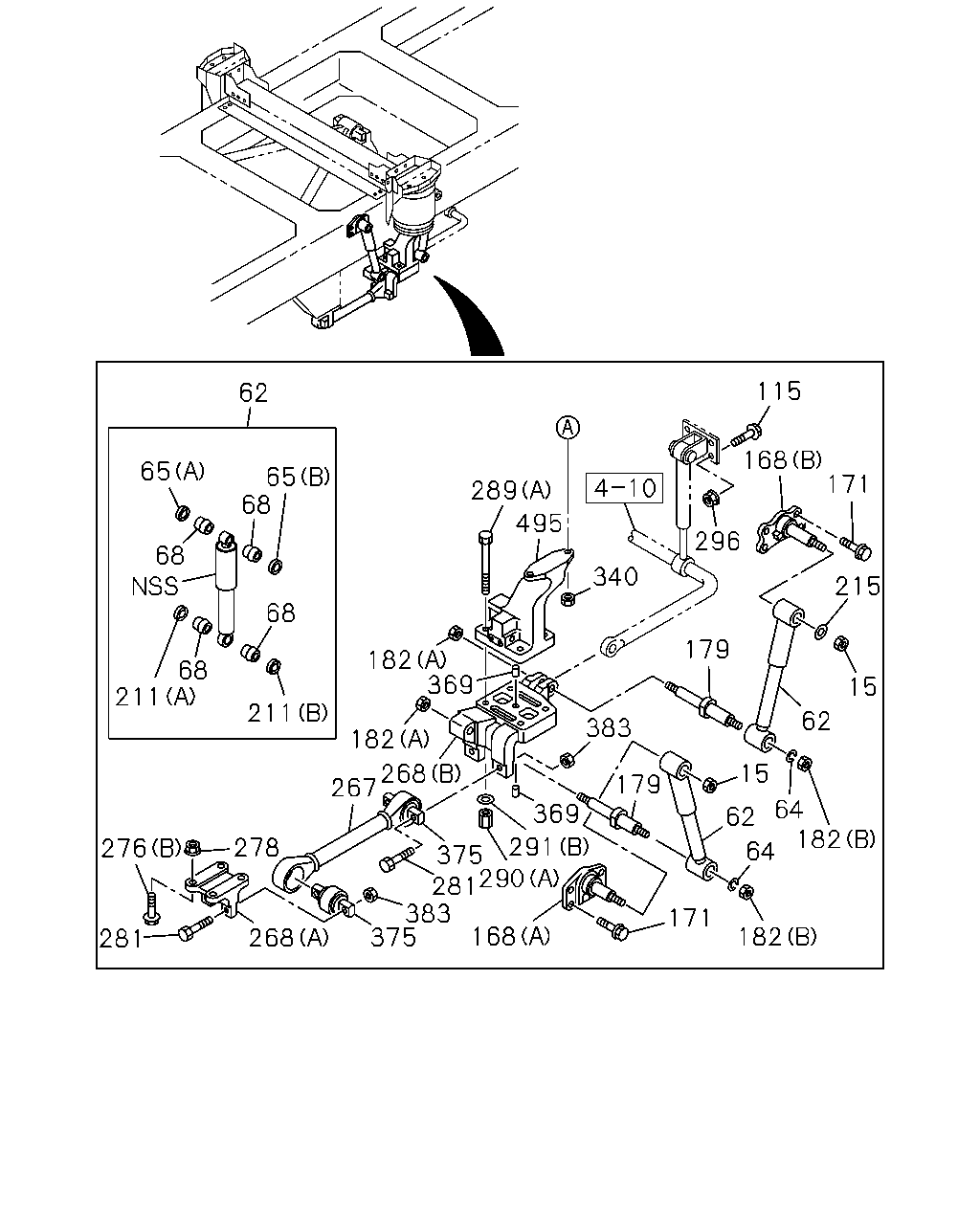

çizim 6681
115 62 168 171 65 65 68 289 495 296 68 340 215 68 182 369 179 68 211 15 211 62 268 267 383 182 15 179 64 182 369 62 291 278 276 64 375 290 281 383 375 171 168 182 268 281
BalonParca AdiParca NoAdetTipApplied Date A B
15 NUT; S/ABS,UPR
M24 		9-99110-524-0 04 1 0012-0512 ●
15 NUT; S/ABS,UPR
M24 		0-91110-524-0 04 1 0601- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-782-0 04 1 0012- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-713-0 02 1 0012- ●
64 WASHER; S/ABS,LWR
ID=24.5 		9-09150-624-0 04 1 0012-0603 ●
64 WASHER; S/ABS,LWR
ID=24.5 		0-91510-624-0 04 1 0604- ●
65 WASHER; S/ABS
(A) ID=33 		9-51631-030-0 04 1 0012- ●
65 WASHER; S/ABS
(B) ID=25 		9-51631-031-0 04 1 0012- ●
65 WASHER; S/ABS
(C) ID=27 		9-51631-027-0 02 1 0012- ●
65 WASHER; S/ABS
(D) ID=21 		9-51631-028-0 02 1 0012- ●
68 BUSHING; S/ABS 1-51631-122-0 16 1 0012- ●
68 BUSHING; S/ABS 1-51631-062-0 08 1 0012- ●
115 BOLT; SUPPORT BRKT TO BODY
M14X40 FLANGE 		0-28691-440-0 08 1 0012-0512 ●
115 BOLT; SUPPORT BRKT TO BODY
M14X40 FLANGE 		0-28661-440-0 08 1 0601- ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51682-112-2 02 1 0012- ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51682-148-1 02 1 0012- ●
168 BRACKET; S/ABS,FRT SUSP
(C) 		1-51682-113-1 02 1 0012-0112 ●
168 BRACKET; S/ABS,FRT SUSP
(C) 		1-51681-746-0 02 1 0201-1012 ●
168 BRACKET; S/ABS,FRT SUSP
(C) 		8-98182-384-0 02 1 1101- ●
171 BOLT; S/ABS BRKT
M14X50 FLANGE 		0-28891-450-0 16 1 0012-0512 ●
171 BOLT; S/ABS BRKT
M14X50 FLANGE 		0-28861-450-0 16 1 0601- ●
171 BOLT; S/ABS BRKT
M14X60 		9-91066-460-0 08 1 0012-0112 ●
171 BOLT; S/ABS BRKT
M14X40 		9-92061-440-0 08 1 0201-0512 ●
171 BOLT; S/ABS BRKT
M14X40 		0-20951-440-0 08 1 0601- ●
179 PIN 1-51682-135-0 04 1 0012- ●
179 PIN 1-51682-094-1 02 1 0012- ●
182 NUT; S/ABS LWR
(A) M18 SELF LOCK 		1-09464-032-0 04 1 0012- ●
182 NUT; S/ABS LWR
(B) M24 		9-99110-524-0 04 1 0012-0512 ●
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 04 1 0601- ●
182 NUT; S/ABS LWR
(C) M24 		9-99110-424-0 02 1 0012- ●
211 WASHER; BRKT,SHOCK
(A) ID=33 		9-51631-030-0 04 1 0012- ●
211 WASHER; BRKT,SHOCK
(B) ID=25 		9-51631-031-0 04 1 0012- ●
211 WASHER; BRKT,SHOCK
(C) ID=27 		9-51631-027-0 02 1 0012- ●
211 WASHER; BRKT,SHOCK
(D) ID=21 		9-51631-028-0 02 1 0012- ●
215 WASHER; S/ABS,UPR,OUTER
ID=24.5 		9-09150-624-0 04 1 0012-0603 ●
215 WASHER; S/ABS,UPR,OUTER
ID=24.5 		0-91510-624-0 04 1 0604- ●
267 ROD; TORQUE,FRT SUSP
L=545 		1-51511-658-0 02 1 0012- ●
268 BRACKET; TORQUE ROD
(A) 		1-53363-099-1 02 1 0012- ●
268 BRACKET; TORQUE ROD
(B) 		1-53363-108-2 01 1 0012- ●
268 BRACKET; TORQUE ROD
(B) 		1-53363-107-2 01 1 0012- ●
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28891-660-0 08 1 0012-0512 ●
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28861-660-0 08 1 0601- ●
276 BOLT; BRKT
(A) M20X165 		1-09000-661-1 06 1 0012-0811 ●
276 BOLT; BRKT
(A) M20X165 		8-98010-548-0 06 1 0812- ●
278 NUT; BRKT
M16 		9-99110-516-0 06 1 0012-0512 ●
278 NUT; BRKT
M16 		0-91110-516-0 06 1 0601- ●
281 BOLT; TORQUE ROD
M18X102 		1-09000-627-0 08 1 0012-0505 ●
281 BOLT; TORQUE ROD
M18X102 		1-09000-568-0 08 1 0506-0805 ●
281 BOLT; TORQUE ROD
M18X102 		8-98012-877-0 08 1 0806- ●
289 BOLT; BRKT
(A) M22X155 		9-09801-290-1 08 1 0012- ●
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) M16X100 		9-91066-600-0 04 1 0012-0203 ●
289 BOLT; BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (B) M16X100 		9-91066-600-0 04 1 0204-0210 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16X100 		9-91066-600-0 04 1 0211-0512 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16X100 		0-10956-600-0 04 1 0601- ●
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) M16X60 		9-91066-660-0 04 1 0012-0203 ●
289 BOLT; BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) M16X60 		9-91066-660-0 04 1 0204-0210 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) M16X60 		9-91066-660-0 04 1 0211-0512 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) M16X60 		0-10956-660-0 04 1 0601- ●
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (D) M16X70 		9-91066-670-0 04 1 0012-0203 ●
289 BOLT; BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (D) M16X70 		9-91066-670-0 04 1 0204-0210 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (D) M16X70 		9-91066-670-0 04 1 0211-0512 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (D) M16X70 		0-10956-670-0 04 1 0601- ●
290 NUT; LK,BRKT
(A) M22 		9-09112-822-0 08 1 0012-0512 ●
290 NUT; LK,BRKT
(A) M22 		0-91112-822-0 08 1 0601- ●
290 NUT; LK,BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) M16 		9-99110-516-0 12 1 0012-0203 ●
290 NUT; LK,BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (B) M16 		9-99110-516-0 12 1 0204-0210 ●
290 NUT; LK,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16 		9-99110-516-0 12 1 0211-0512 ●
290 NUT; LK,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16 		0-91110-516-0 12 1 0601- ●
291 WASHER; PL,BRKT
(A) ID=21 		9-09164-520-0 06 1 0012- ●
291 WASHER; PL,BRKT
(B) ID=23 		9-09164-522-0 08 1 0012-0605 ●
291 WASHER; PL,BRKT
(B) ID=23 		0-91614-522-0 08 1 0606- ●
291 WASHER; PL,BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) ID=16.2 		1-09503-223-0 24 1 0012-0203 ●
291 WASHER; PL,BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-223-0 24 1 0204-0210 ●
291 WASHER; PL,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-223-0 24 1 0211-0903 ●
291 WASHER; PL,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-316-0 24 1 0904- ●
296 NUT; SUPPORT,STABILIZER
M14 FLANGE 		0-91160-214-0 08 1 0012-0602 ●
296 NUT; SUPPORT,STABILIZER
M14 FLANGE 		0-91180-214-0 08 1 0603- ●
340 NUT; FIX
M12 FLANGE 		0-91150-212-0 04 1 0012-0602 ●
340 NUT; FIX
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
369 PIN; KNOCK,BRKT 1-52179-036-2 02 1 0012- ●
369 PIN; KNOCK,BRKT 1-52179-036-2 04 1 0012- ●
375 BUSHING; RUBBER,TORQUE ROD 1-51519-166-1 04 1 0012-0312 ●
375 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0401- ●
383 NUT; TORQUE ROD
M18 SELF LOCK 		1-09464-032-0 08 1 0012- ●
495 BRACKET; AIR SPR 1-53363-111-0 02 1 0012- ●

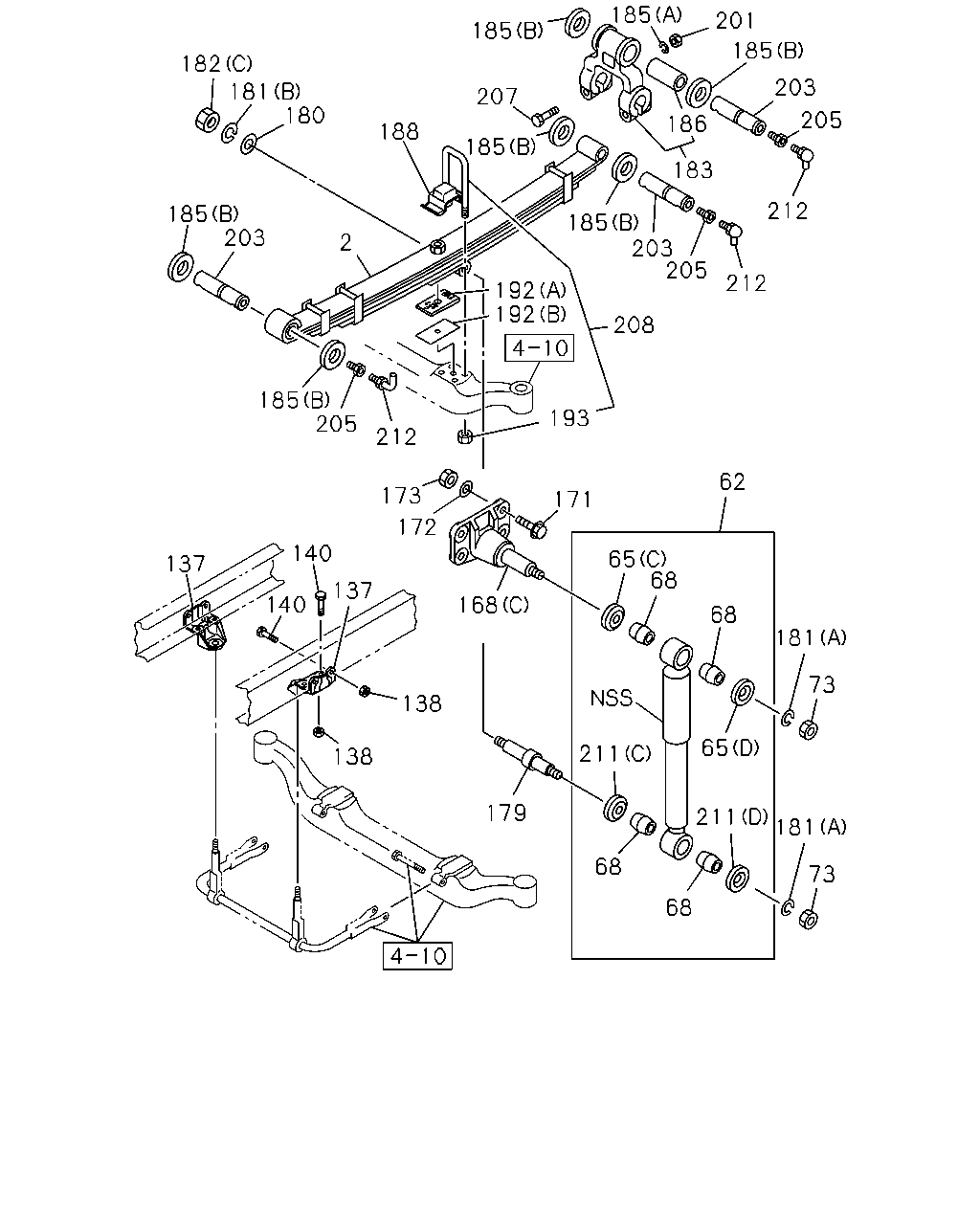

çizim 7639
185 201 185 185 182 181 180 203 207 205 186 188 185 183 212 185 203 185 203 205 2 212 192 192 208 185 205 193 212 62 173 171 172 140 65 68 137 137 140 168 68 181 73 138 65 211 138 179 211 181 68 73 68
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> 9-LEAF 		1-51130-723-0 02 1 0012-1009 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> 7-LEAF 		8-98171-477-0 02 1 1010- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N> 9-LEAF 		1-51130-790-0 02 1 0012-1009 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N> 7-LEAF 		8-98171-244-0 02 1 1010- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-782-0 04 1 0012- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-713-0 02 1 0012- ●
65 WASHER; S/ABS
(A) ID=33 		9-51631-030-0 04 1 0012- ●
65 WASHER; S/ABS
(B) ID=25 		9-51631-031-0 04 1 0012- ●
65 WASHER; S/ABS
(C) ID=27 		9-51631-027-0 02 1 0012- ●
65 WASHER; S/ABS
(D) ID=21 		9-51631-028-0 02 1 0012- ●
68 BUSHING; S/ABS 1-51631-122-0 16 1 0012- ●
68 BUSHING; S/ABS 1-51631-062-0 08 1 0012- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 04 1 0012-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 04 1 0601- ●
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-112-0 01 1 0012- ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-112-0 01 1 0012- ●
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-134-0 01 1 0012- ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-134-0 01 1 0012- ●
138 NUT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91160-214-0 08 1 0012-0602 ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		0-91160-214-0 08 1 0012-0602 ●
138 NUT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91180-214-0 08 1 0603- ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 FLANGE 		0-91180-214-0 08 1 0603- ●
140 BOLT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28891-445-0 08 1 0012-0512 ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 FLANGE 		0-28891-445-0 08 1 0012-0512 ●
140 BOLT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28861-445-0 08 1 0601- ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 FLANGE 		0-28861-445-0 08 1 0601- ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51682-112-2 02 1 0012- ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51682-148-1 02 1 0012- ●
168 BRACKET; S/ABS,FRT SUSP
(C) 		1-51682-113-1 02 1 0012-0112 ●
168 BRACKET; S/ABS,FRT SUSP
(C) 		1-51681-746-0 02 1 0201-1012 ●
168 BRACKET; S/ABS,FRT SUSP
(C) 		8-98182-384-0 02 1 1101- ●
171 BOLT; S/ABS BRKT
M14X50 FLANGE 		0-28891-450-0 16 1 0012-0512 ●
171 BOLT; S/ABS BRKT
M14X50 FLANGE 		0-28861-450-0 16 1 0601- ●
171 BOLT; S/ABS BRKT
M14X60 		9-91066-460-0 08 1 0012-0112 ●
171 BOLT; S/ABS BRKT
M14X40 		9-92061-440-0 08 1 0201-0512 ●
171 BOLT; S/ABS BRKT
M14X40 		0-20951-440-0 08 1 0601- ●
172 WASHER; PL,S/ABS BRKT
ID=15 		9-09651-069-0 16 1 0012- ●
173 NUT; S/ABS
M14 		9-99110-514-0 08 1 0012-0512 ●
173 NUT; S/ABS
M14 		0-91110-514-0 08 1 0601- ●
179 PIN 1-51682-135-0 04 1 0012- ●
179 PIN 1-51682-094-1 02 1 0012- ●
180 WASHER; PL,PIN 1-09503-169-0 02 1 0012- ●
181 WASHER; LK,PIN
(A) ID=20.2 		9-09150-520-0 04 1 0012-0603 ●
181 WASHER; LK,PIN
(A) ID=20.2 		0-91510-520-0 04 1 0604- ●
181 WASHER; LK,PIN
(B) ID=24.5 		9-09150-524-0 02 1 0012-0603 ●
181 WASHER; LK,PIN
(B) ID=24.5 		0-91510-524-0 02 1 0604- ●
182 NUT; S/ABS LWR
(A) M18 SELF LOCK 		1-09464-032-0 04 1 0012- ●
182 NUT; S/ABS LWR
(B) M24 		9-99110-524-0 04 1 0012-0512 ●
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 04 1 0601- ●
182 NUT; S/ABS LWR
(C) M24 		9-99110-424-0 02 1 0012- ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0012- ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0012- ●
185 WASHER; LK,PIN
(A) ID=12.2 		9-09150-612-0 12 1 0012-0603 ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 0604- ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0012-0902 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-121-0 02 1 0012- ●
192 PIECE; DIST
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> (A) 		1-51177-281-1 02 1 0110- ●
192 PIECE; DIST
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> (B) 		9-51377-038-0 02 1 0110- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0012-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0012-0512 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0012- ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0012- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0012-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0012-1009 ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1010- ●
211 WASHER; BRKT,SHOCK
(A) ID=33 		9-51631-030-0 04 1 0012- ●
211 WASHER; BRKT,SHOCK
(B) ID=25 		9-51631-031-0 04 1 0012- ●
211 WASHER; BRKT,SHOCK
(C) ID=27 		9-51631-027-0 02 1 0012- ●
211 WASHER; BRKT,SHOCK
(D) ID=21 		9-51631-028-0 02 1 0012- ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 06 1 0012-0512 ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0601- ●

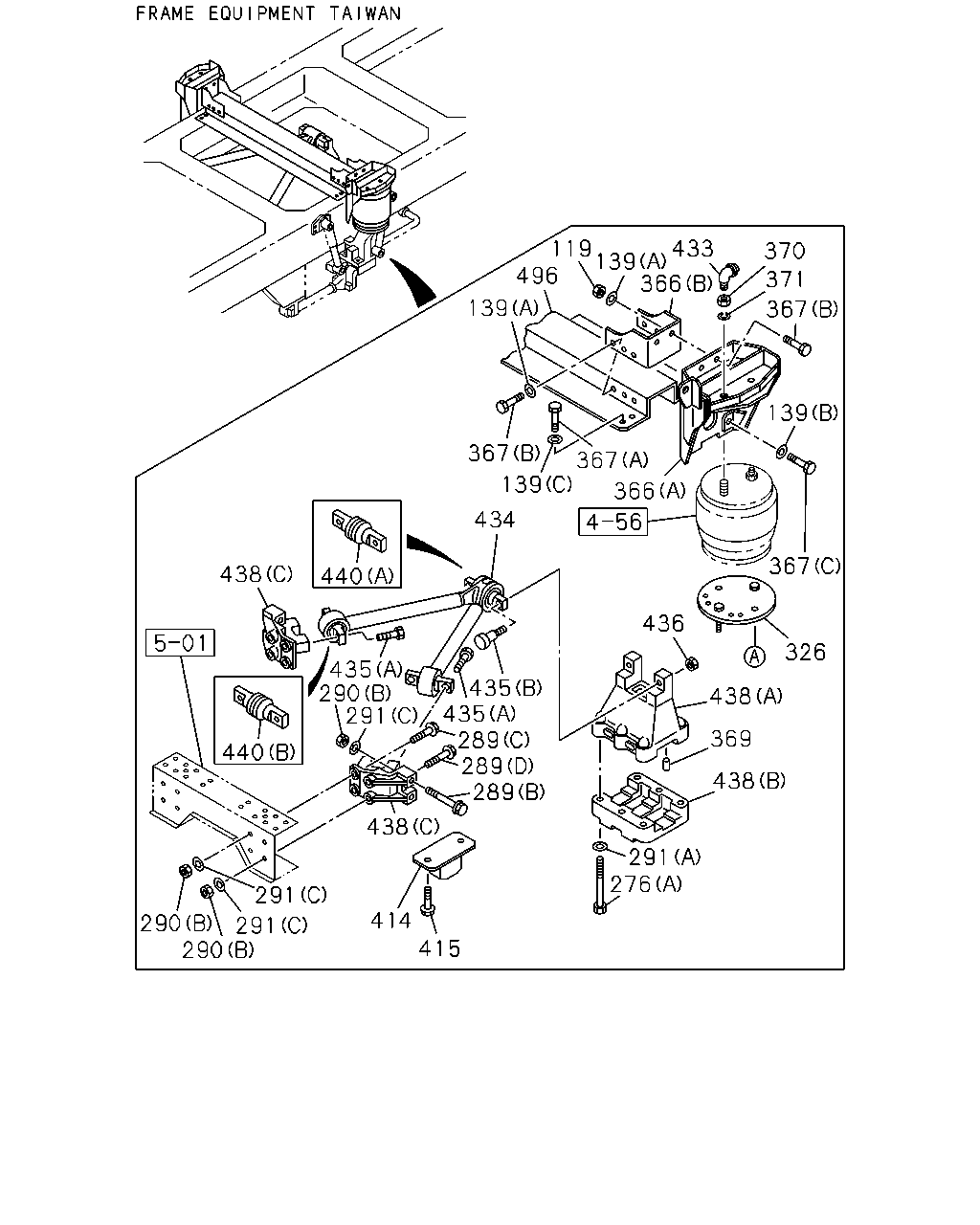

çizim 7641
119 433 139 496 366 370 371 139 367 139 367 367 139 366 434 367 438 440 436 326 435 290 291 435 435 289 289 289 438 369 440 438 438 291 276 291 414 290 291 290 415
BalonParca AdiParca NoAdetTipApplied Date A B
119 NUT; BRKT
M16 		9-99110-516-0 04 1 0012-0512 ●
119 NUT; BRKT
M16 		0-91110-516-0 04 1 0601- ●
139 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 16 1 0012-0903 ●
139 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 16 1 0904- ●
139 WASHER; PL,BRKT
(B) ID=21 		9-09164-520-0 12 1 0012- ●
139 WASHER; PL,BRKT
(C) ID=15 		9-09651-069-0 08 1 0012- ●
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28891-660-0 08 1 0012-0512 ●
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28861-660-0 08 1 0601- ●
276 BOLT; BRKT
(A) M20X165 		1-09000-661-1 06 1 0012-0811 ●
276 BOLT; BRKT
(A) M20X165 		8-98010-548-0 06 1 0812- ●
289 BOLT; BRKT
(A) M22X155 		9-09801-290-1 08 1 0012- ●
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) M16X100 		9-91066-600-0 04 1 0012-0203 ●
289 BOLT; BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (B) M16X100 		9-91066-600-0 04 1 0204-0210 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16X100 		9-91066-600-0 04 1 0211-0512 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16X100 		0-10956-600-0 04 1 0601- ●
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) M16X60 		9-91066-660-0 04 1 0012-0203 ●
289 BOLT; BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) M16X60 		9-91066-660-0 04 1 0204-0210 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) M16X60 		9-91066-660-0 04 1 0211-0512 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) M16X60 		0-10956-660-0 04 1 0601- ●
289 BOLT; BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (D) M16X70 		9-91066-670-0 04 1 0012-0203 ●
289 BOLT; BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (D) M16X70 		9-91066-670-0 04 1 0204-0210 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (D) M16X70 		9-91066-670-0 04 1 0211-0512 ●
289 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (D) M16X70 		0-10956-670-0 04 1 0601- ●
290 NUT; LK,BRKT
(A) M22 		9-09112-822-0 08 1 0012-0512 ●
290 NUT; LK,BRKT
(A) M22 		0-91112-822-0 08 1 0601- ●
290 NUT; LK,BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (B) M16 		9-99110-516-0 12 1 0012-0203 ●
290 NUT; LK,BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (B) M16 		9-99110-516-0 12 1 0204-0210 ●
290 NUT; LK,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16 		9-99110-516-0 12 1 0211-0512 ●
290 NUT; LK,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) M16 		0-91110-516-0 12 1 0601- ●
291 WASHER; PL,BRKT
(A) ID=21 		9-09164-520-0 06 1 0012- ●
291 WASHER; PL,BRKT
(B) ID=23 		9-09164-522-0 08 1 0012-0605 ●
291 WASHER; PL,BRKT
(B) ID=23 		0-91614-522-0 08 1 0606- ●
291 WASHER; PL,BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) ID=16.2 		1-09503-223-0 24 1 0012-0203 ●
291 WASHER; PL,BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-223-0 24 1 0204-0210 ●
291 WASHER; PL,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-223-0 24 1 0211-0903 ●
291 WASHER; PL,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-316-0 24 1 0904- ●
326 PLATE; AIR SPR 1-52119-249-0 02 1 0012- ●
366 BRACKET; UPR,AIR SPR
(B) 		1-52171-249-0 02 1 0012- ●
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-248-1 01 1 0012- ●
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-247-1 01 1 0012- ●
367 BOLT; BRKT,AIR SPR
(A) M14X40 		9-92061-440-0 08 1 0012-0512 ●
367 BOLT; BRKT,AIR SPR
(A) M14X40 		0-20951-440-0 08 1 0601- ●
367 BOLT; BRKT,AIR SPR
(B) M16X50 		9-92061-650-0 16 1 0012-0512 ●
367 BOLT; BRKT,AIR SPR
(B) M16X50 		0-20951-650-0 16 1 0601- ●
367 BOLT; BRKT,AIR SPR
(C) M20X50 		9-92062-050-0 12 1 0012- ●
369 PIN; KNOCK,BRKT 1-52179-036-2 02 1 0012- ●
369 PIN; KNOCK,BRKT 1-52179-036-2 04 1 0012- ●
370 NUT; AIR SPR
M20 		9-99111-520-0 02 1 0012-0512 ●
370 NUT; AIR SPR
M20 		0-91111-520-0 02 1 0601- ●
371 WASHER; LK,AIR SPR
ID=20.2 		9-09150-520-0 02 1 0012-0603 ●
371 WASHER; LK,AIR SPR
ID=20.2 		0-91510-520-0 02 1 0604- ●
414 RUBBER; BUFFER 1-53366-182-0 02 1 0012- ●
415 BOLT; RUBBER
M12X35 FLANGE 		0-28691-235-0 04 1 0012-0512 ●
415 BOLT; RUBBER
M12X35 FLANGE 		0-28661-235-0 04 1 0601- ●
433 CONNECTOR; AIR SPRING
DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0012-0306 ●
433 CONNECTOR; AIR SPRING
DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0307- ●
434 ROD ASM; V 1-51510-769-1 01 1 0012- ●
435 BOLT; V-ROD
(A) M18X70 FLANGE 		1-09044-102-1 04 1 0012-0805 ●
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98010-540-0 04 1 0806-1102 ●
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98183-506-0 04 1 1103- ●
435 BOLT; V-ROD
(B) M24X78 SQUARE HEAD 		1-09749-038-1 02 1 0012-0805 ●
435 BOLT; V-ROD
(B) M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0806- ●
436 NUT; V-ROD
M24 FLANGE 		1-42334-045-1 02 1 0012-0805 ●
436 NUT; V-ROD
M24 FLANGE 		8-98019-963-0 02 1 0806- ●
438 BRACKET; V-ROD
(A) 		1-53363-109-0 01 1 0012- ●
438 BRACKET; V-ROD
(B) 		1-53363-110-0 01 1 0012- ●
438 BRACKET; V-ROD
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) 		1-53353-117-0 02 1 0012-0203 ●
438 BRACKET; V-ROD
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) 		1-53353-117-1 02 1 0204-0210 ●
438 BRACKET; V-ROD
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) 		1-53353-117-1 02 1 0211- ●
440 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 01 1 0012- ●
440 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 02 1 0012- ●
496 CROSSMEMBER 1-53456-365-0 01 1 0012- ●

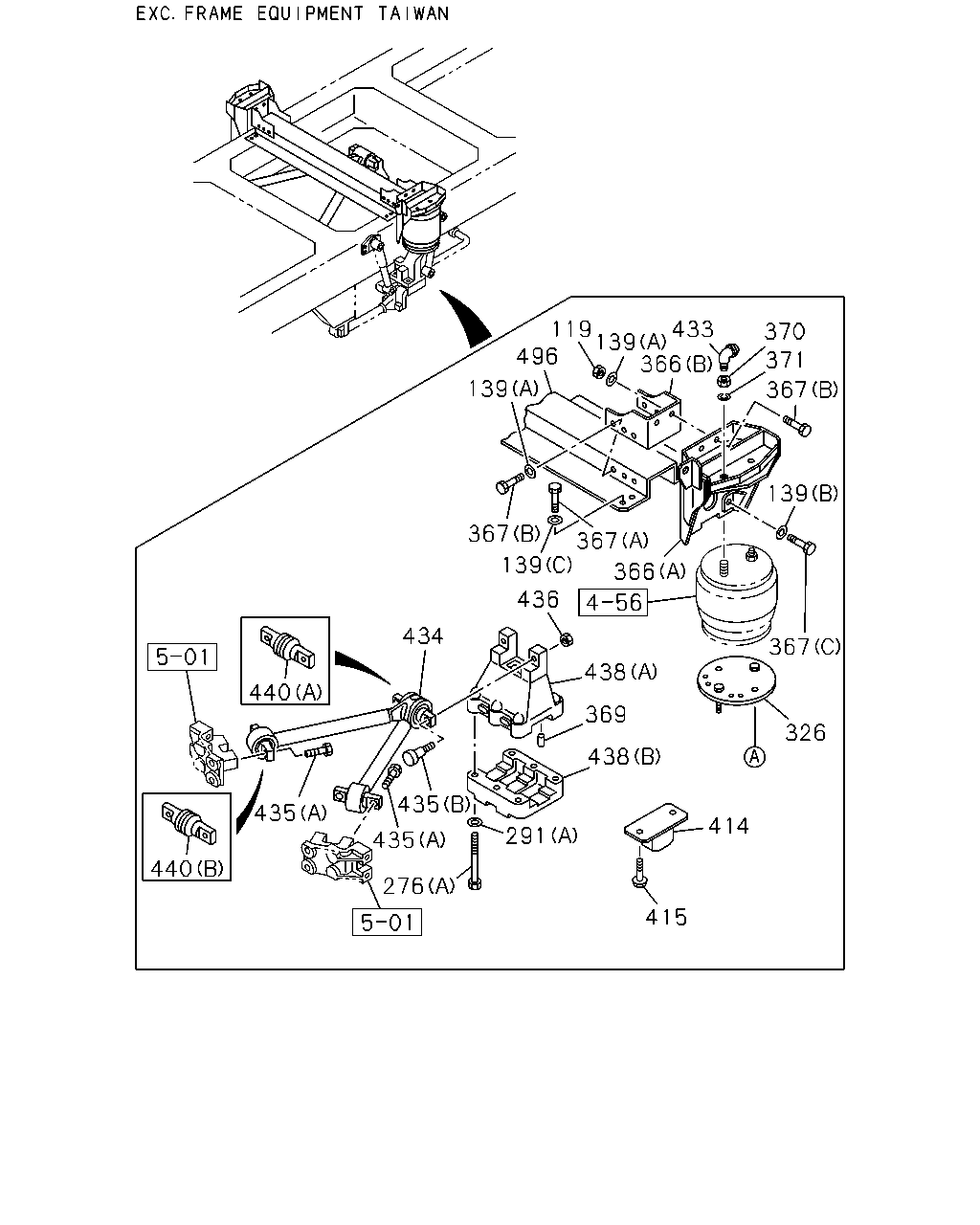

çizim 42824
119 433 139 496 366 370 371 139 367 139 367 367 139 366 436 367 434 438 440 369 326 438 435 435 435 414 291 440 276 415
BalonParca AdiParca NoAdetTipApplied Date A B
119 NUT; BRKT
M16 		9-99110-516-0 04 1 0012-0512 ●
119 NUT; BRKT
M16 		0-91110-516-0 04 1 0601- ●
139 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 16 1 0012-0903 ●
139 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 16 1 0904- ●
139 WASHER; PL,BRKT
(B) ID=21 		9-09164-520-0 12 1 0012- ●
139 WASHER; PL,BRKT
(C) ID=15 		9-09651-069-0 08 1 0012- ●
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28891-660-0 08 1 0012-0512 ●
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28861-660-0 08 1 0601- ●
276 BOLT; BRKT
(A) M20X165 		1-09000-661-1 06 1 0012-0811 ●
276 BOLT; BRKT
(A) M20X165 		8-98010-548-0 06 1 0812- ●
291 WASHER; PL,BRKT
(A) ID=21 		9-09164-520-0 06 1 0012- ●
291 WASHER; PL,BRKT
(B) ID=23 		9-09164-522-0 08 1 0012-0605 ●
291 WASHER; PL,BRKT
(B) ID=23 		0-91614-522-0 08 1 0606- ●
291 WASHER; PL,BRKT
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) ID=16.2 		1-09503-223-0 24 1 0012-0203 ●
291 WASHER; PL,BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-223-0 24 1 0204-0210 ●
291 WASHER; PL,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-223-0 24 1 0211-0903 ●
291 WASHER; PL,BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) ID=16.2 		1-09503-316-0 24 1 0904- ●
326 PLATE; AIR SPR 1-52119-249-0 02 1 0012- ●
366 BRACKET; UPR,AIR SPR
(B) 		1-52171-249-0 02 1 0012- ●
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-248-1 01 1 0012- ●
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-247-1 01 1 0012- ●
367 BOLT; BRKT,AIR SPR
(A) M14X40 		9-92061-440-0 08 1 0012-0512 ●
367 BOLT; BRKT,AIR SPR
(A) M14X40 		0-20951-440-0 08 1 0601- ●
367 BOLT; BRKT,AIR SPR
(B) M16X50 		9-92061-650-0 16 1 0012-0512 ●
367 BOLT; BRKT,AIR SPR
(B) M16X50 		0-20951-650-0 16 1 0601- ●
367 BOLT; BRKT,AIR SPR
(C) M20X50 		9-92062-050-0 12 1 0012- ●
369 PIN; KNOCK,BRKT 1-52179-036-2 02 1 0012- ●
369 PIN; KNOCK,BRKT 1-52179-036-2 04 1 0012- ●
370 NUT; AIR SPR
M20 		9-99111-520-0 02 1 0012-0512 ●
370 NUT; AIR SPR
M20 		0-91111-520-0 02 1 0601- ●
371 WASHER; LK,AIR SPR
ID=20.2 		9-09150-520-0 02 1 0012-0603 ●
371 WASHER; LK,AIR SPR
ID=20.2 		0-91510-520-0 02 1 0604- ●
414 RUBBER; BUFFER 1-53366-182-0 02 1 0012- ●
415 BOLT; RUBBER
M12X35 FLANGE 		0-28691-235-0 04 1 0012-0512 ●
415 BOLT; RUBBER
M12X35 FLANGE 		0-28661-235-0 04 1 0601- ●
433 CONNECTOR; AIR SPRING
DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0012-0306 ●
433 CONNECTOR; AIR SPRING
DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0307- ●
434 ROD ASM; V 1-51510-769-1 01 1 0012- ●
435 BOLT; V-ROD
(A) M18X70 FLANGE 		1-09044-102-1 04 1 0012-0805 ●
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98010-540-0 04 1 0806-1102 ●
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98183-506-0 04 1 1103- ●
435 BOLT; V-ROD
(B) M24X78 SQUARE HEAD 		1-09749-038-1 02 1 0012-0805 ●
435 BOLT; V-ROD
(B) M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0806- ●
436 NUT; V-ROD
M24 FLANGE 		1-42334-045-1 02 1 0012-0805 ●
436 NUT; V-ROD
M24 FLANGE 		8-98019-963-0 02 1 0806- ●
438 BRACKET; V-ROD
(A) 		1-53363-109-0 01 1 0012- ●
438 BRACKET; V-ROD
(B) 		1-53363-110-0 01 1 0012- ●
438 BRACKET; V-ROD
WHEEL BASE 6200MM(62W) FRAME EQUIPMENT TAIWAN<NKQ> (C) 		1-53353-117-0 02 1 0012-0203 ●
438 BRACKET; V-ROD
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) 		1-53353-117-1 02 1 0204-0210 ●
438 BRACKET; V-ROD
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) 		1-53353-117-1 02 1 0211- ●
440 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 01 1 0012- ●
440 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 02 1 0012- ●
496 CROSSMEMBER 1-53456-365-0 01 1 0012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
