2-05 — CLUTCH PIPING (#71226) — 80 parça

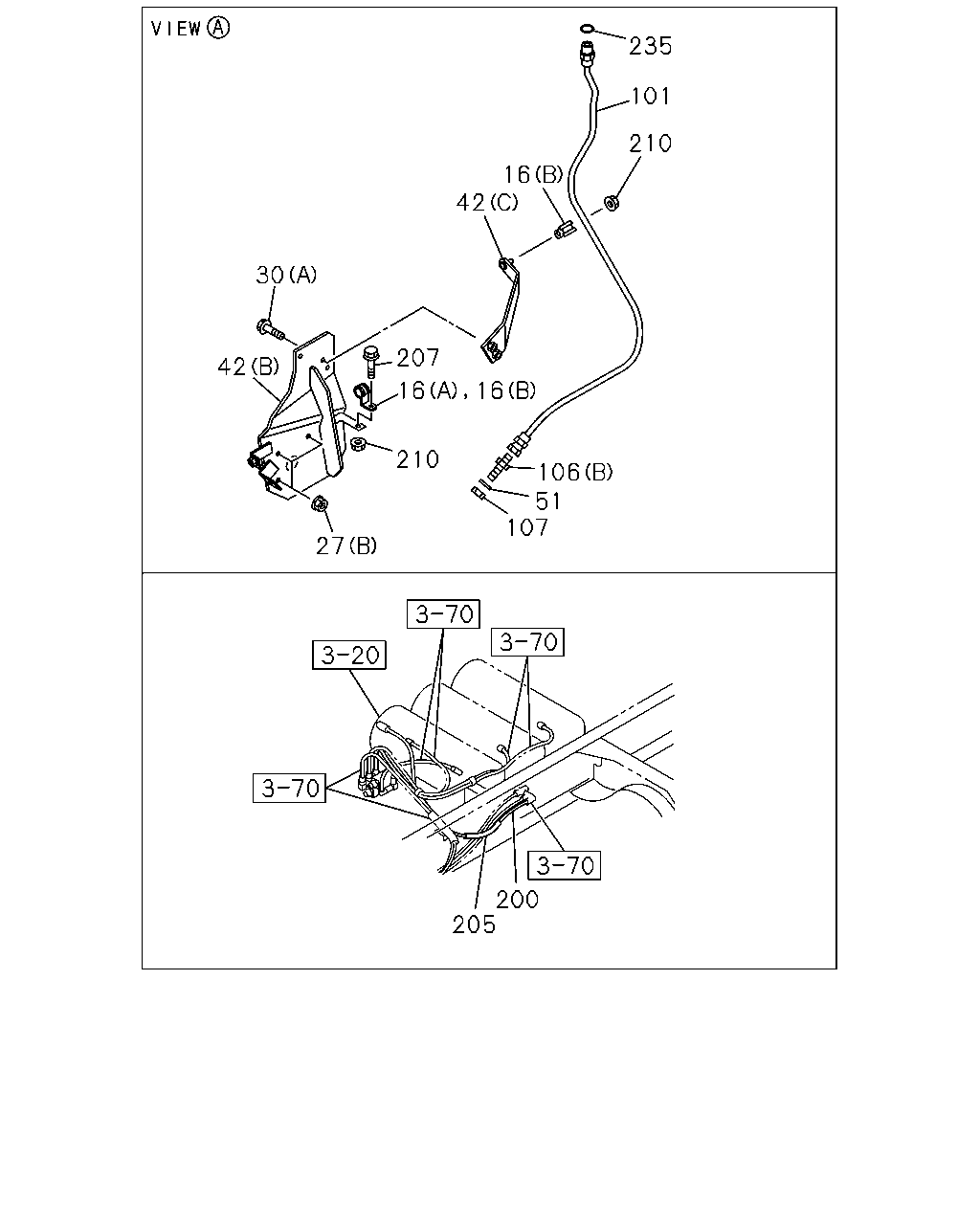

çizim 102418
235 101 210 16 42 30 42 207 16 16 106 51 107 200 205 210 27
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 01 1 1009-1201
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 03 1 1202-
16 CLIP; FLEX HOSE
(A) ID=18 L=28 H=30 		1-09701-110-0 01 1 1009-1201
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009-
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1009-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1009-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1009-1206
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98209-935-0 01 1 1207-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-491-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98166-036-0 01 1 1009-1201
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98184-114-0 01 1 1202-
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1009-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 1009-1201
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98184-197-0 01 1 1202-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1009-
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1009-
200 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1009-
205 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 1009-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1201
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1202-
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1009-

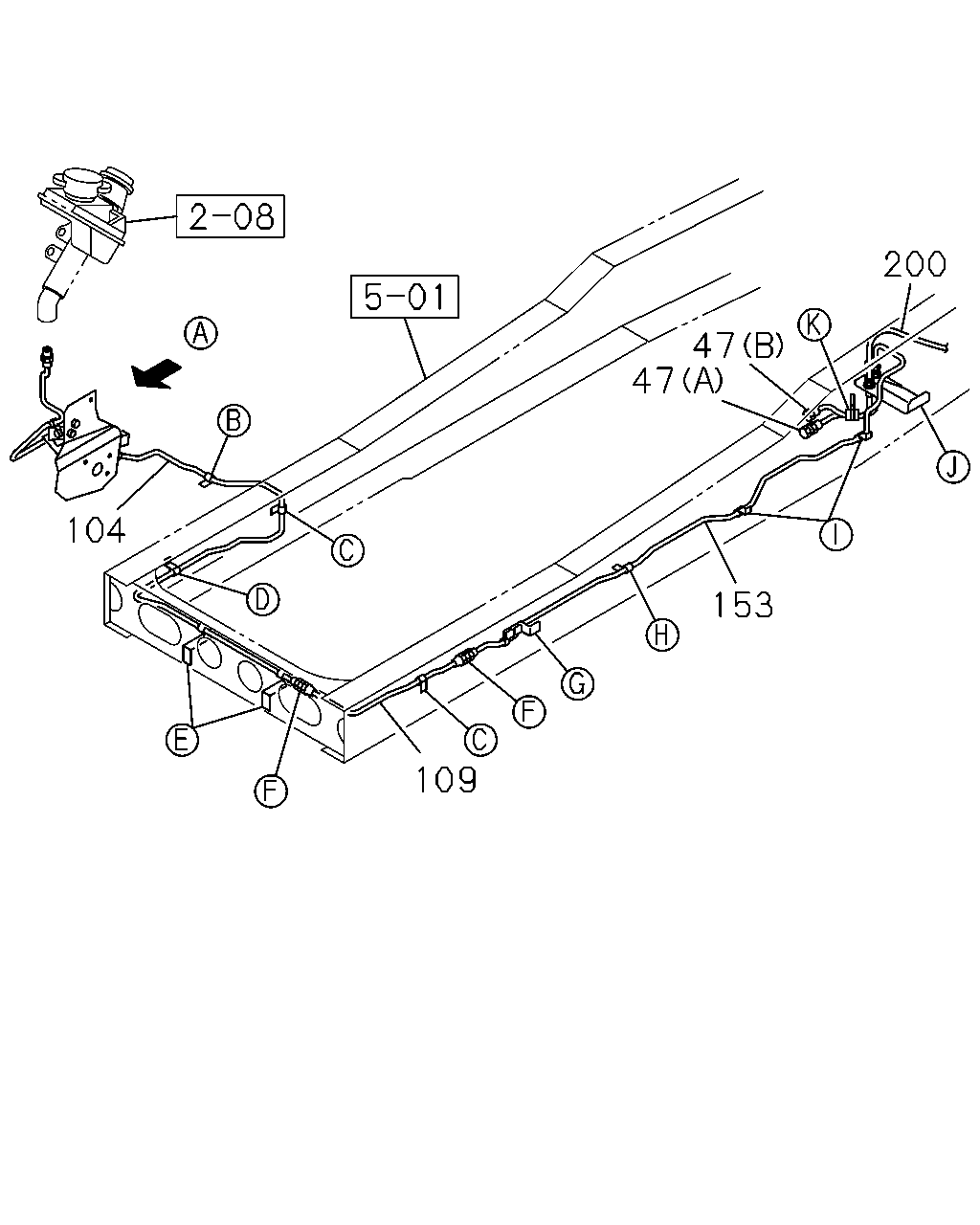

çizim 102547
104 109 47 47 200 153
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430 		1-09363-623-0 01 1 1009-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460 		8-98072-345-0 01 1 1009-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=580 		1-09363-692-0 01 1 1009-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=620 		8-98072-333-0 01 1 1009-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1740 SERVICED BY L=1800 		1-47428-768-0 01 1 1009-
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 1009-
153 PIPE ASM; CLU,UNION TO FLEX
L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1009-
200 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1009-

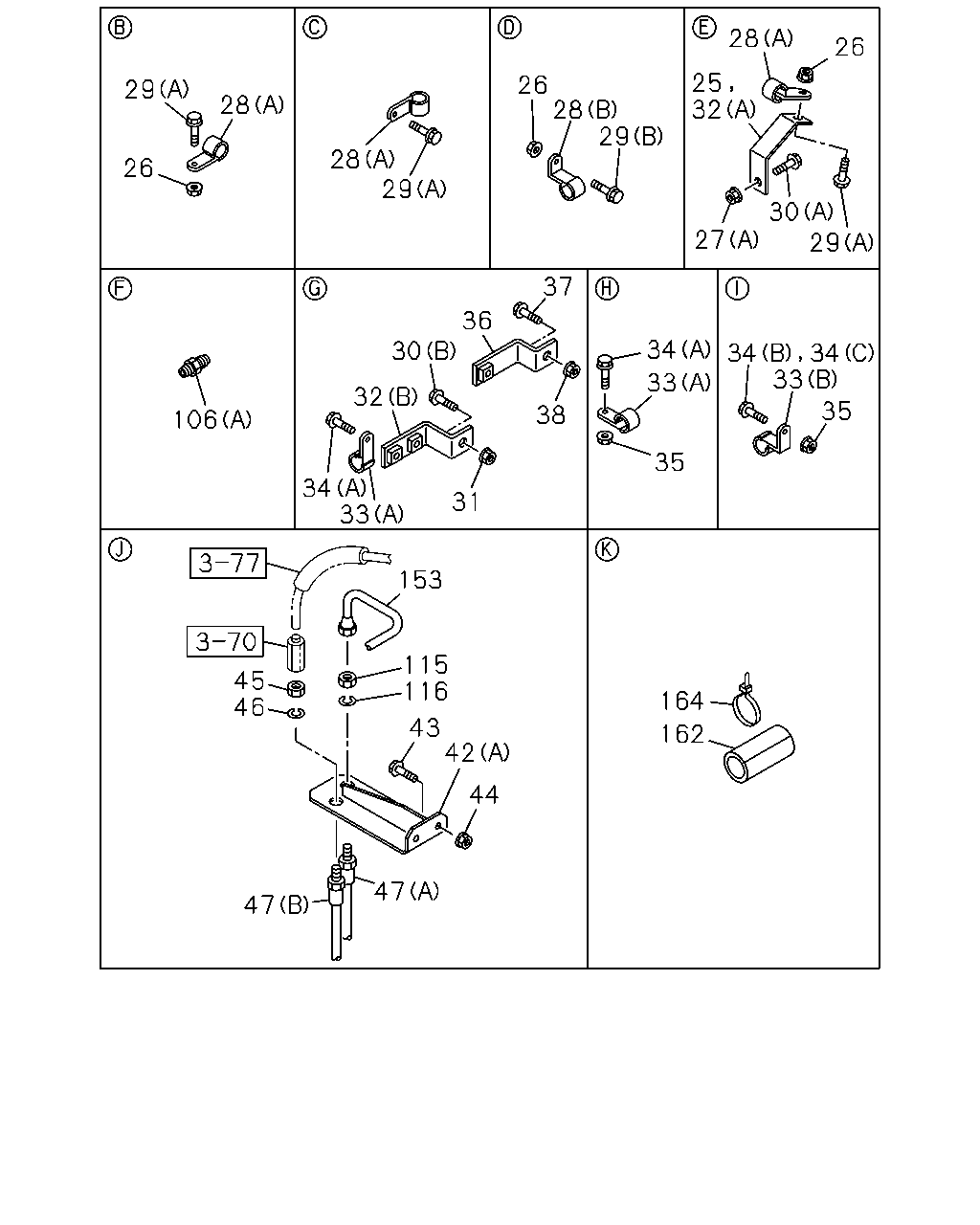

çizim 189350
29 28 26 28 29 26 28 29 28 25 32 26 30 29 27 34 34 33 35 34 33 35 37 36 38 30 32 31 33 34 106 153 115 116 43 42 44 45 46 47 47 164 162
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE 8-98123-057-0 01 1 1009-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1009-
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009-
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1009-
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 03 1 1009-
28 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 01 1 1009-
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1009-
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-057-0 01 1 1009-
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1009-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1009-
34 BOLT; PIPE CLIP
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1009-
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-
36 BRACKET; CLIP
L=80 H=20 		1-82699-304-0 01 1 1009-
37 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
38 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1009-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1009-1206
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98209-935-0 01 1 1207-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-491-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98166-036-0 01 1 1009-1201
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98184-114-0 01 1 1202-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1009-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1009-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1009-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430 		1-09363-623-0 01 1 1009-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460 		8-98072-345-0 01 1 1009-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=580 		1-09363-692-0 01 1 1009-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=620 		8-98072-333-0 01 1 1009-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1009-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1009-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1009-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1009-
153 PIPE ASM; CLU,UNION TO FLEX
L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1009-
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1009-
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1009-
