1-41 — FUEL PIPING; CHASSIS (#71219) — 76 parça

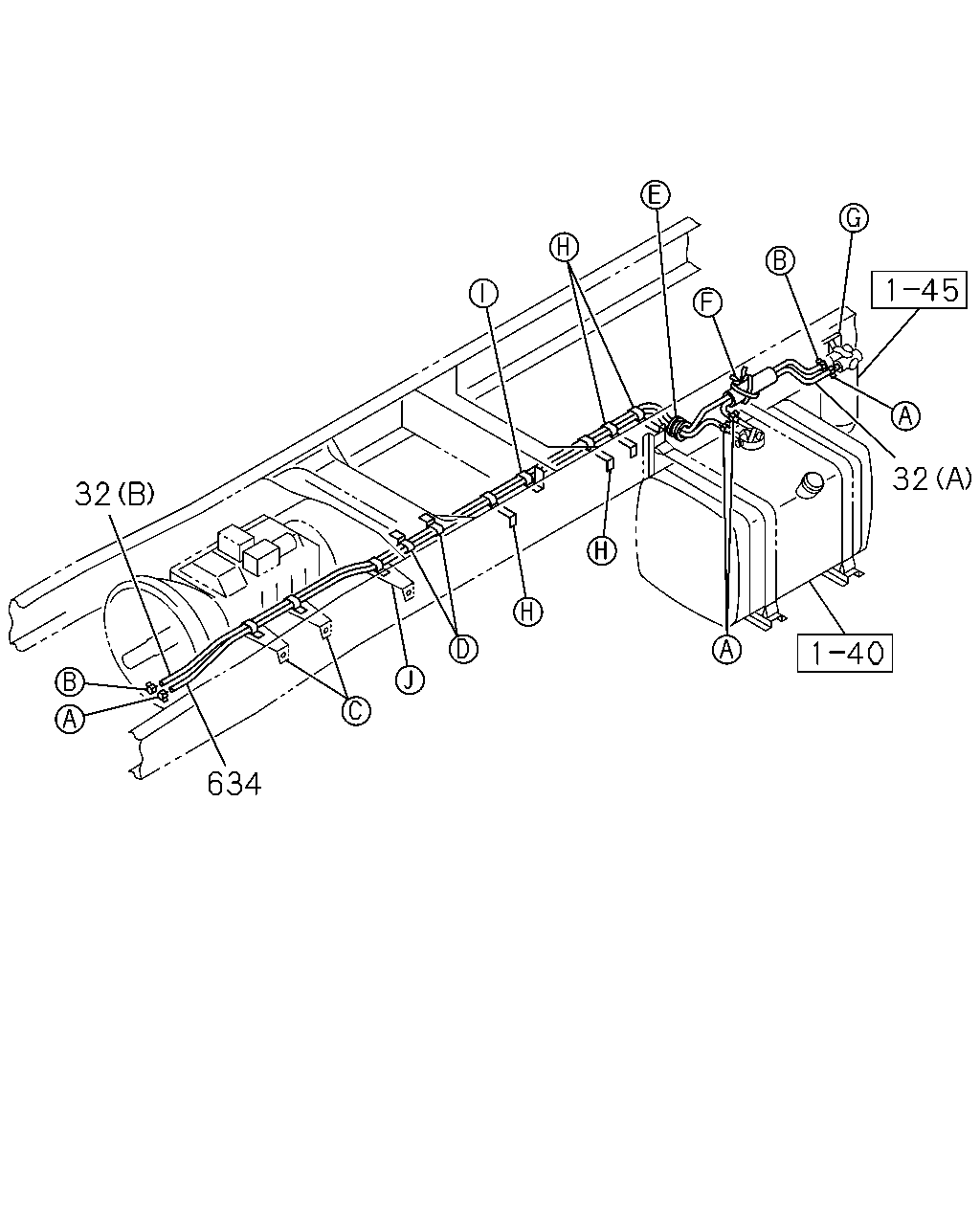

çizim 189346
32 634 32
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (B) L=3850 SERVICED BY L=5350 		0-01262-535-0 01 1 1103-
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-643-1 01 1 1103-
32 PIPE; DELIVERY,FUEL TANK
(A) L=550 SERVICED BY L=3000 		0-01260-300-0 01 1 1009-1102
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=550 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
32 PIPE; DELIVERY,FUEL TANK
(B) L=5050 SERVICED BY L=5350 		0-01262-535-0 01 1 1009-1102
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=5050 SERVICED BY L=5350 		0-01262-535-0 01 1 1103-
634 HOSE; RUBBER RETURN
L=3950 SERVICED BY L=8000 		0-01260-800-0 01 1 1009-

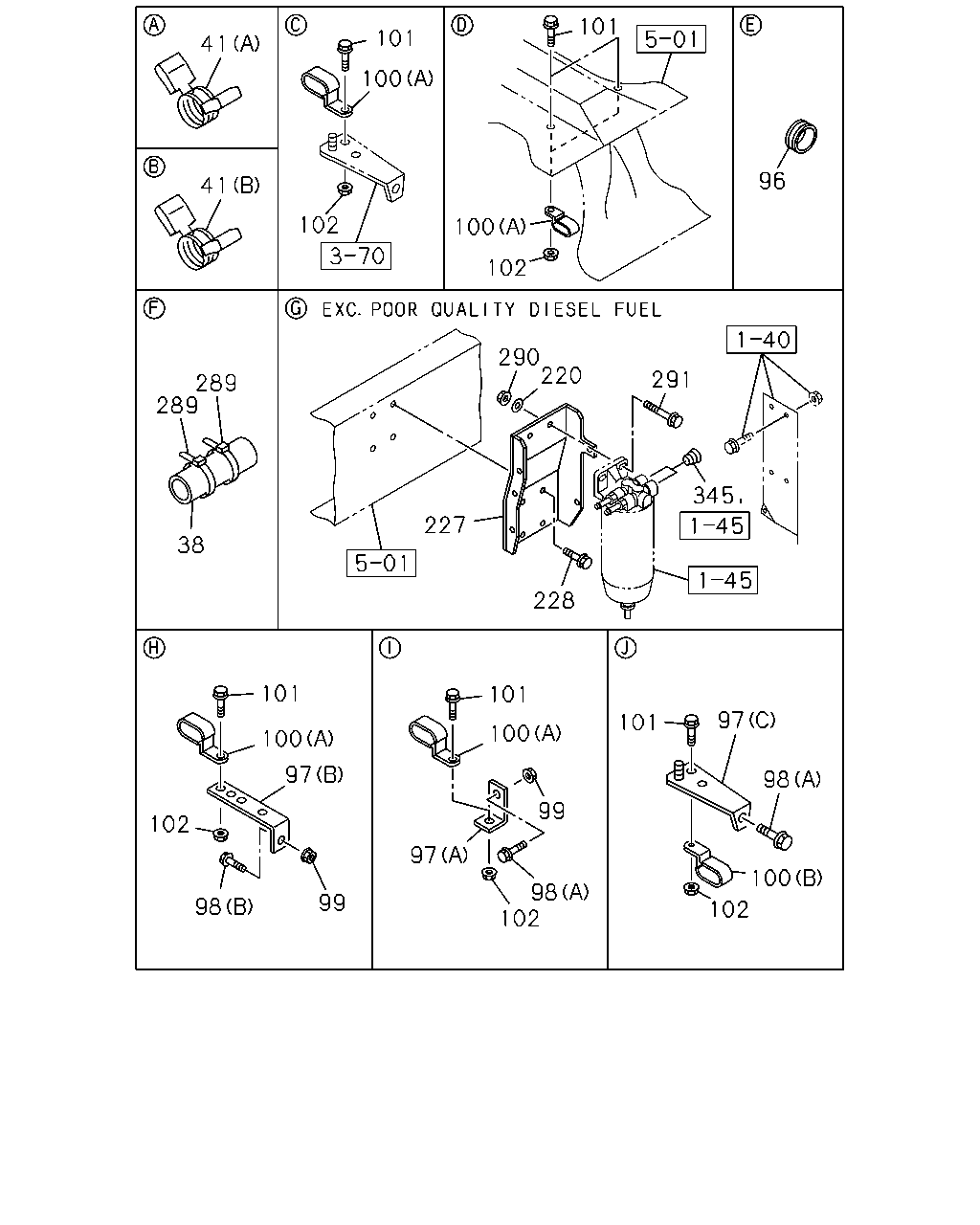

çizim 189348
101 96 102 100 102 100 101 41 41 289 289 38 227 228 345 291 220 290 101 100 97 102 98 99 102 97 99 100 101 101 97 98 100 102 98
BalonParca AdiParca NoAdetTipApplied Date
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1009-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1009-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1009-
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1009-
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (D) 		8-98186-869-0 01 1 1103-
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1009-
97 BRACKET; CLIP
(B) 		1-82698-358-0 05 1 1009-
97 BRACKET; CLIP
(C) 		8-97609-096-0 01 1 1009-
98 BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
98 BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1009-
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 07 1 1009-
100 CLIP; FUEL PIPE
(A) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 09 1 1009-
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 04 1 1009-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 10 1 1009-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 13 1 1009-
220 WASHER; PL
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 04 1 1103-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1009-1102
220 WASHER; PL
EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 1103-
227 BRACKET; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98184-812-0 01 1 1103-
227 BRACKET; FUEL SEDIMENTER 8-98144-960-0 01 1 1009-1102
227 BRACKET; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98144-960-0 01 1 1103-
228 BOLT; BRKT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE 		0-28650-830-0 02 1 1103-
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28051-035-0 04 1 1009-1102
228 BOLT; BRKT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X35 FLANGE 		0-28051-035-0 04 1 1103-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 02 1 1009-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1009-
291 BOLT; FILER TO BRKT
POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE 		0-28051-090-0 02 1 1103-
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1009-1102
291 BOLT; FILER TO BRKT
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE 		0-28051-060-0 02 1 1103-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1009-1102
345 PLUG
EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 		8-97329-623-0 02 1 1103-

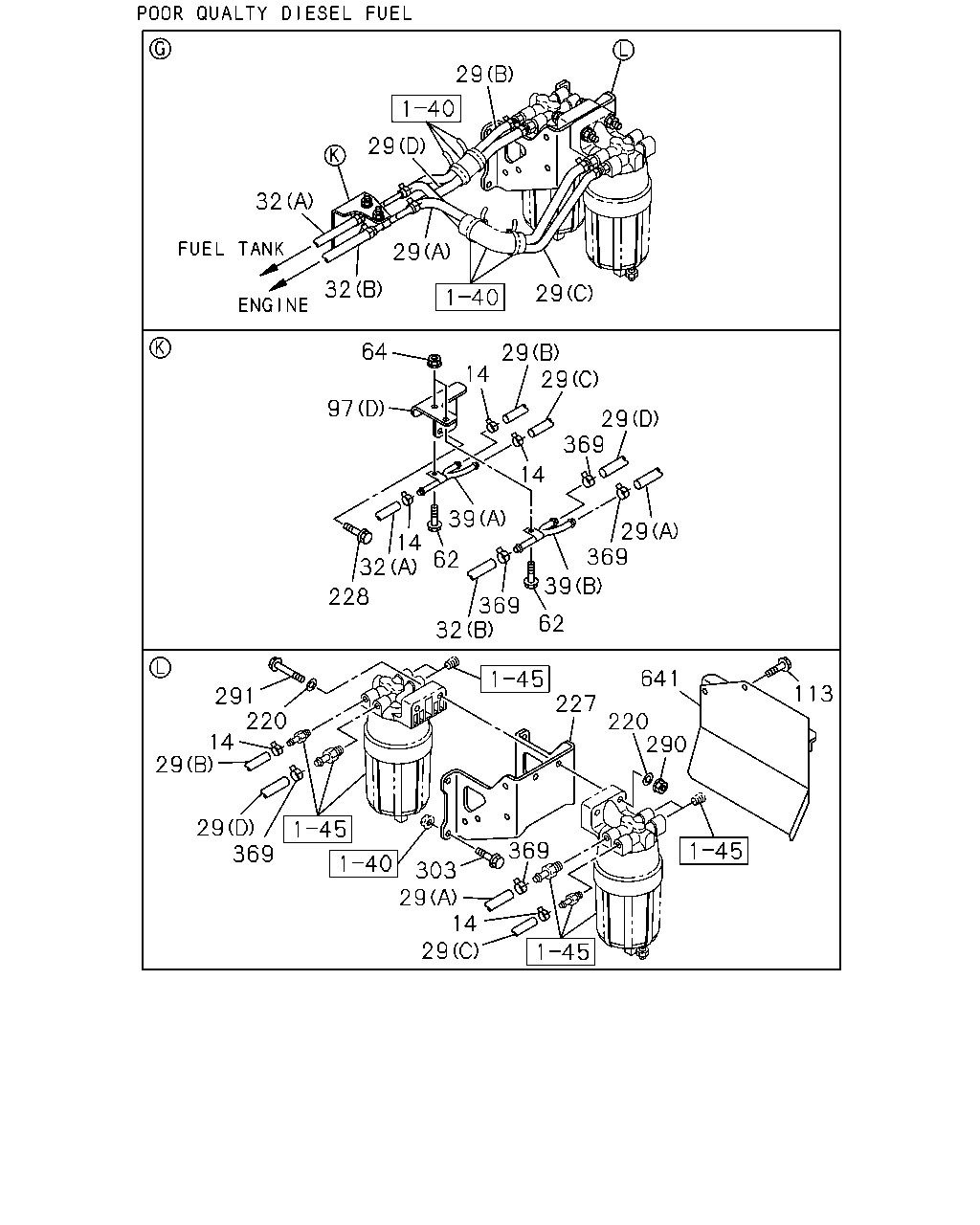

çizim 189445
29 29 32 32 64 97 14 29 29 29 29 369 29 14 39 62 14 32 228 32 62 369 39 369 29 641 113 220 290 227 220 291 14 29 29 369 303 29 14 369 29
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
POOR QUALITY DIESEL FUEL<KF0> ID=14 		1-09704-102-0 04 1 1103-
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98188-439-0 01 1 1103-
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (C) L=350 OD=14.5 		8-98188-445-0 01 1 1103-
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (D) 		8-98188-453-0 01 1 1103-
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98188-456-0 01 1 1103-1311
29 HOSE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98215-725-0 01 1 1312-
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (B) L=3850 SERVICED BY L=5350 		0-01262-535-0 01 1 1103-
32 PIPE; DELIVERY,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-643-1 01 1 1103-
32 PIPE; DELIVERY,FUEL TANK
(A) L=550 SERVICED BY L=3000 		0-01260-300-0 01 1 1009-1102
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=550 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
32 PIPE; DELIVERY,FUEL TANK
(B) L=5050 SERVICED BY L=5350 		0-01262-535-0 01 1 1009-1102
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=5050 SERVICED BY L=5350 		0-01262-535-0 01 1 1103-
39 PIPE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-862-1 01 1 1103-
39 PIPE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98186-864-1 01 1 1103-
62 BOLT; CLIP FIX
POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE 		0-28650-820-0 02 1 1103-
64 NUT; CLIP
POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 02 1 1103-
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (D) 		8-98186-869-0 01 1 1103-
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1009-
97 BRACKET; CLIP
(B) 		1-82698-358-0 05 1 1009-
97 BRACKET; CLIP
(C) 		8-97609-096-0 01 1 1009-
113 BOLT; PROTECTOR
POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE 		0-28050-825-0 02 1 1103-
220 WASHER; PL
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 04 1 1103-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1009-1102
220 WASHER; PL
EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 1103-
227 BRACKET; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98184-812-0 01 1 1103-
227 BRACKET; FUEL SEDIMENTER 8-98144-960-0 01 1 1009-1102
227 BRACKET; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98144-960-0 01 1 1103-
228 BOLT; BRKT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE 		0-28650-830-0 02 1 1103-
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28051-035-0 04 1 1009-1102
228 BOLT; BRKT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X35 FLANGE 		0-28051-035-0 04 1 1103-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1009-
291 BOLT; FILER TO BRKT
POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE 		0-28051-090-0 02 1 1103-
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1009-1102
291 BOLT; FILER TO BRKT
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE 		0-28051-060-0 02 1 1103-
303 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE 		0-28051-040-0 04 1 1103-
369 CLAMP; HOSE,FUEL
POOR QUALITY DIESEL FUEL<KF0> ID=19 		8-94238-569-0 04 1 1103-
641 PROTECTOR; SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98184-816-0 01 1 1103-
