11308 - FYH RHD EURO5 ENGINE REAR PTO
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#71212) — 21 parça
◀

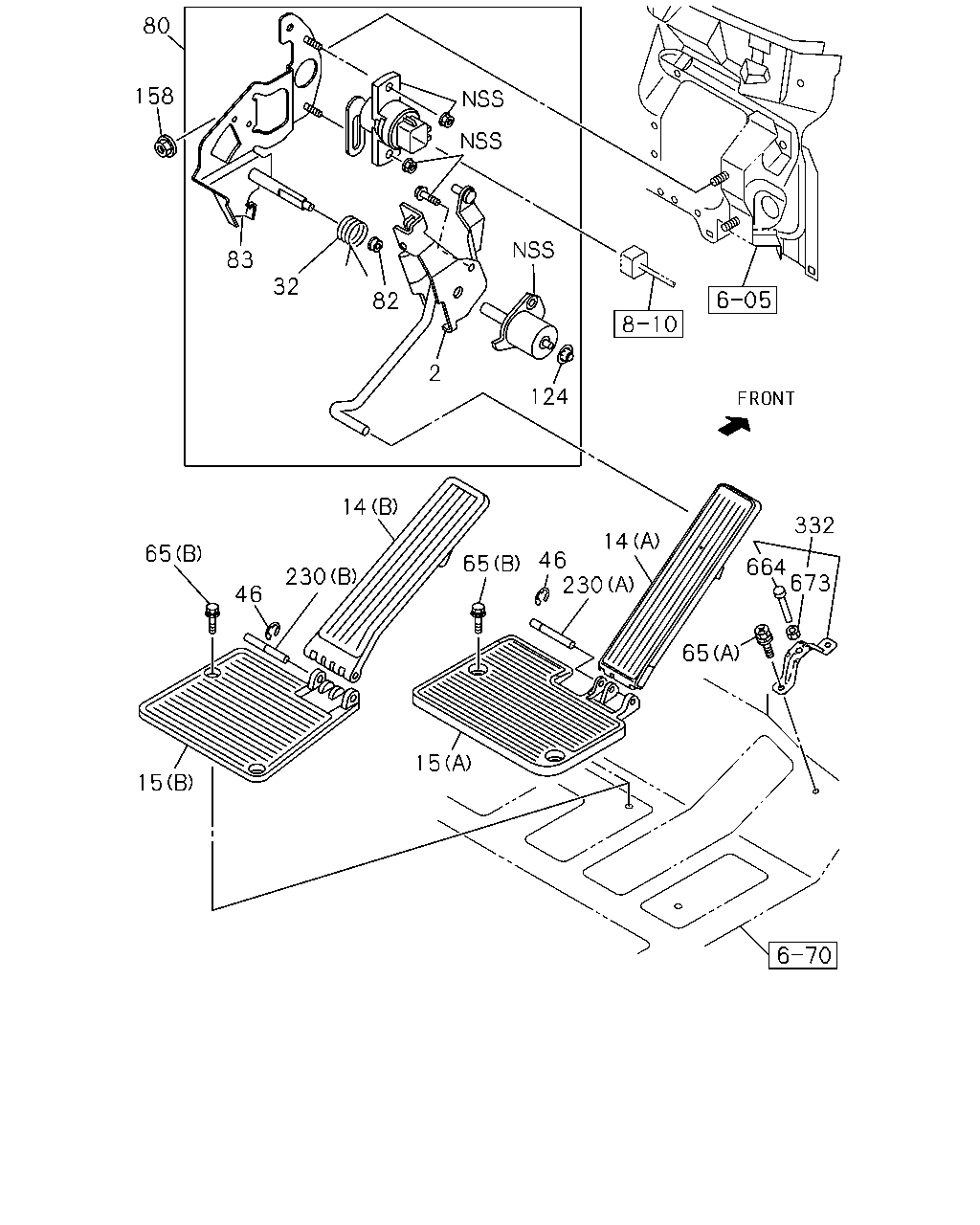

[101A] NO.1 (19 parça)
[101A] NO.2 (2 parça)
▶
15
15
65
46
14
230
65
230
46
65
664
14
332
673
124
2
82
32
83
158
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
8-98049-120-1
01
1
1009-
14
PAD; PEDAL,ACCEL
HONG KONG EQUIPMENT(PQ1) (B)
8-98089-176-0
01
1
1009-
14
PAD; PEDAL,ACCEL
EXC. HONG KONG EQUIPMENT(PQ1) (A)
8-97859-101-0
01
1
1009-
15
STAND; HEEL,ACCEL PEDAL
HONG KONG EQUIPMENT(PQ1) (B)
8-98089-191-1
01
1
1009-
15
STAND; HEEL,ACCEL PEDAL
EXC. HONG KONG EQUIPMENT(PQ1) (A)
8-98022-259-2
01
1
1009-
32
SPRING; RETURN,ACCEL PEDAL
8-98031-665-0
01
1
1009-
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
1009-
65
BOLT
(B) M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
1009-
65
BOLT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1009-
80
LINK ASM; ENG CONT
8-98038-418-4
01
1
1009-
82
BUSHING; ENG CONT LVR
8-97581-053-0
01
1
1009-
83
BRACKET; CONT LINK
8-98020-217-0
01
1
1009-
124
NUT; LEVER
ID=7.9 PUSH NUT
8-94368-617-0
01
1
1009-
158
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1009-
230
PIN; JOINT,ACCEL PEDAL TO BRKT
HONG KONG EQUIPMENT(PQ1) (B)
8-98089-193-0
01
1
1009-
230
PIN; JOINT,ACCEL PEDAL TO BRKT
EXC. HONG KONG EQUIPMENT(PQ1) (A)
8-98026-806-0
01
1
1009-
332
BRACKET; ACCEL PEDAL STOPPER
8-98011-468-2
01
1
1009-
664
BOLT; STOPPER
M8X40
0-20850-840-0
01
1
1009-
673
NUT; STOPPER
M8
0-91110-508-0
01
1
1009-

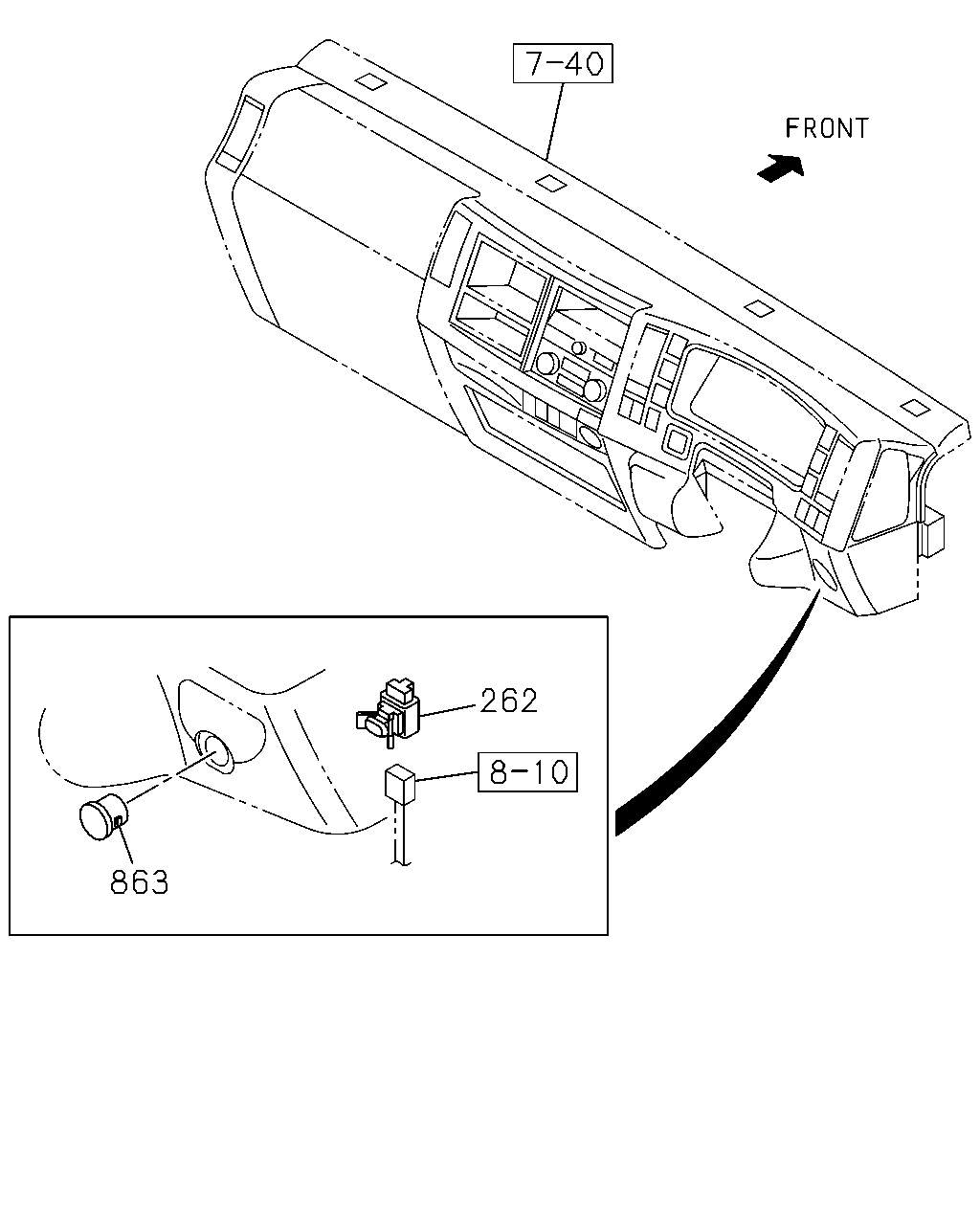

262
863
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
262
SWITCH; ACCEL,IDLE
8-97620-588-1
01
1
1009-
863
COVER; SENSOR
GRAY
8-97408-816-0
01
1
1009-
