4-36 — POWER STEERING CONTROL; ENGINE SIDE (#7120) — 81 parça

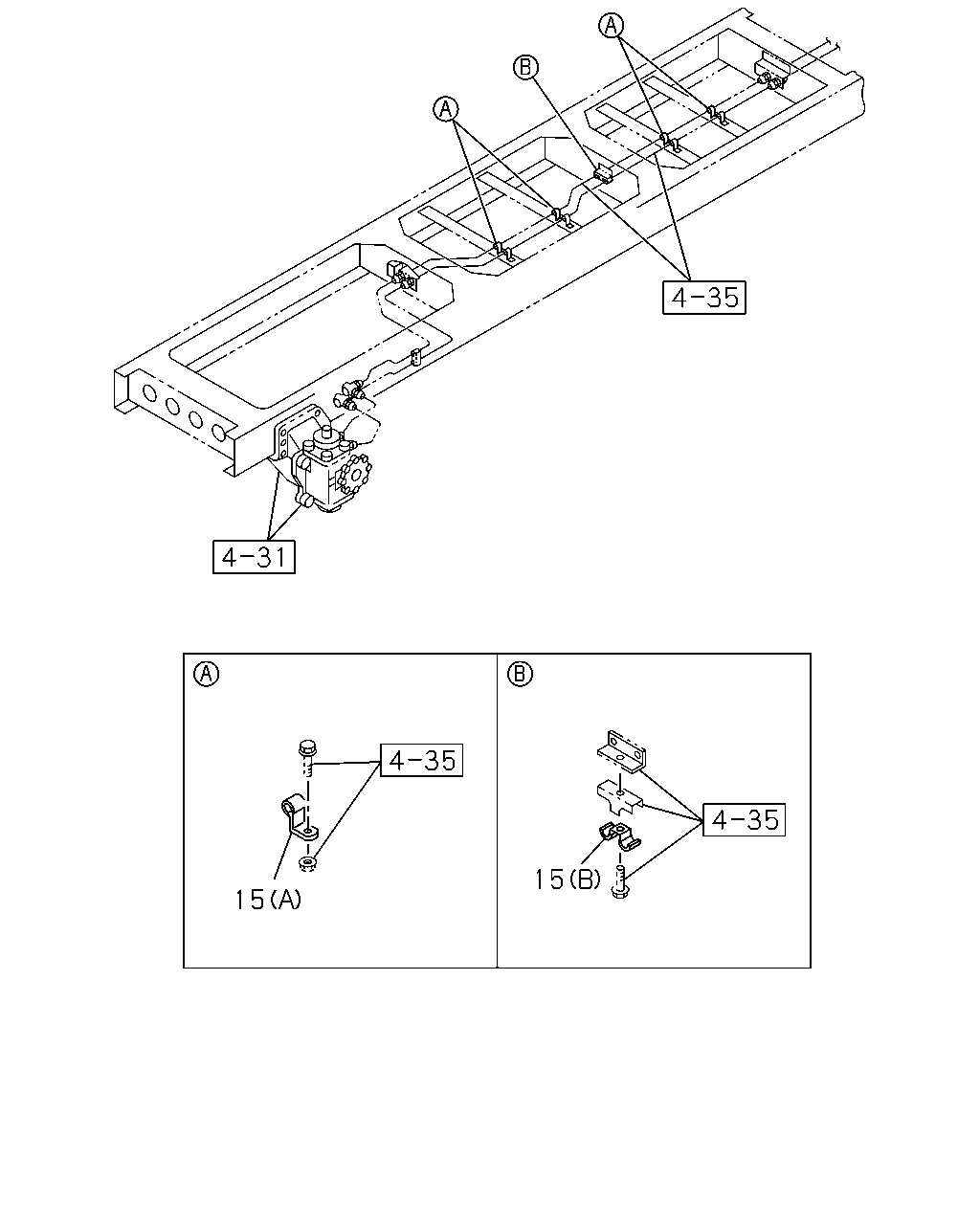

çizim 9056
15 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; OIL PIPE SUCTION
(A) ID=13 H=40 L=25 		1-09700-620-0 02 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 03 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(A) ID=13 H=40 L=25 		1-09700-620-0 04 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 0012- ●
15 CLIP; OIL PIPE SUCTION
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (C) 		1-09701-195-3 02 1 0204- ●

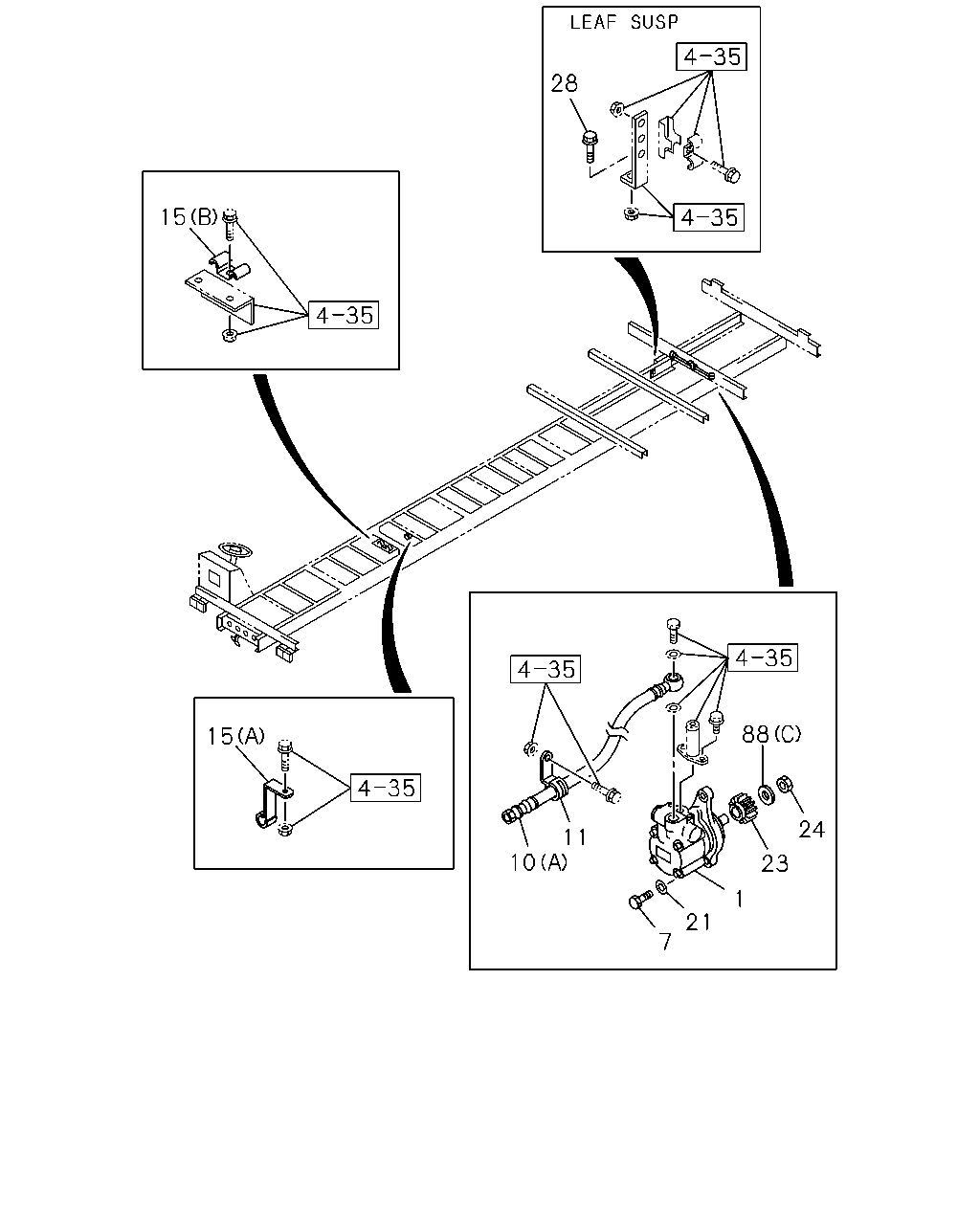

çizim 43899
28 15 88 15 24 11 10 23 1 21 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-413-0 01 1 0012-0203 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-413-2 01 1 0204- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TC(32L) 		1-19500-413-2 01 1 0204- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) 		1-19500-447-3 01 1 0204- ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0012-0203 ● ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0204- ●
7 BOLT; OIL PUMP,P/S
6SD1 TC(32L) M12X75 		9-01666-275-0 02 1 0204- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (A) 		1-09364-874-0 01 1 0204- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(A) L=610 		1-09365-121-0 01 1 0012-0203 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TC(32L) ISUZU M/T<X9A> (A) L=610 		1-09365-121-0 01 1 0204-0210 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TC(32L),6SD1 TC-S(83L) ISUZU M/T<X9A> (A) L=610 		1-09365-121-0 01 1 0211- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-C(55L) (B) 		0-09538-460-0 01 1 0204-0606 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-C(55L) (B) 		0-89538-460-0 01 1 0607- ●
11 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 0012-0106 ● ●
11 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 0107-0203 ●
11 CLIP; FLEX HOSE
6SD1 TC(32L) ISUZU M/T<X9A> ID=25 H=30 L=35 		1-09700-875-0 01 1 0204-0210 ● ●
11 CLIP; FLEX HOSE
6SD1 TC(32L),6SD1 TC-S(83L) ISUZU M/T<X9A> ID=25 H=30 L=35 		1-09700-875-0 01 1 0211- ● ●
15 CLIP; OIL PIPE SUCTION
(A) ID=13 H=40 L=25 		1-09700-620-0 02 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 03 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(A) ID=13 H=40 L=25 		1-09700-620-0 04 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 0012- ●
15 CLIP; OIL PIPE SUCTION
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (C) 		1-09701-195-3 02 1 0204- ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0012-0203 ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0204-0605 ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TC(32L) ID=12.5 		9-09160-512-0 02 1 0204-0605 ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TC(32L) ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ●
23 GEAR; OIL PUMP
Z=14 		1-19581-033-0 01 1 0012-0203 ● ●
23 GEAR; OIL PUMP
Z=14 		1-19581-033-0 01 1 0204- ●
23 GEAR; OIL PUMP
6SD1 TC(32L) Z=14 		1-19581-033-0 01 1 0204- ●
23 GEAR; OIL PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) Z=20 		1-19581-041-0 01 1 0204- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0210- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 01 1 0012-0512 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
88 WASHER; GEAR,P/S PUMP
(C) ID=17 		1-19519-294-0 01 1 0210- ●
88 WASHER; GEAR,P/S PUMP
6SD1 TC(32L) (C) ID=17 		1-19519-294-0 01 1 0210- ●
88 WASHER; GEAR,P/S PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (A) 		1-19519-293-0 01 1 0210- ●
88 WASHER; GEAR,P/S PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B) 		9-09150-016-0 01 1 0210- ●

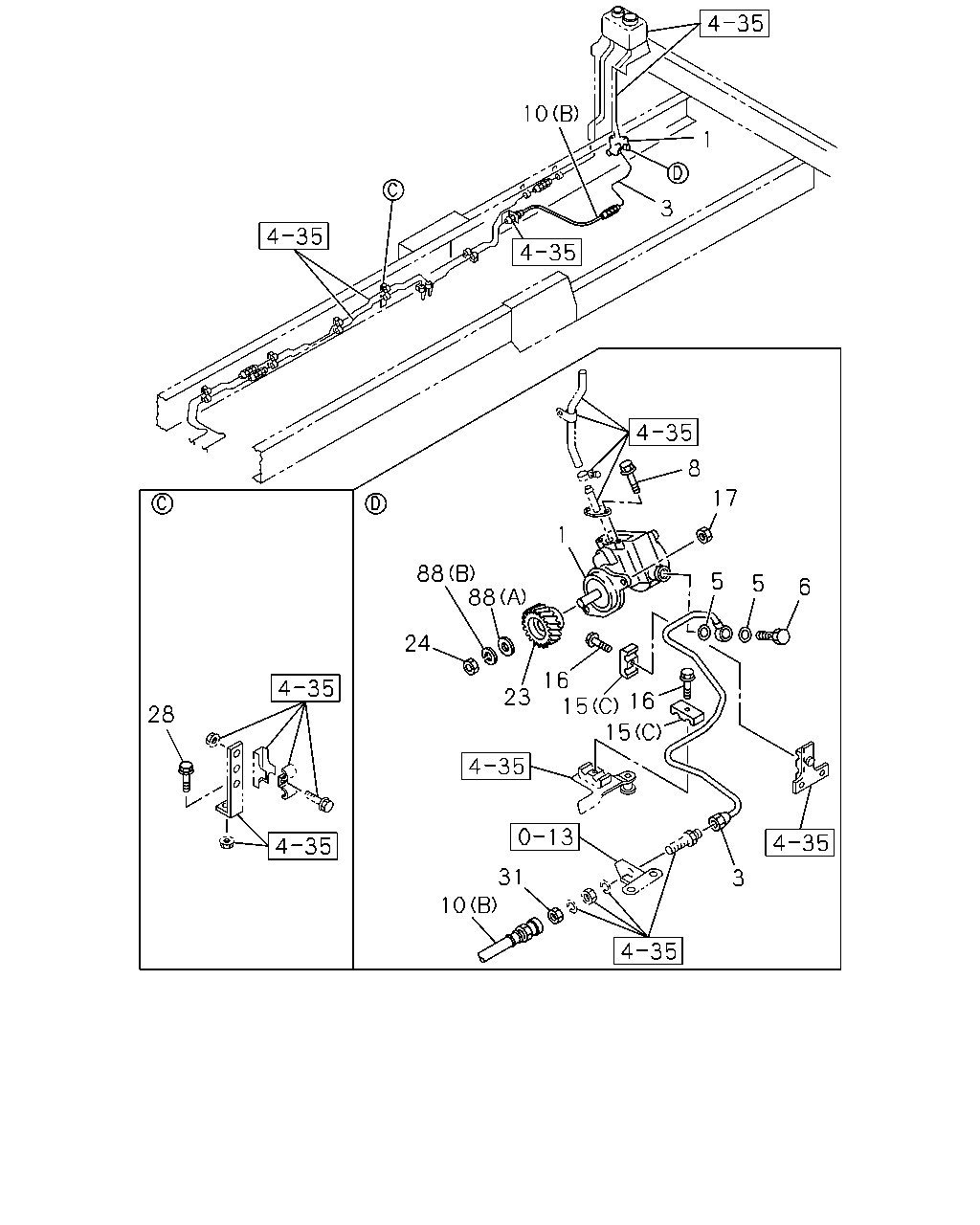

çizim 47090
10 1 3 8 17 1 88 88 5 5 6 24 16 15 15 23 16 28 31 3 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-413-0 01 1 0012-0203 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-413-2 01 1 0204- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TC(32L) 		1-19500-413-2 01 1 0204- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) 		1-19500-447-3 01 1 0204- ●
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) 		1-13313-637-1 01 1 0204- ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0204- ●
6 BOLT; EYE,P/S PIPE
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M18X36 		1-09675-174-0 01 1 0204-0306 ●
6 BOLT; EYE,P/S PIPE
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M18X36 		1-09675-205-0 01 1 0307- ●
8 BOLT; OIL PIPE
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M8X16 FLANGE 		0-28080-816-0 02 1 0204-0512 ●
8 BOLT; OIL PIPE
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (A) 		1-09364-874-0 01 1 0204- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
(A) L=610 		1-09365-121-0 01 1 0012-0203 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TC(32L) ISUZU M/T<X9A> (A) L=610 		1-09365-121-0 01 1 0204-0210 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TC(32L),6SD1 TC-S(83L) ISUZU M/T<X9A> (A) L=610 		1-09365-121-0 01 1 0211- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-C(55L) (B) 		0-09538-460-0 01 1 0204-0606 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6WA1 TC-C(55L) (B) 		0-89538-460-0 01 1 0607- ●
15 CLIP; OIL PIPE SUCTION
(A) ID=13 H=40 L=25 		1-09700-620-0 02 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 03 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(A) ID=13 H=40 L=25 		1-09700-620-0 04 1 0012- ●
15 CLIP; OIL PIPE SUCTION
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 0012- ●
15 CLIP; OIL PIPE SUCTION
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (C) 		1-09701-195-3 02 1 0204- ●
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M6X35 FLANGE 		0-28680-635-0 02 1 0204-0512 ●
16 BOLT; STAY,P/S OIL PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M6X35 FLANGE 		0-28650-635-0 02 1 0601- ●
17 NUT; POWER STRG PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M10 FLANGE 		0-91150-110-0 02 1 0204-0602 ●
17 NUT; POWER STRG PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) M10 FLANGE 		0-91180-110-0 02 1 0603- ●
23 GEAR; OIL PUMP
Z=14 		1-19581-033-0 01 1 0012-0203 ● ●
23 GEAR; OIL PUMP
Z=14 		1-19581-033-0 01 1 0204- ●
23 GEAR; OIL PUMP
6SD1 TC(32L) Z=14 		1-19581-033-0 01 1 0204- ●
23 GEAR; OIL PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) Z=20 		1-19581-041-0 01 1 0204- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0210- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 01 1 0012-0512 ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
31 NUT; FLEX HOSE
6WA1 TC-C(55L) M20 		9-99111-420-0 01 1 0204-0512 ●
31 NUT; FLEX HOSE
6WA1 TC-C(55L) M20 		0-91111-520-0 01 1 0601- ●
88 WASHER; GEAR,P/S PUMP
(C) ID=17 		1-19519-294-0 01 1 0210- ●
88 WASHER; GEAR,P/S PUMP
6SD1 TC(32L) (C) ID=17 		1-19519-294-0 01 1 0210- ●
88 WASHER; GEAR,P/S PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (A) 		1-19519-293-0 01 1 0210- ●
88 WASHER; GEAR,P/S PUMP
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B) 		9-09150-016-0 01 1 0210- ●
