4-33 — STEERING LINKAGE (#7118) — 46 parça

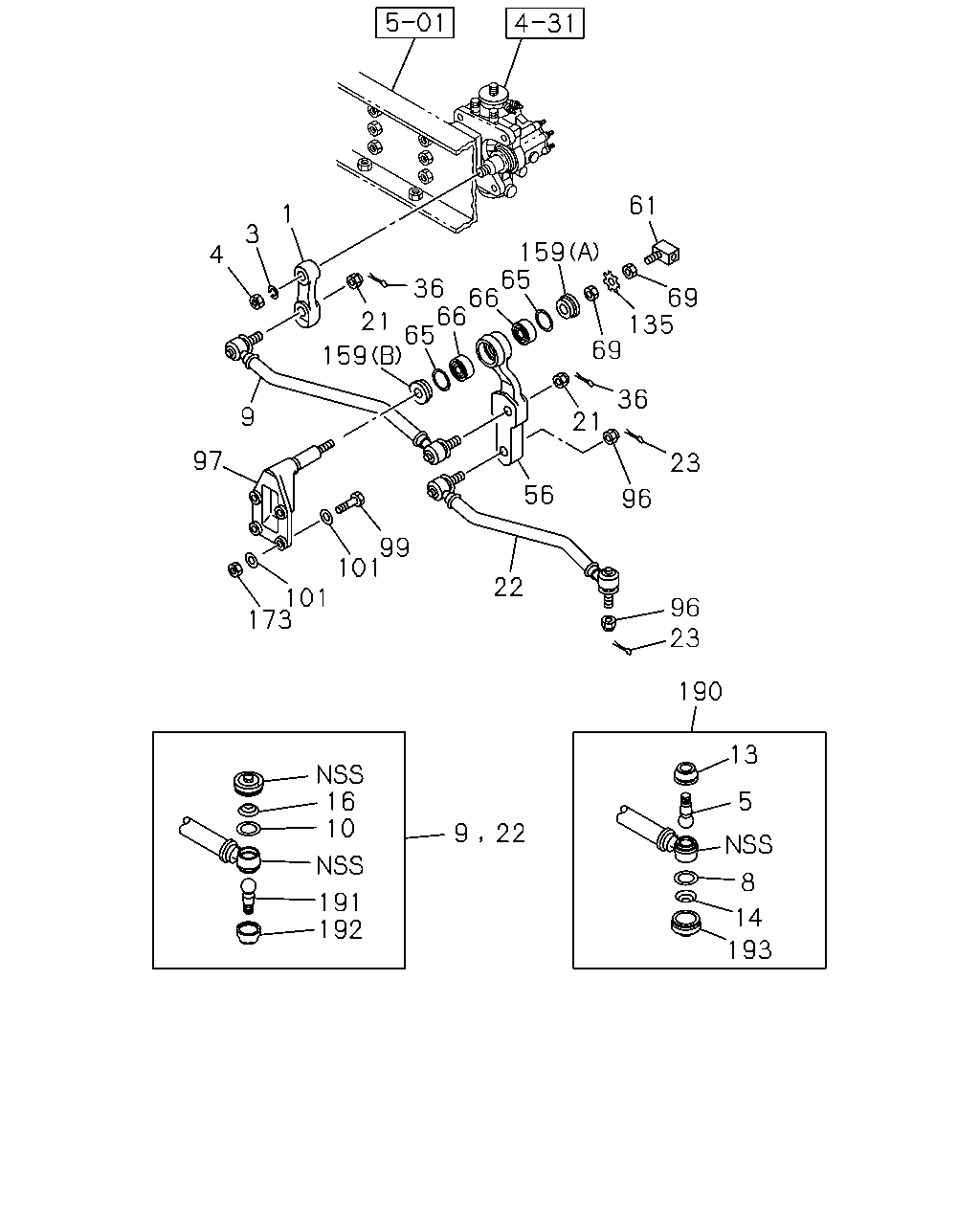

çizim 6155
61 1 3 159 65 36 66 66 65 159 4 69 135 69 21 36 9 21 97 23 56 96 99 101 22 101 173 96 23 190 13 16 10 5 22 9 8 191 192 14 193
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-472-3 01 1 0012- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0012- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0012-0805 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 0012- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 0012- ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0012- ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 0012- ● ●
9 LINK; DRAG 1-44380-247-3 01 1 0012- ● ●
10 SEAT; JOINT BALL 1-43159-075-0 02 1 0012- ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 0012- ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 0012- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0012- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 0012- ● ●
16 SPRING; ROD END 1-43159-074-0 02 1 0012- ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0012-0805 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ●
22 LINK; DRAG,2ND 1-44380-248-2 01 1 0012- ●
22 LINK; DRAG,2ND 1-44380-252-2 01 1 0012- ●
23 PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 		9-08115-035-0 02 1 0012-0606 ● ●
23 PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 0012-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●
56 ARM; LINK,FRT,W/JOINT BALL 1-44345-174-0 01 1 0012- ● ●
61 NIPPLE; PIN LINK ARM
PT1/8 ELBOW 		9-09031-210-0 01 1 0012-0512 ● ●
61 NIPPLE; PIN LINK ARM
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
65 SEAL; DUST,LINK ARM 9-44349-040-1 02 1 0012- ● ●
66 BEARING; LINK ARM 9-00030-207-0 02 1 0012- ● ●
69 NUT; LINK ARM
M24 		9-09840-264-0 02 1 0012- ● ●
96 NUT; LINK ARM
M24 SLOTTED 		1-09442-020-0 02 1 0012-0805 ● ●
96 NUT; LINK ARM
M24 		1-09442-032-0 02 1 0806- ● ●
97 BRACKET; LINK ARM 1-44348-078-1 01 1 0012- ● ●
99 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0012-0512 ● ●
99 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601- ● ●
101 WASHER; PL,BRKT
ID=14.2 		1-09503-050-0 08 1 0012-0106 ● ●
101 WASHER; PL,BRKT
ID=14.2 		1-09503-050-0 04 1 0107- ● ●
135 WASHER; LK,PIN SET,LINK ARM 9-09853-842-0 01 1 0012- ● ●
159 WASHER; LINK ARM
(A) ID=24 T=8 		9-44349-039-0 01 1 0012- ● ●
159 WASHER; LINK ARM
(B) ID=35 T=9 		9-44349-046-0 01 1 0012- ● ●
173 NUT; BRKT,LINK ASM
M14 		9-99110-514-0 04 1 0012-0106 ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 0012- ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 0012- ● ●
191 JOINT; BALL 1-44361-105-1 02 1 0012- ● ●
192 BOOT; ROD END 1-43159-107-0 02 1 0012- ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0012- ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 0012- ● ●
