◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#71166) — 129 parça

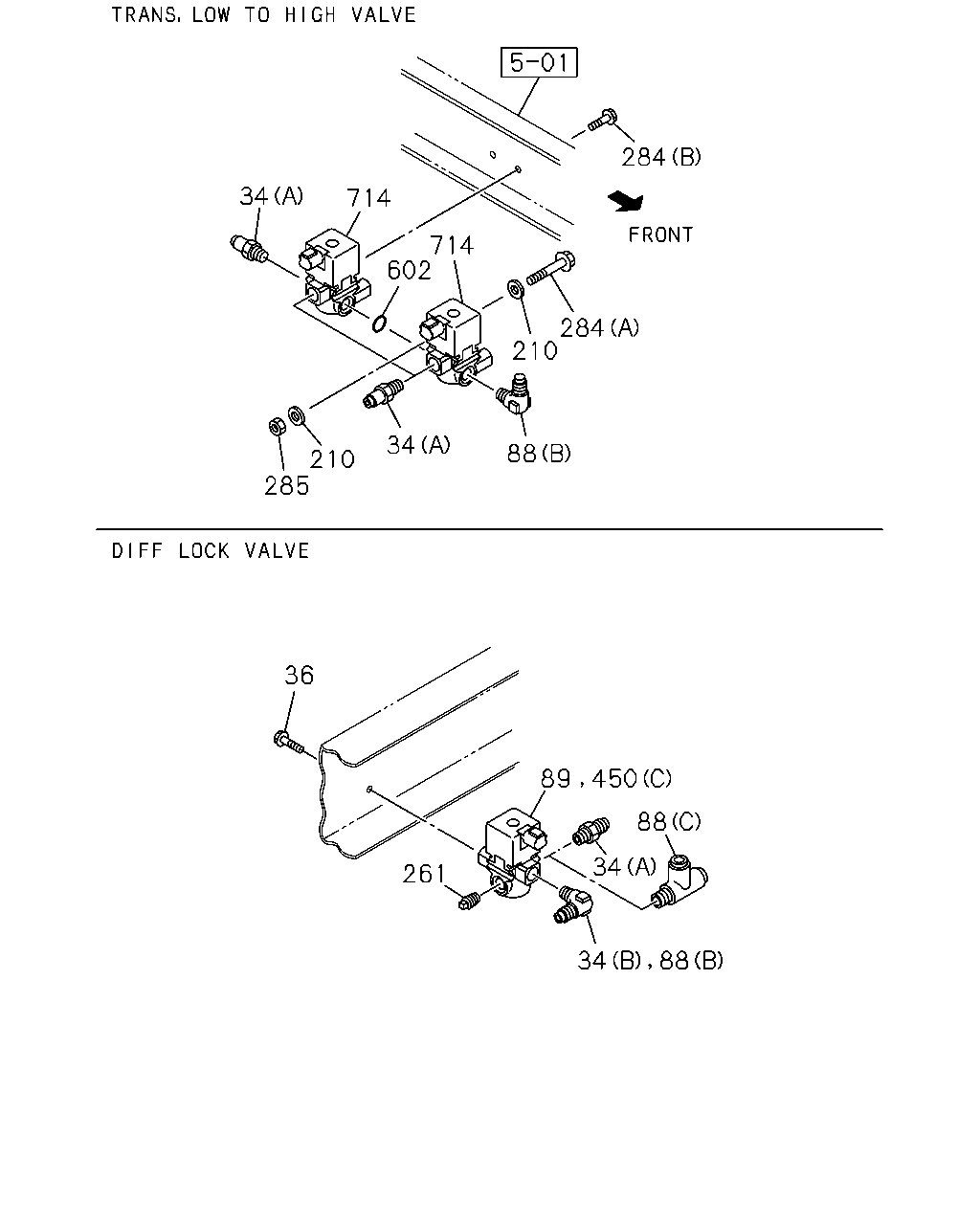

çizim 143556
714 34 602 714 210 284 284 34 88 210 285 36 89 450 88 261 34 88 34
BalonParca AdiParca NoAdetTipApplied Date A B
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1011-1306 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1307- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 1011-1306 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1306 ● ●
36 BOLT; MAG VLV,PTO CONT
M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1307-1404 ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1405- ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1405- ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1307- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307- ● ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 1011-1205 ● ●
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206-1306 ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 1011-1306 ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 1011-1306 ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 1307- ● ●
210 WASHER; PL,BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1307- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1011-1205 ● ●
261 PLUG; MAG VLV 0-92004-813-0 01 1 1206-1206 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1207- ● ●
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 1011-1306 ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (A) M6X50 FLANGE 		0-28050-650-0 01 1 1011-1306 ● ●
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 1307- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M6X50 FLANGE 		0-28050-650-0 01 1 1307- ● ●
284 BOLT; MAG VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 1011-1306 ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1011-1306 ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 1307- ● ●
285 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE 		0-91180-106-0 01 1 1307- ● ●
450 VALVE; MAG
(C) 		8-97641-594-0 01 1 1307- ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 1011- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1011-1306 ● ●
450 VALVE; MAG
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 1307- ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 1011-1306 ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1011-1306 ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 1307- ● ●
602 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1307- ● ●
714 VALVE; MAG,TRANS,LOW TO HIGH 1-82563-871-2 02 1 1011- ● ●

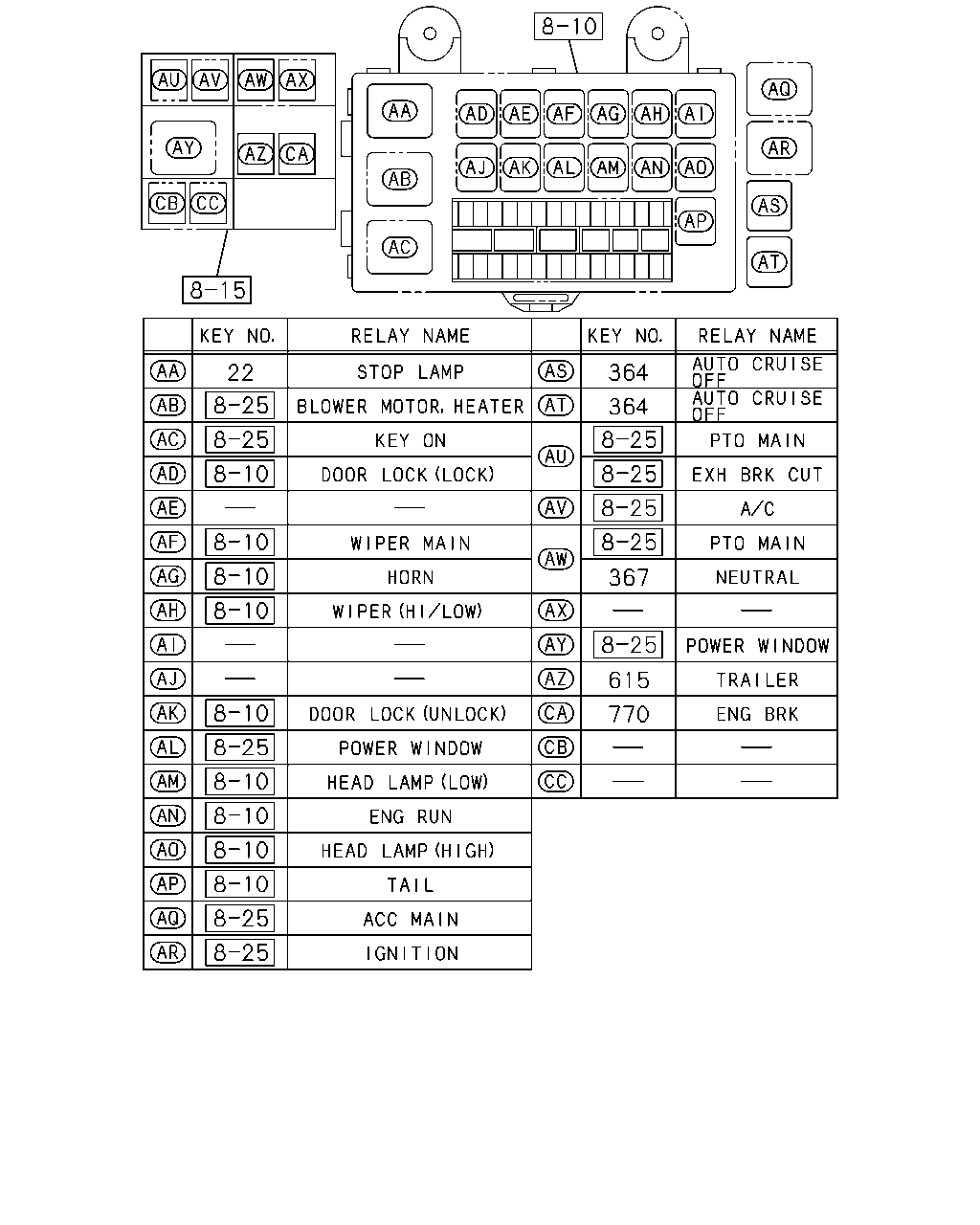

çizim 143593
22 364 367 615 770 364
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ● ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1204- ● ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
615 RELAY; TRAILER
24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ● ●
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1307- ● ●

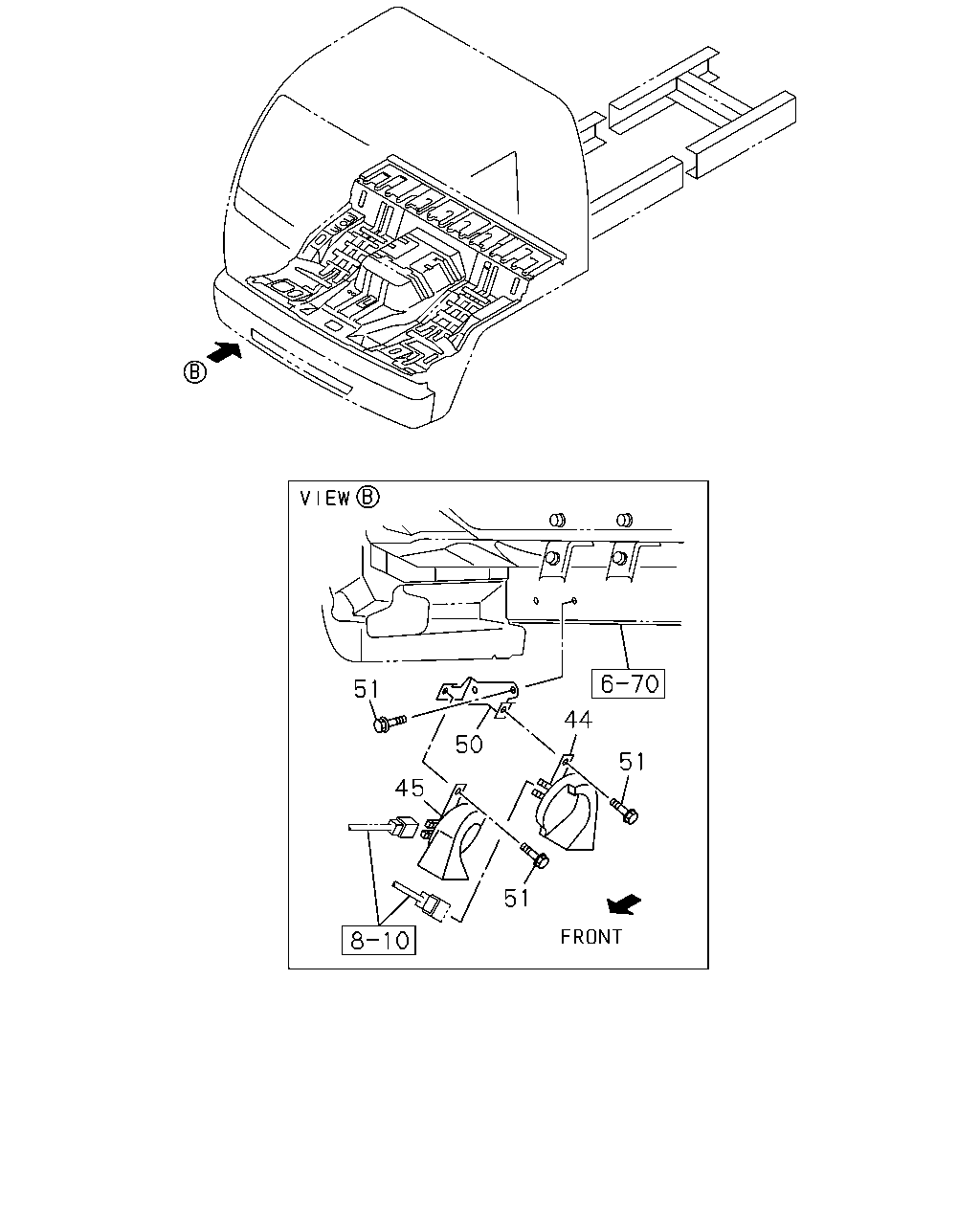

çizim 143704
51 50 44 51 45 51
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1011- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1011- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1307- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1011-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1011-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1011-1306 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1307- ● ●

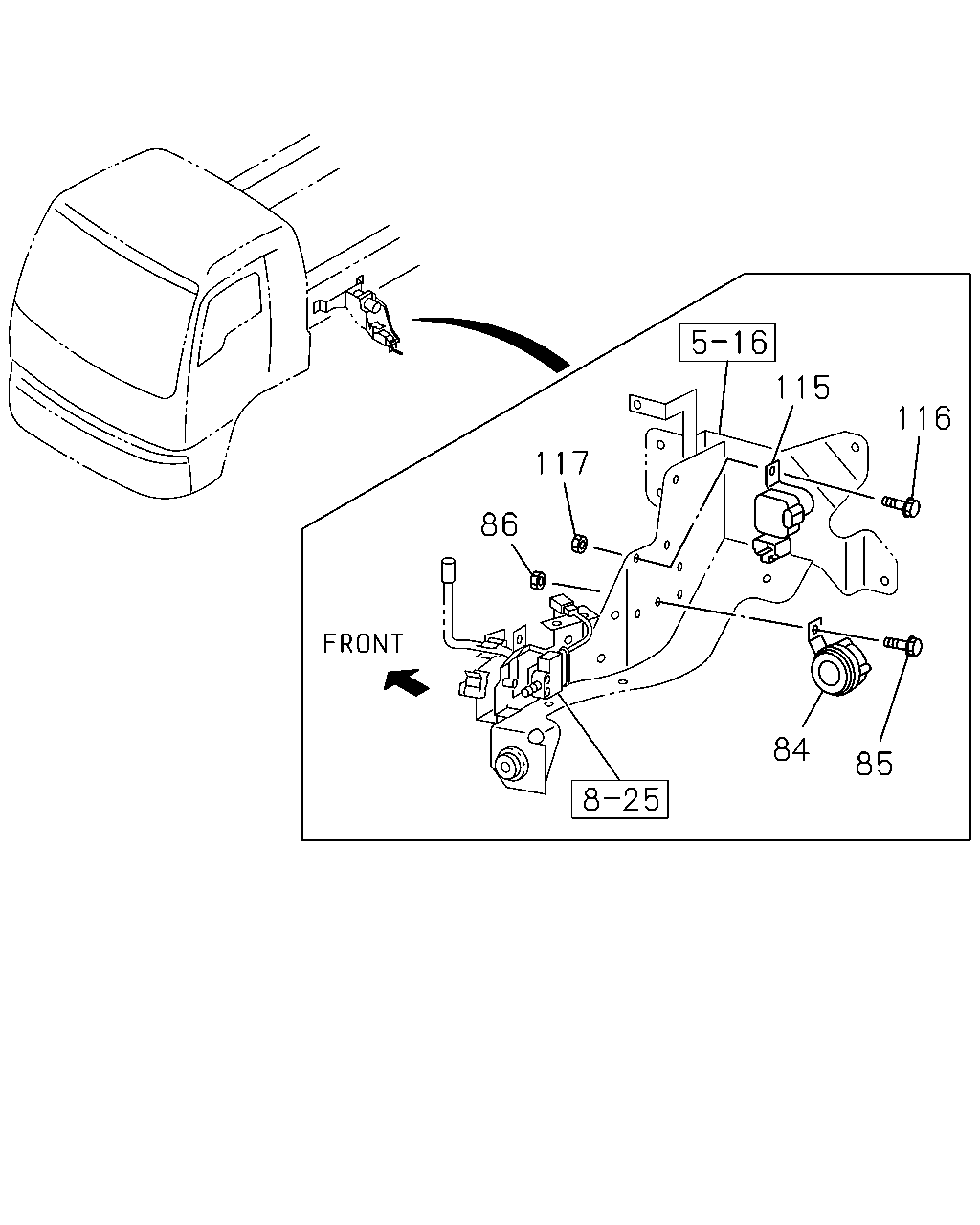

çizim 143706
117 86 115 84 85 116
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1011- ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1011- ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1011- ●
115 RELAY; POWER CAB TILT UNIT
24V NIKKO 		8-98005-631-1 01 1 1011- ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1011- ●

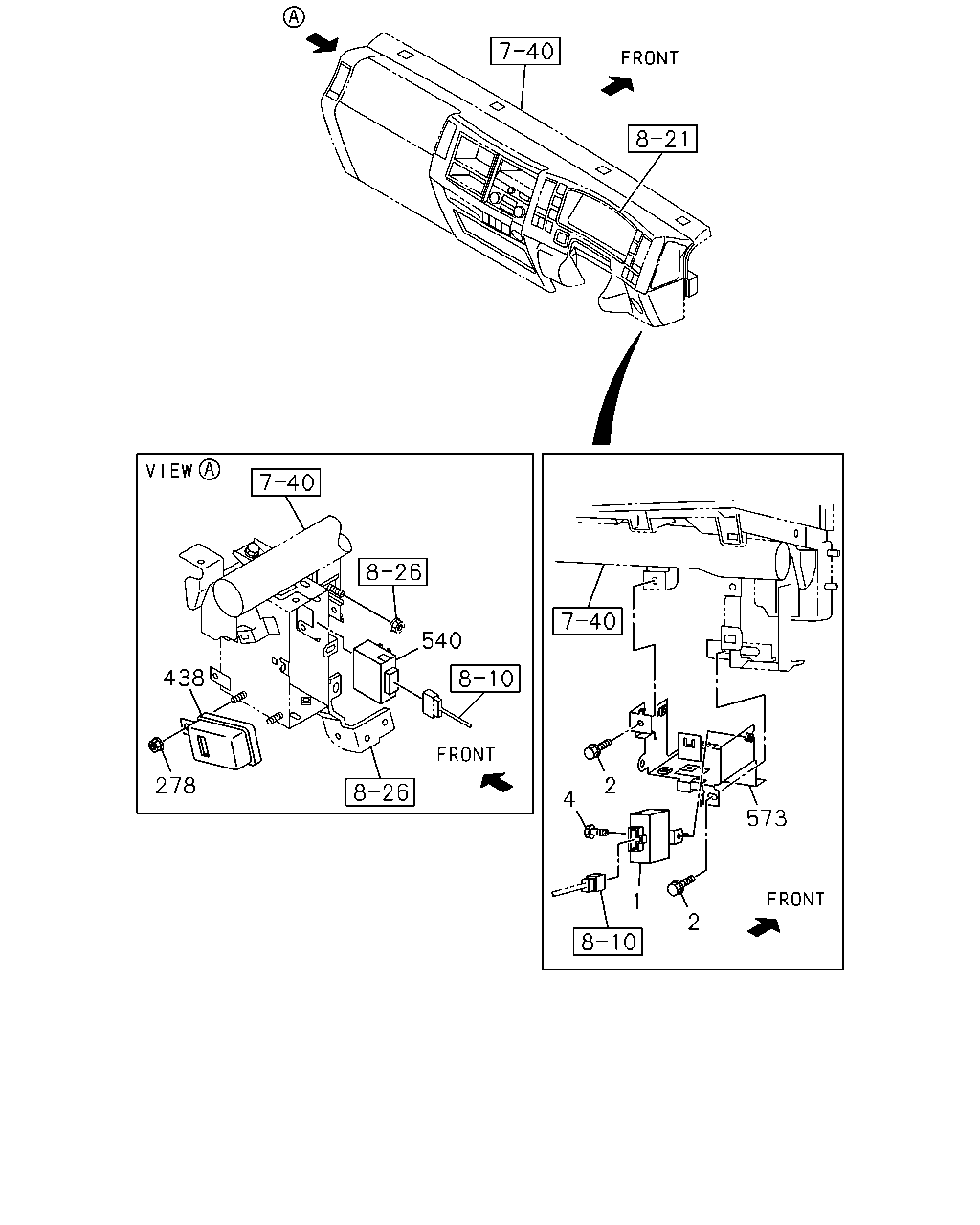

çizim 143765
438 278 540 4 1 2 2 573
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1011- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1011- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1011- ● ●
278 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 01 1 1011- ● ●
438 UNIT; SPD CONTROL 1-82550-271-0 01 1 1011- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1011-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1011- ● ●

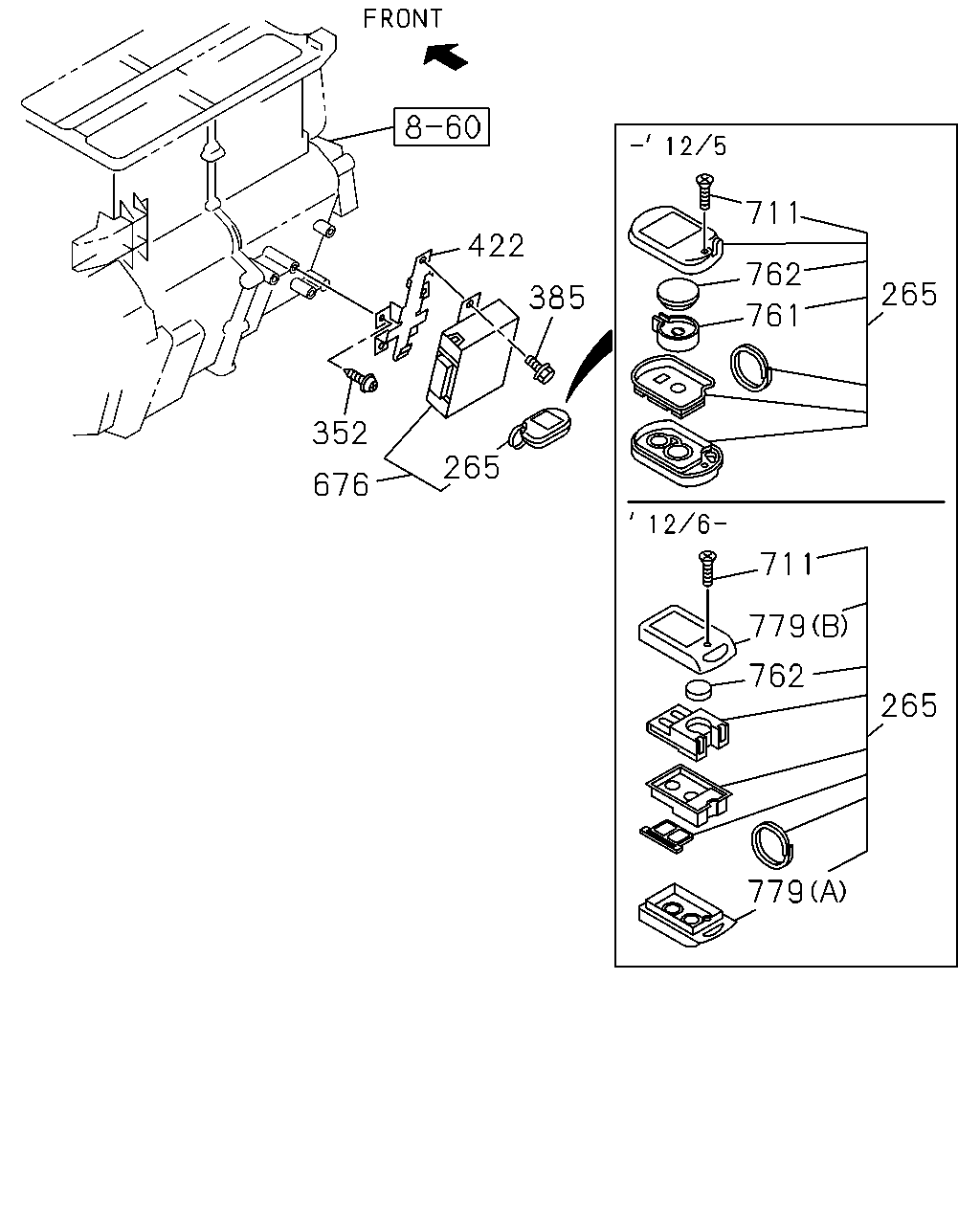

çizim 143929
422 385 352 676 265 711 762 761 265 711 779 762 265 779
BalonParca AdiParca NoAdetTipApplied Date A B
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 1011-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1011- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1011- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1011- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 1011-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 1011-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 1011-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 1011- ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1206- ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1206- ● ●

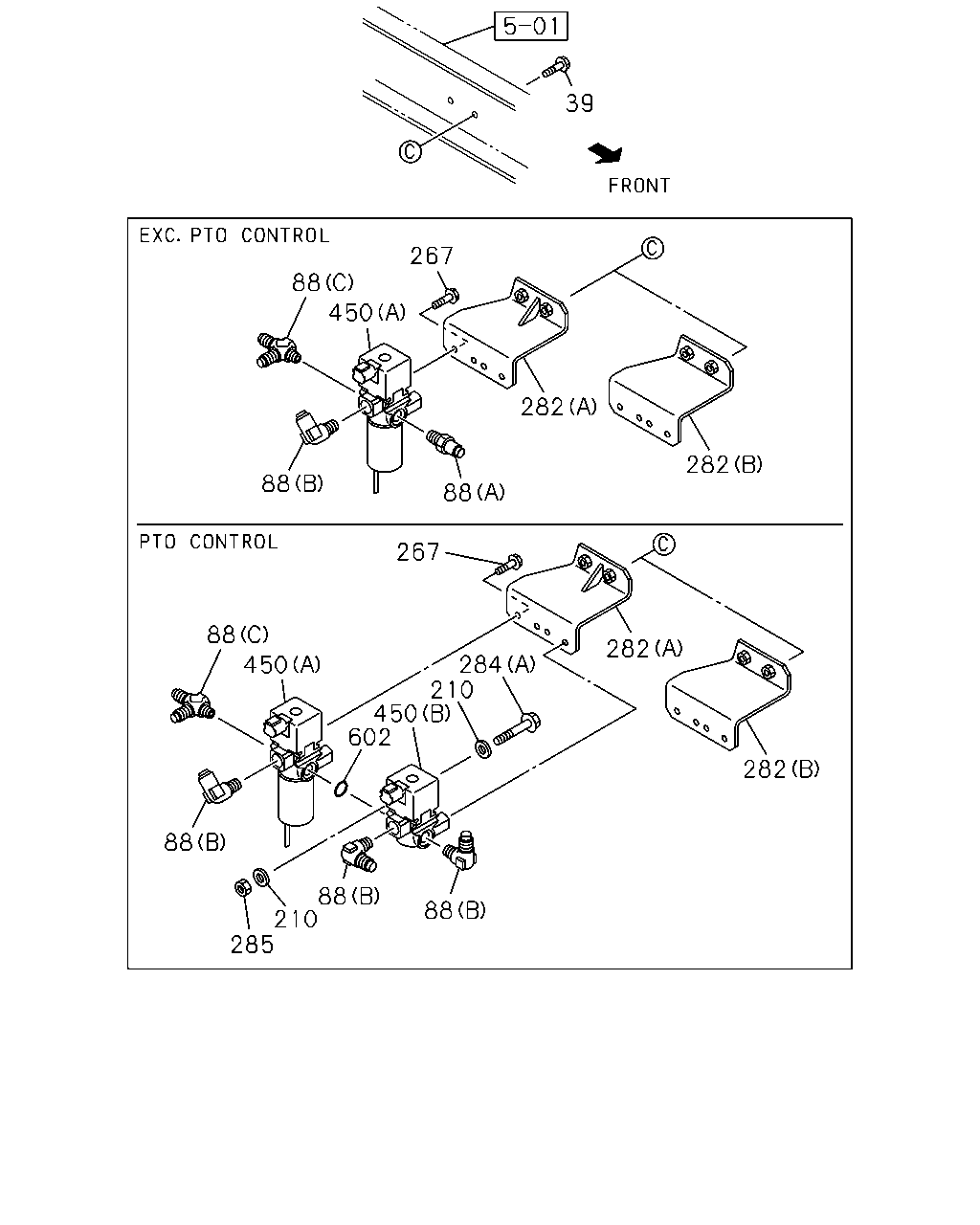

çizim 189328
39 267 88 450 88 88 282 282 267 282 284 210 450 450 602 88 210 285 88 88 282 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1011- ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1307-1404 ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1405- ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1405- ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1307- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1011-1306 ● ●
88 CONNECTOR; MAG VLV
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307- ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 1011-1306 ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 1011-1306 ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 1307- ● ●
210 WASHER; PL,BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1307- ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 1011- ●
282 BRACKET; MAG VLV
(B) 		8-98118-340-0 01 1 1011- ●
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 1011-1306 ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (A) M6X50 FLANGE 		0-28050-650-0 01 1 1011-1306 ● ●
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 1307- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M6X50 FLANGE 		0-28050-650-0 01 1 1307- ● ●
284 BOLT; MAG VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 1011-1306 ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 1011-1306 ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 1307- ● ●
285 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE 		0-91180-106-0 01 1 1307- ● ●
450 VALVE; MAG
(C) 		8-97641-594-0 01 1 1307- ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 1011- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 1011-1306 ● ●
450 VALVE; MAG
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 1307- ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 1011-1306 ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1011-1306 ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 1307- ● ●
602 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1307- ● ●

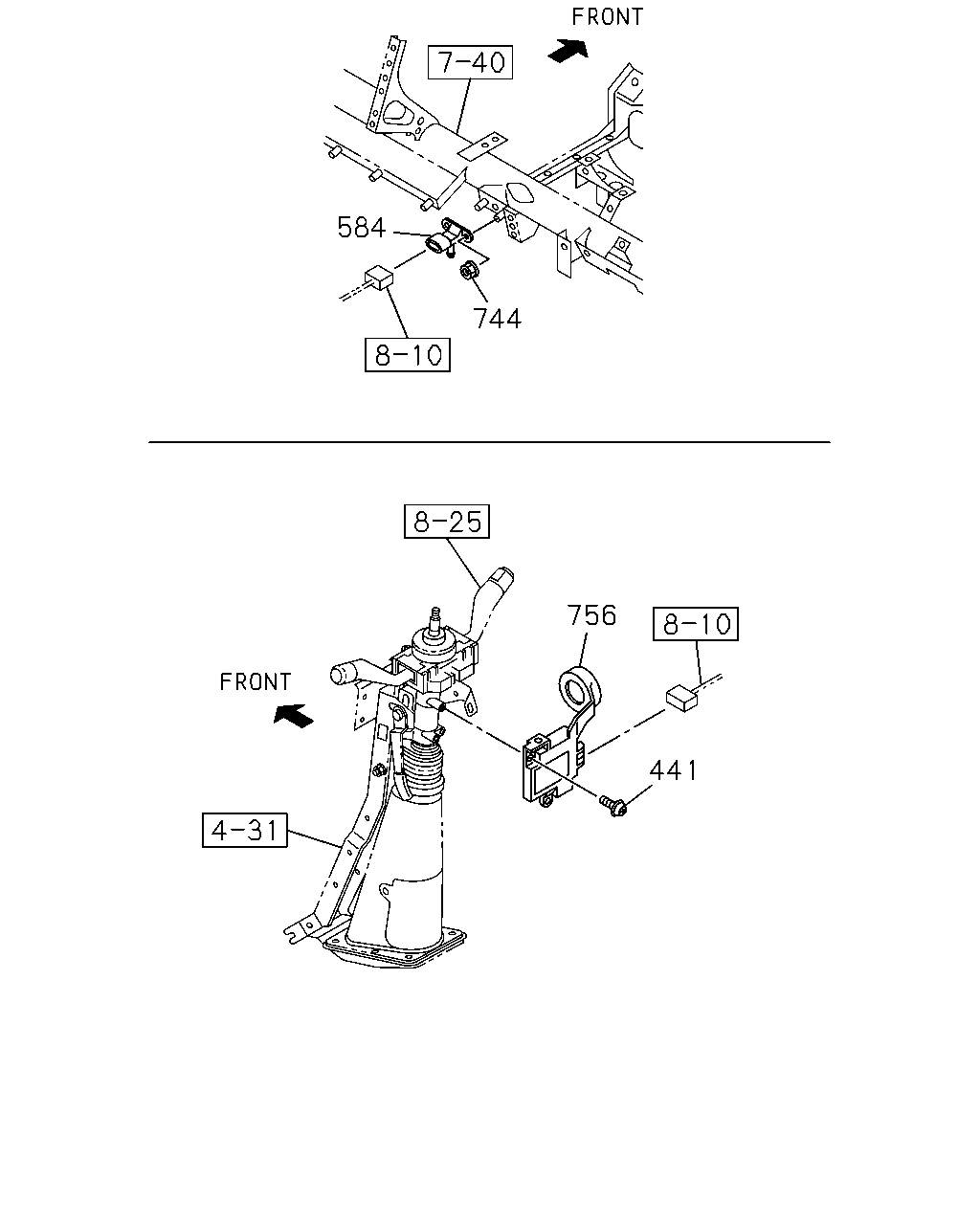

çizim 189329
744 584 756 441
BalonParca AdiParca NoAdetTipApplied Date A B
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1011- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1011- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1011- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1011- ● ●
çizim 480902
531 364
BalonParca AdiParca NoAdetTipApplied Date A B
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1204- ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1011-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
