8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#71164) — 92 parça

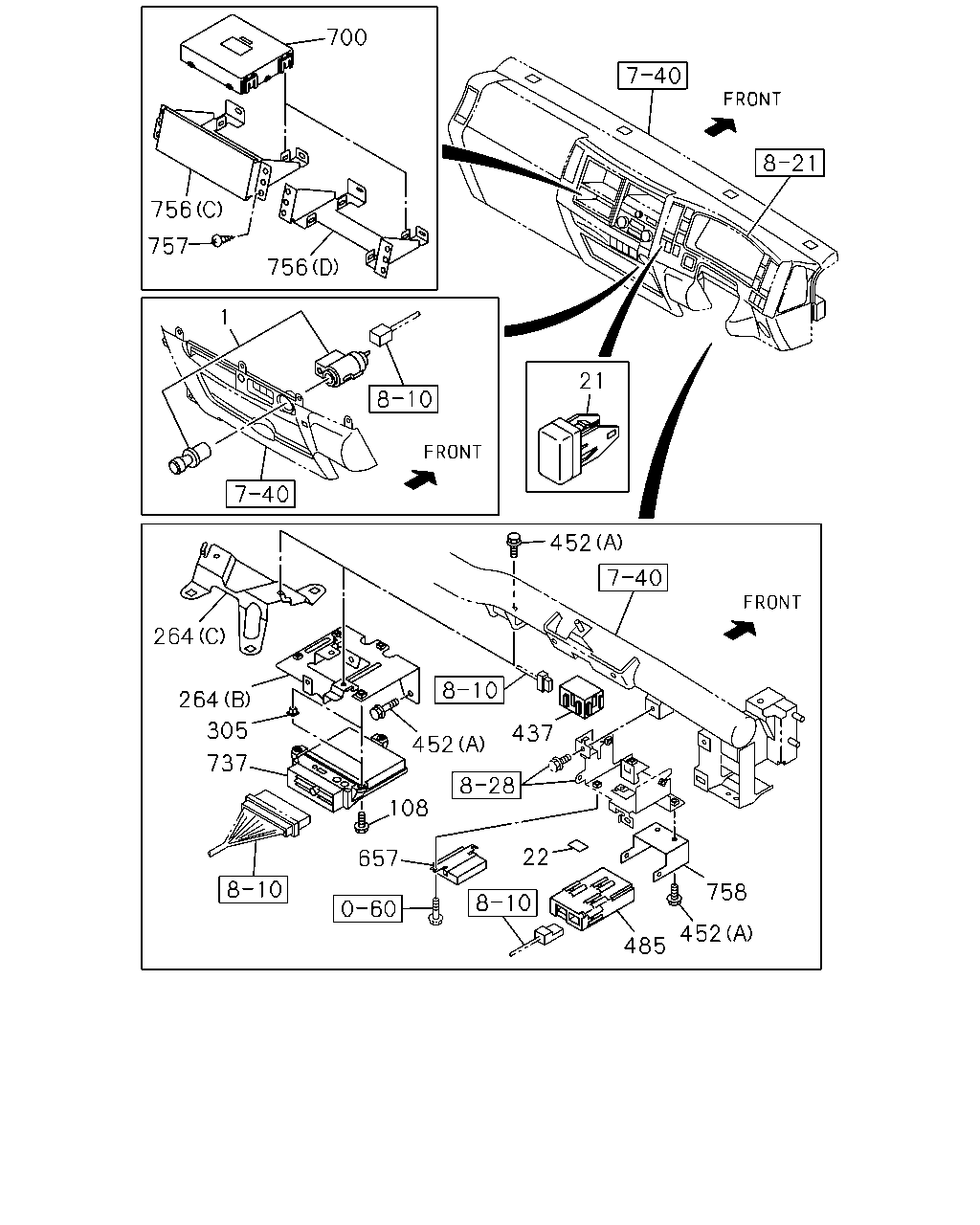

çizim 138108
700 756 756 757 21 452 452 108 657 22 485 758 737 264 264 305 437 452 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1011-1306 ● ●
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1307- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1011- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 1011-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301- ● ●
108 BOLT; TRANS CONT MODULE
LCT2000 A/T ALLISON(Y4F) M6X16 FLANGE 		0-28650-616-0 03 1 1204-1306 ● ●
108 BOLT; TRANS CONT MODULE
LCT2500 A/T ALLISON(Y5W) M6X20 TAPPING 		0-72180-620-0 03 1 1307- ● ●
264 BRACKET; CONT UNIT
LCT2000 A/T ALLISON(Y4F) (B) 		8-98064-901-0 01 1 1204-1306 ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (B) 		8-98246-552-0 01 1 1307-1405 ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (C) 		8-98252-197-0 01 1 1406- ● ●
264 BRACKET; CONT UNIT
(A) 		8-98180-453-0 01 1 1011- ● ●
305 NUT; CONT UNIT
LCT2500 A/T ALLISON(Y5W) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1307- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1011- ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1011-1203 ● ●
452 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1204-1306 ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1204-1306 ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1011- ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1011-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1011-1401 ● ●
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402- ● ●
700 CONTROL UNIT; CAN CONVERTER
VIN MODEL YEAR 2013<VZD> CAN INTERFACE FMS STD<8PG> 		8-98219-812-0 01 1 1210-1306 ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1307- ● ●
737 CONTROL UNIT; TRANSMISSION
LCT2000 A/T ALLISON(Y4F) 		8-98178-953-0 01 1 1204-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
LCT2500 A/T ALLISON(Y5W) 		8-98244-909-0 01 1 1307-1409 ● ●
737 CONTROL UNIT; TRANSMISSION
LCT2500 A/T ALLISON(Y5W) 		8-98275-787-0 01 1 1410- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1011-1306 ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1307- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1011-1306 ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1011- ● ●

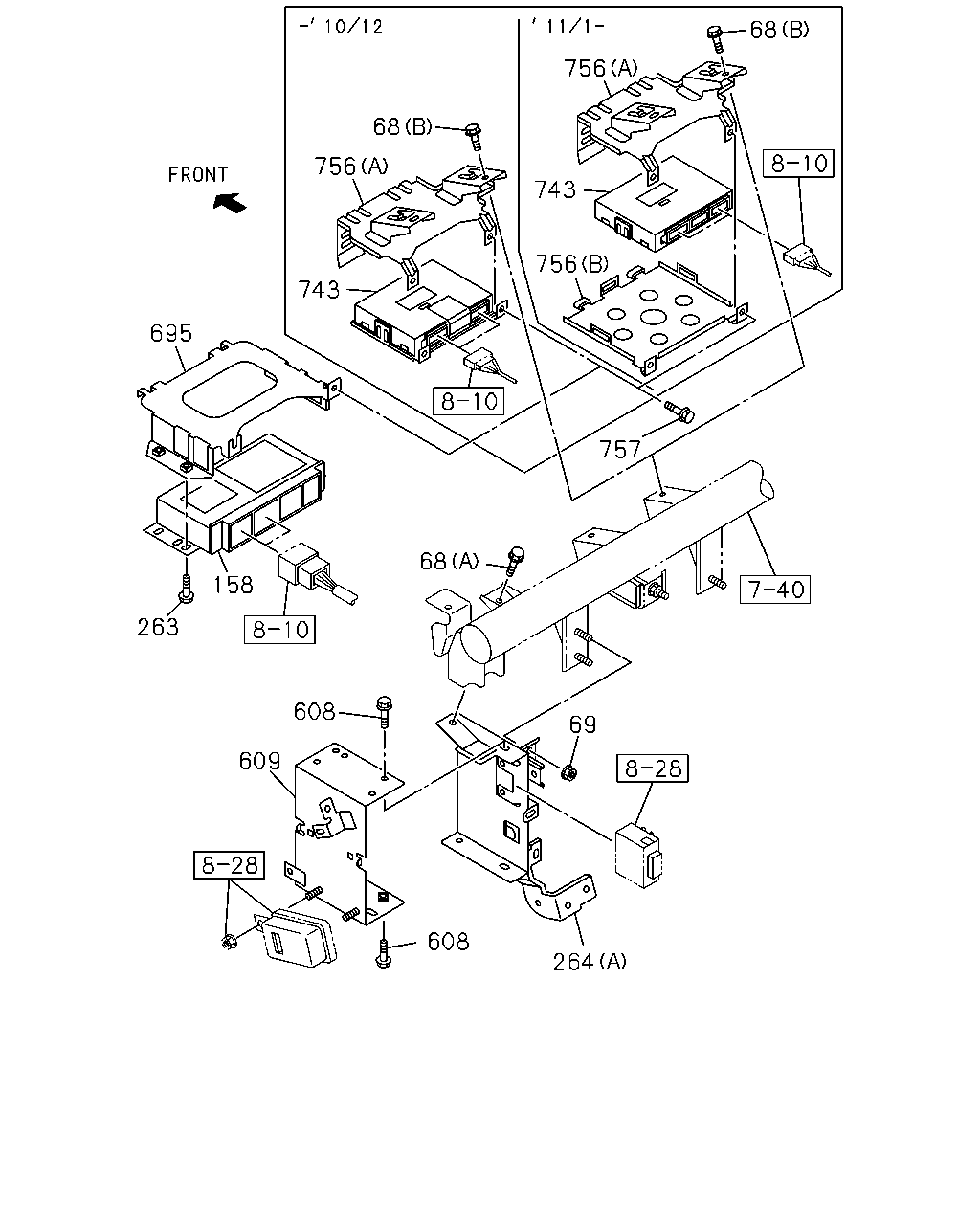

çizim 138480
695 158 263 609 608 608 68 757 69 756 743 68 743 756 756 68 264
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1011- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1011-1306 ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1307- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1011- ● ●
158 CONTROLLER; ABS
ANTI SKID BRK SYSTEM<SFL> 		8-98298-649-0 01 1 1412- ● ●
158 CONTROLLER; ABS 8-98222-314-0 01 1 1307-1411 ● ●
158 CONTROLLER; ABS
EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98222-314-0 01 1 1412- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1307- ● ●
264 BRACKET; CONT UNIT
LCT2000 A/T ALLISON(Y4F) (B) 		8-98064-901-0 01 1 1204-1306 ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (B) 		8-98246-552-0 01 1 1307-1405 ● ●
264 BRACKET; CONT UNIT
LCT2500 A/T ALLISON(Y5W) (C) 		8-98252-197-0 01 1 1406- ● ●
264 BRACKET; CONT UNIT
(A) 		8-98180-453-0 01 1 1011- ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1011- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1011-1306 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1307- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1307- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1011-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1011-1306 ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1307- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 1011-1306 ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●

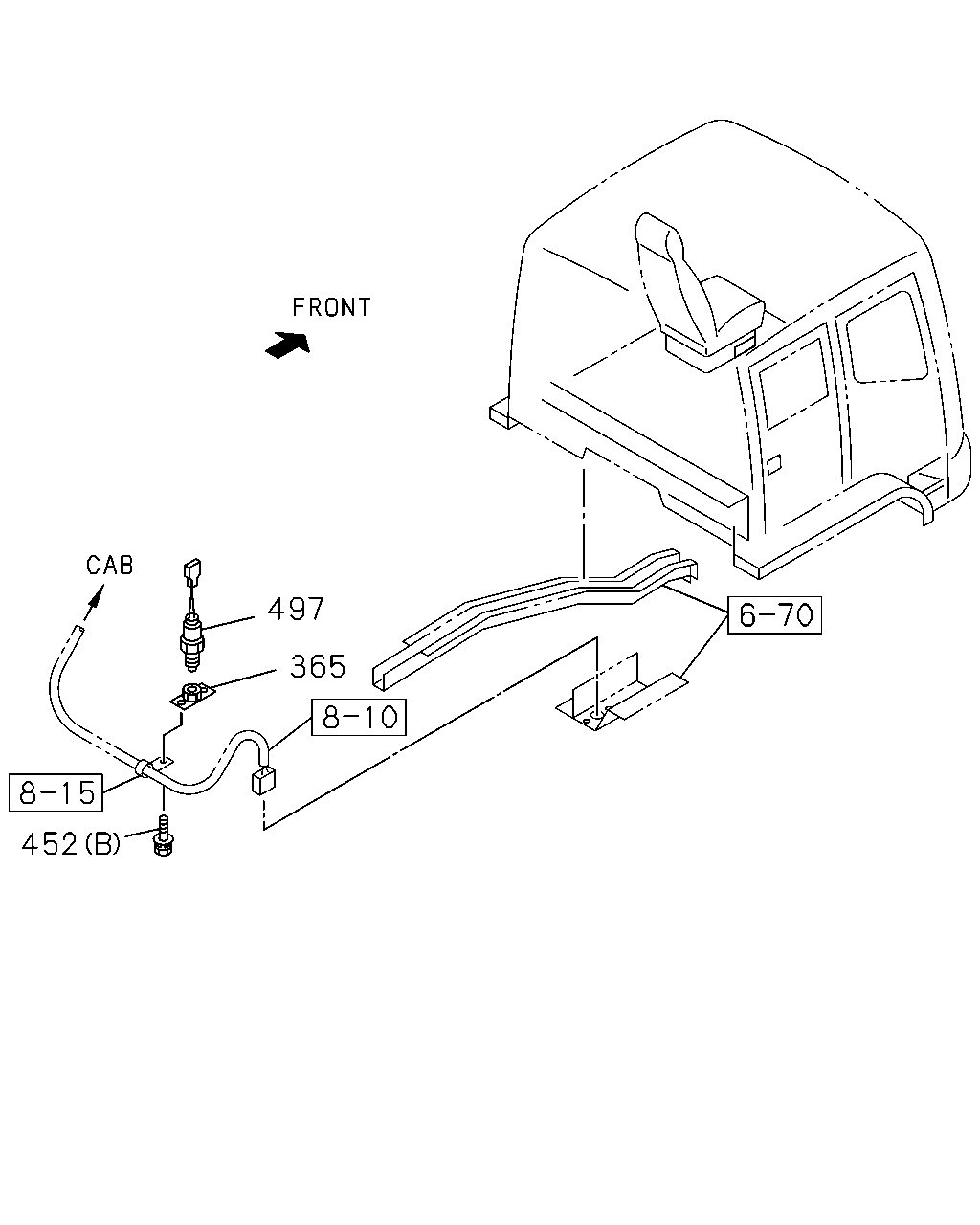

çizim 143801
497 452 365
BalonParca AdiParca NoAdetTipApplied Date A B
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 1011- ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1011-1203 ● ●
452 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1204-1306 ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1204-1306 ● ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
452 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1011- ●
497 SWITCH; CAB TILT
STAMP NC 		1-82380-125-1 01 1 1011- ●

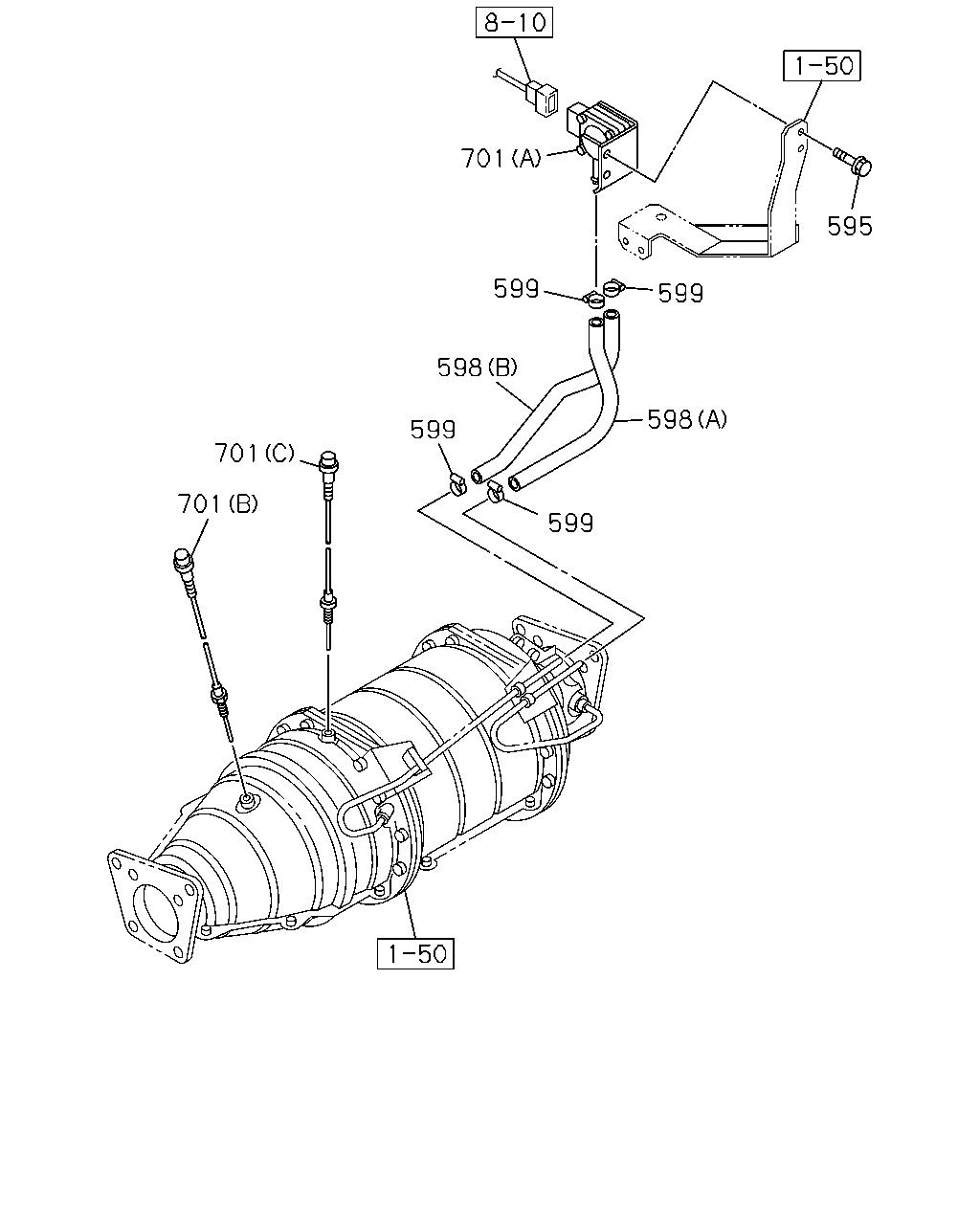

çizim 144050
701 599 595 599 598 599 598 599 701 701
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98075-388-0 01 1 1011- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98075-389-0 01 1 1011- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1011- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1011- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1011- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1011- ● ●

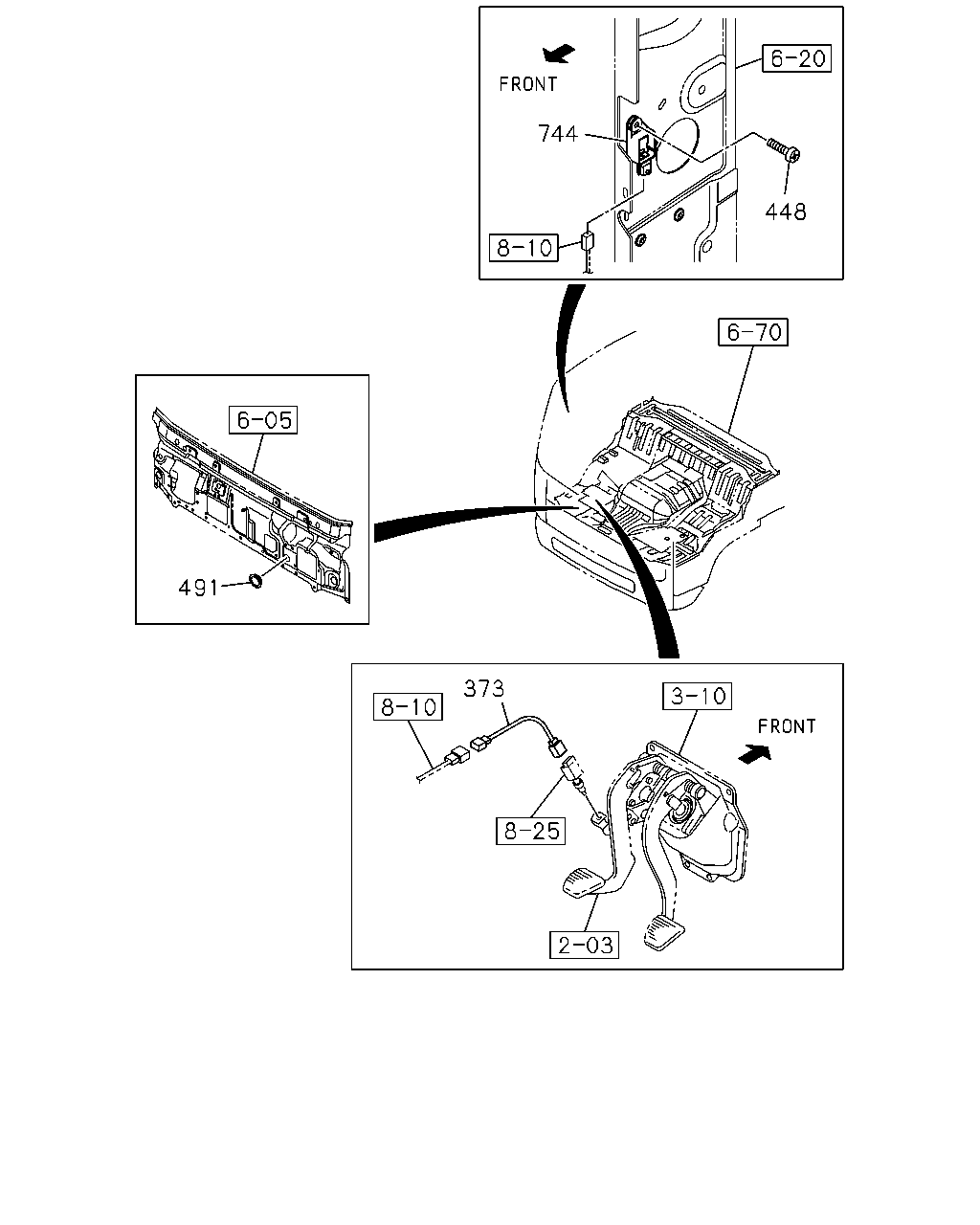

çizim 189325
744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH 8-98053-829-2 01 1 1011-1203 ● ●
373 HARNESS; CLU SWITCH
MANUAL TRANSMISSION<X9C> 		8-98053-829-2 01 1 1204-1306 ● ●
373 HARNESS; CLU SWITCH
MZW6P M/T(RSZ) 		8-98053-829-3 01 1 1307- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER 		8-97105-796-1 02 1 1011- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1011- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1011- ● ●

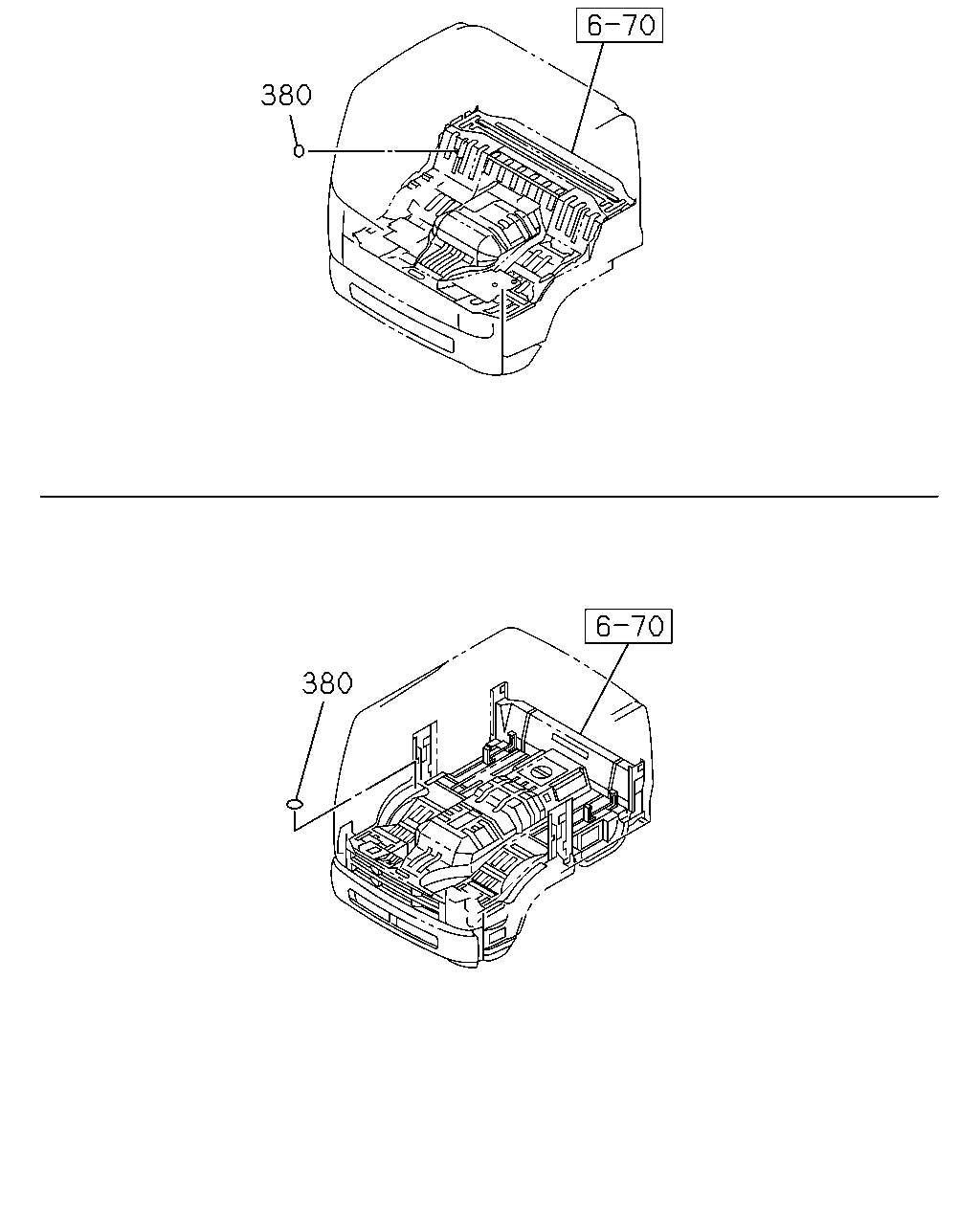

çizim 189326
380 380
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1011- ●

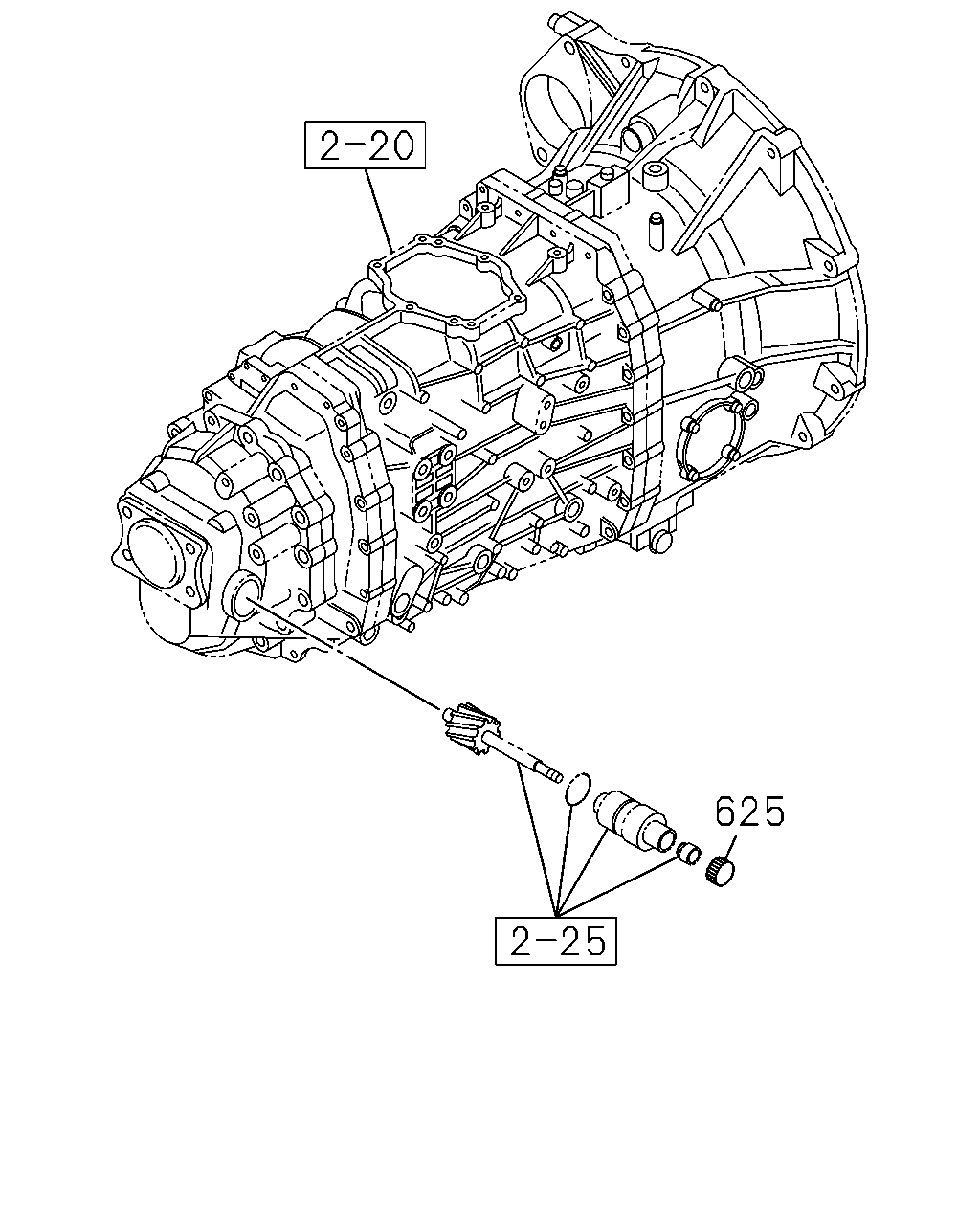

çizim 189327
625
BalonParca AdiParca NoAdetTipApplied Date A B
625 CAP; SPEED SENSOR
MZW6P M/T(RSZ) 		1-83129-133-0 01 1 1011-1306 ● ●
