◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#71163) — 119 parça

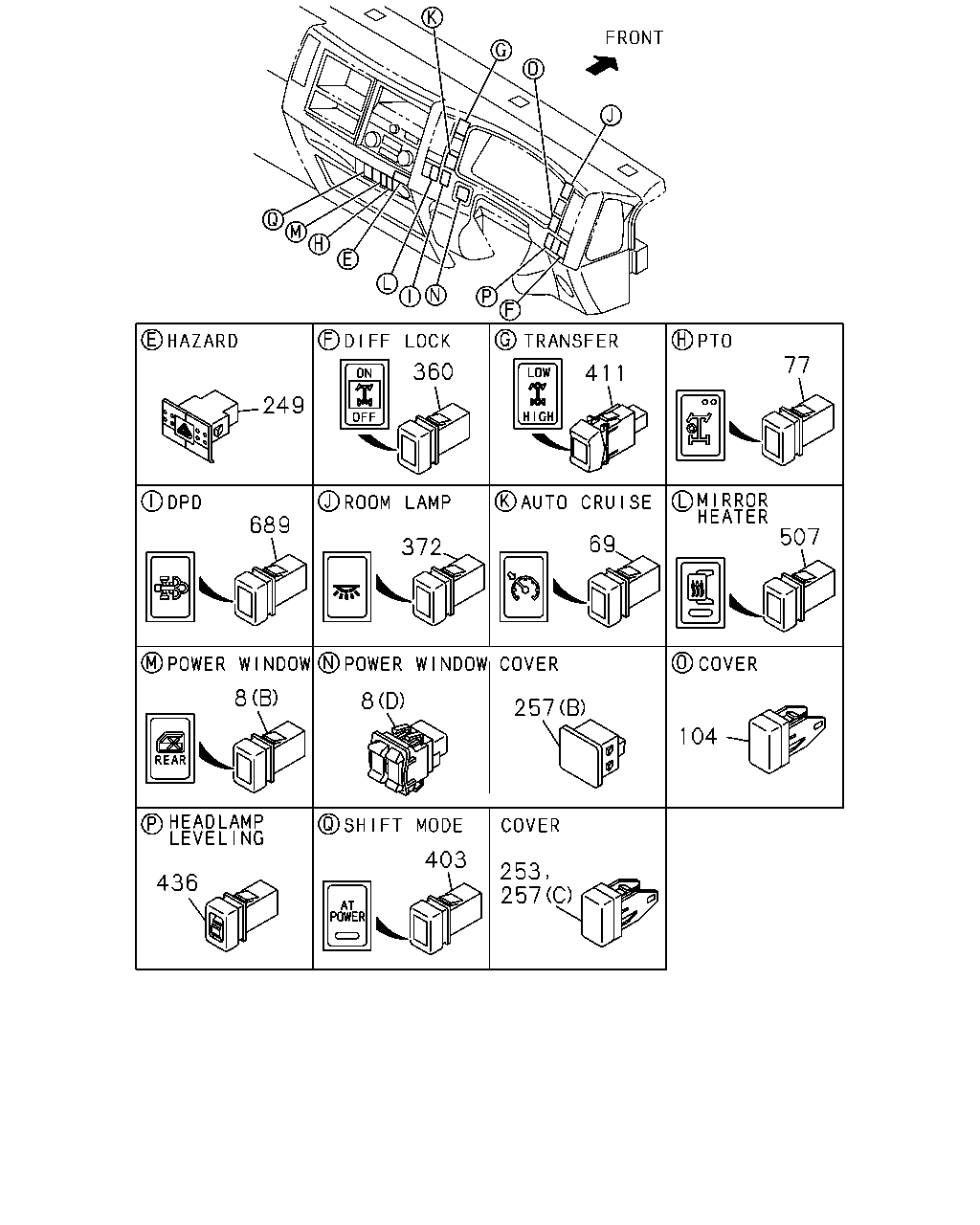

çizim 137729
257 104 253 403 436 8 8 257 507 77 411 360 249 689 372 69
BalonParca AdiParca NoAdetTipApplied Date A B
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER 		8-97387-034-2 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER 		8-97387-034-2 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER 		8-98298-750-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER 		8-98298-750-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER 		8-98159-543-0 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER 		8-98159-543-0 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER 		8-98316-415-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER 		8-98316-415-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
(A) PASSENGER 		8-97387-034-2 01 1 1011-1306 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER 		8-98227-828-0 01 1 1307-1509 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER 		8-98298-754-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98159-543-0 01 1 1011-1306 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER 		8-98227-829-0 01 1 1307-1509 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER 		8-98316-423-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-97387-035-0 02 1 1011- ●
8 SWITCH; POWER WINDOW
(D) 		8-98113-578-1 01 1 1011- ●
8 SWITCH; POWER WINDOW
(B) 		8-98128-755-2 01 1 1011- ●
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1011- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1011- ● ●
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 1011- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1011- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1011- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1011- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1011- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1011- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 05 1 1011-1112 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 04 1 1201-1306 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1307- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1011- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1011-1306 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1011-1306 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98025-954-1 01 1 1011-1306 ● ●
257 COVER; HOLE,SW
MZW6P M/T(RSZ) (C) 		8-98025-954-1 01 1 1307- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1307- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1307- ● ●
360 SWITCH ASM; DIFF LK 8-97613-965-1 01 1 1011- ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1011- ● ●
403 SWITCH
LCT2500 A/T ALLISON(Y5W) 		8-98240-737-1 01 1 1307- ● ●
411 SWITCH; TRANSFER 8-97613-967-1 01 1 1011- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1011- ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1011- ● ●
689 SWITCH; DPD 8-97386-921-2 01 1 1011- ● ●

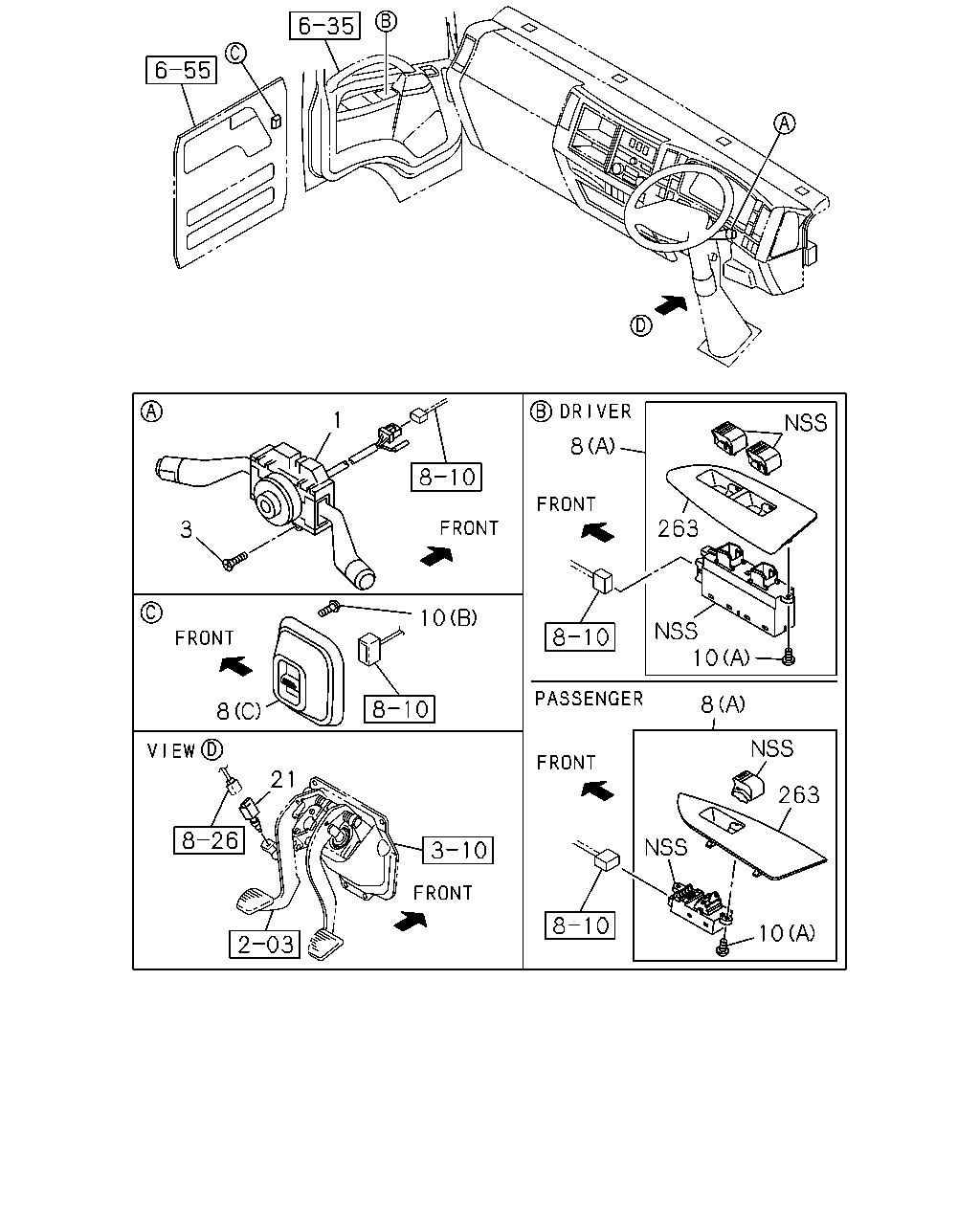

çizim 138011
8 263 10 263 8 10 1 3 8 21 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30> 		8-98146-619-0 01 1 1011-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 1011-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1011-1306 ● ●
3 SCREW; COMB SW
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1307- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER 		8-97387-034-2 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER 		8-97387-034-2 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER 		8-98298-750-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER 		8-98298-750-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER 		8-98159-543-0 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER 		8-98159-543-0 01 1 1307-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER 		8-98316-415-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER 		8-98316-415-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
(A) PASSENGER 		8-97387-034-2 01 1 1011-1306 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER 		8-98227-828-0 01 1 1307-1509 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER 		8-98298-754-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
(A) DRIVER 		8-98159-543-0 01 1 1011-1306 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER 		8-98227-829-0 01 1 1307-1509 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER 		8-98316-423-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-97387-035-0 02 1 1011- ●
8 SWITCH; POWER WINDOW
(D) 		8-98113-578-1 01 1 1011- ●
8 SWITCH; POWER WINDOW
(B) 		8-98128-755-2 01 1 1011- ●
10 SCREW; POWER WINDOW SW
(A) 		8-98153-865-0 03 1 1011- ● ●
10 SCREW; POWER WINDOW SW
(B) M4X14 TAPPING 		0-74360-414-0 04 1 1011- ●
21 SWITCH; CLU
PTO CONTROL<SV6> 		8-94337-761-0 01 1 1011-1203 ● ●
21 SWITCH; CLU
PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> 		8-94337-761-0 01 1 1204-1306 ● ●
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> 		8-94337-761-0 01 1 1307- ● ●
21 SWITCH; CLU
EXC. PTO CONTROL<SV6> 		8-97358-248-0 01 1 1011-1203 ● ●
21 SWITCH; CLU
MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6> 		8-97358-248-0 01 1 1204-1306 ● ●
21 SWITCH; CLU
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1307- ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 1011- ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 1011- ● ●

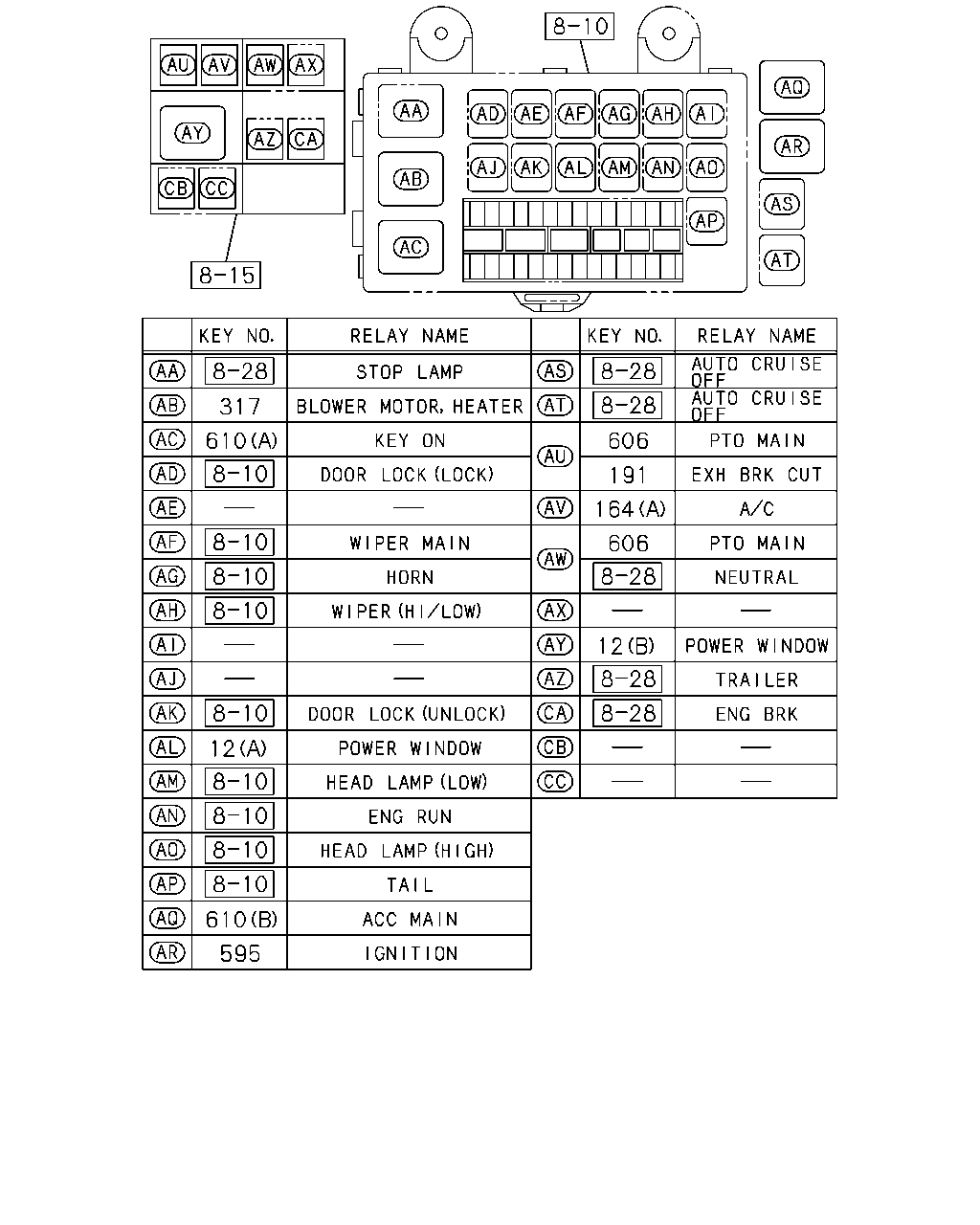

çizim 138456
317 12 610 12 606 191 606 164 595 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ● ●
12 RELAY; POWER WINDOW
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ●
595 RELAY; IGNITION
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1204-1206 ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1207- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ● ●
610 RELAY; KEY ON
A/T<X9D> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1204-1206 ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1207- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ● ●
çizim 189322
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1011- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1011- ●

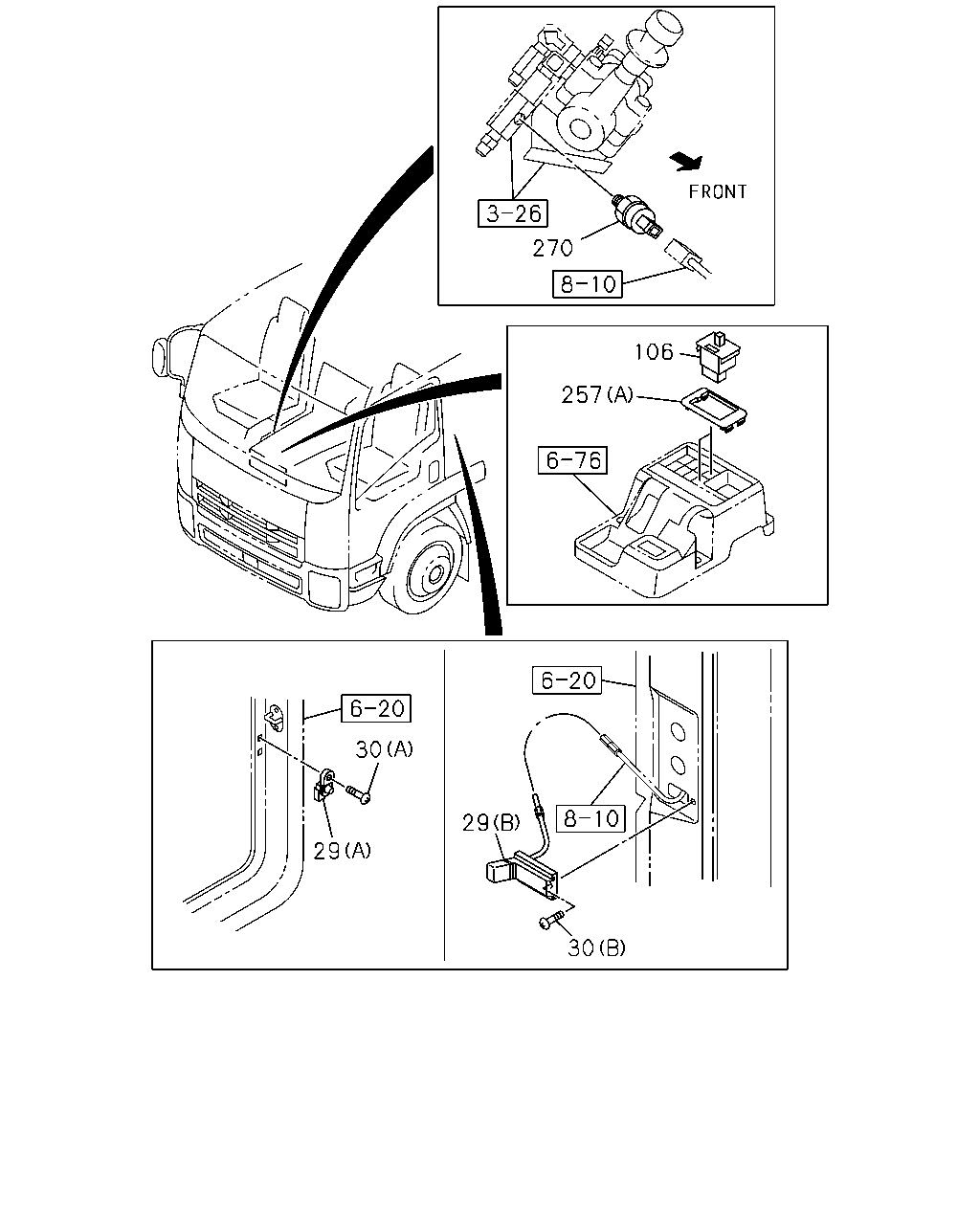

çizim 189323
270 106 257 30 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 02 1 1011- ●
29 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 02 1 1011- ●
29 SWITCH; DOOR
(B) REAR 		8-98054-195-0 02 1 1011- ●
30 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 1011- ●
30 SCREW; DOOR SW
(B) M5X11 		1-09981-536-1 04 1 1011- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82350-223-0 02 1 1011- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1011- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 05 1 1011-1112 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 04 1 1201-1306 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1307- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1011- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1011-1306 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1011-1306 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98025-954-1 01 1 1011-1306 ● ●
257 COVER; HOLE,SW
MZW6P M/T(RSZ) (C) 		8-98025-954-1 01 1 1307- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1307- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1307- ● ●
270 SWITCH; PRESS,WHEEL PARKING
STAMP 2.0 		8-98010-856-2 01 1 1011- ● ●

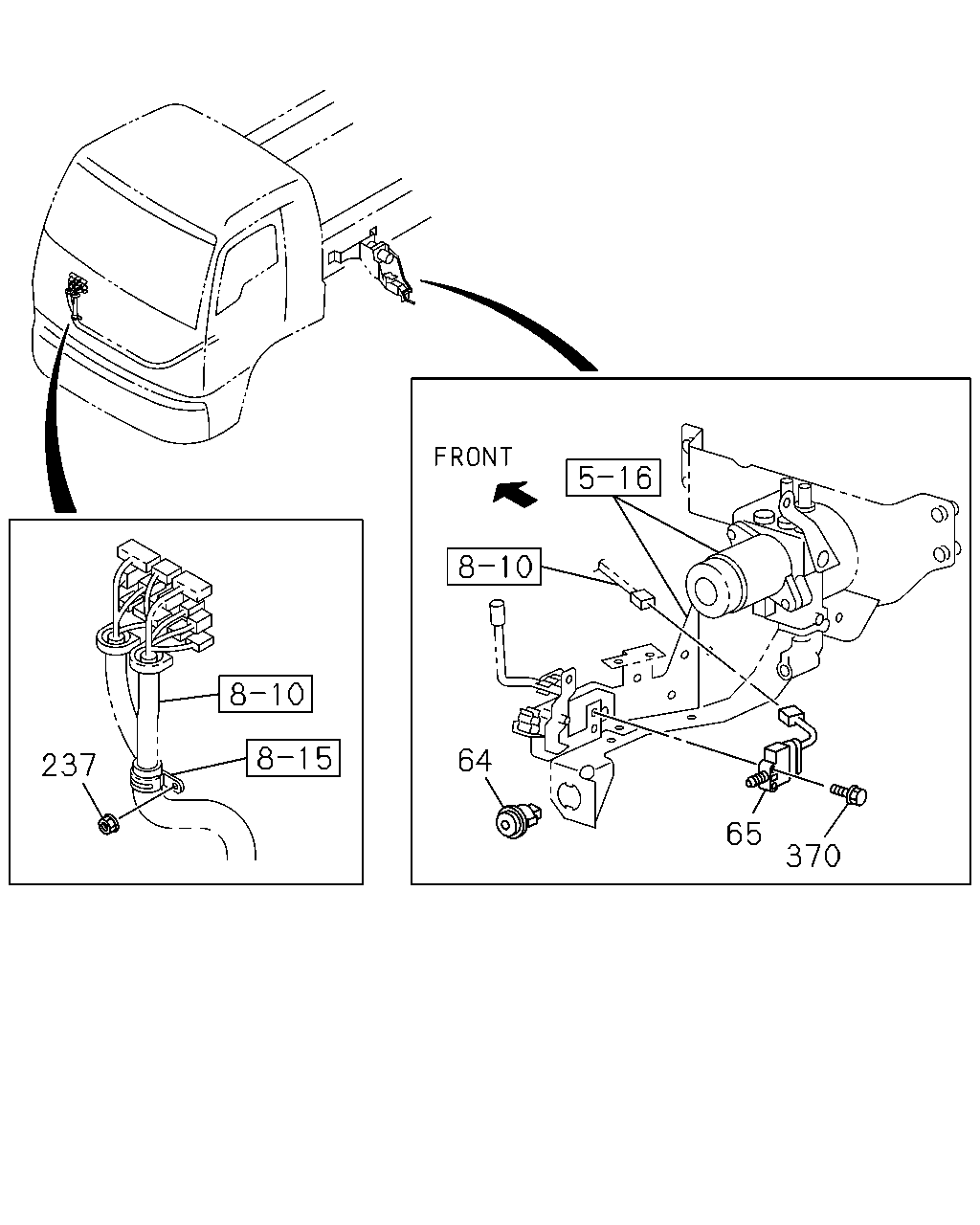

çizim 189324
237 64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1011- ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1011- ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1011- ●
