◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#71161) — 360 parça

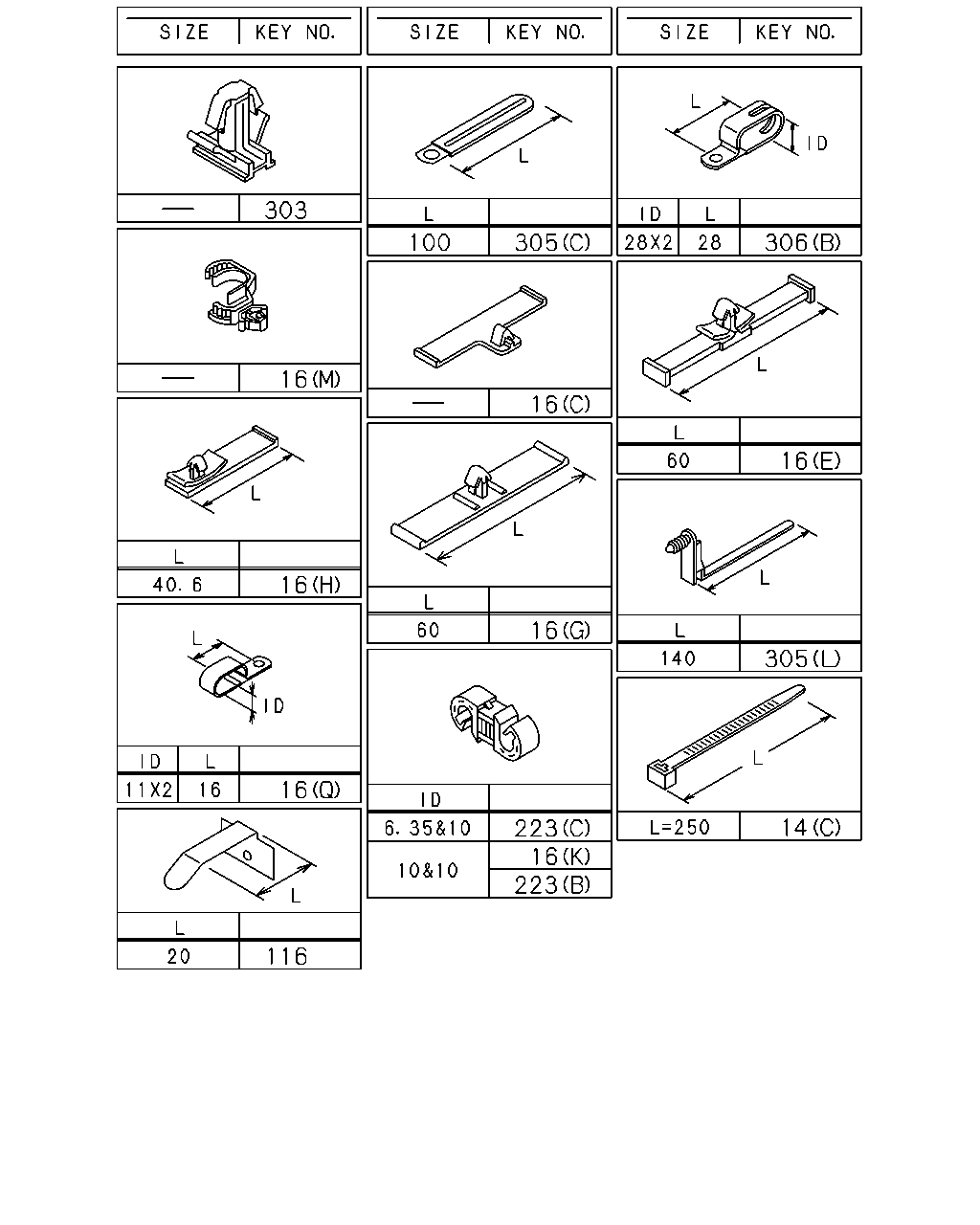

çizim 136620
14 305 16 306 305 16 16 223 16 223 116 16 16 16 303
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1011-1306 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 15 1 1011-1205 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=250 		8-98216-430-0 15 1 1206- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 1011-1203 ● ●
14 CLIP; BAND,HARNESS
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 1204-1205 ● ●
14 CLIP; BAND,HARNESS
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
LCT2000 A/T ALLISON(Y4F) (A) L=250 		5-09707-030-1 14 1 1204-1205 ● ●
14 CLIP; BAND,HARNESS
LCT2000 A/T ALLISON(Y4F) (C) L=250 		8-98216-430-0 14 1 1206-1306 ● ●
14 CLIP; BAND,HARNESS
LCT2500 A/T ALLISON(Y5W) (C) L=250 		8-98216-430-0 14 1 1307- ● ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (N) ID=11 L=20 		0-95235-035-0 02 1 1204-1306 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1307-1501 ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (N) ID=11 L=20 		0-95235-035-0 02 1 1307-1501 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1502-1503 ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (N) ID=11 L=20 		0-95235-035-0 02 1 1502-1503 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1504- ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (N) ID=11 L=20 		0-95235-035-0 02 1 1504- ● ●
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1011- ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 1011-1306 ●
16 CLIP; HARNESS
(O) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1408 ● ●
16 CLIP; HARNESS
(O) ID=5-12 L=14.5 		1-09987-221-0 04 1 1409- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1011-1306 ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (R) ID=19 L=32 		0-95235-866-0 02 1 1307- ● ●
16 CLIP; HARNESS
(A) L=350 		1-09707-183-0 02 1 1011-1306 ●
16 CLIP; HARNESS
(P) L=140 		5-09707-031-1 01 1 1307- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1011-1306 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1011-1306 ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 1307- ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 1011-1306 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		0-95325-025-0 01 1 1307- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1011- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1011- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1011- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1011- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1011- ● ●
16 CLIP; HARNESS
(F) ID=26 L=26 		1-09701-236-0 01 1 1011-1306 ●
16 CLIP; HARNESS
(A) L=350 		1-09707-183-0 01 1 1307- ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 1011- ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 1011- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1307- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1112- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1011-1306 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 1307- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1011-1306 ● ●
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 1011- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 1011- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 1011- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1011- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1011- ● ●

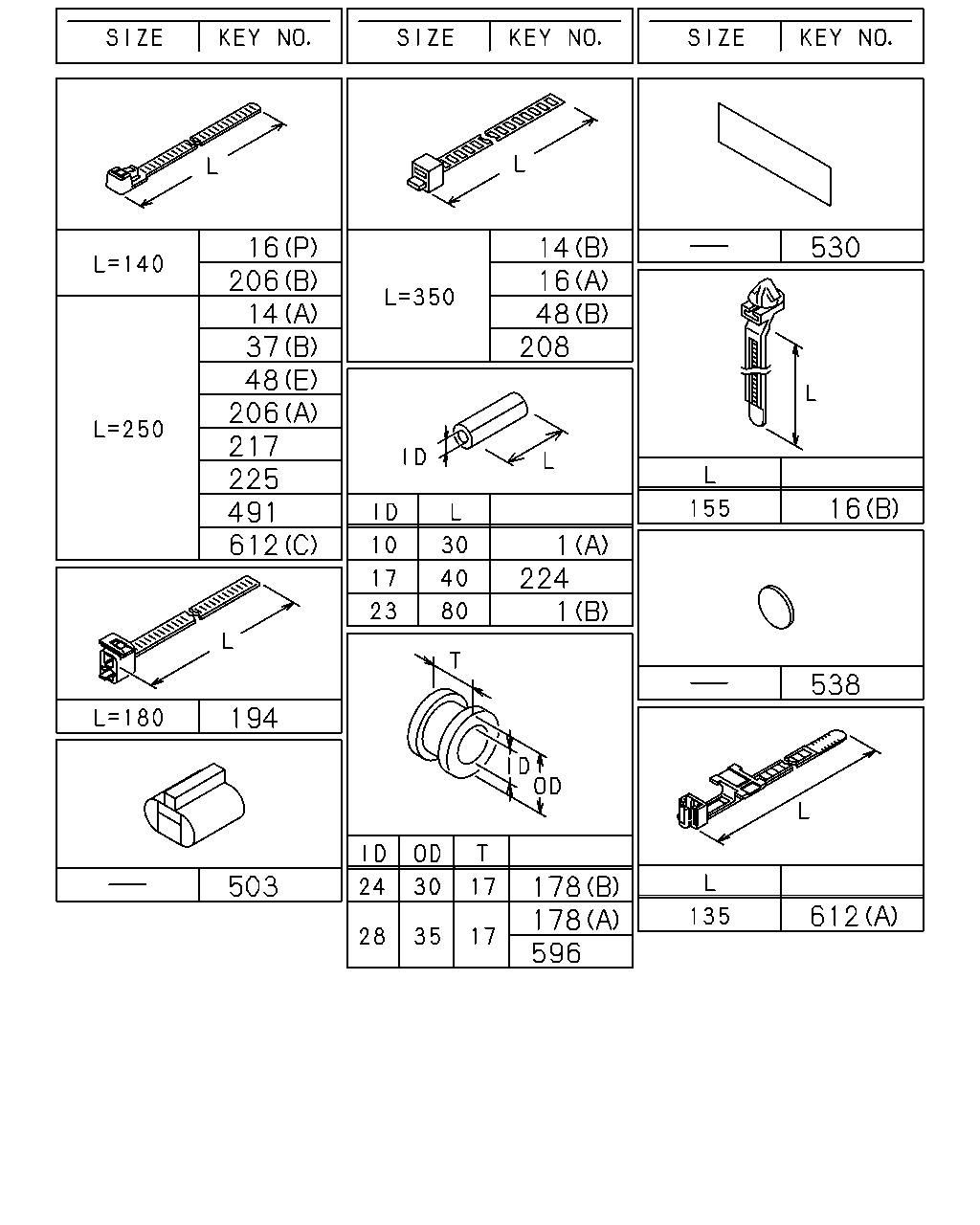

çizim 137006
16 206 14 37 48 206 217 225 491 612 194 503 14 16 48 208 1 224 1 178 178 596 530 16 538 612
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1011- ● ●
1 SLEEVE; RUBBER
POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 1011- ● ●
1 SLEEVE; RUBBER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1011- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1011-1306 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 15 1 1011-1205 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=250 		8-98216-430-0 15 1 1206- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 1011-1203 ● ●
14 CLIP; BAND,HARNESS
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 1204-1205 ● ●
14 CLIP; BAND,HARNESS
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
LCT2000 A/T ALLISON(Y4F) (A) L=250 		5-09707-030-1 14 1 1204-1205 ● ●
14 CLIP; BAND,HARNESS
LCT2000 A/T ALLISON(Y4F) (C) L=250 		8-98216-430-0 14 1 1206-1306 ● ●
14 CLIP; BAND,HARNESS
LCT2500 A/T ALLISON(Y5W) (C) L=250 		8-98216-430-0 14 1 1307- ● ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (N) ID=11 L=20 		0-95235-035-0 02 1 1204-1306 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1307-1501 ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (N) ID=11 L=20 		0-95235-035-0 02 1 1307-1501 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1502-1503 ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (N) ID=11 L=20 		0-95235-035-0 02 1 1502-1503 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1504- ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (N) ID=11 L=20 		0-95235-035-0 02 1 1504- ● ●
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1011- ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 1011-1306 ●
16 CLIP; HARNESS
(O) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1408 ● ●
16 CLIP; HARNESS
(O) ID=5-12 L=14.5 		1-09987-221-0 04 1 1409- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1011-1306 ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (R) ID=19 L=32 		0-95235-866-0 02 1 1307- ● ●
16 CLIP; HARNESS
(A) L=350 		1-09707-183-0 02 1 1011-1306 ●
16 CLIP; HARNESS
(P) L=140 		5-09707-031-1 01 1 1307- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1011-1306 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1011-1306 ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 1307- ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 1011-1306 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		0-95325-025-0 01 1 1307- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1011- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1011- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1011- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1011- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1011- ● ●
16 CLIP; HARNESS
(F) ID=26 L=26 		1-09701-236-0 01 1 1011-1306 ●
16 CLIP; HARNESS
(A) L=350 		1-09707-183-0 01 1 1307- ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 1011- ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 1011- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 1011-1306 ●
37 CLIP; HARNESS,POWER TILT
(B) L=250 		5-09707-030-1 01 1 1011-1306 ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (H) ID=19 L=32 		0-95235-866-0 02 1 1204-1306 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 1011- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 13 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1011-1201 ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 02 1 1202-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 1011- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1011-1306 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1011-1306 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1011- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1011-1306 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1011-1306 ●
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 1011-1306 ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=250 		5-09707-030-1 02 1 1011-1306 ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 1011-1306 ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1011-1306 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1011-1306 ● ●
224 SLEEVE; RUBBER,HARNESS
ID=17 OD=21 L=40 		1-09337-012-0 01 1 1011-1109 ●
224 SLEEVE; RUBBER,HARNESS
EXC. COUNTRY NEW ZEALAND<CX6> ID=17 OD=21 L=40 		1-09337-012-0 01 1 1110-1203 ●
224 SLEEVE; RUBBER,HARNESS
EXC. COUNTRY NEW ZEALAND<CX6>,A/T<X9D> ID=17 OD=21 L=40 		1-09337-012-0 01 1 1204-1306 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 02 1 1011-1306 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1011-1306 ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 05 1 1204- ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 06 1 1204-1204 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 04 1 1204- ●
503 CONNECTOR
HEATER & DEFROSTER(C41) 		1-82690-668-0 01 1 1011- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1011-1305 ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1011-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1011- ● ●
596 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1011-1306 ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 03 1 1011-1306 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 1307-1308 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 1309- ● ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 1011-1306 ● ●
612 CLIP; HARNESS DPD
(D) ID=11 H=45 L=25 		1-09700-866-0 01 1 1307- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 1011-1306 ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 1011-1306 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 1307-1308 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 1011-1306 ●

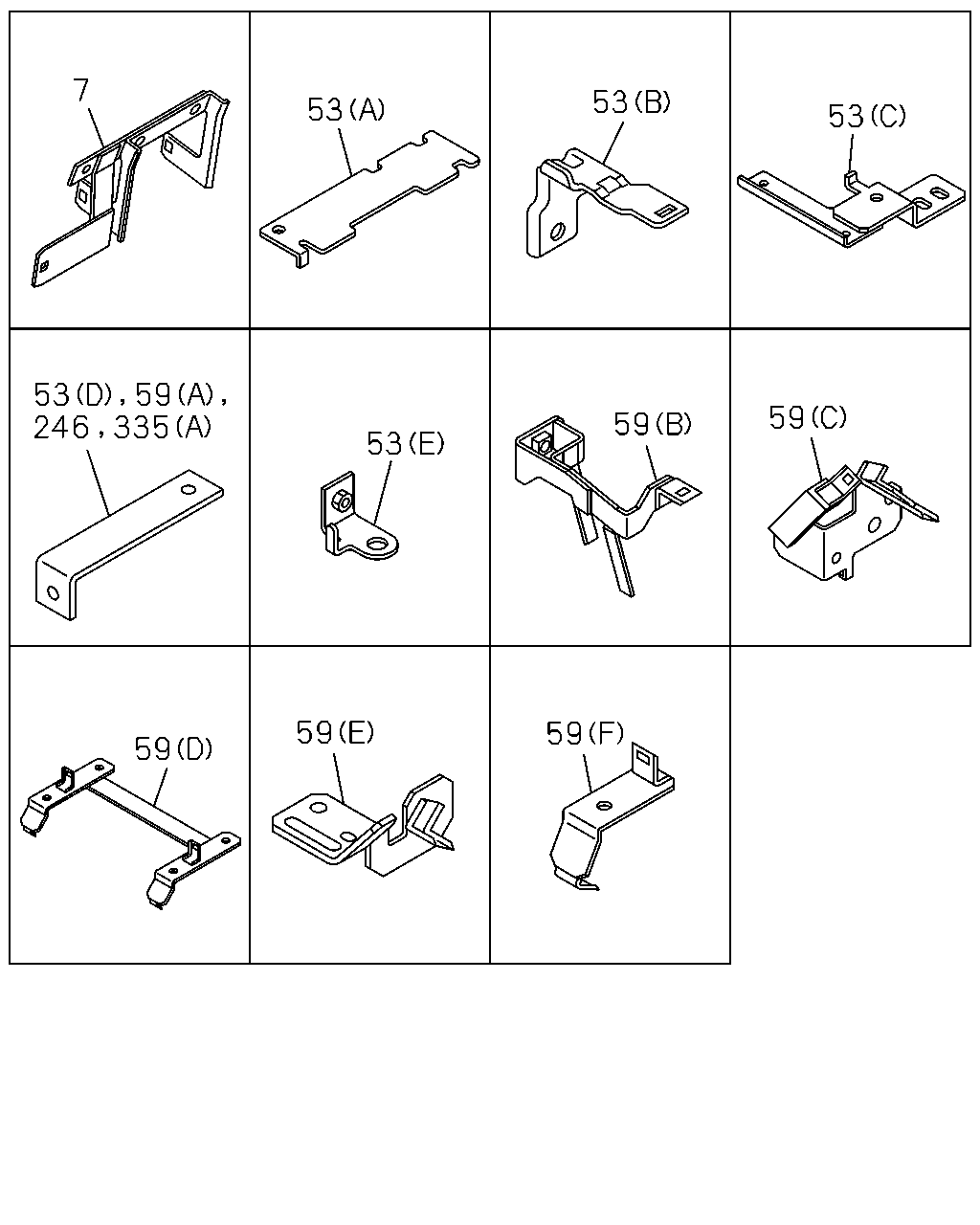

çizim 137071
59 53 53 53 53 59 59 59 59 53 246 335 7 59
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1011- ● ●
53 BRACKET; HARNESS
LCT2000 A/T ALLISON(Y4F) (E) 		1-82698-296-0 02 1 1204-1306 ● ●
53 BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W) (E) 		1-82698-296-0 02 1 1307-1501 ● ●
53 BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E) 		1-82698-296-0 02 1 1502-1503 ● ●
53 BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W) (E) 		1-82698-296-0 02 1 1504- ● ●
53 BRACKET; HARNESS
(A) 		8-98127-093-0 01 1 1011-1306 ●
53 BRACKET; HARNESS
(A) 		1-82699-239-0 01 1 1307- ● ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1011- ● ●
53 BRACKET; HARNESS
(C) 		8-98107-613-0 01 1 1011-1409 ● ●
53 BRACKET; HARNESS
(C) 		8-98269-791-0 01 1 1410-1501 ● ●
53 BRACKET; HARNESS
(C) 		8-98303-764-0 01 1 1502- ● ●
53 BRACKET; HARNESS
(D) L=95 		1-82699-085-0 01 1 1011- ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 1012-1306 ●
59 BRACKET; FRAME HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 1307- ●
59 BRACKET; FRAME HARNESS
(D) 		8-98071-896-0 01 1 1011-1306 ●
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 1011-1306 ● ●
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 1307- ● ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 1011-1011 ● ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 1012-1203 ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97609-264-2 01 1 1012-1203 ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B) 		8-97609-264-2 01 1 1204-1306 ●
59 BRACKET; FRAME HARNESS
MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97609-264-2 01 1 1204-1306 ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1307- ●
59 BRACKET; FRAME HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97609-264-2 01 1 1307- ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1011-1306 ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-97616-305-0 01 1 1011-1306 ● ●
59 BRACKET; FRAME HARNESS
(A) L=75 		1-47478-323-0 01 1 1011- ●
59 BRACKET; FRAME HARNESS
(F) 		8-98118-500-0 02 1 1011-1306 ●
246 BRACKET; CLIP,SPD SENSOR
L=95 		1-82699-085-0 01 1 1011-1306 ● ●
335 BRACKET; CONNECTOR
(A) L=65 		1-47479-064-0 01 1 1011-1306 ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 1011-1306 ● ●

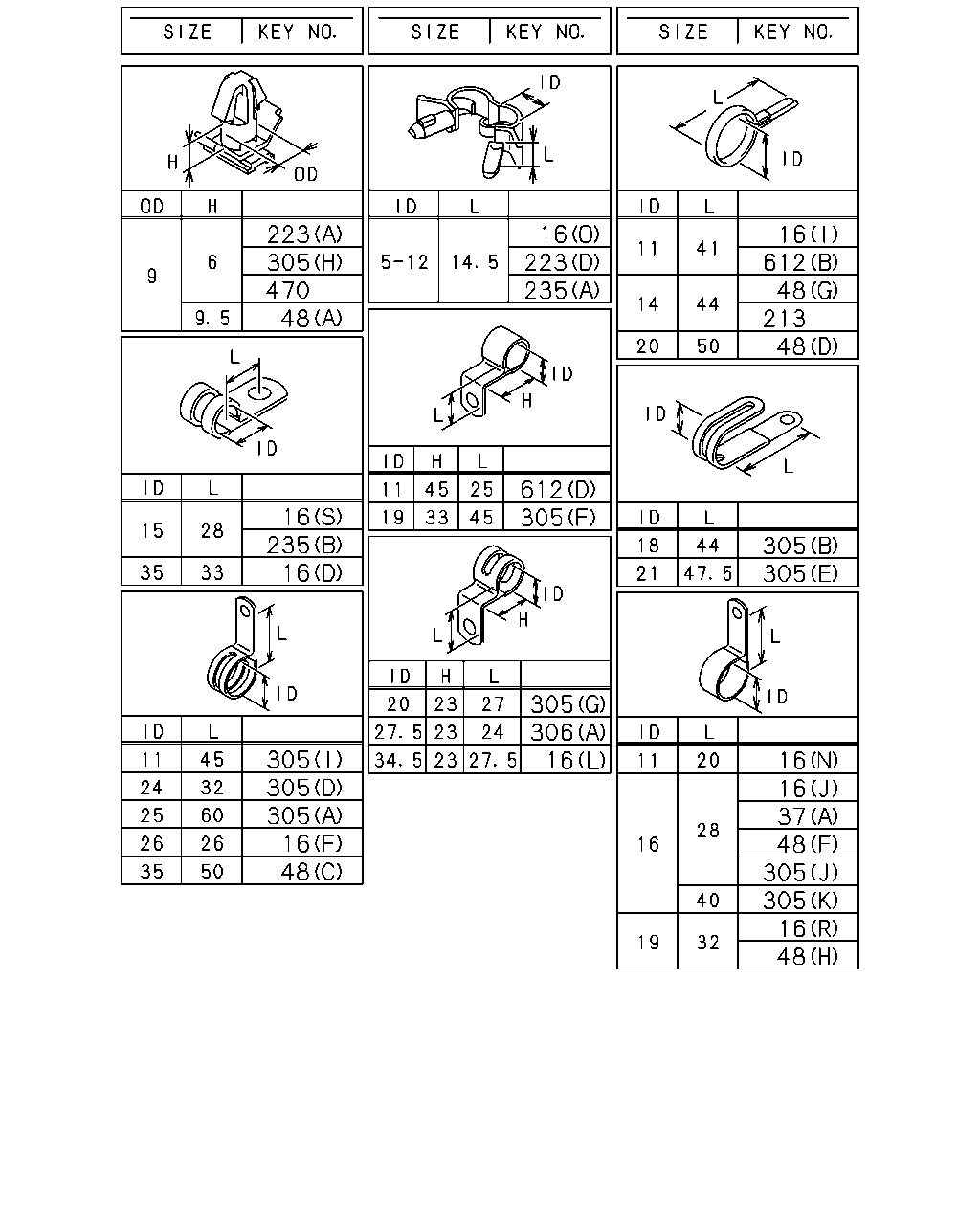

çizim 137271
223 470 305 48 16 16 235 305 305 305 16 48 16 235 223 612 305 305 306 16 16 48 612 213 305 48 305 16 16 37 48 305 305 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (N) ID=11 L=20 		0-95235-035-0 02 1 1204-1306 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1307-1501 ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (N) ID=11 L=20 		0-95235-035-0 02 1 1307-1501 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1502-1503 ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (N) ID=11 L=20 		0-95235-035-0 02 1 1502-1503 ● ●
16 CLIP; HARNESS
(N) ID=11 L=20 		0-95235-035-0 02 1 1504- ● ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (N) ID=11 L=20 		0-95235-035-0 02 1 1504- ● ●
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1011- ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 01 1 1011-1306 ●
16 CLIP; HARNESS
(O) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1408 ● ●
16 CLIP; HARNESS
(O) ID=5-12 L=14.5 		1-09987-221-0 04 1 1409- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1011-1306 ●
16 CLIP; HARNESS
LCT2500 A/T ALLISON(Y5W) (R) ID=19 L=32 		0-95235-866-0 02 1 1307- ● ●
16 CLIP; HARNESS
(A) L=350 		1-09707-183-0 02 1 1011-1306 ●
16 CLIP; HARNESS
(P) L=140 		5-09707-031-1 01 1 1307- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1011-1306 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1011-1306 ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 1307- ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 1011-1306 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		0-95325-025-0 01 1 1307- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1011- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1011- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1011- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1011- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1011- ● ●
16 CLIP; HARNESS
(F) ID=26 L=26 		1-09701-236-0 01 1 1011-1306 ●
16 CLIP; HARNESS
(A) L=350 		1-09707-183-0 01 1 1307- ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 1011- ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 1011- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 1011-1306 ●
37 CLIP; HARNESS,POWER TILT
(B) L=250 		5-09707-030-1 01 1 1011-1306 ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (H) ID=19 L=32 		0-95235-866-0 02 1 1204-1306 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 1011- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 13 1 1011-1306 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1011-1201 ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 02 1 1202-1306 ● ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 1011- ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 1011-1306 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1011-1306 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=15 L=28 		1-09701-216-0 01 1 1307-1308 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 1011- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 1011- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1011- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 1011- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1011- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1011- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1011-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND<CX6> OD=9 H=6 		1-09709-178-0 01 1 1206- ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 03 1 1011-1306 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 1307-1308 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 1309- ● ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 1011-1306 ● ●
612 CLIP; HARNESS DPD
(D) ID=11 H=45 L=25 		1-09700-866-0 01 1 1307- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 1011-1306 ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 1011-1306 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 1307-1308 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 1011-1306 ●

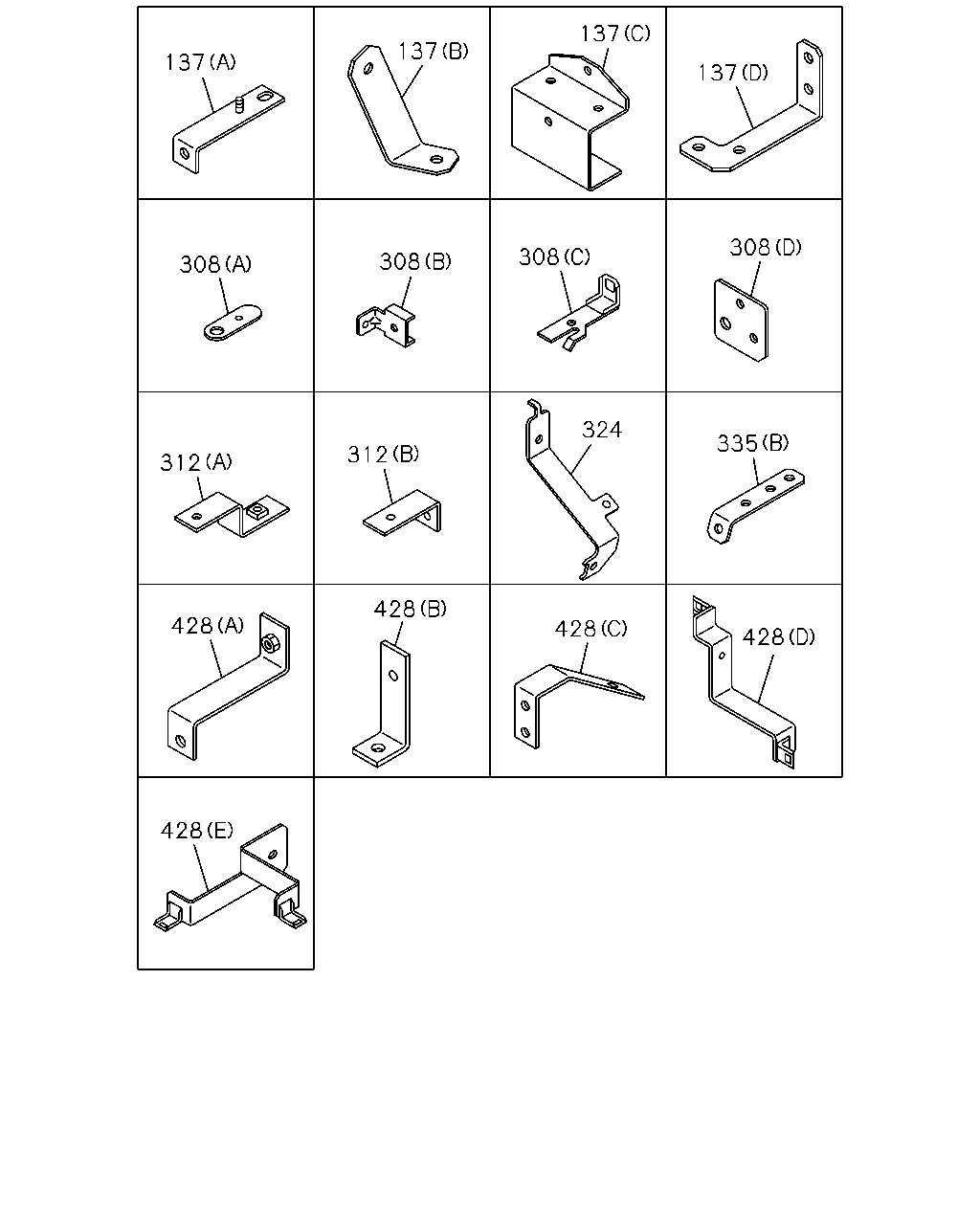

çizim 138026
137 137 137 137 308 308 308 308 312 312 324 335 428 428 428 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(D) 		8-98244-722-0 01 1 1409- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-728-1 01 1 1011- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1011- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97609-797-1 02 1 1307- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1011-1011 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-98021-692-1 01 1 1011- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1011-1306 ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1011-1306 ● ●
324 BRACKET; CLIP 8-98209-753-0 01 1 1307- ● ●
324 BRACKET; CLIP 8-98209-754-0 01 1 1307- ● ●
335 BRACKET; CONNECTOR
(A) L=65 		1-47479-064-0 01 1 1011-1306 ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 1011-1306 ● ●
428 BRACKET
(B) 		1-47475-519-0 01 1 1011-1306 ●
428 BRACKET
(D) 		8-98090-953-1 01 1 1011-1306 ●
428 BRACKET
(C) 		8-98049-870-2 01 1 1011-1306 ● ●
428 BRACKET
(A) 		1-47477-868-0 01 1 1011-1306 ●
428 BRACKET
(E) 		8-98118-501-0 01 1 1011-1306 ●

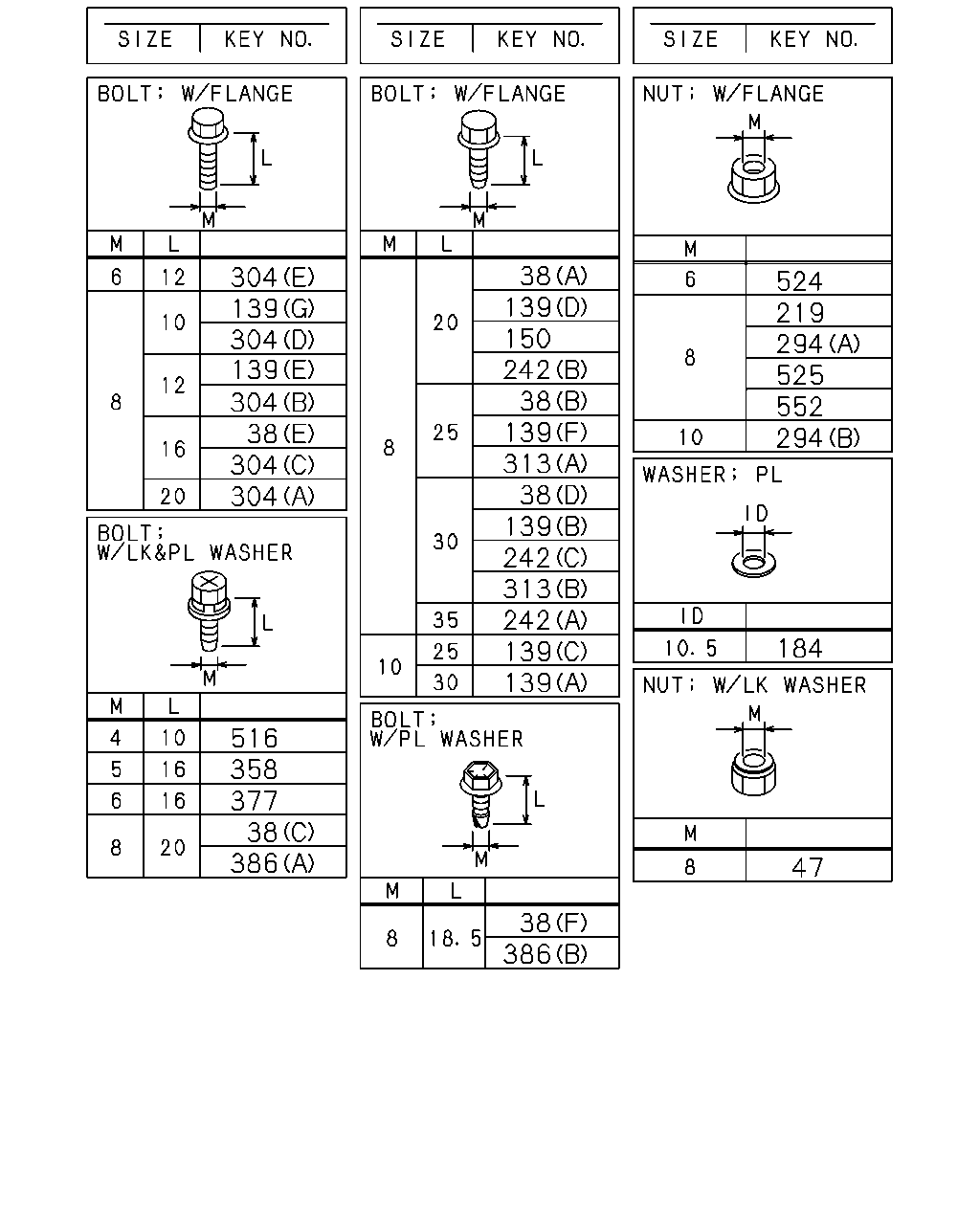

çizim 189321
294 552 525 294 219 524 38 150 139 242 139 313 38 139 242 242 313 139 139 38 304 304 139 139 38 304 304 304 516 358 377 38 386 38 386 47 184
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (E) M8X16 FLANGE 		0-28050-816-0 01 1 1204-1306 ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (E) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1501 ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E) M8X16 FLANGE 		0-28050-816-0 01 1 1502-1503 ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (E) M8X16 FLANGE 		0-28050-816-0 01 1 1504- ● ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE 		8-98105-048-0 01 1 1204-1306 ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE 		8-98105-048-0 01 1 1307-1501 ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (A) M8X20 FLANGE 		8-98105-048-0 01 1 1502-1503 ● ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE 		8-98105-048-0 01 1 1504- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ●
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1011- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1011-1306 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1011- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1011-1306 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1011-1306 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1011-1201 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1011-1203 ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1204-1306 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1204-1306 ●
38 BOLT; CLIP,HARNESS
LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1011- ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1408 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1409- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1011-1306 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1011-1306 ●
139 BOLT; BRKT
(G) M8X10 FLANGE 		0-28050-810-0 01 1 1307- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1011-1306 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1011-1306 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1011-1306 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
139 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1011- ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1011-1306 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
150 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1011- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1011- ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 1011- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1011- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1409- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1408 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1408 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1011-1306 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1011-1306 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-1306 ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 1011- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 1011-1011 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1011- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1011- ● ●
304 BOLT; ENG HARNESS CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1011- ● ●
304 BOLT; ENG HARNESS CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1011- ● ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1011-1306 ● ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1011-1306 ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1011-1306 ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1011-1306 ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1011- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1011-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1011- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1011- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1011- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1011- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
