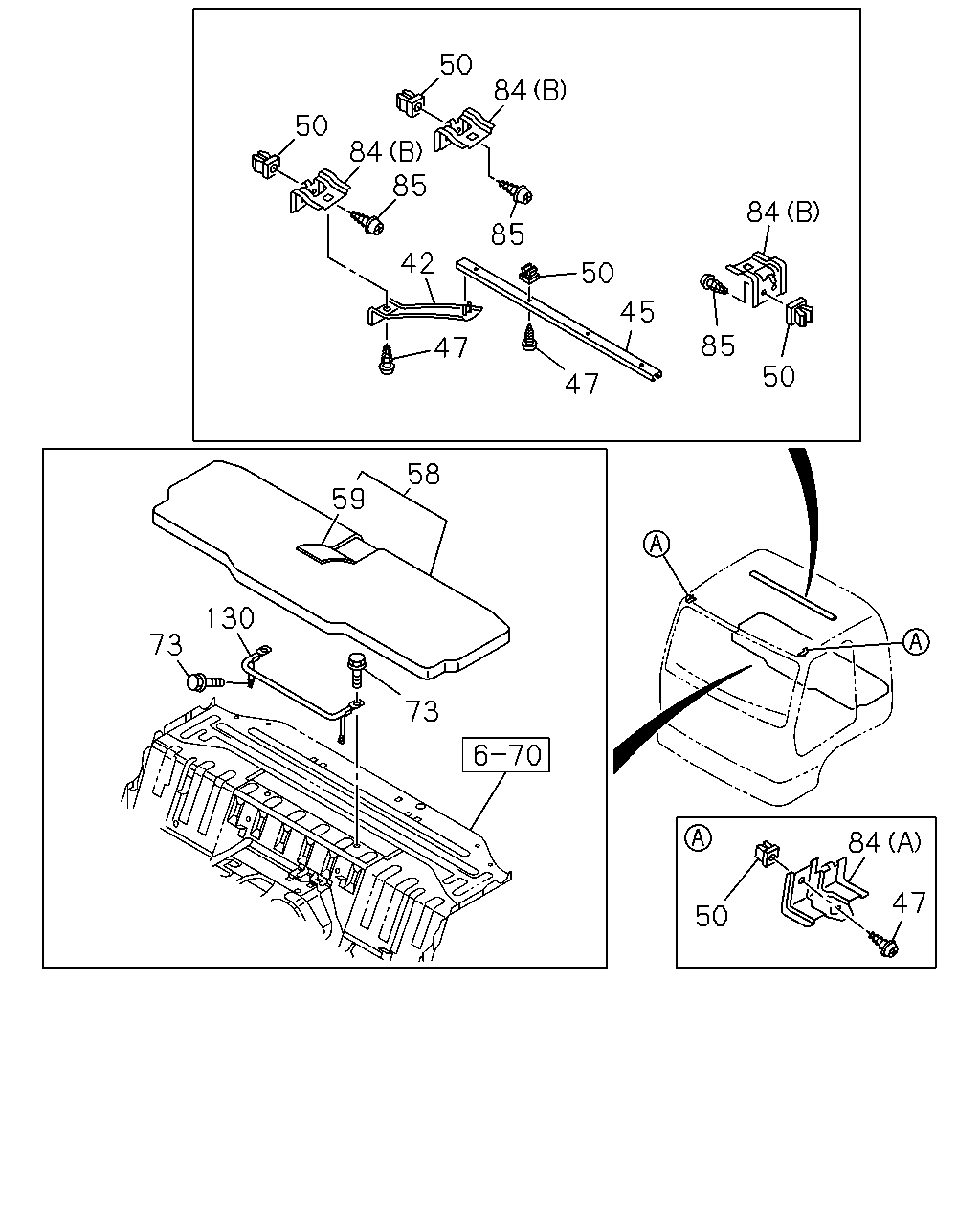

7-70 — SEPARATER AND BED (#71156) — 22 parça

84 85 42 85 84 84 85 45 47 47 58 59 73 130 73 84 47 50 50 50 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	1011-	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	1011-	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	1011-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1011-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1307-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1011-1306	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1011-1306	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1307-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1011-1405		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97407-384-2	01	1	1011-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97412-043-1	01	1	1011-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1011-	●
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1011-1405	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	1011-1306	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	02	1	1307-	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	02	1	1011-1306		●
85	SCREW; BRKT M5X20	5-09981-059-0	06	1	1011-1306	●
85	SCREW; BRKT M5X20	5-09981-059-0	04	1	1307-1405	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	1406-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	1011-1405		●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1011-	●
