Isuzu WW
▶
TRUCKS
▶
FTS
▶
11307 - FTS AUST/NZ EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-55 - REAR SEAT
▶

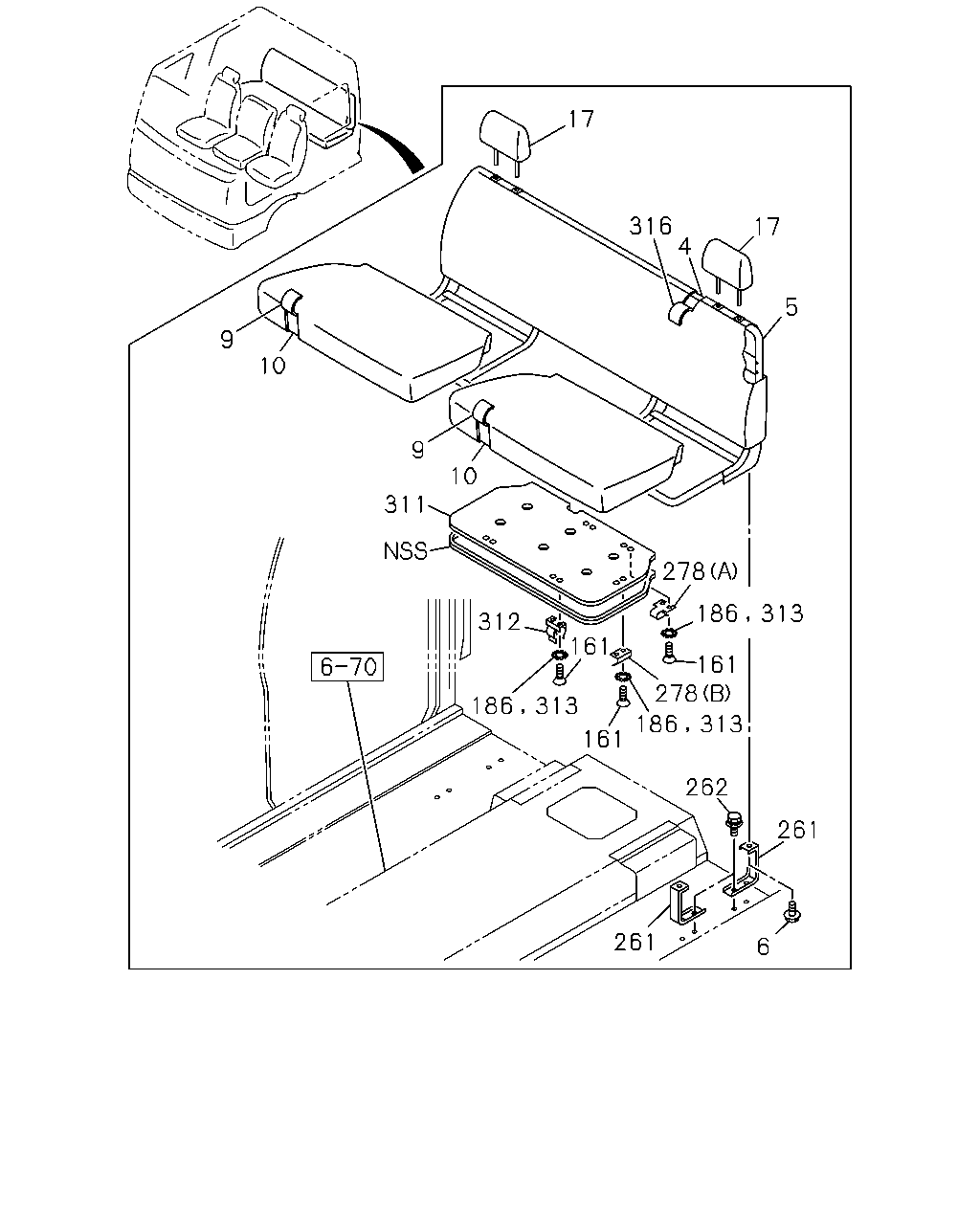

7-55 — REAR SEAT
(#71154) — 19 parça
278
186
313
10
9
10
9
311
312
186
313
161
161
161
278
186
313
262
261
6
261
17
5
17
316
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PAD; RR,SEAT BACK
8-98055-738-0
01
1
1011-
5
FRAME ASM; RR SEAT BACK
8-98055-732-0
01
1
1011-
6
BOLT; RR SEAT
M8X20 FLANGE
0-28450-820-0
08
1
1011-
9
COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97421-443-0
01
1
1011-
9
COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97421-444-0
01
1
1011-
10
PAD; CUSHION,RR SEAT
8-98085-835-0
01
1
1011-
10
PAD; CUSHION,RR SEAT
8-98085-836-0
01
1
1011-
17
REST; HD,RR SEAT
DARK GRAY
8-97421-366-0
02
1
1011-
161
SCREW; RR SEAT BRKT
M6X16 CK-HEAD
9-03090-616-0
20
1
1011-
186
WASHER; LK,RR SEAT BRKT
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
1011-
261
STAND; RR SEAT
1-75558-285-2
04
1
1011-
262
BOLT; STAND TO FLOOR
M8X20 FLANGE
0-28450-820-0
08
1
1011-
278
BRACKET; RR SEAT CUSHION
(A)
9-61407-082-0
04
1
1011-
278
BRACKET; RR SEAT CUSHION
(B)
9-61407-083-0
02
1
1011-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98085-831-0
01
1
1011-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98085-832-0
01
1
1011-
312
BRACKET; STOPPER,RR SEAT
8-94276-841-1
04
1
1011-
313
WASHER; LK,BRKT PAN
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
10
1
1011-
316
COVER ASM; TRIM,RR SEAT
DARK GRAY
8-97421-446-0
01
1
1011-
