◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#71153) — 200 parça

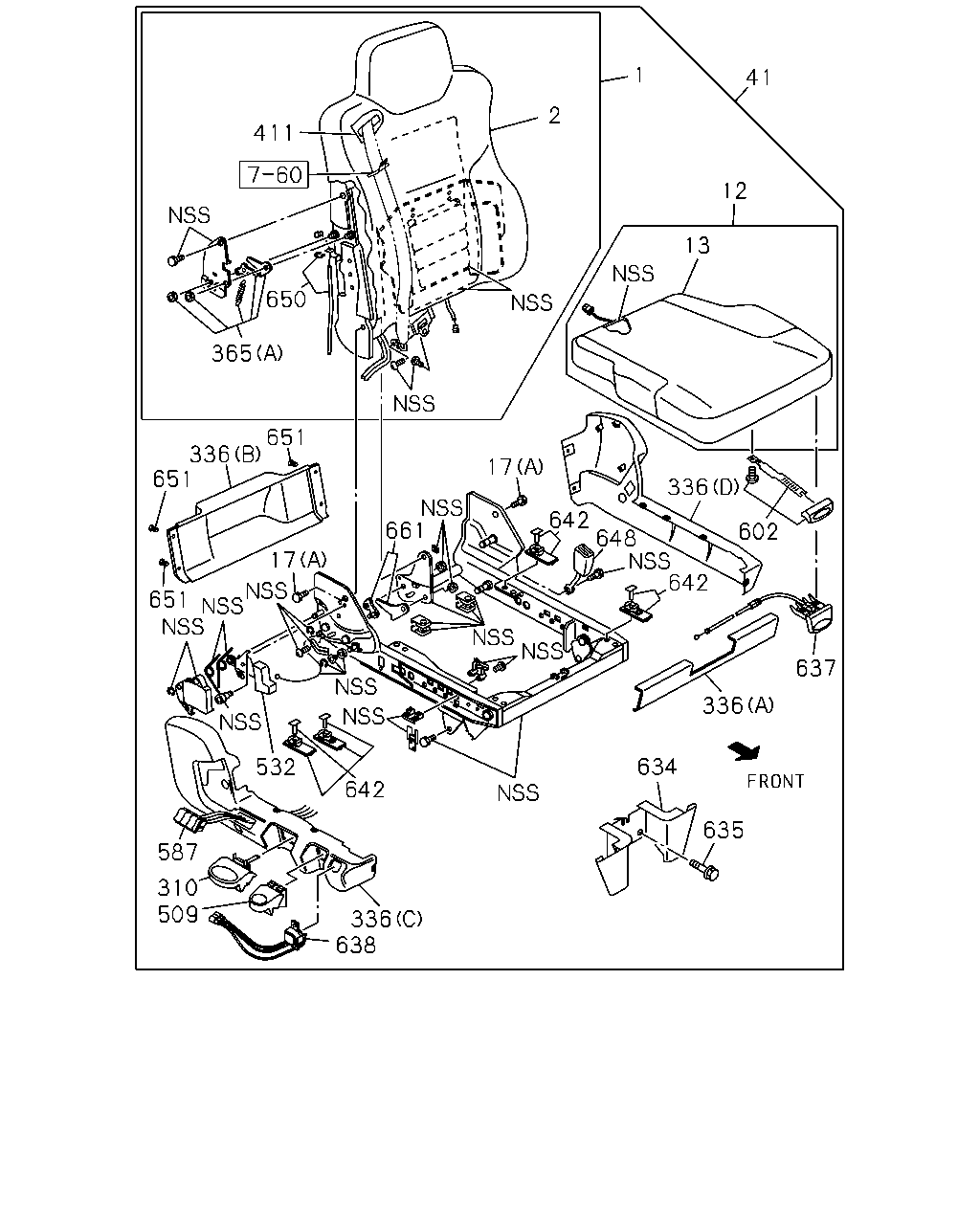

çizim 134281
635 634 336 637 602 642 648 642 1 41 12 13 17 661 17 651 651 336 651 365 650 411 2 532 642 336 638 310 587 509 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-964-0 01 1 1011-1306 ● ●
1 BACK ASM; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-964-0 01 1 1307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-966-0 01 1 1011-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-353-0 01 1 1301-1306 ● ●
2 COVER; TRIM,FRT SEAT,BACK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98232-353-0 01 1 1307- ● ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-006-0 01 1 1011-1306 ● ●
12 CUSHION; SEAT,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-006-0 01 1 1307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-007-0 01 1 1011-1306 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-007-0 01 1 1307- ● ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1011-1306 ● ●
17 BOLT; RECLINING
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1011- ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1011-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98195-063-1 01 1 1307- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-992-0 01 1 1011-1306 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-992-0 01 1 1307- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98097-978-0 01 1 1011-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98097-978-0 01 1 1307-1508 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-984-0 01 1 1011-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98097-984-0 01 1 1307- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1011-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98097-995-0 01 1 1307- ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1011-1306 ● ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98097-996-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1011-1306 ● ●
365 LOCK ASM; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1011- ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1011- ●
411 GUIDE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1011-1306 ● ●
411 GUIDE; SEAT BELT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-967-0 01 1 1307- ● ●
509 LEVER; DAMPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-988-0 01 1 1011-1306 ● ●
509 LEVER; DAMPER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-988-0 01 1 1307- ● ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-982-0 01 1 1011-1306 ● ●
532 LEVER ASM; TILT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-982-0 01 1 1307- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-986-0 01 1 1011-1306 ● ●
587 VALVE; LUMBAR SUPPORT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-986-0 01 1 1307- ● ●
602 KNOB; ADJ,SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1011-1306 ● ●
602 KNOB; ADJ,SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-008-0 01 1 1307- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1011- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1011- ● ●
637 LEVER; SLOPE ADJ
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1011-1306 ● ●
637 LEVER; SLOPE ADJ
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-989-0 01 1 1307- ● ●
638 VALVE; LOWERING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-994-0 01 1 1011-1306 ● ●
638 VALVE; LOWERING
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-994-0 01 1 1307- ● ●
642 SLIDER; CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1011-1306 ● ●
642 SLIDER; CUSHION
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98192-932-0 04 1 1307- ● ●
648 BUCKLE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1011-1306 ● ●
648 BUCKLE; SEAT BELT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-976-0 01 1 1307- ● ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-973-0 01 1 1011-1212 ● ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1301-1306 ● ●
650 CABLE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98232-354-0 01 1 1307- ● ●
651 RIVET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1011-1306 ● ●
651 RIVET
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98194-075-0 04 1 1307- ● ●
661 LOCK ASM; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-980-0 01 1 1011-1306 ● ●
661 LOCK ASM; RECLINING
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-980-0 01 1 1307- ● ●
çizim 135019
175 360 506 359 126 403 182 179 188 188 176 16 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1011- ●
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 1011- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1011- ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 1011- ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1011- ●
175 BACK ASM; PASSENGER CENTER SEAT
DARK GRAY 		8-97421-434-1 01 1 1011- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1011- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
DARK GRAY 		8-97421-435-1 01 1 1011- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1011- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
DARK GRAY 		8-97421-432-1 01 1 1011- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1011- ●
182 CUSHION ASM; CENTER SEAT
DARK GRAY 		8-97421-430-3 01 1 1011- ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1011- ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 1011- ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1011- ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1011- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M4X16 		0-70040-416-0 06 1 1011- ●
360 SCREW; PARCEL
(A) M4X16 		0-70040-416-0 06 1 1011- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1011- ●
360 SCREW; PARCEL
(B) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1011- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1011-1110 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1011-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1111- ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1011- ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 1011- ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1011- ●
506 CAP; PARCEL BOX
GRAY 		8-97409-980-1 02 1 1011- ●

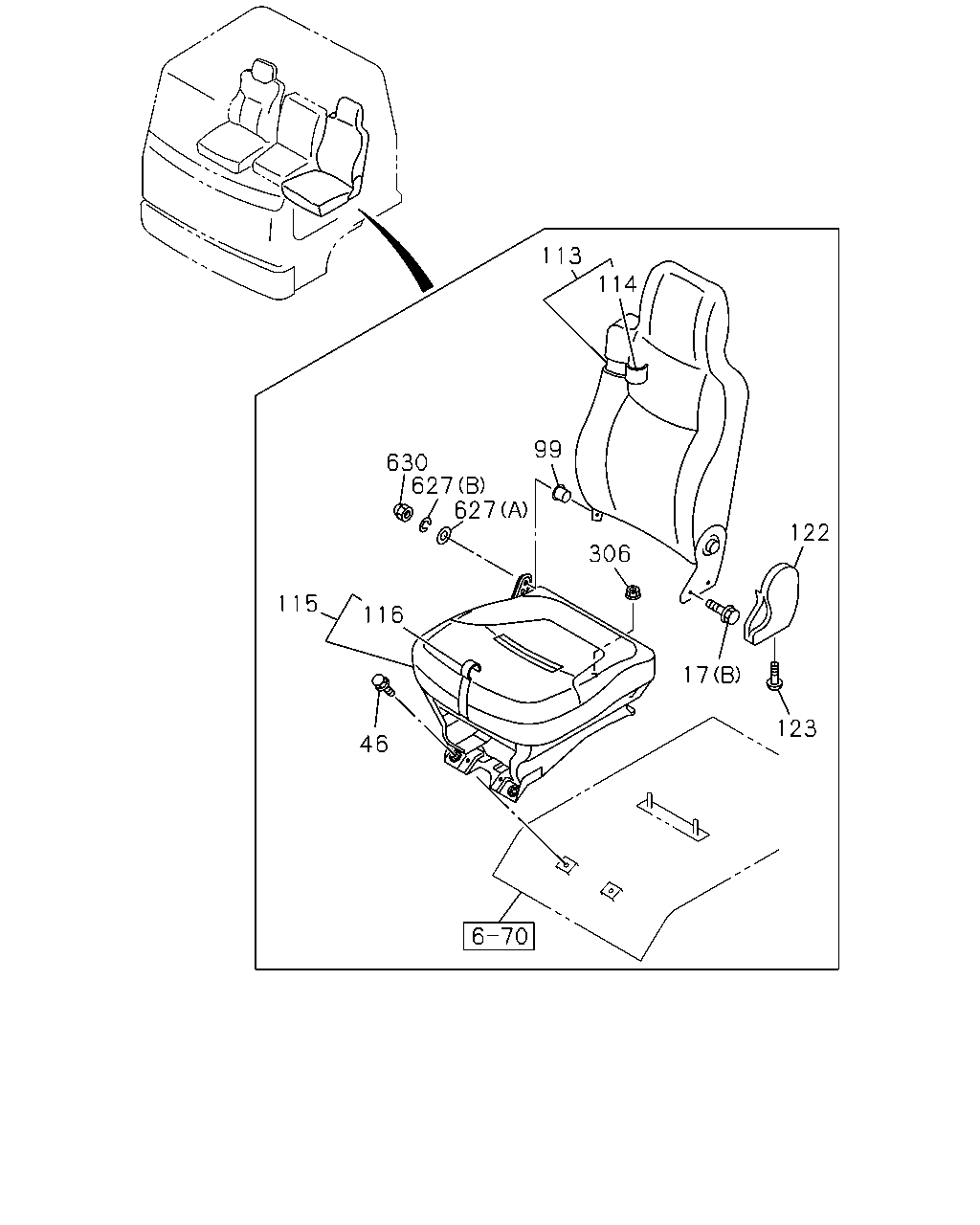

çizim 135151
113 114 99 630 627 627 115 116 46 17 123 122 306
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1011-1306 ● ●
17 BOLT; RECLINING
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1011- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1011- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1011- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1011- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1011- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1011- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1011- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1011- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1011- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1011- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1011- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1011- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1011- ● ●

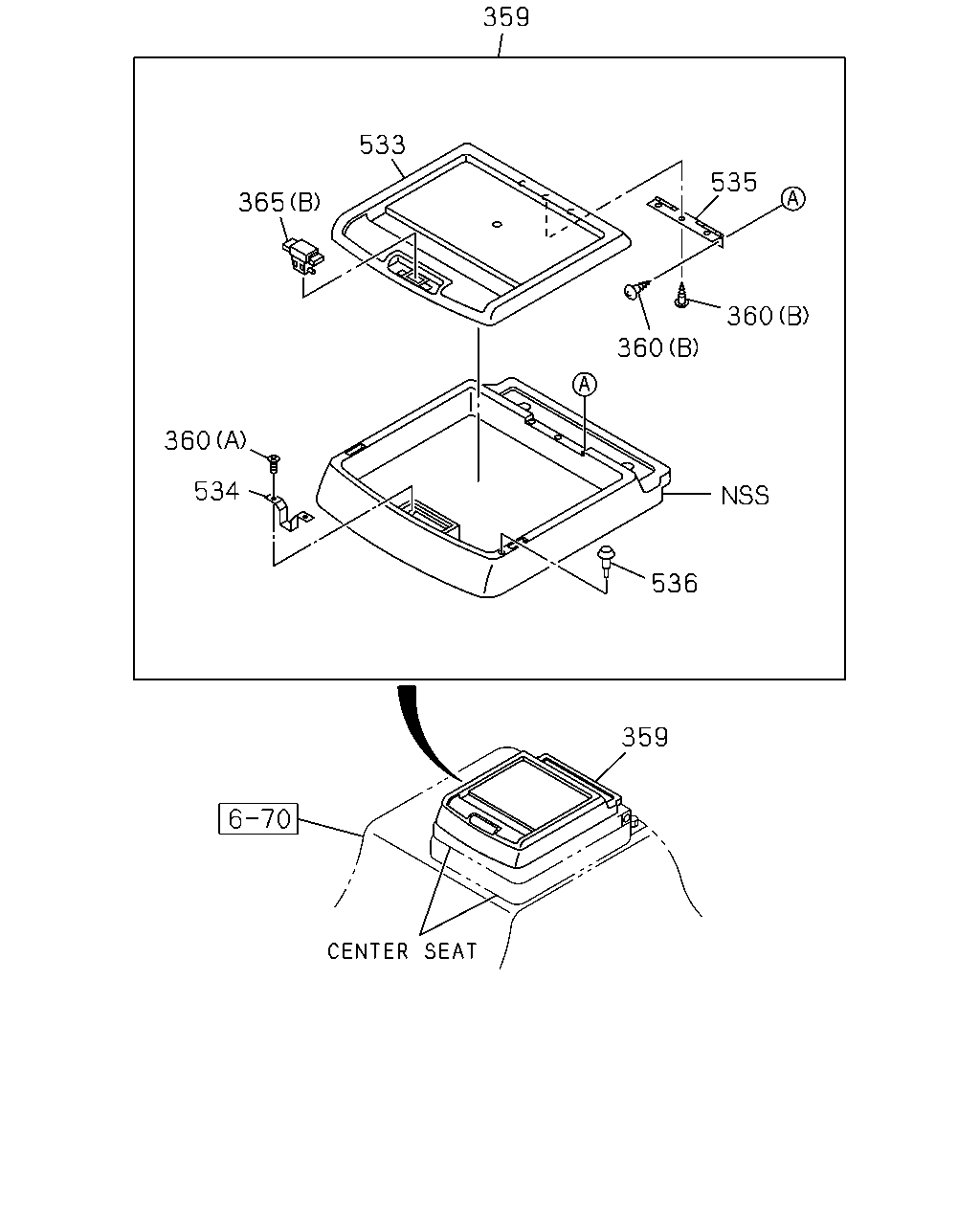

çizim 135218
359 533 535 360 360 536 359 534 360 365
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1011- ●
359 BOX; PARCEL
GRAY 		8-97417-261-0 01 1 1011- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M4X16 		0-70040-416-0 06 1 1011- ●
360 SCREW; PARCEL
(A) M4X16 		0-70040-416-0 06 1 1011- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1011- ●
360 SCREW; PARCEL
(B) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1011- ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1011-1110 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1011-1110 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ●
360 SCREW; PARCEL
(C) M5 		8-98062-663-0 04 1 1111- ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1011-1306 ● ●
365 LOCK ASM; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1011- ●
365 LOCK ASM; SEAT
(B) 		1-72538-312-0 01 1 1011- ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1011- ●
533 LID; PARCEL BOX
GRAY 		8-97417-263-0 01 1 1011- ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1011- ●
534 STRIKER; PARCEL BOX 1-72538-190-0 01 1 1011- ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1011- ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 1011- ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1011- ●
536 RUBBER; CUSHION 1-72538-187-0 02 1 1011- ●

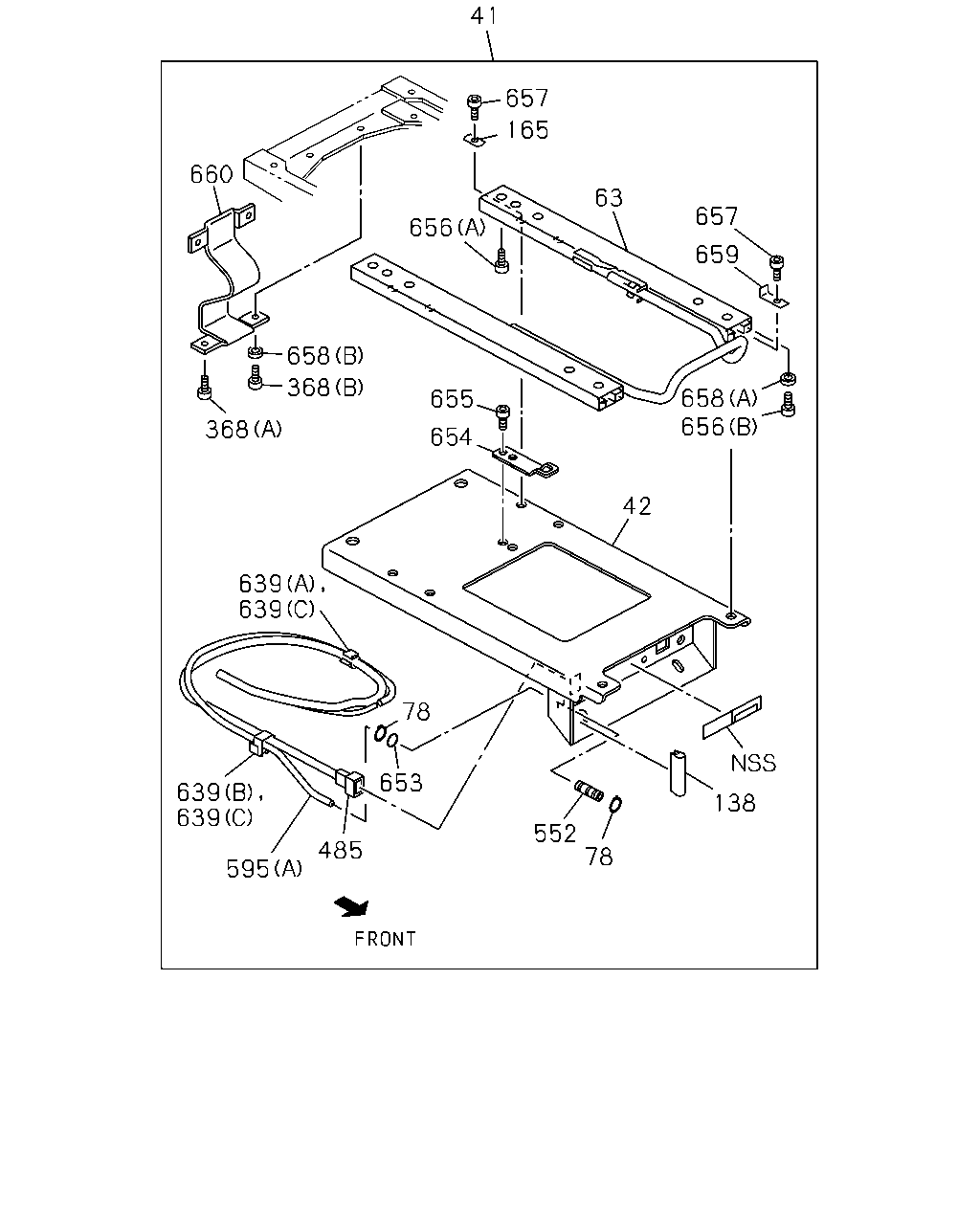

çizim 135281
41 657 63 165 657 659 658 655 656 654 658 660 368 368 639 639 78 653 639 639 595 485 552 78 138 42 656
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1011-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98195-063-1 01 1 1307- ● ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1011-1306 ● ●
42 STAND; DRIVER SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98106-346-0 01 1 1307- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-005-0 01 1 1011-1306 ● ●
63 ADJUSTER; SEAT SLIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-005-0 01 1 1307- ● ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-900-0 02 1 1011-1306 ● ●
78 RING; SNAP
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98101-900-0 02 1 1307- ● ●
138 PROTECTOR; SEAT STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1011-1306 ● ●
138 PROTECTOR; SEAT STAND
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98106-351-0 01 1 1307- ● ●
165 WASHER; PL
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1011-1306 ● ●
165 WASHER; PL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		1-75590-086-0 04 1 1307- ● ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1011-1306 ● ●
368 BOLT; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-353-0 03 1 1307- ● ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1011-1306 ● ●
368 BOLT; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98106-358-0 01 1 1307- ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 1011-1306 ● ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98106-360-0 01 1 1307- ● ●
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-902-0 01 1 1011-1306 ● ●
552 CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98101-902-0 01 1 1307-1508 ● ●
552 CONNECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1011-1306 ● ●
595 TUBE; NYLON
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1011- ● ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-350-0 01 1 1011-1306 ● ●
639 CLIP; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98106-350-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-349-0 01 1 1011-1306 ● ●
639 CLIP; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-349-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98308-100-0 02 1 1509- ● ●
653 GASKET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1011-1306 ● ●
653 GASKET
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98101-901-0 01 1 1307- ● ●
654 HOOK; STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1011-1306 ● ●
654 HOOK; STOPPER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98106-352-0 01 1 1307- ● ●
655 BOLT; HOOK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1011-1306 ● ●
655 BOLT; HOOK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98106-353-0 02 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1011-1306 ● ●
656 BOLT; SLIDER TO SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		1-75590-085-0 04 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1011-1306 ● ●
656 BOLT; SLIDER TO SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98106-354-0 02 1 1307- ● ●
657 BOLT; SLIDER TO STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1011-1306 ● ●
657 BOLT; SLIDER TO STAND
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		1-75590-085-0 06 1 1307- ● ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1011-1306 ● ●
658 SPACER; BOLT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-355-0 02 1 1307- ● ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1011-1306 ● ●
658 SPACER; BOLT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98106-359-0 01 1 1307- ● ●
659 STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1011-1306 ● ●
659 STOPPER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98106-356-0 02 1 1307- ● ●
660 BELT; TETHER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1011-1306 ● ●
660 BELT; TETHER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98106-357-0 01 1 1307- ● ●

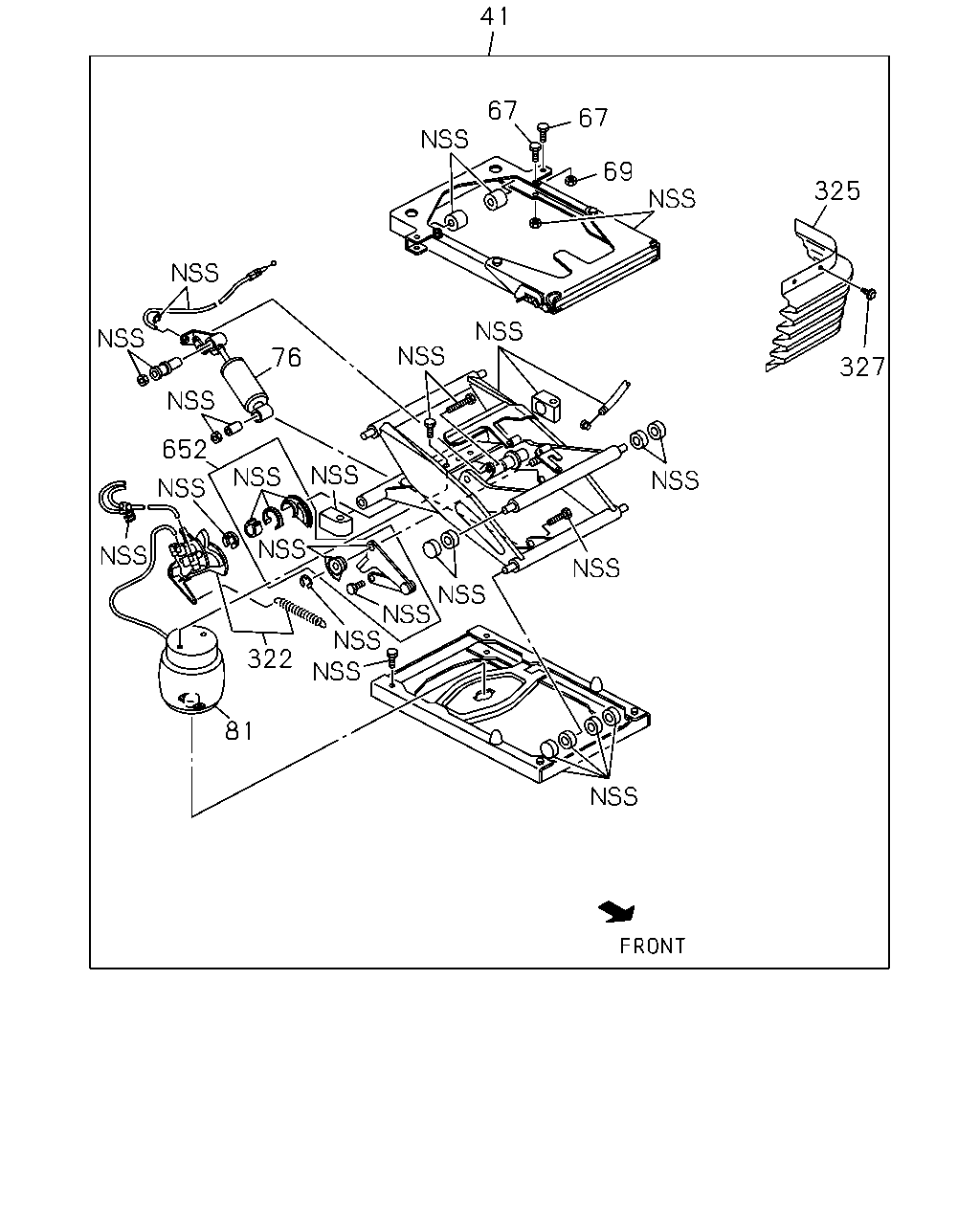

çizim 189316
327 325 69 67 67 41 76 652 322 81
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1011-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98195-063-1 01 1 1307- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1011- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1011- ● ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-999-0 01 1 1011-1306 ● ●
76 DAMPER; AIR SUSP
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-999-0 01 1 1307- ● ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1011-1306 ● ●
81 SPRING; AIR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-000-0 01 1 1307- ● ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-001-0 01 1 1011-1306 ● ●
322 VALVE; AIR SPRING
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-001-0 01 1 1307-1508 ● ●
322 VALVE; AIR SPRING
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1011-1306 ● ●
325 COVER; SUSPENSION DEVICE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-003-0 01 1 1307- ● ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1011-1306 ● ●
327 CLIP; COVER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-004-0 01 1 1307- ● ●
652 LOCK ASM; HEIGHT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1011-1306 ● ●
652 LOCK ASM; HEIGHT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98098-002-0 01 1 1307- ● ●

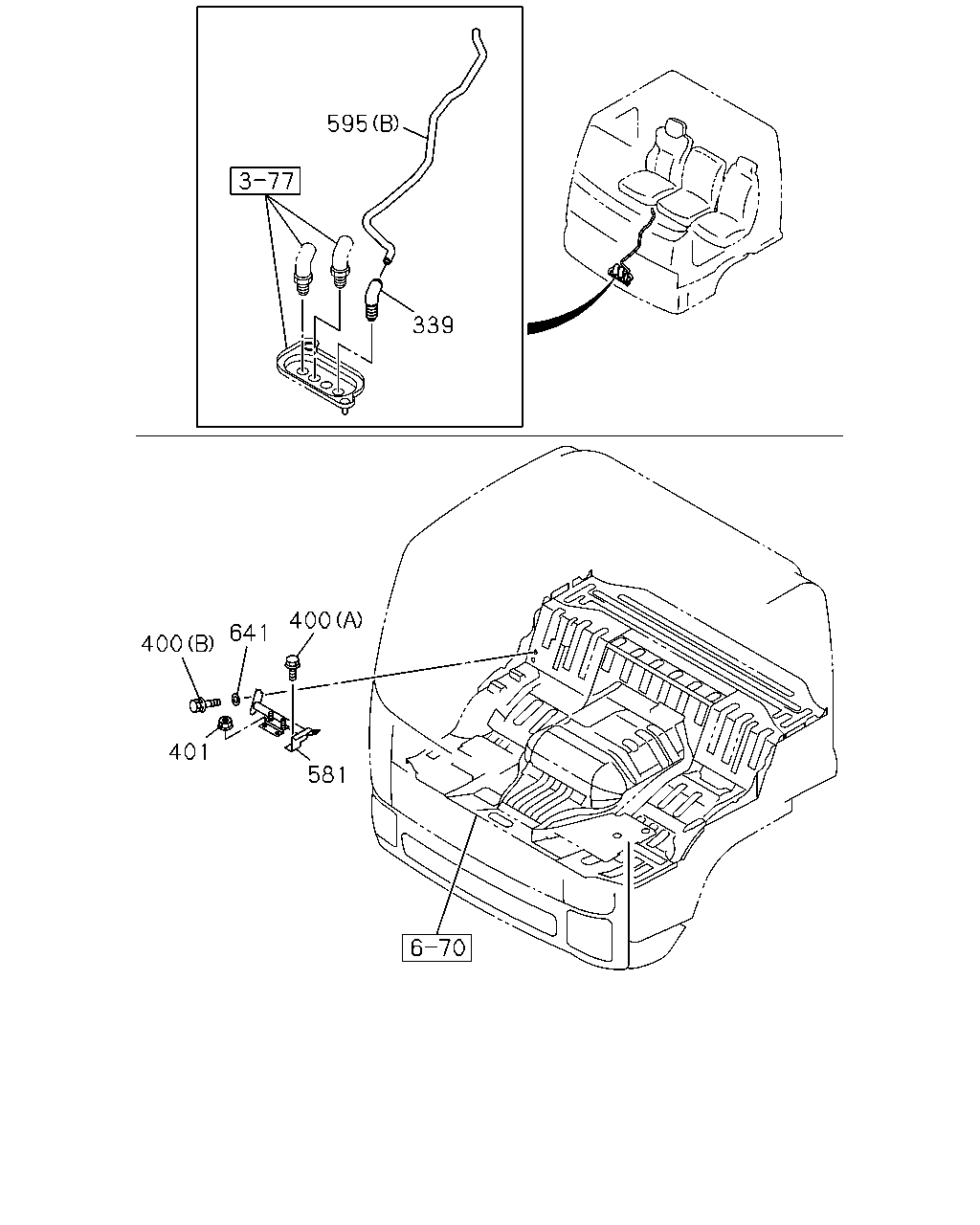

çizim 320070
595 339 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1011- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1011- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1011- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1011- ● ●
581 PIPE; SEAT 8-97589-693-3 01 1 1011- ●
581 PIPE; SEAT 8-98051-068-3 01 1 1011- ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1011-1306 ● ●
595 TUBE; NYLON
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1011- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
