◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#71144) — 29 parça

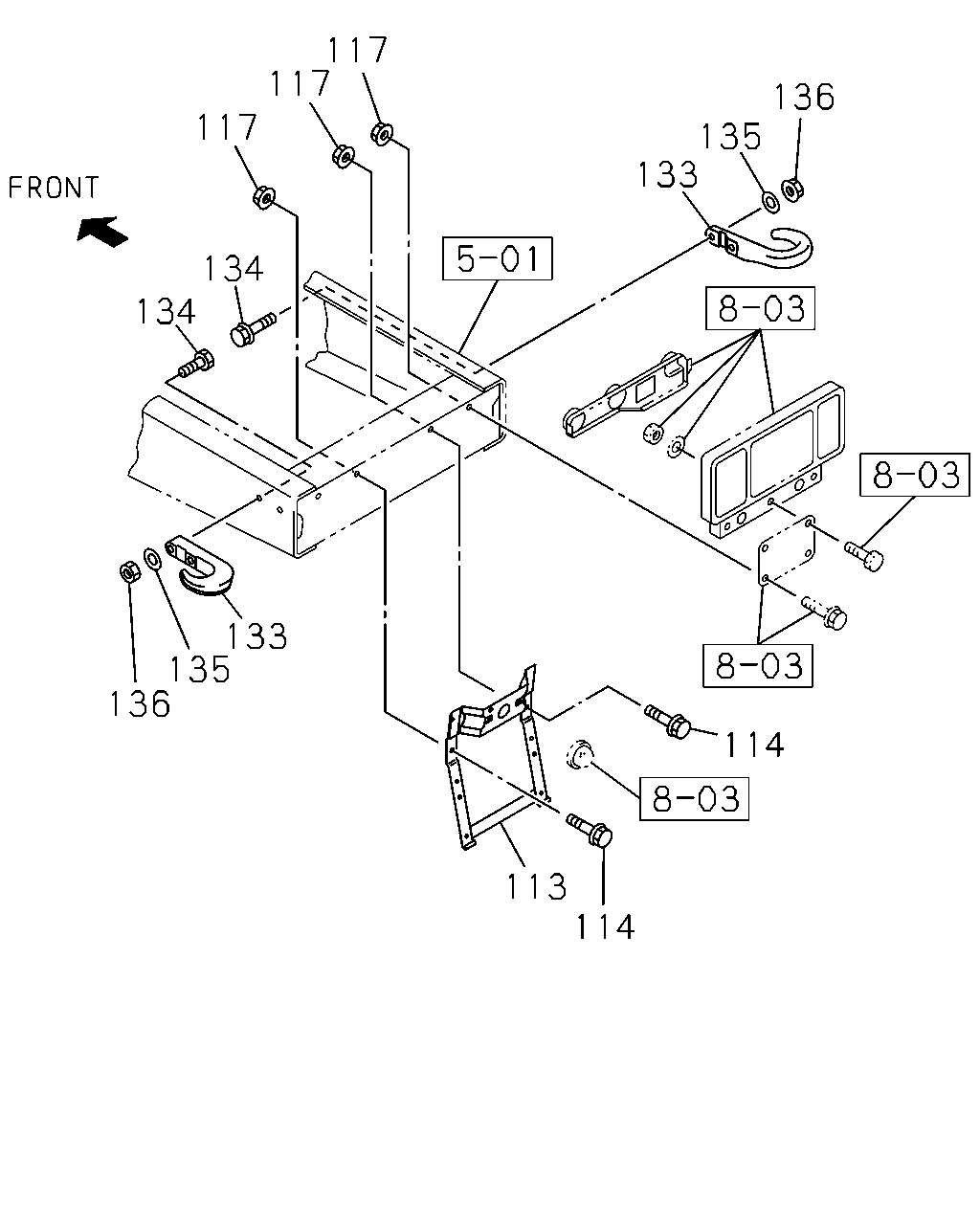

çizim 132442
114 113 136 135 133 134 134 117 117 117 133 135 136 114
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 1011-1205 ● ●
113 BRACKET; LICENSE PLATE
COUNTRY NEW ZEALAND<CX6> 		1-53485-074-0 01 1 1206- ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1205 ● ●
114 BOLT; BRKT,LICENSE PLATE
COUNTRY NEW ZEALAND<CX6> M8X25 FLANGE 		0-28650-825-0 02 1 1206- ● ●
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1011-1205 ● ●
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1206-1306 ● ●
117 NUT; BRKT
COUNTRY NEW ZEALAND<CX6> M8 FLANGE 		0-91180-108-0 02 1 1206-1306 ● ●
117 NUT; BRKT
REVERSING WARNING BUZZER<YM9> M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
117 NUT; BRKT
COUNTRY NEW ZEALAND<CX6> M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
133 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 1110-1306 ● ●
133 HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> 		1-57181-027-1 01 1 1307- ● ●
133 HOOK 1-57181-027-1 02 1 1011-1109 ● ●
133 HOOK
REAR DOUBLE HOOK<PM1> 		1-57181-027-1 02 1 1110- ● ●
134 BOLT; HOOK
TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1110-1306 ● ●
134 BOLT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1307- ● ●
134 BOLT; HOOK
TOW HOOK<V76> M16X60 		0-20851-660-0 01 1 1110-1306 ● ●
134 BOLT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M16X60 		0-20851-660-0 01 1 1307- ● ●
134 BOLT; HOOK
M16X50 		0-20851-650-0 02 1 1011-1109 ● ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> M16X50 		0-20851-650-0 02 1 1110- ● ●
134 BOLT; HOOK
M16X60 		0-20851-660-0 02 1 1011-1109 ● ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> M16X60 		0-20851-660-0 02 1 1110- ● ●
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		0-91510-816-0 02 1 1110-1306 ● ●
135 WASHER; LK,HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> ID=16.2 		0-91510-816-0 02 1 1307- ● ●
135 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 04 1 1011-1109 ● ●
135 WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> ID=16.2 		0-91510-816-0 04 1 1110- ● ●
136 NUT; HOOK
TOW HOOK<V76> M16 		0-91110-516-0 02 1 1110-1306 ● ●
136 NUT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M16 		0-91110-516-0 02 1 1307- ● ●
136 NUT; HOOK
M16 		0-91110-516-0 04 1 1011-1109 ● ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> M16 		0-91110-516-0 04 1 1110- ● ●
