◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#71138) — 41 parça

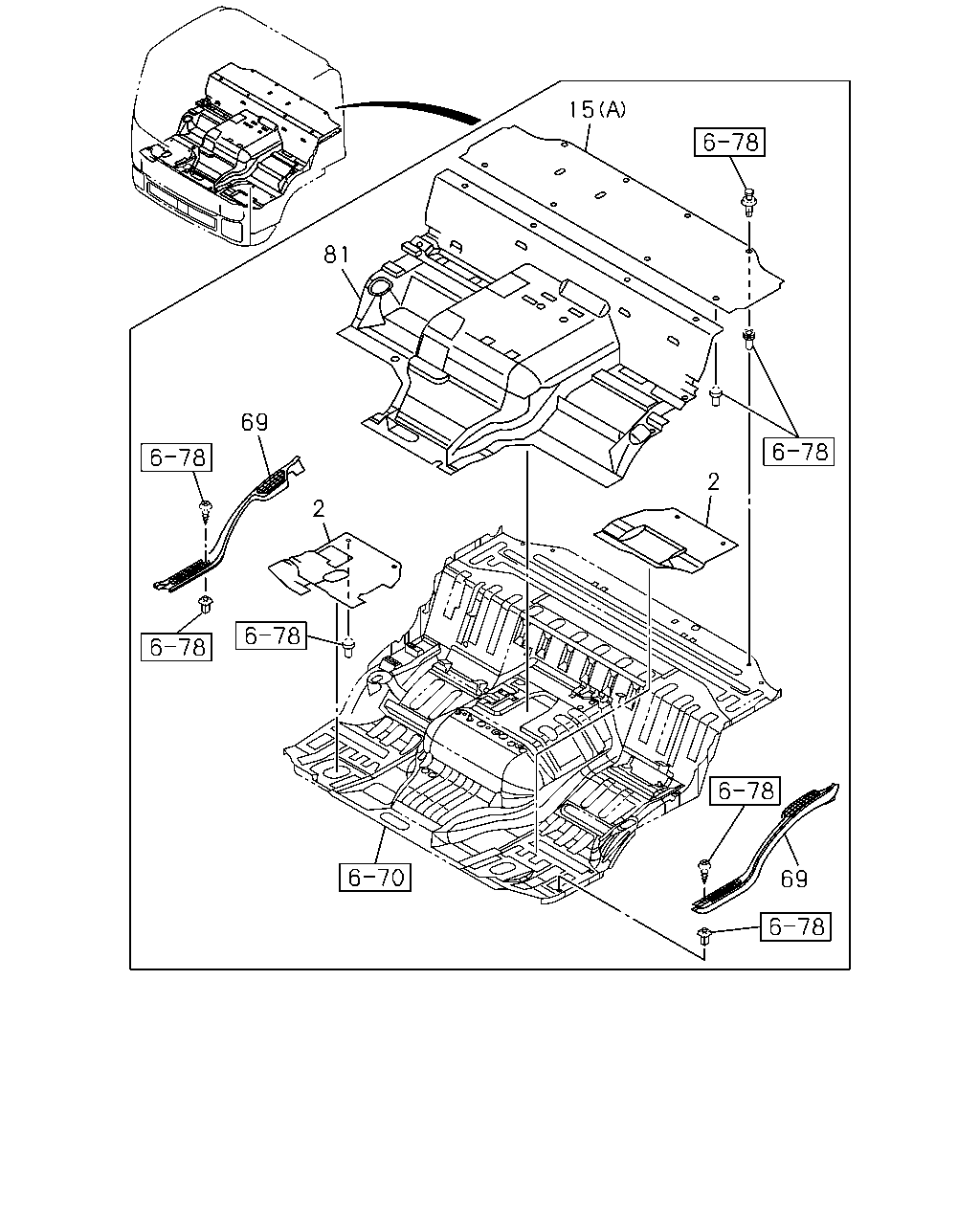

çizim 131934
15 81 69 2 2 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 1011- ● ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 1011- ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY 		8-97418-951-0 01 1 1011- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY 		8-97407-404-1 01 1 1011- ●
15 MAT; FLOOR REAR
(B) GRAY 		8-97411-643-1 01 1 1011- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-642-1 01 1 1011- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-641-1 01 1 1011- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 1011- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 1011- ● ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97423-513-1 01 1 1204-1306 ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97423-513-1 01 1 1307- ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) GRAY 		8-97423-514-1 01 1 1204-1306 ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER<6WX> GRAY 		8-97423-514-1 01 1 1307- ●
81 MAT; FLOOR,CENTER
GRAY 		8-97411-647-3 01 1 1011-1203 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> GRAY 		8-97411-647-3 01 1 1204-1306 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-647-3 01 1 1307- ●
81 MAT; FLOOR,CENTER
GRAY 		8-97411-645-1 01 1 1011-1111 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) GRAY 		8-97411-645-1 01 1 1112-1306 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER<6WX> GRAY 		8-97411-645-1 01 1 1307- ●

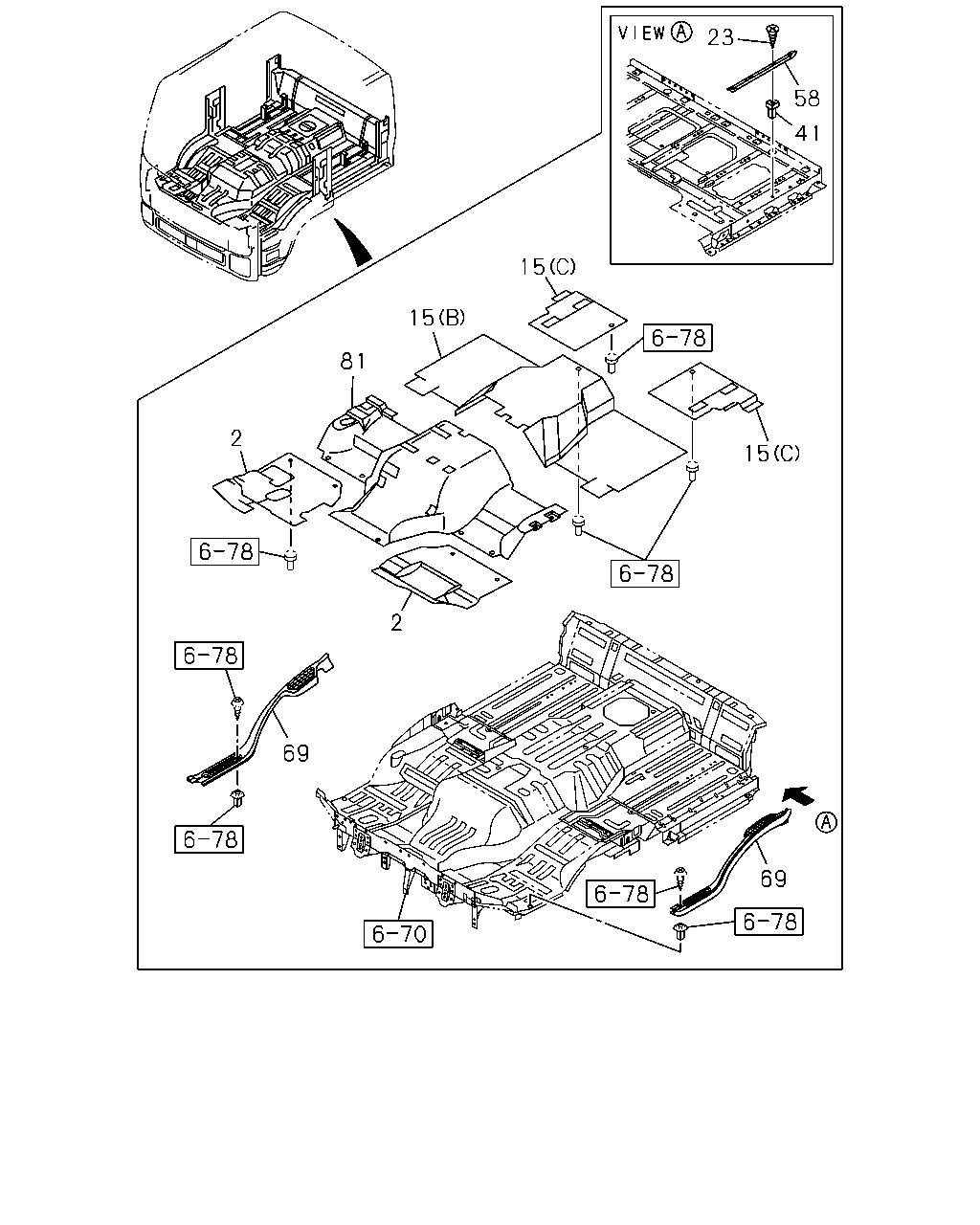

çizim 132459
23 58 41 15 15 69 69 2 2 81 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 1011- ● ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 1011- ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY 		8-97418-951-0 01 1 1011- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY 		8-97407-404-1 01 1 1011- ●
15 MAT; FLOOR REAR
(B) GRAY 		8-97411-643-1 01 1 1011- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-642-1 01 1 1011- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-641-1 01 1 1011- ●
23 SCREW; SILL PLATE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1011- ●
41 GROMMET; SCREW,SILL PLATE
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 1011- ●
58 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 1011- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 1011- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 1011- ● ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97423-513-1 01 1 1204-1306 ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97423-513-1 01 1 1307- ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) GRAY 		8-97423-514-1 01 1 1204-1306 ●
81 MAT; FLOOR,CENTER
LCT2500 A/T ALLISON(Y5W) FLOOR COVER<6WX> GRAY 		8-97423-514-1 01 1 1307- ●
81 MAT; FLOOR,CENTER
GRAY 		8-97411-647-3 01 1 1011-1203 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> GRAY 		8-97411-647-3 01 1 1204-1306 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-647-3 01 1 1307- ●
81 MAT; FLOOR,CENTER
GRAY 		8-97411-645-1 01 1 1011-1111 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) GRAY 		8-97411-645-1 01 1 1112-1306 ●
81 MAT; FLOOR,CENTER
MZW6P M/T(RSZ) FLOOR COVER<6WX> GRAY 		8-97411-645-1 01 1 1307- ●
