◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#71137) — 195 parça

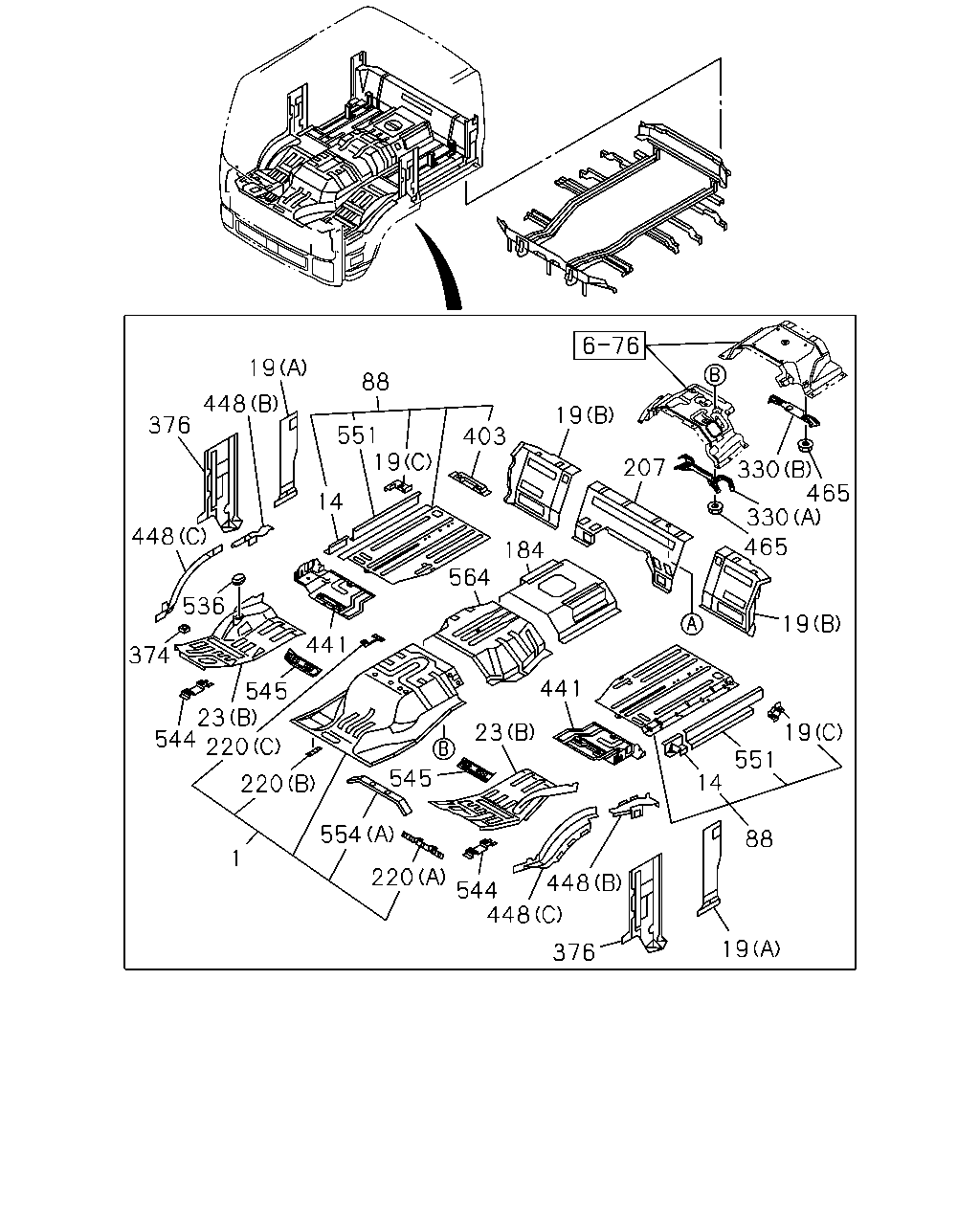

çizim 189306
330 207 465 330 19 465 184 403 19 88 19 448 376 551 14 19 564 441 23 14 19 551 88 19 448 448 376 544 220 554 220 220 545 545 536 448 441 374 23 544 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
LCT2000 A/T ALLISON(Y4F) 		8-98203-641-0 01 1 1204-1306 ●
1 PANEL; FLOOR
LCT2500 A/T ALLISON(Y5W) 		8-98203-641-0 01 1 1307- ●
1 PANEL; FLOOR 8-97410-865-7 01 1 1011-1203 ●
1 PANEL; FLOOR
MZW6P M/T(RSZ) 		8-97410-865-7 01 1 1204- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1011- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1011- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1011- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1011- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-477-3 01 1 1011- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-478-3 01 1 1011- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1011- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-752-0 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-7 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-3 01 1 1011- ●
88 BOARD ASM; FLOOR 8-97410-918-2 01 1 1011- ●
88 BOARD ASM; FLOOR 8-97410-922-3 01 1 1011- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1011- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1011- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1011- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1011- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1011- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1011- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1011- ●
374 NUT; FLOOR
M6 		1-09984-110-0 04 1 1011- ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1011-1403 ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1011- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1011- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1011- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 1011- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-906-2 01 1 1011- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-912-2 01 1 1011- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1011- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1011- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1011- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1011- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1011- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1011- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1011-1306 ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1307- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1011- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1011- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1011- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1011- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1011- ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1011- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1011- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1011- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1011- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1011- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1011- ●

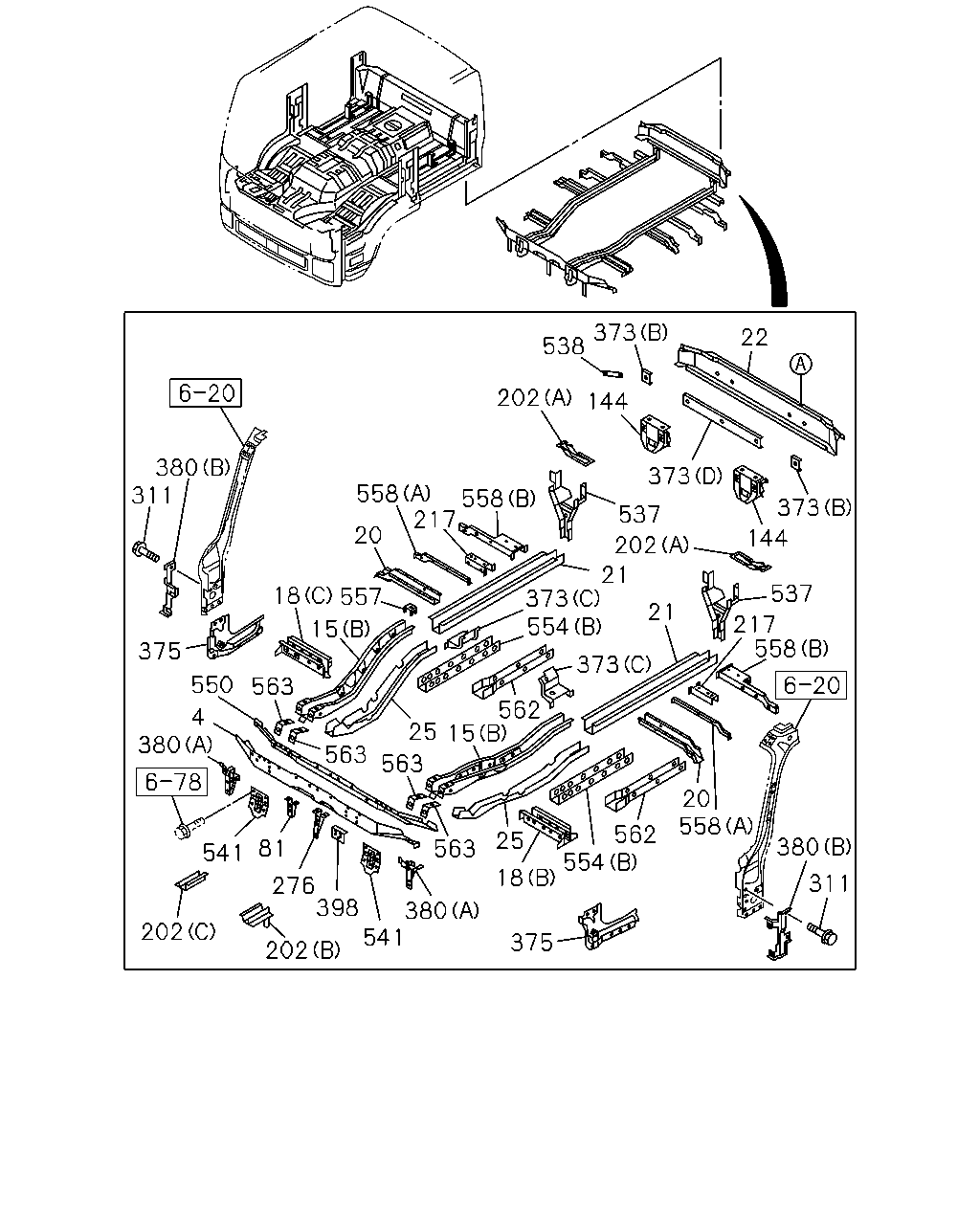

çizim 189307
311 380 375 380 541 202 202 398 276 81 541 563 18 562 554 558 25 20 558 217 537 144 380 375 4 18 550 563 563 563 15 15 25 373 562 21 21 554 373 373 202 373 537 22 20 558 217 558 202 538 373 144 380 311 557
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1011- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1011- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1011- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1011- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1011- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1011- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1011- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1011- ●
20 FRAME; FLOOR SIDE,REAR 8-97410-978-0 01 1 1011- ●
20 FRAME; FLOOR SIDE,REAR 8-97607-517-0 01 1 1011- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1011- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1011- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1011- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1011- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1011- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1011- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1011- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1011- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1011- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-427-0 02 1 1011- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1011- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1011- ●
217 PANEL; SEAT STAND 8-97410-945-1 02 1 1011- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1011- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1011- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1011-1507 ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1011- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1011- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1011- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1011- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1011- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1011- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1011- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1011- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1011- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1011- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1011- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1011- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1011- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1011- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1011- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1011- ●
557 PATCH; SEAT 8-98074-333-0 01 1 1011- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-202-0 01 1 1011- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-203-0 01 1 1011- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-207-1 01 1 1011- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-210-1 01 1 1011- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1011- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1011- ● ●

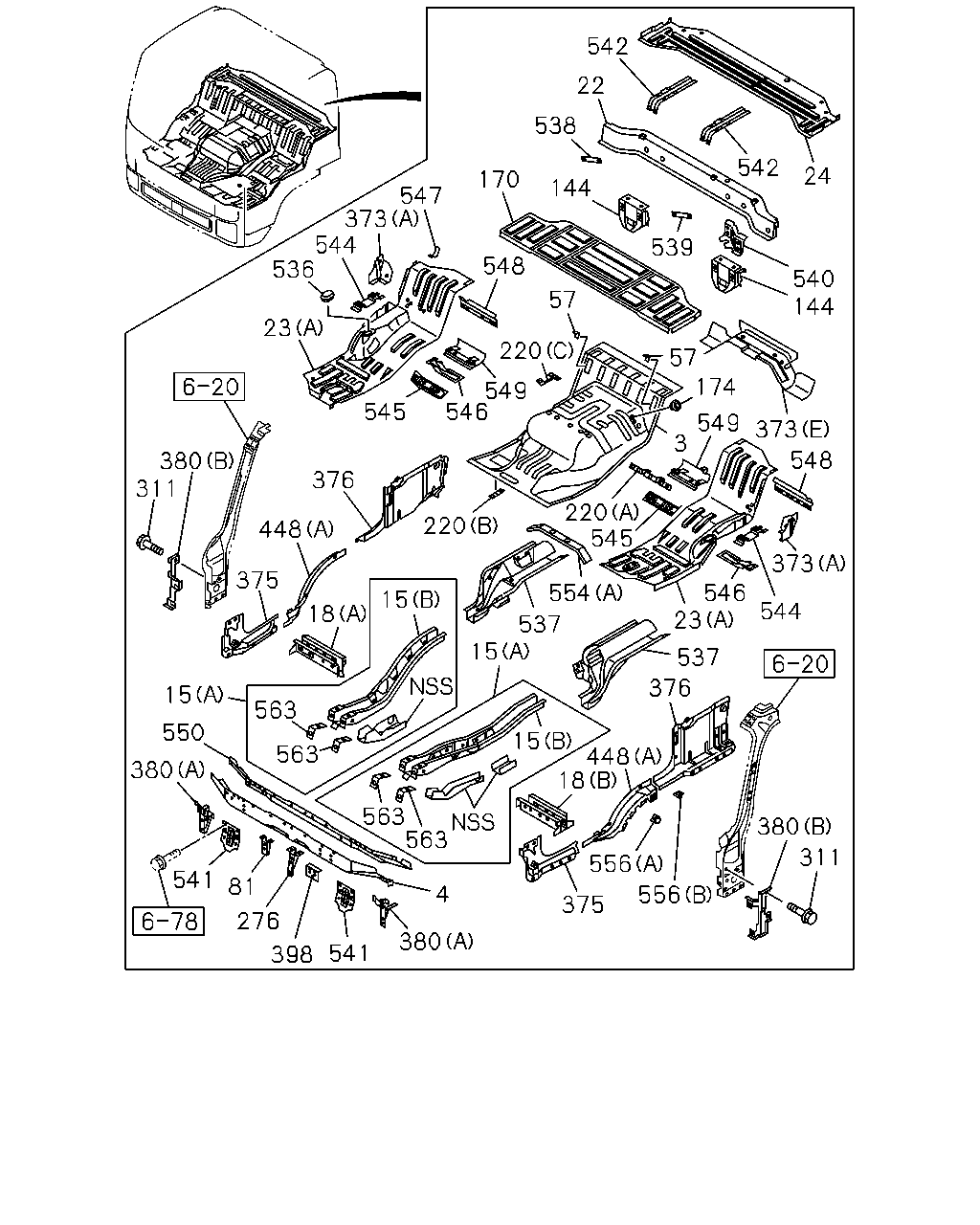

çizim 189309
542 22 538 144 542 24 539 540 144 170 548 57 174 549 373 548 373 546 544 23 537 376 380 311 556 375 556 18 448 15 563 4 380 541 398 276 81 541 380 550 15 375 18 563 563 563 15 15 448 311 380 376 220 537 554 545 220 3 220 549 546 545 23 536 544 373 547 57
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
LCT2000 A/T ALLISON(Y4F) 		8-98203-582-0 01 1 1204-1306 ●
3 HOOD ASM; ENG
LCT2500 A/T ALLISON(Y5W) 		8-98203-582-0 01 1 1307- ●
3 HOOD ASM; ENG 8-98081-357-4 01 1 1011-1203 ●
3 HOOD ASM; ENG
MZW6P M/T(RSZ) 		8-98081-357-4 01 1 1204- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1011- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1011- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1011- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1011- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1011- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1011- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1011- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1011- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1011- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-752-0 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-7 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-3 01 1 1011- ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1011- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1011- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1011- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1011- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1011- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1011- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1011- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1011- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1011- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1011- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1011- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1011- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1011-1507 ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1011- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1011- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1011- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1011-1403 ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1011- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1011- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1011- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1011- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1011- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1011- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1011- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1011- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1011- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1011- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1011- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1011- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1011- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1011- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1011- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1011- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1011- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1011- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1011- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1011- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1011- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1011- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1011- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1011- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1011- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1011- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1011- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1011- ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1011- ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1011- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1011- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1011- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1011- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1011- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1011- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1011- ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1011- ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1011- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
