◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#71121) — 8 parça

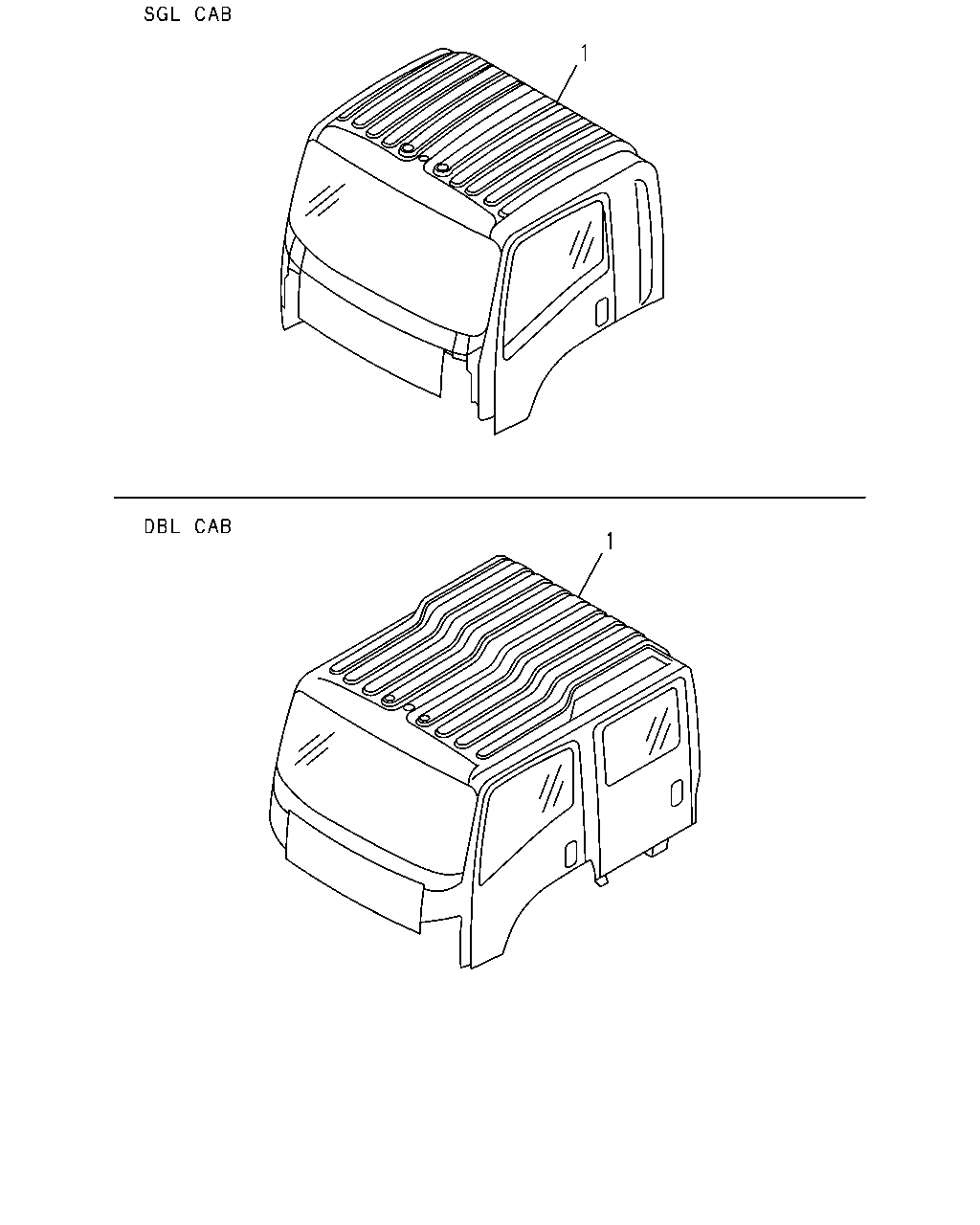

çizim 189292
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> MANUAL TRANSMISSION<X9C> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61088-764-0 01 1 1011-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> MANUAL TRANSMISSION<X9C> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61088-765-0 01 1 1011-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> A/T<X9D> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61089-415-0 01 1 1204-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> A/T<X9D> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61089-416-0 01 1 1204-1306 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> FUEL TANK 200L FRAME SIDE<N20> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> CUSTOM PACKAGE(YM8) MZW6P M/T(RSZ) AUTO CAB TILT<WV2> EXC. COUNTRY NEW ZEALAND<CX6>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-197-0 01 1 1307- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> FUEL TANK 200L FRAME SIDE<N20> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> CUSTOM PACKAGE(YM8) LCT2500 A/T ALLISON(Y5W) AUTO CAB TILT<WV2> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61860-201-0 01 1 1307- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> FUEL TANK 200L FRAME SIDE<N20> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> CUSTOM PACKAGE(YM8) MZW6P M/T(RSZ) EXC. COUNTRY NEW ZEALAND<CX6>,MIRROR O/S UNDER VIEW<RR9>,AUTO CAB TILT<WV2>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-198-0 01 1 1307- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> FUEL TANK 200L FRAME SIDE<N20> 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> CUSTOM PACKAGE(YM8) LCT2500 A/T ALLISON(Y5W) EXC. MIRROR O/S UNDER VIEW<RR9>,AUTO CAB TILT<WV2> ,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-199-0 01 1 1307- ●
