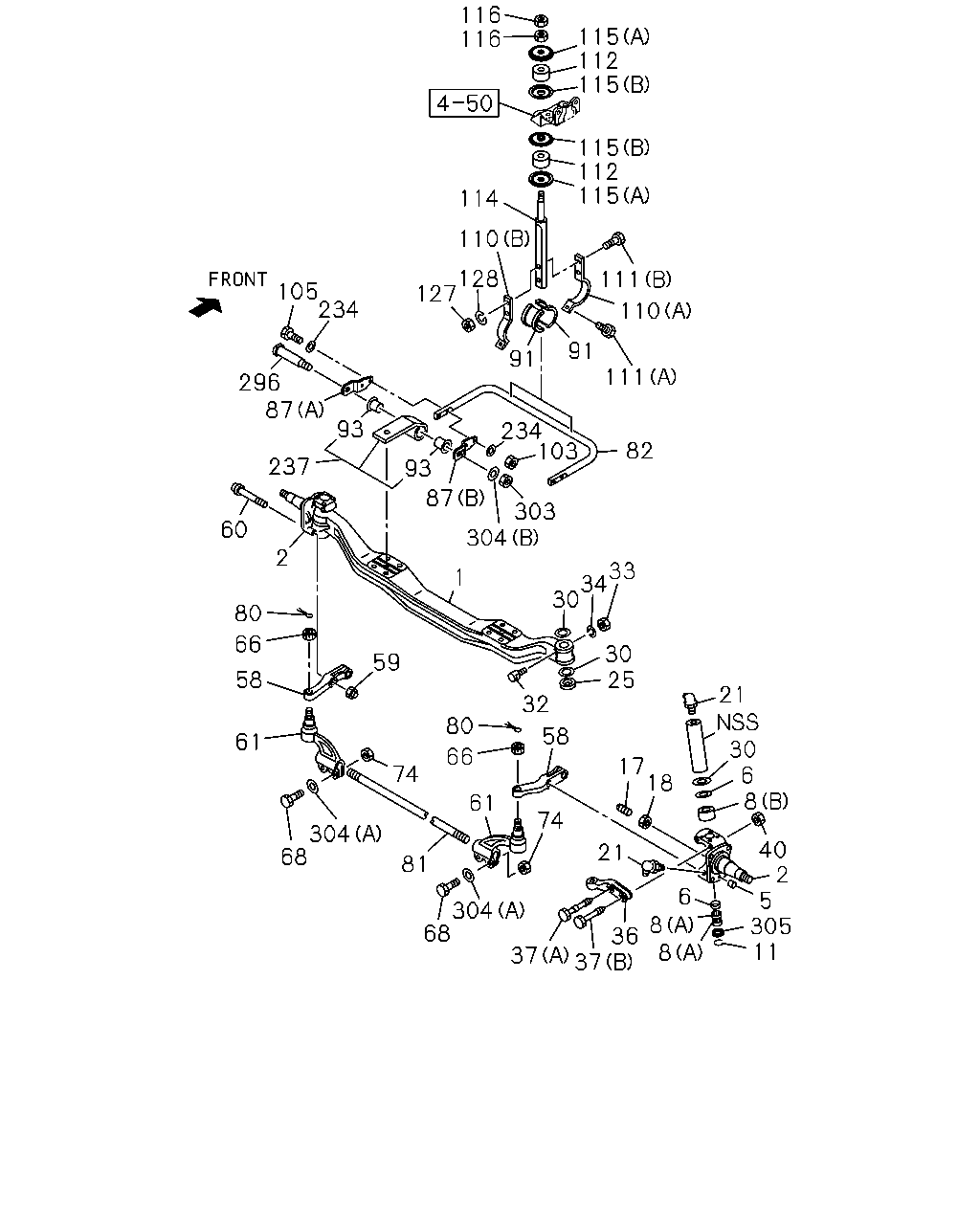

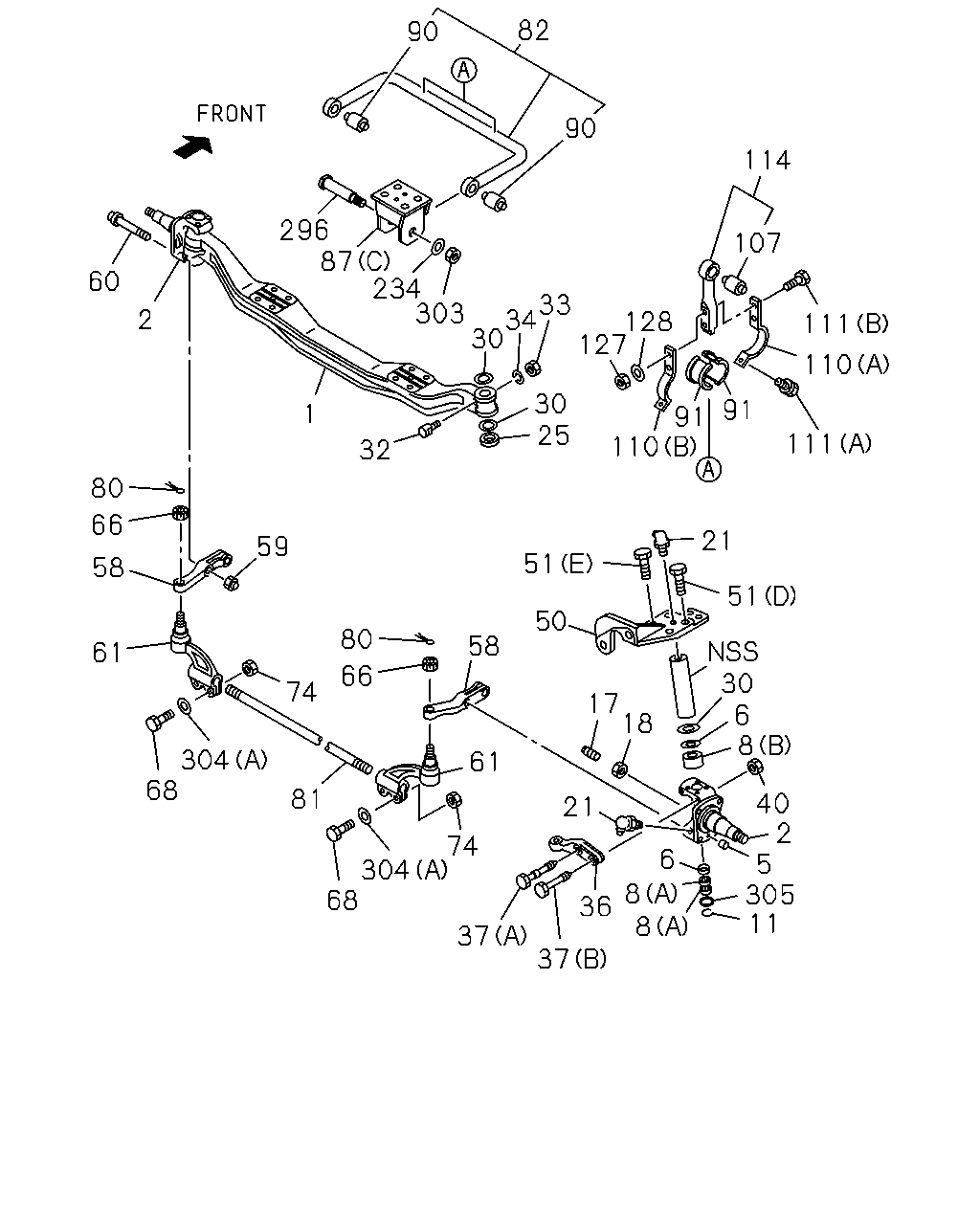

4-10 — FRONT AXLE (#7112) — 459 parça

82 90 90 114 296 87 234 33 303 34 30 107 60 2 128 127 111 110 30 25 91 91 110 1 111 32 80 66 21 59 51 58 51 50 80 58 30 6 8 61 66 74 17 18 304 68 61 81 40 2 5 305 11 21 74 6 304 68 8 8 36 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-157-2	01	1	0012-1004	●
1	AXLE; FRT	8-98162-922-0	01	1	1005-	●
1	AXLE; FRT	1-43111-160-2	01	1	0012-1004		●
1	AXLE; FRT	8-98162-923-0	01	1	1005-1009		●
1	AXLE; FRT	1-43111-107-8	01	1	1010-		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0012-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0012-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	04	1	0012-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0012-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0012-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0012-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0012-	●	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1005-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0012-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	1005-	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0012-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0012-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0012-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0012-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0012-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0012-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-064-2	01	1	0012-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0012-0704	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-0	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0012-0704	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-0	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0012-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
50	BRACKET; POWER CHAMBER	1-43145-030-0	01	1	0012-	●
50	BRACKET; POWER CHAMBER	1-43145-029-0	01	1	0012-	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0012-		●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0012-		●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28681-225-0	04	1	0012-0512	●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28681-240-0	04	1	0012-0512	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28651-240-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0012-0512		●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	02	1	0012-0512		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0012-		●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM>	1-43135-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0012-	●	●
58	ARM; TIE ROD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM>	1-43134-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0012-	●	●
58	ARM; TIE ROD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) DISC WHEEL STEEL<SDN>	1-43135-042-3	01	1	0012-	●	●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43135-042-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) DISC WHEEL STEEL<SDN>	1-43134-042-3	01	1	0012-	●	●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43134-042-3	01	1	0012-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0012-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0012-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-0	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-804-0	01	1	0012-	●	●
61	ROD END; TIE ROD	1-43150-803-0	01	1	0012-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0012-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0012-0709	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0012-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0012-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM>	1-43151-150-0	01	1	0012-	●	●
81	ROD; TIE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0012-	●	●
81	ROD; TIE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0012-	●	●
81	ROD; TIE INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) DISC WHEEL STEEL<SDN>	1-43151-148-0	01	1	0012-	●	●
81	ROD; TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43151-148-0	01	1	0012-	●	●
82	BAR; STAB,FRT SUSP	1-51770-169-0	01	1	0012-	●
82	BAR; STAB,FRT SUSP STABILIZER SHAFT FRT&RR<FE6>	1-51771-186-0	01	1	0012-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-186-0	01	1	0012-		●
87	BRACKET; STABILIZER (C)	1-51781-123-4	02	1	0012-	●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (A)	1-51781-083-1	02	1	0012-0912		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0012-0912		●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (B)	1-51781-084-1	02	1	0012-0912		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0012-0912		●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (B)	8-98012-959-0	02	1	1001-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-		●
90	BUSHING; RUBBER,STAB BAR	1-51779-067-0	02	1	0012-	●
91	BUSHING; RUBBER,STAB BAR	1-51779-112-1	04	1	0012-1102	●
91	BUSHING; RUBBER,STAB BAR	8-98183-355-0	04	1	1103-	●
91	BUSHING; RUBBER,STAB BAR STABILIZER SHAFT FRT&RR<FE6>	1-51779-087-1	04	1	0012-		●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	0012-		●
107	BUSHING; STABILIZER BAR	1-51779-055-0	02	1	0012-	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0012-	●
110	CLAMP; STAB TO ROD STABILIZER SHAFT FRT&RR<FE6> (A)	1-51789-027-2	02	1	0012-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0012-		●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0012-	●
110	CLAMP; STAB TO ROD STABILIZER SHAFT FRT&RR<FE6> (B)	1-51789-028-1	02	1	0012-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0012-		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0012-0910	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (A) M12X30	0-20801-230-0	02	1	0012-0910		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0012-0910		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (A) M12X30	0-20851-230-0	02	1	0911-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0012-0910	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (B) M12X50	0-20801-250-0	04	1	0012-0910		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0012-0910		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (B) M12X50	0-20851-250-0	04	1	0911-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-		●
114	ROD; STAB BAR	1-51773-105-0	02	1	0012-	●
114	ROD; STAB BAR STABILIZER SHAFT FRT&RR<FE6>	1-51773-083-2	02	1	0012-		●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-083-2	02	1	0012-		●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0012-0512	●
127	NUT; CLAMP STABILIZER SHAFT FRT&RR<FE6> M12	9-99110-412-0	06	1	0012-0512		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0012-0512		●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-	●
127	NUT; CLAMP STABILIZER SHAFT FRT&RR<FE6> M12	0-91110-512-0	06	1	0601-		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0601-		●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	0-91510-812-0	06	1	1001-1002		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-1002		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1003-	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	0-91510-812-0	06	1	1003-		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1003-		●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0012-0603	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	9-09150-512-0	06	1	0012-0603		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0012-0603		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	0-91510-512-0	06	1	0604-0912		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0604-0912		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	1001-1002	●
234	WASHER; STAB ID=20.2	9-09150-620-0	02	1	0012-0603	●
234	WASHER; STAB ID=20.2	0-91510-620-0	02	1	0604-	●
234	WASHER; STAB STABILIZER SHAFT FRT&RR<FE6> ID=15	9-09651-069-0	08	1	0012-0910		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0012-0910		●
234	WASHER; STAB STABILIZER SHAFT FRT&RR<FE6> ID=15	8-98010-627-1	08	1	0911-		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-		●
296	PIN; STAB M20X106	1-51361-028-2	02	1	0012-	●
296	PIN; STAB STABILIZER SHAFT FRT&RR<FE6>	1-51682-136-2	02	1	0012-		●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-136-2	02	1	0012-		●
303	NUT; PIN M20	9-99110-520-0	02	1	0012-0512	●
303	NUT; PIN STABILIZER SHAFT FRT&RR<FE6> M20	9-99110-520-0	02	1	0012-0512		●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0012-0512		●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-	●
303	NUT; PIN STABILIZER SHAFT FRT&RR<FE6> M20	0-91110-520-0	02	1	0601-		●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0012-0709	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-	●	●
304	WASHER; PL STABILIZER SHAFT FRT&RR<FE6> (B) ID=21	9-09164-520-0	02	1	0012-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0012-		●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0012-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

116 116 115 112 115 115 112 115 114 110 128 127 111 105 234 110 91 91 111 296 87 93 234 103 82 237 93 87 303 304 60 2 33 34 30 1 80 66 30 25 59 58 21 30 6 8 32 80 58 61 66 17 18 74 61 74 304 68 40 2 5 305 11 21 81 6 304 68 8 8 36 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-157-2	01	1	0012-1004	●
1	AXLE; FRT	8-98162-922-0	01	1	1005-	●
1	AXLE; FRT	1-43111-160-2	01	1	0012-1004		●
1	AXLE; FRT	8-98162-923-0	01	1	1005-1009		●
1	AXLE; FRT	1-43111-107-8	01	1	1010-		●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0012-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0012-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	04	1	0012-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0012-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0012-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0012-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0012-	●	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1005-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0012-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	1005-	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0012-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0012-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0012-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0012-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0012-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0012-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0012-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-064-2	01	1	0012-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0012-0704	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-0	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0012-0704	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-0	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0012-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM>	1-43135-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0012-	●	●
58	ARM; TIE ROD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM>	1-43134-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0012-	●	●
58	ARM; TIE ROD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) DISC WHEEL STEEL<SDN>	1-43135-042-3	01	1	0012-	●	●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43135-042-3	01	1	0012-	●	●
58	ARM; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) DISC WHEEL STEEL<SDN>	1-43134-042-3	01	1	0012-	●	●
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43134-042-3	01	1	0012-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0012-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0012-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-0	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-804-0	01	1	0012-	●	●
61	ROD END; TIE ROD	1-43150-803-0	01	1	0012-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0012-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0012-0709	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0012-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0012-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM>	1-43151-150-0	01	1	0012-	●	●
81	ROD; TIE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0012-	●	●
81	ROD; TIE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0012-	●	●
81	ROD; TIE INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) DISC WHEEL STEEL<SDN>	1-43151-148-0	01	1	0012-	●	●
81	ROD; TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD7.50VX20 165-12(Q64) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43151-148-0	01	1	0012-	●	●
82	BAR; STAB,FRT SUSP	1-51770-169-0	01	1	0012-	●
82	BAR; STAB,FRT SUSP STABILIZER SHAFT FRT&RR<FE6>	1-51771-186-0	01	1	0012-		●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-186-0	01	1	0012-		●
87	BRACKET; STABILIZER (C)	1-51781-123-4	02	1	0012-	●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (A)	1-51781-083-1	02	1	0012-0912		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0012-0912		●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (B)	1-51781-084-1	02	1	0012-0912		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0012-0912		●
87	BRACKET; STABILIZER STABILIZER SHAFT FRT&RR<FE6> (B)	8-98012-959-0	02	1	1001-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-		●
91	BUSHING; RUBBER,STAB BAR	1-51779-112-1	04	1	0012-1102	●
91	BUSHING; RUBBER,STAB BAR	8-98183-355-0	04	1	1103-	●
91	BUSHING; RUBBER,STAB BAR STABILIZER SHAFT FRT&RR<FE6>	1-51779-087-1	04	1	0012-		●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	0012-		●
93	BUSHING; STABILIZER STABILIZER SHAFT FRT&RR<FE6>	1-51689-015-3	04	1	0012-		●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0012-		●
103	NUT; BRKT FIX STABILIZER SHAFT FRT&RR<FE6> M14	9-99110-514-0	04	1	0012-0512		●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0012-0512		●
103	NUT; BRKT FIX STABILIZER SHAFT FRT&RR<FE6> M14	0-91110-514-0	04	1	0601-		●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0601-		●
105	BOLT; BRKT FIX STABILIZER SHAFT FRT&RR<FE6> M14X70	9-91066-470-0	04	1	0012-0910		●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0012-0910		●
105	BOLT; BRKT FIX STABILIZER SHAFT FRT&RR<FE6> M14X70	0-10956-470-0	04	1	0911-		●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-		●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0012-	●
110	CLAMP; STAB TO ROD STABILIZER SHAFT FRT&RR<FE6> (A)	1-51789-027-2	02	1	0012-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0012-		●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0012-	●
110	CLAMP; STAB TO ROD STABILIZER SHAFT FRT&RR<FE6> (B)	1-51789-028-1	02	1	0012-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0012-		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0012-0910	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (A) M12X30	0-20801-230-0	02	1	0012-0910		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0012-0910		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (A) M12X30	0-20851-230-0	02	1	0911-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0012-0910	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (B) M12X50	0-20801-250-0	04	1	0012-0910		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0012-0910		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-	●
111	BOLT; CLAMP TO ROD STABILIZER SHAFT FRT&RR<FE6> (B) M12X50	0-20851-250-0	04	1	0911-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-		●
112	BUSHING; ROD STABILIZER SHAFT FRT&RR<FE6>	9-51631-039-0	04	1	0012-		●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0012-		●
114	ROD; STAB BAR	1-51773-105-0	02	1	0012-	●
114	ROD; STAB BAR STABILIZER SHAFT FRT&RR<FE6>	1-51773-083-2	02	1	0012-		●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-083-2	02	1	0012-		●
115	WASHER; CENTER,STAB TO FRAME STABILIZER SHAFT FRT&RR<FE6> (A) ID=16.5	9-51631-040-0	04	1	0012-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	0012-		●
115	WASHER; CENTER,STAB TO FRAME STABILIZER SHAFT FRT&RR<FE6> (B) ID=20.8	9-51631-041-0	04	1	0012-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	0012-		●
116	NUT; LK,STAB TO FRAME STABILIZER SHAFT FRT&RR<FE6> M14	9-99111-414-0	04	1	0012-0512		●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0012-0512		●
116	NUT; LK,STAB TO FRAME STABILIZER SHAFT FRT&RR<FE6> M14	0-91111-514-0	04	1	0601-		●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-		●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0012-0512	●
127	NUT; CLAMP STABILIZER SHAFT FRT&RR<FE6> M12	9-99110-412-0	06	1	0012-0512		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0012-0512		●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-	●
127	NUT; CLAMP STABILIZER SHAFT FRT&RR<FE6> M12	0-91110-512-0	06	1	0601-		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0601-		●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	0-91510-812-0	06	1	1001-1002		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-1002		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1003-	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	0-91510-812-0	06	1	1003-		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1003-		●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0012-0603	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	9-09150-512-0	06	1	0012-0603		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0012-0603		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912	●
128	WASHER; LK,CLAMP STABILIZER SHAFT FRT&RR<FE6> ID=12.2	0-91510-512-0	06	1	0604-0912		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0604-0912		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	1001-1002	●
234	WASHER; STAB ID=20.2	9-09150-620-0	02	1	0012-0603	●
234	WASHER; STAB ID=20.2	0-91510-620-0	02	1	0604-	●
234	WASHER; STAB STABILIZER SHAFT FRT&RR<FE6> ID=15	9-09651-069-0	08	1	0012-0910		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0012-0910		●
234	WASHER; STAB STABILIZER SHAFT FRT&RR<FE6> ID=15	8-98010-627-1	08	1	0911-		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-		●
237	SUPPORT; STAB BAR STABILIZER SHAFT FRT&RR<FE6>	1-51681-662-0	02	1	0012-		●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0012-		●
296	PIN; STAB M20X106	1-51361-028-2	02	1	0012-	●
296	PIN; STAB STABILIZER SHAFT FRT&RR<FE6>	1-51682-136-2	02	1	0012-		●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-136-2	02	1	0012-		●
303	NUT; PIN M20	9-99110-520-0	02	1	0012-0512	●
303	NUT; PIN STABILIZER SHAFT FRT&RR<FE6> M20	9-99110-520-0	02	1	0012-0512		●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0012-0512		●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-	●
303	NUT; PIN STABILIZER SHAFT FRT&RR<FE6> M20	0-91110-520-0	02	1	0601-		●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0012-0709	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-	●	●
304	WASHER; PL STABILIZER SHAFT FRT&RR<FE6> (B) ID=21	9-09164-520-0	02	1	0012-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0012-		●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0012-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

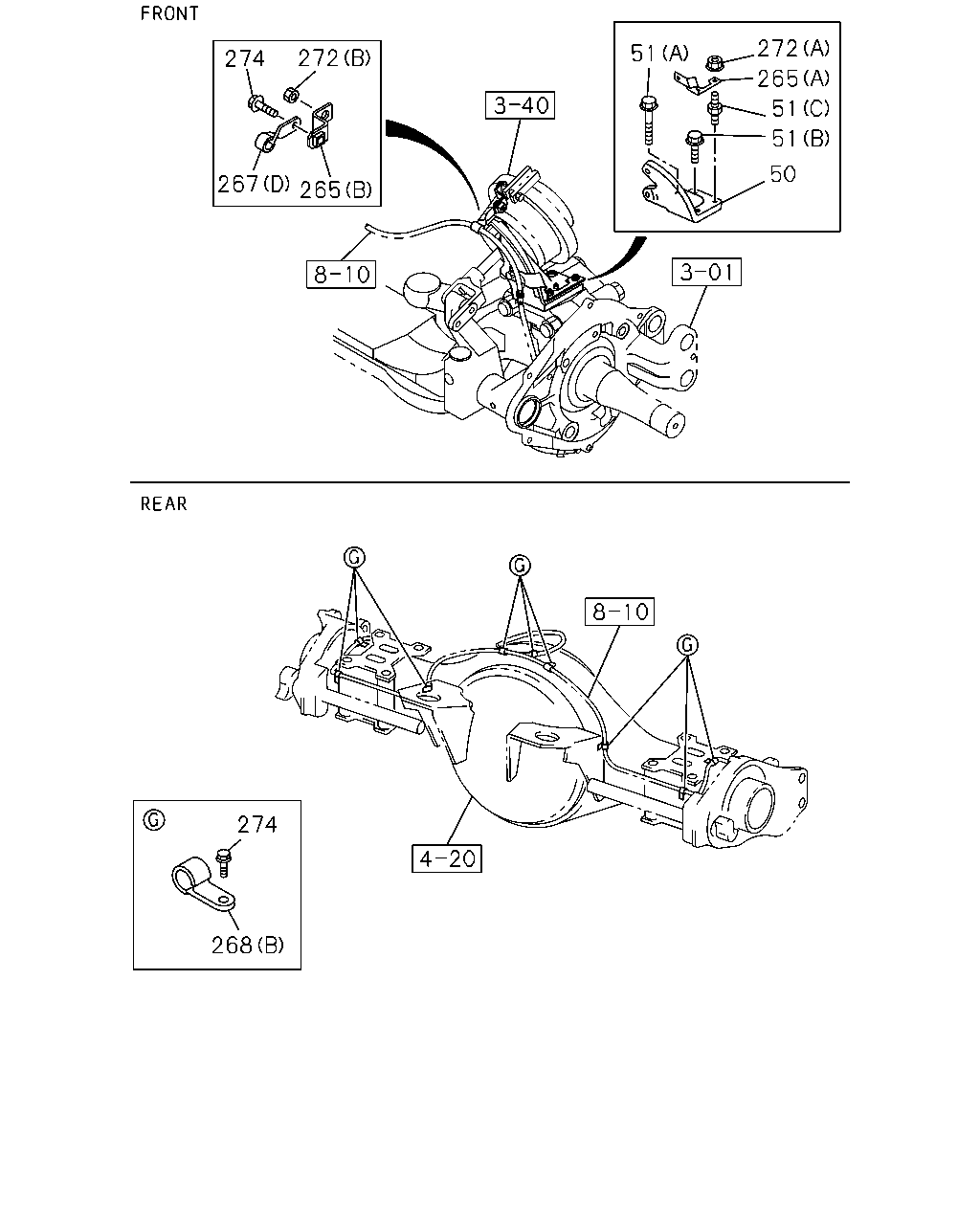

272 51 272 274 265 51 51 50 267 265 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	BRACKET; POWER CHAMBER	1-43145-030-0	01	1	0012-	●
50	BRACKET; POWER CHAMBER	1-43145-029-0	01	1	0012-	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0012-		●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0012-		●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28681-225-0	04	1	0012-0512	●
51	BOLT; POWER CHAMBER BRKT (D) M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28681-240-0	04	1	0012-0512	●
51	BOLT; POWER CHAMBER BRKT (E) M12X40 FLANGE	0-28651-240-0	04	1	0601-	●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0012-0512		●
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	02	1	0012-0512		●
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0012-		●
265	BRACKET; CLIP I BEAM (B)	1-82698-250-0	02	1	0012-		●
265	BRACKET; CLIP I BEAM (A)	1-82698-238-1	01	1	0012-		●
265	BRACKET; CLIP I BEAM (A)	1-82698-239-0	01	1	0012-		●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	9-09535-085-0	02	1	0107-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	0-95325-085-0	02	1	0607-	●
267	CLIP; HARNESS (A) ID=11 L=16	9-09525-025-0	04	1	0012-0606	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	04	1	0607-1003	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (C) L=140	5-09707-031-1	02	1	0012-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	9-09525-025-0	02	1	0012-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	0607-1003	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	9-09535-025-0	09	1	0012-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	09	1	0607-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	9-09535-025-0	02	1	0012-0608	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	02	1	0609-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=50	9-09535-085-0	01	1	0012-0106	●
267	CLIP; HARNESS (D) ID=11 L=58	9-09917-135-2	02	1	0012-		●
268	CLIP; HARNESS (A) ID=11 L=50	9-09525-085-0	01	1	0012-0606	●
268	CLIP; HARNESS (A) ID=11 L=50	0-95235-085-0	01	1	0607-	●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	9-09525-025-0	09	1	0012-0606	●
268	CLIP; HARNESS (B) ID=11 L=16	9-09525-025-0	09	1	0012-0606		●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	0-95235-025-0	09	1	0607-	●
268	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	09	1	0607-		●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	02	1	0012-0602	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	04	1	0012-0602		●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●
272	NUT; CLIP (B) M10	9-09111-410-0	02	1	0012-0512		●
272	NUT; CLIP (B) M10	0-91111-510-0	02	1	0601-		●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	12	1	0012-0512	●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	12	1	0601-	●
274	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0104-0512	●
274	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	08	1	0012-0103	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	06	1	0104-0512	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	06	1	0601-1003	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
274	BOLT; CLIP EXC. ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	06	1	0012-0103	●
274	BOLT; CLIP EXC. ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	04	1	0104-0512	●
274	BOLT; CLIP EXC. ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	09	1	0012-0512		●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	09	1	0601-		●

274 267 267 272 274 267 272 274 267 274 267 267 274 268 267 268 74 267 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0012-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	9-09535-085-0	02	1	0107-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (E) ID=11X2 L=50	0-95325-085-0	02	1	0607-	●
267	CLIP; HARNESS (A) ID=11 L=16	9-09525-025-0	04	1	0012-0606	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	04	1	0607-1003	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	1004-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (C) L=140	5-09707-031-1	02	1	0012-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	9-09525-025-0	02	1	0012-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (A) ID=11 L=16	0-95235-025-0	02	1	0607-1003	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	9-09535-025-0	09	1	0012-0606	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	09	1	0607-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	9-09535-025-0	02	1	0012-0608	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=16	0-95325-025-0	02	1	0609-	●
267	CLIP; HARNESS ANTI SKID BRK SYSTEM<SFL> (B) ID=11X2 L=50	9-09535-085-0	01	1	0012-0106	●
267	CLIP; HARNESS (D) ID=11 L=58	9-09917-135-2	02	1	0012-		●
268	CLIP; HARNESS (A) ID=11 L=50	9-09525-085-0	01	1	0012-0606	●
268	CLIP; HARNESS (A) ID=11 L=50	0-95235-085-0	01	1	0607-	●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	9-09525-025-0	09	1	0012-0606	●
268	CLIP; HARNESS (B) ID=11 L=16	9-09525-025-0	09	1	0012-0606		●
268	CLIP; HARNESS EXC. ANTI SKID BRK SYSTEM<SFL> (B) ID=11 L=16	0-95235-025-0	09	1	0607-	●
268	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	09	1	0607-		●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	02	1	0012-0602	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	04	1	0012-0602		●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0603-		●
272	NUT; CLIP (B) M10	9-09111-410-0	02	1	0012-0512		●
272	NUT; CLIP (B) M10	0-91111-510-0	02	1	0601-		●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	12	1	0012-0512	●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	12	1	0601-	●
274	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0104-0512	●
274	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	08	1	0012-0103	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	06	1	0104-0512	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	06	1	0601-1003	●
274	BOLT; CLIP ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
274	BOLT; CLIP EXC. ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	06	1	0012-0103	●
274	BOLT; CLIP EXC. ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28680-820-0	04	1	0104-0512	●
274	BOLT; CLIP EXC. ANTI SKID BRK SYSTEM<SFL> M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	09	1	0012-0512		●
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	09	1	0601-		●

3 61 8 32 275 6 312 25 34 33 6 8 8 305 11 275 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	KING PIN SET	1-87830-738-4	02	1	0012-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0012-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0012-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0012-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0012-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0012-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0012-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0012-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0012-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
61	ROD END; TIE ROD	1-43150-804-0	01	1	0012-	●	●
61	ROD END; TIE ROD	1-43150-803-0	01	1	0012-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0012-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0012-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●
311	REPAIR KIT; ROD END,TIE	1-85574-041-0	02	1	0012-	●	●
312	JOINT; BALL,ROD END,TIE	1-44361-105-1	02	1	0012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
