5-20 — BATTERY CARRIER (#71117) — 57 parça

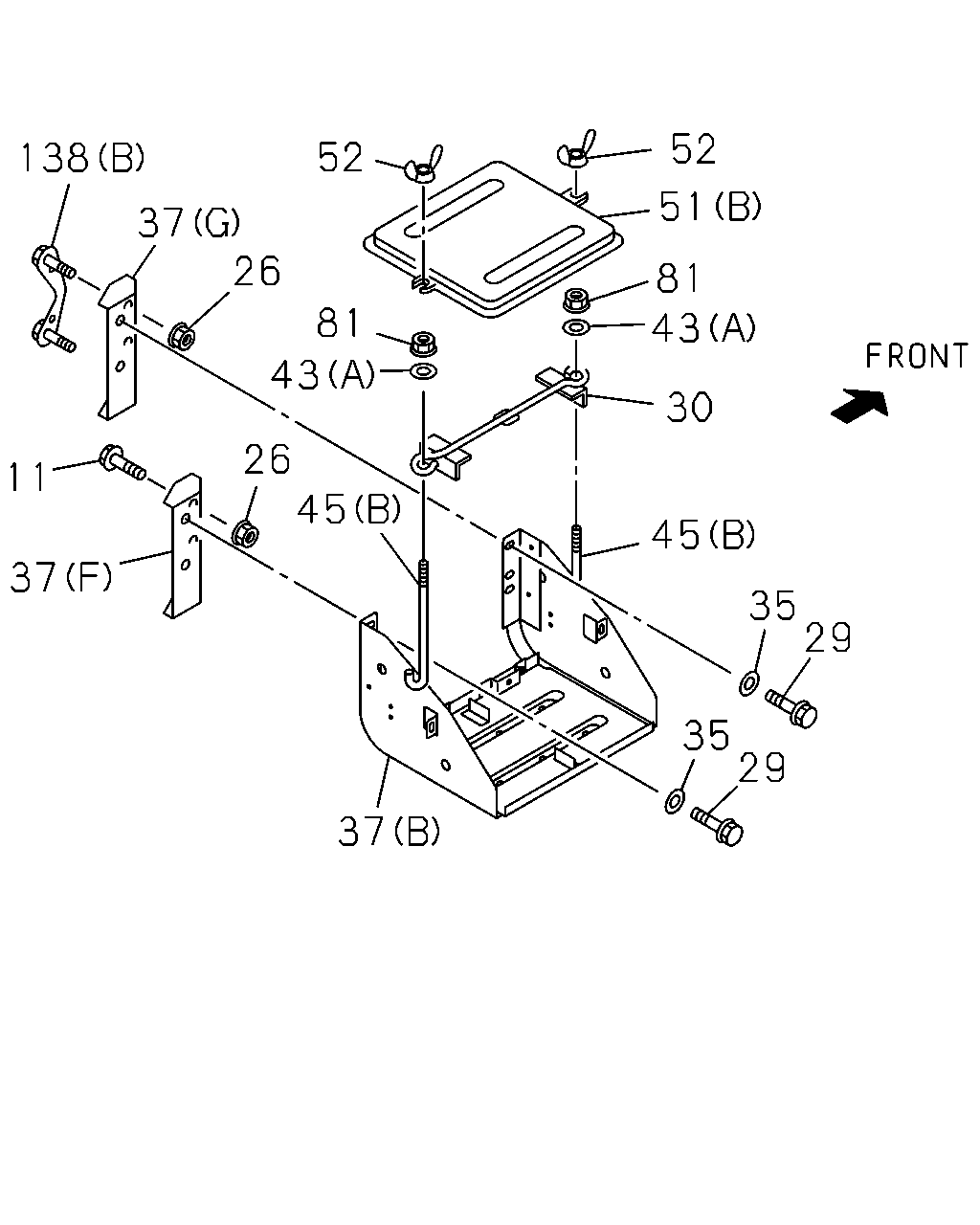

52 81 51 43 45 29 35 35 29 7 30 81 26 52 37 138 11 37 26 43 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1011-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1011-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1011-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1011-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1011-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1011-	●	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1011-	●
37	BRACKET; BATTERY (E)	8-98162-291-0	01	1	1011-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98091-499-0	01	1	1011-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98261-637-0	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	1011-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	1011-	●
37	BRACKET; BATTERY (F)	8-98074-285-0	01	1	1011-		●
37	BRACKET; BATTERY (G)	8-98074-286-0	01	1	1011-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1011-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1011-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1011-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1011-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1011-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1011-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1011-	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1011-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1011-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
138	STUD (A)	8-98178-497-0	01	1	1011-1311	●
138	STUD (A)	8-98255-710-0	01	1	1312-	●
138	STUD (B)	8-98121-393-0	01	1	1011-		●

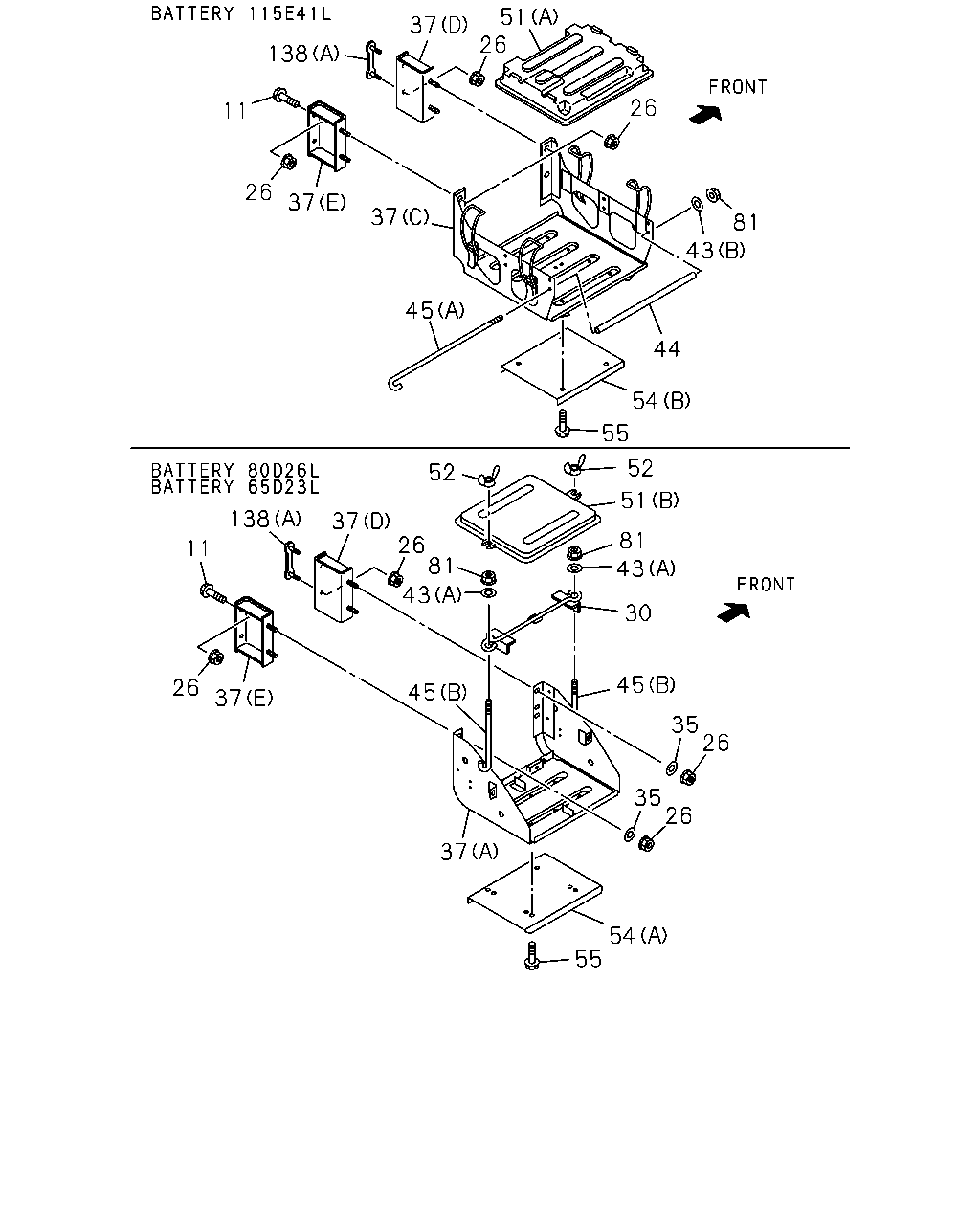

138 11 26 37 37 37 26 51 26 81 43 45 44 54 55 52 51 81 52 37 138 11 26 37 45 43 26 81 43 30 45 35 26 35 26 54 55 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1011-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1011-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1011-	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1011-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1011-	●	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1011-	●
37	BRACKET; BATTERY (E)	8-98162-291-0	01	1	1011-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98091-499-0	01	1	1011-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98261-637-0	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	1011-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	1011-	●
37	BRACKET; BATTERY (F)	8-98074-285-0	01	1	1011-		●
37	BRACKET; BATTERY (G)	8-98074-286-0	01	1	1011-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1011-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1011-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1011-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1011-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1011-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1011-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1011-	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1011-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1011-	●	●
54	PROTECTOR; HEAT,BATTERY BATTERY 115E41L<8MA> (B)	1-53619-140-1	01	1	1011-	●
54	PROTECTOR; HEAT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-53619-139-1	01	1	1011-	●
55	BOLT; HEAT PROTECTOR M8X10 FLANGE	0-28050-810-0	04	1	1011-	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
138	STUD (A)	8-98178-497-0	01	1	1011-1311	●
138	STUD (A)	8-98255-710-0	01	1	1312-	●
138	STUD (B)	8-98121-393-0	01	1	1011-		●
