5-01 — FRAME AND OTHER PARTS
(#71112) — 48 parça
◀

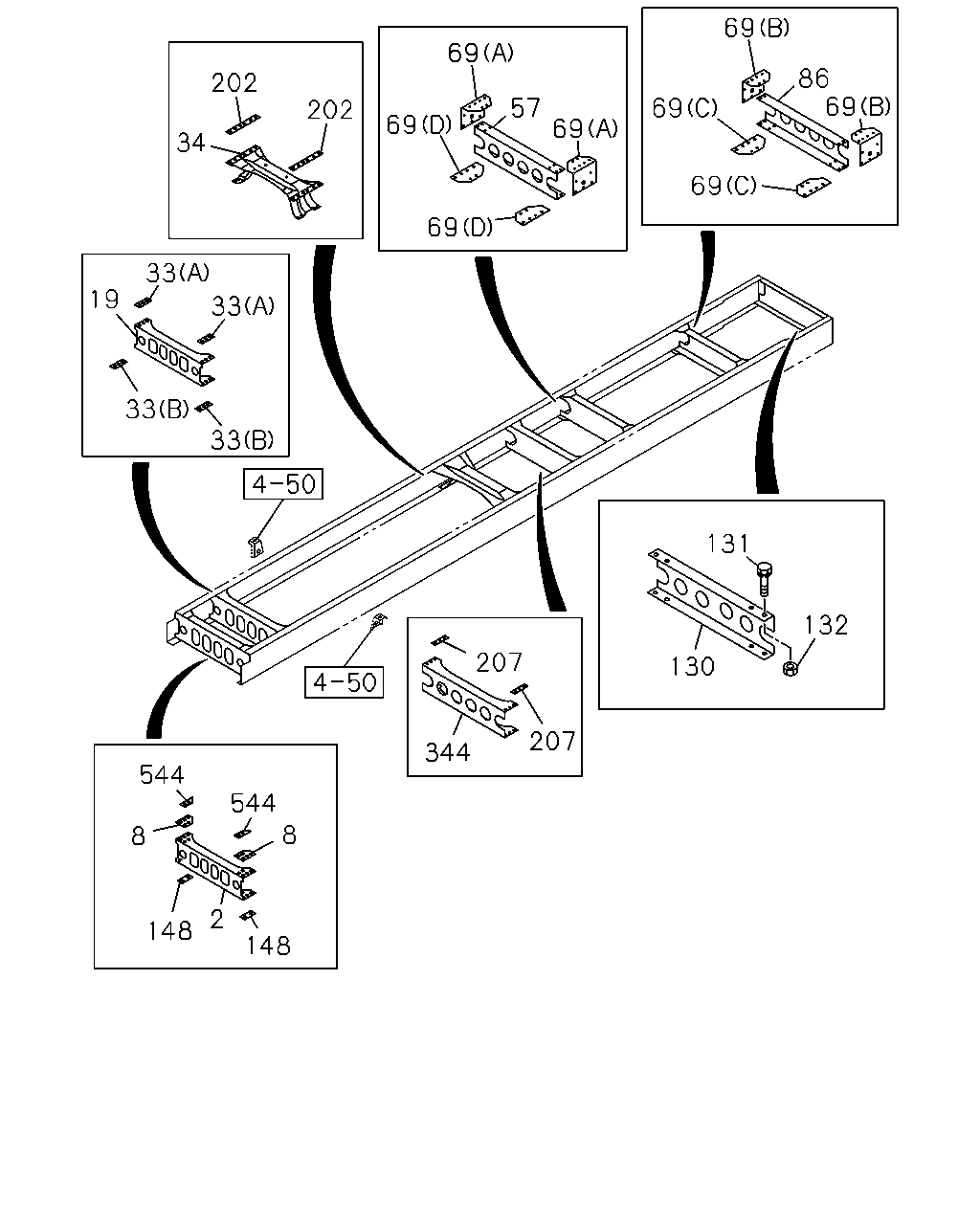

[501A] CROSS MEMBER (23 parça)

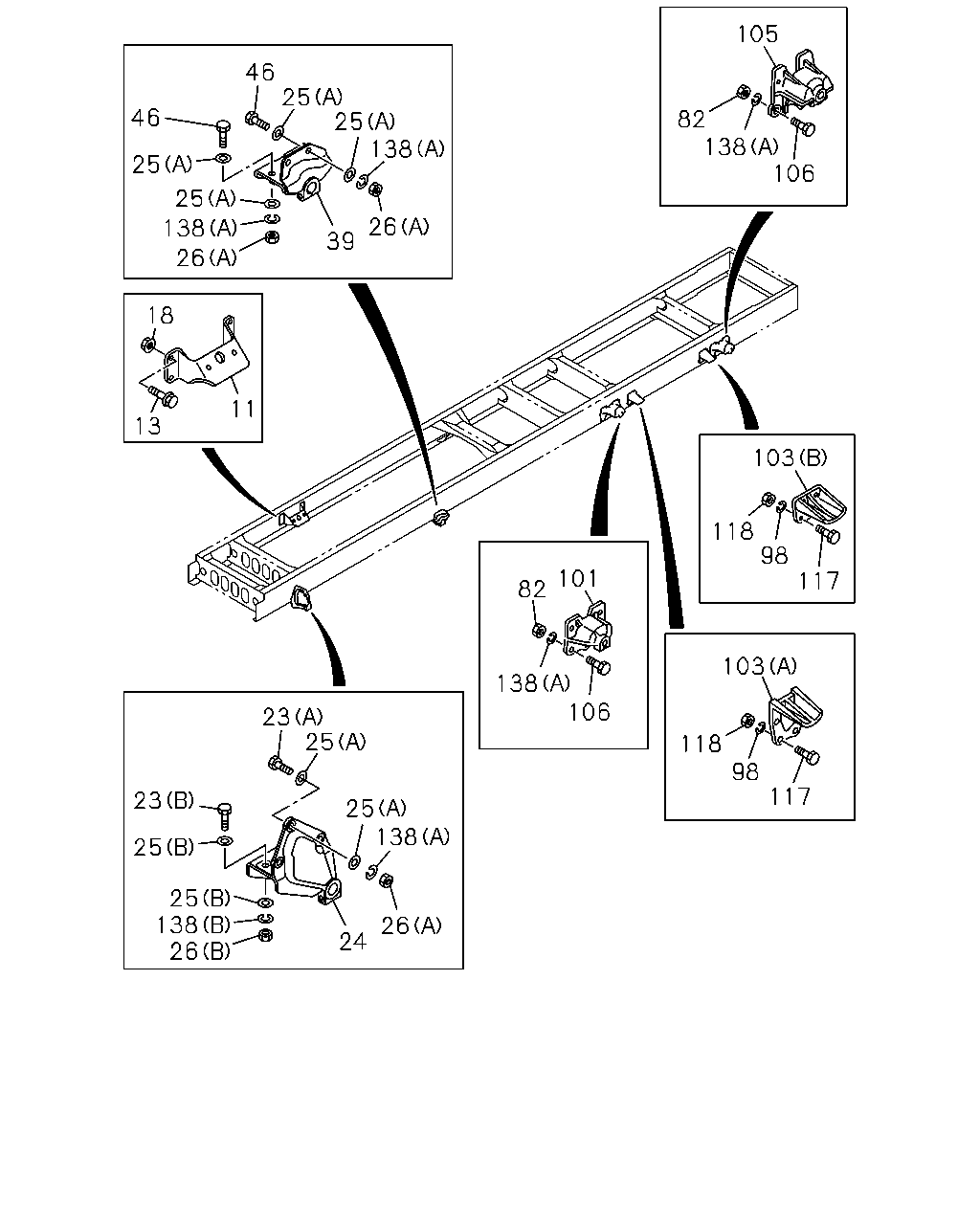

[501A] BRACKET AND OTHER PARTS (25 parça)
▶
202
34
202
33
19
33
33
33
69
69
69
57
69
69
69
69
86
69
131
132
130
207
207
344
544
544
8
8
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97626-850-2
01
1
1011-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1011-
19
MEMBER; CROSS,2ND
8-97615-907-4
01
1
1011-
33
SPACER; 2ND C/MBR,UPR
(A)
8-97611-040-0
02
1
1011-
33
SPACER; 2ND C/MBR,UPR
(B)
8-97616-640-0
02
1
1011-
34
MEMBER; CROSS,3RD
8-97610-855-1
01
1
1307-
34
MEMBER; CROSS,3RD
8-97610-855-0
01
1
1011-1306
57
MEMBER; CROSS,RR SUSP FRT
8-97610-858-5
01
1
1011-
69
GUSSET; RR SUSP,UPR
(D)
8-97610-865-0
02
1
1011-
69
GUSSET; RR SUSP,UPR
(C)
8-97610-866-0
02
1
1011-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-264-0
01
1
1011-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-265-1
01
1
1011-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-266-1
01
1
1011-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-267-1
01
1
1011-
86
MEMBER; CROSS,RR SUSP RR
8-97610-858-5
01
1
1011-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1011-
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1011-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1011-
148
SPACER; C/MBR
8-97611-039-0
02
1
1011-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1011-
207
SPACER; 4TH C/MBR
0.25KG
8-97611-244-0
02
1
1011-
344
MEMBER; CROSS,4TH
8-97616-641-4
01
1
1011-
544
PLATE; CAB FRT MTG
8-97617-891-0
02
1
1011-
117
98
118
103
117
98
118
103
106
138
82
101
106
138
82
105
46
25
25
138
26
39
26
138
25
25
46
18
11
13
23
25
25
138
26
24
26
138
25
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-549-0
02
1
1011-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1011-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1011-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1011-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1011-
24
BRACKET; FRT SPR,FRT
1-53351-259-0
01
1
1011-
24
BRACKET; FRT SPR,FRT
1-53351-260-0
01
1
1011-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1011-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1011-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1011-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1011-
39
BRACKET; FRT SPR,RR
1-53352-124-2
01
1
1011-
39
BRACKET; FRT SPR,RR
1-53352-125-2
01
1
1011-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1011-
82
NUT; BRKT
M14
0-91110-514-0
20
1
1011-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1011-
101
BRACKET; RR SPR,FRT
1-53353-072-1
02
1
1011-
103
STOPPER; SUB SPR
(A)
1-53356-038-1
02
1
1011-
103
STOPPER; SUB SPR
(B)
1-53357-029-1
02
1
1011-
105
BRACKET; RR SPR,RR
1-53353-072-1
02
1
1011-
106
BOLT; BRKT
M14X50
0-20851-450-0
20
1
1011-
117
BOLT; STOPPER
M14X50
0-20851-450-0
16
1
1011-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1011-
138
WASHER; LK,BRKT
(A) ID=14.2
0-91510-814-0
34
1
1011-
138
WASHER; LK,BRKT
(B) ID=16.2
0-91510-816-0
04
1
1011-
