4-80 — ROAD WHEEL (#71111) — 34 parça

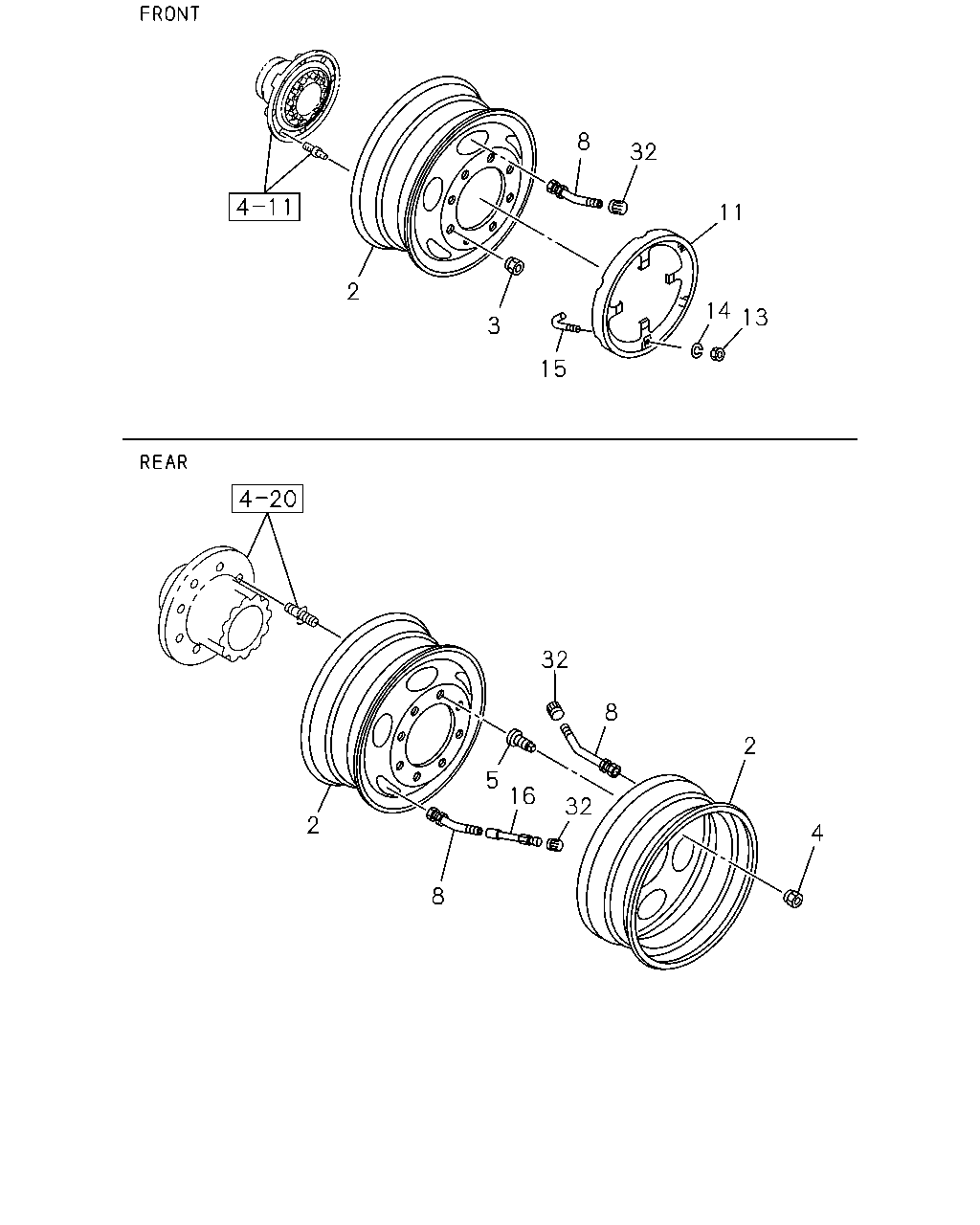

çizim 125601
2 8 32 3 15 11 14 13 2 8 5 16 32 8 32 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-758-0 01 1 1110-1306 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		8-98232-031-0 01 1 1307- ● ●
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42350-758-0 02 1 1110-1306 ● ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT 		8-98232-031-0 02 1 1307- ● ●
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42350-758-0 04 1 1110-1306 ● ●
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> REAR 		8-98232-031-0 04 1 1307- ● ●
2 WHEEL; DISC
FRONT 		1-42350-759-0 02 1 1011-1109 ● ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		1-42350-759-0 02 1 1110-1306 ● ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT 		8-98232-032-0 02 1 1307- ● ●
2 WHEEL; DISC
REAR 		1-42350-759-0 04 1 1011-1109 ● ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		1-42350-759-0 04 1 1110-1306 ● ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> REAR 		8-98232-032-0 04 1 1307- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42350-759-0 01 1 1011-1109 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-759-0 01 1 1110-1306 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		8-98232-032-0 01 1 1307- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 1011- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 1011- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 1011- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 1011- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 1011- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 1011- ● ●
8 VALVE; TIRE
REAR 		1-42370-048-0 04 1 1307- ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-020-3 06 1 1011-1306 ● ●
8 VALVE; TIRE
FRONT 		1-42370-048-0 02 1 1307- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-020-3 01 1 1011-1306 ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-048-0 01 1 1307- ● ●
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> 		1-43139-002-2 02 1 1110- ● ●
13 NUT; STEP DISC
DISC WHEEL STEP<W66> M10 		0-91110-510-0 06 1 1110- ● ●
14 WASHER; LK,STEP DISC
DISC WHEEL STEP<W66> ID=10.2 		0-91510-810-0 06 1 1110- ● ●
15 BOLT; STEP DISC
DISC WHEEL STEP<W66> L=60 		1-43139-016-0 06 1 1110-1306 ● ●
15 BOLT; STEP DISC
DISC WHEEL STEP<W66> 		8-98245-130-0 06 1 1307- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1307- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 1011-1306 ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 05 1 1307- ● ●
