4-01 — PROPELLER SHAFT (#7111) — 108 parça

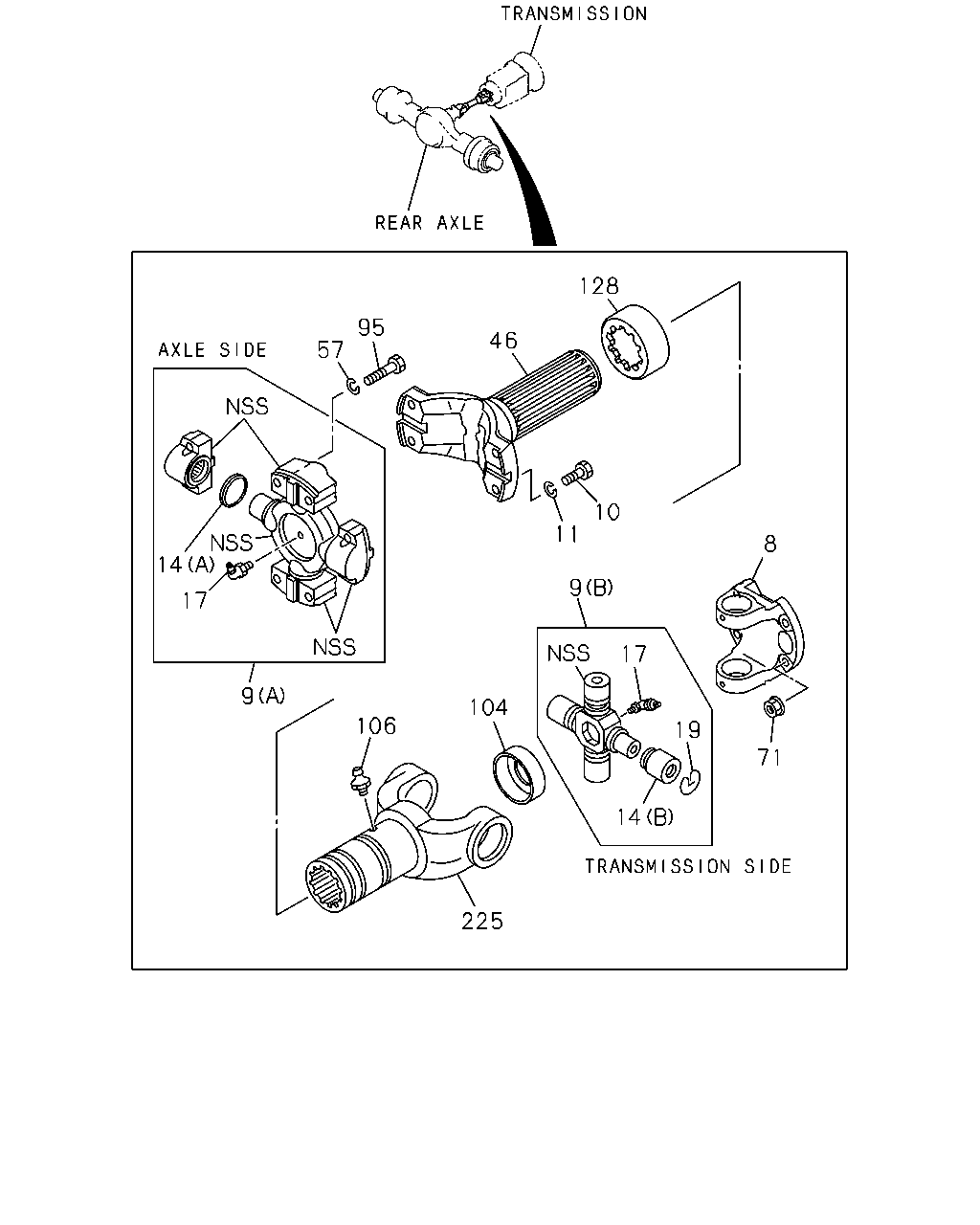

128 95 46 57 10 11 8 14 9 17 17 9 104 106 19 71 14 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-079-0	01	1	0012-0203	●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-079-1	01	1	0204-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-088-0	01	1	0012-0203	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-088-0	01	1	0204-		●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (B)	1-37300-110-0	01	1	0012-0203	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (B)	1-37300-110-0	01	1	0204-		●
10	BOLT; UJT P80W PROP SHAFT<C2U> M12X45	9-91066-245-0	08	1	0012-0203	●	●
10	BOLT; UJT P80W PROP SHAFT<C2U> M12X45	9-91066-245-0	08	1	0204-0805		●	●
10	BOLT; UJT P80W PROP SHAFT<C2U> M12X45	8-98036-382-0	08	1	0806-		●	●
10	BOLT; UJT P90 PROP SHAFT<C5T> M12X45	9-91066-245-0	04	1	0012-0203	●	●
10	BOLT; UJT P90 PROP SHAFT<C5T> M12X45	9-91066-245-0	04	1	0204-0805		●
10	BOLT; UJT P90 PROP SHAFT<C5T> M12X45	8-98036-382-0	04	1	0806-		●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0012-0203	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0204-0603		●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	0604-		●	●
14	COVER; DUST,SPIDER P80W PROP SHAFT<C2U> (C)	1-37249-130-0	08	1	0012-0203	●	●
14	COVER; DUST,SPIDER P80W PROP SHAFT<C2U> (C)	1-37249-130-0	08	1	0204-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	04	1	0012-0203	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	04	1	0204-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-131-0	04	1	0012-0203	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-131-0	04	1	0204-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0012-0203	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0204-0512		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT<C5T> T=2.2	1-09587-102-1	04	1	0012-0203	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT<C5T> T=2.2	1-09587-102-1	04	1	0204-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P80W PROP SHAFT<C2U> L=220	1-37171-110-0	01	1	0012-0203	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P80W PROP SHAFT<C2U> L=220	1-37171-110-0	01	1	0204-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T> L=285	1-37171-154-0	01	1	0012-0203	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T> L=285	1-37171-154-0	01	1	0204-		●
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	04	1	0012-0603	●	●
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	04	1	0604-	●	●
71	NUT; YOKE P80W PROP SHAFT<C2U> M12	9-99110-512-0	04	1	0012-0512	●	●
71	NUT; YOKE P80W PROP SHAFT<C2U> M12	0-91110-512-0	04	1	0601-	●	●
71	NUT; YOKE P90 PROP SHAFT<C5T> M14 FLANGE	1-09440-048-0	04	1	0012-0805	●	●
71	NUT; YOKE P90 PROP SHAFT<C5T> M14 FLANGE	8-97365-444-0	04	1	0806-	●	●
95	BOLT; YOKE,FINAL M12X45	9-91066-245-0	04	1	0012-0805	●	●
95	BOLT; YOKE,FINAL M12X45	8-98036-382-0	04	1	0806-	●	●
104	PLUG; SLEEVE YOKE P80W PROP SHAFT<C2U>	1-09600-049-0	01	1	0012-0203	●	●
104	PLUG; SLEEVE YOKE P80W PROP SHAFT<C2U>	1-09600-049-0	01	1	0204-		●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	0012-0203	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	0204-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0012-0203	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0204-0512		●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●	●
128	SEAL; SLEEVE P80W PROP SHAFT<C2U>	1-37247-023-0	01	1	0012-0203	●	●
128	SEAL; SLEEVE P80W PROP SHAFT<C2U>	1-37247-023-0	01	1	0204-		●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-018-0	01	1	0012-0203	●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-018-0	01	1	0204-		●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T> L=263.5	1-37241-144-0	01	1	0012-0203	●	●
225	YOKE; SLEEVE,PROP SHAFT MAL6Q M/T(Y1M) P90 PROP SHAFT<C5T> L=263.5	1-37241-144-0	01	1	0204-0210		●
225	YOKE; SLEEVE,PROP SHAFT MAL6Q M/T(Y1M),MAL6U M/T(Y2R) P90 PROP SHAFT<C5T> L=263.5	1-37241-144-0	01	1	0211-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) P90 PROP SHAFT<C5T> L=330	1-37241-124-0	01	1	0204-		●

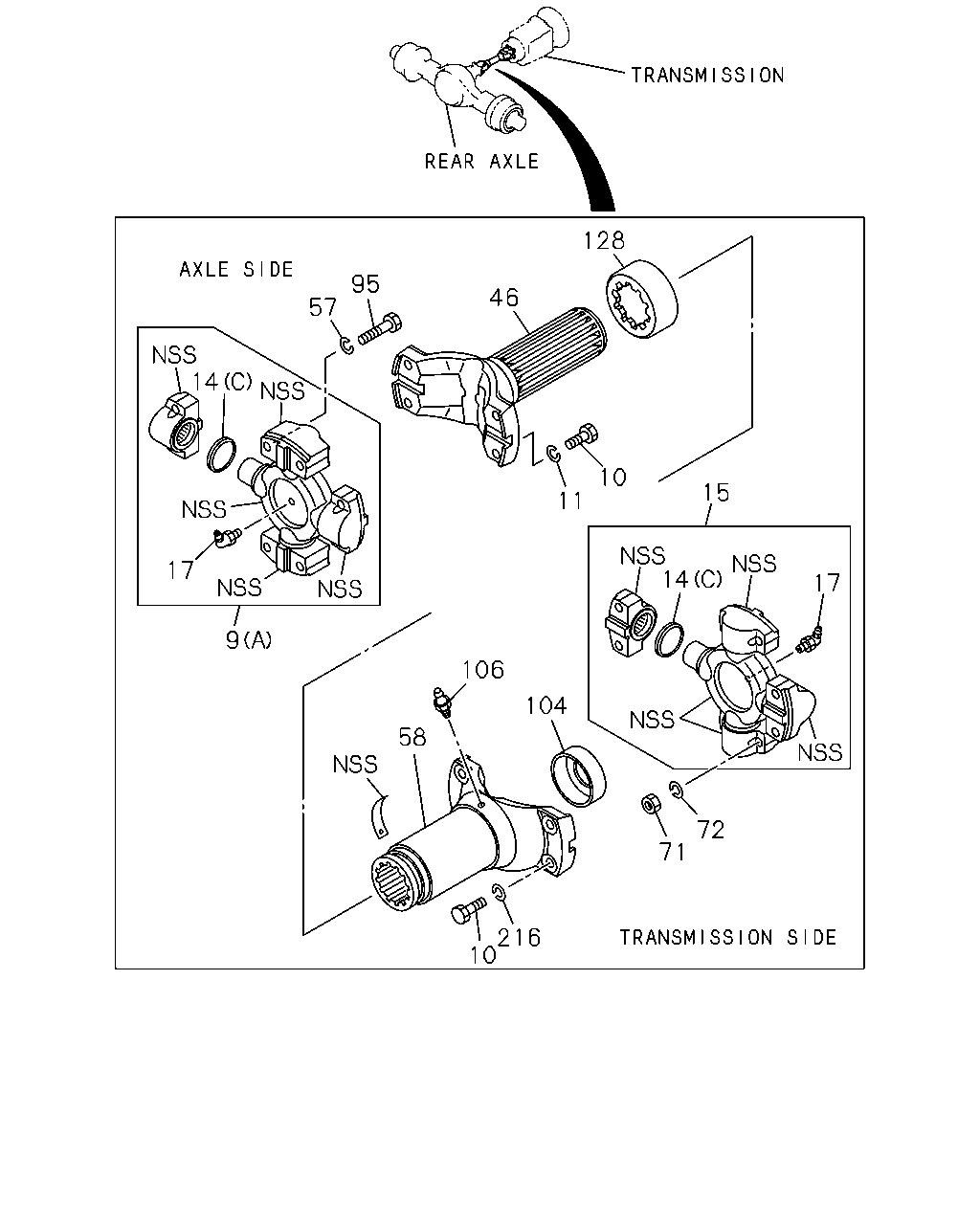

128 95 46 57 14 10 15 11 14 17 17 9 106 104 58 72 71 216 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-088-0	01	1	0012-0203	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-088-0	01	1	0204-		●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (B)	1-37300-110-0	01	1	0012-0203	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (B)	1-37300-110-0	01	1	0204-		●
10	BOLT; UJT P80W PROP SHAFT<C2U> M12X45	9-91066-245-0	08	1	0012-0203	●	●
10	BOLT; UJT P80W PROP SHAFT<C2U> M12X45	9-91066-245-0	08	1	0204-0805		●	●
10	BOLT; UJT P80W PROP SHAFT<C2U> M12X45	8-98036-382-0	08	1	0806-		●	●
10	BOLT; UJT P90 PROP SHAFT<C5T> M12X45	9-91066-245-0	04	1	0012-0203	●	●
10	BOLT; UJT P90 PROP SHAFT<C5T> M12X45	9-91066-245-0	04	1	0204-0805		●
10	BOLT; UJT P90 PROP SHAFT<C5T> M12X45	8-98036-382-0	04	1	0806-		●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0012-0203	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0204-0603		●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	0604-		●	●
14	COVER; DUST,SPIDER P80W PROP SHAFT<C2U> (C)	1-37249-130-0	08	1	0012-0203	●	●
14	COVER; DUST,SPIDER P80W PROP SHAFT<C2U> (C)	1-37249-130-0	08	1	0204-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	04	1	0012-0203	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	04	1	0204-		●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-131-0	04	1	0012-0203	●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (B)	1-37249-131-0	04	1	0204-		●
15	UNIVERSAL CENTER P80W PROP SHAFT<C2U>	1-37300-096-0	01	1	0012-0203	●	●
15	UNIVERSAL CENTER P80W PROP SHAFT<C2U>	1-37300-096-0	01	1	0204-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0012-0203	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0204-0512		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P80W PROP SHAFT<C2U> L=220	1-37171-110-0	01	1	0012-0203	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P80W PROP SHAFT<C2U> L=220	1-37171-110-0	01	1	0204-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T> L=285	1-37171-154-0	01	1	0012-0203	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT<C5T> L=285	1-37171-154-0	01	1	0204-		●
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	04	1	0012-0603	●	●
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	04	1	0604-	●	●
58	FLANGE; SPLINED P80W PROP SHAFT<C2U> L=204	1-37245-320-0	01	1	0012-0203	●	●
58	FLANGE; SPLINED P80W PROP SHAFT<C2U> L=204	1-37245-320-0	01	1	0204-		●
58	FLANGE; SPLINED P80W PROP SHAFT<C2U>	1-37245-361-0	01	1	0204-			●
71	NUT; YOKE P80W PROP SHAFT<C2U> M12	9-99110-512-0	04	1	0012-0512	●	●
71	NUT; YOKE P80W PROP SHAFT<C2U> M12	0-91110-512-0	04	1	0601-	●	●
71	NUT; YOKE P90 PROP SHAFT<C5T> M14 FLANGE	1-09440-048-0	04	1	0012-0805	●	●
71	NUT; YOKE P90 PROP SHAFT<C5T> M14 FLANGE	8-97365-444-0	04	1	0806-	●	●
72	WASHER; LK,YOKE P80W PROP SHAFT<C2U> ID=12.2	9-09150-612-0	04	1	0012-0603	●	●
72	WASHER; LK,YOKE P80W PROP SHAFT<C2U> ID=12.2	0-91510-612-0	04	1	0604-	●	●
95	BOLT; YOKE,FINAL M12X45	9-91066-245-0	04	1	0012-0805	●	●
95	BOLT; YOKE,FINAL M12X45	8-98036-382-0	04	1	0806-	●	●
104	PLUG; SLEEVE YOKE P80W PROP SHAFT<C2U>	1-09600-049-0	01	1	0012-0203	●	●
104	PLUG; SLEEVE YOKE P80W PROP SHAFT<C2U>	1-09600-049-0	01	1	0204-		●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	0012-0203	●	●
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	0204-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0012-0203	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0204-0512		●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●	●
128	SEAL; SLEEVE P80W PROP SHAFT<C2U>	1-37247-023-0	01	1	0012-0203	●	●
128	SEAL; SLEEVE P80W PROP SHAFT<C2U>	1-37247-023-0	01	1	0204-		●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-018-0	01	1	0012-0203	●	●
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-018-0	01	1	0204-		●
216	WASHER; LK,UJT P80W PROP SHAFT<C2U> ID=12.2	9-09150-612-0	04	1	0012-0203	●	●
216	WASHER; LK,UJT P80W PROP SHAFT<C2U> ID=12.2	9-09150-612-0	04	1	0204-0603		●	●
216	WASHER; LK,UJT P80W PROP SHAFT<C2U> ID=12.2	0-91510-612-0	04	1	0604-		●	●
