4-60 — REAR SUSPENSION (#71109) — 22 parça

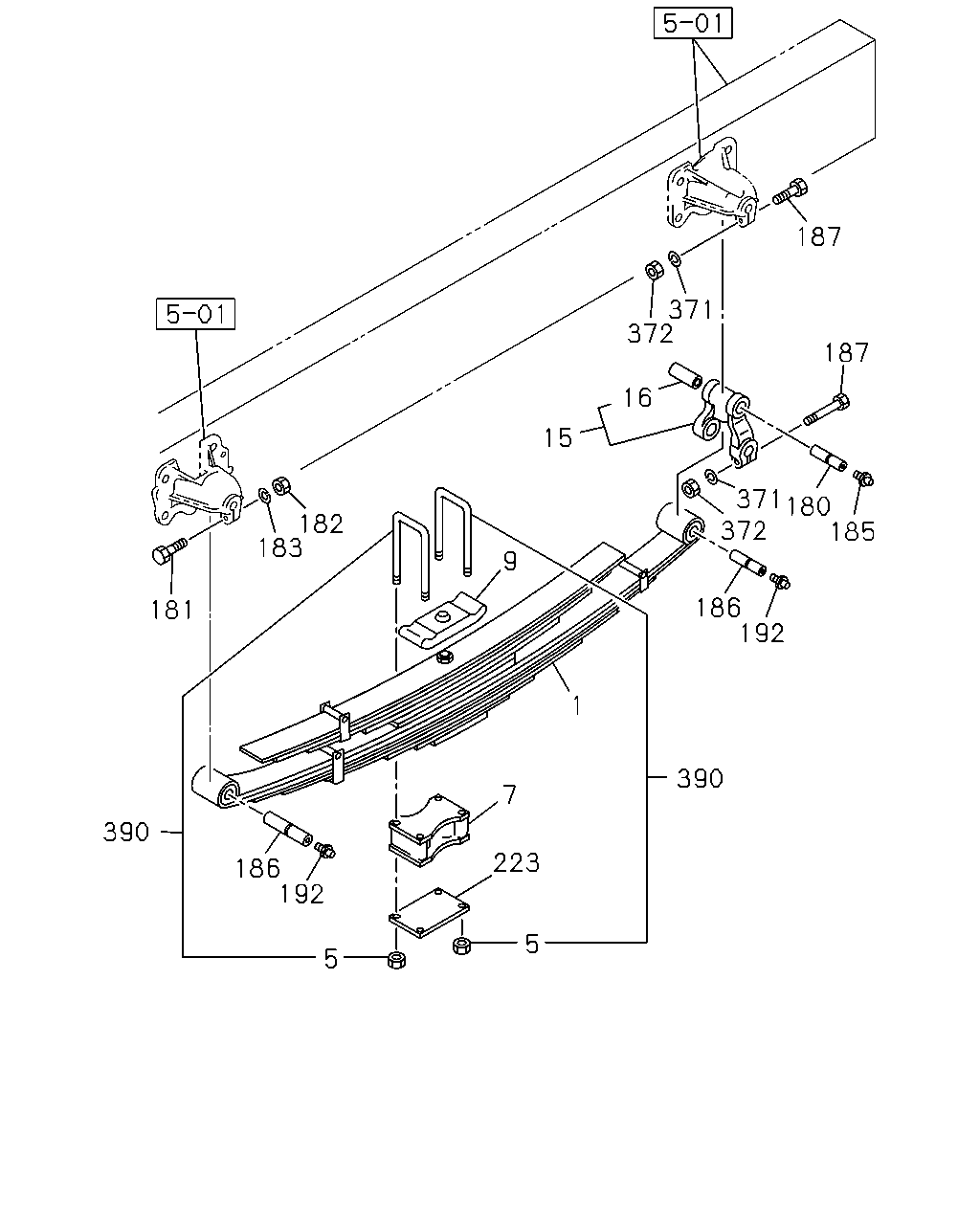

çizim 124830
181 183 182 390 186 192 223 5 5 7 390 192 186 185 372 371 15 9 1 16 372 371 187 187 180
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MANUAL TRANSMISSION<X9C> 		8-98034-467-0 02 1 1204- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98034-467-0 02 1 1011-1203 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T<X9D> 		8-98207-953-0 02 1 1204- ● ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 1011- ● ●
7 SEAT; SPR,LWR 1-51385-062-2 02 1 1011- ● ●
9 PAD; U BOLT,RR SPR 1-51372-048-1 02 1 1011- ● ●
15 SHACKLE; RR SPR 1-51362-049-2 02 1 1011- ● ●
16 BUSHING; SHACKLE,RR SPR 8-98081-830-0 02 1 1011- ● ●
16 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		1-87610-163-0 02 1 1011- ● ●
180 PIN; RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 02 1 1011- ● ●
181 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 02 1 1011- ● ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1011- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1011- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1011- ● ●
186 PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8 		1-51361-015-0 04 1 1011- ● ●
187 BOLT; SPR & SHACKLE
M14X65 		0-10811-465-0 04 1 1011- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1011- ● ●
223 SPACER; U BOLT,RR SPR 1-51377-246-0 01 1 1011- ● ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 1011- ● ●
372 NUT; SHACKLE
M14 		0-91110-514-0 04 1 1011- ● ●
390 U-BOLT SET; RR SPRING
A/T<X9D> L=640 		1-87870-500-0 04 1 1204- ● ●
390 U-BOLT SET; RR SPRING
MANUAL TRANSMISSION<X9C> L=590 		1-87870-478-0 04 1 1011- ● ●
