◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#71108) — 12 parça

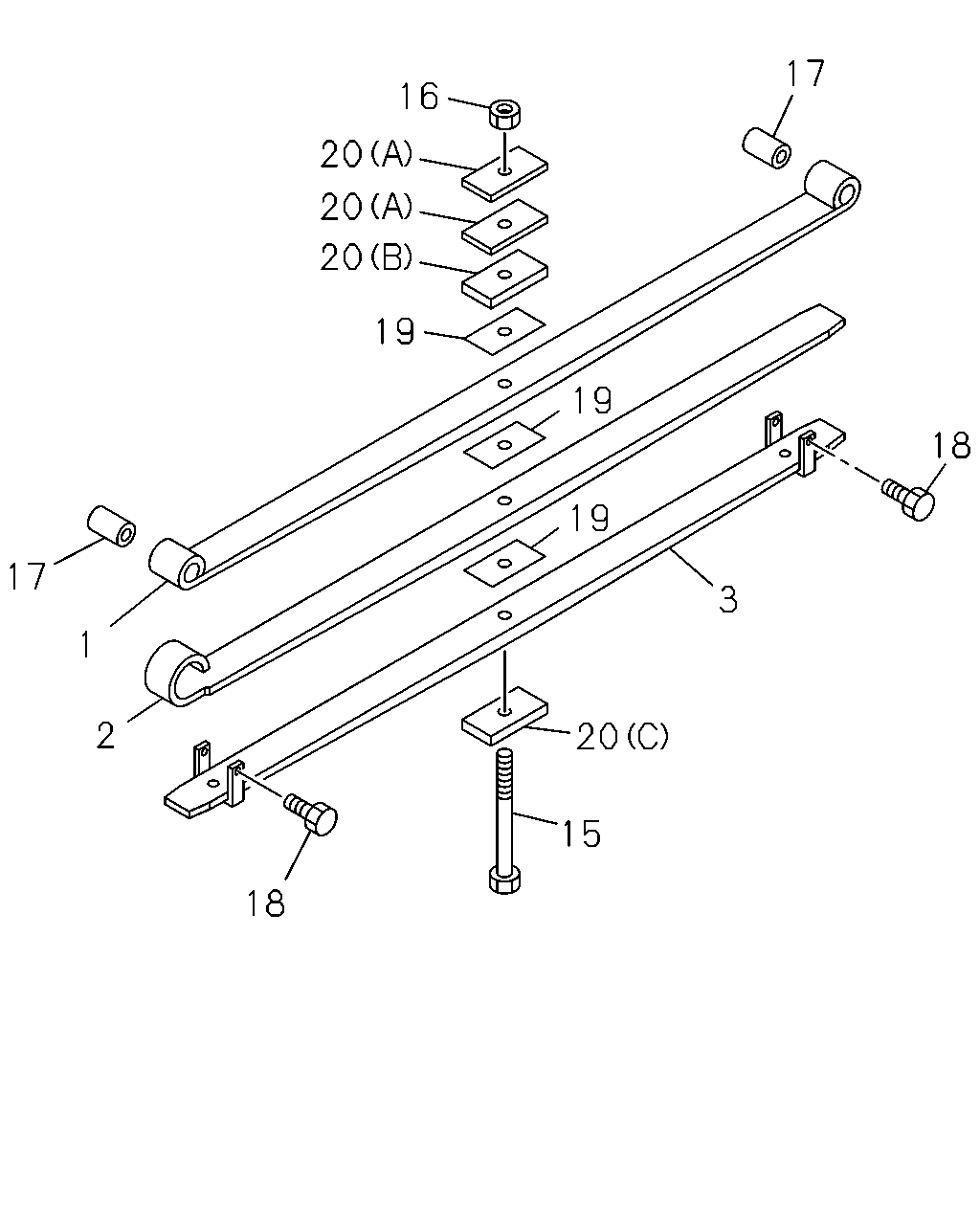

çizim 124693
1 2 18 15 20 3 17 19 20 20 20 16 17 19 19 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		8-98051-282-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		8-98051-283-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		8-98051-284-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=125 ASM PART: A = 8-98027-963-1 		1-51156-196-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: B = 8-98207-954-0 		1-51156-276-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		8-97386-326-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		1-51177-252-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98027-963-1, B = 8-98207-954-0 		8-98049-893-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C) ASM PART: B = 8-98207-954-0 		8-98209-854-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
