◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#71107) — 45 parça
çizim 124185
82 344
BalonParca AdiParca NoAdetTipApplied Date A B
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 1011- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 1011- ● ●

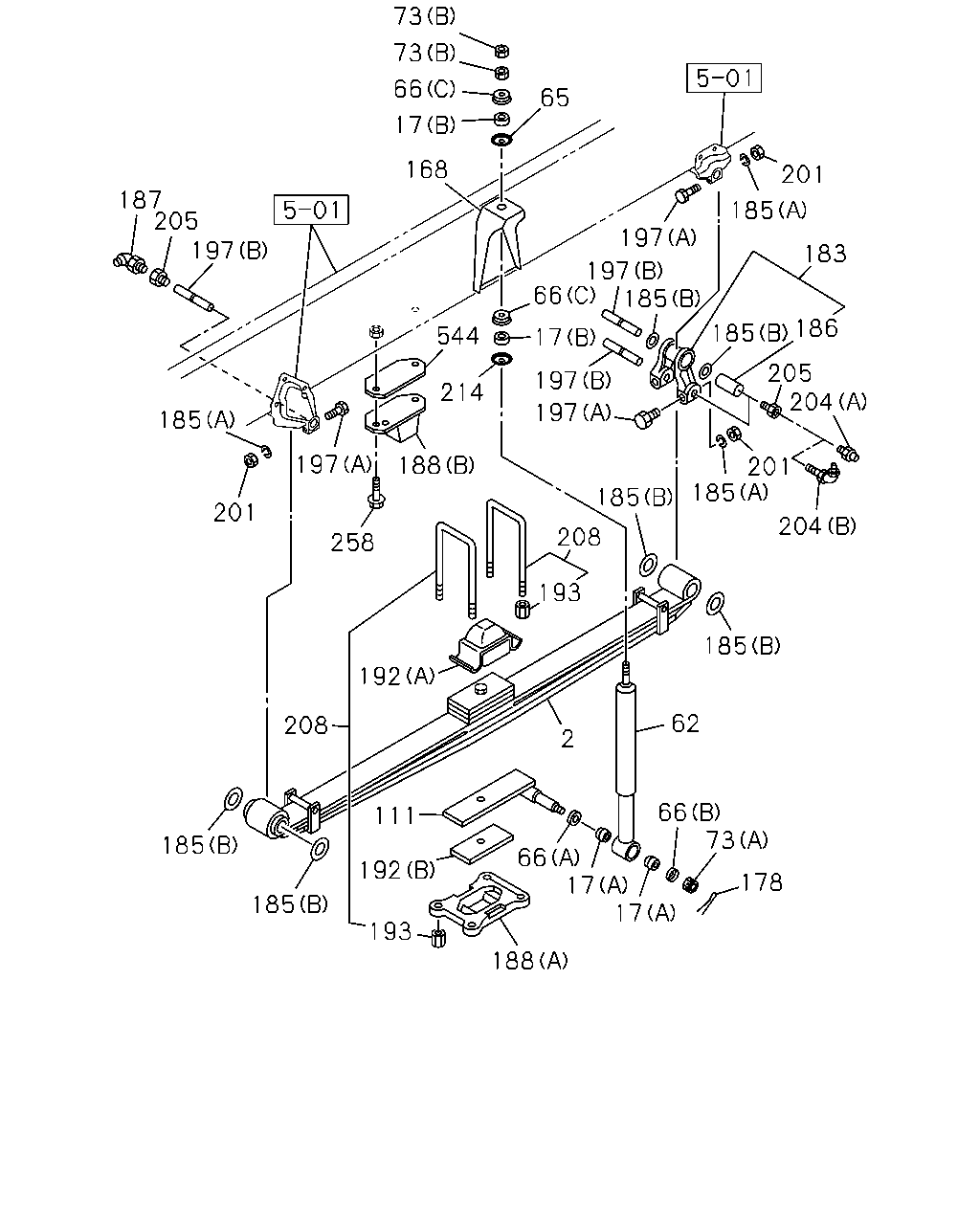

çizim 189284
204 205 186 185 183 185 201 197 197 66 544 214 197 188 258 193 208 185 62 204 185 201 185 197 17 185 66 73 178 17 17 66 192 111 193 188 185 185 208 192 168 17 66 73 73 65 197 205 187 201 185 197 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. A/T<X9D> 		8-98207-954-0 02 1 1204- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98027-963-1 02 1 1011-1203 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MANUAL TRANSMISSION<X9C> 		8-98027-963-1 02 1 1204- ● ●
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1011- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1011- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1011- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 1011-1306 ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 02 1 1011-1306 ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1307- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1011- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 1011- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=16.8 		1-51631-022-0 04 1 1011- ● ●
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		0-91116-516-0 02 1 1011-1204 ● ●
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1011- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 1011- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 1011- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1011- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1011- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1011- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1011- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1011- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1011- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51173-038-0 02 1 1011- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-008-2 01 1 1011- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-009-2 01 1 1011- ● ●
192 PIECE; DIST
(A) 		1-51172-106-0 02 1 1011- ● ●
192 PIECE; DIST
(B) 		9-51377-038-0 01 1 1011- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1011-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT
(A) M12X80 		0-10856-280-0 12 1 1011- ● ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-031-0 06 1 1011- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1011- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1011- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1011- ● ●
208 U-BOLT SET; FRT SPRING
A/T<X9D> L=400 		1-87870-356-2 04 1 1204-1206 ● ●
208 U-BOLT SET; FRT SPRING
A/T<X9D> L=400 		1-87870-503-0 04 1 1207- ● ●
208 U-BOLT SET; FRT SPRING
MANUAL TRANSMISSION<X9C> L=380 		1-87870-488-1 04 1 1011- ● ●
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 1011-1306 ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 1011- ● ●
544 BRACKET; RUBBER 1-51174-017-1 02 1 1011- ● ●
