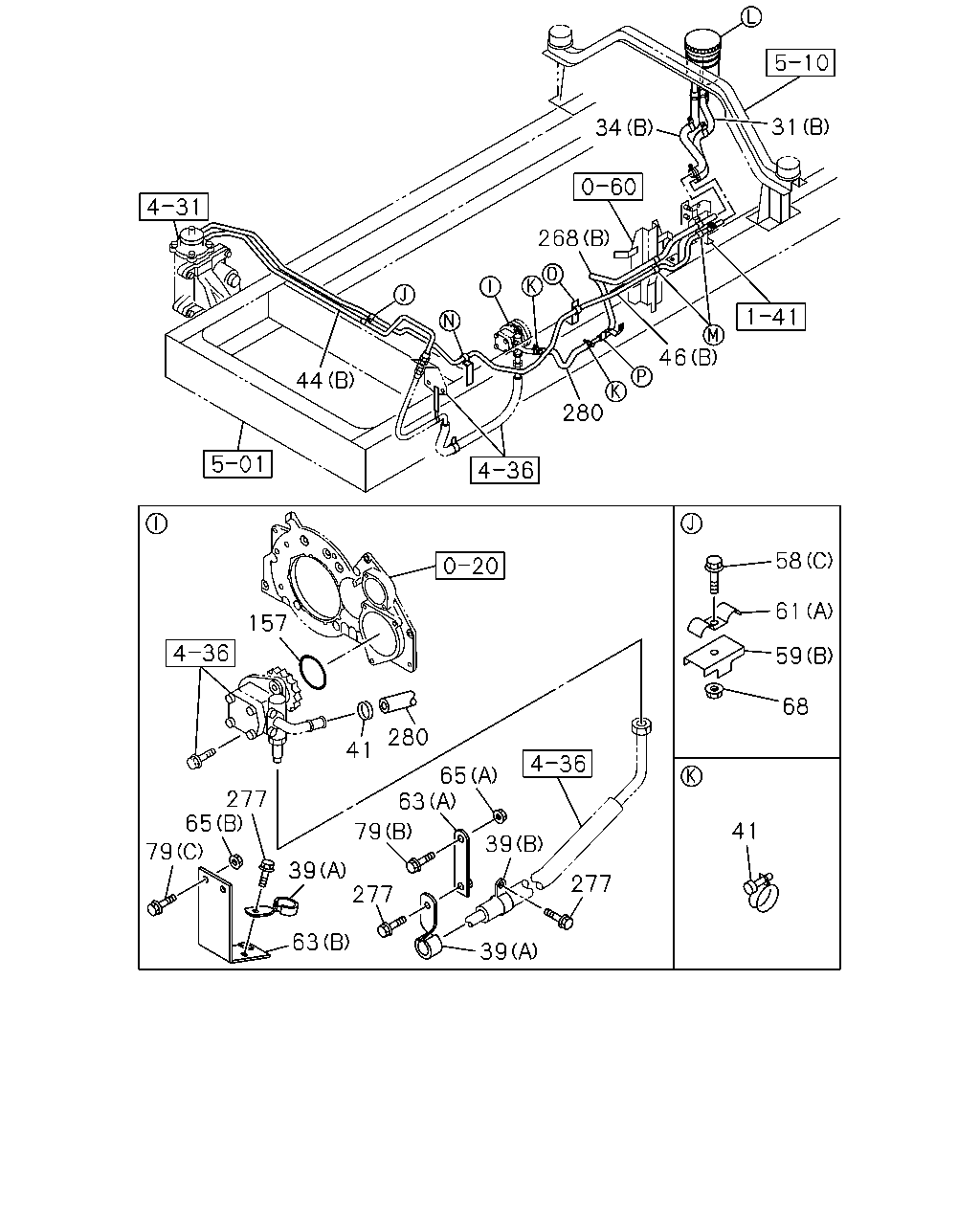

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#71103) — 189 parça

31 34 46 268 280 44 58 61 59 68 41 277 39 39 65 63 79 277 63 39 79 277 65 41 157 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1011-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1011-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1011-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1011-		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1011-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1011-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1011-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98182-041-0	01	1	1011-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	1011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1011-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1011-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1011-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1011-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1011-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1011-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1011-	●	●
63	BRACKET; CLIP,P/S MANUAL TRANSMISSION<X9C> (A)	1-47476-396-1	01	1	1204-1306	●	●
63	BRACKET; CLIP,P/S (A)	1-47476-396-1	01	1	1011-1203	●	●
63	BRACKET; CLIP,P/S A/T<X9D> (B)	8-98215-731-0	01	1	1204-1306	●	●
63	BRACKET; CLIP,P/S (B)	8-98215-731-0	01	1	1307-	●	●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> (A) M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
65	NUT; BRKT A/T<X9D> (B) M10 FLANGE	0-91180-210-0	02	1	1204-1306	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
79	BOLT; BRKT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28650-820-0	01	1	1204-1306	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1203	●	●
79	BOLT; BRKT A/T<X9D> (C) M10X25 FLANGE	0-28651-025-0	02	1	1204-1306	●	●
79	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1307-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1011-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-048-0	01	1	1011-1306	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1307-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98154-049-0	01	1	1011-1306		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1307-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1011-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98131-414-0	01	1	1011-1306	●	●
280	HOSE; P/S OIL PUMP,INL	8-98246-644-0	01	1	1307-	●	●

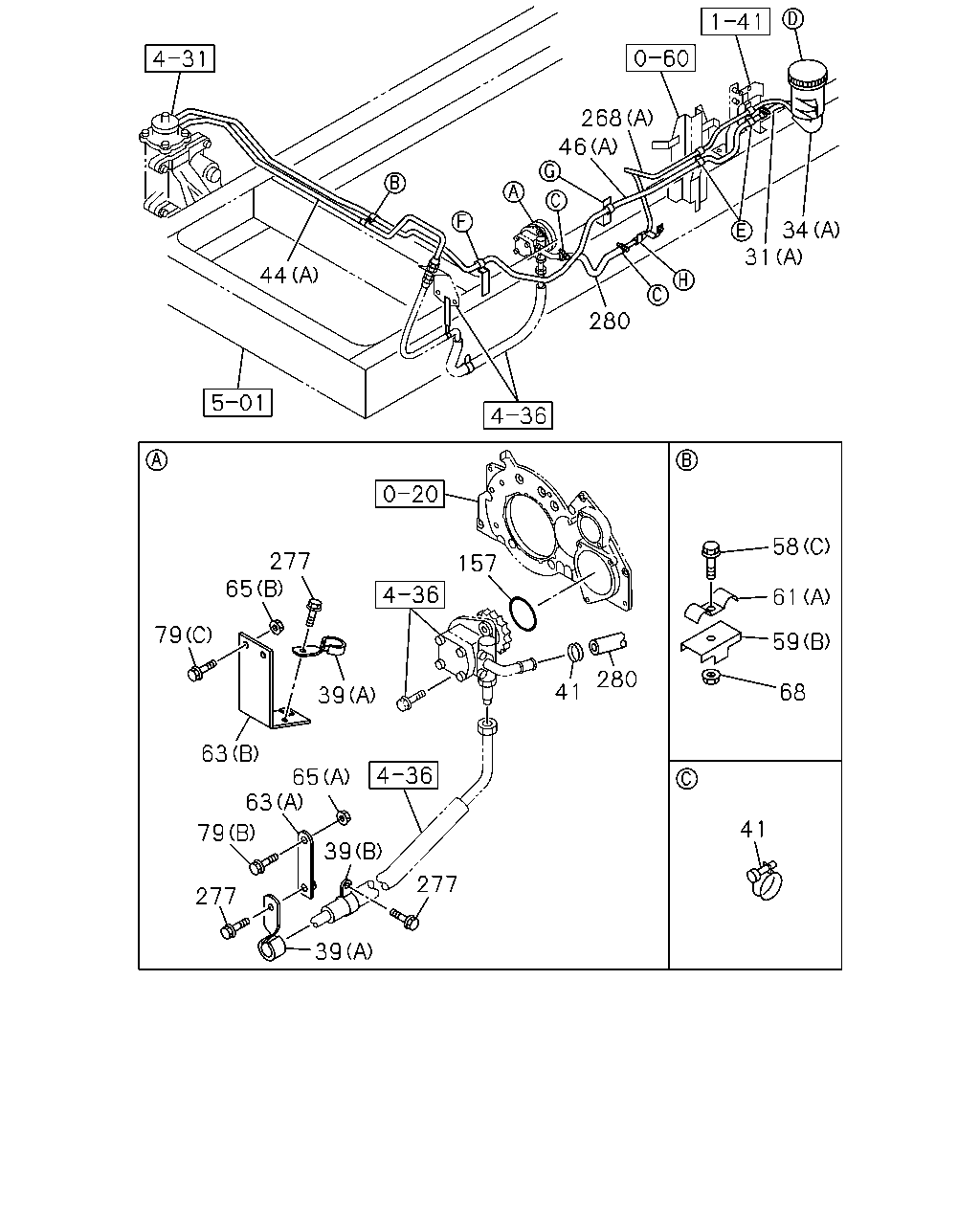

44 280 31 34 268 46 277 65 79 63 63 79 277 39 277 39 65 39 41 41 68 280 9 61 58 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1011-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1011-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1011-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1011-		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1011-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1011-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1011-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98182-041-0	01	1	1011-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	1011-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1011-	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1011-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1011-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-		●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1011-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1011-	●	●
63	BRACKET; CLIP,P/S MANUAL TRANSMISSION<X9C> (A)	1-47476-396-1	01	1	1204-1306	●	●
63	BRACKET; CLIP,P/S (A)	1-47476-396-1	01	1	1011-1203	●	●
63	BRACKET; CLIP,P/S A/T<X9D> (B)	8-98215-731-0	01	1	1204-1306	●	●
63	BRACKET; CLIP,P/S (B)	8-98215-731-0	01	1	1307-	●	●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> (A) M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
65	NUT; BRKT A/T<X9D> (B) M10 FLANGE	0-91180-210-0	02	1	1204-1306	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
79	BOLT; BRKT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28650-820-0	01	1	1204-1306	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1203	●	●
79	BOLT; BRKT A/T<X9D> (C) M10X25 FLANGE	0-28651-025-0	02	1	1204-1306	●	●
79	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1307-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1011-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-048-0	01	1	1011-1306	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1307-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98154-049-0	01	1	1011-1306		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1307-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1011-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98131-414-0	01	1	1011-1306	●	●
280	HOSE; P/S OIL PUMP,INL	8-98246-644-0	01	1	1307-	●	●

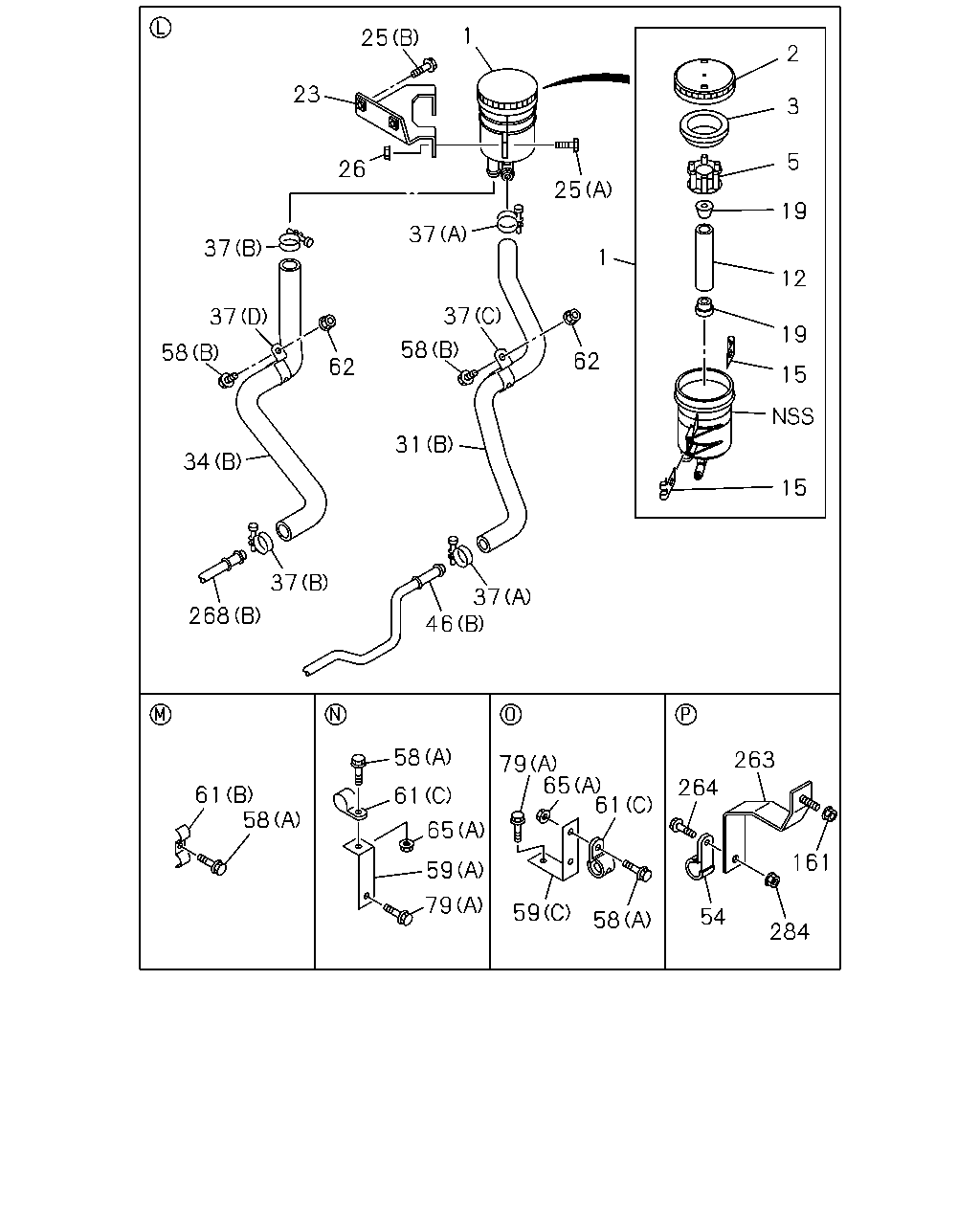

1 2 3 5 19 12 19 15 26 34 37 1 37 31 37 46 25 37 268 58 61 65 79 59 58 61 61 65 79 59 58 284 54 161 263 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1011-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1011-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1011-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1011-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1011-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1011-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1011-	●	●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1011-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1011-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1011-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1011-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1011-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1011-	●	●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1011-		●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1011-	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1011-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1011-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1011-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1011-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1011-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1011-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1011-	●	●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> (A) M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
65	NUT; BRKT A/T<X9D> (B) M10 FLANGE	0-91180-210-0	02	1	1204-1306	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
79	BOLT; BRKT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28650-820-0	01	1	1204-1306	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1203	●	●
79	BOLT; BRKT A/T<X9D> (C) M10X25 FLANGE	0-28651-025-0	02	1	1204-1306	●	●
79	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1307-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
161	NUT; P/S PIPE MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
263	BRACKET; P/S PIPE	8-98131-412-0	01	1	1011-1203	●	●
263	BRACKET; P/S PIPE MANUAL TRANSMISSION<X9C>	8-98131-412-0	01	1	1204-1306	●	●
263	BRACKET; P/S PIPE	8-98246-643-0	01	1	1307-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1011-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-048-0	01	1	1011-1306	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1307-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98154-049-0	01	1	1011-1306		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1307-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1011-	●	●

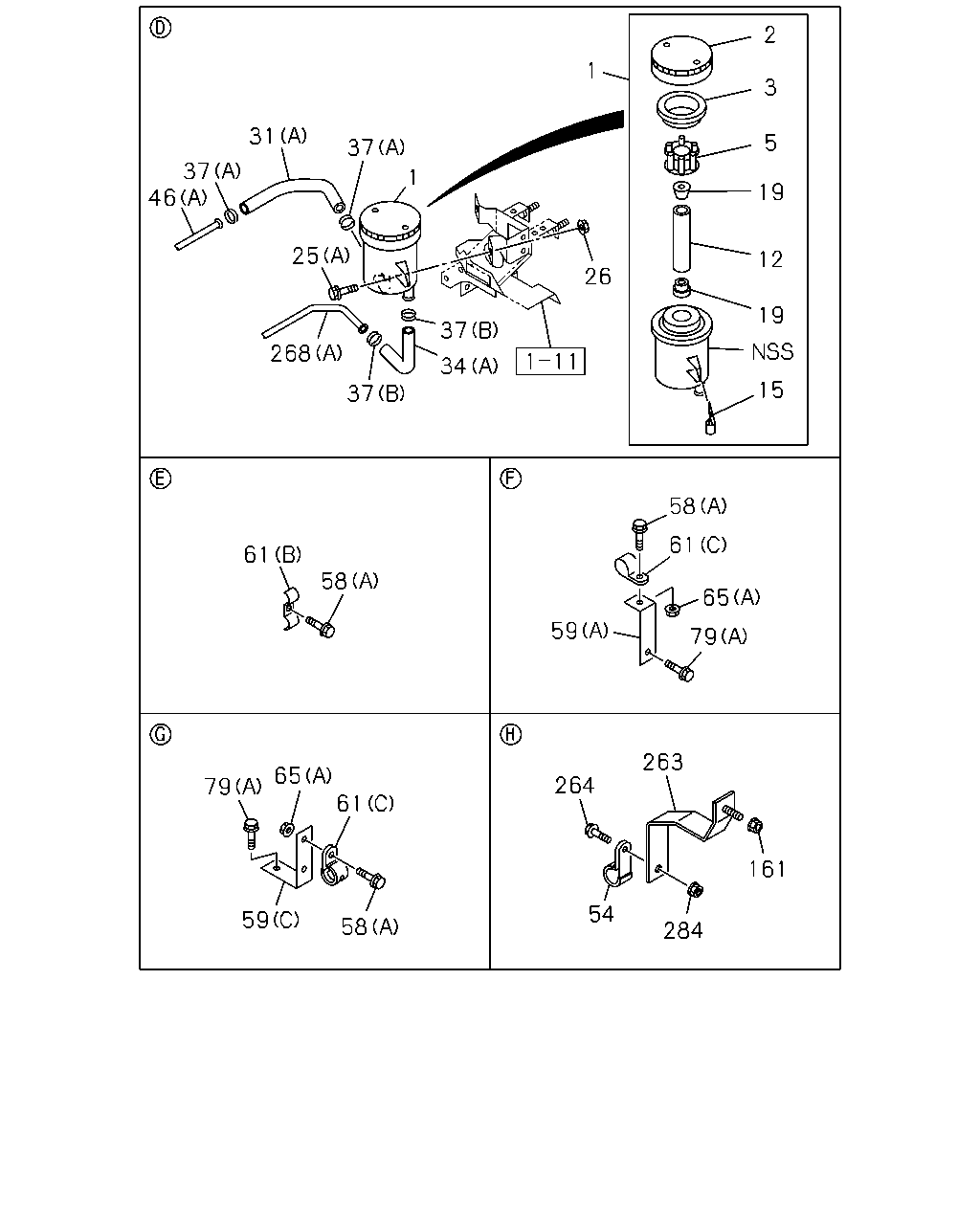

2 3 5 19 12 19 15 15 1 62 25 1 25 23 26 37 7 58 31 62 37 37 58 34 268 37 37 46 58 61 65 59 79 61 58 79 65 61 59 58 264 263 161 284 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1011-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1011-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1011-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1011-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1011-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1011-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1011-	●	●
23	BRACKET; OIL TANK,P/S	8-98125-268-0	01	1	1011-		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1011-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1011-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1011-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1011-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1011-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1011-	●	●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1011-		●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1011-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1011-	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1011-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1011-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1011-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1011-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1011-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1011-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1011-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1011-		●
65	NUT; BRKT MANUAL TRANSMISSION<X9C> (A) M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
65	NUT; BRKT A/T<X9D> (B) M10 FLANGE	0-91180-210-0	02	1	1204-1306	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
79	BOLT; BRKT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28650-820-0	01	1	1204-1306	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1203	●	●
79	BOLT; BRKT A/T<X9D> (C) M10X25 FLANGE	0-28651-025-0	02	1	1204-1306	●	●
79	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1307-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
161	NUT; P/S PIPE MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
263	BRACKET; P/S PIPE	8-98131-412-0	01	1	1011-1203	●	●
263	BRACKET; P/S PIPE MANUAL TRANSMISSION<X9C>	8-98131-412-0	01	1	1204-1306	●	●
263	BRACKET; P/S PIPE	8-98246-643-0	01	1	1307-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1011-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-048-0	01	1	1011-1306	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1307-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98154-049-0	01	1	1011-1306		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1307-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
