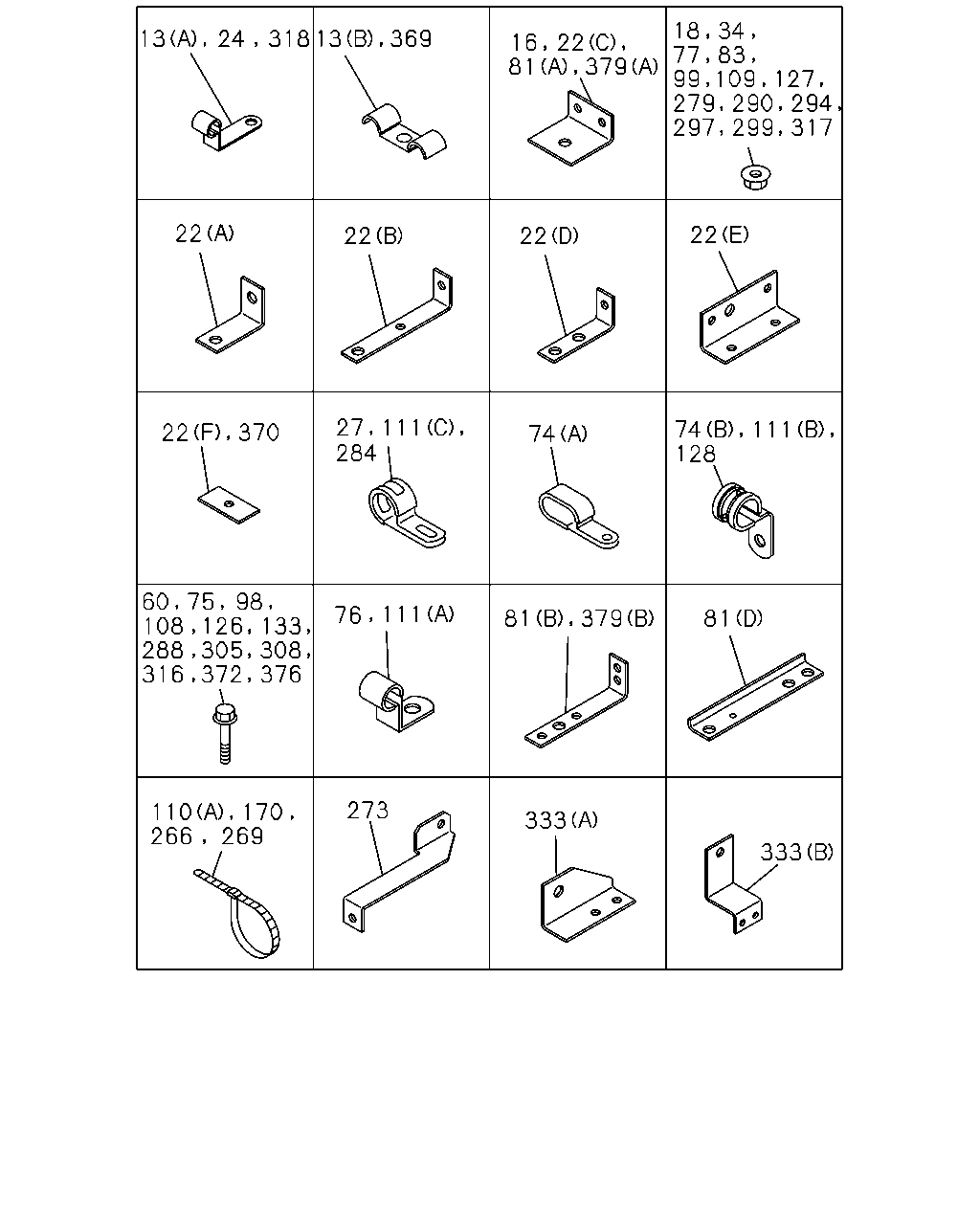

13 |
CLIP; AIR PIPE
EURO3 SPECIFICATION(NJX)
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
01 |
1 |
0107-0210 |
● |
|
| |
13 |
CLIP; AIR PIPE
6SD1 TC(32L)
EURO3 SPECIFICATION(NJX)
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
01 |
1 |
0211- |
● |
|
| |
13 |
CLIP; AIR PIPE
6SD1 TC-S(83L)
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
01 |
1 |
0211- |
● |
|
| |
13 |
CLIP; AIR PIPE
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
06 |
1 |
0012-0106 |
● |
● |
| |
13 |
CLIP; AIR PIPE
EXC. EURO3 SPECIFICATION(NJX)
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
06 |
1 |
0107-0203 |
● |
|
| |
13 |
CLIP; AIR PIPE
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
06 |
1 |
0107-0203 |
|
● |
| |
13 |
CLIP; AIR PIPE
6SD1 TC(32L)
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
06 |
1 |
0204- |
● |
● |
| |
13 |
CLIP; AIR PIPE
6WA1 TC-C(55L)
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
02 |
1 |
0204- |
|
● |
| |
13 |
CLIP; AIR PIPE
6WA1 TC-C(55L)
(B)
ID=7 & 7 L=17.5 & 17.5
|
1-09700-745-0 |
01 |
1 |
0204- |
|
● |
| |
16 |
BRACKET; PIPE CLIP
|
1-47478-422-0 |
01 |
1 |
0012- |
● |
|
| |
18 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0012-0106 |
● |
● |
| |
18 |
NUT; CLIP
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0203 |
● |
|
| |
18 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0203 |
|
● |
| |
18 |
NUT; CLIP
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0204-0602 |
● |
● |
| |
18 |
NUT; CLIP
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
22 |
BRACKET; CLIP
(A)
L=40
|
1-47478-410-0 |
01 |
1 |
0012- |
● |
|
| |
22 |
BRACKET; CLIP
(C)
|
1-47478-422-0 |
01 |
1 |
0012- |
● |
|
| |
22 |
BRACKET; CLIP
(D)
|
1-47478-901-0 |
02 |
1 |
0012- |
● |
|
| |
22 |
BRACKET; CLIP
(E)
|
1-47478-924-0 |
01 |
1 |
0012- |
● |
|
| |
22 |
BRACKET; CLIP
(B)
L=115 H=30
|
1-47477-715-3 |
01 |
1 |
0012-0203 |
● |
● |
| |
22 |
BRACKET; CLIP
6SD1 TC(32L)
(B)
L=115 H=30
|
1-47477-715-3 |
01 |
1 |
0204- |
● |
● |
| |
22 |
BRACKET; CLIP
(B)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0012-0812 |
● |
● |
| |
22 |
BRACKET; CLIP
(B)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0901- |
● |
|
| |
22 |
BRACKET; CLIP
6WA1 TC-C(55L)
(F)
L=50
|
1-47475-299-2 |
01 |
1 |
0204- |
|
● |
| |
22 |
BRACKET; CLIP
6WA1 TC-C(55L)
(A)
|
1-47479-237-0 |
01 |
1 |
0204- |
|
● |
| |
24 |
CLIP; PIPE
6WA1 TC-C(55L)
EXC. AIR DRYER<PS7>
ID=15 H=24 L=20
|
1-09700-606-0 |
01 |
1 |
0204- |
|
● |
| |
27 |
CLIP; FLEX HOSE
ID=19 L=28
|
9-09525-855-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
27 |
CLIP; FLEX HOSE
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
ID=19 L=28
|
9-09525-855-0 |
01 |
1 |
0107-0606 |
● |
● |
| |
27 |
CLIP; FLEX HOSE
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
ID=19 L=28
|
0-95235-855-0 |
01 |
1 |
0607- |
● |
● |
| |
34 |
NUT; BRKT
6WA1 TC-C(55L)
EXC. AIR DRYER<PS7>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0204-0602 |
|
● |
| |
34 |
NUT; BRKT
6WA1 TC-C(55L)
EXC. AIR DRYER<PS7>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
|
● |
| |
60 |
BOLT; CLIP FIX
6WA1 TC-C(55L)
EXC. AIR DRYER<PS7>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0204-0512 |
|
● |
| |
60 |
BOLT; CLIP FIX
6WA1 TC-C(55L)
EXC. AIR DRYER<PS7>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
|
● |
| |
74 |
CLIP; NYLON TUBE
(A)
ID=13X2 L=16
|
9-09535-225-0 |
02 |
1 |
0012-0606 |
● |
|
| |
74 |
CLIP; NYLON TUBE
(A)
ID=13X2 L=16
|
0-95325-225-0 |
02 |
1 |
0607- |
● |
|
| |
74 |
CLIP; NYLON TUBE
(B)
ID=25 H=30 L=35
|
1-09700-875-0 |
01 |
1 |
0012- |
|
● |
| |
75 |
BOLT; CLIP
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0512 |
● |
|
| |
75 |
BOLT; CLIP
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
|
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0107-0203 |
● |
● |
| |
75 |
BOLT; CLIP
EXC. EURO3 SPECIFICATION(NJX)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0107-0203 |
● |
|
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0107-0203 |
|
● |
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0204-0512 |
● |
● |
| |
75 |
BOLT; CLIP
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0204-0512 |
● |
● |
| |
75 |
BOLT; CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
● |
● |
| |
75 |
BOLT; CLIP
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
● |
● |
| |
75 |
BOLT; CLIP
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0512 |
|
● |
| |
75 |
BOLT; CLIP
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
|
● |
| |
76 |
CLIP; NYLON TUBE
ID=13 H=40 L=25
|
1-09700-620-0 |
01 |
1 |
0012- |
● |
● |
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0012-0106 |
● |
|
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0107-0203 |
● |
|
| |
77 |
NUT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0204-0602 |
● |
|
| |
77 |
NUT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
0603- |
● |
|
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0012-0106 |
● |
● |
| |
77 |
NUT; CLIP BRKT
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
● |
|
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
|
● |
| |
77 |
NUT; CLIP BRKT
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
32 |
1 |
0012-0106 |
● |
● |
| |
77 |
NUT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
08 |
1 |
0107-0602 |
● |
|
| |
77 |
NUT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0603- |
● |
|
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
32 |
1 |
0107-0602 |
● |
● |
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91180-108-0 |
32 |
1 |
0603- |
● |
● |
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
14 |
1 |
0012-0602 |
|
● |
| |
77 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91180-108-0 |
14 |
1 |
0603- |
|
● |
| |
81 |
BRACKET; CLIP
(A)
|
1-47478-422-0 |
02 |
1 |
0012- |
● |
● |
| |
81 |
BRACKET; CLIP
(B)
|
1-47478-903-0 |
06 |
1 |
0012- |
● |
● |
| |
81 |
BRACKET; CLIP
(C) L=628 11-HOLE MARK 909
|
1-47478-909-0 |
01 |
1 |
0012-0303 |
● |
● |
| |
81 |
BRACKET; CLIP
(C) L=628 11-HOLE MARK 557
|
1-47479-557-1 |
01 |
1 |
0304- |
● |
● |
| |
81 |
BRACKET; CLIP
(C) L=628 15-HOLE MARK 913
|
1-47478-913-0 |
02 |
1 |
0012- |
● |
● |
| |
81 |
BRACKET; CLIP
(D)
|
1-47478-952-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
81 |
BRACKET; CLIP
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
(D)
|
1-47478-952-0 |
01 |
1 |
0107- |
● |
● |
| |
83 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0602 |
|
● |
| |
83 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
|
● |
| |
98 |
BOLT; PIPE CLIP
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0012-0512 |
● |
|
| |
98 |
BOLT; PIPE CLIP
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
0601- |
● |
|
| |
99 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0602 |
● |
|
| |
99 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0512 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601-0812 |
● |
● |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0901- |
● |
|
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0602 |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603-0812 |
● |
● |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0901- |
● |
|
| |
110 |
CLIP; BAND,NYLON TUBE
(B)
ID=13 L=50
|
1-09700-027-1 |
01 |
1 |
0901- |
|
● |
| |
110 |
CLIP; BAND,NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
L=250
|
1-09707-126-0 |
02 |
1 |
0012- |
● |
|
| |
110 |
CLIP; BAND,NYLON TUBE
(A)
L=250
|
1-09707-126-0 |
05 |
1 |
0012-0812 |
|
● |
| |
110 |
CLIP; BAND,NYLON TUBE
(A)
L=250
|
1-09707-126-0 |
04 |
1 |
0901- |
|
● |
| |
111 |
CLIP; AIR PIPE
(A)
ID=13 H=40 L=25
|
1-09700-620-0 |
02 |
1 |
0012- |
● |
|
| |
111 |
CLIP; AIR PIPE
(B)
ID=25 H=30 L=35
|
1-09700-875-0 |
02 |
1 |
0012- |
● |
|
| |
111 |
CLIP; AIR PIPE
(C)
ID=13 L=50
|
9-09525-286-0 |
01 |
1 |
0012-0606 |
● |
|
| |
111 |
CLIP; AIR PIPE
(C)
ID=13 L=50
|
0-95235-286-0 |
01 |
1 |
0607- |
● |
|
| |
126 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0512 |
● |
|
| |
126 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
|
| |
127 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0012-0602 |
● |
|
| |
127 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
● |
|
| |
128 |
CLIP; NYLON TUBE
ID=25 H=30 L=35
|
1-09700-875-0 |
01 |
1 |
0012- |
● |
|
| |
133 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0106 |
● |
● |
| |
133 |
BOLT; BRKT
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0107-0512 |
● |
● |
| |
133 |
BOLT; BRKT
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
| |
170 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
23 |
1 |
0012-0102 |
● |
|
| |
170 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
28 |
1 |
0103-0109 |
● |
|
| |
170 |
CLIP; NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
28 |
1 |
0110-0203 |
● |
|
| |
170 |
CLIP; NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
28 |
1 |
0204-0207 |
● |
|
| |
170 |
CLIP; NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
29 |
1 |
0208- |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
26 |
1 |
0110-0207 |
● |
|
| |
170 |
CLIP; NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
27 |
1 |
0208- |
● |
|
| |
170 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
22 |
1 |
0012-0109 |
|
● |
| |
170 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
17 |
1 |
0110-0207 |
|
● |
| |
170 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
18 |
1 |
0208- |
|
● |
| |
266 |
CLIP; NYLON TUBE
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
29 |
1 |
0810- |
● |
|
| |
266 |
CLIP; NYLON TUBE
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
33 |
1 |
0810- |
● |
|
| |
266 |
CLIP; NYLON TUBE
A/T<X9D>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. EURO3 SPECIFICATION(NJX),ANTI SKID BRK
SYSTEM<SFL>
L=250
|
1-09707-126-0 |
24 |
1 |
0204- |
● |
|
| |
266 |
CLIP; NYLON TUBE
A/T<X9D>
EXC. EURO3 SPECIFICATION(NJX),ANTI SKID BRK
SYSTEM<SFL>,DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
22 |
1 |
0204- |
● |
|
| |
266 |
CLIP; NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
31 |
1 |
0012-0106 |
● |
|
| |
266 |
CLIP; NYLON TUBE
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
31 |
1 |
0107-0203 |
● |
|
| |
266 |
CLIP; NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
31 |
1 |
0204-0809 |
● |
|
| |
266 |
CLIP; NYLON TUBE
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
31 |
1 |
0810- |
● |
|
| |
266 |
CLIP; NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
29 |
1 |
0012-0106 |
● |
|
| |
266 |
CLIP; NYLON TUBE
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
29 |
1 |
0107-0203 |
● |
|
| |
266 |
CLIP; NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
29 |
1 |
0204-0809 |
● |
|
| |
266 |
CLIP; NYLON TUBE
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
35 |
1 |
0810- |
● |
|
| |
266 |
CLIP; NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
23 |
1 |
0012-0106 |
● |
|
| |
266 |
CLIP; NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
24 |
1 |
0107-0109 |
● |
|
| |
266 |
CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
25 |
1 |
0012-0106 |
● |
|
| |
266 |
CLIP; NYLON TUBE
EURO3 SPECIFICATION(NJX)
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
26 |
1 |
0107-0109 |
● |
|
| |
266 |
CLIP; NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
23 |
1 |
0110-0203 |
● |
|
| |
266 |
CLIP; NYLON TUBE
ISUZU M/T<X9A>
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
23 |
1 |
0204- |
● |
|
| |
266 |
CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. EURO3 SPECIFICATION(NJX)
L=250
|
1-09707-126-0 |
25 |
1 |
0107-0109 |
● |
|
| |
266 |
CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
25 |
1 |
0110-0203 |
● |
|
| |
266 |
CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
ISUZU M/T<X9A>
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
25 |
1 |
0204- |
● |
|
| |
266 |
CLIP; NYLON TUBE
EXC. EURO3 SPECIFICATION(NJX),DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
L=250
|
1-09707-126-0 |
23 |
1 |
0107-0109 |
● |
|
| |
266 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
21 |
1 |
0012- |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
L=250
|
1-09707-126-0 |
02 |
1 |
0012-0109 |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
L=250
|
1-09707-126-0 |
02 |
1 |
0110- |
● |
● |
| |
269 |
CLIP; BAND,NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
05 |
1 |
0012-0106 |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
L=250
|
1-09707-126-0 |
05 |
1 |
0012-0106 |
|
● |
| |
269 |
CLIP; BAND,NYLON TUBE
L=250
|
1-09707-126-0 |
05 |
1 |
0107-0109 |
● |
● |
| |
269 |
CLIP; BAND,NYLON TUBE
ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
05 |
1 |
0110- |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
04 |
1 |
0012-0109 |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
EXC. ANTI SKID BRK SYSTEM<SFL>
L=250
|
1-09707-126-0 |
04 |
1 |
0110- |
● |
|
| |
269 |
CLIP; BAND,NYLON TUBE
L=250
|
1-09707-126-0 |
04 |
1 |
0110- |
|
● |
| |
273 |
BRACKET; CLIP
|
1-47479-081-1 |
01 |
1 |
0012-0106 |
● |
● |
| |
273 |
BRACKET; CLIP
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
|
1-47479-081-1 |
01 |
1 |
0107- |
● |
● |
| |
279 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
279 |
NUT; BRKT
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0107-0602 |
● |
● |
| |
279 |
NUT; BRKT
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
| |
284 |
CLIP; FLEX HOSE
ID=14.5 L=20
|
1-09701-012-0 |
04 |
1 |
0012- |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0210 |
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
6SD1 TC(32L)
EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0211-0512 |
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
6SD1 TC-S(83L)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0211-0512 |
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
6SD1 TC(32L)
EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
6SD1 TC-S(83L)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
|
0-28680-825-0 |
06 |
1 |
0012-0106 |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
06 |
1 |
0107-0203 |
● |
|
| |
288 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
|
0-28680-825-0 |
06 |
1 |
0107-0203 |
|
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6SD1 TC(32L)
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
06 |
1 |
0204-0512 |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6SD1 TC(32L)
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
06 |
1 |
0601- |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6WA1 TC-C(55L)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
0204-0512 |
|
● |
| |
288 |
BOLT; CLIP,AIR PIPE
6WA1 TC-C(55L)
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
0601- |
|
● |
| |
290 |
NUT; CLIP,AIR PIPE
EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0107-0210 |
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
6SD1 TC(32L)
EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0211-0602 |
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
6SD1 TC-S(83L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0211-0602 |
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
6SD1 TC(32L)
EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
6SD1 TC-S(83L)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0012-0106 |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0107-0203 |
● |
|
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0107-0203 |
|
● |
| |
290 |
NUT; CLIP,AIR PIPE
6SD1 TC(32L)
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
06 |
1 |
0204-0602 |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
6SD1 TC(32L)
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
0603- |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
6WA1 TC-C(55L)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0204-0602 |
|
● |
| |
290 |
NUT; CLIP,AIR PIPE
6WA1 TC-C(55L)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
● |
| |
294 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0602 |
● |
|
| |
294 |
NUT; CLIP,AIR PIPE
AIR DRYER<PS7>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0602 |
|
● |
| |
294 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
| |
294 |
NUT; CLIP,AIR PIPE
AIR DRYER<PS7>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
|
● |
| |
297 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
36 |
1 |
0012-0602 |
● |
● |
| |
297 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
36 |
1 |
0603- |
● |
● |
| |
297 |
NUT; BRKT
6WA1 TC-C(55L)
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0204-0602 |
|
● |
| |
297 |
NUT; BRKT
6WA1 TC-C(55L)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
|
● |
| |
299 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0012-0602 |
● |
● |
| |
299 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
| |
305 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0106 |
● |
● |
| |
305 |
BOLT; CLIP BRKT
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0107-0203 |
● |
|
| |
305 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0107-0203 |
|
● |
| |
305 |
BOLT; CLIP BRKT
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0204-0512 |
● |
● |
| |
305 |
BOLT; CLIP BRKT
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
● |
| |
308 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0512 |
● |
|
| |
308 |
BOLT; CLIP,AIR PIPE
AIR DRYER<PS7>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0512 |
|
● |
| |
308 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
|
| |
308 |
BOLT; CLIP,AIR PIPE
AIR DRYER<PS7>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
|
● |
| |
316 |
BOLT; CLIP
6WA1 TC-C(55L)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0204-0512 |
|
● |
| |
316 |
BOLT; CLIP
6WA1 TC-C(55L)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
|
● |
| |
317 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
317 |
NUT; CLIP
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0107-0602 |
● |
● |
| |
317 |
NUT; CLIP
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
● |
| |
317 |
NUT; CLIP
6WA1 TC-C(55L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0204-0602 |
|
● |
| |
317 |
NUT; CLIP
6WA1 TC-C(55L)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
318 |
CLIP; AIR PIPE
6WA1 TC-C(55L)
ID=6 H=20 L=20
|
1-09700-603-0 |
02 |
1 |
0204- |
|
● |
| |
333 |
BRACKET; BRK AIR PIPE
(A)
|
1-47478-951-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
333 |
BRACKET; BRK AIR PIPE
EXC. EURO3 SPECIFICATION(NJX)
(A)
|
1-47478-951-0 |
01 |
1 |
0107-0203 |
● |
|
| |
333 |
BRACKET; BRK AIR PIPE
(A)
|
1-47478-951-0 |
01 |
1 |
0107-0203 |
|
● |
| |
333 |
BRACKET; BRK AIR PIPE
6SD1 TC(32L)
ISUZU M/T<X9A>
EXC. EURO3 SPECIFICATION(NJX)
(A)
|
1-47478-951-0 |
01 |
1 |
0204- |
● |
● |
| |
333 |
BRACKET; BRK AIR PIPE
6WA1 TC-C(55L)
(B)
|
1-47478-733-0 |
01 |
1 |
0204- |
|
● |
| |
369 |
CLIP; AIR PIPE
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0012- |
● |
|
| |
369 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0012- |
|
● |
| |
370 |
BRACKET; PIPE CLIP
L=50
|
1-47475-299-2 |
01 |
1 |
0012- |
● |
|
| |
370 |
BRACKET; PIPE CLIP
AIR DRYER<PS7>
L=50
|
1-47475-299-2 |
01 |
1 |
0012- |
|
● |
| |
372 |
BOLT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
16 |
1 |
0107-0512 |
● |
|
| |
372 |
BOLT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
16 |
1 |
0601- |
● |
|
| |
372 |
BOLT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
68 |
1 |
0107-0512 |
● |
|
| |
372 |
BOLT; CLIP BRKT
EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
68 |
1 |
0601- |
● |
|
| |
372 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0106 |
● |
● |
| |
372 |
BOLT; CLIP BRKT
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0107-0512 |
● |
|
| |
372 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0107-0512 |
|
● |
| |
372 |
BOLT; CLIP BRKT
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
● |
|
| |
372 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601- |
|
● |
| |
372 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
82 |
1 |
0012-0106 |
● |
● |
| |
372 |
BOLT; CLIP BRKT
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
82 |
1 |
0107-0512 |
● |
|
| |
372 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
82 |
1 |
0107-0512 |
|
● |
| |
372 |
BOLT; CLIP BRKT
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
82 |
1 |
0601- |
● |
|
| |
372 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28650-825-0 |
82 |
1 |
0601- |
|
● |
| |
376 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0106 |
● |
● |
| |
376 |
BOLT; BRKT
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0512 |
● |
● |
| |
376 |
BOLT; BRKT
6SD1 TC(32L)
EXC. EURO3 SPECIFICATION(NJX)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
● |
| |
379 |
BRACKET; NYLON TUBE
(A)
|
1-47478-422-0 |
01 |
1 |
0012- |
● |
● |
| |
379 |
BRACKET; NYLON TUBE
(B)
|
1-47478-903-0 |
04 |
1 |
0012- |
● |
● |
| |
379 |
BRACKET; NYLON TUBE
(C) L=628 7-HOLE MARK 904
|
1-47478-904-0 |
01 |
1 |
0012-0303 |
● |
● |
| |
379 |
BRACKET; NYLON TUBE
(C) L=628 7-HOLE MARK 555
|
1-47479-555-0 |
01 |
1 |
0304- |
● |
● |
| |
379 |
BRACKET; NYLON TUBE
(C) L=628 11-HOLE MARK 906
|
1-47478-906-0 |
01 |
1 |
0012-0303 |
● |
● |
| |
379 |
BRACKET; NYLON TUBE
(C) L=628 11-HOLE MARK 556
|
1-47479-556-0 |
01 |
1 |
0304- |
● |
● |
