0-84 — FEED PUMP; INJECTION PUMP (#711) — 54 parça

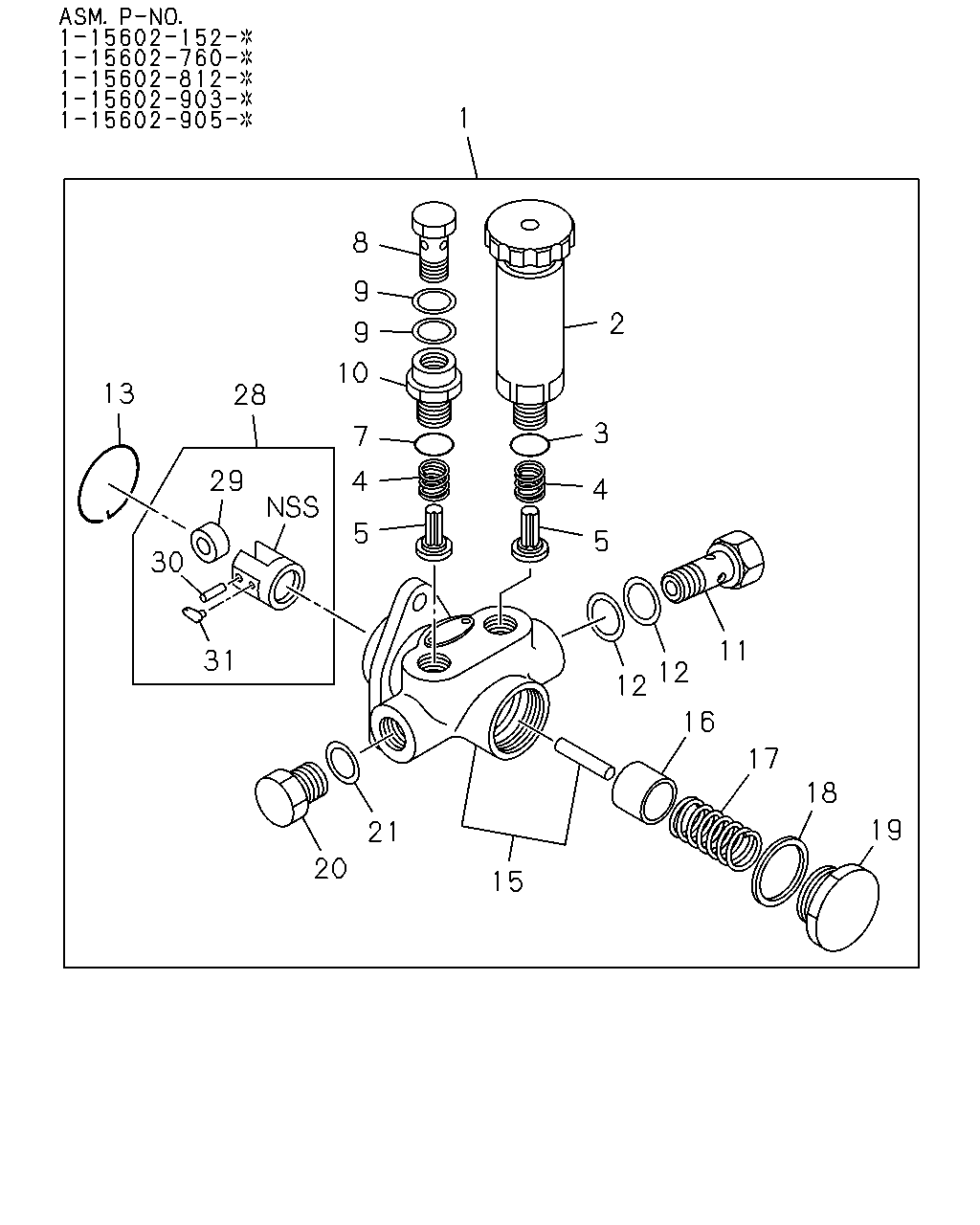

1 8 9 2 9 10 13 28 3 7 29 4 4 30 5 5 11 31 12 12 16 17 18 19 21 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94393-459-2	1-15750-113-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-003-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94393-459-2	1-15751-027-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: F = 8-94393-459-2	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94393-459-2	1-15759-007-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15754-002-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-043-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-416-0	02	1	-

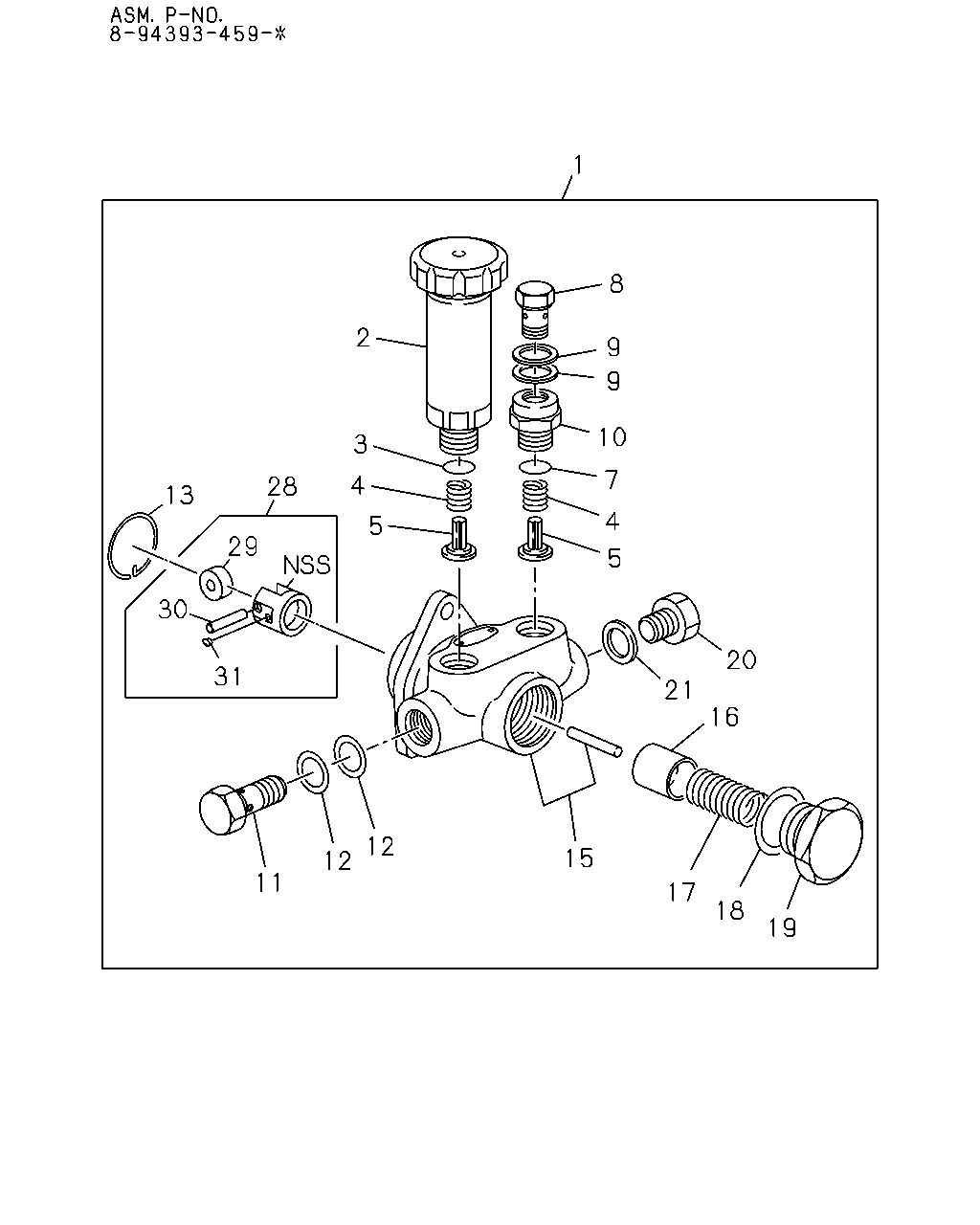

1 8 2 9 9 10 3 7 4 28 13 4 5 29 5 30 20 31 21 16 12 15 12 11 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94393-459-2	1-15750-113-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-003-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94393-459-2	1-15751-027-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: F = 8-94393-459-2	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94393-459-2	1-15759-007-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15754-002-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	1-15759-043-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-760-1, C = 1-15602-812-0, D = 1-15602-903-0, E = 1-15602-905-0, F = 8-94393-459-2	9-81351-416-0	02	1	-
