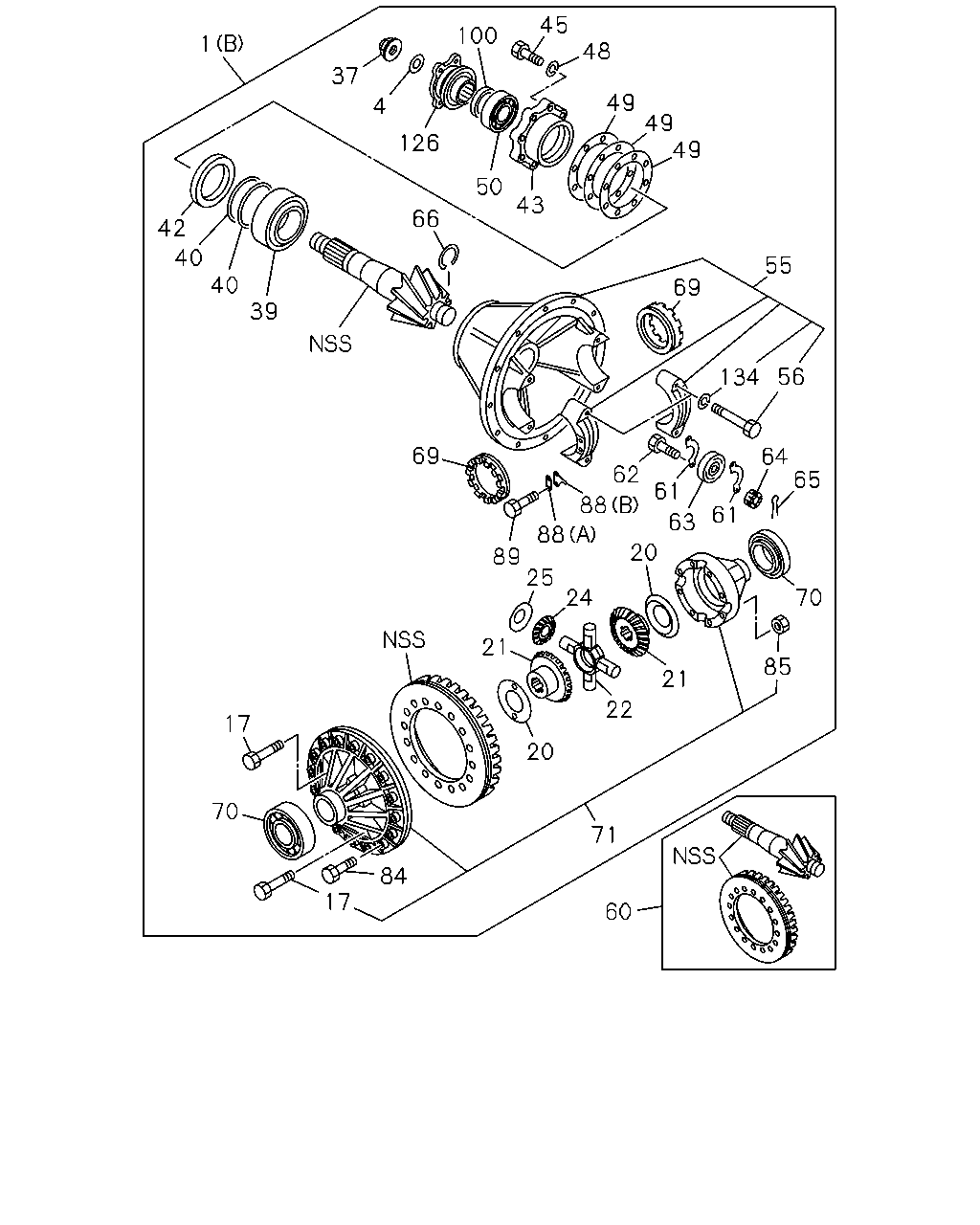

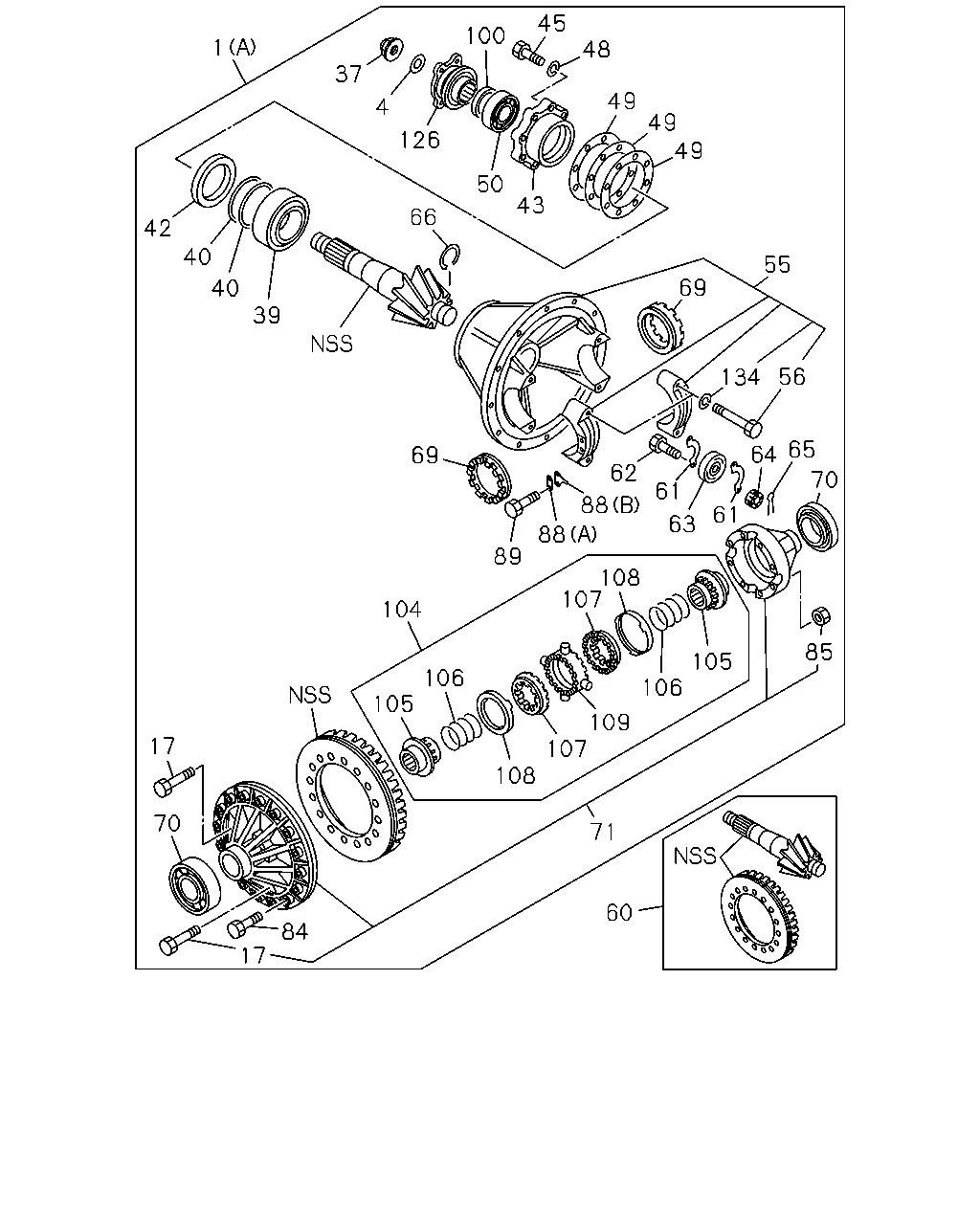

4-25 — REAR FINAL DRIVE (#71099) — 422 parça

1 42 40 40 39 37 4 126 50 43 100 45 48 49 49 49 55 69 134 56 66 69 89 88 88 62 61 63 61 64 65 70 104 105 106 107 108 85 105 106 109 107 108 17 70 17 84 71 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 43/7	1-41001-256-0	01	1	1307-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 41/7	1-41001-598-0	01	1	1307-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/7	1-41001-596-0	01	1	1307-		●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41001-548-0	01	1	1204-1306	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 43/7	1-41001-548-0	01	1	1307-	●
1	DRIVE ASM; FINAL,RR (A) 39/6	1-41001-549-0	01	1	1204-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-257-0	01	1	1110-				●
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41001-547-0	01	1	1011-1109				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-547-0	01	1	1110-				●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2<G86> ID=42	1-09623-475-0	01	1	1307-1307		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1011-1203				●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1204-1306	●		●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1307-1307	●		●	●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2<G86> ID=42	9-09921-116-0	01	1	1307-1307		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1307-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1011-1203				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1204-1306	●		●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1307-	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1011-1203				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1204-1306	●		●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1307-	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1011-1203				●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1204-1306	●		●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1307-	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1011-1203				●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1204-1306	●		●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1307-	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1011-1203				●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1204-1306	●		●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1307-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1011-1203				●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1204-1306	●		●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1307-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1011-1203				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1204-1306	●		●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1307-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1011-1203				●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1204-1306	●		●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1307-1307	●		●	●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09812-042-1	01	1	1307-1307		●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1307-	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1011-1203				●
55	CARRIER; DIFF	1-41110-052-0	01	1	1204-1306	●		●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1307-	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1011-1203				●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1204-1306	●		●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1307-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	1307-		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	1204-1306	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	1307-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	1204-			●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1011-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1011-1203				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1204-1306	●		●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1307-	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1011-1203				●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1204-1306	●		●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1307-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1011-1203				●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1204-1306	●		●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1307-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1011-1203				●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1204-1306	●		●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1307-	●	●	●	●
64	NUT; RET LIMITED SLIP DIFF VAR2<G86> M8 SLOTTED	9-09117-508-0	02	1	1307-		●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1011-1203				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1204-1306	●		●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1307-	●		●	●
64	NUT; RET EXC. LIMITED SLIP DIFF VAR2<G86> M8 SLOTTED	0-91117-508-0	02	1	1307-		●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1011-1203				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1204-1306	●		●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1307-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1011-1203				●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1204-1306	●		●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1011-1203				●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1204-1306	●		●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1011-1203				●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1204-1306	●		●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1307-	●	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1011-1203				●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1204-1306	●		●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1307-	●	●	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1011-1203				●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1204-1306	●		●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1011-1203				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1204-1306	●		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1307-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1011-1203				●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1204-1306	●		●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1307-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1011-1203				●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1204-1306	●		●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1307-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1011-1203				●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1204-1306	●		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1307-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1011-1203				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1204-1306	●		●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1307-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1011-1203				●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1204-1306	●		●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1307-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1011-1203				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1204-1306	●		●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1307-	●	●	●	●
104	DIFF ASM; NO SPIN	1-41530-040-0	01	1	1011-1109				●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-040-0	01	1	1110-1203				●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-040-0	01	1	1204-1306				●
104	DIFF ASM; NO SPIN	1-41530-040-0	01	1	1204-1306	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-040-0	01	1	1307-	●	●	●	●
105	GEAR; SIDE	1-41561-100-0	02	1	1011-1109				●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-100-0	02	1	1110-1203				●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-100-0	02	1	1204-1306				●
105	GEAR; SIDE	1-41561-100-0	02	1	1204-1306	●		●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-100-0	02	1	1307-	●	●	●	●
106	SPRING; NO SPIN DIFF	1-09580-314-0	02	1	1011-1109				●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	1110-1203				●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	1204-1306				●
106	SPRING; NO SPIN DIFF	1-09580-314-0	02	1	1204-1306	●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	1307-	●	●	●	●
107	CLUTCH; DRIVEN	1-41532-003-0	02	1	1011-1109				●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	1110-1203				●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	1204-1306				●
107	CLUTCH; DRIVEN	1-41532-003-0	02	1	1204-1306	●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	1307-	●	●	●	●
108	RING; HOLD OUT	1-41539-032-0	02	1	1011-1109				●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	1110-1203				●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	1204-1306				●
108	RING; HOLD OUT	1-41539-032-0	02	1	1204-1306	●		●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	1307-	●	●	●	●
109	SPIDER; DIFF	1-41521-034-0	01	1	1011-1109				●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	1110-1203				●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	1204-1306				●
109	SPIDER; DIFF	1-41521-034-0	01	1	1204-1306	●		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2<G86>	1-37245-215-3	01	1	1307-1307		●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1011-1203				●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1204-1306	●		●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1307-1307	●		●	●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-37245-388-0	01	1	1307-1307		●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1307-	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1011-1203				●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1204-1306	●		●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1307-	●	●	●	●

1 42 40 40 39 66 50 43 126 4 37 100 45 48 49 49 49 55 69 134 56 69 89 88 88 62 61 63 61 64 65 20 25 24 21 20 22 21 85 70 17 70 17 84 71 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 43/7	1-41001-256-0	01	1	1307-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 41/7	1-41001-598-0	01	1	1307-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 41/7	1-41001-596-0	01	1	1307-		●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41001-548-0	01	1	1204-1306	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 43/7	1-41001-548-0	01	1	1307-	●
1	DRIVE ASM; FINAL,RR (A) 39/6	1-41001-549-0	01	1	1204-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-257-0	01	1	1110-				●
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41001-547-0	01	1	1011-1109				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-547-0	01	1	1110-				●
4	GASKET; FLANGE,FINAL PINION LIMITED SLIP DIFF VAR2<G86> ID=42	1-09623-475-0	01	1	1307-1307		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1011-1203				●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1204-1306	●		●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1307-1307	●		●	●
4	GASKET; FLANGE,FINAL PINION EXC. LIMITED SLIP DIFF VAR2<G86> ID=42	9-09921-116-0	01	1	1307-1307		●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1307-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1011-1203				●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1204-1306	●		●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1307-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.75	1-41562-139-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.75	1-41562-139-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-140-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-140-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.85	1-41562-141-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.85	1-41562-141-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-142-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-142-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.95	1-41562-143-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.95	1-41562-143-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-144-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-144-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.05	1-41562-145-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.05	1-41562-145-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-146-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-146-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.15	1-41562-147-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.15	1-41562-147-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-148-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-148-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.25	1-41562-149-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.25	1-41562-149-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-150-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-150-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.35	1-41562-151-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.35	1-41562-151-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-152-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-152-0	AR	1	1307-	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.45	1-41562-153-0	AR	1	1110-1306				●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.45	1-41562-153-0	AR	1	1307-	●	●		●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-159-0	02	1	1110-1306				●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-159-1	02	1	1307-	●	●		●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-061-0	01	1	1110-1306				●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-061-0	01	1	1307-	●	●		●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-051-0	04	1	1110-1306				●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-051-0	04	1	1307-	●	●		●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41552-012-0	04	1	1110-1306				●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41552-012-0	04	1	1307-	●	●		●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1011-1203				●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1204-1306	●		●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1307-	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1011-1203				●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1204-1306	●		●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1307-	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1011-1203				●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1204-1306	●		●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1307-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1011-1203				●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1204-1306	●		●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1307-	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1011-1203				●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1204-1306	●		●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1307-	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1011-1203				●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1204-1306	●		●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1307-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1011-1203				●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1204-1306	●		●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1011-1203				●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1204-1306	●		●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1307-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1011-1203				●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1204-1306	●		●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1307-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1011-1203				●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1204-1306	●		●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1307-1307	●		●	●
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09812-042-1	01	1	1307-1307		●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1307-	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1011-1203				●
55	CARRIER; DIFF	1-41110-052-0	01	1	1204-1306	●		●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	1307-	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1011-1203				●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1204-1306	●		●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1307-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	1307-		●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	1204-1306	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	1307-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	1204-			●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1011-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1011-1203				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1204-1306	●		●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1307-	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1011-1203				●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1204-1306	●		●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1307-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1011-1203				●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1204-1306	●		●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1307-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1011-1203				●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1204-1306	●		●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1307-	●	●	●	●
64	NUT; RET LIMITED SLIP DIFF VAR2<G86> M8 SLOTTED	9-09117-508-0	02	1	1307-		●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1011-1203				●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1204-1306	●		●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1307-	●		●	●
64	NUT; RET EXC. LIMITED SLIP DIFF VAR2<G86> M8 SLOTTED	0-91117-508-0	02	1	1307-		●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1011-1203				●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1204-1306	●		●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1307-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1011-1203				●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1204-1306	●		●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1011-1203				●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1204-1306	●		●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1011-1203				●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1204-1306	●		●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1307-	●	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1011-1203				●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1204-1306	●		●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1307-	●	●	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1011-1203				●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1204-1306	●		●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1011-1203				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1204-1306	●		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1307-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1011-1203				●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1204-1306	●		●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1307-	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1011-1203				●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1204-1306	●		●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1307-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1011-1203				●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1204-1306	●		●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1307-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1011-1203				●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1204-1306	●		●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1307-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1011-1203				●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1204-1306	●		●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1307-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1011-1203				●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1204-1306	●		●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF VAR2<G86>	1-37245-215-3	01	1	1307-1307		●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1011-1203				●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1204-1306	●		●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1307-1307	●		●	●
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-37245-388-0	01	1	1307-1307		●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1307-	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1011-1203				●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1204-1306	●		●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1307-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
