4-20 — REAR AXLE CASE AND SHAFT (#71098) — 55 parça

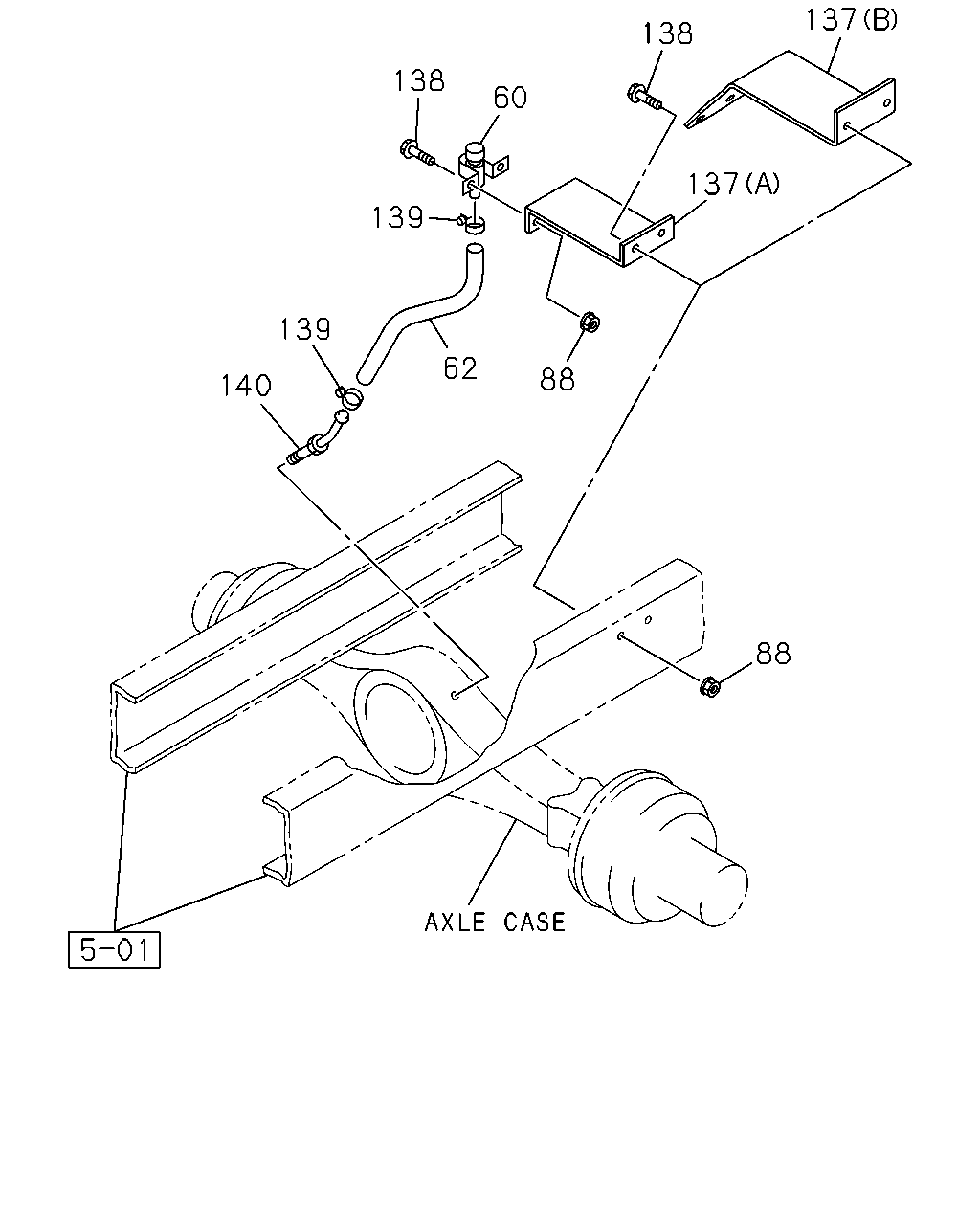

137 138 137 60 88 62 138 139 139 140 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	BREATHER; RR AXLE CASE	1-09893-009-0	01	1	1011-	●	●
62	HOSE; RUBBER,BREATHER,RR AXLE LCT2000 A/T ALLISON(Y4F)	0-02811-450-0	01	1	1204-1306	●	●
62	HOSE; RUBBER,BREATHER,RR AXLE LCT2500 A/T ALLISON(Y5W)	0-02811-450-0	01	1	1307-	●	●
62	HOSE; RUBBER,BREATHER,RR AXLE	0-02811-400-0	01	1	1011-1203	●	●
62	HOSE; RUBBER,BREATHER,RR AXLE MZW6P M/T(RSZ)	0-02811-400-0	01	1	1204-	●	●
88	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1306	●	●
88	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
88	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
137	BRACKET; BREATHER,RR AXLE (A)	1-42129-122-0	01	1	1011-1306	●	●
137	BRACKET; BREATHER,RR AXLE (B)	8-98248-945-0	01	1	1307-	●	●
138	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1011-	●	●
138	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
139	CLIP; WIRE ID=18	1-09707-011-1	01	1	1011-1306	●	●
139	CLIP; WIRE ID=18	1-09707-011-1	01	1	1307-	●	●
139	CLIP; WIRE ID=18	1-09707-011-1	01	1	1307-	●	●
140	CONNECTOR; AXLE CASE	1-09669-080-2	01	1	1011-	●	●

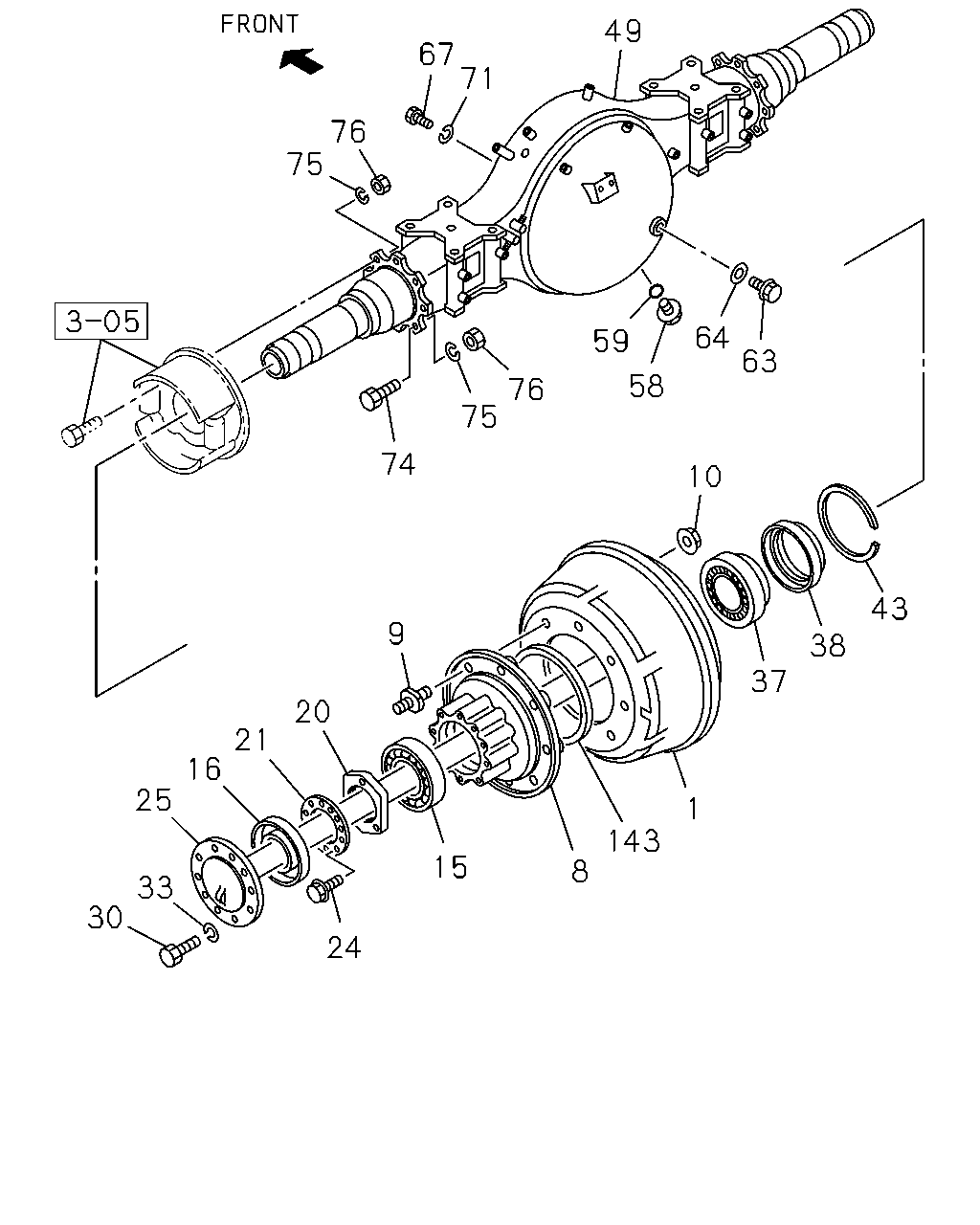

43 10 38 63 64 49 67 76 75 75 76 74 71 9 20 21 16 25 30 24 33 15 8 143 1 37 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-355-0	02	1	1011-	●	●
8	HUB; RR AXLE	1-42311-104-0	02	1	1011-1306	●	●
8	HUB; RR AXLE	1-42311-105-0	02	1	1307-	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1011-	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1011-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	16	1	1011-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1011-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1011-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1011-1306	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1011-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1011-	●	●
25	SHAFT; AXLE,RR L=1020	1-42171-434-0	02	1	1011-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1011-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1011-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1011-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1011-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1011-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1011-	●	●
49	CASE; RR AXLE	8-98053-660-2	01	1	1011-1306	●	●
49	CASE; RR AXLE	8-98245-409-1	01	1	1307-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1011-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1011-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1011-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1011-	●	●
67	BOLT; FINAL DRIVE SETTING M14X40	0-20951-440-0	08	1	1011-	●	●
67	BOLT; FINAL DRIVE SETTING M14X65	9-92061-465-0	04	1	1011-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=14.2	0-91510-814-0	12	1	1011-	●	●
74	BOLT; RR BRK ASM SETTING M14X80	9-92621-480-0	04	1	1307-1504	●	●
74	BOLT; RR BRK ASM SETTING M14X60	1-09040-084-0	04	1	1505-1505	●	●
74	BOLT; RR BRK ASM SETTING M14X80	9-92621-480-0	04	1	1506-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	1011-1306	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	10	1	1307-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1011-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1011-	●	●
143	RING; EXCITER	1-42319-173-0	02	1	1307-	●	●
