4-12 — FRONT DRIVE SHAFT (#71096) — 156 parça

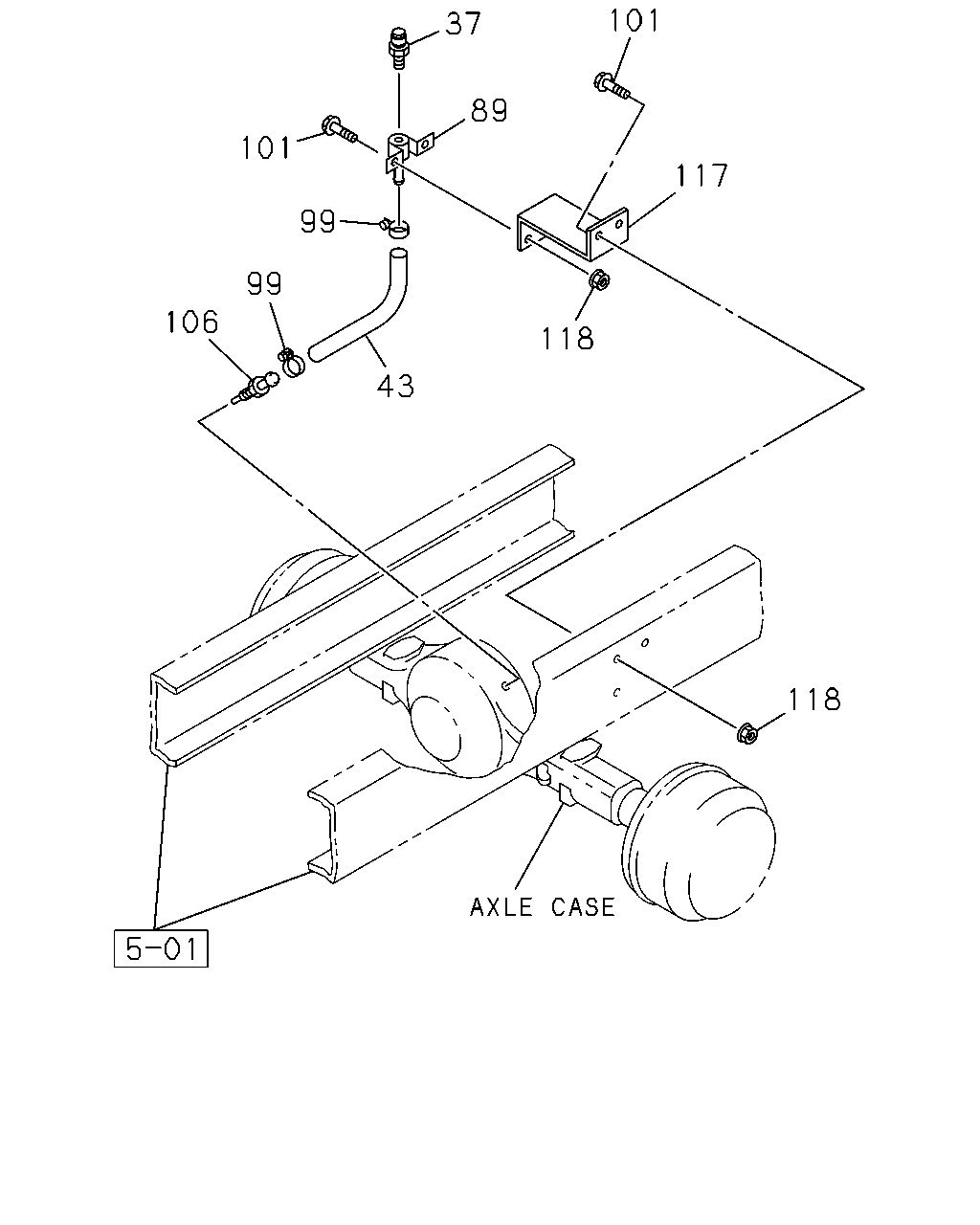

117 118 89 37 101 99 43 99 106 118 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BREATHER; FRT AXLE CASE	9-36122-013-0	01	1	1011-	●	●
43	HOSE; RUBBER,AIR BREATHER L=440 SERVICED BY L=3000	0-02857-300-0	01	1	1011-	●	●
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	1011-	●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	1011-1306	●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	1011-1306	●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	02	1	1307-	●	●
101	BOLT; BRKT,ADAPTER M8X20 FLANGE	0-28050-820-0	02	1	1011-	●	●
101	BOLT; BRKT,ADAPTER M8X25 FLANGE	0-28650-825-0	02	1	1011-	●	●
106	CONNECTOR; RUBBER HOSE	1-09669-081-0	01	1	1011-	●	●
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	1011-	●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	1011-1306	●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	1011-1306	●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	04	1	1307-	●	●

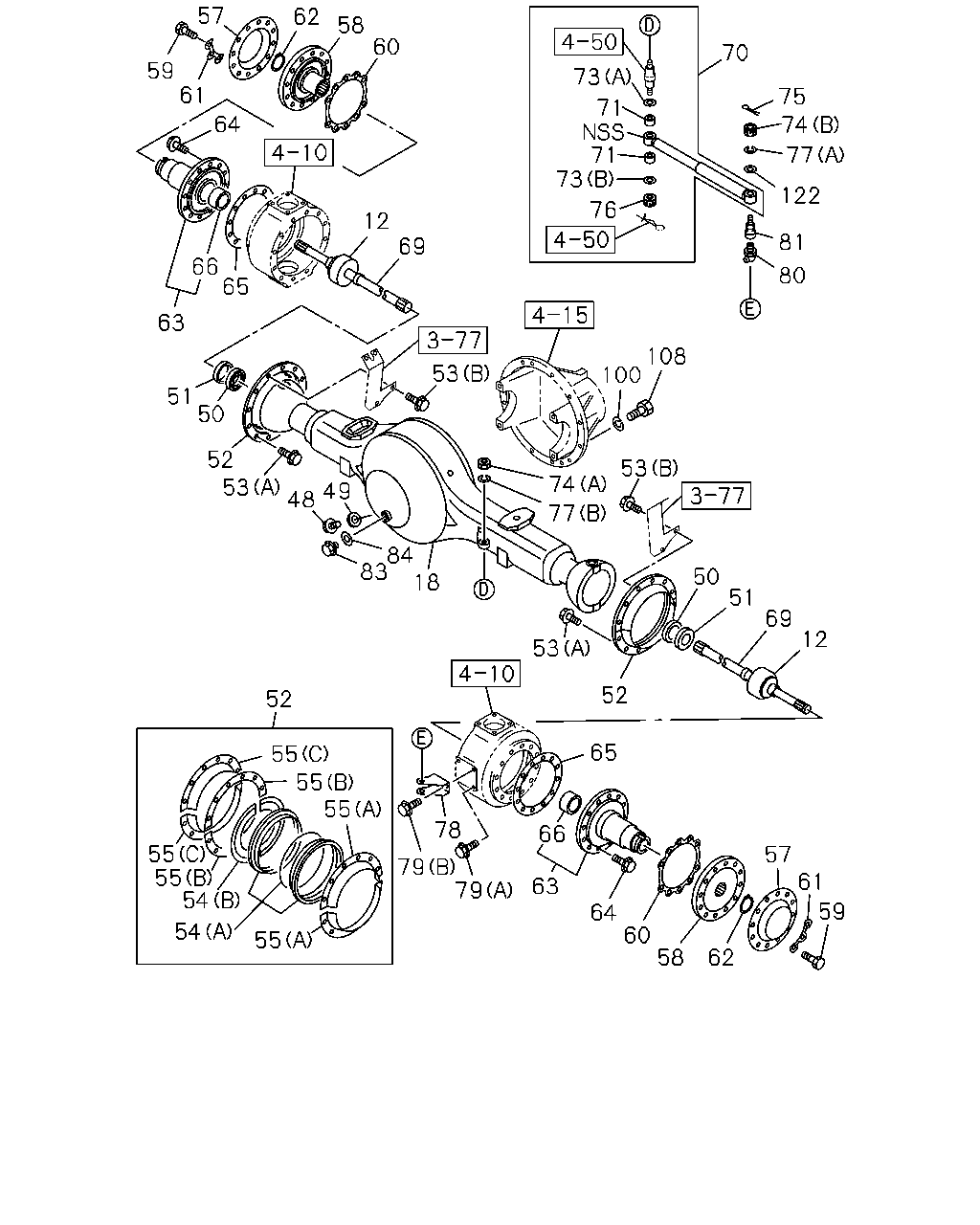

73 70 75 122 77 74 81 80 100 108 53 74 77 50 51 69 12 53 52 65 78 66 63 64 79 79 60 58 62 57 61 59 55 55 55 52 55 55 54 54 55 53 84 83 48 53 50 52 51 63 65 66 12 69 64 61 59 57 60 58 60 71 71 73 76 49 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM	1-43330-018-0	02	1	1011-	●	●
18	CASE; FRT AXLE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T)	8-98205-337-0	01	1	1204-1306	●	●
18	CASE; FRT AXLE LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K)	8-98205-337-0	01	1	1204-1306	●	●
18	CASE; FRT AXLE	8-98205-337-0	01	1	1307-	●	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	1011-1109	●	●
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-1203	●	●
18	CASE; FRT AXLE MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K)	8-98200-146-0	01	1	1204-1306	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1011-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1011-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1011-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1011-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1011-	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	20	1	1011-1306	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	16	1	1307-	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	04	1	1011-1306	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	08	1	1307-	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1011-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1011-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1011-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1011-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1011-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1011-	●	●
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1011-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1011-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1011-	●	●
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1011-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1011-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1011-	●	●
64	BOLT; SPINDLE M12X70 FLANGE	0-28061-270-0	04	1	1307-	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1011-	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1011-1306	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	12	1	1307-	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1011-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1011-	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T)	8-98203-700-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K)	8-98203-700-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER	8-98203-700-0	01	1	1307-	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T)	8-98203-701-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K)	8-98203-701-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER	8-98203-701-0	01	1	1307-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	1011-1203	●	●
69	SHAFT; AXLE,FRT INNER MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	1011-1203	●	●
69	SHAFT; AXLE,FRT INNER MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1204-1306	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1011-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1011-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1011-	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1011-	●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1011-	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1011-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1011-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1011-	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1011-	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1011-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1011-	●	●
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1011-	●	●
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1011-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1011-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1011-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1011-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1011-	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1011-	●	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) M12X60	0-10956-260-0	04	1	1204-1306	●	●
108	BOLT; FRT FINAL DRIVE LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K) M12X60	0-10956-260-0	04	1	1204-1306	●	●
108	BOLT; FRT FINAL DRIVE M12X60	0-10956-260-0	04	1	1307-	●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	1011-	●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	1011-1203	●	●
108	BOLT; FRT FINAL DRIVE MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1204-1306	●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1011-	●	●

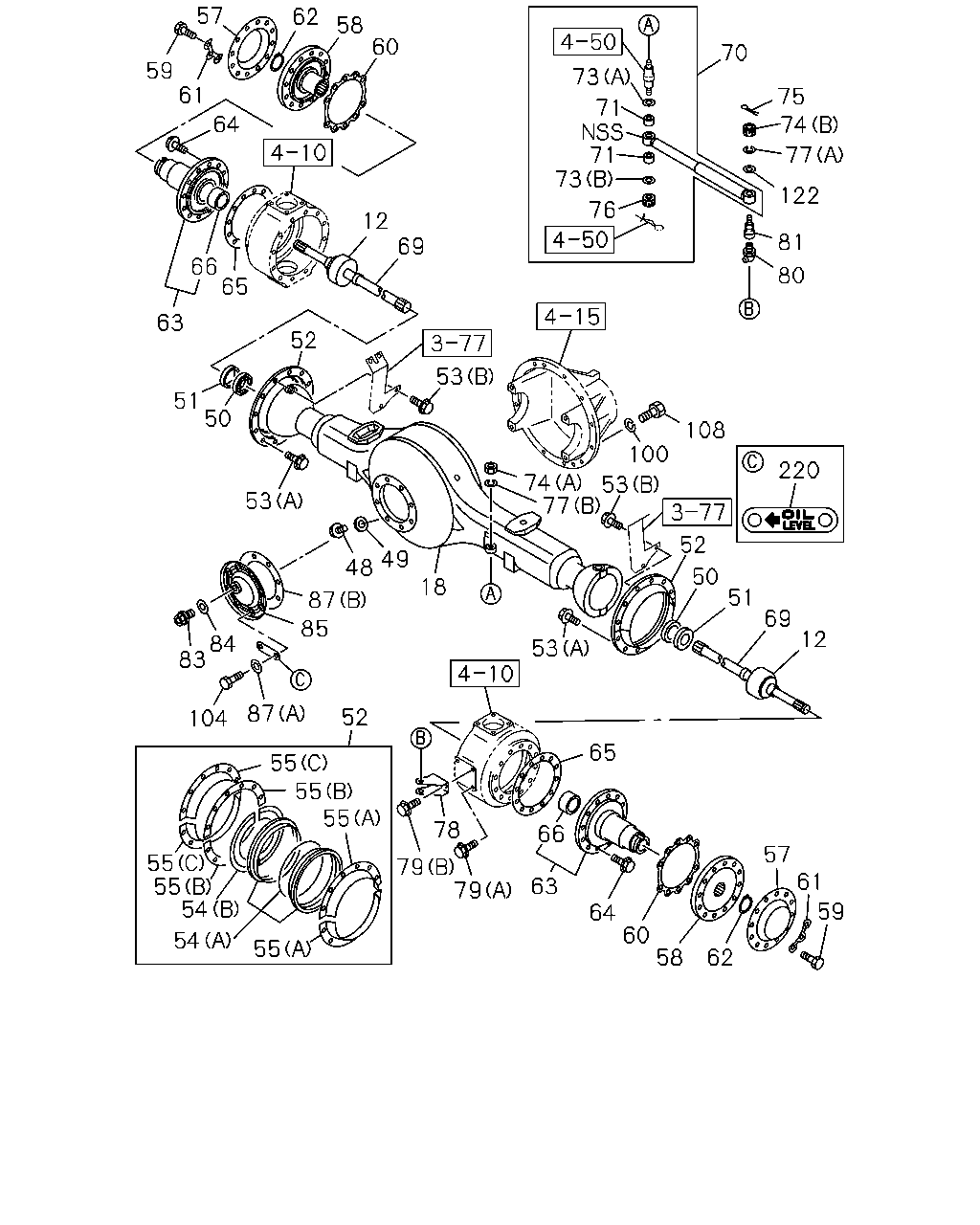

12 52 108 220 100 53 69 12 81 80 122 77 74 75 70 73 71 71 76 73 53 50 51 69 53 18 49 48 87 85 53 50 52 51 63 65 66 60 58 62 57 59 64 61 74 77 52 87 104 83 84 55 55 55 79 78 63 79 64 60 58 62 57 61 59 65 55 55 54 54 55 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM	1-43330-018-0	02	1	1011-	●	●
18	CASE; FRT AXLE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T)	8-98205-337-0	01	1	1204-1306	●	●
18	CASE; FRT AXLE LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K)	8-98205-337-0	01	1	1204-1306	●	●
18	CASE; FRT AXLE	8-98205-337-0	01	1	1307-	●	●
18	CASE; FRT AXLE	8-98011-801-2	01	1	1011-1109	●	●
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-1203	●	●
18	CASE; FRT AXLE MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K)	8-98200-146-0	01	1	1204-1306	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1011-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1011-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1011-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1011-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1011-	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	20	1	1011-1306	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	16	1	1307-	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	04	1	1011-1306	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	08	1	1307-	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1011-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1011-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1011-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1011-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1011-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1011-	●	●
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1011-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1011-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1011-	●	●
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1011-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1011-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1011-	●	●
64	BOLT; SPINDLE M12X70 FLANGE	0-28061-270-0	04	1	1307-	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1011-	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1011-1306	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	12	1	1307-	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1011-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1011-	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T)	8-98203-700-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K)	8-98203-700-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER	8-98203-700-0	01	1	1307-	●	●
69	SHAFT; AXLE,FRT INNER FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T)	8-98203-701-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K)	8-98203-701-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER	8-98203-701-0	01	1	1307-	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	1011-1203	●	●
69	SHAFT; AXLE,FRT INNER MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1204-1306	●	●
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	1011-1203	●	●
69	SHAFT; AXLE,FRT INNER MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1204-1306	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1011-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1011-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1011-	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1011-	●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1011-	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1011-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1011-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1011-	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1011-	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1011-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1011-	●	●
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1011-	●	●
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1011-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1011-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1011-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1011-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1011-	●	●
85	COVER; AXLE CASE	9-42141-059-0	01	1	1011-1109	●	●
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	1011-1109	●	●
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	1011-1109	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1011-	●	●
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	1011-1109	●	●
108	BOLT; FRT FINAL DRIVE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) M12X60	0-10956-260-0	04	1	1204-1306	●	●
108	BOLT; FRT FINAL DRIVE LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K) M12X60	0-10956-260-0	04	1	1204-1306	●	●
108	BOLT; FRT FINAL DRIVE M12X60	0-10956-260-0	04	1	1307-	●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	1011-	●	●
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	1011-1203	●	●
108	BOLT; FRT FINAL DRIVE MZW6P M/T(RSZ) FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1204-1306	●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1011-	●	●
220	PLATE	9-83996-444-1	01	1	1011-1109	●	●
