◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#71094) — 60 parça

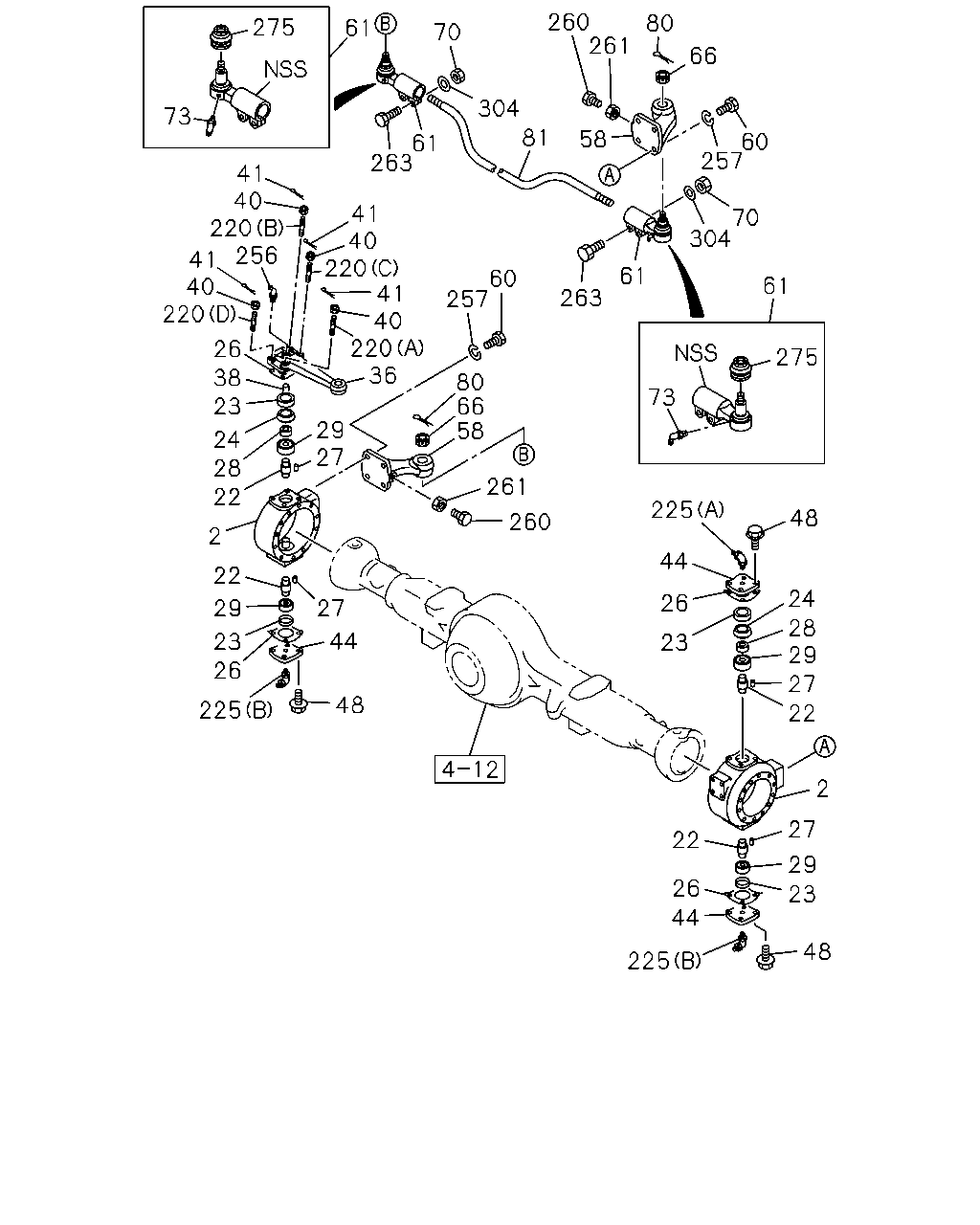

çizim 189270
225 48 44 26 22 23 27 29 2 22 23 44 225 48 26 24 28 29 27 263 61 61 70 304 60 257 66 80 261 260 70 304 61 60 257 80 260 261 58 66 48 225 44 27 26 23 22 29 2 22 28 24 23 38 26 220 40 41 256 220 40 41 41 40 220 40 41 220 29 27 36 73 275 61 275 73 263 58 81
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 1-43242-006-4 01 1 1011- ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-2 01 1 1011- ● ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 1011- ● ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 1011- ● ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 1011- ● ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 1011- ● ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 1011- ● ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 1011- ● ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 1011- ● ●
28 WASHER; KING PIN 9-43269-007-0 02 1 1011- ● ●
29 BEARING; KING PIN 9-00093-181-0 04 1 1011- ● ●
36 ARM; KNUCKLE 1-43261-035-0 01 1 1011- ● ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 1011- ● ●
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 1011- ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 1011- ● ●
44 COVER; KING PIN 9-43265-007-1 03 1 1011- ● ●
48 BOLT; COVER
M14X35 FLANGE 		0-28861-435-0 12 1 1011- ● ●
58 ARM; TIE ROD 8-98138-221-0 01 1 1011- ● ●
58 ARM; TIE ROD 8-98138-222-0 01 1 1011- ● ●
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 1011- ● ●
61 ROD END; TIE ROD 8-98138-799-0 01 1 1011-1306 ● ●
61 ROD END; TIE ROD 8-98236-792-1 01 1 1307- ● ●
61 ROD END; TIE ROD 8-98138-800-0 01 1 1011-1306 ● ●
61 ROD END; TIE ROD 8-98236-793-1 01 1 1307- ● ●
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1011- ● ●
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1011- ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1011-1404 ● ●
73 NIPPLE; GREASE,TIE ROD END 1-43159-132-0 02 1 1405- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1011- ● ●
81 ROD; TIE 8-98147-602-0 01 1 1011-1203 ● ●
81 ROD; TIE
MZW6P M/T(RSZ) 		8-98147-602-0 01 1 1204- ● ●
81 ROD; TIE
FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T) 		8-98218-469-0 01 1 1204-1306 ● ●
81 ROD; TIE
LCT2000 A/T ALLISON(Y4F) FINAL GEAR 39/7 15.5"(W3K) 		8-98218-469-0 01 1 1204-1306 ● ●
81 ROD; TIE 8-98218-469-0 01 1 1307- ● ●
220 STUD; KNUCKLE ARM
(A) M14X54.5 L=72 		9-09830-131-0 01 1 1011- ● ●
220 STUD; KNUCKLE ARM
(B) M14X41.5 L=60.5 		9-09830-132-0 01 1 1011- ● ●
220 STUD; KNUCKLE ARM
(C) M14X46.5 L=72 		9-09830-133-0 01 1 1011- ● ●
220 STUD; KNUCKLE ARM
(D) M14X33.5 L=60.5 		9-09830-134-0 01 1 1011- ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1011- ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011- ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1011- ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 1011- ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 1011- ● ●
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 1011- ● ●
263 BOLT; ROD END
M12X65 		8-98053-922-0 04 1 1011- ● ●
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1011-1306 ● ●
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307- ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1011- ● ●

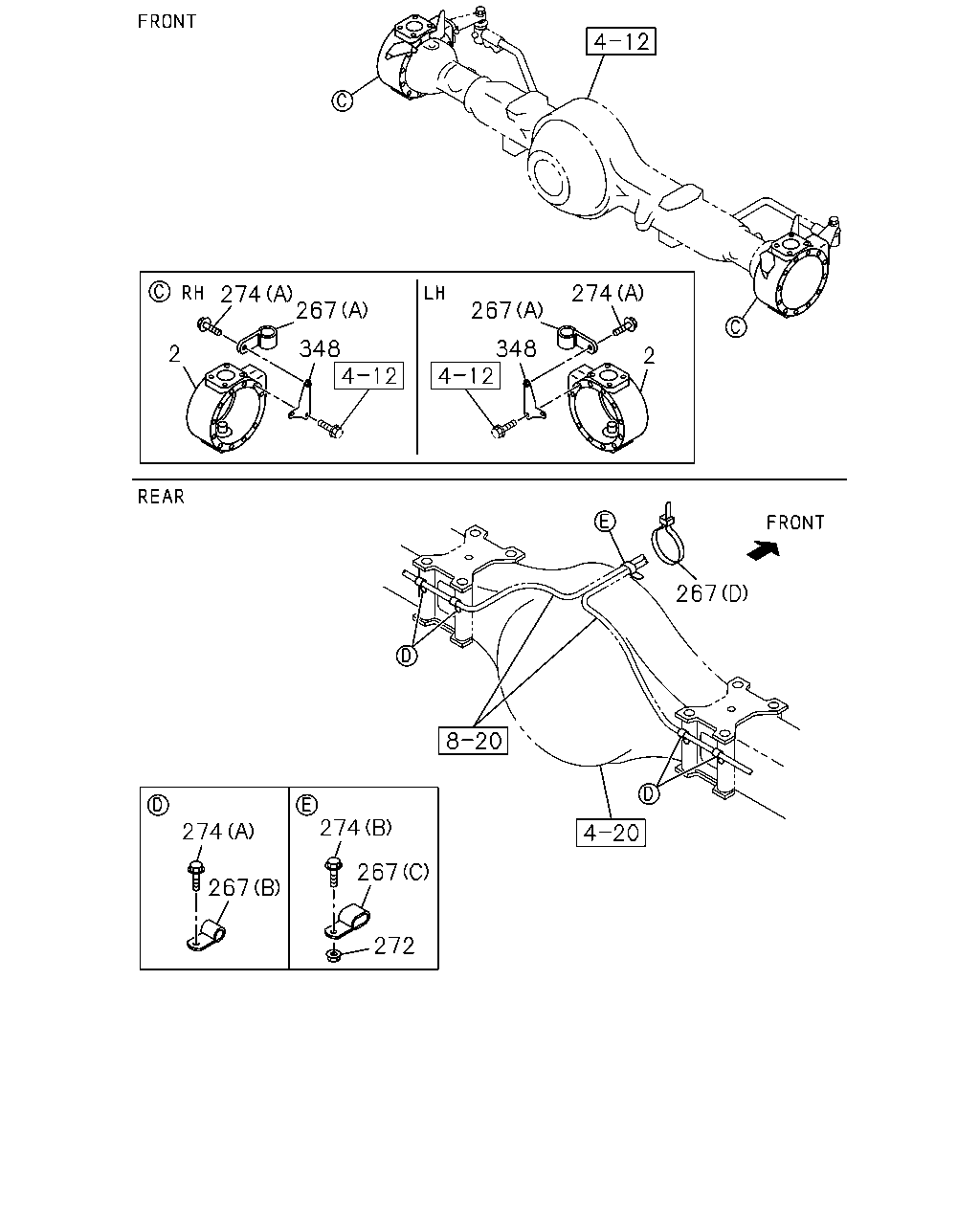

çizim 364479
274 267 348 2 267 274 267 348 274 267 272 267 274 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 1-43242-006-4 01 1 1011- ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-2 01 1 1011- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1307- ● ●
267 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 04 1 1307- ● ●
267 CLIP; HARNESS
(C) ID=11X2 L=20 		0-95325-035-0 01 1 1307- ● ●
267 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 1307- ● ●
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
274 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 04 1 1307- ● ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ● ●
348 BRACKET; CLIP 1-47477-539-0 01 1 1307- ● ●
348 BRACKET; CLIP 1-47477-540-0 01 1 1307- ● ●
