◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#71093) — 181 parça

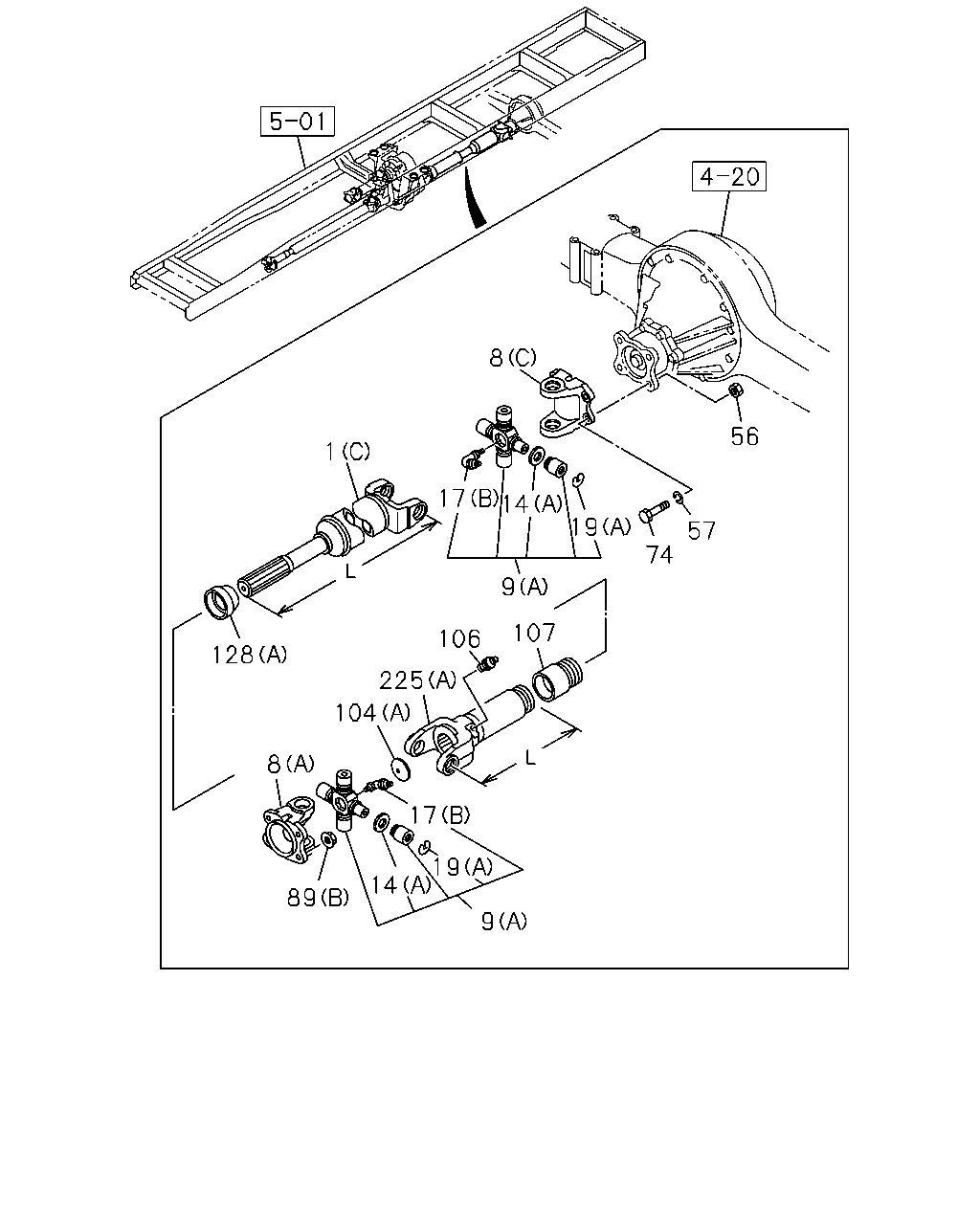

çizim 122803
8 1 128 17 14 74 57 56 19 9 106 107 225 104 8 17 89 19 14 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
LCT2000 A/T ALLISON(Y4F) (B) L=317 		8-98102-835-0 01 1 1204-1306
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=317 		8-98102-835-0 01 1 1307-
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1011-
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1011-
1 SHAFT; PROP
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=229 		1-37152-087-1 01 1 1011-1203
1 SHAFT; PROP
MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=229 		1-37152-087-1 01 1 1204-
1 SHAFT; PROP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=255 		1-37152-779-0 01 1 1011-1203
1 SHAFT; PROP
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=255 		1-37152-779-0 01 1 1204-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1011-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1011-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1011-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1011-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-0 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1011-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1111
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1111
9 JOURNAL ASM; PROP SHAFT
(A) TRANS-TRFER 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-103-1 AR 1 1011-1106
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1011-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		1-37319-012-0 04 1 1011-1505
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		1-37319-012-0 08 1 1011-1111
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		8-98020-800-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1011-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1306
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1306
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1307-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1011-
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1011-1111
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1112-1202
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1011-
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1011-
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1011-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1011-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1306
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1306
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1307-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 1011-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1011-
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 1011-1111
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1011-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1011-

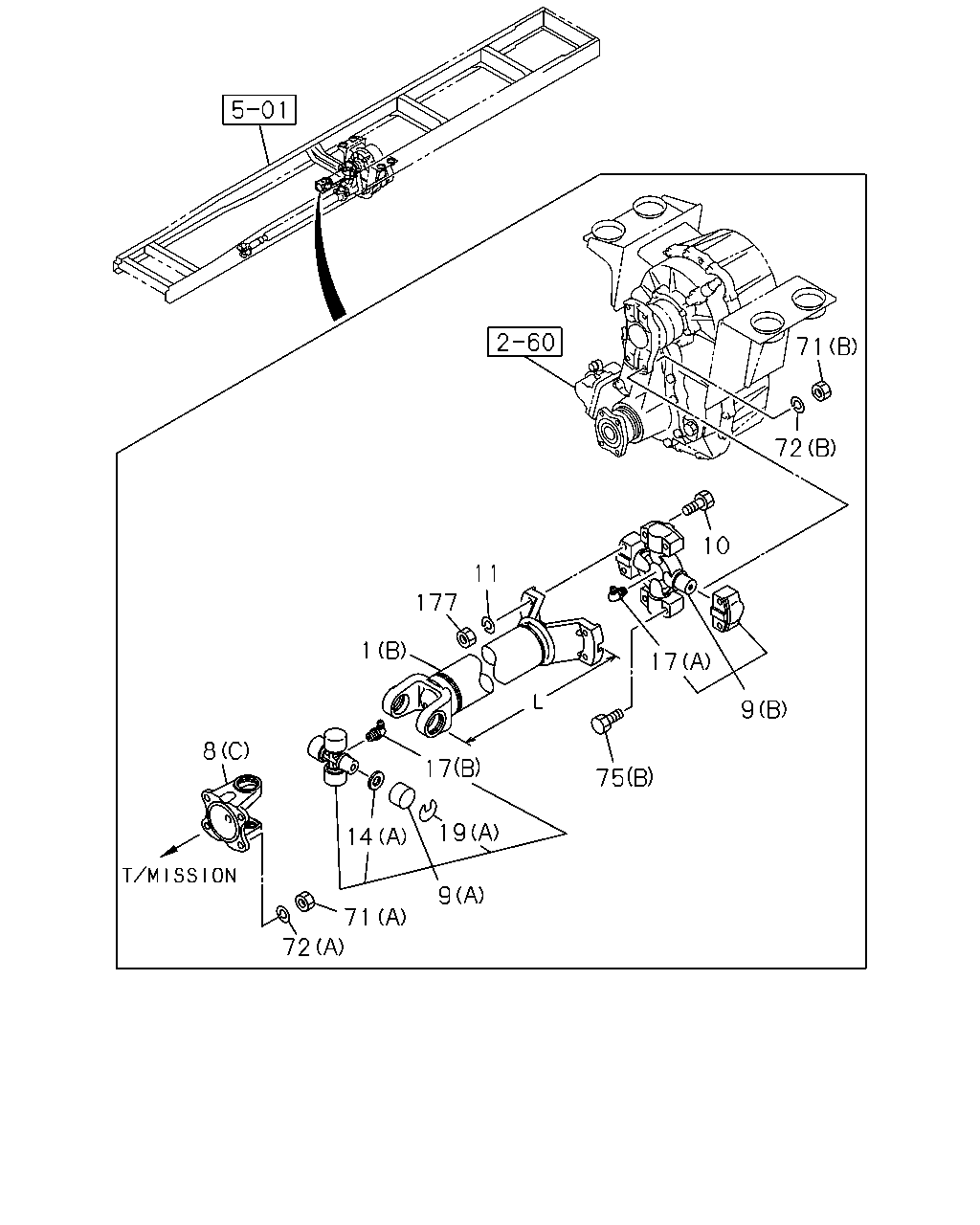

çizim 122859
71 72 10 17 9 75 11 177 1 8 72 9 19 14 17 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
LCT2000 A/T ALLISON(Y4F) (B) L=317 		8-98102-835-0 01 1 1204-1306
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=317 		8-98102-835-0 01 1 1307-
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1011-
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1011-
1 SHAFT; PROP
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=229 		1-37152-087-1 01 1 1011-1203
1 SHAFT; PROP
MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=229 		1-37152-087-1 01 1 1204-
1 SHAFT; PROP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=255 		1-37152-779-0 01 1 1011-1203
1 SHAFT; PROP
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=255 		1-37152-779-0 01 1 1204-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1011-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1011-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1011-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1011-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-0 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1011-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1111
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1111
9 JOURNAL ASM; PROP SHAFT
(A) TRANS-TRFER 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-103-1 AR 1 1011-1106
10 BOLT; UJT
M12X75 		9-91061-275-0 04 1 1011-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1011-
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1011-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		1-37319-012-0 04 1 1011-1505
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		1-37319-012-0 08 1 1011-1111
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		8-98020-800-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1011-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1306
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1306
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1307-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1011-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1011-
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 1011-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1011-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1011-
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1011-1111
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-814-0 04 1 1112-1202
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1203-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1011-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1011-
177 NUT
M12 		0-91110-512-0 04 1 1011-

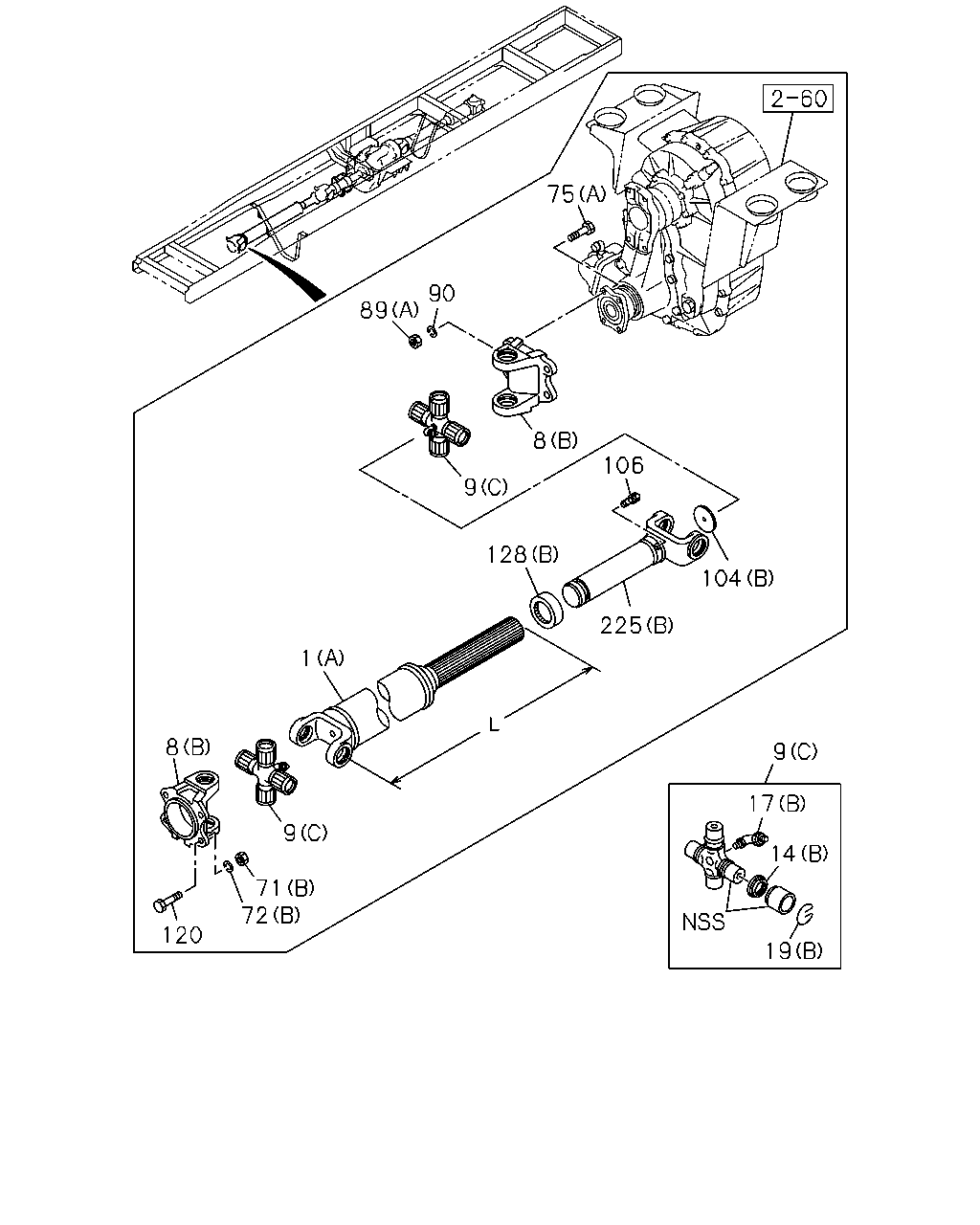

çizim 122894
120 72 71 9 8 1 128 9 225 104 106 8 89 90 75 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
LCT2000 A/T ALLISON(Y4F) (B) L=317 		8-98102-835-0 01 1 1204-1306
1 SHAFT; PROP
LCT2500 A/T ALLISON(Y5W) (B) L=317 		8-98102-835-0 01 1 1307-
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1011-
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1011-
1 SHAFT; PROP
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=229 		1-37152-087-1 01 1 1011-1203
1 SHAFT; PROP
MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=229 		1-37152-087-1 01 1 1204-
1 SHAFT; PROP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=255 		1-37152-779-0 01 1 1011-1203
1 SHAFT; PROP
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=255 		1-37152-779-0 01 1 1204-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1011-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1011-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1011-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1011-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-0 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1011-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1111
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1111
9 JOURNAL ASM; PROP SHAFT
(A) TRANS-TRFER 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1107-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-103-1 AR 1 1011-1106
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1011-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		1-37319-012-0 04 1 1011-1505
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		1-37319-012-0 08 1 1011-1111
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		8-98020-800-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1011-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1306
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1306
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1307-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1011-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1011-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1011-
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 1011-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1011-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1011-
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1011-1111
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-814-0 04 1 1112-1202
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1203-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1011-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1011-
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1011-
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1011-
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 		0-91510-612-0 04 1 1011-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1011-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1306
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1306
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1307-
120 BOLT; YOKE TO RR AXLE
M12X32 		1-09000-076-1 04 1 1011-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1011-
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 1011-1111
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1011-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
