3-78 — FIXING PARTS; AIR PIPING (#71092) — 88 parça

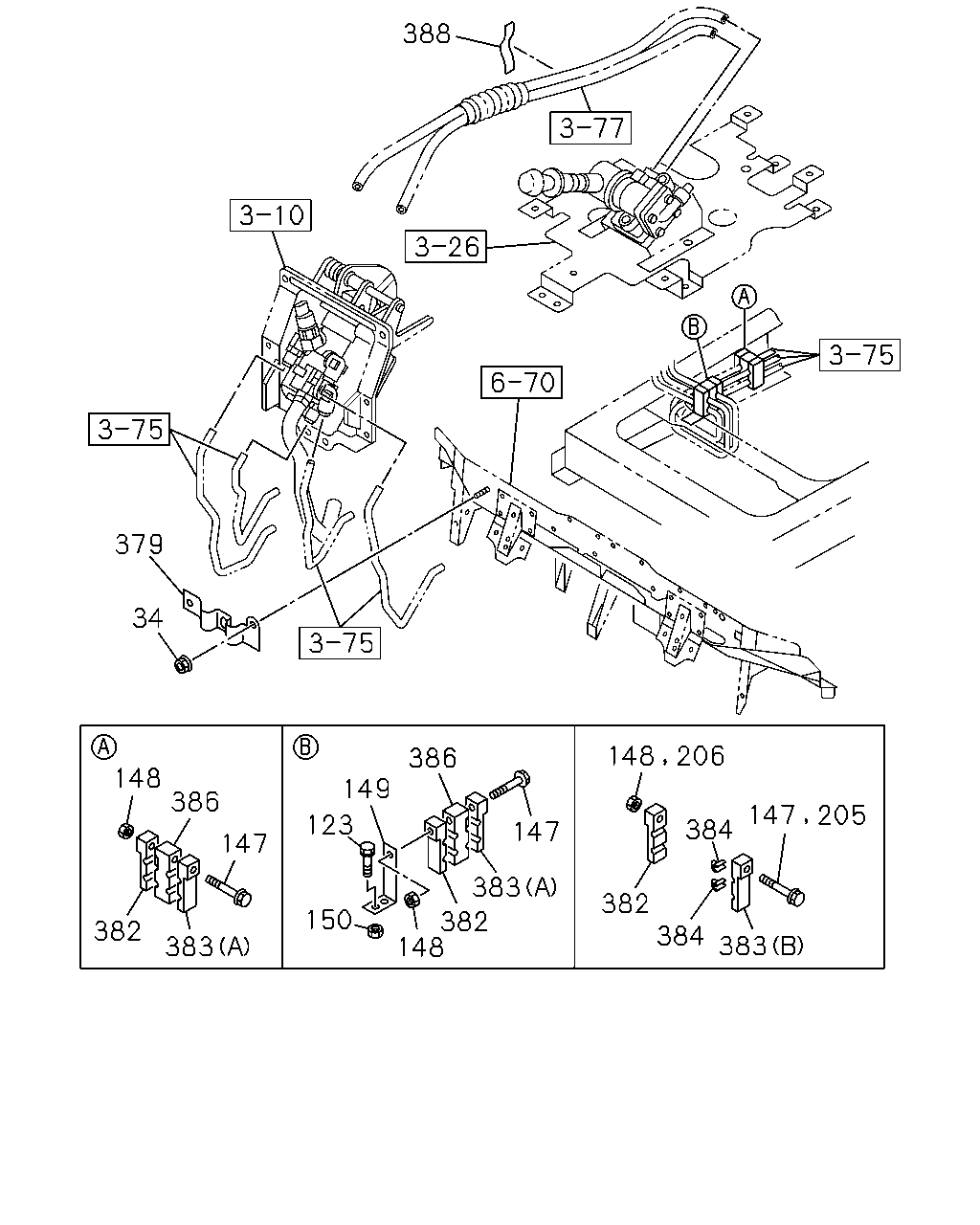

çizim 122339
383 384 382 384 205 206 148 147 383 382 148 150 123 386 149 147 383 382 386 148 34 379 388 147
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1011- ● ●
123 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 04 1 1011- ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 05 1 1011- ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1011- ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 05 1 1011- ●
149 BRACKET; PIPE CLIP 1-47476-792-0 01 1 1011-1409 ● ●
149 BRACKET; PIPE CLIP 8-98296-534-0 01 1 1410- ● ●
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
205 BOLT; PIPE CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 1011- ●
206 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011- ●
379 BRACKET; NYLON TUBE 8-98044-013-0 01 1 1011- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 1011- ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 1011- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 06 1 1011-1306 ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 08 1 1307- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 05 1 1011- ●
383 CLIP; LWR
(A) ID=10 & 10 		1-09709-241-0 04 1 1011- ●
383 CLIP; LWR
(A) ID=10 & 10 		1-09709-241-0 02 1 1011- ● ●
383 CLIP; LWR
(B) ID=10 & 10 		1-09709-243-0 06 1 1011-1306 ● ●
383 CLIP; LWR
(B) ID=10 & 10 		1-09709-243-0 08 1 1307- ● ●
383 CLIP; LWR
(A) ID=10 & 10 		1-09709-241-0 05 1 1011- ●
384 COLLAR
ID=6 		1-47459-010-0 04 1 1011- ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 04 1 1011- ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 02 1 1011- ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 05 1 1011- ●
388 SEAL
100X40 		1-72498-022-1 03 1 1011- ● ●

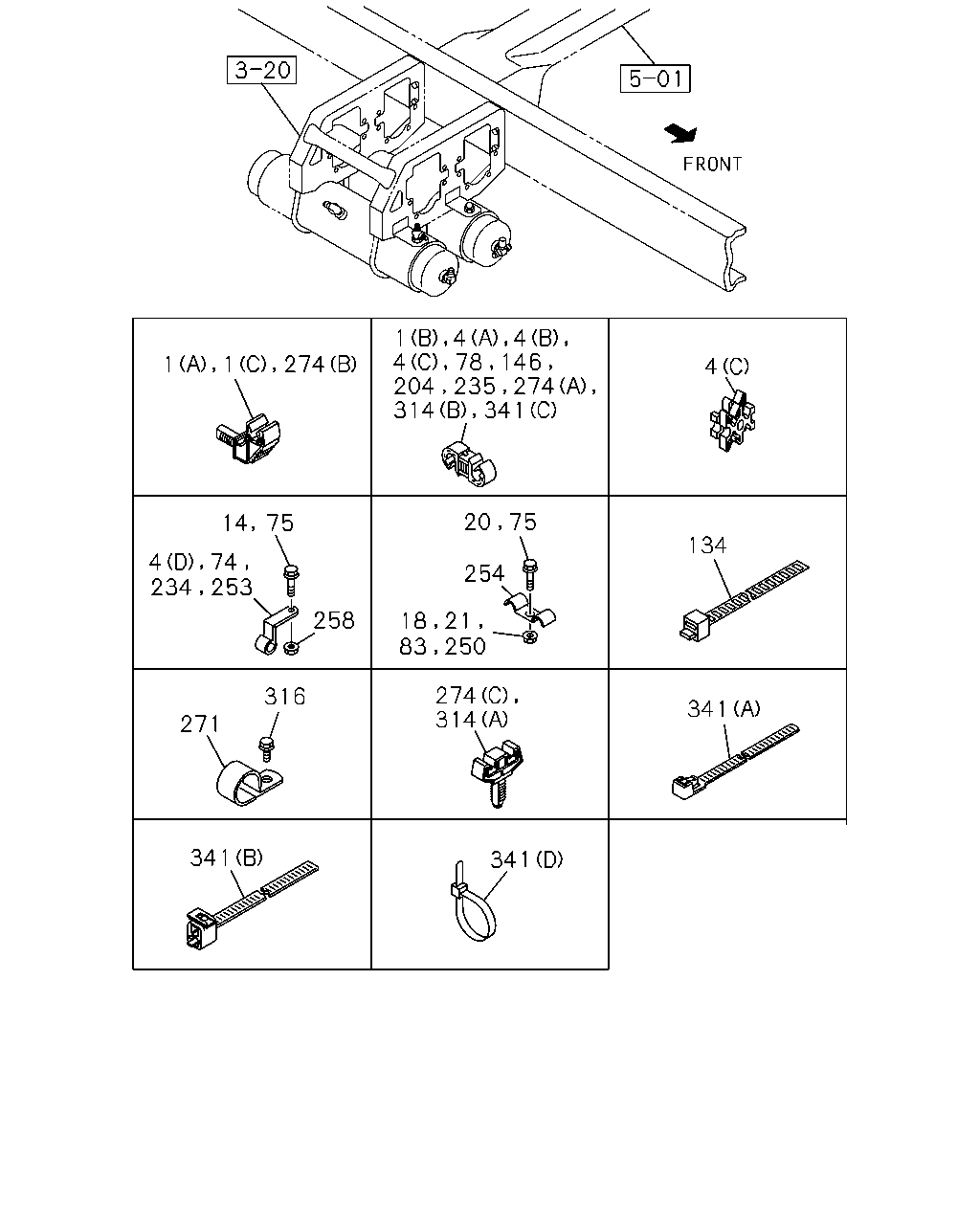

çizim 122506
1 1 274 1 4 4 4 78 146 274 235 204 314 341 14 75 4 74 253 234 258 316 271 341 341 314 274 250 83 18 21 254 20 75 134 341 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; AIR PIPE
(A) ID=6.35 		1-09701-247-1 01 1 1011-1306 ● ●
1 CLIP; AIR PIPE
(B) ID=6.35 & 6.35 		1-09709-273-1 01 1 1011-1306 ● ●
1 CLIP; AIR PIPE
(B) ID=6.35 & 6.35 		1-09709-273-1 01 1 1307- ●
1 CLIP; AIR PIPE
(C) 		8-98012-254-1 01 1 1011-1306 ● ●
1 CLIP; AIR PIPE
(C) 		8-98012-254-1 03 1 1307- ● ●
4 CLIP; AIR PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1307- ● ●
4 CLIP; AIR PIPE
(B) ID=12 & 12 		1-09709-280-1 01 1 1307- ● ●
4 CLIP; AIR PIPE
(D) ID=13 H=12 L=20 		8-98038-485-0 01 1 1307- ● ●
4 CLIP; AIR PIPE
(B) ID=4.76 & 10.0 		1-09709-305-0 01 1 1307- ●
4 CLIP; AIR PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 04 1 1011-1306 ●
4 CLIP; AIR PIPE
(B) ID=4.76 & 4.76 		1-09709-303-0 01 1 1307- ●
4 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 04 1 1011-1306 ● ●
4 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 09 1 1307- ● ●
4 CLIP; AIR PIPE
(C) ID=10 & 12 		1-09709-278-1 01 1 1011- ● ●
4 CLIP; AIR PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 06 1 1011-1306 ●
4 CLIP; AIR PIPE
(B) ID=4.76 & 4.76 		1-09709-303-0 02 1 1307- ●
14 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 05 1 1011-1306 ● ●
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 08 1 1307- ● ●
20 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 02 1 1011- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 1011-1306 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 08 1 1307- ● ●
74 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1011-1306 ● ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
78 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 1011-1306 ● ●
78 CLIP; AIR PIPE
ID=10 & 12 		1-09709-278-1 01 1 1307- ●
83 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1011- ● ●
146 CLIP; AIR PIPE
MANUAL TRANSMISSION<X9C> ID=10 & 10 		1-09709-277-1 04 1 1204-1306 ● ●
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 06 1 1307- ● ●
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 04 1 1011-1203 ● ●
146 CLIP; AIR PIPE
A/T<X9D> ID=10 & 10 		1-09709-277-1 06 1 1204-1306 ● ●
204 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 1011- ●
204 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 03 1 1011-1306 ●
234 CLIP; UNION
ID=11 H=34 L=27 		1-09701-023-0 01 1 1011-1306 ● ●
234 CLIP; UNION
ID=11 H=20 L=20 		8-98033-780-0 01 1 1307- ● ●
235 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 1307- ● ●
250 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1011-1306 ● ●
250 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
253 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 05 1 1011-1306 ● ●
253 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 04 1 1307- ● ●
254 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1011-1306 ● ●
254 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
258 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
271 CLIP; AIR PIPE FIX
ID=11 L=20 		0-95235-035-0 06 1 1011- ● ●
274 CLIP; AIR PIPE
(B) ID=6.35 		1-09701-247-1 02 1 1011-1306 ●
274 CLIP; AIR PIPE
(C) 		8-98012-254-1 01 1 1011-1306 ● ●
274 CLIP; AIR PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 1011-1306 ●
314 CLIP; AIR PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 01 1 1011- ● ●
314 CLIP; AIR PIPE
(A) 		8-98012-254-1 02 1 1011-1306 ● ●
314 CLIP; AIR PIPE
(A) 		8-98012-254-1 06 1 1307- ● ●
314 CLIP; AIR PIPE
(A) 		8-98012-254-1 06 1 1011-1306 ● ●
316 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 04 1 1011- ● ●
341 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 1307- ●
341 CLIP; HARNESS
(B) L=180 		1-09707-162-1 04 1 1307- ● ●
341 CLIP; HARNESS
(C) ID=10 & 15 		1-09709-279-1 01 1 1307- ● ●
341 CLIP; HARNESS
(A) L=250 		5-09707-030-1 04 1 1307- ● ●
341 CLIP; HARNESS
(D) L=600 		8-98172-345-0 01 1 1307- ● ●
341 CLIP; HARNESS
(C) ID=10 & 10 		1-09709-277-1 01 1 1307- ● ●
341 CLIP; HARNESS
(C) ID=10 & 10 		1-09709-277-1 01 1 1307- ●
