3-77 — BRAKE PIPING; AIR,REAR (#71091) — 142 parça

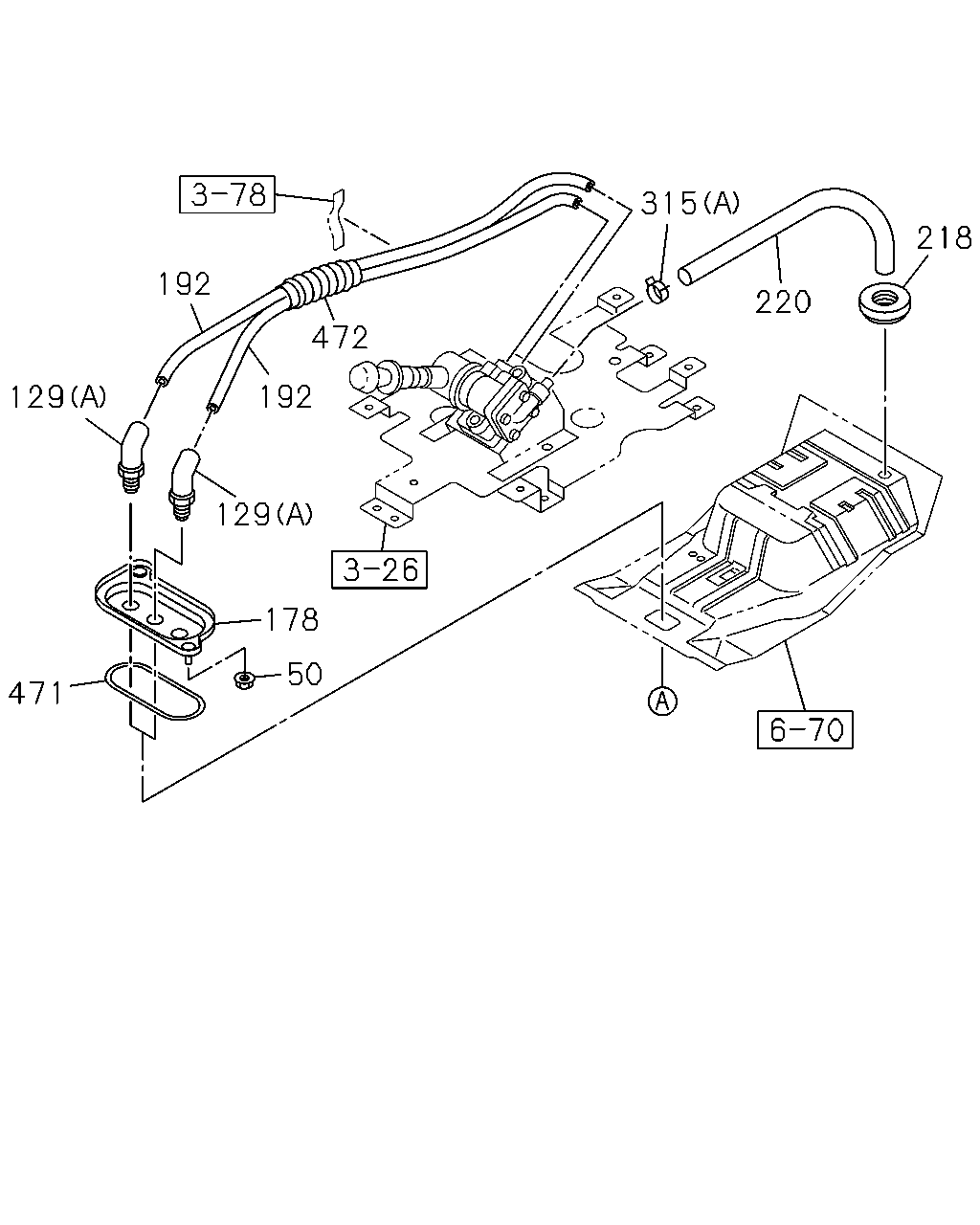

çizim 122357
192 472 192 129 129 178 50 471 315 220 218
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 02 1 1011- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1011- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1011- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1011- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1011- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1011- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1011- ● ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1011- ● ●
315 CLIP
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1011- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1011- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1011- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1011- ● ●

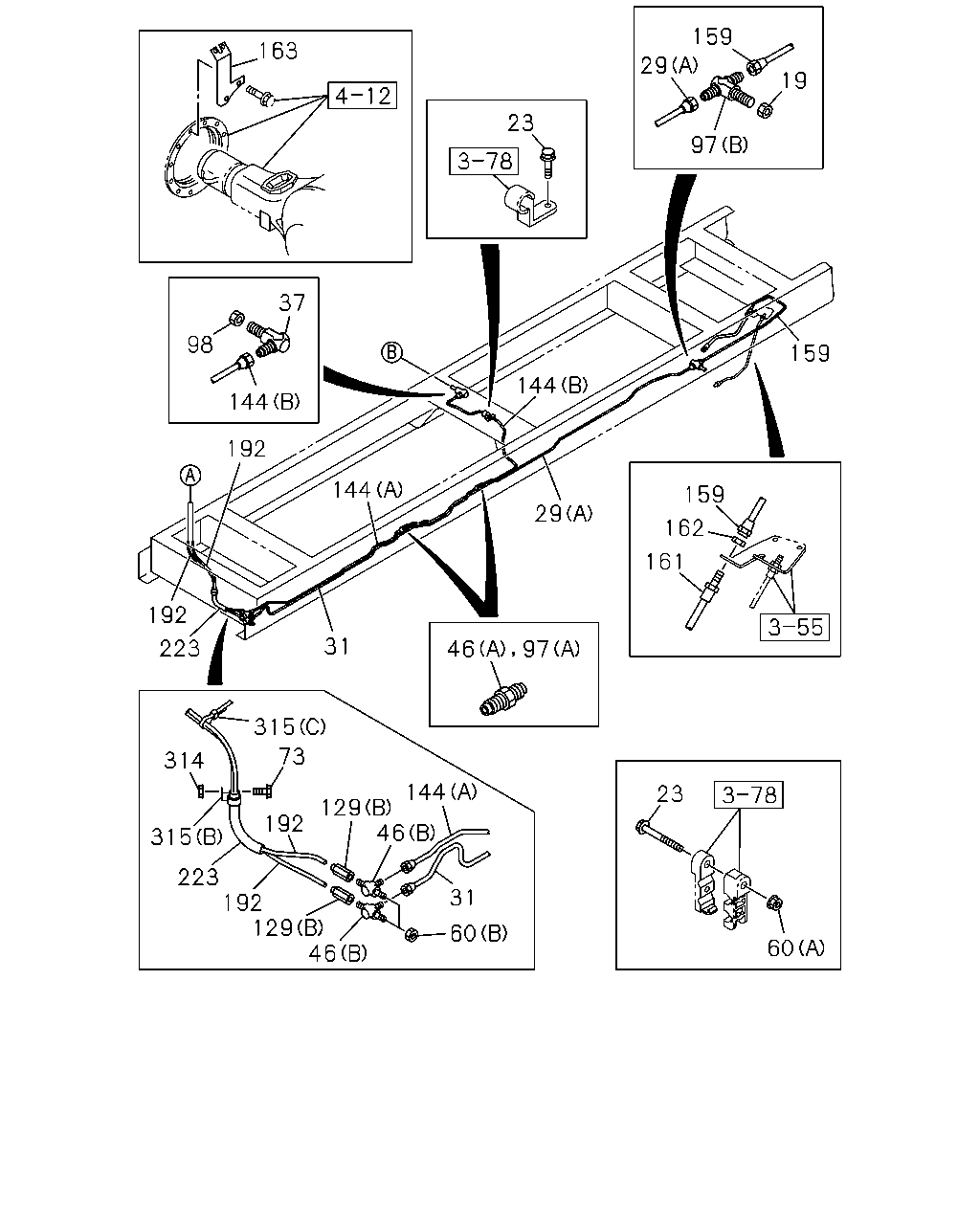

çizim 189266
163 23 159 19 97 29 159 159 162 161 29 144 144 192 37 98 192 223 31 46 97 315 73 144 129 46 31 60 46 129 192 223 315 314 60 23 144 192
BalonParca AdiParca NoAdetTipApplied Date A B
19 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1011- ● ●
23 BOLT; UNION BRKT
M8X50 FLANGE 		0-28050-850-0 01 1 1011-1306 ● ●
23 BOLT; UNION BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
23 BOLT; UNION BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1307- ● ●
29 PIPE; AIR,UNION TO UNION
(A) L=2736 SERVICED BY L=2900 		1-47428-885-0 01 1 1011-1012 ●
29 PIPE; AIR,UNION TO UNION
(A) L=2728 SERVICED BY L=2900 		1-47428-885-0 01 1 1101-1306 ●
29 PIPE; AIR,UNION TO UNION
(C) L=2761 SERVICED BY L=2900 		1-47428-885-0 01 1 1307- ● ●
29 PIPE; AIR,UNION TO UNION
(A) L=2728 SERVICED BY L=2900 		1-47428-885-0 01 1 1011-1306 ●
29 PIPE; AIR,UNION TO UNION
(B) L=1704 SERVICED BY L=1900 		1-47428-881-0 01 1 1307- ● ●
31 PIPE; AIR,UNION TO UNION
L=2364 SERVICED BY L=2500 		1-47428-883-0 01 1 1011-1306 ● ●
31 PIPE; AIR,UNION TO UNION
L=2366 		8-98244-619-0 01 1 1307- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1011- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1011- ● ●
46 NIPPLE; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1011- ● ●
46 NIPPLE; AIR PIPE
(B) M16 2WAY 		1-09650-182-1 02 1 1011- ● ●
60 NUT; NIPPLE,AIR PIPE
(B) M12 		0-91111-512-0 02 1 1011- ● ●
60 NUT; NIPPLE,AIR PIPE
(A) M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ● ●
60 NUT; NIPPLE,AIR PIPE
(A) M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
73 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011- ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1011-1306 ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307- ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307- ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307- ● ●
97 UNION; AIR PIPE
(B) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1011- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 02 1 1011- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1011- ● ●
144 PIPE; AIR,UNION TO UNION
(B) L=2182 SERVICED BY L=2500 		1-47428-883-0 01 1 1011-1306 ●
144 PIPE; AIR,UNION TO UNION
(C) L=1049 SERVICED BY L=1100 		1-47428-875-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
(A) L=1531 SERVICED BY L=1550 		1-47428-879-0 01 1 1011-1306 ● ●
144 PIPE; AIR,UNION TO UNION
(D) 		8-98244-620-0 01 1 1307- ● ●
144 PIPE; AIR,UNION TO UNION
(B) L=2159 SERVICED BY L=2500 		1-47428-883-0 01 1 1011-1306 ●
144 PIPE; AIR,UNION TO UNION
(C) L=632 SERVICED BY L=660 		1-47428-869-0 01 1 1307- ●
159 PIPE; AIR,UNION TO FLEX HOSE 8-98111-625-0 01 1 1011- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
MANUAL TRANSMISSION<X9C> L=520 		1-09363-605-0 01 1 1204- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=520 		1-09363-605-0 01 1 1011-1203 ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
A/T<X9D> L=580 		1-09363-764-0 01 1 1204- ● ●
162 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 1011- ● ●
163 BRACKET; FLEX HOSE 8-98093-260-0 01 1 1011- ● ●
163 BRACKET; FLEX HOSE 8-98106-706-0 01 1 1011- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1011- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1011- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 1011- ● ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1011- ● ●
315 CLIP
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1011- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1011- ● ●

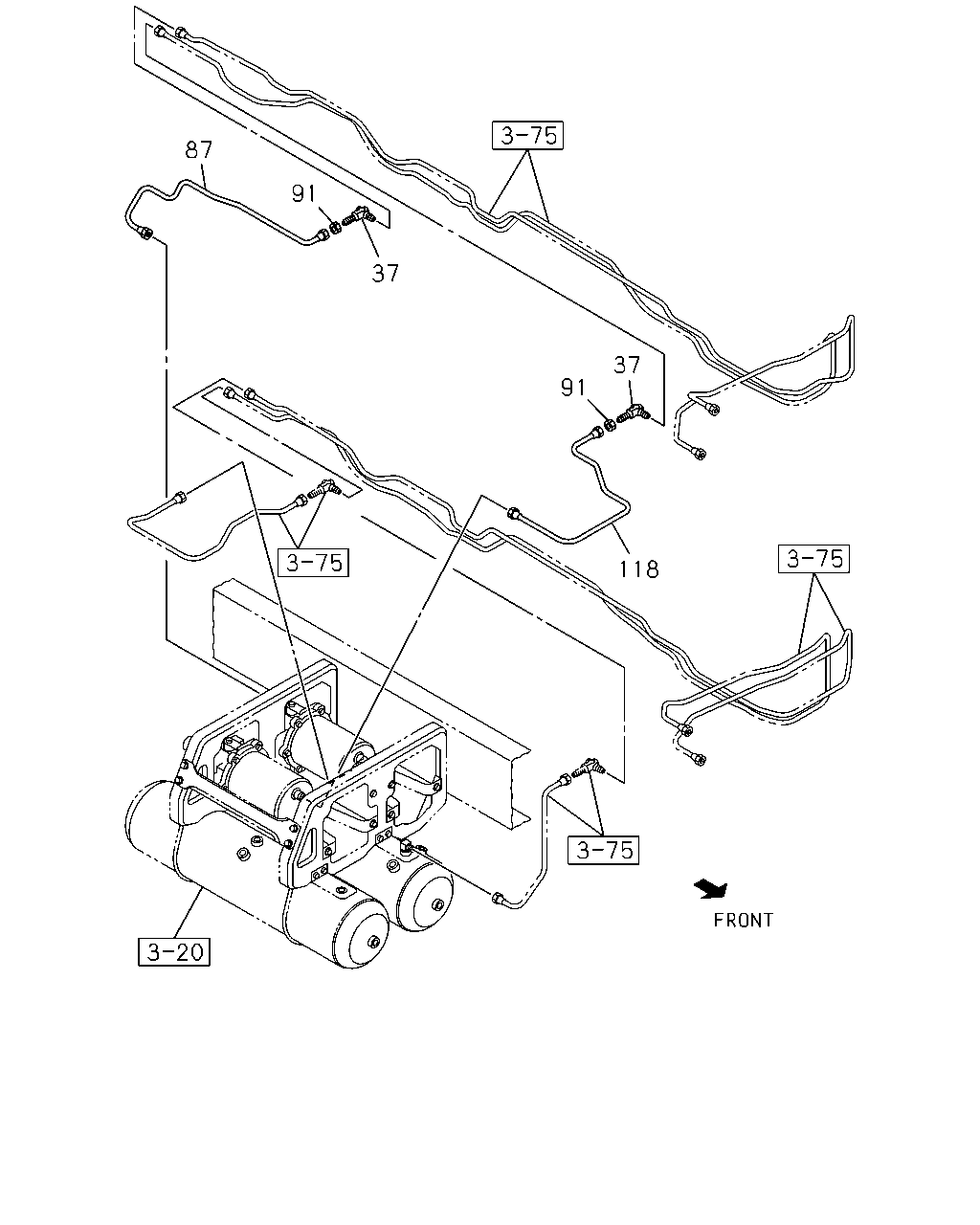

çizim 189269
87 91 37 91 37 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1011- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1011- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=954 SERVICED BY L=1000 		1-47428-874-0 01 1 1011-1306 ●
87 PIPE; AIR,AIR TANK TO UNION
L=434 		8-98230-379-0 01 1 1307- ●
87 PIPE; AIR,AIR TANK TO UNION
L=979 SERVICED BY L=1000 		1-47428-874-0 01 1 1011-1306 ●
87 PIPE; AIR,AIR TANK TO UNION
L=364 		8-98233-894-0 01 1 1307- ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1011- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
L=689 SERVICED BY L=700 		1-47428-870-0 01 1 1011-1306 ●
118 PIPE; AIR,UNION TO AIR MASTER
L=664 SERVICED BY L=700 		1-47428-870-0 01 1 1011-1306 ●

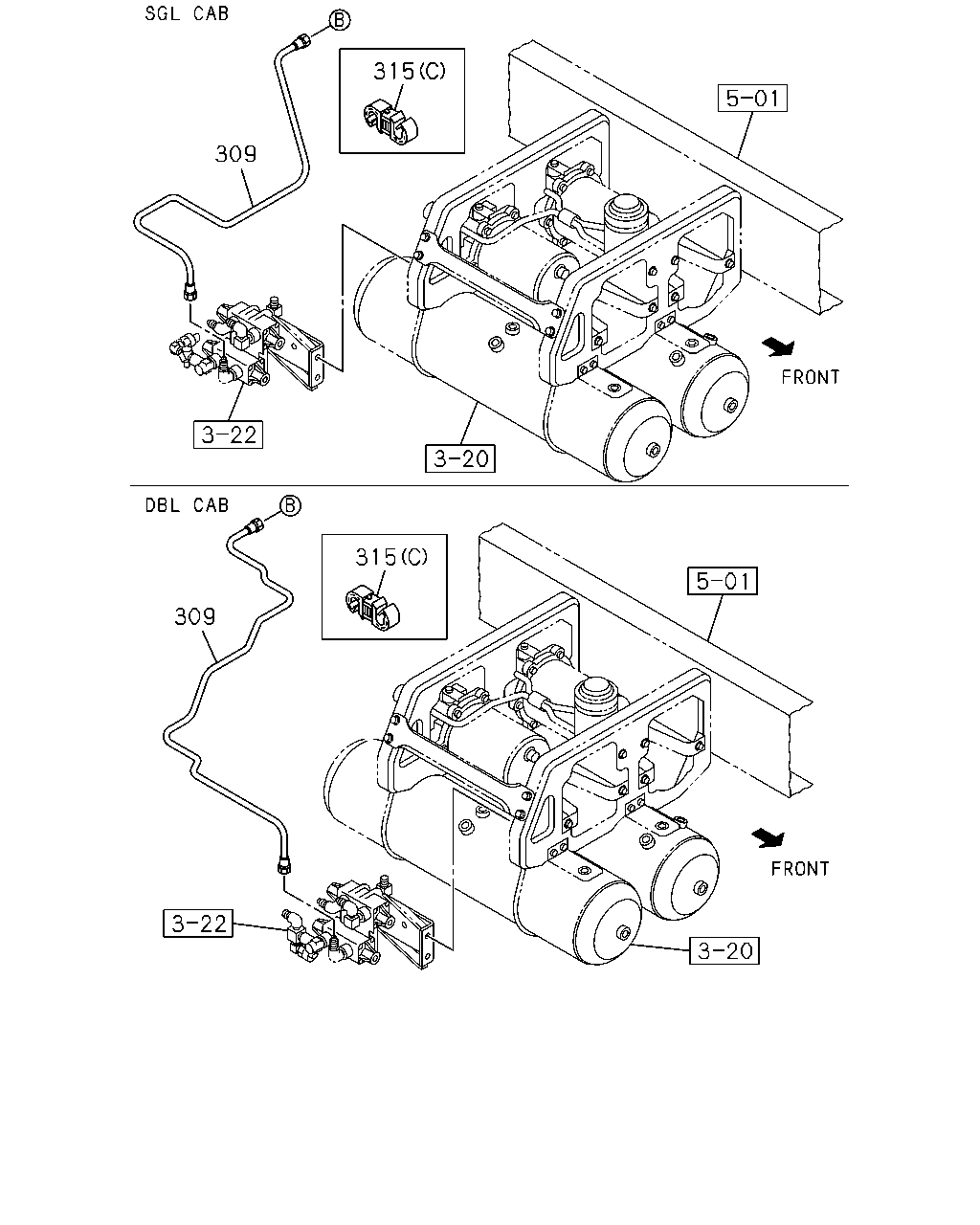

çizim 189274
309 315 309 315
BalonParca AdiParca NoAdetTipApplied Date A B
309 PIPE; AIR,MPV TO UNION
L=762 SERVICED BY L=800 		1-47428-872-0 01 1 1011-1306 ●
309 PIPE; AIR,MPV TO UNION
L=1226 SERVICED BY L=1250 		1-47428-876-0 01 1 1307- ●
309 PIPE; AIR,MPV TO UNION
L=1180 SERVICED BY L=1250 		1-47428-876-0 01 1 1011-1306 ●
309 PIPE; AIR,MPV TO UNION
L=1251 		8-98233-901-0 01 1 1307- ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1011- ● ●
315 CLIP
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1011- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1011- ● ●

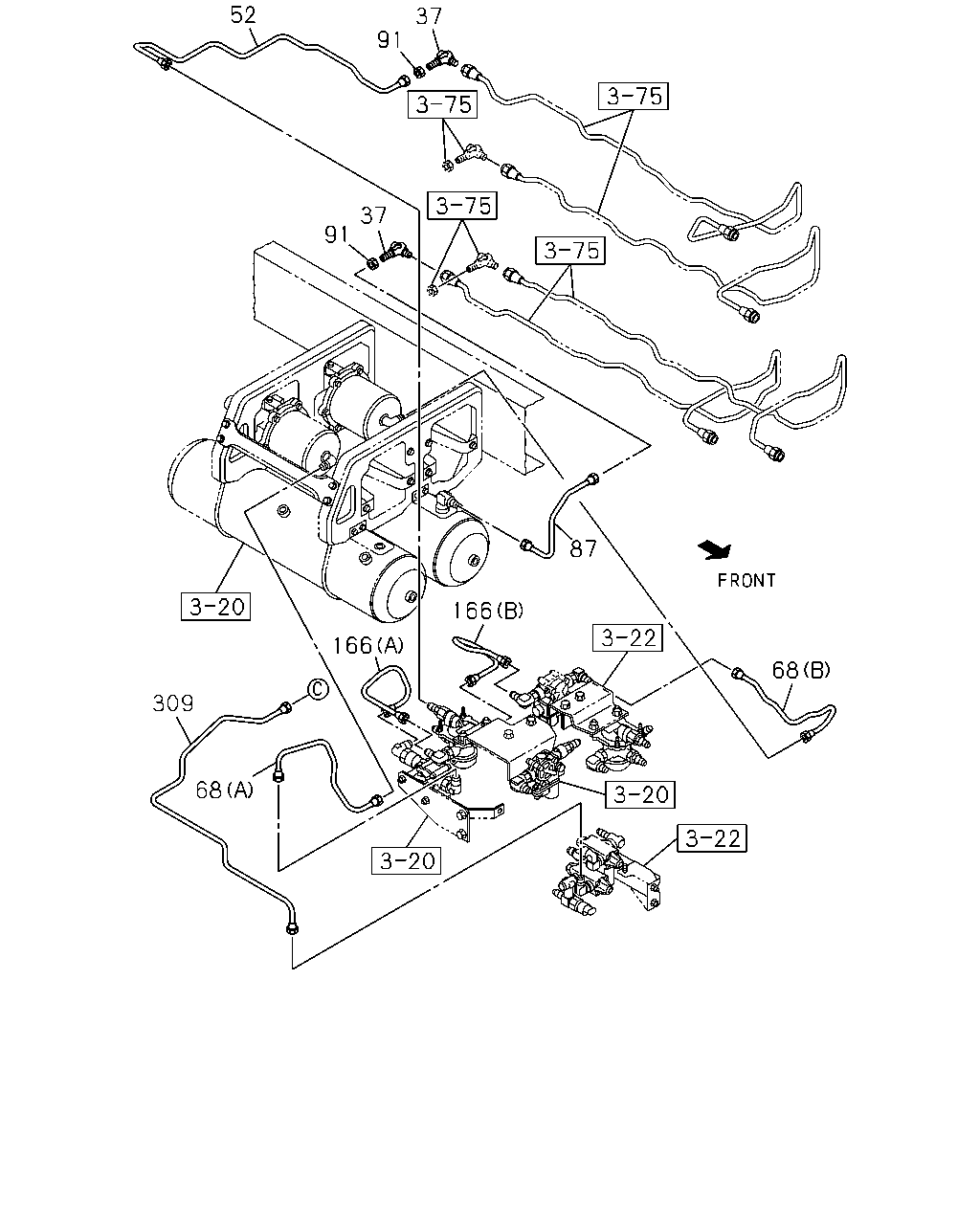

çizim 363516
37 91 52 37 91 87 166 166 309 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1011- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1011- ● ●
52 PIPE; AIR,UNION TO RELAY VLV
L=1012 		8-98233-895-0 01 1 1307- ●
52 PIPE; AIR,UNION TO RELAY VLV
L=1024 		8-98244-584-0 01 1 1307- ●
68 PIPE; AIR,MODULATOR TO UNION
(A) L=468 		8-98230-353-0 01 1 1307- ● ●
68 PIPE; AIR,MODULATOR TO UNION
(B) L=458 		8-98236-971-0 01 1 1307- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=954 SERVICED BY L=1000 		1-47428-874-0 01 1 1011-1306 ●
87 PIPE; AIR,AIR TANK TO UNION
L=434 		8-98230-379-0 01 1 1307- ●
87 PIPE; AIR,AIR TANK TO UNION
L=979 SERVICED BY L=1000 		1-47428-874-0 01 1 1011-1306 ●
87 PIPE; AIR,AIR TANK TO UNION
L=364 		8-98233-894-0 01 1 1307- ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1011- ● ●
166 PIPE; AIR,RELAY VALVE TO UNION
(A) L=380 		8-98230-358-0 01 1 1307- ● ●
166 PIPE; AIR,RELAY VALVE TO UNION
(B) L=395 		8-98244-575-0 01 1 1307- ● ●
309 PIPE; AIR,MPV TO UNION
L=762 SERVICED BY L=800 		1-47428-872-0 01 1 1011-1306 ●
309 PIPE; AIR,MPV TO UNION
L=1226 SERVICED BY L=1250 		1-47428-876-0 01 1 1307- ●
309 PIPE; AIR,MPV TO UNION
L=1180 SERVICED BY L=1250 		1-47428-876-0 01 1 1011-1306 ●
309 PIPE; AIR,MPV TO UNION
L=1251 		8-98233-901-0 01 1 1307- ●

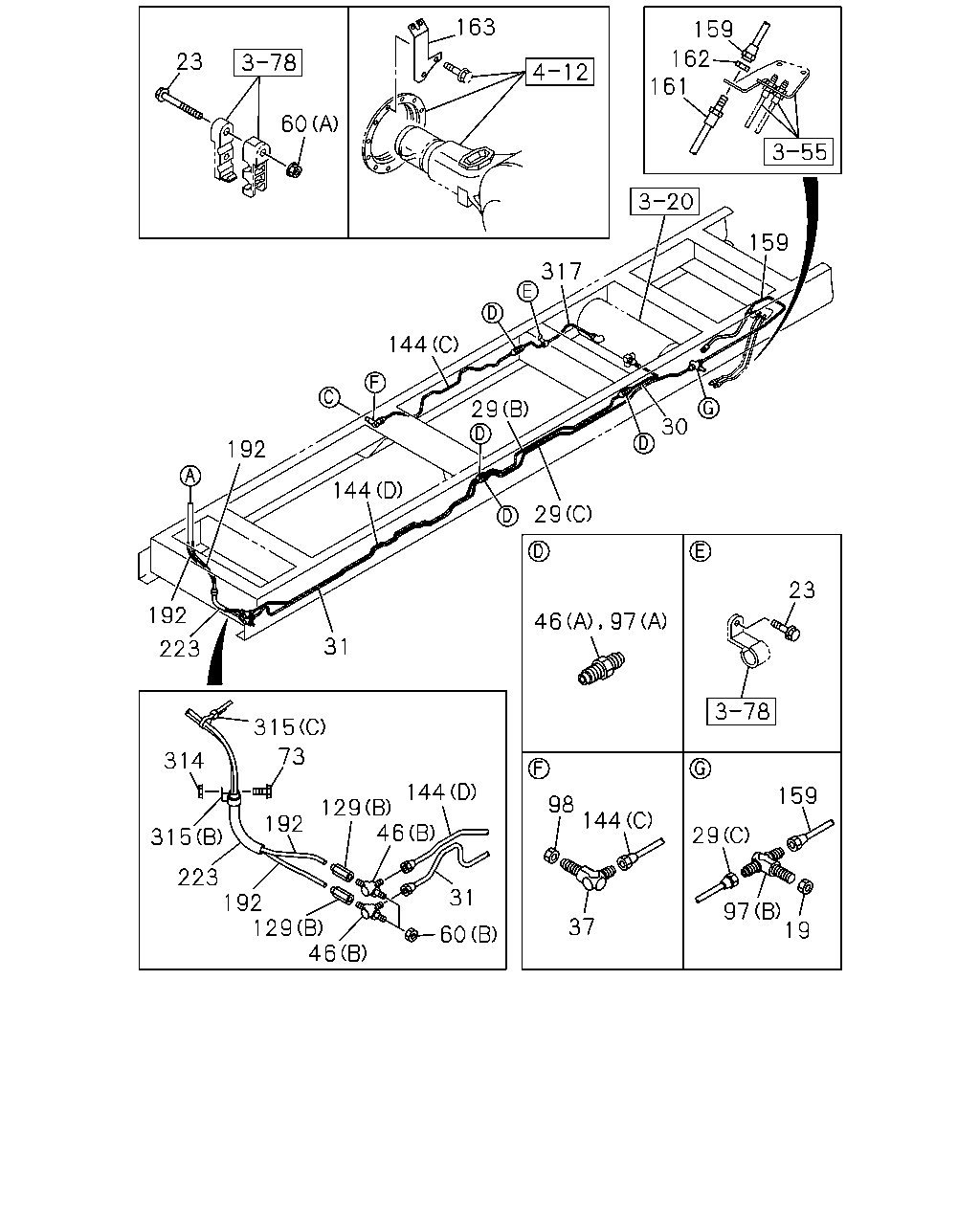

çizim 365949
23 46 97 29 30 159 161 162 159 163 60 23 317 144 29 144 192 31 223 192 159 19 97 29 144 98 37 31 60 144 46 129 73 315 314 315 223 192 129 46 192
BalonParca AdiParca NoAdetTipApplied Date A B
19 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1011- ● ●
23 BOLT; UNION BRKT
M8X50 FLANGE 		0-28050-850-0 01 1 1011-1306 ● ●
23 BOLT; UNION BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
23 BOLT; UNION BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1307- ● ●
29 PIPE; AIR,UNION TO UNION
(A) L=2736 SERVICED BY L=2900 		1-47428-885-0 01 1 1011-1012 ●
29 PIPE; AIR,UNION TO UNION
(A) L=2728 SERVICED BY L=2900 		1-47428-885-0 01 1 1101-1306 ●
29 PIPE; AIR,UNION TO UNION
(C) L=2761 SERVICED BY L=2900 		1-47428-885-0 01 1 1307- ● ●
29 PIPE; AIR,UNION TO UNION
(A) L=2728 SERVICED BY L=2900 		1-47428-885-0 01 1 1011-1306 ●
29 PIPE; AIR,UNION TO UNION
(B) L=1704 SERVICED BY L=1900 		1-47428-881-0 01 1 1307- ● ●
30 PIPE; AIR,AIR TANK TO JOINT
L=519 SERVICED BY L=550 		1-47428-867-0 01 1 1307- ● ●
31 PIPE; AIR,UNION TO UNION
L=2364 SERVICED BY L=2500 		1-47428-883-0 01 1 1011-1306 ● ●
31 PIPE; AIR,UNION TO UNION
L=2366 		8-98244-619-0 01 1 1307- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 01 1 1011- ● ●
37 UNION; AIR PIPE
M16 ELBOW 		0-92135-210-0 02 1 1011- ● ●
46 NIPPLE; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1011- ● ●
46 NIPPLE; AIR PIPE
(B) M16 2WAY 		1-09650-182-1 02 1 1011- ● ●
60 NUT; NIPPLE,AIR PIPE
(B) M12 		0-91111-512-0 02 1 1011- ● ●
60 NUT; NIPPLE,AIR PIPE
(A) M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ● ●
60 NUT; NIPPLE,AIR PIPE
(A) M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
73 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011- ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1011-1306 ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307- ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307- ● ●
97 UNION; AIR PIPE
(A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307- ● ●
97 UNION; AIR PIPE
(B) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1011- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 02 1 1011- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1011- ● ●
144 PIPE; AIR,UNION TO UNION
(B) L=2182 SERVICED BY L=2500 		1-47428-883-0 01 1 1011-1306 ●
144 PIPE; AIR,UNION TO UNION
(C) L=1049 SERVICED BY L=1100 		1-47428-875-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
(A) L=1531 SERVICED BY L=1550 		1-47428-879-0 01 1 1011-1306 ● ●
144 PIPE; AIR,UNION TO UNION
(D) 		8-98244-620-0 01 1 1307- ● ●
144 PIPE; AIR,UNION TO UNION
(B) L=2159 SERVICED BY L=2500 		1-47428-883-0 01 1 1011-1306 ●
144 PIPE; AIR,UNION TO UNION
(C) L=632 SERVICED BY L=660 		1-47428-869-0 01 1 1307- ●
159 PIPE; AIR,UNION TO FLEX HOSE 8-98111-625-0 01 1 1011- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
MANUAL TRANSMISSION<X9C> L=520 		1-09363-605-0 01 1 1204- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=520 		1-09363-605-0 01 1 1011-1203 ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
A/T<X9D> L=580 		1-09363-764-0 01 1 1204- ● ●
162 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 1011- ● ●
163 BRACKET; FLEX HOSE 8-98093-260-0 01 1 1011- ● ●
163 BRACKET; FLEX HOSE 8-98106-706-0 01 1 1011- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1011- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1011- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 01 1 1011- ● ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1011- ● ●
315 CLIP
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1011- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1011- ● ●
317 PIPE; AIR,UNION,AIR TANK
L=721 SERVICED BY L=730 		1-47428-871-0 01 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
