3-75 — BRAKE PIPING; AIR,FRONT (#71090) — 156 parça

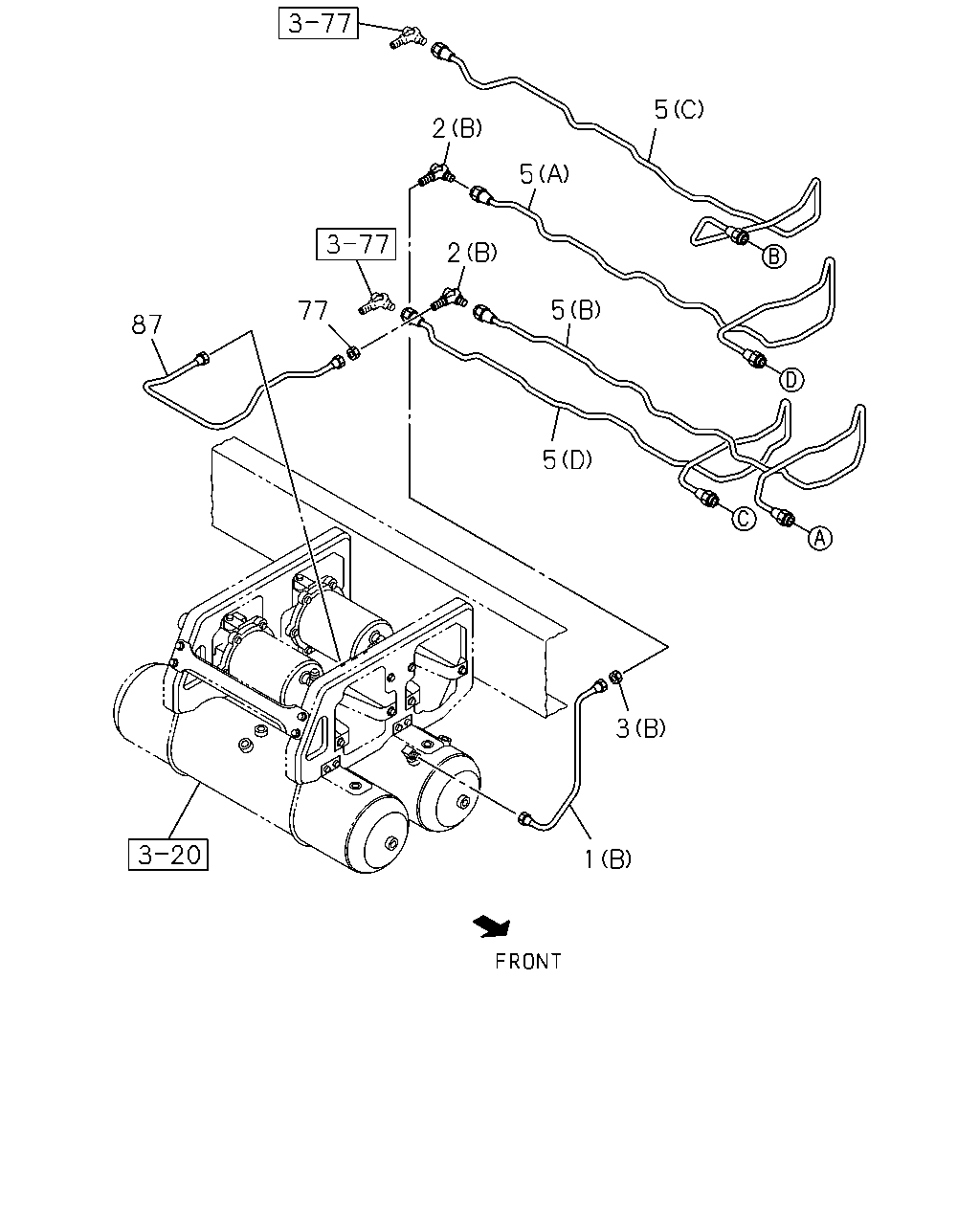

çizim 121759
5 5 5 5 2 2 77 87 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
(A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
(C) L=1350 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=549 SERVICED BY L=550 		1-47428-867-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
(C) L=1327 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (A) L=3004 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3791 		8-98233-843-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (B) L=3059 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3576 		8-98233-844-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3680 		8-98233-850-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (C) L=3673 		8-98215-740-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (D) L=3635 		8-98215-741-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (B) L=3561 		8-98111-239-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (D) L=3656 		8-98132-520-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3271 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3061 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2997 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3188 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3433 SERVICED BY L=3500 		1-47428-887-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3561 		8-98111-239-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (A) L=3489 		8-98215-738-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3683 		8-98132-519-1 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (C) L=3683 		8-98132-519-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3656 		8-98132-520-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (B) L=3550 		8-98215-739-0 01 1 1204-1306 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700 		1-47428-870-0 01 1 1011-1306 ●
87 PIPE; AIR,UNION TO AIR MASTER
L=657 SERVICED BY L=660 		1-47428-869-0 01 1 1011-1306 ●

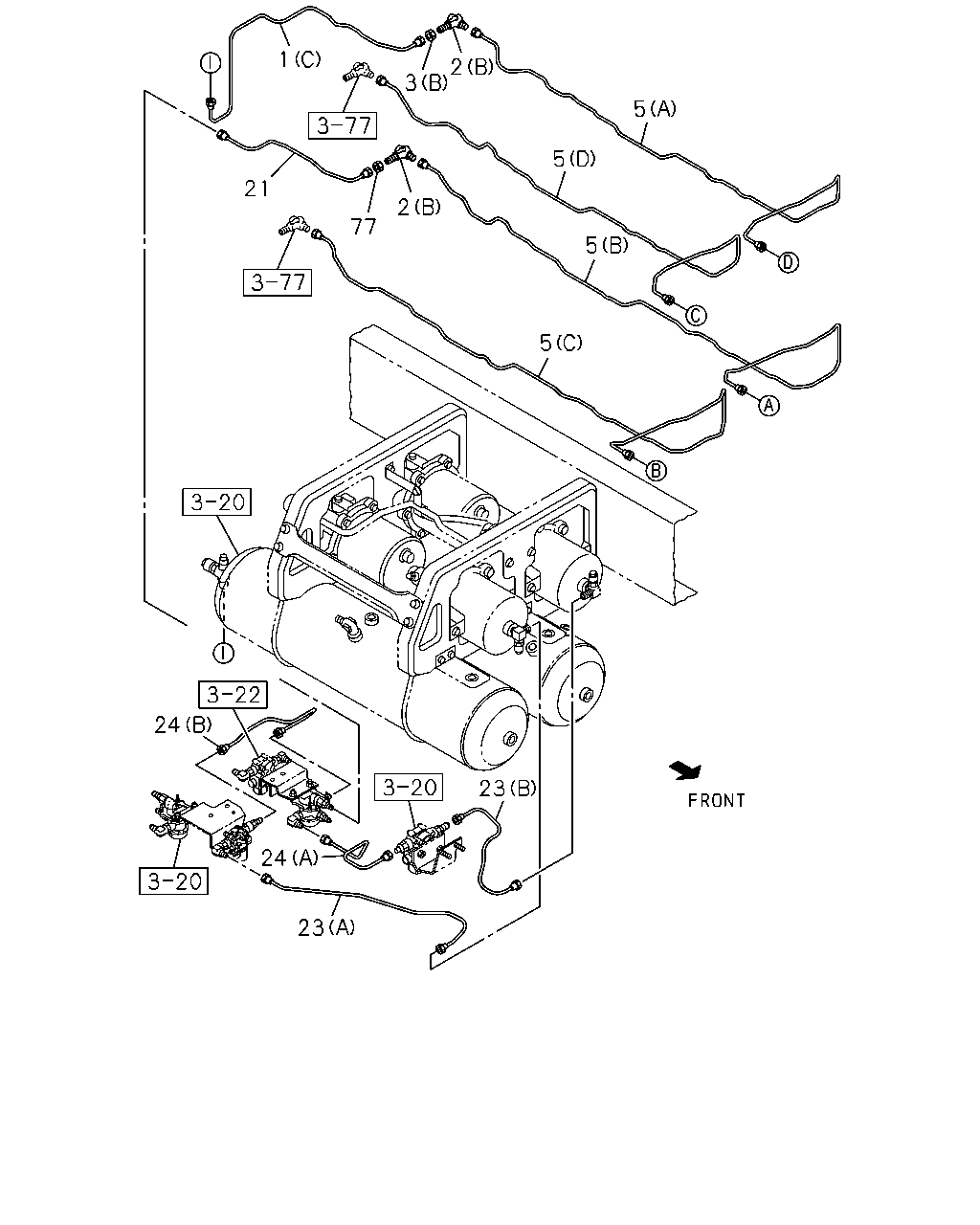

çizim 122282
1 3 2 5 5 5 2 77 21 24 23 24 23 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
(A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
(C) L=1350 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=549 SERVICED BY L=550 		1-47428-867-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
(C) L=1327 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (A) L=3004 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3791 		8-98233-843-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (B) L=3059 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3576 		8-98233-844-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3680 		8-98233-850-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (C) L=3673 		8-98215-740-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (D) L=3635 		8-98215-741-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (B) L=3561 		8-98111-239-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (D) L=3656 		8-98132-520-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3271 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3061 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2997 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3188 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3433 SERVICED BY L=3500 		1-47428-887-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3561 		8-98111-239-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (A) L=3489 		8-98215-738-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3683 		8-98132-519-1 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (C) L=3683 		8-98132-519-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3656 		8-98132-520-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (B) L=3550 		8-98215-739-0 01 1 1204-1306 ●
21 PIPE; AIR,UNION TO RELAY VLV
L=468 		8-98245-408-0 01 1 1307- ●
21 PIPE; AIR,UNION TO RELAY VLV
L=456 		8-98233-897-0 01 1 1307- ●
23 PIPE; AIR,MODULATOR
(A) L=735 SERVICED BY L=800 		1-47428-872-0 01 1 1307- ● ●
23 PIPE; AIR,MODULATOR
(B) L=458 		8-98230-351-0 01 1 1307- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=392 		8-98230-357-0 01 1 1307- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=300 		8-98236-977-0 01 1 1307- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011- ● ●

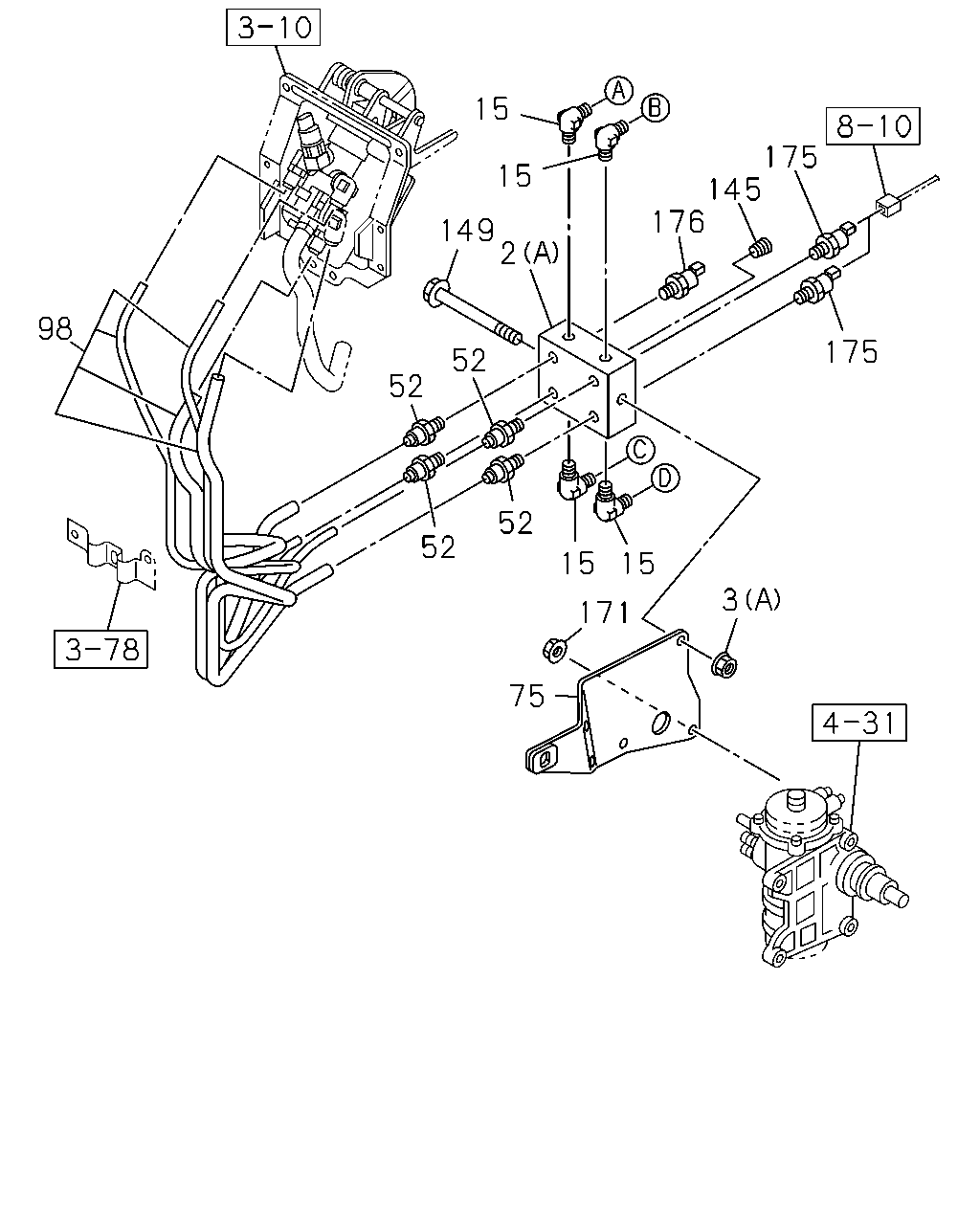

çizim 122308
15 15 149 2 52 52 98 52 15 15 52 171 75 3 175 176 145 175
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1011- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1011- ● ●
75 BRACKET; UNION 8-98099-485-1 01 1 1011- ● ●
98 TUBE; NYLON 8-97625-675-0 01 1 1011- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1011- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1011- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1011- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1011- ● ●

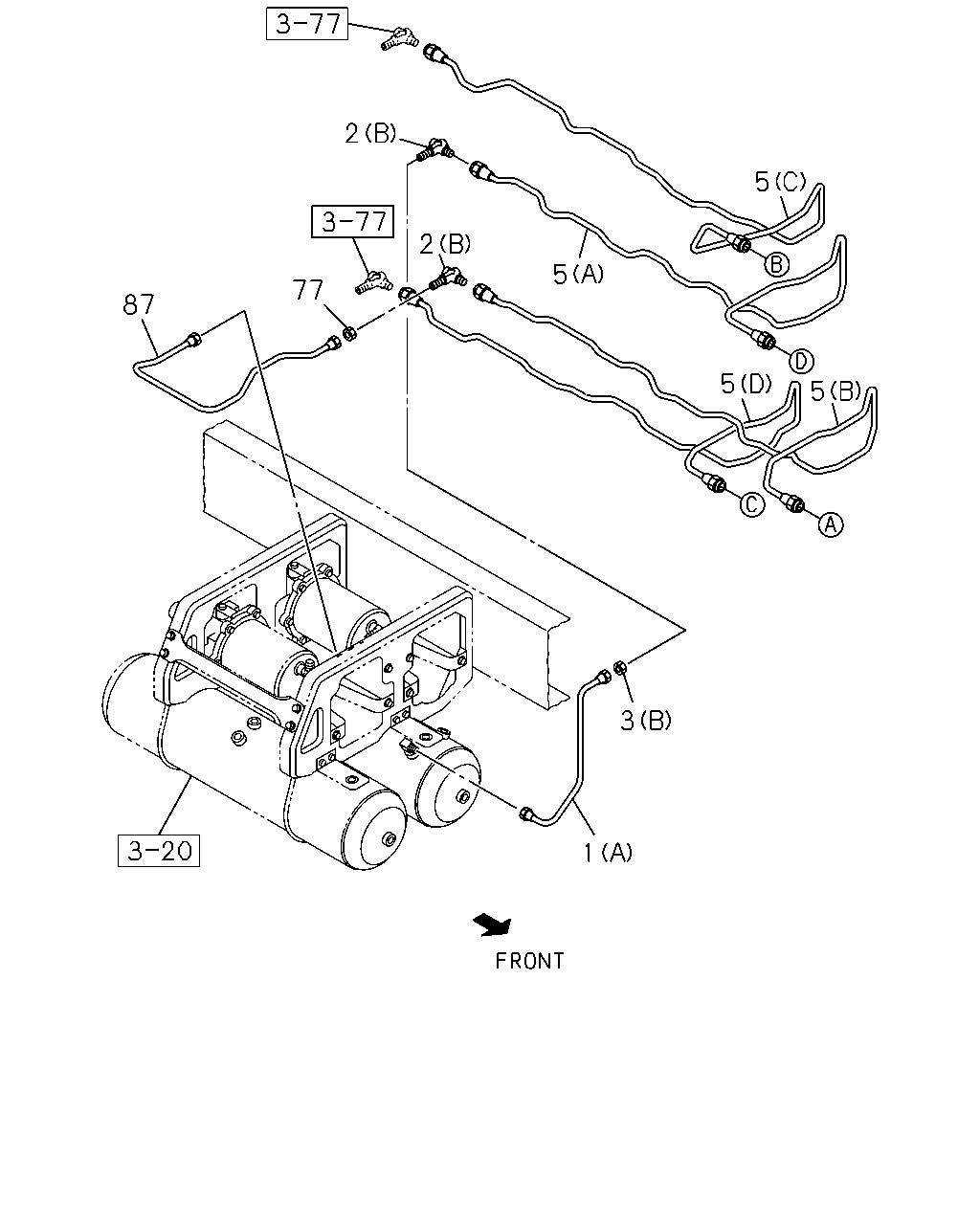

çizim 122313
1 3 5 5 5 5 2 2 77 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
(A) L=568 SERVICED BY L=600 		1-47428-868-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
(C) L=1350 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=549 SERVICED BY L=550 		1-47428-867-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
(C) L=1327 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (A) L=3004 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3791 		8-98233-843-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (B) L=3059 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3576 		8-98233-844-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3680 		8-98233-850-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (C) L=3673 		8-98215-740-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (D) L=3635 		8-98215-741-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (B) L=3561 		8-98111-239-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (D) L=3656 		8-98132-520-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (C) L=3252 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=3271 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (D) L=3190 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=3061 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (A) L=3011 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2997 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (B) L=3060 SERVICED BY L=3300 		1-47428-886-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3188 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (A) L=3494 SERVICED BY L=3500 		1-47428-887-0 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3433 SERVICED BY L=3500 		1-47428-887-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3561 		8-98111-239-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (A) L=3489 		8-98215-738-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=3683 		8-98132-519-1 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
MANUAL TRANSMISSION<X9C> (C) L=3683 		8-98132-519-1 01 1 1204-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=3656 		8-98132-520-0 01 1 1011-1203 ●
5 PIPE; AIR,UNION TO UNION
A/T<X9D> (B) L=3550 		8-98215-739-0 01 1 1204-1306 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700 		1-47428-870-0 01 1 1011-1306 ●
87 PIPE; AIR,UNION TO AIR MASTER
L=657 SERVICED BY L=660 		1-47428-869-0 01 1 1011-1306 ●

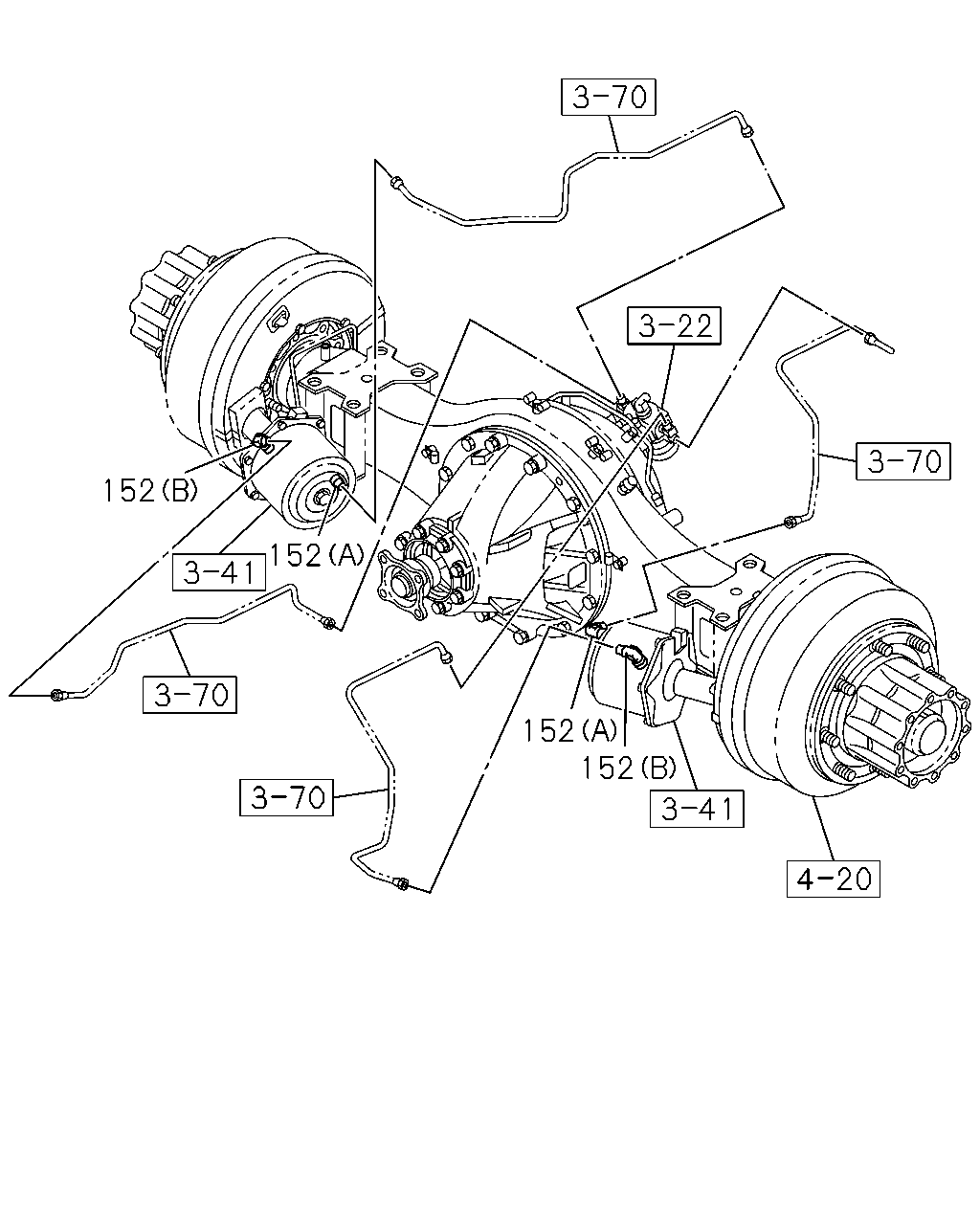

çizim 189265
152 152 152 152
BalonParca AdiParca NoAdetTipApplied Date A B
152 CONNECTOR; POWER CHAMBER
(A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 1011- ● ●
152 CONNECTOR; POWER CHAMBER
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
