◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#7109) — 98 parça

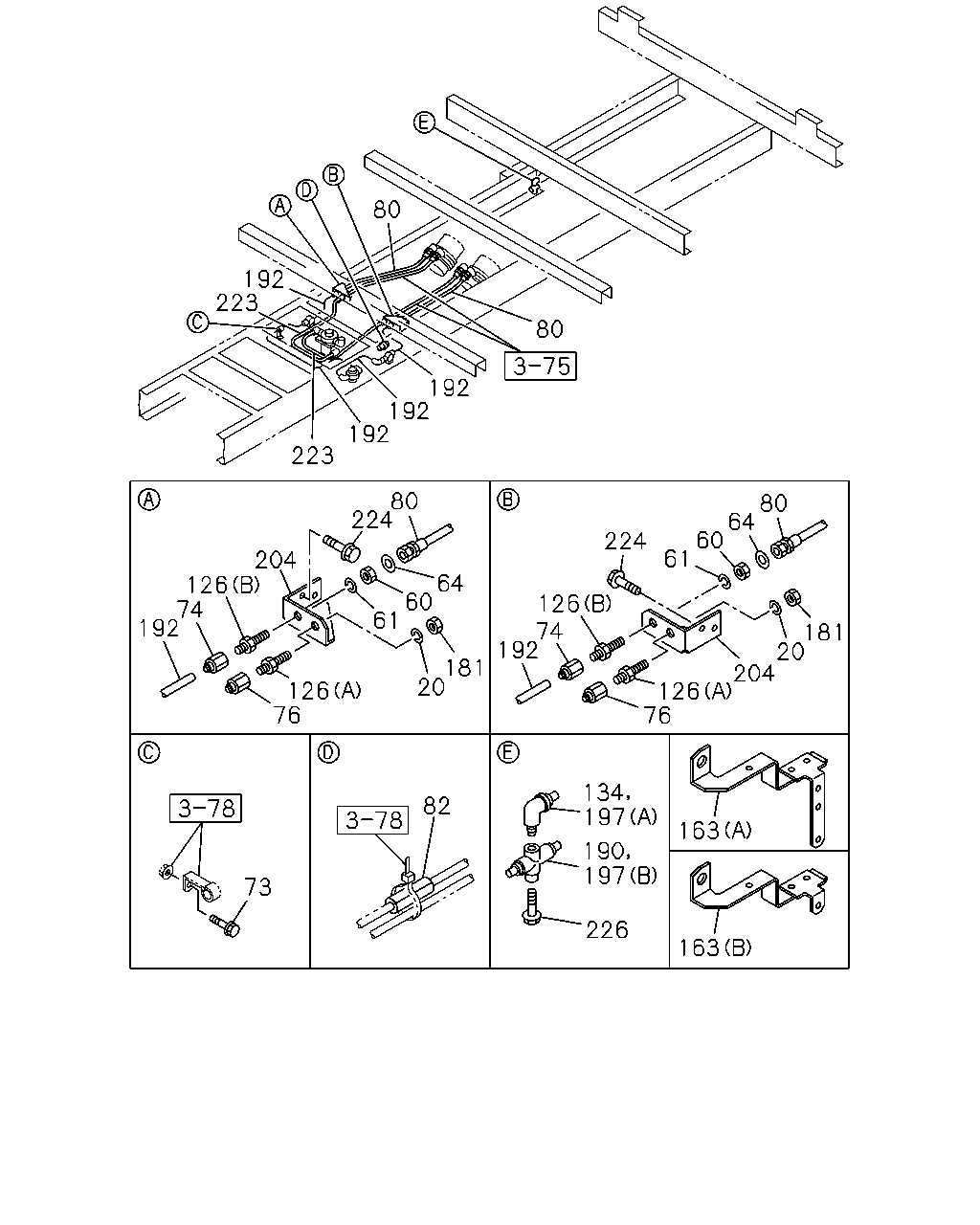

çizim 7242
80 192 223 80 192 192 192 223 80 224 80 64 60 61 224 204 126 74 192 64 60 61 126 74 192 181 20 204 181 20 126 76 126 76 134 197 82 163 190 197 73 226 163
BalonParca AdiParca NoAdetTipApplied Date A B
20 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 02 1 0012-0603 ● ●
20 WASHER; LK,PIPE UNION
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
60 NUT; NIPPLE,AIR PIPE
M16 		9-99111-416-0 02 1 0012-0512 ● ●
60 NUT; NIPPLE,AIR PIPE
M16 		0-91111-516-0 02 1 0601- ● ●
61 WASHER; LK,NIPPLE
ID=16.2 		9-09150-516-0 02 1 0012-0603 ● ●
61 WASHER; LK,NIPPLE
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0012-0411 ● ●
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0412- ●
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0012-0512 ●
73 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
74 ADAPTER; UNION TO NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0012- ● ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0012- ● ●
80 HOSE; FLEX,POWER CHAMBER
L=550 		0-07909-550-0 02 1 0012-0112 ●
80 HOSE; FLEX,POWER CHAMBER
L=550 		0-07908-550-0 02 1 0201-0411 ●
80 HOSE; FLEX,POWER CHAMBER
L=640 		1-09363-747-0 02 1 0412- ●
80 HOSE; FLEX,POWER CHAMBER
L=670 		0-07909-670-0 01 1 0012-0112 ●
80 HOSE; FLEX,POWER CHAMBER
L=670 		0-07908-670-0 01 1 0201- ●
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-07909-630-0 01 1 0012-0112 ●
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-07908-630-0 01 1 0201- ●
82 SLEEVE; RUBBER,NYLON TUBE
ID=14 OD=18 L=60 		1-09337-030-0 01 1 0012- ●
126 UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT 		1-09650-338-2 02 1 0012-0411 ● ●
126 UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT 		1-09650-338-2 02 1 0412- ●
126 UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT 		1-09654-016-2 02 1 0012-0411 ● ●
126 UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT 		1-09654-016-2 02 1 0412- ●
134 CONNECTOR
ISUZU M/T<X9A> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1004- ● ●
163 BRACKET; FLEX HOSE
(A) 		1-82698-303-0 01 1 0012-1003 ●
163 BRACKET; FLEX HOSE
(B) 		8-98163-881-0 01 1 1004- ●
163 BRACKET; FLEX HOSE
(A) 		1-82698-302-0 01 1 0012-1003 ●
163 BRACKET; FLEX HOSE
(B) 		8-98163-880-0 01 1 1004- ●
181 NUT; TUBE UNION
M16 		9-99111-416-0 02 1 0012-0512 ● ●
181 NUT; TUBE UNION
M16 		0-91111-516-0 02 1 0601- ● ●
190 UNION; 3 WAY
ISUZU M/T<X9A> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1004- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0012- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0012- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0012- ● ●
197 UNION ASM; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0012-0203 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0204-0306 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-1003 ● ●
197 UNION ASM; NYLON TUBE
(B) 		1-09660-757-0 01 1 0012-0203 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (B) 		1-09660-757-0 01 1 0204-0306 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0307-1003 ● ●
204 BRACKET; TUBE UNION 1-47478-955-0 01 1 0012- ●
204 BRACKET; TUBE UNION 1-47478-956-0 01 1 0012- ●
204 BRACKET; TUBE UNION 1-47478-532-0 01 1 0012- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0012- ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28681-030-0 04 1 0012-0512 ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28681-030-0 02 1 0012-0512 ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0012-0203 ● ●
226 BOLT; UNION
ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
226 BOLT; UNION
ISUZU M/T<X9A> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●

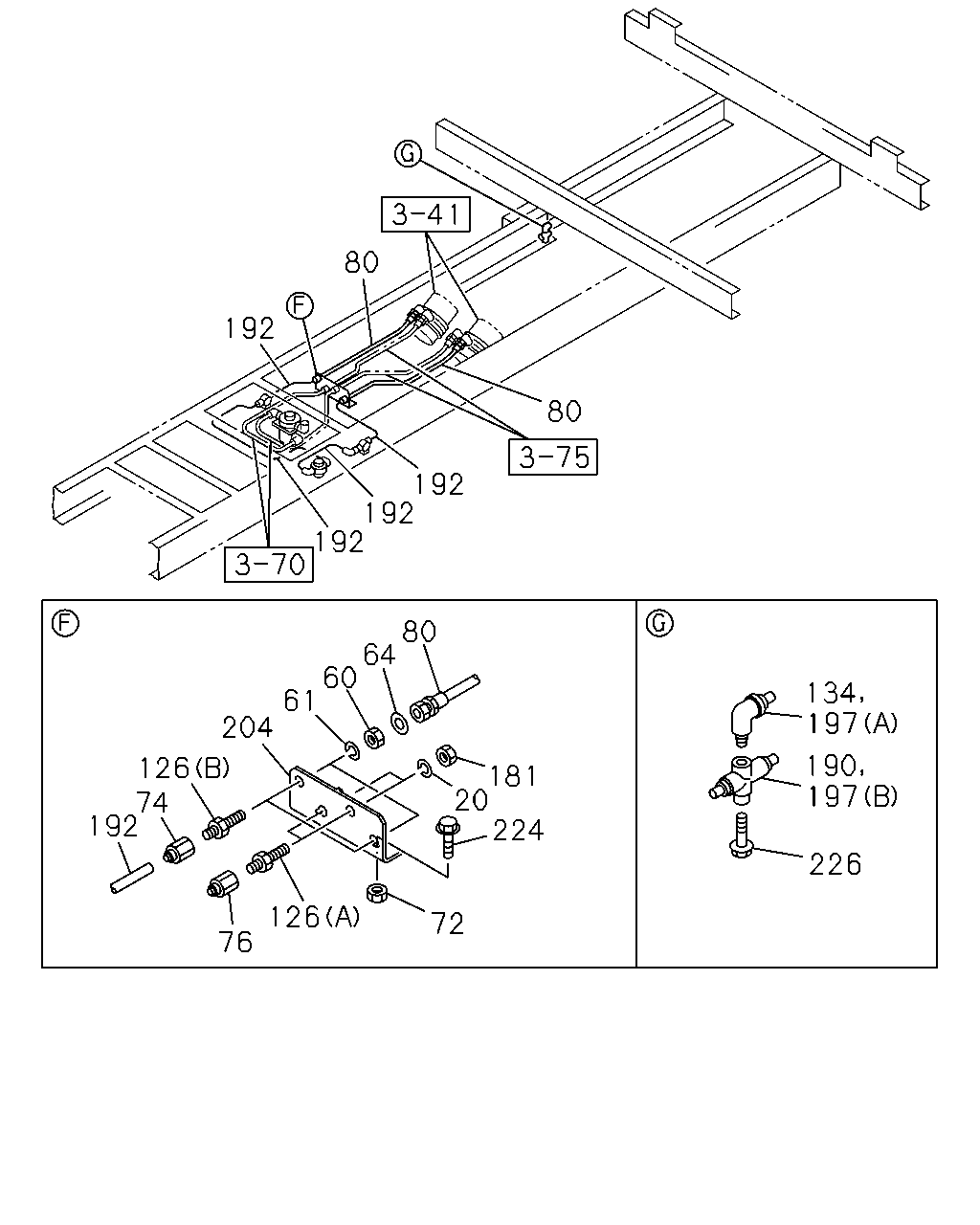

çizim 43349
80 192 80 192 192 192 80 64 60 61 204 134 197 190 197 126 74 192 181 20 224 226 126 72 76
BalonParca AdiParca NoAdetTipApplied Date A B
20 WASHER; LK,PIPE UNION
ID=16.2 		9-09150-516-0 02 1 0012-0603 ● ●
20 WASHER; LK,PIPE UNION
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
60 NUT; NIPPLE,AIR PIPE
M16 		9-99111-416-0 02 1 0012-0512 ● ●
60 NUT; NIPPLE,AIR PIPE
M16 		0-91111-516-0 02 1 0601- ● ●
61 WASHER; LK,NIPPLE
ID=16.2 		9-09150-516-0 02 1 0012-0603 ● ●
61 WASHER; LK,NIPPLE
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0012-0411 ● ●
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0412- ●
72 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0012-0602 ●
72 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
74 ADAPTER; UNION TO NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0012- ● ●
76 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0012- ● ●
80 HOSE; FLEX,POWER CHAMBER
L=550 		0-07909-550-0 02 1 0012-0112 ●
80 HOSE; FLEX,POWER CHAMBER
L=550 		0-07908-550-0 02 1 0201-0411 ●
80 HOSE; FLEX,POWER CHAMBER
L=640 		1-09363-747-0 02 1 0412- ●
80 HOSE; FLEX,POWER CHAMBER
L=670 		0-07909-670-0 01 1 0012-0112 ●
80 HOSE; FLEX,POWER CHAMBER
L=670 		0-07908-670-0 01 1 0201- ●
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-07909-630-0 01 1 0012-0112 ●
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-07908-630-0 01 1 0201- ●
126 UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT 		1-09650-338-2 02 1 0012-0411 ● ●
126 UNION; NYLON TUBE
(A) M16 & M20 STRAIGHT 		1-09650-338-2 02 1 0412- ●
126 UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT 		1-09654-016-2 02 1 0012-0411 ● ●
126 UNION; NYLON TUBE
(B) M16 & M27 STRAIGHT 		1-09654-016-2 02 1 0412- ●
134 CONNECTOR
ISUZU M/T<X9A> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1004- ● ●
181 NUT; TUBE UNION
M16 		9-99111-416-0 02 1 0012-0512 ● ●
181 NUT; TUBE UNION
M16 		0-91111-516-0 02 1 0601- ● ●
190 UNION; 3 WAY
ISUZU M/T<X9A> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1004- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0012- ● ●
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0012- ● ●
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0012- ● ●
197 UNION ASM; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0012-0203 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0204-0306 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-1003 ● ●
197 UNION ASM; NYLON TUBE
(B) 		1-09660-757-0 01 1 0012-0203 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (B) 		1-09660-757-0 01 1 0204-0306 ● ●
197 UNION ASM; NYLON TUBE
ISUZU M/T<X9A> (B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0307-1003 ● ●
204 BRACKET; TUBE UNION 1-47478-955-0 01 1 0012- ●
204 BRACKET; TUBE UNION 1-47478-956-0 01 1 0012- ●
204 BRACKET; TUBE UNION 1-47478-532-0 01 1 0012- ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28681-030-0 04 1 0012-0512 ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28681-030-0 02 1 0012-0512 ●
224 BOLT; TUBE UNION
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0012-0203 ● ●
226 BOLT; UNION
ISUZU M/T<X9A> M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ● ●
226 BOLT; UNION
ISUZU M/T<X9A> M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
