3-70 — BRAKE PIPING; AIR,AIR MASTER (#71089) — 259 parça

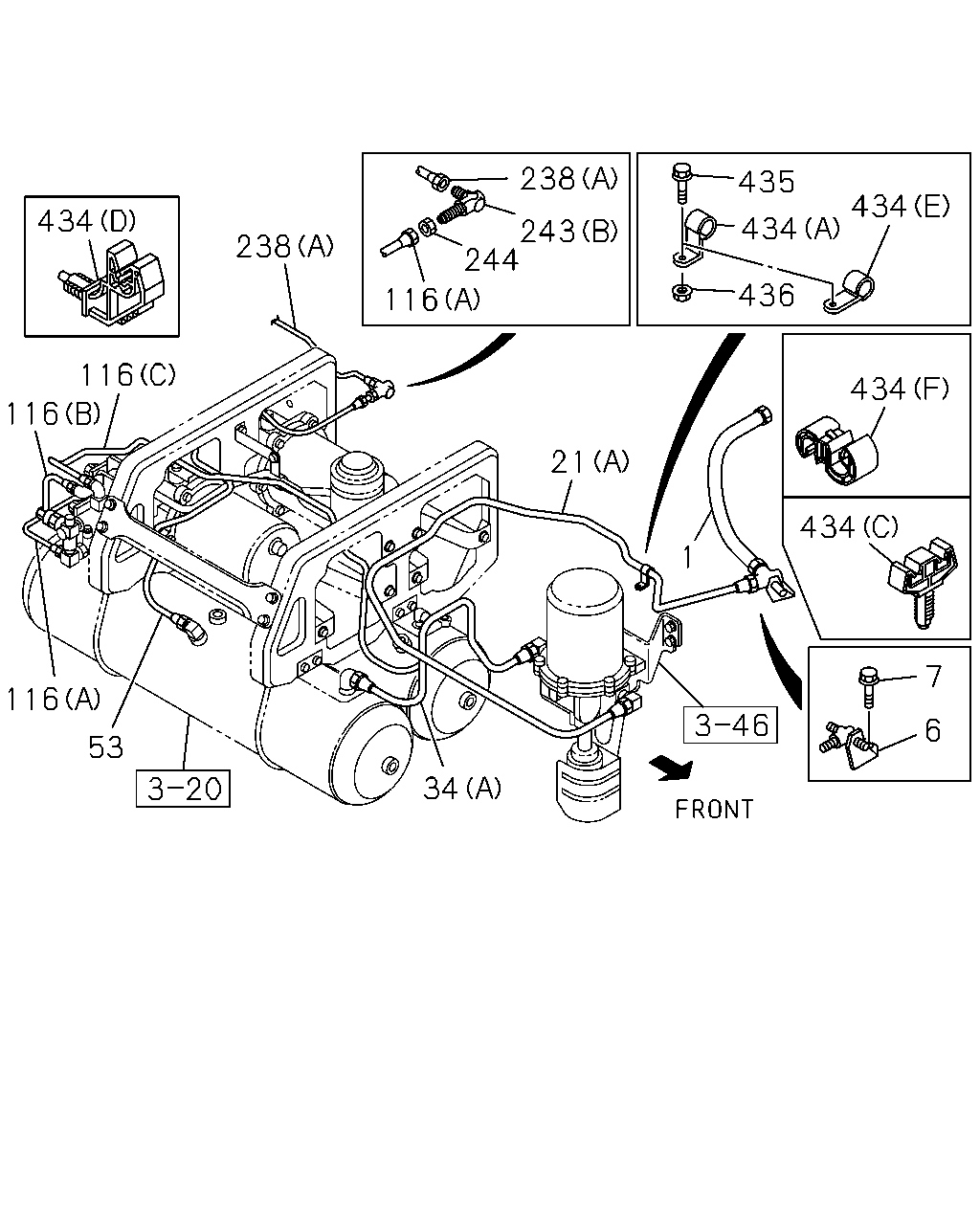

çizim 121491
6 7 434 434 436 434 435 434 1 21 238 243 244 116 238 434 116 116 116 53 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97607-418-0 01 1 1011- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1011- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1748 		8-98126-086-0 01 1 1011- ●
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=1722 		8-98126-087-0 01 1 1011- ●
34 PIPE; AIR
(A) L=639 SERVICED BY L=660 		1-49115-480-0 01 1 1011-1306 ●
34 PIPE; AIR
(A) L=635 SERVICED BY L=660 		1-49115-480-0 01 1 1307- ●
34 PIPE; AIR
(B) L=1121 		8-98108-558-1 01 1 1011-1306 ●
34 PIPE; AIR
(B) L=1118 SERVICED BY L=1200 		1-49115-487-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=751 		8-98233-898-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1011-1306 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
L=718 		8-98244-587-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=427 		8-98230-387-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=460 		8-98233-900-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=957 SERVICED BY L=1000 		1-47428-814-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=915 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-561-0 01 1 1011-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98230-363-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-563-0 01 1 1011-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98236-892-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1008 SERVICED BY L=1100 		1-47428-815-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=942 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1680 SERVICED BY L=1700 		1-47428-821-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(C) L=523 SERVICED BY L=550 		1-47428-808-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(B) L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1011-1306 ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1309 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(D) L=232 		8-98234-236-0 01 1 1307- ●
243 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 1307- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011- ● ●
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 1011- ●
434 CLIP
(B) L=250 		5-09707-030-1 01 1 1011-1306 ●
434 CLIP
(G) ID=7 L=20 		0-95234-635-0 01 1 1011- ● ●
434 CLIP
(E) ID=16 L=20 		0-95235-536-0 01 1 1011- ● ●
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 1011-1306 ● ●
434 CLIP
(B) L=600 		1-09707-107-1 01 1 1011-1306 ● ●
434 CLIP
(F) ID=12 & 15 		1-09709-281-1 01 1 1011- ● ●
434 CLIP
(C) 		8-98012-254-1 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●

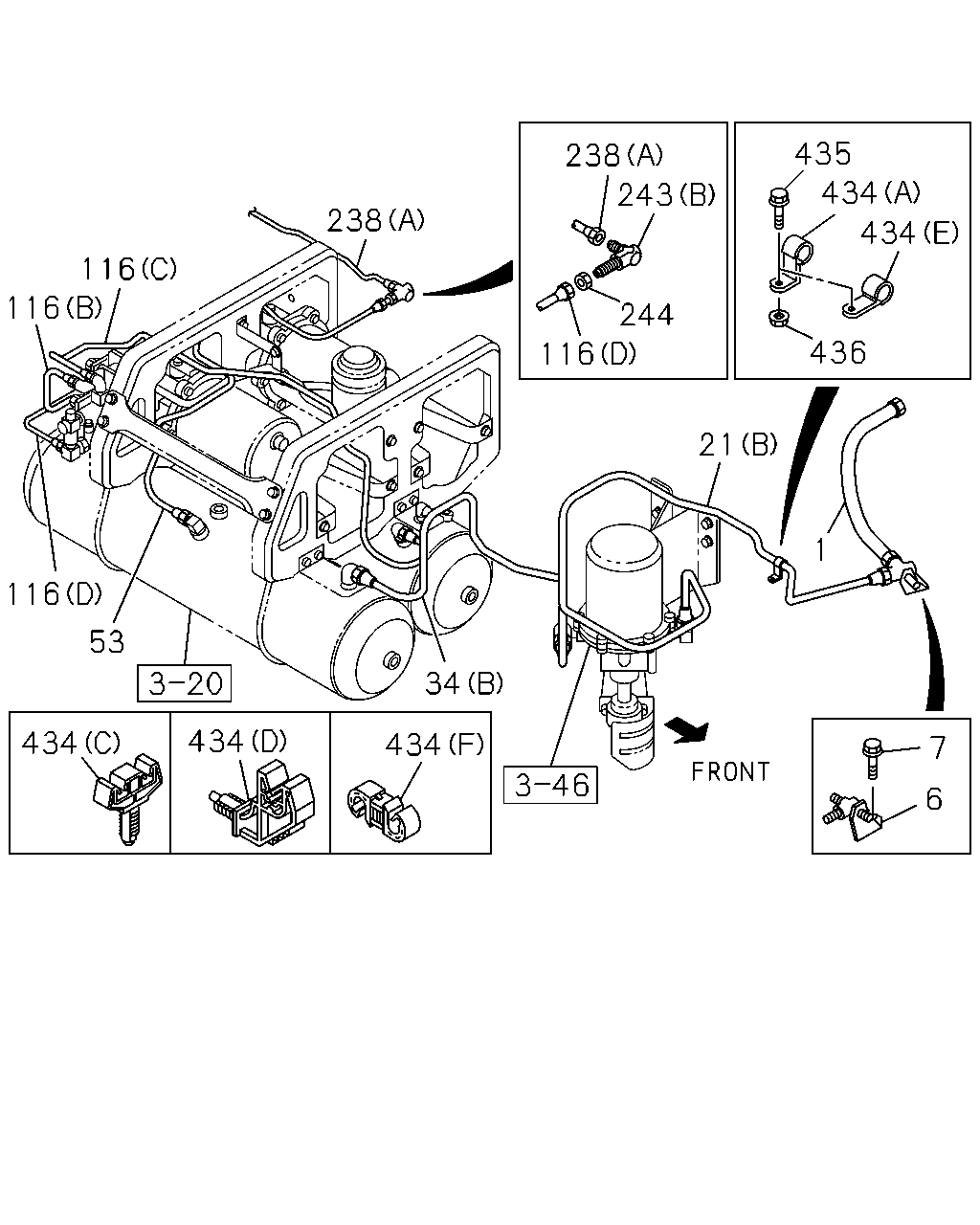

çizim 121565
7 6 1 21 436 434 434 435 243 238 244 116 34 434 434 434 53 116 116 116 238
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97607-418-0 01 1 1011- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1011- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1748 		8-98126-086-0 01 1 1011- ●
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=1722 		8-98126-087-0 01 1 1011- ●
34 PIPE; AIR
(A) L=639 SERVICED BY L=660 		1-49115-480-0 01 1 1011-1306 ●
34 PIPE; AIR
(A) L=635 SERVICED BY L=660 		1-49115-480-0 01 1 1307- ●
34 PIPE; AIR
(B) L=1121 		8-98108-558-1 01 1 1011-1306 ●
34 PIPE; AIR
(B) L=1118 SERVICED BY L=1200 		1-49115-487-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=751 		8-98233-898-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1011-1306 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
L=718 		8-98244-587-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=427 		8-98230-387-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=460 		8-98233-900-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=957 SERVICED BY L=1000 		1-47428-814-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=915 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-561-0 01 1 1011-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98230-363-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-563-0 01 1 1011-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98236-892-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1008 SERVICED BY L=1100 		1-47428-815-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=942 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(A) L=1680 SERVICED BY L=1700 		1-47428-821-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(C) L=523 SERVICED BY L=550 		1-47428-808-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(B) L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1011-1306 ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1309 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(D) L=232 		8-98234-236-0 01 1 1307- ●
243 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 1307- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011- ● ●
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 1011- ●
434 CLIP
(B) L=250 		5-09707-030-1 01 1 1011-1306 ●
434 CLIP
(G) ID=7 L=20 		0-95234-635-0 01 1 1011- ● ●
434 CLIP
(E) ID=16 L=20 		0-95235-536-0 01 1 1011- ● ●
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 1011-1306 ● ●
434 CLIP
(B) L=600 		1-09707-107-1 01 1 1011-1306 ● ●
434 CLIP
(F) ID=12 & 15 		1-09709-281-1 01 1 1011- ● ●
434 CLIP
(C) 		8-98012-254-1 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●

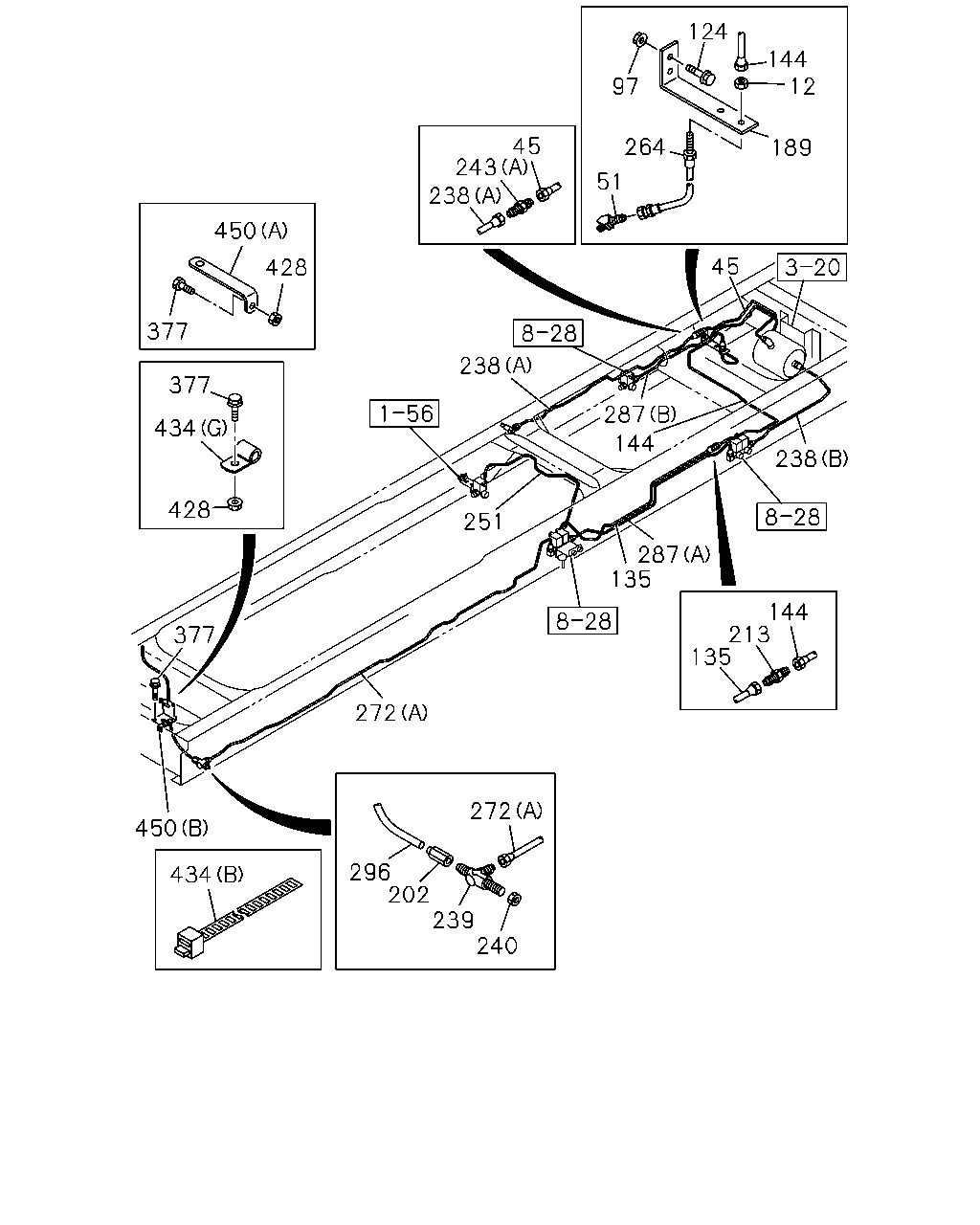

çizim 189259
144 213 135 287 135 251 144 287 238 45 189 12 144 124 97 264 51 45 243 238 428 450 377 377 434 428 377 272 272 240 239 202 296 434 450 238
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		9-09840-280-0 01 1 1011- ● ●
45 PIPE; AIR,UNION TO AIR TANK
L=810 SERVICED BY L=900 		1-47428-813-0 01 1 1011-1306 ●
45 PIPE; AIR,UNION TO AIR TANK
L=813 SERVICED BY L=900 		1-47428-813-0 01 1 1011-1306 ●
51 UNION
M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1011-1503 ●
51 UNION
M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504- ●
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011- ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ● ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1011-1306 ● ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
135 PIPE; AIR,UNION TO UNION
L=1202 SERVICED BY L=1250 		1-47428-817-0 01 1 1011-1306 ●
135 PIPE; AIR,UNION TO UNION
L=1194 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ● ●
135 PIPE; AIR,UNION TO UNION
L=1220 SERVICED BY L=1250 		1-47428-817-0 01 1 1011-1306 ●
144 PIPE; AIR,UNION TO UNION
L=1171 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
L=1579 SERVICED BY L=1620 		1-47428-820-0 01 1 1011-1306 ● ●
144 PIPE; AIR,UNION TO UNION
L=1530 SERVICED BY L=1620 		1-47428-820-0 01 1 1307- ●
189 BRACKET; FLEX HOSE 8-98077-571-0 01 1 1011-1306 ● ●
189 BRACKET; FLEX HOSE 8-98234-313-0 01 1 1307- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1011- ● ●
213 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1011- ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1680 SERVICED BY L=1700 		1-47428-821-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(C) L=523 SERVICED BY L=550 		1-47428-808-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(B) L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1011-1306 ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1309 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(D) L=232 		8-98234-236-0 01 1 1307- ●
239 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 01 1 1011- ● ●
240 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 1011- ● ●
243 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 1307- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=1127 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=1125 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ● ●
264 HOSE; FLEX
L=430 		1-09363-623-0 01 1 1011-1306 ●
264 HOSE; FLEX
L=340 		1-09363-622-0 01 1 1307- ●
264 HOSE; FLEX
L=280 		1-09363-610-0 01 1 1011-1306 ●
264 HOSE; FLEX
L=320 		1-09363-625-0 01 1 1307- ●
272 PIPE; AIR,MAG VLV TO UNION
(C) L=1229 SERVICED BY L=1250 		1-47428-817-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (A) L=2684 SERVICED BY L=2900 		1-47428-828-0 01 1 1011-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2687 SERVICED BY L=2900 		1-47428-828-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (A) L=2624 SERVICED BY L=2650 		1-47428-827-0 01 1 1011-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2627 SERVICED BY L=2650 		1-47428-827-0 01 1 1307- ● ●
287 PIPE; AIR,MAG VLV
(B) L=1156 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
287 PIPE; AIR,MAG VLV
(A) L=1240 SERVICED BY L=1250 		1-47428-817-0 01 1 1011-1306 ● ●
287 PIPE; AIR,MAG VLV
(C) L=1172 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ● ●
287 PIPE; AIR,MAG VLV
(B) L=1189 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1011- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1011-1306 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1307- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1306 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 1011- ●
434 CLIP
(B) L=250 		5-09707-030-1 01 1 1011-1306 ●
434 CLIP
(G) ID=7 L=20 		0-95234-635-0 01 1 1011- ● ●
434 CLIP
(E) ID=16 L=20 		0-95235-536-0 01 1 1011- ● ●
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 1011-1306 ● ●
434 CLIP
(B) L=600 		1-09707-107-1 01 1 1011-1306 ● ●
434 CLIP
(F) ID=12 & 15 		1-09709-281-1 01 1 1011- ● ●
434 CLIP
(C) 		8-98012-254-1 01 1 1011-1306 ● ●
450 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1011- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1011- ● ●

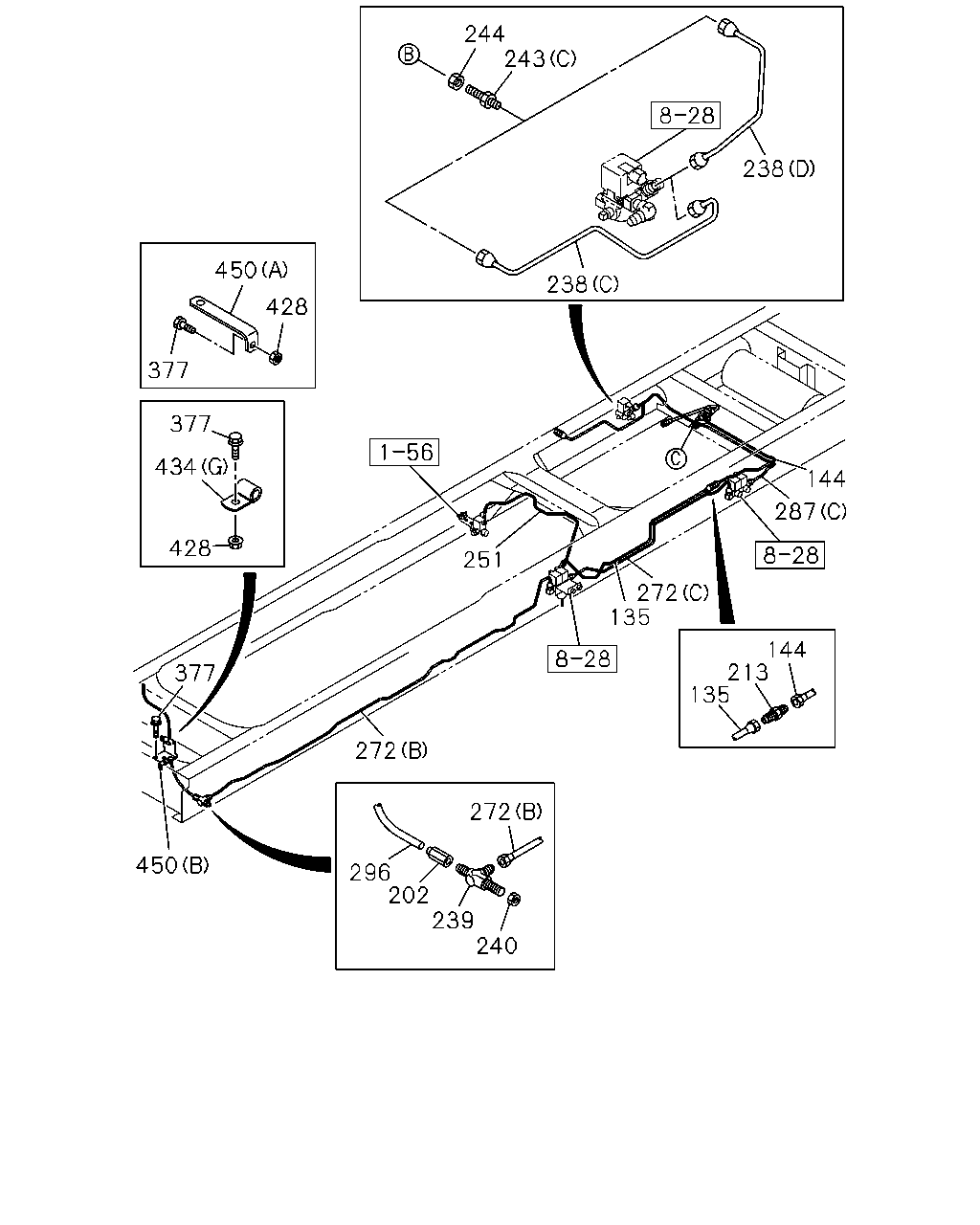

çizim 189267
244 243 238 238 450 428 377 377 434 428 377 450 296 202 239 240 272 272 251 135 272 287 144 144 213 135
BalonParca AdiParca NoAdetTipApplied Date A B
135 PIPE; AIR,UNION TO UNION
L=1202 SERVICED BY L=1250 		1-47428-817-0 01 1 1011-1306 ●
135 PIPE; AIR,UNION TO UNION
L=1194 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ● ●
135 PIPE; AIR,UNION TO UNION
L=1220 SERVICED BY L=1250 		1-47428-817-0 01 1 1011-1306 ●
144 PIPE; AIR,UNION TO UNION
L=1171 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
L=1579 SERVICED BY L=1620 		1-47428-820-0 01 1 1011-1306 ● ●
144 PIPE; AIR,UNION TO UNION
L=1530 SERVICED BY L=1620 		1-47428-820-0 01 1 1307- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1011- ● ●
213 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1011- ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1680 SERVICED BY L=1700 		1-47428-821-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(C) L=523 SERVICED BY L=550 		1-47428-808-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(B) L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1011-1306 ● ●
238 PIPE; AIR,UNION TO UNION
(A) L=1309 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1306 ●
238 PIPE; AIR,UNION TO UNION
(D) L=232 		8-98234-236-0 01 1 1307- ●
239 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 01 1 1011- ● ●
240 NUT; UNION,AIR PIPE
M12 		0-91111-512-0 01 1 1011- ● ●
243 UNION; AIR PIPE
(A) M12 L=40 		0-92113-006-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 1011-1306 ● ●
243 UNION; AIR PIPE
(C) M12 L=66.5 		0-92113-306-0 01 1 1307- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=1127 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=1125 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(C) L=1229 SERVICED BY L=1250 		1-47428-817-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (A) L=2684 SERVICED BY L=2900 		1-47428-828-0 01 1 1011-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2687 SERVICED BY L=2900 		1-47428-828-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (A) L=2624 SERVICED BY L=2650 		1-47428-827-0 01 1 1011-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2627 SERVICED BY L=2650 		1-47428-827-0 01 1 1307- ● ●
287 PIPE; AIR,MAG VLV
(B) L=1156 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
287 PIPE; AIR,MAG VLV
(A) L=1240 SERVICED BY L=1250 		1-47428-817-0 01 1 1011-1306 ● ●
287 PIPE; AIR,MAG VLV
(C) L=1172 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ● ●
287 PIPE; AIR,MAG VLV
(B) L=1189 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1011- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1011-1306 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1307- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1306 ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 1011- ●
434 CLIP
(B) L=250 		5-09707-030-1 01 1 1011-1306 ●
434 CLIP
(G) ID=7 L=20 		0-95234-635-0 01 1 1011- ● ●
434 CLIP
(E) ID=16 L=20 		0-95235-536-0 01 1 1011- ● ●
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 1011-1306 ● ●
434 CLIP
(B) L=600 		1-09707-107-1 01 1 1011-1306 ● ●
434 CLIP
(F) ID=12 & 15 		1-09709-281-1 01 1 1011- ● ●
434 CLIP
(C) 		8-98012-254-1 01 1 1011-1306 ● ●
450 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 01 1 1011- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1011- ● ●

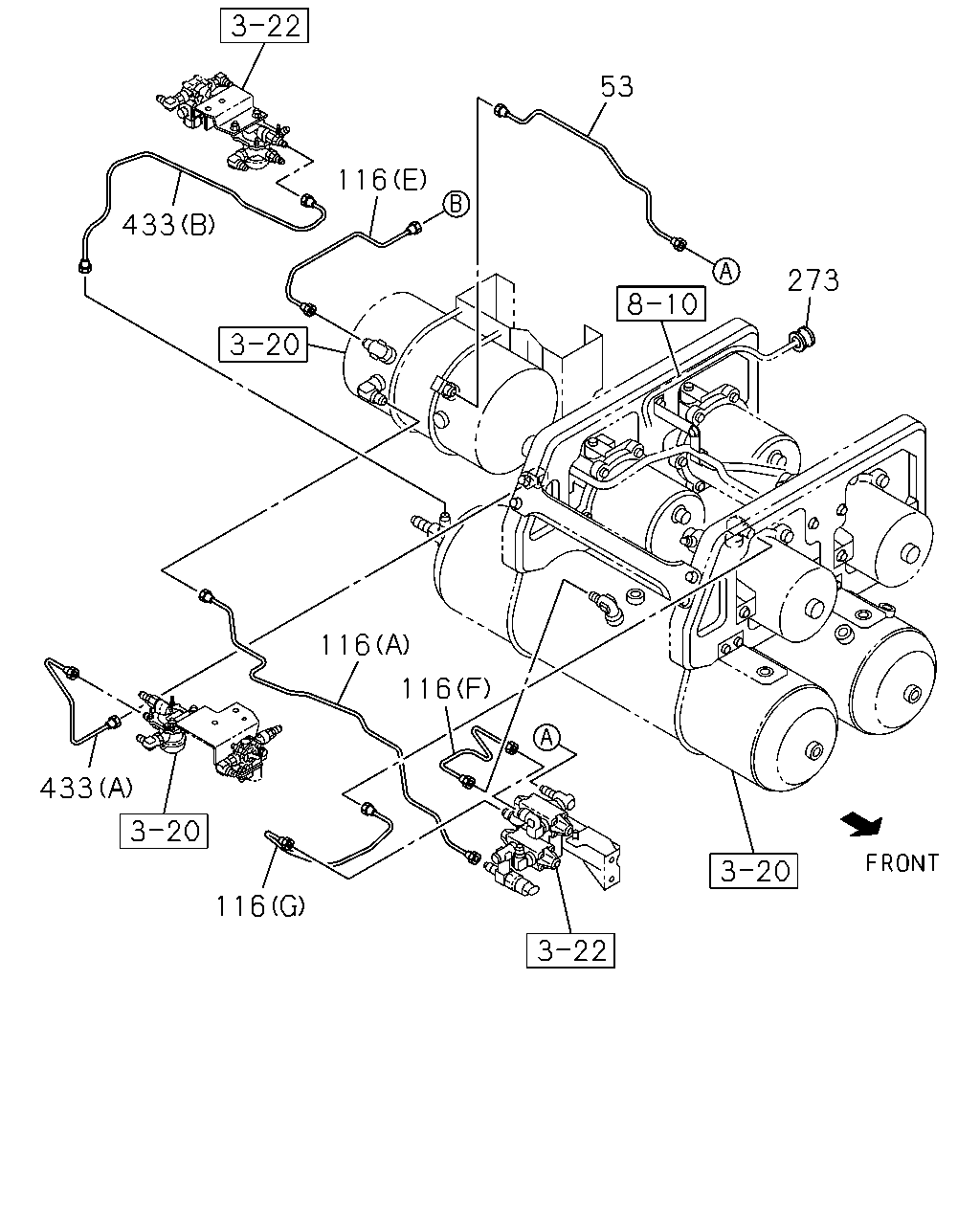

çizim 363608
433 116 53 273 116 116 433 116
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE
L=751 		8-98233-898-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1011-1306 ● ●
53 PIPE; AIR,AIR TANK TO VALVE
L=718 		8-98244-587-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=427 		8-98230-387-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=460 		8-98233-900-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=957 SERVICED BY L=1000 		1-47428-814-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=915 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-561-0 01 1 1011-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(F) 		8-98230-363-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-563-0 01 1 1011-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98236-892-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1008 SERVICED BY L=1100 		1-47428-815-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=942 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1307- ● ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(A) L=486 		8-98236-978-0 01 1 1307- ● ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(B) L=950 		8-98244-370-0 01 1 1307- ● ●

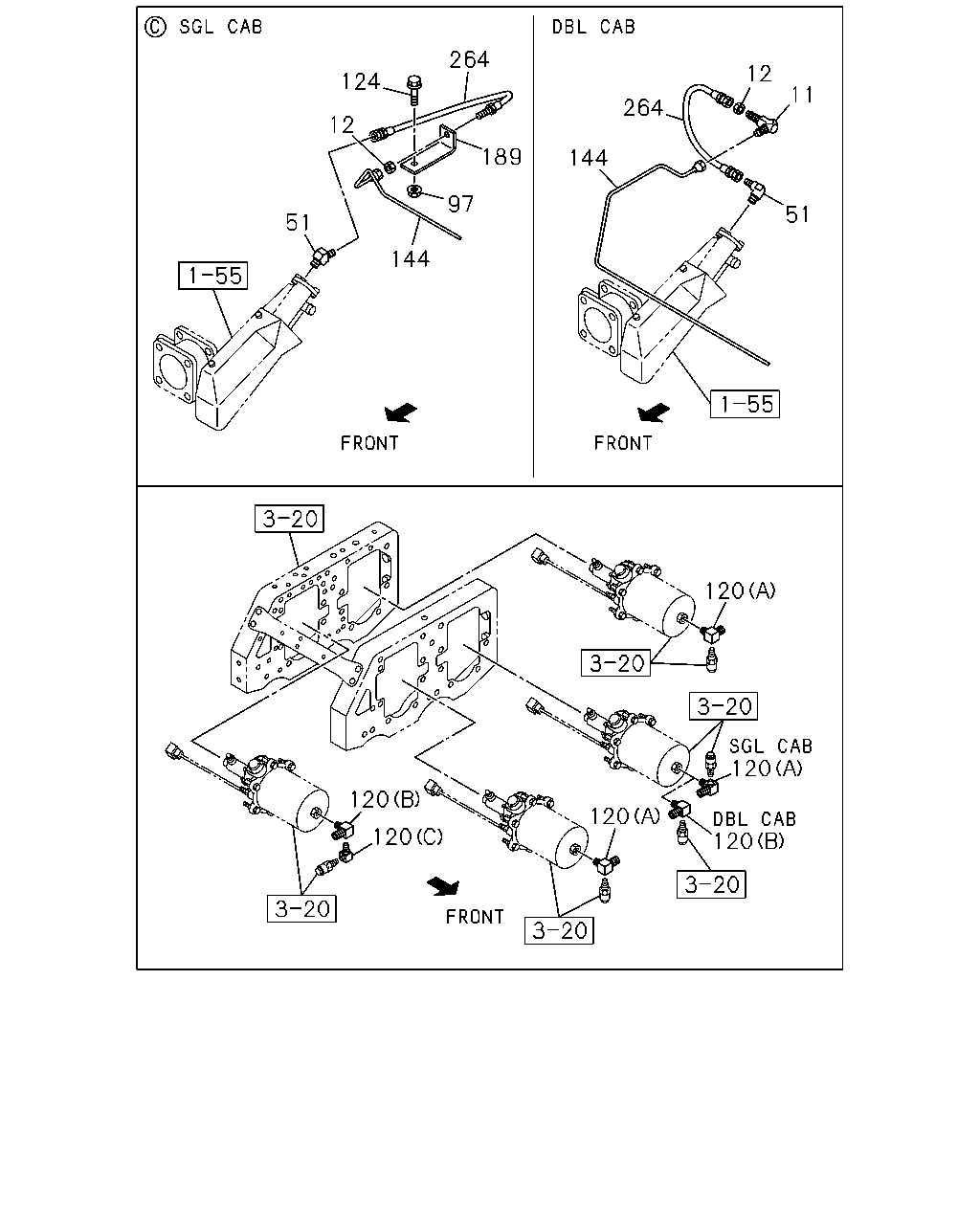

çizim 364403
124 12 51 144 97 189 264 144 264 12 11 51 120 120 120 120 120 120
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1307- ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 1011- ● ●
51 UNION
M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1011-1503 ●
51 UNION
M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504- ●
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011- ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ● ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 03 1 1307- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1307- ● ●
120 CONNECTOR; AIR PIPE
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1307- ● ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1011-1306 ● ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
L=1171 SERVICED BY L=1200 		1-47428-816-0 01 1 1307- ●
144 PIPE; AIR,UNION TO UNION
L=1579 SERVICED BY L=1620 		1-47428-820-0 01 1 1011-1306 ● ●
144 PIPE; AIR,UNION TO UNION
L=1530 SERVICED BY L=1620 		1-47428-820-0 01 1 1307- ●
189 BRACKET; FLEX HOSE 8-98077-571-0 01 1 1011-1306 ● ●
189 BRACKET; FLEX HOSE 8-98234-313-0 01 1 1307- ●
264 HOSE; FLEX
L=430 		1-09363-623-0 01 1 1011-1306 ●
264 HOSE; FLEX
L=340 		1-09363-622-0 01 1 1307- ●
264 HOSE; FLEX
L=280 		1-09363-610-0 01 1 1011-1306 ●
264 HOSE; FLEX
L=320 		1-09363-625-0 01 1 1307- ●

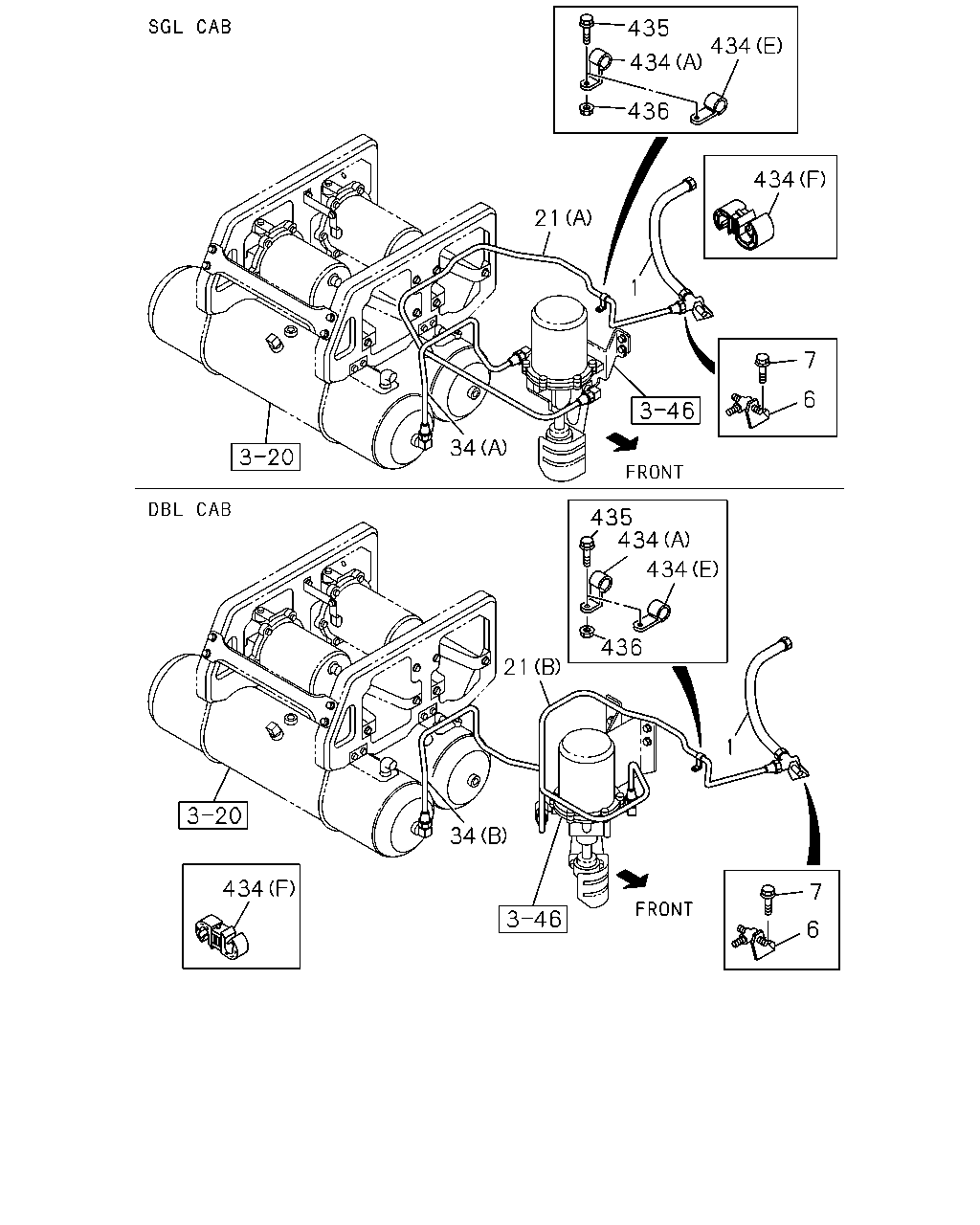

çizim 364466
435 434 436 434 434 1 21 34 7 6 435 434 434 436 21 1 7 6 34 434
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-97607-418-0 01 1 1011- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1011- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1748 		8-98126-086-0 01 1 1011- ●
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=1722 		8-98126-087-0 01 1 1011- ●
34 PIPE; AIR
(A) L=639 SERVICED BY L=660 		1-49115-480-0 01 1 1011-1306 ●
34 PIPE; AIR
(A) L=635 SERVICED BY L=660 		1-49115-480-0 01 1 1307- ●
34 PIPE; AIR
(B) L=1121 		8-98108-558-1 01 1 1011-1306 ●
34 PIPE; AIR
(B) L=1118 SERVICED BY L=1200 		1-49115-487-0 01 1 1307- ●
434 CLIP
(A) ID=10 & 15 		1-09709-279-1 01 1 1011- ●
434 CLIP
(B) L=250 		5-09707-030-1 01 1 1011-1306 ●
434 CLIP
(G) ID=7 L=20 		0-95234-635-0 01 1 1011- ● ●
434 CLIP
(E) ID=16 L=20 		0-95235-536-0 01 1 1011- ● ●
434 CLIP
(D) ID=6.35 		1-09701-247-1 01 1 1011-1306 ● ●
434 CLIP
(B) L=600 		1-09707-107-1 01 1 1011-1306 ● ●
434 CLIP
(F) ID=12 & 15 		1-09709-281-1 01 1 1011- ● ●
434 CLIP
(C) 		8-98012-254-1 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●

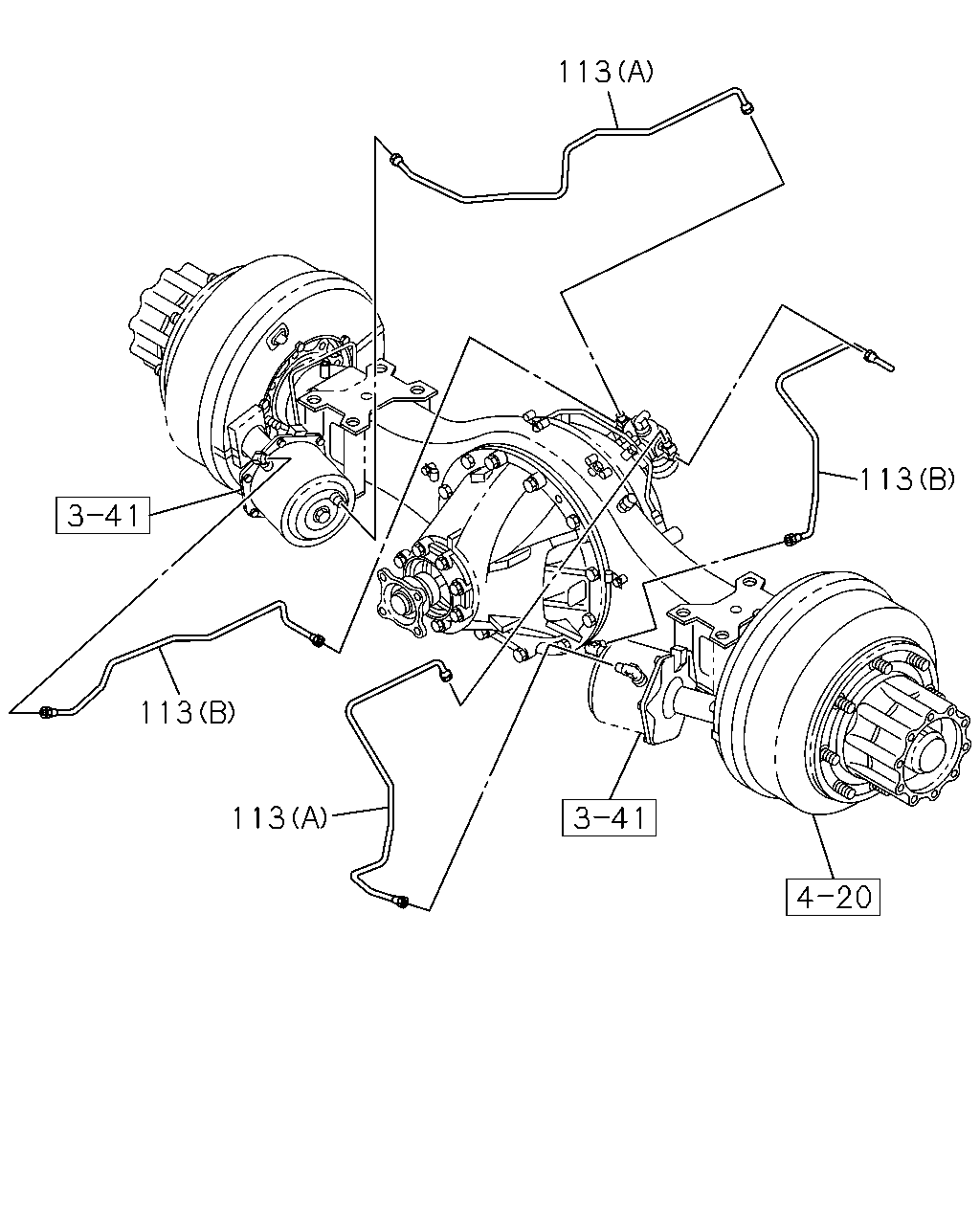

çizim 366114
113 113 113 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=1064 		8-98088-416-0 01 1 1011- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=972 		8-98088-417-0 01 1 1011- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) 		8-98089-891-0 01 1 1011- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) 		8-98089-892-0 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
