Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#71086) — 196 parça

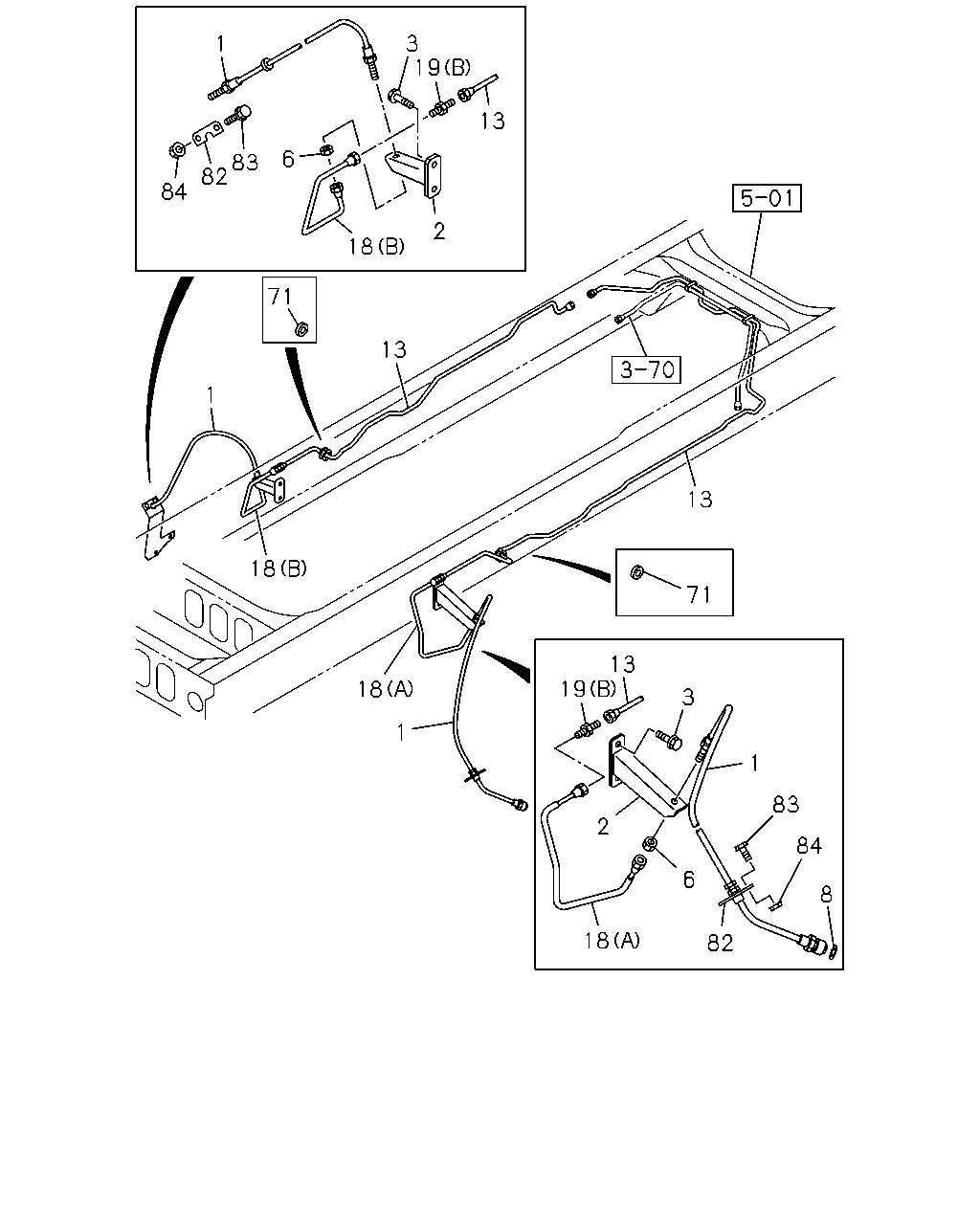

1 3 19 13 2 18 6 83 82 84 71 13 1 18 18 1 19 13 3 1 83 84 8 6 82 2 18 13 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	02	1	1011-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98130-817-0	01	1	1011-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-1	01	1	1011-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1011-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1011-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1011-	●	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2904 SERVICED BY L=3200	1-47428-745-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1467 SERVICED BY L=1500	1-47428-735-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2844 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203	●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1516 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1478 SERVICED BY L=1500	1-47428-735-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2825 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1540 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=389	8-98130-856-0	01	1	1011-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=467	8-98244-595-0	01	1	1307-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=417	8-98111-592-1	01	1	1011-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=467	8-98244-594-0	01	1	1307-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-1203	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1204-1306	●
19	UNION; OIL PIPE A/T<X9D> (A) M12 3WAY	0-92138-606-0	01	1	1204-1306		●
19	UNION; OIL PIPE (C) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1011-1203		●
19	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (A) M12 3WAY	0-92138-906-0	01	1	1204-1306		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1011-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1011-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1011-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1011-	●	●

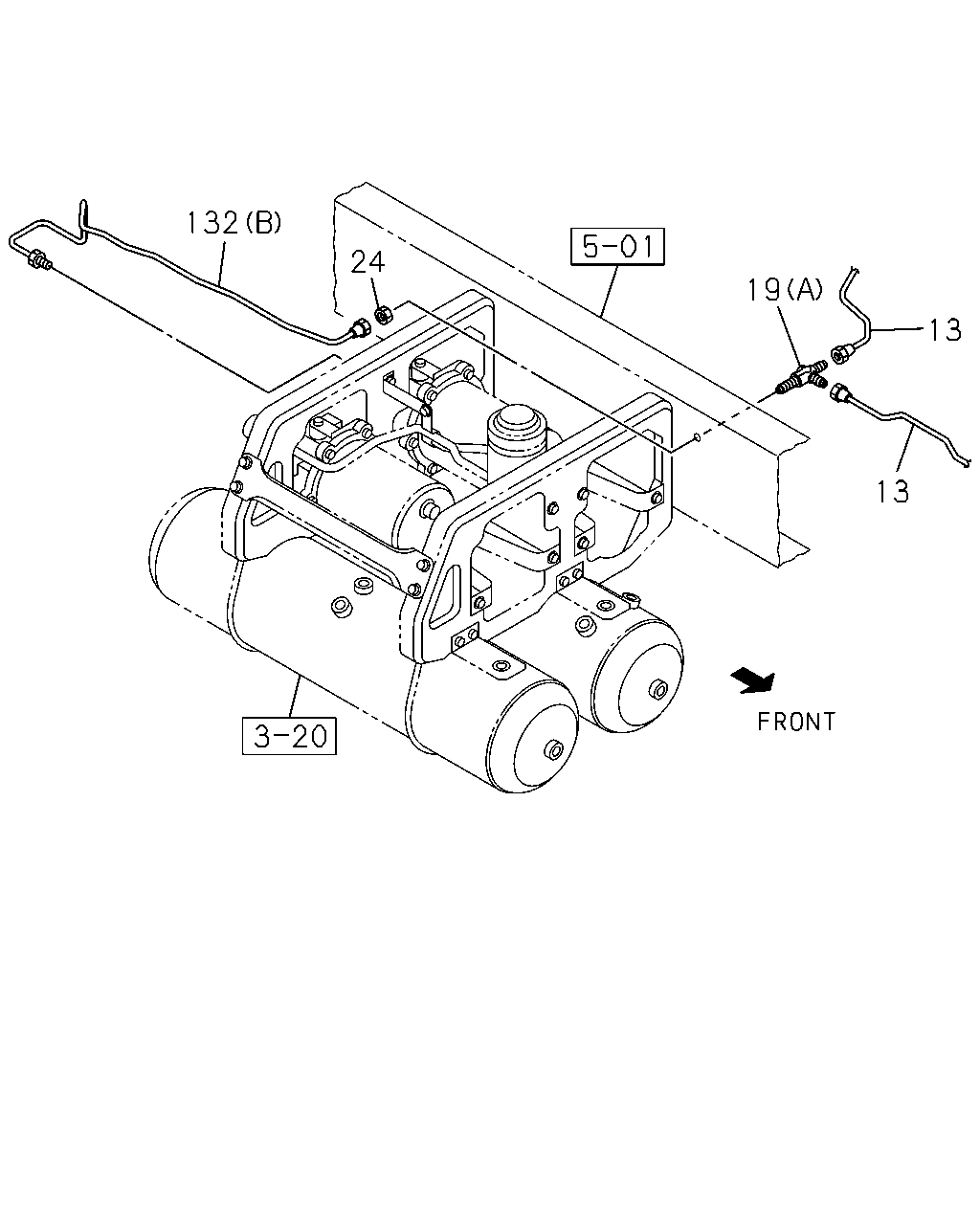

132 24 19 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2904 SERVICED BY L=3200	1-47428-745-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1467 SERVICED BY L=1500	1-47428-735-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2844 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203	●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1516 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1478 SERVICED BY L=1500	1-47428-735-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2825 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1540 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-1203	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1204-1306	●
19	UNION; OIL PIPE A/T<X9D> (A) M12 3WAY	0-92138-606-0	01	1	1204-1306		●
19	UNION; OIL PIPE (C) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1011-1203		●
19	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (A) M12 3WAY	0-92138-906-0	01	1	1204-1306		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1306	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=322	8-98237-544-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT MANUAL TRANSMISSION<X9C> (E) L=567	8-98233-915-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT A/T<X9D> (E) L=489	8-98233-914-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	1011-1306	●
132	PIPE; OIL,BRK,HYD UNIT (D) L=492	8-98237-542-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=1035 SERVICED BY L=1100	1-47428-731-0	01	1	1011-1306		●
132	PIPE; OIL,BRK,HYD UNIT (F) L=876	8-98233-912-0	01	1	1307-		●

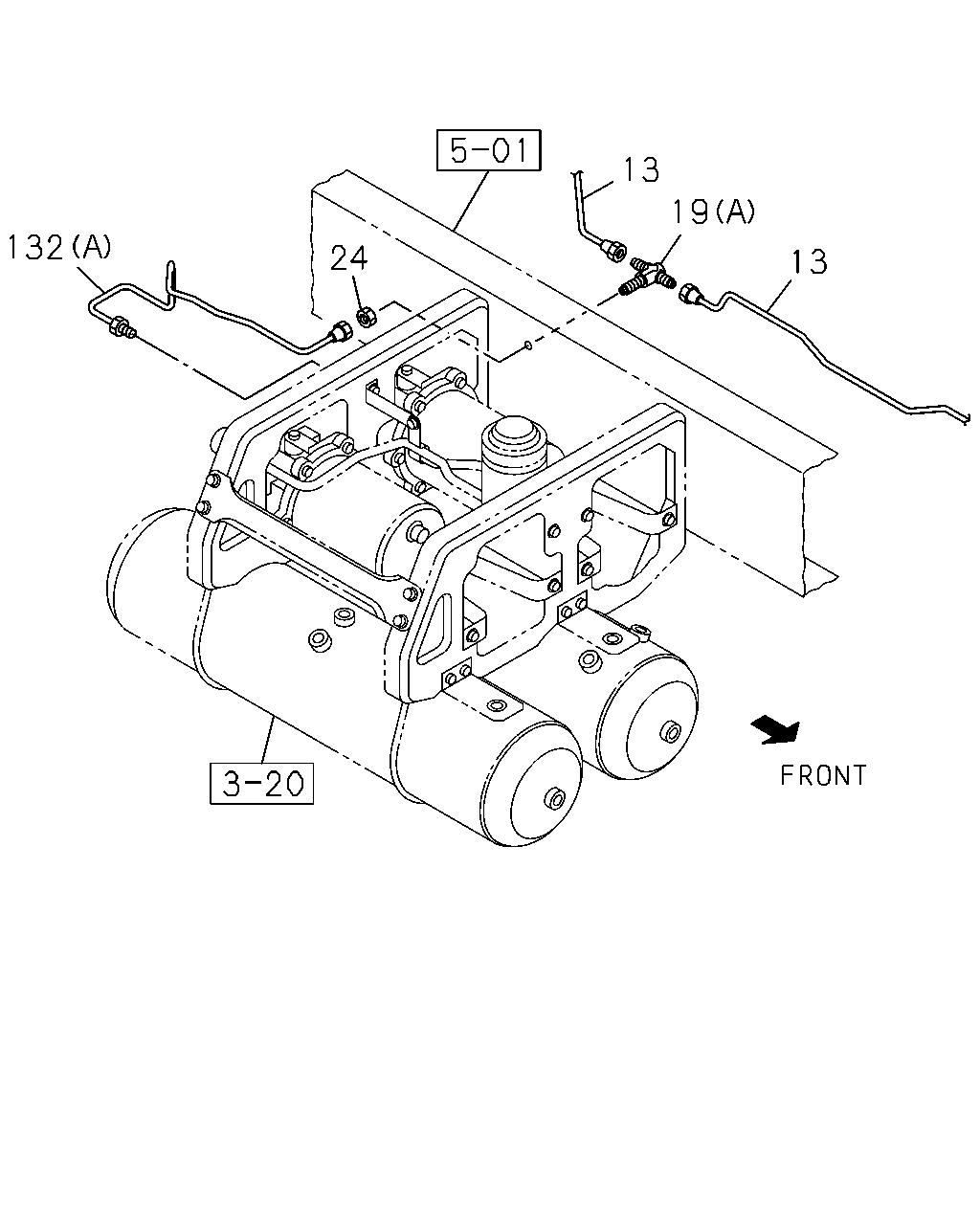

132 24 13 19 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2904 SERVICED BY L=3200	1-47428-745-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1467 SERVICED BY L=1500	1-47428-735-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2844 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203	●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1516 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1478 SERVICED BY L=1500	1-47428-735-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2825 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1540 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-1203	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1204-1306	●
19	UNION; OIL PIPE A/T<X9D> (A) M12 3WAY	0-92138-606-0	01	1	1204-1306		●
19	UNION; OIL PIPE (C) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1011-1203		●
19	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (A) M12 3WAY	0-92138-906-0	01	1	1204-1306		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1306	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=322	8-98237-544-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT MANUAL TRANSMISSION<X9C> (E) L=567	8-98233-915-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT A/T<X9D> (E) L=489	8-98233-914-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	1011-1306	●
132	PIPE; OIL,BRK,HYD UNIT (D) L=492	8-98237-542-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=1035 SERVICED BY L=1100	1-47428-731-0	01	1	1011-1306		●
132	PIPE; OIL,BRK,HYD UNIT (F) L=876	8-98233-912-0	01	1	1307-		●

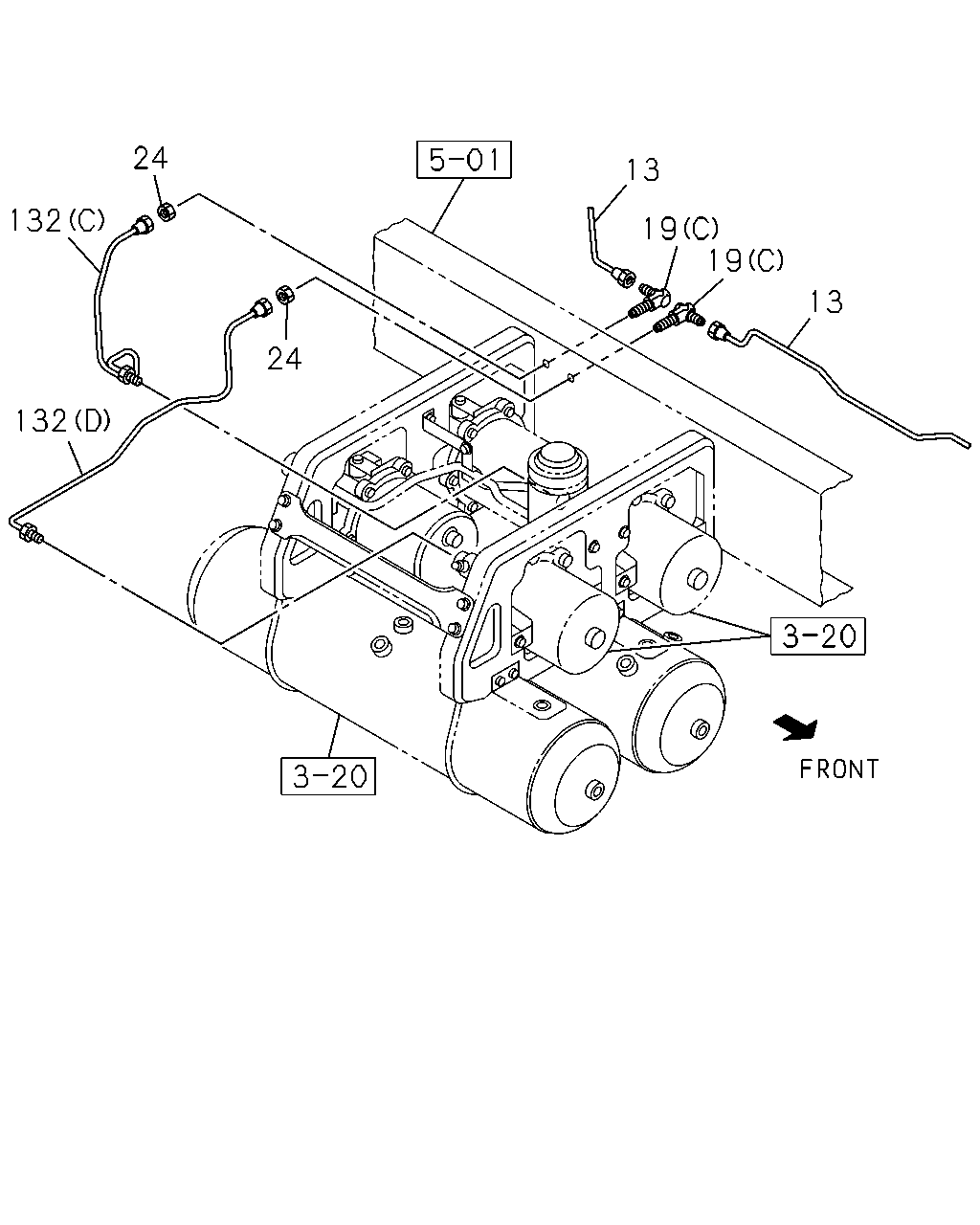

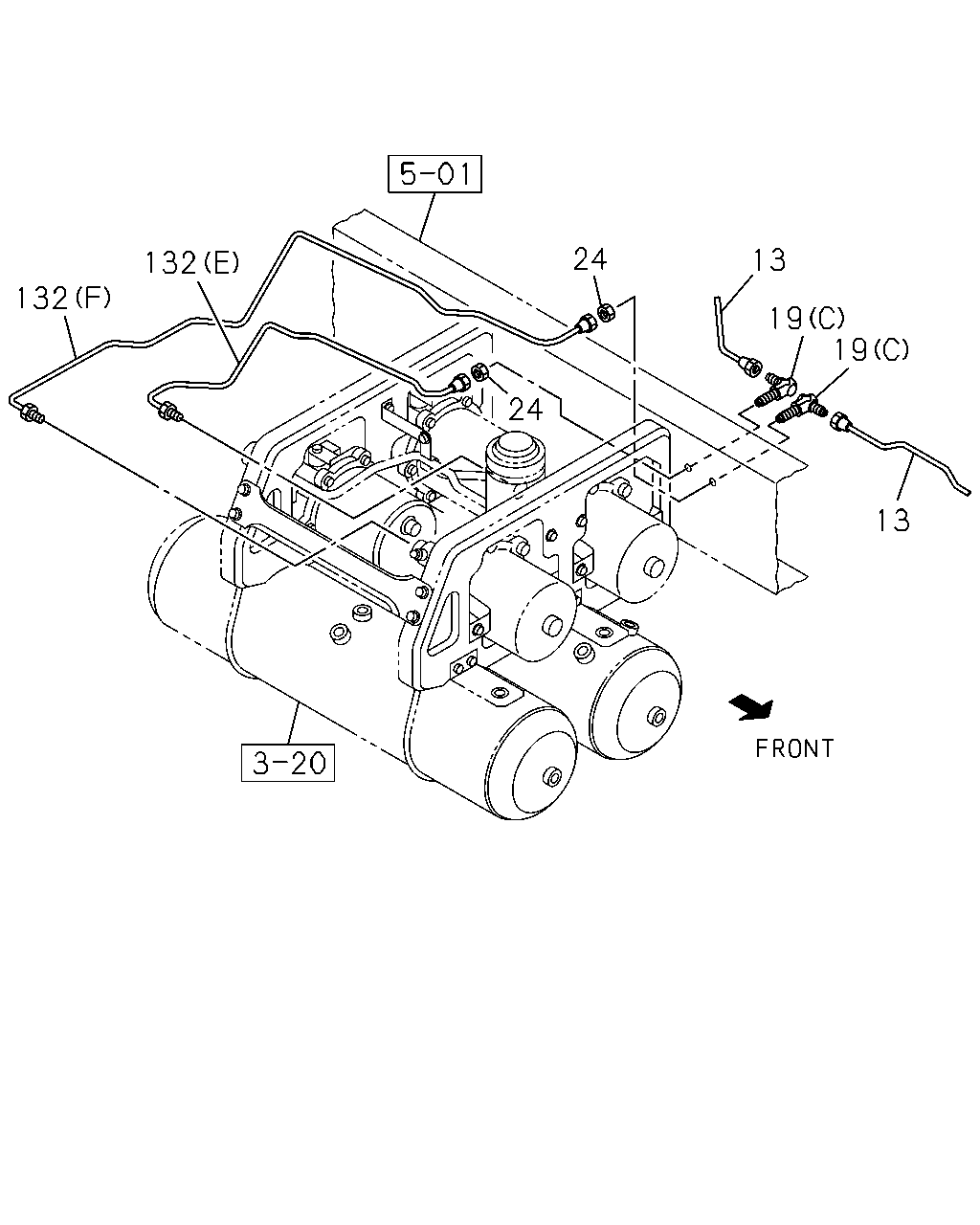

132 132 24 24 13 19 19 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2904 SERVICED BY L=3200	1-47428-745-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1467 SERVICED BY L=1500	1-47428-735-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2844 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203	●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1516 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1478 SERVICED BY L=1500	1-47428-735-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2825 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1540 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-1203	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1204-1306	●
19	UNION; OIL PIPE A/T<X9D> (A) M12 3WAY	0-92138-606-0	01	1	1204-1306		●
19	UNION; OIL PIPE (C) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1011-1203		●
19	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (A) M12 3WAY	0-92138-906-0	01	1	1204-1306		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1306	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=322	8-98237-544-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT MANUAL TRANSMISSION<X9C> (E) L=567	8-98233-915-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT A/T<X9D> (E) L=489	8-98233-914-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	1011-1306	●
132	PIPE; OIL,BRK,HYD UNIT (D) L=492	8-98237-542-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=1035 SERVICED BY L=1100	1-47428-731-0	01	1	1011-1306		●
132	PIPE; OIL,BRK,HYD UNIT (F) L=876	8-98233-912-0	01	1	1307-		●

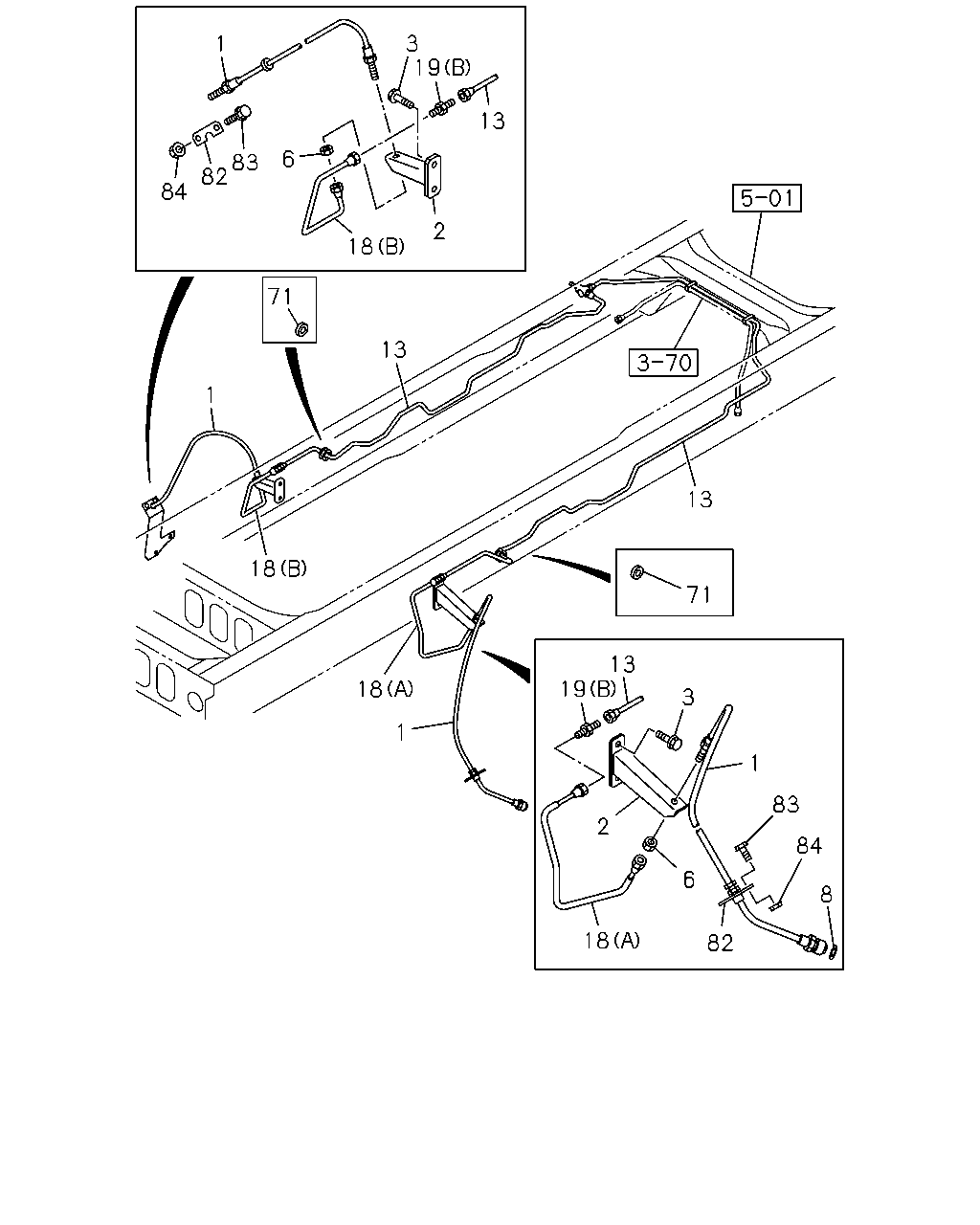

1 3 19 13 2 18 83 6 82 84 13 71 1 18 13 71 13 1 18 19 3 1 83 84 8 82 6 2 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	02	1	1011-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98130-817-0	01	1	1011-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-1	01	1	1011-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1011-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1011-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1011-	●	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2904 SERVICED BY L=3200	1-47428-745-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1467 SERVICED BY L=1500	1-47428-735-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2844 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203	●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1516 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1478 SERVICED BY L=1500	1-47428-735-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2825 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1540 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=389	8-98130-856-0	01	1	1011-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=467	8-98244-595-0	01	1	1307-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=417	8-98111-592-1	01	1	1011-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=467	8-98244-594-0	01	1	1307-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-1203	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1204-1306	●
19	UNION; OIL PIPE A/T<X9D> (A) M12 3WAY	0-92138-606-0	01	1	1204-1306		●
19	UNION; OIL PIPE (C) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1011-1203		●
19	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (A) M12 3WAY	0-92138-906-0	01	1	1204-1306		●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1011-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1011-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1011-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1011-	●	●

24 132 24 132 13 19 19 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=2904 SERVICED BY L=3200	1-47428-745-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1467 SERVICED BY L=1500	1-47428-735-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION MANUAL TRANSMISSION<X9C> L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION L=2866 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2844 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203	●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1516 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306	●
13	PIPE; OIL,UNION TO UNION L=1478 SERVICED BY L=1500	1-47428-735-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=2858 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2851 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=2825 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
13	PIPE; OIL,UNION TO UNION L=1542 SERVICED BY L=1620	1-47428-736-0	01	1	1011-1203		●
13	PIPE; OIL,UNION TO UNION A/T<X9D> L=1540 SERVICED BY L=1620	1-47428-736-0	01	1	1204-1306		●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-1203	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1204-1306	●
19	UNION; OIL PIPE A/T<X9D> (A) M12 3WAY	0-92138-606-0	01	1	1204-1306		●
19	UNION; OIL PIPE (C) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-	●	●
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-906-0	01	1	1011-1203		●
19	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> (A) M12 3WAY	0-92138-906-0	01	1	1204-1306		●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1306	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=322	8-98237-544-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT MANUAL TRANSMISSION<X9C> (E) L=567	8-98233-915-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT A/T<X9D> (E) L=489	8-98233-914-0	01	1	1307-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=678 SERVICED BY L=700	1-47428-727-0	01	1	1011-1306	●
132	PIPE; OIL,BRK,HYD UNIT (D) L=492	8-98237-542-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=1035 SERVICED BY L=1100	1-47428-731-0	01	1	1011-1306		●
132	PIPE; OIL,BRK,HYD UNIT (F) L=876	8-98233-912-0	01	1	1307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
