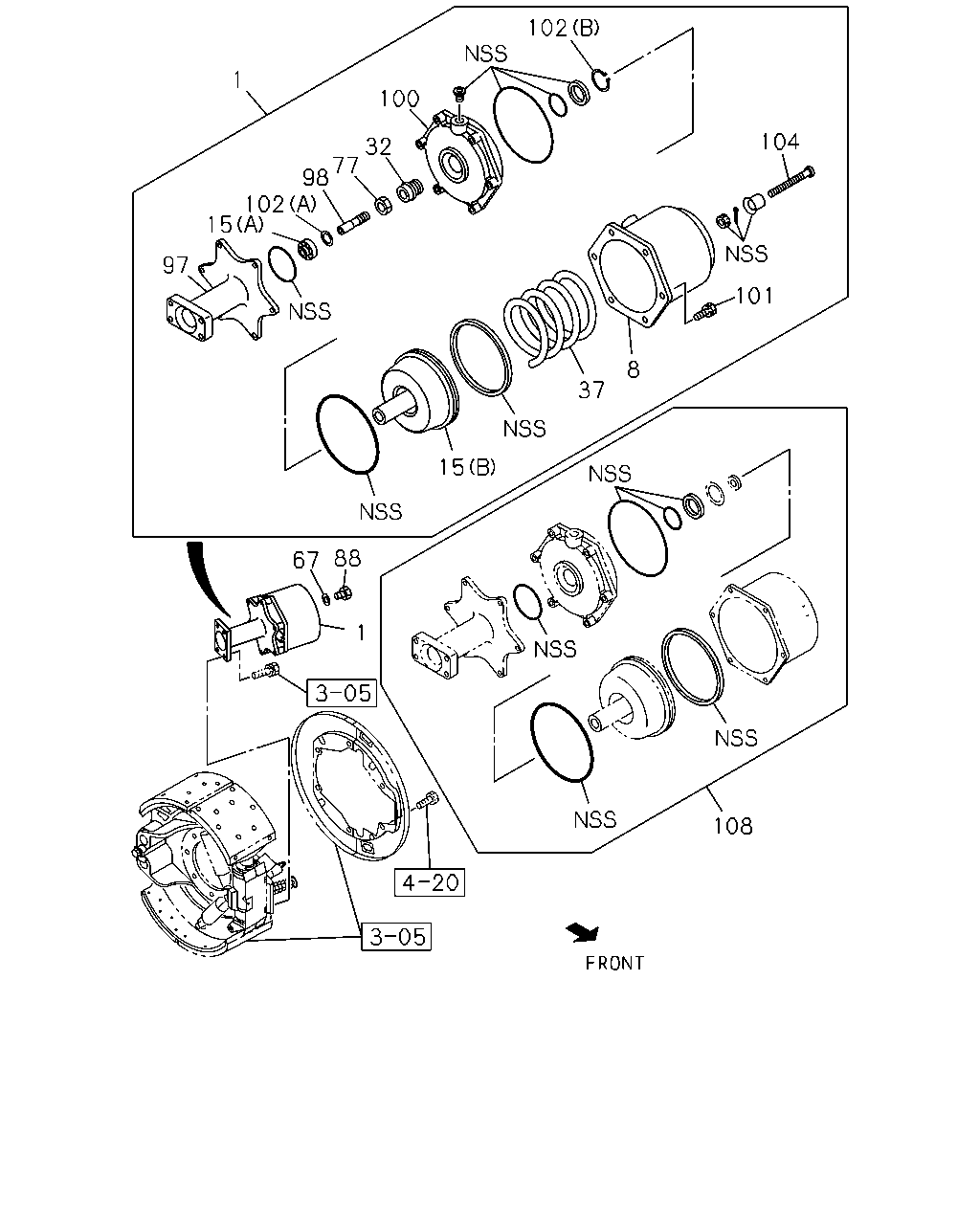

3-41 — REAR BRAKE POWER CHAMBER
(#71084) — 20 parça
Tümü
A - FGS5MS
B - FGS5WS
97
15
102
98
77
32
100
102
15
37
8
101
104
67
88
1
108
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
1-48250-914-0
01
1
1011-
●
●
1
CHAMBER ASM; SPRING
1-48250-915-0
01
1
1011-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-193-0
01
1
1011-
●
●
8
SHELL; CYL,SPR CHAMBER
1-48251-194-0
01
1
1011-
●
●
15
PISTON
(B)
1-48262-027-0
02
1
1011-
●
●
15
PISTON
(A)
1-48263-024-0
02
1
1011-
●
●
32
CONNECTOR; SPR CHAMBER
1-48263-026-0
02
1
1011-
●
●
37
SPRING; LWR,SPR CHAMBER
1-48265-010-0
02
1
1011-
●
●
67
GASKET; SPR CHAMBER
ID=16.2 OD=24
9-09571-416-0
02
1
1011-
●
●
77
NUT; SPR CHAMBER BRK
M18
9-99111-418-0
02
1
1011-
●
●
88
PLUG; SPR CHAMBER
M16X12
0-92002-416-0
02
1
1011-
●
●
97
BRACKET; CHAMBER
1-48258-243-0
01
1
1011-
●
●
97
BRACKET; CHAMBER
1-48258-244-0
01
1
1011-
●
●
98
ROD; CHAMBER
1-48263-037-0
02
1
1011-
●
●
100
HOUSING; SPR CHAMBER
1-48251-106-0
02
1
1011-
●
●
101
BOLT; SPR CHAMBER
1-48269-169-0
12
1
1011-
●
●
102
RING; SNAP,SPR CHAMBER
(A)
1-48269-092-0
02
1
1011-
●
●
102
RING; SNAP,SPR CHAMBER
(B) ID=15.7
9-09180-017-0
02
1
1011-
●
●
104
BOLT; RELEASE,SPR CHAMBER
1-48269-163-0
02
1
1011-
●
●
108
REPAIR KIT; SPR CHAMBER
1-85576-465-0
02
1
1011-
●
●
