Isuzu WW
▶
TRUCKS
▶
FTS
▶
11307 - FTS AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#71080) — 57 parça
Tümü
A - FGS5MS
B - FGS5WS
◀

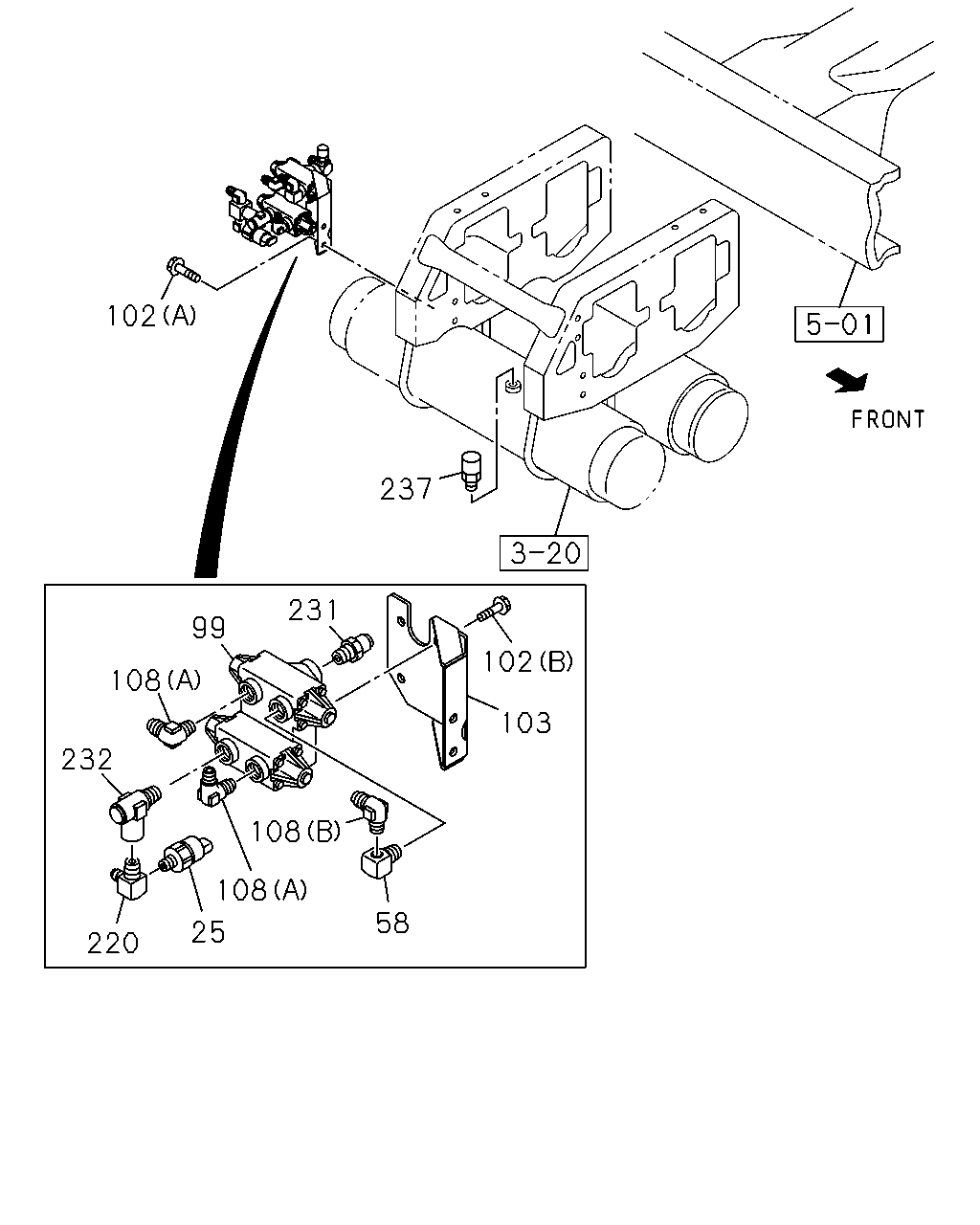

[322A] -'13/6 FIXING (16 parça)

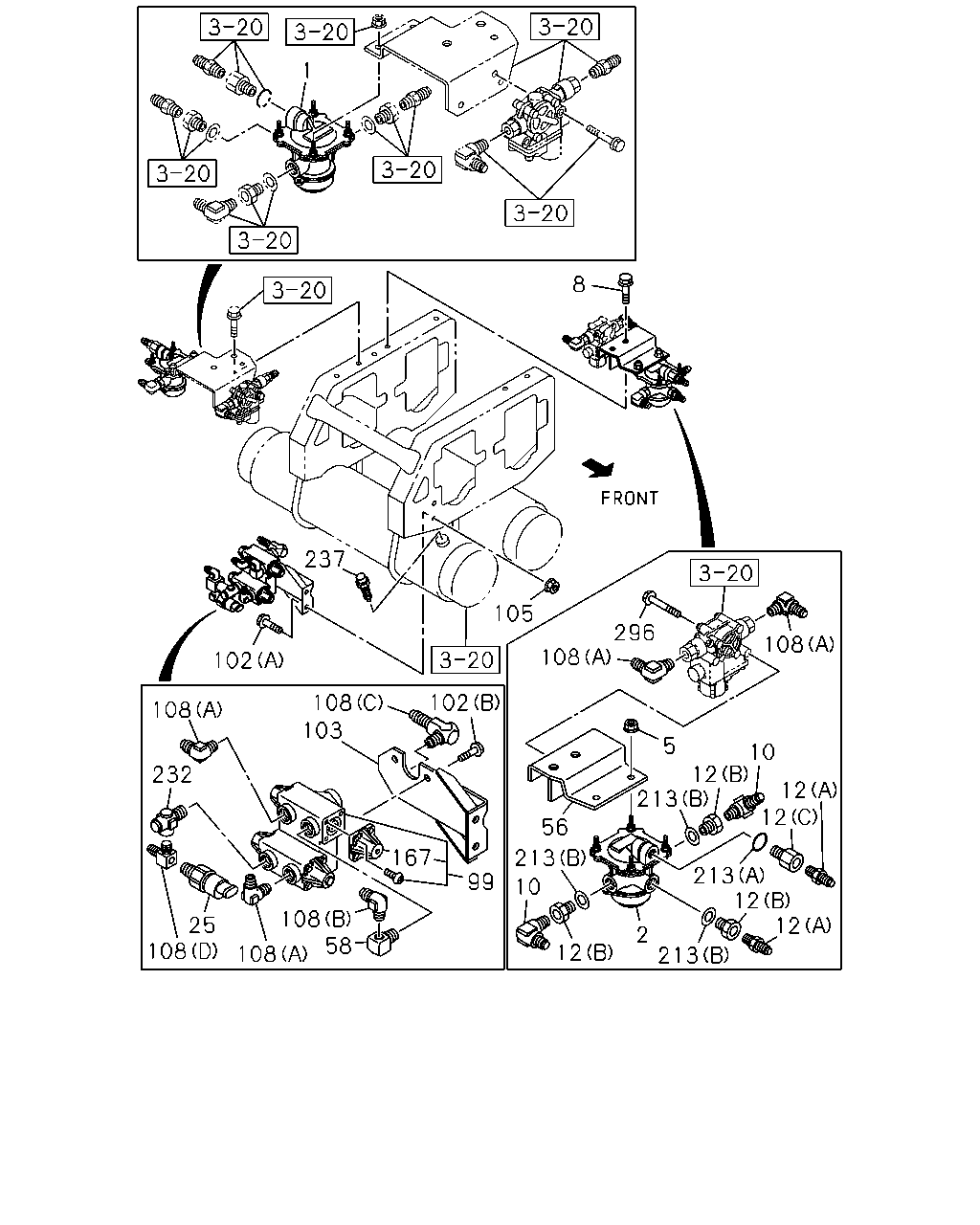

[322A] '13/7- FIXING (28 parça)

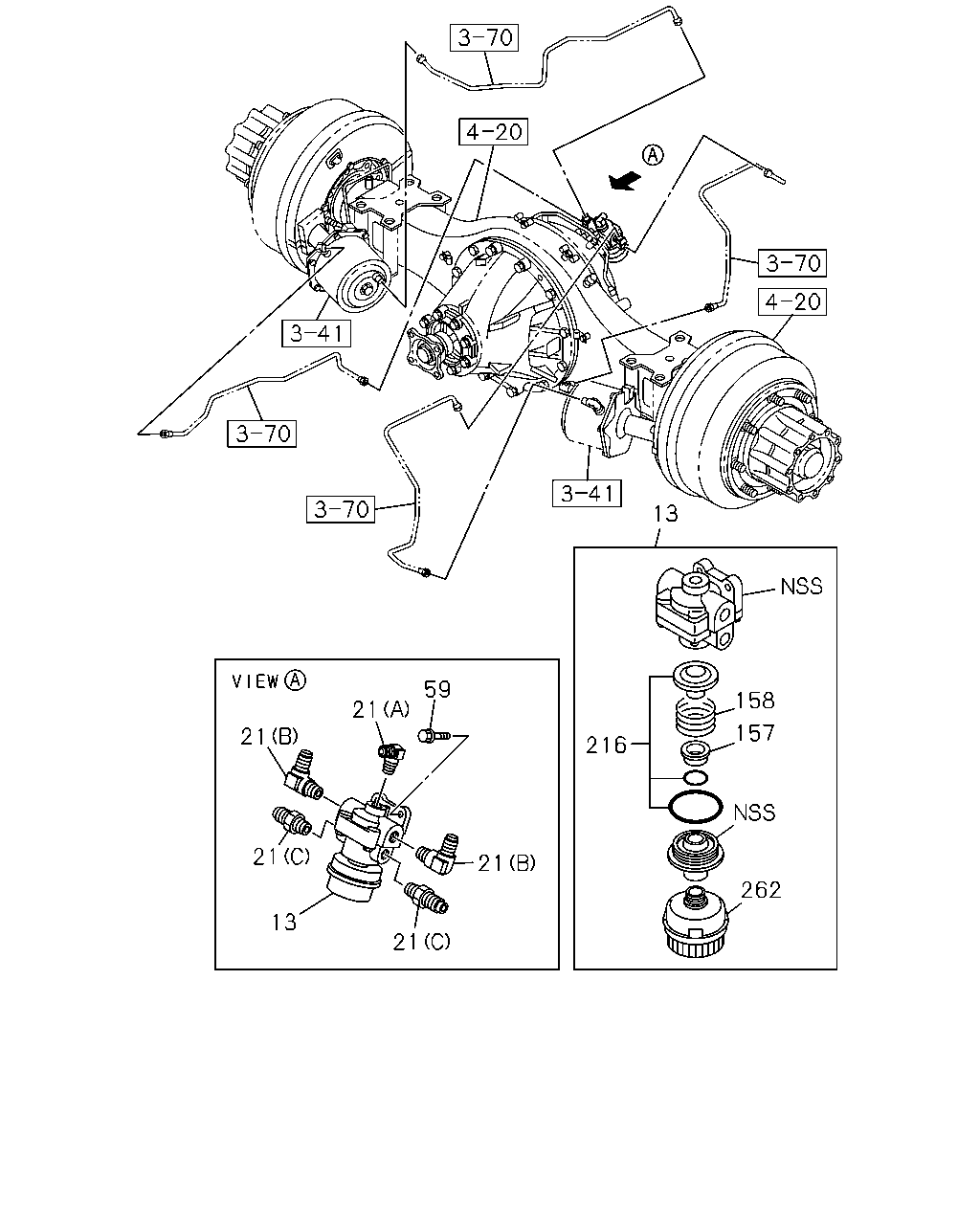

[322A] QUICK RELEASE VALVE (9 parça)

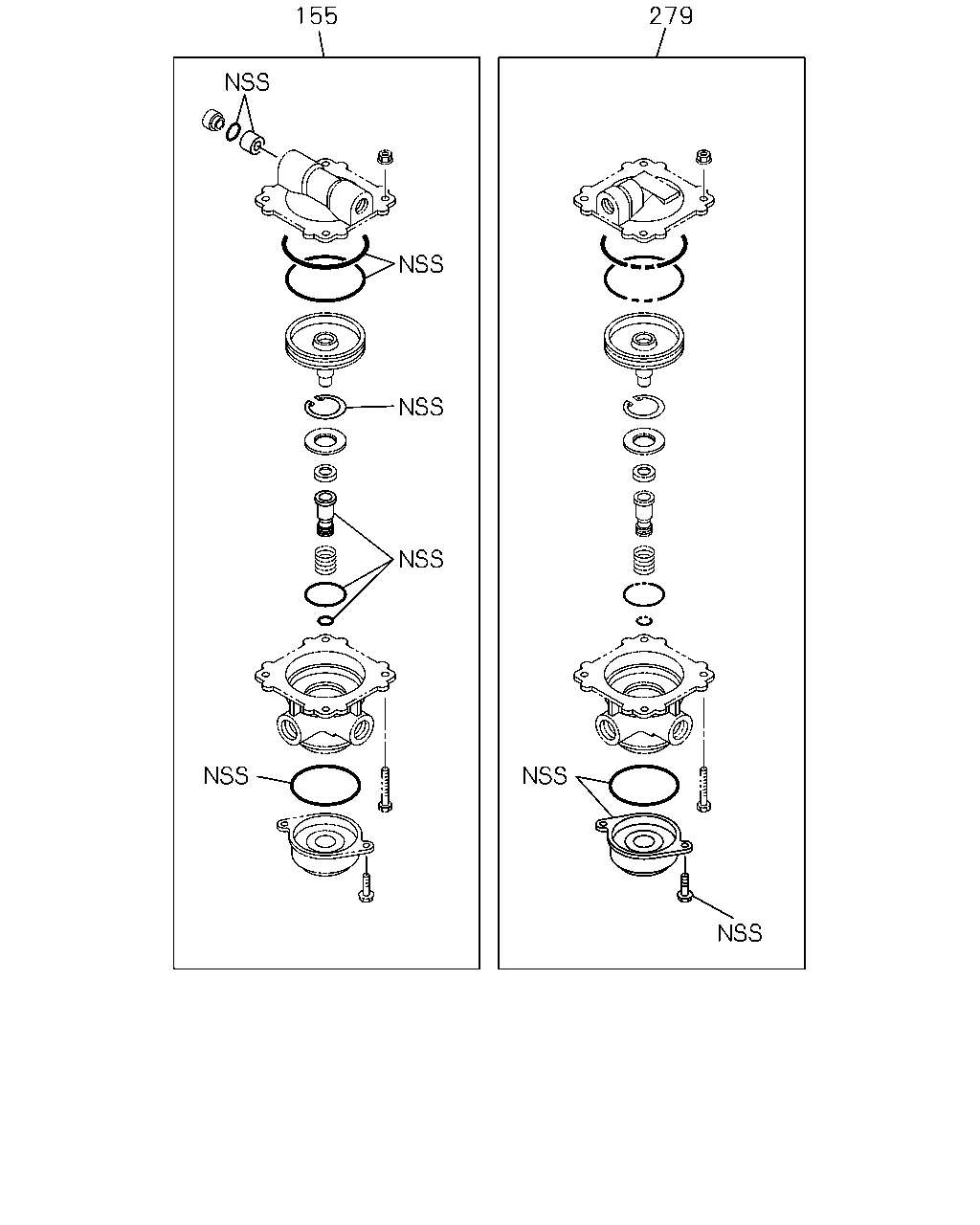

[322A] '13/7- REPAIR KIT;RELAY VALVE (2 parça)
[322A] '13/7- COMPONENT;RELAY VALVE (1 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶
102
237
102
103
58
108
108
25
220
232
108
99
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
SWITCH; PRESSURE
STAMP 5.5
8-97609-249-0
01
1
1011-
●
●
58
ADAPTER
PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1011-
●
●
99
VALVE; PROTECTION
1-48110-294-3
01
1
1011-
●
●
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1011-
●
●
102
BOLT; PROTECTION VALVE
(A) M10X25 FLANGE
0-28651-025-0
02
1
1011-
●
●
103
BRACKET; PROTECTION VALVE
8-98111-527-1
01
1
1011-1306
●
●
103
BRACKET; PROTECTION VALVE
8-98236-814-0
01
1
1307-
●
●
108
CONNECTOR; ELBOW
(C)
1-09650-516-0
01
1
1307-
●
●
108
CONNECTOR; ELBOW
(D)
8-98148-475-0
01
1
1307-
●
●
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1011-
●
●
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1011-1306
●
●
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
04
1
1307-
●
●
220
CONNECTOR; 3WAY
DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1011-1306
●
●
231
CONNECTOR; NYLON TUBE
M20 & PT1/2 STRAIGHT
1-09650-249-1
01
1
1011-1306
●
●
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1011-
●
●
237
VALVE; SAFETY
1-48320-012-2
01
1
1011-
●
●
1
237
102
108
103
232
108
108
58
108
25
108
167
99
102
105
108
296
5
12
213
10
108
12
12
213
12
12
213
2
12
10
213
56
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; RELAY RWD RR
8-98091-529-0
01
1
1307-
●
●
2
VALVE; RELAY
8-98091-529-0
01
1
1307-
●
●
5
NUT
M8 FLANGE
0-91180-108-0
02
1
1307-
●
●
8
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
1307-
●
●
10
CONNECTOR
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1307-
●
●
12
CONNECTOR; RELAY VLV
(A) M16 & PT3/8 STRAIGHT
1-09650-179-1
02
1
1307-
●
●
12
CONNECTOR; RELAY VLV
(B) INNER PT3/8,OUTER M22
1-09650-494-1
03
1
1307-
●
●
12
CONNECTOR; RELAY VLV
(C) M16 & PT3/8 STRAIGHT
1-09661-044-0
01
1
1307-
●
●
25
SWITCH; PRESSURE
STAMP 5.5
8-97609-249-0
01
1
1011-
●
●
56
BRACKET; RELAY VLV
8-98238-240-0
01
1
1307-
●
●
58
ADAPTER
PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1011-
●
●
99
VALVE; PROTECTION
1-48110-294-3
01
1
1011-
●
●
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1011-
●
●
102
BOLT; PROTECTION VALVE
(A) M10X25 FLANGE
0-28651-025-0
02
1
1011-
●
●
103
BRACKET; PROTECTION VALVE
8-98111-527-1
01
1
1011-1306
●
●
103
BRACKET; PROTECTION VALVE
8-98236-814-0
01
1
1307-
●
●
105
NUT; BRKT,VALVE
M10 FLANGE
0-91180-210-0
02
1
1307-
●
●
108
CONNECTOR; ELBOW
(C)
1-09650-516-0
01
1
1307-
●
●
108
CONNECTOR; ELBOW
(D)
8-98148-475-0
01
1
1307-
●
●
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1011-
●
●
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1011-1306
●
●
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
04
1
1307-
●
●
167
COVER; VALVE
1-48119-625-0
04
1
1307-
●
●
213
GASKET
(A) ID=16.2 OD=24
9-09571-416-0
01
1
1307-
●
●
213
GASKET
(B) ID=22.5
9-09571-422-0
03
1
1307-
●
●
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1011-
●
●
237
VALVE; SAFETY
1-48320-012-2
01
1
1011-
●
●
296
BOLT; MODULATOR
M8X80 FLANGE
0-28050-880-0
02
1
1307-
●
●
13
158
157
262
216
21
21
13
21
21
21
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
VALVE ASM; QUICK RELEASE
1-48410-781-2
01
1
1011-
●
●
21
CONNECTOR; QUICK RELEASE VLV
(C) M14 & PT1/4 STRAIGHT
1-09650-332-1
02
1
1011-
●
●
21
CONNECTOR; QUICK RELEASE VLV
(B) M14 & PT3/8 ELBOW
1-09650-437-0
02
1
1011-
●
●
21
CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1011-
●
●
59
BOLT; RELEASE VALVE FIX
M8X20 FLANGE
0-28050-820-0
02
1
1011-
●
●
157
RETAINER; VALVE
1-48419-036-0
01
1
1307-
●
●
158
SPRING; VALVE
9-48419-003-0
01
1
1307-
●
●
216
REPAIR KIT; QUICK RELEASE VLV
1-85579-062-0
01
1
1307-
●
●
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1307-
●
●
155
279
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
155
REPAIR KIT; RELAY VALVE
8-98165-977-0
02
1
1307-
●
●
279
REPAIR KIT; SILENCER
8-98165-978-0
02
1
1307-
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; RELAY RWD RR
8-98091-529-0
01
1
1307-
●
●
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1307-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
