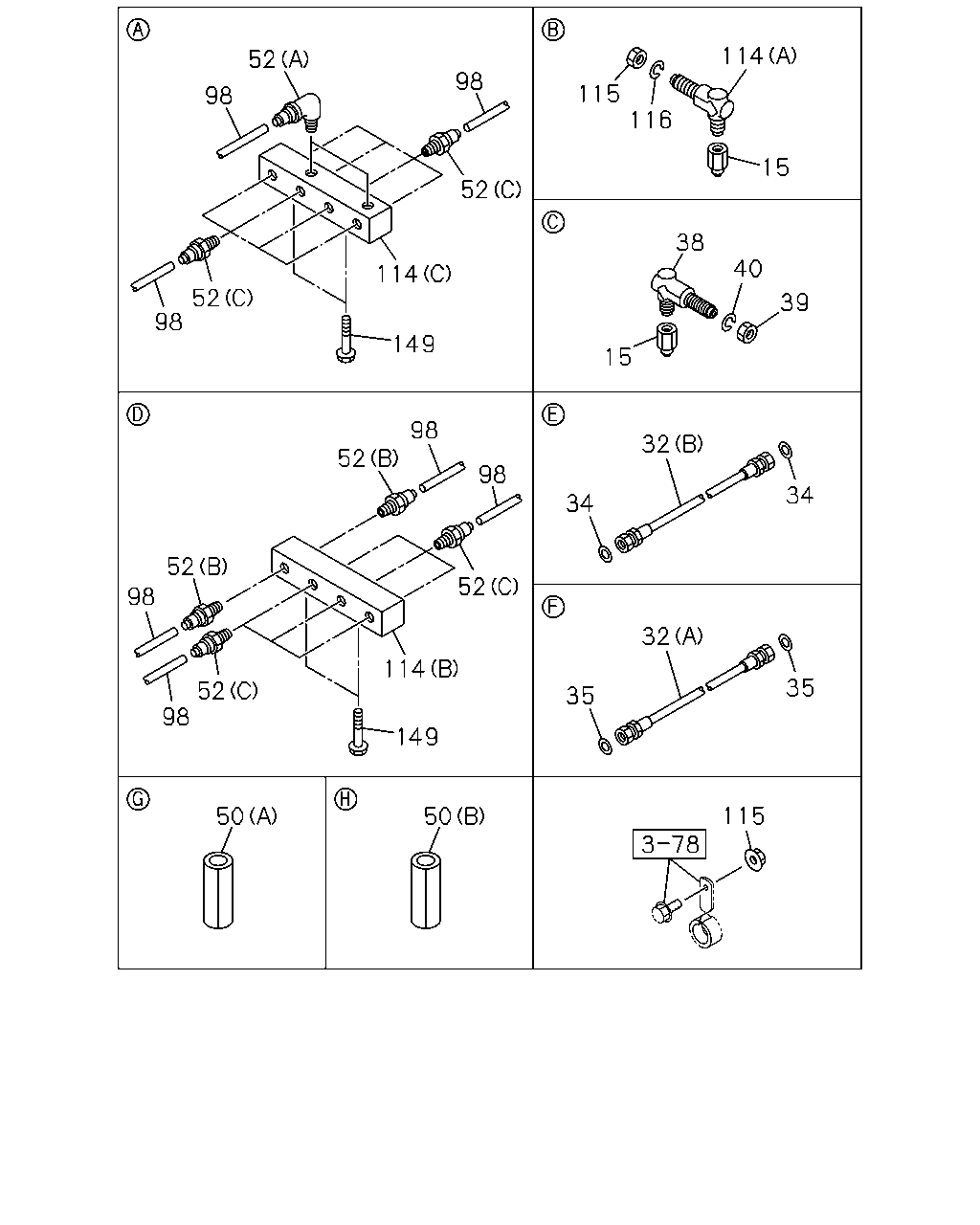

3-75 — BRAKE PIPING; AIR,FRONT (#7108) — 99 parça

114 52 98 115 98 116 15 52 38 40 114 52 98 39 149 15 98 32 52 98 34 34 52 52 98 32 114 35 52 98 35 149 115 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0012-	●
15	CONNECTOR; AIR PIPE DIN12 & R1/4 ELBOW	1-09660-655-1	02	1	0012-		●
32	HOSE; FLEX,FRT (B) L=550	0-07847-550-1	02	1	0012-0112	●
32	HOSE; FLEX,FRT (B) L=550	0-07846-550-1	02	1	0201-0411	●
32	HOSE; FLEX,FRT (B) L=640	1-09363-747-0	02	1	0412-	●
32	HOSE; FLEX,FRT (A) L=670	0-07847-670-1	02	1	0012-0112	●
32	HOSE; FLEX,FRT (A) L=670	0-07846-670-1	02	1	0201-	●
32	HOSE; FLEX,FRT (A) L=580	0-07847-580-1	02	1	0012-0605		●
32	HOSE; FLEX,FRT (A) L=580	0-57847-580-1	02	1	0606-		●
32	HOSE; FLEX,FRT (B) L=630	0-07847-630-1	01	1	0012-0112		●
32	HOSE; FLEX,FRT (B) L=630	0-07846-630-1	01	1	0201-		●
32	HOSE; FLEX,FRT (B) L=660	0-07847-660-1	01	1	0012-0112		●
32	HOSE; FLEX,FRT (B) L=660	0-07846-660-1	01	1	0201-		●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0012-0411	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0412-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0012-	●	●
38	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-397-1	01	1	0012-	●
38	UNION; AIR PIPE M20 & PT1/4 ELBOW	1-09650-081-1	01	1	0012-		●
39	NUT; PIPE UNION M20	9-99110-420-0	01	1	0012-	●
39	NUT; PIPE UNION M22	9-09111-422-0	01	1	0012-0512		●
39	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-		●
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0012-0603	●
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	0604-	●
50	SLEEVE; RUBBER,NYLON TUBE (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0103-	●
50	SLEEVE; RUBBER,NYLON TUBE (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0103-0103	●
50	SLEEVE; RUBBER,NYLON TUBE (A) ID=29 OD=39 L=40	1-09337-013-0	02	1	0104-	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0012-0306	●	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0307-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	02	1	0012-0306	●	●
52	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0307-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	14	1	0012-0306	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	14	1	0307-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87410-083-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0402-	●	●
114	UNION; NYLON TUBE (A) M20 & M20 ELBOW	1-09654-397-1	01	1	0012-	●
114	UNION; NYLON TUBE (B)	1-09661-345-0	01	1	0012-	●	●
114	UNION; NYLON TUBE (C)	1-09661-346-0	01	1	0012-	●	●
114	UNION; NYLON TUBE (A) M20 & PT1/4 ELBOW	1-09650-081-1	01	1	0012-		●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0901-		●
115	NUT; TUBE UNION M20	9-99110-420-0	01	1	0012-	●
115	NUT; TUBE UNION M22	9-09111-422-0	01	1	0012-0512		●
115	NUT; TUBE UNION M22	0-91111-522-0	01	1	0601-		●
116	WASHER; LK,TUBE UNION ID=20.2	9-09150-520-0	01	1	0012-0603	●
116	WASHER; LK,TUBE UNION ID=20.2	0-91510-520-0	01	1	0604-	●
149	BOLT; UNION M8X12 FLANGE	0-28080-812-0	04	1	0012-0512	●	●
149	BOLT; UNION M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●

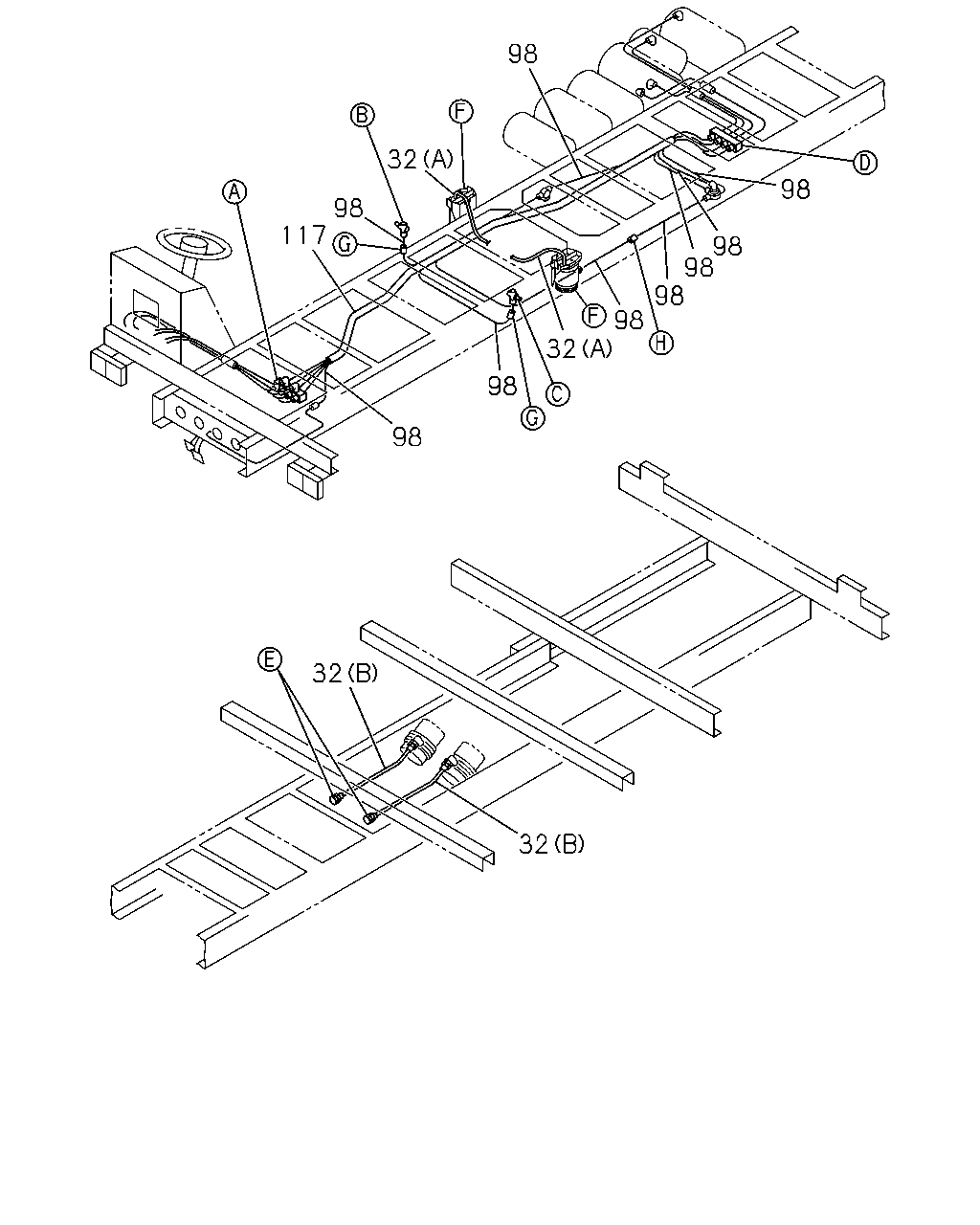

98 32 98 98 117 98 98 98 98 32 98 98 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (B) L=550	0-07847-550-1	02	1	0012-0112	●
32	HOSE; FLEX,FRT (B) L=550	0-07846-550-1	02	1	0201-0411	●
32	HOSE; FLEX,FRT (B) L=640	1-09363-747-0	02	1	0412-	●
32	HOSE; FLEX,FRT (A) L=670	0-07847-670-1	02	1	0012-0112	●
32	HOSE; FLEX,FRT (A) L=670	0-07846-670-1	02	1	0201-	●
32	HOSE; FLEX,FRT (A) L=580	0-07847-580-1	02	1	0012-0605		●
32	HOSE; FLEX,FRT (A) L=580	0-57847-580-1	02	1	0606-		●
32	HOSE; FLEX,FRT (B) L=630	0-07847-630-1	01	1	0012-0112		●
32	HOSE; FLEX,FRT (B) L=630	0-07846-630-1	01	1	0201-		●
32	HOSE; FLEX,FRT (B) L=660	0-07847-660-1	01	1	0012-0112		●
32	HOSE; FLEX,FRT (B) L=660	0-07846-660-1	01	1	0201-		●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87410-083-0	AR	1	0012-0401	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0402-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0402-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0012-0401	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0012-0401	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0012-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0012-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0012-0401	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0402-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0402-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0402-	●	●
